Page 1
Verpackung
/ Pack ing
Innenleiter /
Inner conductor
/ Innenleiter
/ Isolation
/ Folienschirmung
/ Drainage
/ Geflecht
/ Kabelmantel PVC
19.09.2019
ss
Nr. / No. Kabellänge / Cable length (m)
38514
45880
44506
45881
38516
45882
38517
45883
38518
45884
44505
45885
38520
45886
38521
38522
38523
0.50 bulk
0.50 SB
1.00 bulk
1.00 SB
1.50 bulk
1.50 SB
2.00 bulk
2.00 SB
3.00 bulk
3.00 SB
5.00 bulk
5.00 SB
7.50 bulk
7.50 SB
10.00 bulk
15.00 bulk
1/0.254 CCS
1/0.254 BC
1/0.320 BC
1/0.254 CCS
7/0.152 BC
7/0.192 BC
1/0.320 BC
7/0.152 BC
bulk20.00 w. amplifier
1/0.254 BC
(#30)
(#30)
(#28)
(#30)
(#26)
(#24)
(#28)
(#26)
(#30)
10.0±0.4
Ø (mm)
6.0±0.2
7.0±0.2
8.0±0.3
8.0±0.3
18.09.2017 tf
18.09.2017 tf
Änderungen vorbehalten / Subject to change

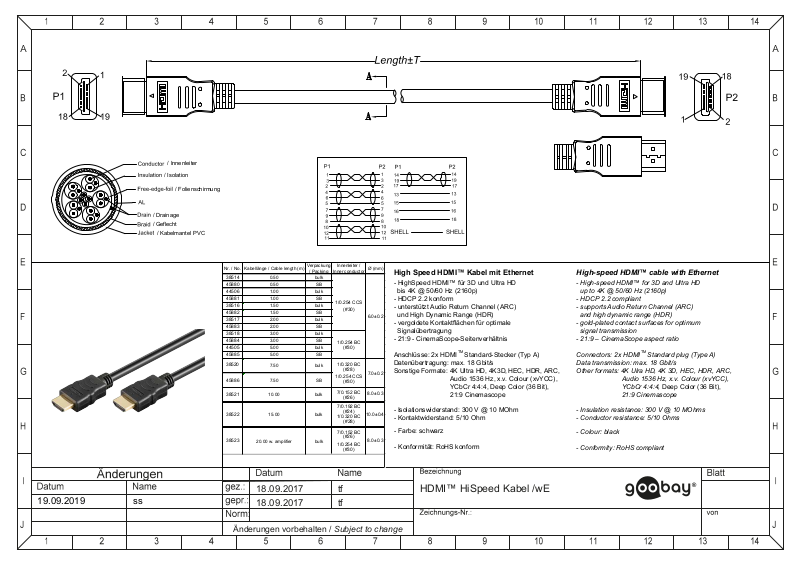

High Speed HDMI™ Kabel mit Ethernet
- HighSpeed HDMI™ für 3D und Ultra HD
bis 4K @ 50/60 Hz (2160p)
- HDCP 2.2 konform
- unterstützt Audio Return Channel (ARC)
und High Dynamic Range (HDR)
- vergoldete Kontaktflächen für optimale
Signalübertragung
- 21:9 - CinemaScope-Seitenverhältnis
Anschlüsse: 2x HDMI Standard-Stecker (Typ A)
Datenübertragung: max. 18 Gbit/s
Sonstige Formate: 4K Ultra HD, 4K 3D, HEC, HDR, ARC,
Audio 1536 Hz, x.v. Colour (xvYCC),
YCbCr 4:4:4, Deep Color (36 Bit),
21:9 Cinemascope
- Isolationswiderstand: 300 V @ 10 MOhm
- Kontaktwiderstand: 5/10 Ohm
- Farbe: schwarz
- Konformität: RoHS konform
HDMI™ HiSpeed Kabel /wE
TM TM
High-speed HDMI™ cable with Ethernet
- High-speed HDMI™ for 3D and Ultra HD
up to 4K @ 50/60 Hz (2160p)
- HDCP 2.2 compliant
- supports Audio Return Channel (ARC)
and high dynamic range (HDR)
- gold-plated contact surfaces for optimum
signal transmission
- 21:9 – CinemaScope aspect ratio
Connectors: 2x HDMI Standard plug (Type A)
Data transmission: max. 18 Gbit/s
Other formats: 4K Ulra HD, 4K 3D, HEC, HDR, ARC,
Audio 1536 Hz, x.v. Colour (xvYCC),
YCbCr 4:4:4, Deep Color (36 Bit),
21:9 Cinemascope
- Insulation resistance: 300 V @ 10 MOhms
- Conductor resistance: 5/10 Ohms
- Colour: black
- Conformity: RoHS compliant
