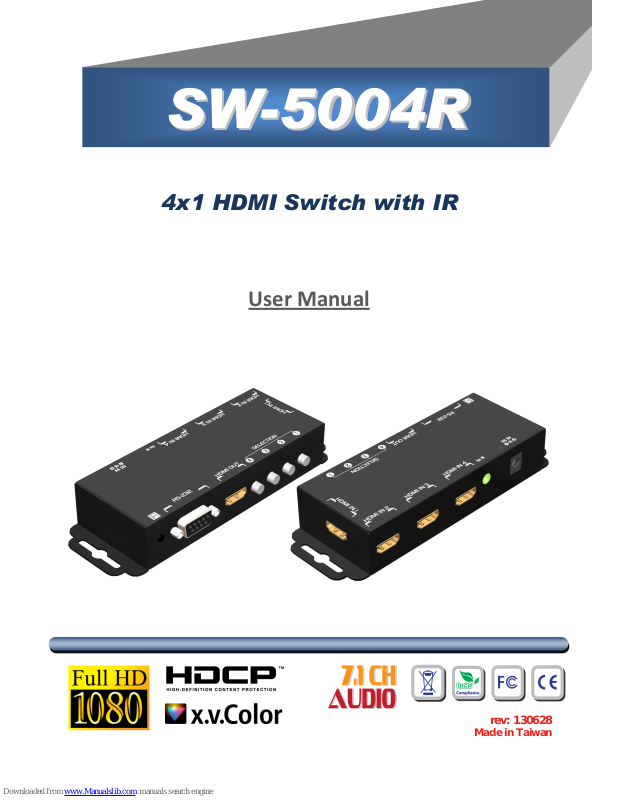

4x1 HDMI Switch with IR
User Manual
rev: 130628
Made in Taiwan
S
S
W
W--
5
5
0
0
0
0
4
4
R
R
The SW-5004R 4x1 HDMI Switch with IR has been tested for conformance to safety regulations
and requirements, and has been certified for international use. However, like all electronic
equipments, the SW-5004R should be used with care. Please read and follow the safety instructions
to protect yourself from possible injury and to minimize the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION..................................................................................................................... 1
FEATURES ............................................................................................................................. 1
PACKAGE CONTENTS .......................................................................................................... 1
SPECIFICATIONS .................................................................................................................. 2
PANEL DESCRIPTIONS ........................................................................................................ 3
HARDWARE INSTALLATION ................................................................................................ 4
CONNECTION DIAGRAM ...................................................................................................... 4
IR REMOTE CONTROL ......................................................................................................... 5
HDMI PIN DEFINITION .......................................................................................................... 5
WARRANTY ............................................................................................................................ 6
1
INTRODUCTION
The SW-5004R provides easy switching among 4 HDMI sources to your high definition display
including HDMI equipped or DVI enabled monitors. Full digital and high quality video/audio from any of
these 4 sources can perfectly be transmitted to the connected high definition monitor via IR remote
control or front panel button. With HDCP support, up to four HDMI/DVI sources such as PS3, DVD
players, camcorders, or set-top boxes can seamlessly & simultaneously connected to this SW-5004R.
The SW-5004R has 4 input HDMI definition receptacle connectors and 1 output HDMI definition
receptacle connector. Users simply connect all the HDMI/DVI sources to the inputs of SW-5004R, and
then connect HDMI/DVI equipped display system on the output port. Via IR remote control or front panel
button, users can select which source they would like to be displayed. Auto-scan function provides quick
surf on the connected sources sequentially and auto-detection function makes the device automatically
switch to the first working source among 4 channels at power on. Extra superior equalization functions on
input ports and pre-emphasis on output ports provide users the most adaptive way to improve the
transmission distance.
FEATURES
Support HDMI Deep Color
Fully HDCP compliant
Handy front panel button to switch any four HDMI/DVI sources
Supports 480p, 720p, 1080i, 1080p, and VESA resolutions
Front panel LED indicators
Equalization on input ports and pre-emphasis on output port
Easy installation
PACKAGE CONTENTS
1x SW-5004R
1x IR controller
1x 5V 0.85A power adapter
1x IR receiver
1x User Manual
2
SPECIFICATIONS
Model Name
SW-5004R
Technical
Role of usage
4x1 switch
HDMI compliance
HDMI Deep Color
HDCP compliance
Yes
Video bandwidth
6.75 Gbps
Video support
480p, 720p, 1080i, 1080p, and VESA resolutions
Transmission
up to 15m/50ft at 1080p
Audio support
Surround sound (up to 7.1ch) or stereo digital audio
Input TMDS signal
1.2 volts (peak-to-peak)
Input DDC signal
5 volts (peak-to-peak)
ESD protection
[1] Human body model—±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up
4-layer board [impedance control — differential 100Ω; single 50Ω
Input
4x HDMI / 1x RS-232 / 1x IR Receiver
Output
1x HDMI
IR remote control
Electro-optical characteristics: = 25° / Carrier frequency: 38kHz
HDMI connector
Type A [19-pin female]
RS-232 connector
DE-9 [9-pin D-sub female]
Mechanical
Dimensions
[L x W x H]
Model
107 x 53 x 27mm [4.2" x 2.1" x 1"]
Package
175 x 270 x 80mm [6.9" x 10.4" x 3.1"]
Carton
370 x 450 x 300mm [1.3" x 1.6" x 1"]
Weight
Model
202g [7.1oz]
Package
517g [1.14 lbs]
Fixedness
Wall-mounting case
Power supply
5V 0.85A DC
Power consumption
5 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
3
PANEL DESCRIPTIONS
Front Panel
Rear Panel
1. IR Sensor
2. Serial channel control
3. HDMI OUT
4. channel push button and indicator LED
5. HDMI Input 1~4
6. IR Receiver
7. +5V DC
4
HARDWARE INSTALLATION
1. There is no power switch on the device. Power is automatically turned on when the power cord is
plugged into a wall outlet.
2. Connect your HDMI/DVI sources to the input ports of SW-5004R.
3. Connect your HDMI/DVI enabled receiver (monitors etc.) into the output port of SW-5004R.
4. Power up SW-5004R.
5. Select the input you want to be displayed on the connected monitor with IR remote control or push
button on the front panel.
6. If long cable transmission (>15m/50ft) is considered, HDMI extender is needed.
CONNECTION DIAGRAM
5
IR REMOTE CONTROL
Function Key
Function Description
POWER
Reserved
Reserved
Reserved
SOURCE SELECT 1
Select
HDMI INPUT 1
to be the input source
SOURCE SELECT 2
Select
HDMI INPUT 2
to be the input source
SOURCE SELECT 3
Select
HDMI INPUT 3
to be the input source
SOURCE SELECT 4
Select
HDMI INPUT 4
to be the input source
HDMI PIN DEFINITION
HDMI
Type A (Receptacle) HDMI
Pin 1
TMDS Data2+
Pin 11
TMDS Clock Shield
Pin 2
TMDS Data2 Shield
Pin 12
TMDS Clock–
Pin 3
TMDS Data2–
Pin 13
NC
Pin 4
TMDS Data1+
Pin 14
Reserved (N.C. on device)
Pin 5
TMDS Data1 Shield
Pin 15
SCL
Pin 6
TMDS Data1–
Pin 16
SDA
Pin 7
TMDS Data0+
Pin 17
DDC/CEC Ground
Pin 8
TMDS Data0 Shield
Pin 18
+5V Power
Pin 9
TMDS Data0–
Pin 19
Hot Plug Detect
Pin 10
TMDS Clock+
6
WARRANTY
The SELLER warrants the SW-5004R 4x1 HDMI Switch with IR to be free from defects in the
material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer.
Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its
option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster,
abuse or any unauthorized modifications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must be
free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the SW-5004R features and specifications is subject to
change without further notice.
