Page 1
S-SP-3012NRT
1x2 HD-surveillance Distribution Amplifier
User Manual
Made in Taiwan
Page 2
~ 1 ~
Safety and Notice
The S-SP-3012NRT 1x2 3G/HD/SD-SDI Distribution Amplifier has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like all electronic equipments,
the S-SP-3012NRT should be used with care. Please read and follow the safety instructions to protect yourself
from possible injury and to minimize the risk of damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep away the objects that might damage the device and assure that the placement of this unit is on a stable
surface.
Use only the power adapter, power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
Page 3
~ 2 ~
This S-SP-3012NRT receives one SDI input, perfectly duplicates it, and re-transmits four SDI outputs for real
time multi-viewing. It is a reliable video device splitting a SDI or HD-SDI video source to four HD-SDI or SD-SDI
displays at the same time.
Features
3G/HD/SD triple-rate distribution
Two separately buffered outputs
Cable equalization (Beldon 1694A) and signal retiming
Dual color LED indication of input lock and rate
Pass all ancillary data
Inter-locked power supply for better fixedness
Introduction
Page 4
~ 3 ~
Specifications & Package Contents
Model Name
S-SP-3012NRT
S-SP-3012RT
Technical
SDI standards
3G-SDI, SD-SDI & HD-SDI
Auto HD/SD-SDI detection
Yes
Supported protocols
SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE425M
Video bandwidth
[2.97Gpbs & 2.97/1.001Gbps]
Data rates
270 / 1483 / 1485 Mbps
Video support
[HD] 720p50/59.94/60, 1035i50/59.94/60, 1080i50/59.94/60, 1080p24/30
[SD] [email protected], PAL@50Hz
SDI signal type
SMPTE-292M, SMPTE-259M
Output impedance
75
Reclocking function
No
Yes
Cable equalization
[HD-SDI] up to 150m (500ft) / [SD-SDI] up to 300m (1000ft)
Audio support
Yes
RP-918 pathological
patterns
Immune
PCB stack-up
4-layer board [impedance control — differential 100; single 50]
Input
1x BNC [SDI]
Output
2x BNC [SDI]
2x BNC [SDI]
BNC connector
75 inter-locked socket
Eye pattern characteristics
Amplitude: Within 800mV ±3% (<10%)
Rise overshoot: Less than 2% (<10%)
Fall overshoot: Less than 2% (<10%)
Long time jitter: 0.195 UI (<1.0 UI)
Timing jitter: 0.195 UI (<1.0 UI)
Alignment jitter: 0.127 UI (<0.2 UI)
Mechanical
Housing
Metal case
Dimensions
[L x W x H]
Model
145 x 80 x 25mm [5.7” x 3.2” x 1”]
Package
270 x 175 x 80mm [10.6“ x 6.9” x 3.2”]
Carton
450 x 370 x 300mm [1‘5.7” x 1’2.6” x 11.8”]
Weight
Model
300g [10.6oz]
305g [10.8 oz]
Package
775g [1.7 lbs]
780g [1.7 lbs]
Fixedness
Inter-locked power supply
Power supply
5V 4A DC
Power consumption
10 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]
Package Contents
1x S-SP-3012RT / S-SP-3012NRT
1x 5V power adapter
1x User Manual
Page 5
~ 4 ~

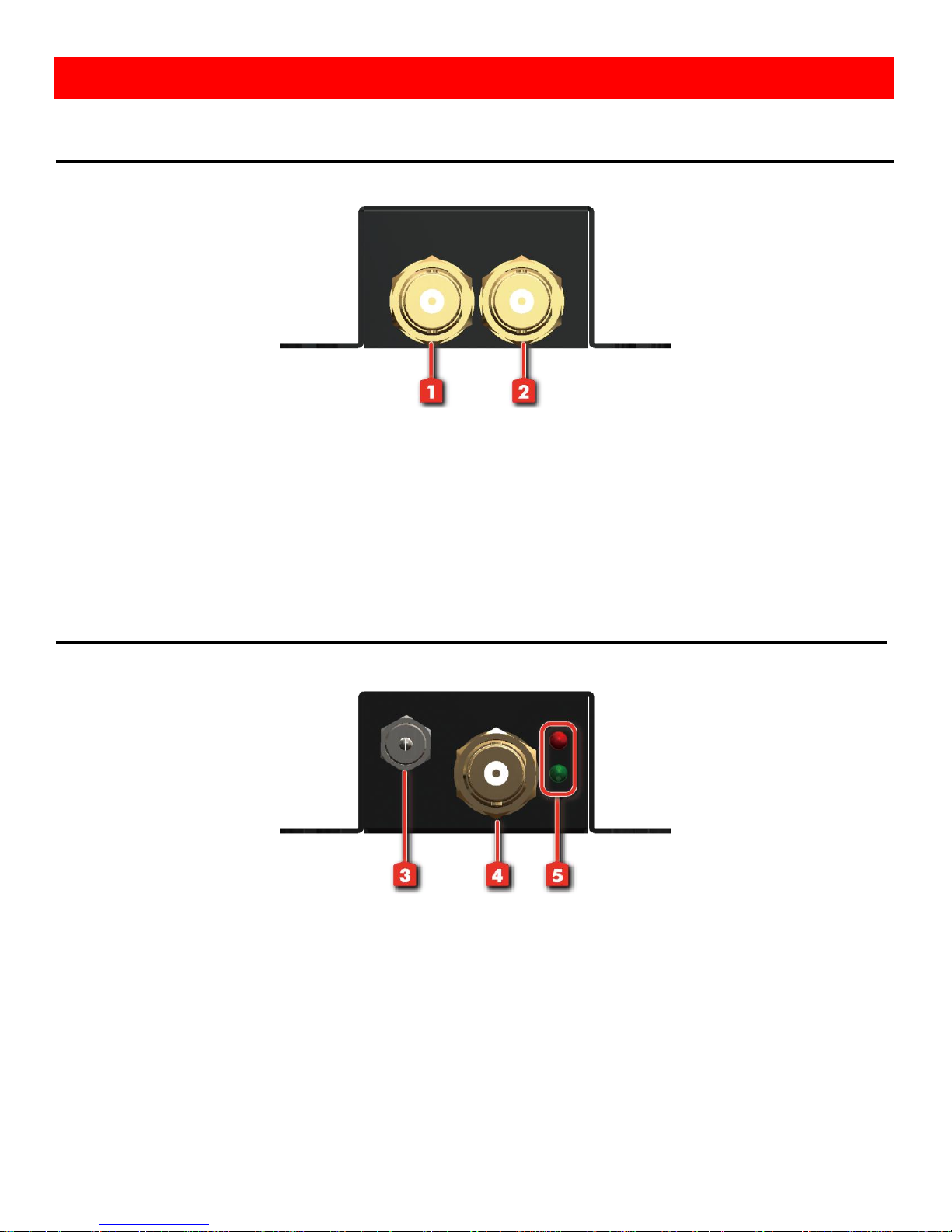

Front Panel
1. HD/SD-SDI output 1
2. HD/SD-SDI output 2
Rear Panel
4. HD/SD-SDI input
5. Red light LED — power indicator
Green light LED — SDI signal indicator
3. 5V DC power jack
Panel Descriptions
Page 6
~ 5 ~
1. Connect a camera or other devices equipped with HD/SD-SDI outputs to S-SP-3012NRT 3G/HD/SD-SDI
input.
2. Connect devices equipped with HD/SD-SDI inputs (e.g. monitors or video processors) to S-SP-3012NRT
3G/HD/SD-SDI outputs.
3. Plug power adapter cable into 5V DC power jack.
Hardware Installation
Page 7
~ 6 ~
The SELLER warrants the S-SP-3012NRT 1x2 3G/HD/SD-SDI Distribution Amplifier to be free from defects
in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer.
Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option,
repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modifications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of parts and
labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the
BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in
transit. Under no circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other
implied warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible for
shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must be free from
any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER
assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be
liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in
this manual, even if advised of the possibility of such damages. Also, the technical information contained herein
regarding the S-SP-3012NRT features and specifications is subject to change without further notice.
Limited Warranty
