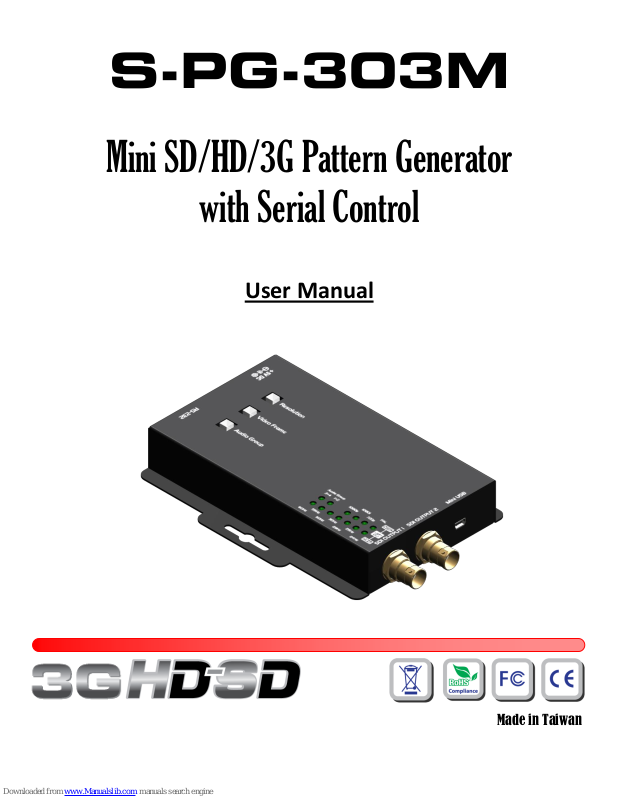

S-PG-303M
Mini SD/HD/3G Pattern Generator
with Serial Control
User Manual
Made in Taiwan
1
Safety and Notice
The S-PG-303M Mini 3G/HD/SD-SDI Pattern Generator with Serial Control has been tested for conformance
to safety regulations and requirements, and has been certified for international use. However, like all electronic
equipments, the S-PG-303M should be used with care. Please read and follow the safety instructions to protect
yourself from possible injury and to minimize the risk of damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep away the objects that might damage the device and assure that the placement of this unit is on a stable
surface.
Use only the power adapter, power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
2
The S-PG-303M Mini HDcctv Pattern Generator with Serial Control (up to 3G) is an advanced SDI pattern
generator with multi-format (3G/HD/SD) and multi-pattern support. S-PG-303M offers the most common patterns,
SMPTE colorbars and checkfield, for SDI testing thru front panel buttons. Besides still test patterns, other features
such as audio (SMPTE-291M) are also provided. S-PG-303M can support up to 8 channel AES compliant audio
with 48KHz sample rate. With portable size, S-PG-303M is equipped three buttons and LED indications to ease the
control. This device provides a cost effective way to calibrate and test SDI enable video devices and displays.
In order to create the accessibility for SDI system integrators, S-PG-303M is equipped the serial port thru
RS-232 connector and the complete serial command sets are also provided for reference!
Features
Supported output resolution
NTSC 525@60, PAL 625@50, 720p@23.98, 720p@24, 720p@25, 720@29.94, 720p@30,
720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94, 1080i@60, 1080p@25PsF, 1080p@29.97PsF,
1080p@30PsF, 1080p@23.97, 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50,
1080p@59.94, 1080p@60
Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 270 Mbps
Resolution: 10bit
Video Patterns thru front panel button
100% Color Bars & Check Field
Video Patterns thru RS-232
100% Color Bars, Borderline, Random Noise, Check Field, Black, Vertical Lines, Black / White alternate fields,
Full Grey / Full White, Black to White Gradient, Random Generator for all still patterns, moving squares White
noise, Inverse effect with still pattern, Scrolling Title (see Appendix for illustrations)
Save Settings to Memory Option
ANC Data thru RS-232
EDH (RP-165), SMPTE 352M, SMPTE291M
Control
Front panel buttons & RS-232 serial command control
Video Output
Triple SDI output (SDI, HD-SDI, 3G-SDI)
Firmware upgradable
FPGA & Controller can be upgraded with the latest firmware
Introduction
3
Specifications & Package Contents
Model Name
S-PG-303M
Technical
Role of usage
Pattern generator
SDI standards
3G/HD/SD-SDI
Auto SDI rate detection
Yes
Supported protocols
SMPTE 259M (270Mbps / 360Mpbs)
SMPTE 292M / HDTV (1.485 & 1.485/1.001Gbps)
SMPTE 424/425M (2.97 & 2.97/1.001Gbps)
Video bandwidth
2.97Gpbs
Data rates
143 / 270 / 1483 / 1485 / 2967 / 2970 Mbps
Video support
[3G] 1080p@50/59.94/60 (4:2:2)
[HD] 720p50/59.94/60, 1080p@25PsF, 1080p@29.97PsF, 1080p@30PsF, 1080p24/30,
1035i50/59.94/60, 1080i50/59.94/60
[SD] NTSC@59.94Hz, PAL@50Hz
SDI signal type
SMPTE-292M / 259M / 424M
HDMI bypass
No
Output impedance
75
Cable (Belden 1694A)
equalization / transmission
[3G-SDI] up to 60m (190ft) / [HD-SDI] up to 150m (500ft) / [SD-SDI] up to 300m (1000ft)
Audio support
Yes
PCB Stack-up
4-layer board [impedance control — differential 100; single 50]
Input
RS-232 & USB
Output
2x BNC [SDI]
BNC connector
75 interlocking socket
HDMI connector
Type A [19-pin female]
USB connector
mini
[HD] Eye pattern
characteristics
Amplitude: Within 800mV <10%
Rise overshoot: Less than 2%
Fall overshoot: Less than 2%
Long time jitter <1.0 UI
Timing jitter <1.0 UI
Alignment jitter <0.2 UI
Mechanical
S-PG-303M
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
154 x 89 x 26mm [6” x 3.5” x 1”]
Package
TBA
Carton
TBA
Weight
Model
450g [1 lbs]
Package
TBA
Fixedness
Interlocking power supply
Power supply
5V 4A DC
Power consumption
8 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]
Package Contents
1x PG-202
1x 5V power supply unit
1x User manual
The measurement results are from Tektronix WFM-7120 with SDI through 1m (3.3ft) long Belden 1694A.
4
Front Panel Operation
Button Resolution
Normally, Button Resolution is used to select different resolution for SDI outputs, and the LEDs from PAL to
1080p will indicate the selected video resolution. When all 4 lights out, the output resolution is NTSC
When pushing Button Resolution and holding for 2 seconds, LED 3+4 will blink once to indicate the current
resolution is saved into the embedded flash!
Button Video Frame
Normally, Button Video Frame is used to select different frame rates for SDI outputs, and the LEDs from
24Hz to60Hz will indicate the selected video frame rat. When all 7 lights out, the output rate is 23.98Hz
When pushing Button Video Frame and holding for 2 seconds, LED 3+4 will blink once to indicate the
SMPTE color bar pattern is chosen and saved into the embedded flash!
5
Button Audio Group
Normally, Button Audio Group is used to setup SDI audio output, and the LEDs 1+2, and 3+4 indicate the
selected audio group.
When pushing Button Audio Group and holding for 2 seconds, LED 3+4 will blink once to indicate the Check
Field pattern is chosen and saved into the embedded flash!
Notice that, S-PG-303M actually can support tens of video pattern and other features such as moving picture or
audio level control etc! Users must be able to access those plus functions by RS-232 serial connection.
Button
Function
Return
Trigger the menu operation
Enter
Enter the menu item
Up
Choose the last menu item
Down
Choose the next menu item
Software Panel Des
6
Software Menu Operation
Menu
Items
01 Format
Resolution
NTSC
PAL
720p
1080p
1080i
Frequency
60
59.94
50
30
29.97
25
24
23.98
Output
YCbCr 422
7
Menu
Items
02 Video
Patterns
SMPTE Bar
100% Bar
Check Field 1
Check Field 2
Check Field 3
Gradient R1
Gradient G1
Gradient B1
Gradient R2
Gradient G2
Gradient B2
Gradient R3
Gradient G3
Gradient B3
Gradient R4
Gradient G4
Gradient B4
Red Level 1
Red Level 2
Green Level 1
Green Level 2
Blue Level 1
Blue Level 2
100% Red
100% Green
100% Blue
100% White
70% Gray
40% Gray
Black
Noise
Circle 1
Circle 2
Moire
H Stripe R
H Stripe G
H Stripe B
V Stripe R
V Stripe G
V Stripe B
Chess 1
Chess 2
Multi-Burst
Sequence
Text
Off
On-White
On-Black
Timer
Off
On-W/B
On-B/W
8
Menu
Items
03 Audio
Mode
Off
On
Group
1+2
3+4
Level
-6dB
-12dB
-18dB
-24dB
-30dB
-36dB
-42dB
Silence
Random
Mask
Off
CH 1234
CH 1
CH 2
CH 3
CH 4
CH 1+2
CH 3+4
04 Motion
Motion
No Motion
Square 1
Square 2
2 Squares
Square Inv
Data Speed
1
2
3 4 5 6 7
8
05 ANC Data
SMPTE-352M
Off
On
06 System
Status
No Change
Factory
Now Save
Version
V1.00
9
Top View
Side View
1. SDI OUTPUT A: Connect to a SDI device for SDI, HD-SDI, or 3G-SDI signal output either from the chosen
pattern or the converted HDMI source signal.
2. SDI OUTPUT B: Connect to a SDI device for SDI, HD-SDI, or 3G-SDI signal output either from the chosen
pattern or the converted HDMI source signal.
3. Mini-USB: Connect to a Mini-USB for Firmware Update
Panel Descriptions
1 3 2
10
4. +5V DC: Connect to a 5V DC power supply unit
5. RS-232: RS-232 port for control via PC software
1. Due to the high frequency bandwidth and low jitter requirement of 3G-SDI signals, it is strongly
recommended to use just one SDI OUTPUT with one 75 ohm.
2. The features including new timings and patterns may increase without notice after the firmware is updated!
This may affect the menu items, but will keep the same framework for users!
5
Notice
4
Notice
11
Data Identification Word of Ancillary Data Packet
ANC Data
DID
SDID/DBN
352M
0x41
0x01
RP-165-EDH*
0xF4
0x00
* Data Type 1(SMPTE-291M)
Built-in Video Patterns
Appendix
12
13
