1x2 HDMI Splitter/Repeater
over Cat.X with HDBaseT-Lite, 4K2K
& local Out
User Manual
rev: 140212
Made in Taiwan
S
S
P
P--
5
5
0
0
2
2
2
2
V
V
The SP-5022V 1x2 HDMI Splitter/Repeater over Cat.X with HDBaseT-Lite, 4K2K & local Outhas
been tested for conformance to safety regulations and requirements, and has been certified for
international use. However, like all electronic equipments, the SP-5022V should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to minimize
the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ..................................................................................................................... 1
FEATURES .............................................................................................................................. 1
PACKAGE CONTENTS .......................................................................................................... 1
SPECIFICATIONS ................................................................................................................... 2
PANEL DESCRIPTIONS ......................................................................................................... 2
NOTICE ................................................................................................................................... 4
CONNECTION DIAGRAM ...................................................................................................... 4
PIN DEFINITION ..................................................................................................................... 5
WARRANTY ............................................................................................................................ 6
1
INTRODUCTION
The
SP-5022V 1x2 HDMI Splitter/Repeater over Cat.X with HDBaseT-Lite, 4K2K & local
Out
allows you to distribute one of the two HDMI/DVI video sources 2 separate HDTV displays including
one remotely cascade output via Cat-5/5e cost effective cable. This splitter offers the most flexible
solution by which the high definition video and high quality audio can be transmitted to different local
locations through HDMI cables and also to the next stage over a long distance without degrading the
quality. The cascade ability allows pure digital video and audio broadcast station by station and therefore
make extending HDMI compliant video and audio anywhere feasible.
FEATURES
● Support HDMI Deep Color & full 3D & 4K2K@30 (HDBaseT technology)
● Extend the transmission up to 60m (198ft) from the HDMI source at Full HD 1080p 48-bit and 40m
(132ft) at 4K2K@30
● HDCP & EDID Bypass
● Auto equalization
● Support full frequency IR signal from 20KHz to 60KHz
● Bi-directional IR path
● Regenerates the HDMI signal
● DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
● Pure unaltered uncompressed 7.1ch digital HDMI over Cat.X cable transmission
● Allows cascading
● Wall mounting housing design for easy and robust installation
PACKAGE CONTENTS
● 1x SP-5022V
● 1x DC 5V 4A
● 1x User Manual
2
SPECIFICATIONS
Model Name
SP-5022V
Technical
Role of usage
1x2 Distribution Amplifier Transmitter [TX]
HDMI compliance HDMI Deep Color, full 3D & 4K2K@30
HDCP compliance
Yes
Video bandwidth
Single-link 340MHz [10.2Gbps]
Video support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color
Transmission over
UTP cable (48-bit)
1080p@60 60m (198ft) [CAT.X]
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Signal equalization
Auto
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up
6-layer board [impedance control — differential 100Ω; single 50Ω
Input
1x RJ-45[HDBaseT]+ 1x 3.5mm
Output
1x HDMI + 1x RJ-45[HDBaseT] + 1x 3.5mm
IN/ OUT
RS-232
HDMI connector
Type A [19-pin female]
RJ-45 connector
WE/SS 8P8C(Reverse Mode)
DIP switch
Yes
Rotary control switch
None
Mechanical
Housing
Metal enclosure
Fixedness
Wall-mounting case
Power supply
5V 4A DC
Power consumption
TBA
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
PANEL DESCRIPTIONS
Rear Panel
3
Power LED
RS-232
IR blaster
IR receiver
Dip Switch
HDMI Signal IN
Stereo audio ou
HDMI OUT
HDMI Signal OUT
+5V DC
Link LED
4
NOTICE
1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve
and provide DVI or HDMI display EDID information.
2. All HDMI over Cat.X transmission distances are measured using Belden 1583A CAT5e 125MHz UTP
cable and ASTRODESIGN Video Signal Generator VG-859C & VG-870B.
3. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of HDMI sources,
and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 330m
bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the form of fixed
length patch cords). Shielded STP cables are better suited than unshielded UTP cables. A solid UTP
Cat-5e cable shows longer transmission range than stranded STP Cat-6 cable. For long extension
applications, solid UTP/STP cables are the only viable choice.
4. EIA/TIA-568-B termination (T568B) for category cables is recommended.
5. To reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6 cable, one can
use double shielded STP cables to improve EMI problems, which is worsen in long transmission.
6. Because the quality of the CAT5/6 cables has the major effect on how long the transmission limit can
achieve and how good is the received picture quality, the actual transmission range is subject to one's
choice of Cat-5/5e/6 cables. For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is
recommended.
7. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input 1]
generally can produce better transmission performance among all HDMI inputs.

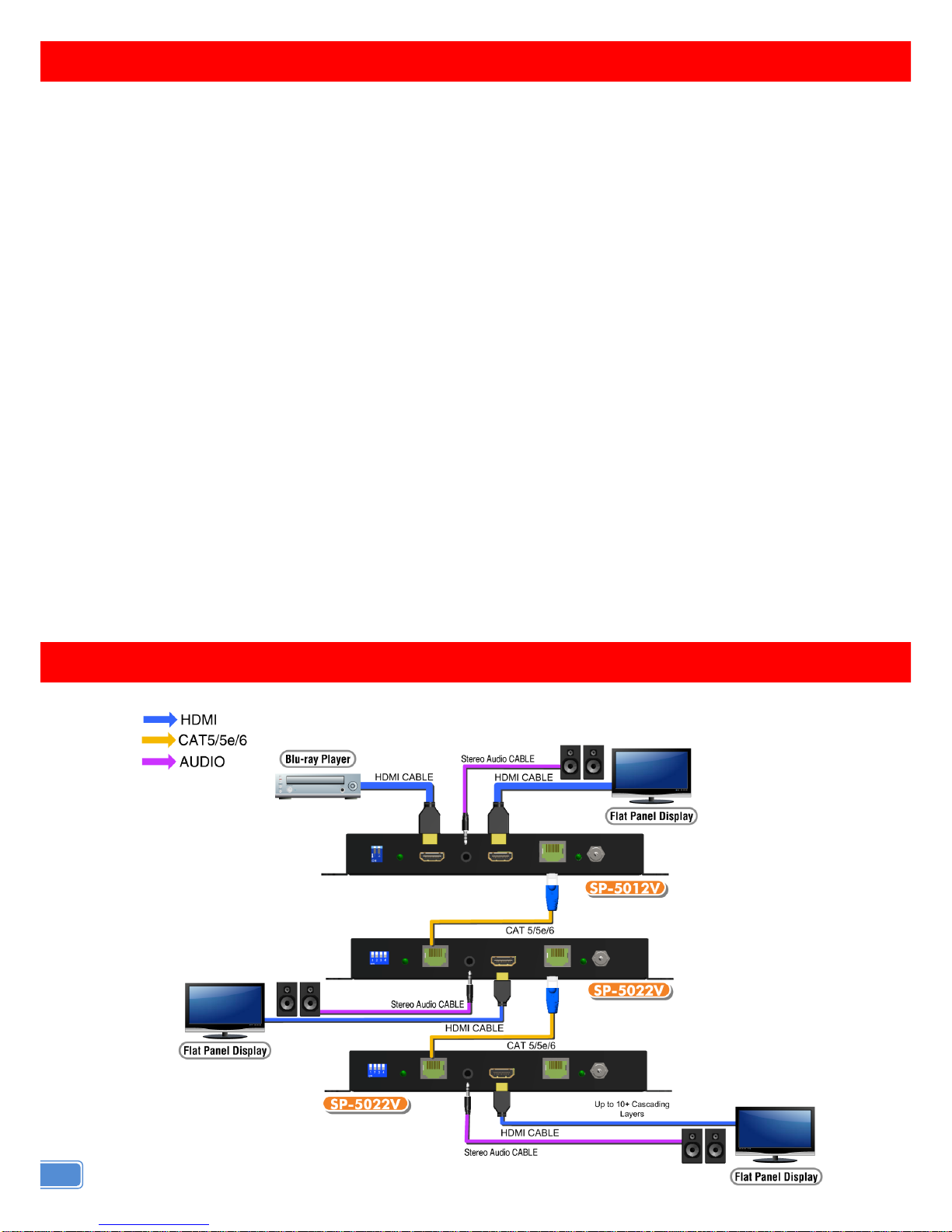

CONNECTION DIAGRAM
5

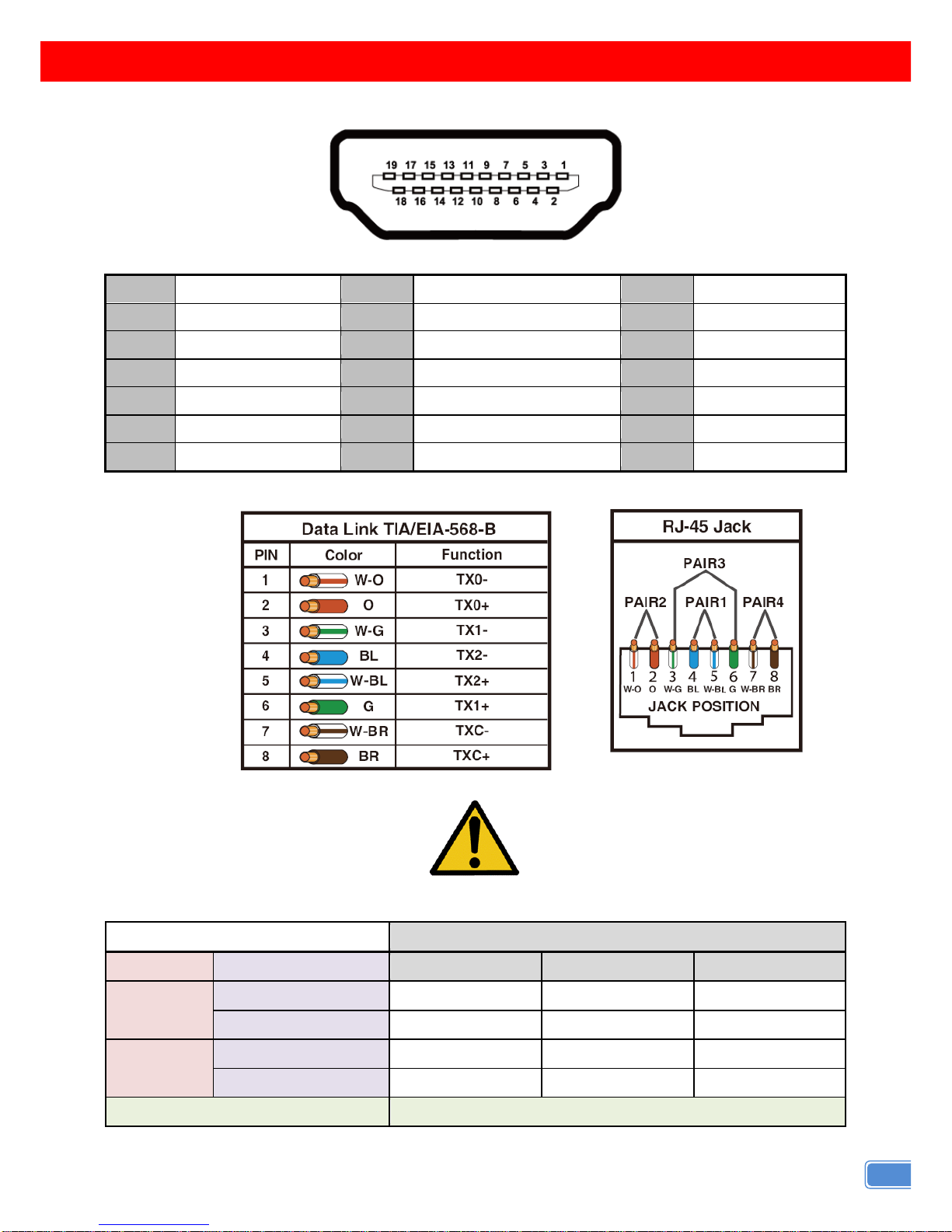

PIN DEFINITION
HDMI
Type A (Receptacle) HDMI
Pin 1
TMDS Data2+
Pin 8
TMDS Data0 Shield
Pin 15
SCL
Pin 2
TMDS Data2 Shield
Pin 9
TMDS Data0–
Pin 16
SDA
Pin 3
TMDS Data2–
Pin 10
TMDS Clock+
Pin 17
DDC/CEC Ground
Pin 4
TMDS Data1+
Pin 11
TMDS Clock Shield
Pin 18
+5V Power
Pin 5
TMDS Data1 Shield
Pin 12
TMDS Clock–
Pin 19
Hot Plug Detect
Pin 6
TMDS Data1–
Pin 13
NC
Pin 7
TMDS Data0+
Pin 14
Reserved (N.C. on device)
RJ45 / Cat.X
Performance Guide for HDMI over Category Cable Transmission
Performance rating
Type of category cable
Wiring
Shielding
CAT5
CAT5e
CAT6
Solid
Unshielded (UTP)
Shielded (STP)
Stranded
Unshielded (UTP)
Shielded (STP)
Termination
Please use EIA/TIA-568-B termination (T568B) at any time
6
WARRANTY
The SELLER warrants the
SP-5022V 1x2 HDMI Splitter/Repeater over Cat.X with HDBaseT-Lite,
4K2K & local Out
free from defects in the material and workmanship for 1 year from the date of purchase
from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1
year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not
been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge
and power surge. This warranty is offered by the SELLER for its BUYER with direct transaction only. This
warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the
SP-5022V
features and specifications is subject to
change without further notice.
