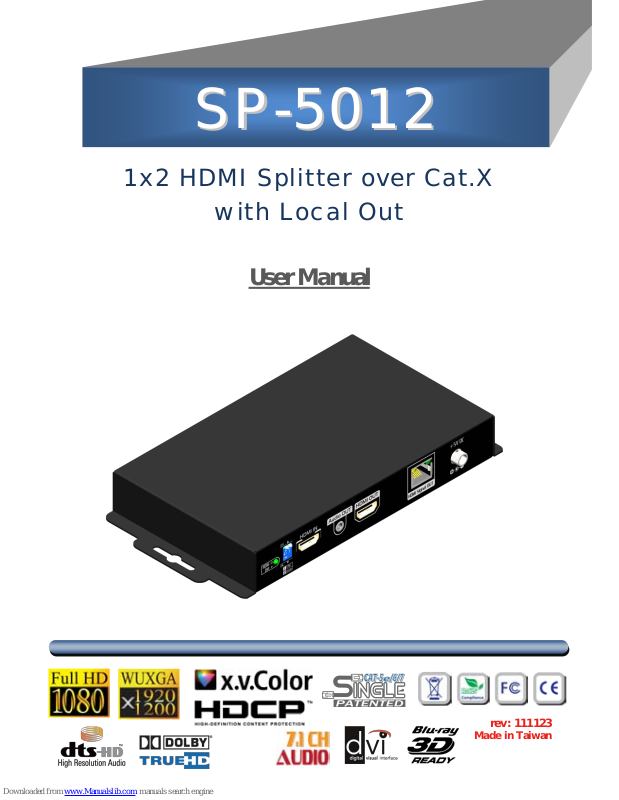

1x2 HDMI Splitter over Cat.X
with Local Out
User Manual
rev: 111123
Made in Taiwan
S
S
P
P--
5
5
0
0
1
1
2
2
The SP-5012 1x2 HDMI Splitter over Cat.X with Local Out has been tested for conformance to
safety regulations and requirements, and has been certified for international use. However, like all
electronic equipments, the SP-5012 should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................ 1
FEATURES ........................................................................................................................ 1
SPECIFICATIONS .............................................................................................................. 2
PACKAGE CONTENTS ...................................................................................................... 3
PANEL DESCRIPTIONS .................................................................................................... 3
DIP SWITCH SETTING ...................................................................................................... 4
CONNECTION DIAGRAM ................................................................................................ .. 5
PIN DEFINITION ................................................................................................................ 6
NOTICE .............................................................................................................................. 7
WARRANTY ....................................................................................................................... 8
1
INTRODUCTION
The
SP-5012 1x2 HDMI Splitter over Cat.X with Local Out
provides the most flexible solution by
which the high definition video and high quality audio can be transmitted to different locations over a long
distance. The devices are cascadable, allowing you to extend HDMI compliant displays almost anywhere.
The input HDMI source can be duplicated and distributed to 1 HDMI enable displays through cost
effective Cat-5/5e/6 cables with HDMI over CAT5 receivers (CV-735 and/or CV-715s). For convenience,
SP-5012 is also equipped a local HDMI output for monitoring. With the built in equalization, the input
HDMI cable can be extended up to 20 meters (66 feet) long under Full HD, and make the overall
transmission distance superior than regular HDMI splitters or matrix switches in the market.
FEATURES
● State-of-the-art Silicon Image (founder of HDMI) chipset embedded for utmost compatibility and
reliability
● Support HDMI Deep Color & 3D / DVI 1.0 compliant
● HDCP 1.1 compliant
● Regenerates the HDMI signal
● Supports audio output
● Supports default HDMI EDID and has the ability to learn the EDID of displays
● Extends up to 15m (50ft) of input HDMI cable
● Extends up to 15m (50ft) of output HDMI cable
● Extends up to 60m (200ft) (720p / 1080i) of output Cat.X cable
● Extends up to 40m (130ft) (1080p) of output Cat.X cable
● Minimizes the cable skew by adjustable 8-level equalization control
● Pure unaltered uncompressed 7.1ch digital HDMI over Cat.X cable transmission
● Allows cascading
● Perfectly integrated with other HDMI over Cat.X series products
The length depends on the characteristics and quality of the cables. Higher resolutions and
longer transmission distances require low skew cables (<25ns/100m) for best performance.
Unshielded CAT6 with metal RJ45 connectors is recommended.
2
SPECIFICATIONS
Model Name
SP-5012
Technical
Role of usage
1x2 Distribution Amplifier Transmitter [TX]
HDMI compliance
HDMI Deep Color & 3D
HDCP compliance
Yes
Video bandwidth
Single-link 225MHz [6.75Gbps]
Video support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color
Transmission over
UTP cable (24-bit)
Full HD (1080p) – 40m (130ft) [Cat5e] / 50m (165ft) [Cat6]
HD (720p/1080i) – 50m (165ft) [Cat5e] / 60m (200ft) [Cat6]
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Signal equalization
N/A
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up
4-layer board [impedance control — differential 100Ω; single 50Ω
Input
1x HDMI
Output
1x HDMI + 1x RJ45 + 1x 3.5mm audio socket
HDMI connector
Type A [19-pin female]
RJ45 connector
WE/SS 8P8C with 2 LED indicators
3.5mm connector
Earphone jack for stereo audio
DIP switch
2-pin for EDID learning and audio setting modes
Rotary control switch
None
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
180 x 107 x 27mm [7.1" x 4.2" x 1.1"]
Package
200 x 330 x 95mm [7.9" x 1'1" x 3.7"]
Carton
495 x 440 x 380mm [1'7" x 1'5" x 1'3"]
Weight
Model
515g [1.1 lbs]
Package
1000g [2.2 lbs]
Fixedness
Wall-mounting case
Power supply
5V 4A DC
Power consumption
6 Watts [max]
Operation temperature
0~40°C [32~°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
3
PACKAGE CONTENTS
● 1x SP-5012
● 1x DC 5V 4A wall wart
● 1x User Manual
PANEL DESCRIPTIONS
Rear Panel
1. HDMI / DVI LED: Input signal format indicator [bright - HDMI source signal is detected; dark - no HDMI
signal.]
2. DIP SWITCH: See more detail in the DIP SWITCH SETTING section.
3. HDMI IN: Connect a HDMI source with a HDMI M-M cable here
4. Audio OUT: Plug in a local speaker here
5. HDMI OUT: Connect to a HDMI display with a HDMI M-M cable here
6. HDMI Signal OUT: Link to each HDMI display via a Cat-5/5e/6 cable with a HDMI over Cat.X receiver.
7. +5V DC: Connect to 5V 4A DC power supply
4
DIP SWITCH SETTING
DIP Switch Position
Video
Audio
Description
Pin 1
Pin 2
Off []
Off []
Up to 1080p
Surround 1
Default Mode 2 —
Up to 1080p & surround sound audio output up to
7.1ch (DTS-HD Master & Dolby TrueHD)
Off []
On []
Up to 1080p
Stereo
Safe Mode
3
—
Make the system output at 1080p video and stereo
audio for basic compatibility
On []
Off []
Bypass 4
Bypass 4
EDID Learning Mode
5
—
for learning EDID from the display while playing any
received HDMI audio format
On []
On []
Bypass
Stereo
EDID Learning & Stereo Mode
5
—
for learning EDID from the display while enforcing
stereo output if any HDTV cannot play surround
sound normally
Note for EDID (Extended Display Identification Data) learning
1 If the HDTV shows video but without audio, please try to set audio mode to stereo.
2 Factory default setting of Mode is pin-1 OFF [] & pin-2 OFF [] for 1080p with surround sound.
3 If you encounter any unsolved audio/video output problem during system installation, please turn
any Mode to pin-1 OFF [] & pin-2 ON [] for safe mode to enforce the most compatible 1080p
stereo output for system check. However, the safe mode cannot be initiated if your HDMI source is
set to enforce 1080p output. In this case, please reconfigure your HDMI source to all resolution
output for troubleshooting.
4 Bypass means the distribution amplifier will maintain playing the original format of HDMI signals in
video and perhaps audio. By setting at this mode, the users may encounter compatibility issue
among different kindsof HDMI sources and displays. If you cannot get the audio and/or video
output normally at the system installation, please change the DIP switch setting to default mode or
even safe mode to verify the functionality of the device.
5 To learn the EDID of HDMI display for respective HDMI source devices. Connect the HDTV sets to
the HDMI Local Output via HDMI cable, then set pin-1 at ON []. Then please wait for 5~10
seconds for completing the EDID learning procedure. If you want to learn the EDID from another
HDTV, you must set pin-1 at OFF [] first and repeat this procedure all over again.
5
CONNECTION DIAGRAM
6
PIN DEFINITION
HDMI
Type A (Receptacle) HDMI
Pin 1
TMDS Data2+
Pin 11
TMDS Clock Shield
Pin 2
TMDS Data2 Shield
Pin 12
TMDS Clock–
Pin 3
TMDS Data2–
Pin 13
NC
Pin 4
TMDS Data1+
Pin 14
Reserved (N.C. on device)
Pin 5
TMDS Data1 Shield
Pin 15
SCL
Pin 6
TMDS Data1–
Pin 16
SDA
Pin 7
TMDS Data0+
Pin 17
DDC/CEC Ground
Pin 8
TMDS Data0 Shield
Pin 18
+5V Power
Pin 9
TMDS Data0–
Pin 19
Hot Plug Detect
Pin 10
TMDS Clock+
RJ45 / Cat.X
7
NOTICE
1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve
and provide DVI or HDMI display EDID information.
2. All HDMI over Cat.X transmission distances are measured using Belden 1583A CAT5e 125MHz UTP
cable and ASTRODESIGN Video Signal Generator VG-859C & VG-870B.
3. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of HDMI sources,
and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 330m
[1,000ft] bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the form of
fixed length patch cords). Shielded STP cables are better suited than unshielded UTP cables. A solid
UTP Cat-5e cable shows longer transmission range than stranded STP Cat-6 cable. For long
extension applications, solid UTP/STP cables are the only viable choice.
4. EIA/TIA-568-B termination (T568B) for category cables is recommended.
5. To reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6 cable, one can
use double shielded STP cables to improve EMI problems, which is worsen in long transmission.
6. Because the quality of the CAT5/6 cables has the major effect on how long the transmission limit can
achieve and how good is the received picture quality, the actual transmission range is subject to one's
choice of Cat-5/5e/6 cables. For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is
recommended.
7. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input 1]
generally can produce better transmission performance among all HDMI inputs.
Performance Guide for HDMI over Category Cable Transmission
Performance rating
Type of category cable
Wiring
Shielding
CAT5
CAT5e
CAT6
Solid
Unshielded (UTP)
Shielded (STP)
Stranded
Unshielded (UTP)
Shielded (STP)
Termination
Please use EIA/TIA-568-B termination (T568B) at any time
8
WARRANTY
The SELLER warrants the
SP-5012 1x2 HDMI Splitter over Cat.X with Local Out
free from defects
in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized
dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at
its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster,
abuse or any unauthorized modifications including static discharge and power surge. This warranty is
offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty
seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the
SP-5012
features and specifications is subject to
change without further notice.
