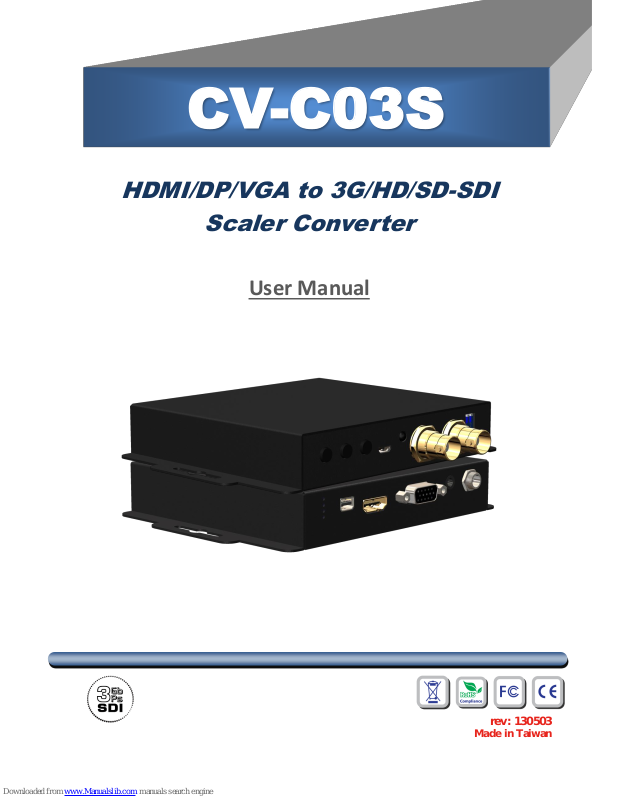

HDMI/DP/VGA to 3G/HD/SD-SDI
Scaler Converter
User Manual
rev: 130503
Made in Taiwan
CV-C03S
Safety and Notice
The CV-C03S HDMI/DP/VGA to 3G/HD/SD-SDI Scaler Converter has been tested for
conformance to safety regulations and requirements, and has been certified for international use.
However, like all electronic equipments, the CV-C03S should be used with care. Please read and
follow the safety instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................ 1
FEATURES ........................................................................................................................ 1
PACKAGE CONTENTS ................................................................................................... 1
SPECIFICATIONS .............................................................................................................. 2
PANEL DESCRIPTION ...................................................................................................... 3
CONNECTION DIAGRAM .................................................................................................. 5
OSD MENU ........................................................................................................................ 6
OPERATION APPROACH ................................................................................................. 7
LIMITED WARRANTY ...................................................................................................... 11
1
INTRODUCTION
The CV-C03S HDMI/DP/VGA to 3G/HD/SD-SDI Scaler Converter provides a professional way to scale
and convert multiple format (HDMI/DP/VGA) to 3G/HD/SD-SDI format. This device supports video
conversion and scaling from analog & digital to 3G/HD/SD-SDI. The conversion between HDMI/DP and
SDI is pure digital and guarantees no loss transformation for both audio and video. Besides, VGA based
devices such as PC with analog stereo audio can readily connect to your SDI TV. The CV-C03S
provides low jitter SDI output.
FEATURES
Supports Input HDMI1.3 /DP1.1/ VGA
IR remote control
Button control
Remote control via Micro-USB
OSD control interface
Support two SDI output
Input maximum pixel rate : 165MHz
Output bandwidth 2.970Gpbs
Supports multiple VESA resolutions
Deinterlacer supported
Supports video enhancement features
Over / under scanning adjustable
Video H/V mirror supported
Active video area adjustment supported
Stable and independent output signal quality.
USB firmware upgradable for expanding compatibility
Wall-mount housing design for easy installation
PACKAGE CONTENTS
1x CV-C03S
1x 12V/2A power supply unit
1x IR Remote control
1x User Manual
1x Installation software CD
2
SPECIFICATIONS
Model Name
CV-C03S
Technical
Role of usage
HDMI/DP/VGA to SDI Converter
SDI standards
SD-SDI, HD-SDI & 3G-SDI
Input Video Maximum
Pixel Rate
165MHz
Output Video bandwidth
2.970Gpbs, 2.970/1.001Gbps
Output Video support
[3G] 1080p @50/59.94/60Hz (4:2:2)
[HD] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz
[SD] NTSC @59.94Hz, PAL @50Hz
Audio support
PCM 2 (32KHz–192KHz Fs sample rate)
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±2kV
PCB stack-up
4-layer board [impedance control — differential 100; single 50]
Firmware update
Feasible via USB Port
CEC Channel
N/A
Input
1x HDMI + 1x VGA + 1x DP + 1x stereo(for VGA)
Output
2x BNC [SDI]
BNC connector
3G 75Ω inter-locked socket
HDMI connector
Type A [19-pin female]
USB connector
Micro B
Mechanical
CV-C03S
Housing
Metal enclosure
Dimensions
[L x D x H]
Model
Package
Carton
Weight
Model
Package
Fixedness
Wall-mounting case with screws
Power supply
12V 2A DC
Power consumption
6 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]
3
PANEL DESCRIPTION
Front Panel
1. PUSH BUTTON
[LEFT]: Down Button
[MID]: Up Botton
[RIGHT]: Menu/Enter Button
2. Micro USB: Micro-USB port for control port
3. IR SENSOR: IR sensor for receiving the IR commands from IR remote
4. SDI OUT 1: 3G/HD/SD-SDI output
5. SDI OUT 2: 3G/HD/SD-SDI output
6. DIP SWITCH: For firmware update
PIN 1: F/W update
PIN 2: Reserved
Rear Panel
7. LED INDICATOR: Please refer to “Notes”
8. DP INPUT: Connect to a DP source
9. HDMI INPUT: Connect to a HDMI source
10. VGA INPUT: Connect to a VGA source
11. STEREO AUDIO INPUT (for VGA): connect to analog stereo audio source
12. +12V DC: Interlocking power jack for 12V DC power supply unit
4
*Notes: LED INDICATOR
Power Indicator
LED
Signal Indicator LED
Power
DisplayPort
VGA
HDMI
5
CONNECTION DIAGRAM
6
OSD MENU
1.Output Setup
Output Format
Test Pattern
Disable, White, Cross,
Hatch, Color, Gray,
Windows, H-Ramp,
W-HRamp, W-VRamp,
Diagonal
Audio Mute
Off, On
Input Type
HDMI, VGA, DP
Return
2.Image
Contrast
0~255 of Contrast Level
Brightness
0~255 of Brightness Level
Saturation
0~255 of Saturation Level
Hue
0~255 of Hue Level
Gamma Adjust
Off, 1.1, 1.3, 0.7, 0.9
Color Tone
Off, Green, Skin
Edge Enhance
Off, Max, Mid, Min
Sharpness
0~64 of Sharpness Level
Return
3.Adjustment
Under/Over Scan
-50%~50% of Scan Level
Aspect Ratio
Stretch, 16:9, 4:3
H-Mirror
Off, On
V-Mirror
Off, On
H-Shift
-100~100 of H-Shift Level
V-Shift
-50~50 of V-Shift Level
Return
4. System
Input Format
F/W Version
Factory Reset
Return
5. Exit
7
OPERATION APPROACH
Method A: Push-in Button
Method B: IR Remote Control
Button
Function
FREEZE
Freeze video
ASPECT RATIO
Aspect ratio change
BLANK
Blank video
EXIT
Exit OSD
ENTER
Enter key
UP
Up key
LEFT
Left key
RIGHT
Right key
DOWN
Down key
MENU
Menu on
INPUT INFO
Source resolution information
1080p60
Select 1080p60 output resolution
1080i60
Select 1080i60 output resolution
720p60
Select 720p60 output resolution
480p60
Not Support
8
Method C: IR Remote Control through Micro-USB port
1
COM Port Selection
2
COM Port Detection Button
3
Connect/Disconnect Button
4
Output Setup Button
5
Image Button
6
Adjustment Button
7
System Button
8
Input / Output Resolution Info
9
Output Quick Selection Button
10
Refresh Input / Output Resolution Info Button
1. COM Port Selection
Please select the application COM PORT
10
9 8 7 6 5 4 1 2 3
9
2. COM Port Detection Button
Click this button to detect the COM PORT
3. Connect/Disconnect Button
1) Click this button to connect
2) Click this button to disconnect
4. Output Setup Button
5. Image Button
6. Adjustment Button
10
7. System Button
1) Input Format:
To view the current input resolution
2) F/W Version Information
3) Factory Reset Button
8. I/O Port and Resolution Info
To display the information about the I/O Port and the applied Resolution
9. Output Quick Selection Button
Common functions for quick setting
10. Refresh Button
To refresh the status of the converter
11
LIMITED WARRANTY
The SELLER warrants the CV-C03S HDMI/DP/VGA to 3G/HD/SD-SDI Scaler Converter to be
free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER
or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period,
The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to
accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must be
free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the CV-C03S features and specifications is
subject to change without further notice.
