HDMI extender over single cat.X
User Manual
To avoid EMI issue, complete STP Cat6 cable is strongly recommended!
rev: 121101
Made in Taiwan
The CV-57KJ HDMI extender over single cat.X with bi-directional IR has been tested for conformance
TABLE OF CONTENTS
INTRODUCTION ..................................................................................................................... 2
FEATURES .............................................................................................................................. 2
SPECIFICATIONS ................................................................................................................... 3
PANEL DESCRIPTIONS ......................................................................................................... 4
Transmitting unit ► CV-57KJ-TX ................................................................................ 4
Receiving unit ► CV-57KJ-RX .................................................................................... 5
PACKAGE CONTENTS .......................................................................................................... 6
CONNECTION DIAGRAM ....................................................................................................... 6
IR PASS-THROUGH ............................................................................................................... 7
HARDWARE INSTALLATION ................................................................................................. 8
EDID LEARNING ..................................................................................................................... 8
PIN DEFINITION ..................................................................................................................... 9
NOTICE.................................................................................................................................. 10
WARRANTY .......................................................................................................................... 11
to safety regulations and requirements, and has been certified for international use. However, like all
electronic equipments, the CV-57KJ should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a stable
surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
2
INTRODUCTION
1. The claimed transmission distance here is subject to the grade of installed cable(s), source
device and display.
2. For over CAT5/COAX transmission, the cable(s) has to be solid, not stranded. Any keystone jack
along the transmission path will kill the transmission performance significantly!
CV-57KJ HDMI extender over single cat.X with bi-directional IR
The
transmission distance up to 50m (165ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and
20m (65ft) in HDTV 1080p with 36-bit color depth.
format and therefore guarantees the highest 3D video compatibility on the market. With only one cost
effective Cat.5/5e/6 cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc player,
PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI
or DVI enabled TV sets or LCD PC monitors. With the advanced design for the latest HDMI technology,
deep color video, DTS-HD Master Audio or Dolby TrueHD audio, and HDCP supports and compatibility
are all further insured. This flexibility makes HDCP compliant DVD players or PS3 transmit utmost high
quality video and audio with a greater distance at the minimal cost, when integrating several components
apart. In addition,
allows users to boost IR control distance up to 100m (330 ft) and makes IR control possible through only
single Cat.5/5e/6 cable including HDMI signals.
CV-57KJ
is also equipped with bi-directional IR pass-through path. This bonus feature
CV-57KJ
also supports the most advanced 3D video
boosts up your video/audio
CV-57KJ
The
transmitting unit is used to capture the input HDMI / DVI signals with IR control packets and carry the
signals via one cost effective Cat.5/5e/6 cable. The receiving unit is responsible for equalizing the
transmitted HDMI signal and reconstructing IR signals. The transmission distance between the sending
and receiving units can be up to 50m (165ft) at HD 720p or 1080i; or 40m (130ft) at Full HD 1080p. With
an 8-level equalization rotary control on the receiving unit, users can adjust the equalization strength to
the received HDMI signals accordingly, and therefore optimize the transmission distance between source
and destination.
includes two units: transmitting unit
CV-57KJ-TX
and receiving unit
CV-57KJ-RX
. The
FEATURES
● Support HDMI Deep Color & full 3D
● Extends the transmission up to 50m (165ft) from the HDMI source at HD 1080i or 720p 24-bit
● Extends the transmission up to 40m (130ft) from the HDMI source at Full HD 1080p 24-bit
● Extends the transmission up to 20m (65ft) from the HDMI source at Full HD 1080p 36-bit
● HDCP 1.1 compliant
● Minimizes the cable skew by adjustable 8-level equalization control
● Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
● DTS-HD and Dolby TrueHD high bit rate audio support
● Supports full frequency IR signal from 20KHz to 60KHz
● Bi-directional IR path
● Allows cascading
● Wall mounting housing design for easy and robust installation
● Perfectly integrated with other HDMI over CAT5 series products
3
SPECIFICATIONS
Model Name
CV-57KJ
Technical
CV-57KJ[Tx]
CV-57KJ[Rx]
Role of usage
Transmitter [TX]
Receiver [RX]
HDMI compliance
HDMI Deep Color & full 3D
HDCP compliance
Yes
Video bandwidth
Single-link 225MHz [6.75Gbps]
Video support
480i / 480p / 720p / 1080i / 1080p60
HDMI over UTP
transmission [24-bit]
Full HD (1080p)-40m (130ft) [CAT.X]
HD (720p/1080i)-50m (165ft) [CAT.X]
Audio support
Surround sound (up to 7.1ch) or stereo digital audio
Signal Equalization
8-level digital control at RX
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up
4-layer board [impedance control — differential 100Ω; single 50Ω]
IR pass-thru
Full-duplex bi-directional
Input
1x HDMI + 1x 3.5mm
1x RJ45 + 1x 3.5mm
Output
1x RJ45 + 1x 3.5mm
1x HDMI + 1x 3.5mm
HDMI source control
Controllable via IR pass-through from RX to TX and from TX to RX with IR extenders
IR remote control
Electro-optical characteristics: = 25° / Carrier frequency: 20-60kHz
HDMI connector
Type A [19-pin female]
RJ45 connector
WE/SS 8P8C with 2 LED indicators
3.5mm connector
IR blaster & IR receiver
Rotary control switch
EDID Mode selection
Signal level equalization
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
75 x 91 x 24mm [2.9" x 3.5" x 1"]
Package
270 x 175 x 80mm [10.6" x 6.9" x 3.1"]
Carton
450 x 370 x 300mm [1'6" x 1'3" x 11.8"]
Weight
Model
239g [8.4oz]
239g [8.4oz]
Package
1000g [2.2 lbs]
Fixedness
Wall-mounting case with screws
Power supply
5V 2A DC
Power consumption
1 Watts
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
4
PANEL DESCRIPTIONS

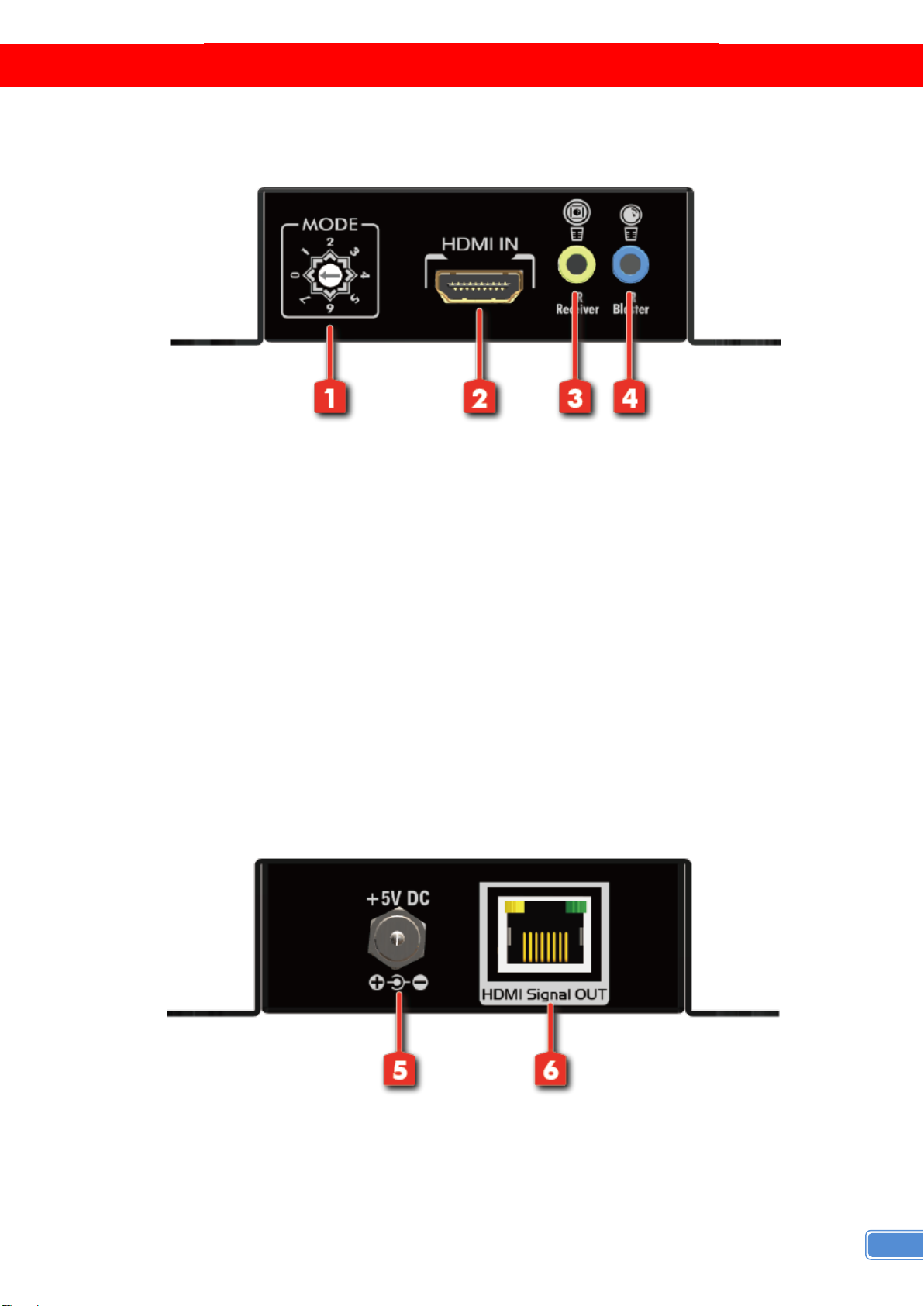

Transmitting unit
CV-57KJ-TX
►
Front Panel
1. MODE: 0 - EDID Full-HD(1080p@60) - 24bit 2D video & 7.1ch audio
1 - EDID Full-HD(1080p@60) - 24bit 2D video & 2ch audio
2 - EDID Full-HD(1080p@60) - 36bit 2D video & 7.1ch audio
3 - EDID Full-HD(1080p@60) - 36bit 2D video & 2ch audio
4 - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 7.1ch audio
5 - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 2ch audio
6 - EDID Full-HD(1080p@60) - 36bit 3D video & 2ch audio
7 - EDID learning mode
2. HDMI IN: Connects to a HDMI source with a HDMI male-male cable
3. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
4. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
Rear Panel
5. +5V DC: Connect to 5V DC power supply.
6. HDMI Signal OUT: Plug in a Cat-5/5e/6 cable that needs to be linked to the transmitting unit
CV-57KJ-TX.
5

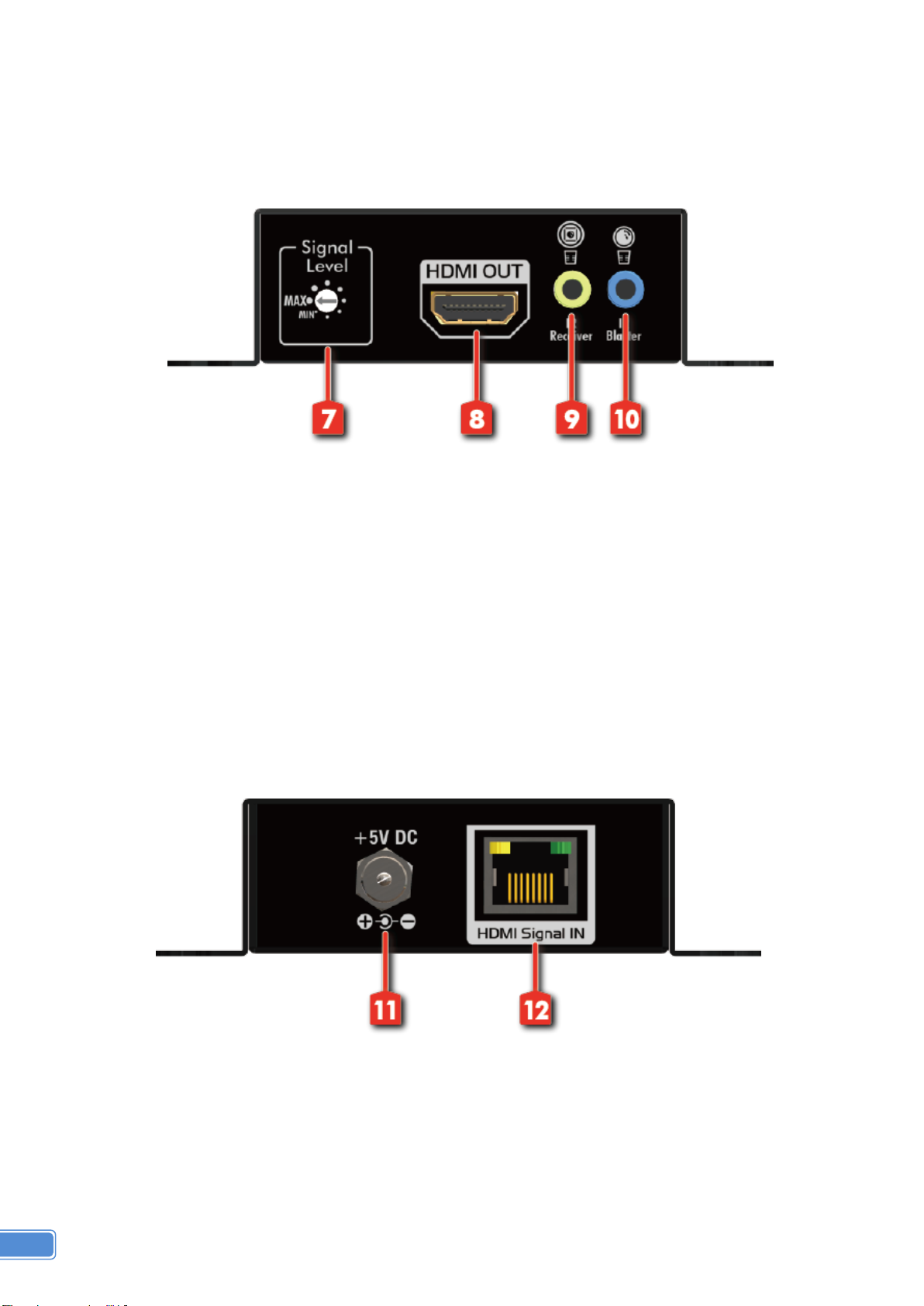

Receiving unit ► CV-57KJ-RX
Front Panel
7. Signal Level: Adjust the 8-level equalization control to the received HDMI signals. The HDMI signal
level varies from MAX (strongest) to MIN (weakest) for respective transmission length from longest
possible range to short distance. Please adjust the signal level from MIN to MAX and stop turning the
rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may
cause overpowering issue that would shorten the product life significantly!
8. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable.
9. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
10. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
Rear Panel
11. +5V DC: Connect to 5V DC power supply.
12. HDMI Signal IN: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit CV-57KJ-RX.
6
PACKAGE CONTENTS
● 1x CV-57KJ [TX & RX] ● 1x IR blaster
● 1x IR receiver ● 2x DC 5V 2A wall wart
● 1x User Manual

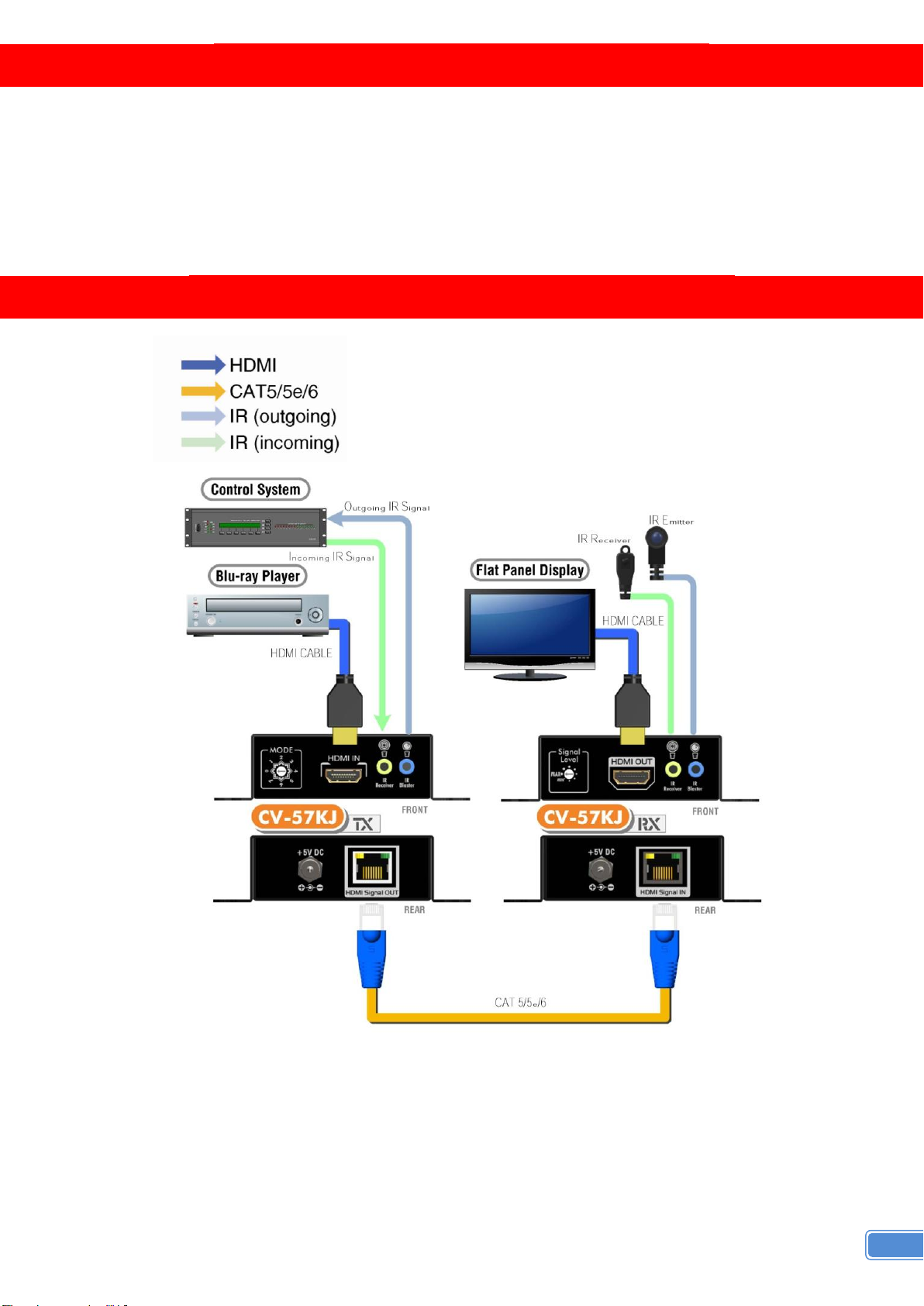

CONNECTION DIAGRAM
7
IR PASS-THROUGH
IR Blaster
IR Receiver
IR Blaster
IR Receiver
You can buy any IR extension cables in the market that are compatible to the definition of
the IR sockets for the matrix if necessary for replacement use. However, IR cables longer
than 2m (6-ft) may not work.
Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check
carefully before plugging in the IR extender to the respective IR sockets. Warranty will not cover the damage.
CAUTION!
IR Extenders
IR Sockets
IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the
other enf to control the devices corresponding to the IR signals.
IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of
the corresponding devices.
Definition of IR Earphone Jack
8
HARDWARE INSTALLATION
1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting unit CV-57KJ-TX.
2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit CV-57KJ-RX.
3. Connect IR Blaster/Receiver to both TX and RX units.
4. Connect a Cat-5/5e/6 cable between the transmitting and receiving units.
5. Make sure this Cat-5/5e/6 cable is tightly connected and not loose.
6. Plug in 5V DC power supply unit to the power jack of the receiving unit CV-57KJ-RX.
7. Plug in 5V DC power supply unit to the power jack of the transmitting unit CV-57KJ-TX.
8. If you see flickering or blinking image on the display, please adjust the rotary control switch to improve
the cable skew. MAX stands for the strongest HDMI signal level for longest possible transmission
length while MIN stands for the weakest HDMI signal level for short transmission length. Please adjust
the signal level from MIN to MAX and stop turning the rotary switch whenever the audio/video is
playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten
the product life significantly!
EDID LEARNING
1. Turn off CV-57KJ-TX and disconnect the Cat.5/5e/6 between CV-57KJ-TX and CV-57KJ-RX.
2. Connect the HDMI display to "HDMI IN" on the CV-57KJ-TX with a HDMI cable.
3. Set "MODE" on the transmitting unit CV-57KJ-TX at H.
4. Turn on the CV-57KJ-TX.
5. The LED on the RJ45 of CV-57KJ-TX will dim and light again, which indicates the EDID learning
procedure is complete.
6. Unplug the HDMI cable from the display and follow the instruction in [Hardware Installation] to set up
the CV-57KJ and enjoy the experience.
9
HDMI
Pin 1
TMDS Data2+
Pin 11
TMDS Clock Shield
Pin 2
TMDS Data2 Shield
Pin 12
TMDS Clock–
Pin 3
TMDS Data2–
Pin 13
CEC
Pin 4
TMDS Data1+
Pin 14
Reserved (N.C. on device)
Pin 5
TMDS Data1 Shield
Pin 15
SCL
Pin 6
TMDS Data1–
Pin 16
SDA
Pin 7
TMDS Data0+
Pin 17
DDC/CEC Ground
Pin 8
TMDS Data0 Shield
Pin 18
+5V Power
Pin 9
TMDS Data0–
Pin 19
Hot Plug Detect
Pin 10
TMDS Clock+
PIN DEFINITION
CAT5 [RJ45]
Type A (Receptacle) HDMI
1
NOTICE
1. When adjusting the signal level on the receiver unit, please dial the rotary control switch from MIN to
MAX and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate
signal level setting may cause overpowering issue that would shorten the product life significantly!
2. Wrongly insert IR blaster and IR receiver to wrong 3.5mm infrared sockets may result in the failure of
the IR extenders. Please check carefully before plugging in the IR extender to the respective IR
sockets.
3. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve
and provide DVI or HDMI display EDID information.
4. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP
cable and ASTRODESIGN Video Signal Generator VG-859C & VG-870B.
5. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of HDMI sources,
and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m
[1,000ft] bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the form of
fixed length patch cords). Shielded STP cables are better suited than unshielded UTP cables. A solid
UTP Cat-5e cable shows longer transmission range than stranded STP Cat-6 cable. For long
extension applications, solid UTP/STP cables are the only viable choice.
6. EIA/TIA-568-B termination (T568B) for Cat-5/5e/6 cables is recommended for better performance.
7. To reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6 cable, one can
use shielded STP cables to improve EMI problems, which is worsen in long transmission.
8. Because the quality of the CAT5/6 cables has the major effect on how long the transmission limit can
achieve and how good is the received picture quality, the actual transmission range is subject to one's
choice of Cat-5/5e/6 cables. For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is
recommended.
9. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input #1]
generally can produce better transmission performance among all HDMI inputs.
1
WARRANTY
1
The SELLER warrants the
from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or
an authorized dealer. Should this product fail to be in good working order within 1 year warranty period,
The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to
accident, disaster, abuse or any unauthorized modifications including static discharge and power surge.
This warranty is offered by the SELLER for its BUYER with direct transaction only. This warranty is void if
the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
CV-57KJ HDMI extender over single cat.X with bi-directional IR
free
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the
change without further notice.
CV-57KJ
features and specifications is subject to
Loading...
