User Manual
CV-57H
HDMI Extender over Single Cat.X
with Direct Plug-in Receiver
rev: 110127
Made in Taiwan
7.1 CH
AUDIO
7.1 CH
AUDIO
Safety and Notice
The CV-57H HDMI Extender over Single Cat.X with Direct Plug-in Receiver has been tested
for conformance to safety regulations and requirements, and has been certied for international
use. However, like all electronic equipments, the CV-57H should be used with care. Please read
and follow the safety instructions to protect yourself from possible injury and to minimize the risk
of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
INTRODUCTION ............................... 1
FEATURES ........................................ 1
PACKAGE CONTENTS ..................... 1
SPECIFICATIONS ............................. 2
PANEL DESCRIPTIONS ................... 3
Transmitting unit ................................ 3
Receiving unit .................................... 4
INSTALLATION .................................. 5
EDID LEARNING ............................... 5
CONNECTION DIAGRAM ................ 6
NOTICE ............................................. 7
PERFORMANCE GUIDE .................. 7
WARRANTY ...................................... 8
TABLE OF CONTENTS
1
INTRODUCTION
The CV-57H HDMI Extender over Single Cat.X with Direct Plug-in Receiver boosts up your video/
audio transmission distance up to 25m (80ft) in HDTV 1080i format. With only one cost effective LAN
cable, users can directly plug the receiver in to HDTV sources from DVD players, Blu-ray Disc player,
PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including
HDMI/DVI enabled TV sets or LCD PC monitors. This cost effective exibility makes HDCP compliant
DVD players or PS3 transmit high quality video and audio with a greater distance at the minimal cost,
when integrating several components apart.
The CV-57H includes two units: transmitting (CV-57H-TX) and receiving (CV-57H-RX) units. The
transmitting unit is used to capture the input HDMI/DVI signals and carry the signals through one RJ45
connector into one cost effective Cat-5/5e/6 cable. The transmission distance between the sending and
receiving units can be up to 25m (80ft) under HD (720p/1080i) or 15m (50ft) under Full HD (1080p). With
direct plug-in to the HDTV, users do not need to have to nd a power outlet for the traditional HDMI over
CAT5 receiver and can save an HDMI cable with ease of use.
FEATURES
● State-of-the-art Silicon Image (founder of HDMI) chipset embedded for utmost compatibility and
reliability
● HDMI 1.3c compliant
● HDCP 1.1 compliant
● Extends the transmission length up to 25m (80ft) from the HDMI sources under HD resolution (1080i or
720p)
● Extends the transmission length up to 15m (50ft) from the HDMI sources under Full HD resolution
(1080p)
● Wall mounting housing design for easy and robust installation
● Pure unaltered uncompressed 7.1ch digital HDMI over UTP
● cable transmission
● Perfectly integrated with other HDMI over Cat.X series products
i
The length depends on the characteristics and quality of the cables. Higher resolutions and
longer transmission distances require low skew cables (<25ns/100m) for best performance.
Unshielded CAT6 with metal RJ45 connectors is recommended.
PACKAGE CONTENTS
● 1x CV-57H [TX & RX]
● 1x DC 5V 2A wall wart
● 1x User Manual
2
SPECIFICATIONS
Model Name CV-57H
Technical CV-57H[Tx] aka CV-57G-TX CV-57H[Rx] aka CV-715s
Role of usage Transmitter [TX] Receiver [RX]
HDMI compliance High Speed HDMI - Deep Color & 3D support
HDCP compliance Yes
Video bandwidth Single-link 225MHz [6.75Gbps]
Video support 480i / 480p / 720p / 1080i / 1080p60
HDMI over UTP
Full HD (1080p)-15m (50ft) [CAT5e] / 18m (65ft) [CAT6]
HD (720p/1080i)-25m (80ft) [CAT5e] / 30m (100ft) [CAT6]
Audio support Surround sound [up to 7.1ch) or stereo digital audio
Equalization No
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]
Input 1x HDMI 1x RJ45
Output 1x RJ45 1x HDMI
HDMI connector Type A [19-pin female]
RJ45 connector WE/SS 8P8C with 2 LED indicators
Rotary switch Mode selection None
Mechanical
Housing Metal enclosure Plastic molding
Dimensions
[L x W x H]
Model 91 x 60 x 26mm [3.6" x 2.4" x 1.0"] 45 x 25 x 22mm [1.8" x 1" x 0.9"]
Package 270 x 175 x 80mm [10.6" x 6.9" x 3.1"]
Carton 450 x 370 x 300mm [1'6" x 1'3" x 1']
Weight
Model 196g [6.9 oz] 22g [0.8 oz]
Package 540g [1.2 lbs]
Fixedness Wall-mounting case with screws Direct plug-in
Power supply 5V 2A DC None
Power consumption 4 Watt [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
3
PANEL DESCRIPTIONS
Transmitting unit ► CV-57H-TX aka CV-57G-TX
Front Panel
1
2
1
MODE: 0 = [Video] - supports up to HDMI 1.3 output. [Audio] - supports up to 7.1ch output
1 = [Video] - supports up to HDMI 1.3 output. [Audio] - locks to stereo audio output
2 = [Video] - locks to HDMI 1.2 output. [Audio] - supports up to 7.1ch output
3 = [Video] - locks to HDMI 1.2 output. [Audio] - locks to stereo audio output
4 = [Video] - DVI display mode. [Audio] - no audio output
5 = [Safe Mode] - uses default EDID1 with video supported up to 1080p and stereo audio
6 = [Default Mode] - uses default EDID2 with video supported up to 1080p and 7.1ch audio
7 = [EDID Learning Mode] - learns EDID3 from the display
2
HDMI IN: Connects to a HDMI source with a HDMI male-male cable here
Note for Auto EDID (Extended Display Identication Data) learning
1 Please connect the display which you want to read EDID with a HDMI cable to the transmitter's
HDMI-IN and turn Mode to 7 so the TX can learn the EDID information from the connected HDTV.
The LED on the RJ45-OUT of TX will dim and light again in a few seconds, which indicates the
EDID learning process is completed.
2 Turn Mode clockwise from Mode 7 to Mode 0 or Mode 1 for desirable audio setting and enjoy the
experience. DO NOT let the rotary arrow pass by Mode 6 which will erase the EDID just learned
and restore the default EDID.
3 If use Mode 6 EDID(1080p),turn Mode clockwise from Mode 6 to Mode 0~4.
If use Mode 5 EDID(1080p),turn Mode anticlockwise from Mode 5 to Mode 0~4.
4

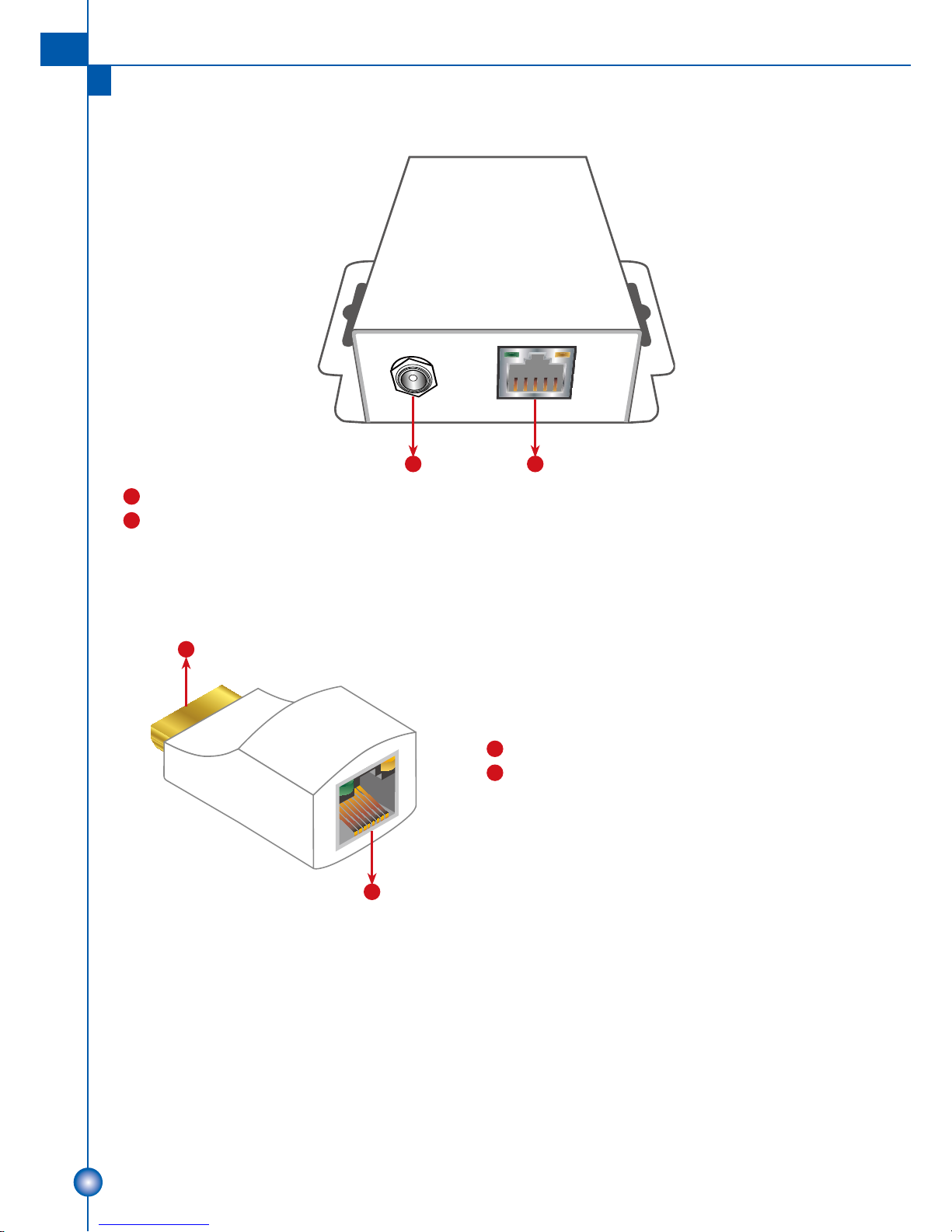

Rear Panel
3
4
3
+5V DC: Connect to 5V DC power supply.
4
RJ45-OUT: Plug in a CAT-5/5e/6 LAN cable that needs to be linked to the RJ45 connector of the
receiving unit CV-57H-RX.
Receiving unit ► CV-57H-RX aka CV-715s
2
1
1
HDMI HDMI output
2
RJ45: HDMI Signal input
5
INSTALLATION
1. Connect your HDMI/DVI source (such as a Blu-ray Disc player) to the transmitting unit CV-57H-TX.
2. Plug-in the receiving unit CV-57H-RX to your HDMI display (such as a HDTV or a projector).
3. Connect your CAT-5/5e/6 LAN cable between the transmitting and receiving units.
4. Make sure your CAT-5/5e/6 LAN cable is tightly connected and not loose.
5. Plug in 5V DC power cord to the power jack of the transmitting unit CV-57H-TX.
EDID LEARNING
1. Turn on CV-57H-TX.
2. Turn the Mode of CV-57H-TX counterclockwise from 0 (for surround sound) or 1 (for stereo) to 7.
3. Use a HDMI cable to connect CV-57H-TX & the display (better not connect to video source). The
LED on the RJ45 of CV-57H-TX will dim and light again, which indicates the EDID learning process is
nished.
4. Turn the Mode of CV-57H-TX clockwise from 7 to 0 (for surround sound) or 1 (for stereo). The most
important thing is don't let the rotary arrow pass through 6 which will erase the EDID just learned and
restore to default EDID.
5. Connect CV-57H-TX and the video source through a HDMI cable and enjoy the experience.
6
CONNECTION DIAGRAM
HDMI Display
C
R
L
LS
LB
RS
RB
HDMI
Cat.X
CV-57H
TX
7
NOTICE
1. When adjusting the signal level on the receiver unit, please dial the rotary control switch from 7 to 0
and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal
level setting may cause overpowering issue that would shorten the product life signicantly!
2. If the DVI or HDMI device requires the EDID information, please use CV-1001 or CV-5005H EDID
Reader/Writer to retrieve and provide DVI or HDMI display EDID information.
3. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP
cable and ASTRODESIGN Video Signal Generator VG-859C & VG-870B.
4. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of HDMI sources,
and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m
[1,000ft] bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the form
of fixed length patch cords). Shielded STP cables are better suited than unshielded UTP cables. A
solid UTP Cat-5e cable shows longer transmission range than stranded STP Cat-6 cable. For long
extension applications, solid UTP/STP cables are the only viable choice.
5. EIA/TIA-568-B termination (T568B) for Cat-5/5e/6 cables is recommended.
6. To reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6 cable, one can
use double shielded STP cables to improve EMI problems, which is worsen in long transmission.
7. Because the quality of the category cables has the major effect on how long the transmission limit can
achieve and how good is the received picture quality, the actual transmission range is subject to one's
choice of Cat-5/5e/6 cables. For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is
recommended.
8. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input 1]
generally can produce better transmission performance among all HDMI inputs.
PERFORMANCE GUIDE
Performance rating Type of category cable
Wiring Shielding CAT5 CAT5e CAT6
Solid
Unshielded (UTP)
Shielded (STP)
Stranded
Unshielded (UTP)
Shielded (STP)
Termination Please use EIA/TIA-568-B termination (T568B) at any time
8
WARRANTY
The SELLER warrants the CV-57H HDMI Extender over Single Cat.X with Direct Plug-in
Receiver free from defects in the material and workmanship for 1 year from the date of purchase from
the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year
warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been
subjected to accident, disaster, abuse or any unauthorized modications including static discharge and
power surge. This warranty is offered by the SELLER for its BUYER with direct transaction only. This
warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume
the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return
authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or tness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the CV-57H features and specifications is subject to
change without further notice.
