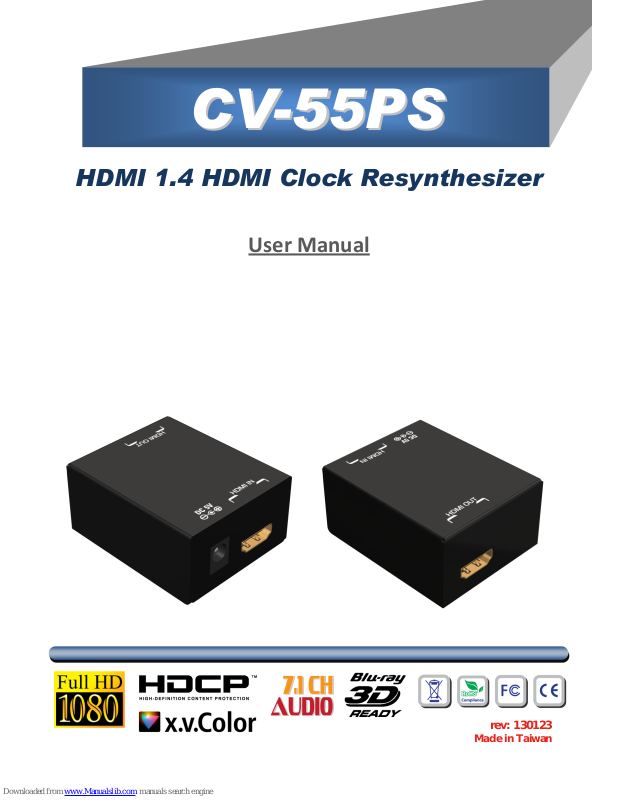

GoMax Electronics CV-55PS User Manual

HDMI 1.4 HDMI Clock Resynthesizer
User Manual
rev: 130123
Made in Taiwan
V--
5
5
5
5
P
P
S
S
The CV-55PS HDMI 1.4 HDMI Clock Resynthesizer has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the CV-55PS should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
Use only the power adapter and power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ..................................................................................................................... 1
FEATURES ............................................................................................................................. 1
PACKAGE CONTENTS .......................................................................................................... 1
SPECIFICATIONS .................................................................................................................. 2
PANEL DESCRIPTIONS ........................................................................................................ 3
LIMITED WARRANTY .......................................................................................................... 4
1
INTRODUCTION
The
CV-55PS HDMI 1.4 HDMI Clock Resynthesizer
boosts up your HDMI extension transmission over long cable and makes multiple layer cascading of HDMI products possible. The CV-55PS receives the HDMI signals input and resynchronizes and equalizes the signals with state-of-art jitter cleaning technology. The transmission distance and signal integrity can be further improved. Supporting up to 3.0 Gbps per data channel, CV-55PS provides high bandwidth HDMI systems a cost effective way to overcome jitter problems and make the complex installation easy.
FEATURES
HDMI 1.4a compliant  Supports 4Kx2K & 3D video formats  Built-in super jitter cleaning mechanism  +5V power socket  Perfectly integrated with other HDMI over CAT5 series products
PACKAGE CONTENTS
1x CV-55PS  1x DC 5V 2A power supply unit  1x User Manual
2
SPECIFICATIONS
Model Name
CV-55PS
Technical
Role of usage
HDMII to HDMI Repeater with Clock Cleaning
HDMI standards
1.4a
Input Video bandwidth
3Gbps per data channel
Audio support
Bypass
ESD protection
[1] Human body model ±19kV [air-gap discharge] & ±12kV [contact discharge] [2] Core chipset ±2kV
PCB stack-up
4-layer board [impedance control differential 100; single 50]
CEC Channel
Bypass
Input
1x HDMI
Output
1x HDMI
HDMI connector
Type A [19-pin female]
Mechanical
CV-55PS
Housing
Metal enclosure
Dimensions [L x D x H] Model
56 x 45 x 25mm [2.2”x1.8”x1”]
Package
140 x 200 x 75mm [5.5” x 7.9” x 3”]
Carton
420 x 400 x 300mm [1’8” x 1’4” x 11.8”]
Weight Model
86g [3 oz]
Package
360g [0.8 Ibs]
Fixedness
Wall-mounting case with screws
Power supply
5V 2A DC
Power consumption
5 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]
3
PANEL DESCRIPTIONS
Front Panel
1. 5V DC power jack
2. HDMI IN: Connect to a HDMI source with a HDMI male-male cable here.
Rear Panel
3. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here.
4
LIMITED WARRANTY
The SELLER warrants the CV-55PS HDMI 1.4 HDMI Clock Resynthesizer to be free from
defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge. This warranty is offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the
CV-55PS
features and specifications is subject to
change without further notice.
