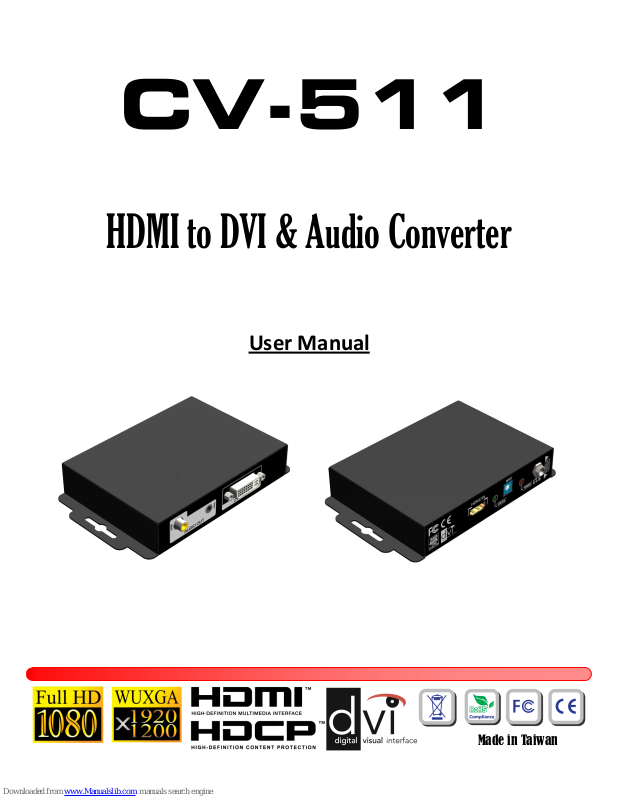

CV-511
HDMI to DVI & Audio Converter
User Manual
Made in Taiwan
1
Safety and Notice
The CV-511 HDMI to DVI & Audio Converter has been tested for conformity to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipments, the CV-511
should be used with care. Please read and follow the safety instructions to protect yourself from possible
injury and to minimize the risk of damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep objects that might damage the device and assure that the placement of this unit is on a stable
surface.
Use only the power adapter and power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
Warning!
This device is served purely for conversion between video formats.
This device CANNOT convert the input/output video resolutions.
2
This handy device provides an easy and instant approach for converting digital HDMI to digital video
(DVI-D) and both digital audio (S/PDIF) and analog stereo audio. With this module, HDMI based devices such
as Blu-ray Disc players, PS3, DVD players, camcorders, or set-top boxes can readily connect to your PC LCD
monitor and PC speakers at lowest cost. This device also enables users to connect full digital video and audio
to DVI enabled monitor and S/PDIF equipped audio receiver and amplifier, and make the highest compatibility
to your home theater devices.
Features
Fully HDCP compliant
DVI video up to 165MHz
RCA S/PDIF audio input
Stereo analog audio output
Front panel LED indicators
Easy installation
Introduction
3
Specifications & Package Contents
Technical
CV-511
Role of usage
Digital-to-digital format converter
HDMI compliance
HDMI
DVI compliance
DVI 1.0
Video Bandwidth
Single-link 225MHz [6.75Gbps]
Video support
Up to 1080p60, WUXGA [1920x1200@60Hz], UXGA [1600x1200@60Hz]
Audio support
Stereo audio
Output TMDS signal
1.2 Volts [peak-to-peak]
Output DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body model — ± 19kV [air-gap discharge] & ± 12kV [contact discharge]
[2] Core chipset — ± 2kV
PCB stack-up
4-layer board [impedance control — differential 100; single 50]
Input
1x HDMI
Output
1x DVI
1x RCA digital audio
1x 3.5mm analog audio
HDMI connector
Type A [19-pin female]
DVI connector
DVI-I [29-pin female digital only]
RCA connector
Coaxial S/PDIF digital audio [PCM 48kHz]
3.5mm connector
Analog stereo audio
Control Switch
8-level rotary switch for audio & EDID settings
Mechanical
CV-511
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
126 x 93 x 26mm [5"x3.7"x1.0"]
Package
270 x 175 x 80mm [10.6"x6.9"x3.1"]
Carton
450 x 370 x 300mm [1'6"x1'3"x11.8"]
Weight
Model
339g [12 oz]
Package
650g [1.4 lbs]
Fixedness
Wall-mounting case with screws
Power supply
Interlocking power jack to prevent power loose
Power consumption
3.5 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]
Package Contents
1x CV-511
1x 5V power supply unit
1x User Manual
4
Front Panel
1. S/PDIF: connect to S/PDIF digital stereo audio speaker
2. Stereo: connect to analog stereo audio speaker
3. DVI OUT: connect to digital DVI display
Rear Panel
4. HDMI IN: connect to an HDMI source device
5. STATUS: Status indicator
[Normal operation] − lights up means the HDMI device is connected
[EDID learning mode] − lights off means the start of EDID learning mode; flashes means the learning the
EDID from connected display; lights up means the completion of the EDID learning
6. MODE: 8-level rotary switch for audio and EDID settings
0 = Pair 1 of 7.1ch analog audio output 4 = Reserved
1 = Pair 2 of 7.1ch analog audio output 5 = Reserved
2 = Pair 3 of 7.1ch analog audio output 6 = Restore Default EDID
3 = Pair 4 of 7.1ch analog audio output 7 = Learn EDID from connected display
7. POWER: power indicator [light: power on; dim: power off]
8. +5V DC: connect to 5V interlocking power supply unit
Panel Descriptions
5
1. Connect your HDMI source device to the HDMI IN port.
2. Connect your DVI display or projector to the DVI-I OUT port.
3. Connect your S/PDIF AV receiver to the S/PDIF RCA port.
4. Connect your PC speaker to the Stereo 3.5mm earphone jack.
5. Power up the CV-511.
* S/PDIF format is dependent upon the embedded digital audio part in the input HDMI stream. The S/PDIF receiver
must be able to recognize the input S/PDIF format. This CV-511 only separates the digital audio in HDMI stream,
and bypasses this decoded audio to the output.
* The function of the rotary switch is reserved and please keep the rotary switch at 0.
1. Power up the CV-511. Connect DVI display to the DVI OUT.
2. Turn the rotary switch counterclockwise [] from 0 to 7.
3. The green LED will flash a few times to indicate the EDID is learned.
4. Turn the rotary switch clockwise [] from 7 to 0. DO NOT let the rotary switch arrow pass 6, which will
erase the just learned EDID and reset to default EDID.
1. Analog stereo audio output can merely support 2-channel audio. This version does NOT support
8-channel analog audio applications.
2. S/PDIF audio output supports main 2-channel audio output only.
Hardware Installation
Notice
EDID Learning
6
The SELLER warrants the CV-511 HDMI to DVI & Audio Converter to be free from defects in the material
and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this
product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or
replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized
modifications including static discharge and power surge. This warranty is offered by the SELLER for its
BUYER with direct transaction only. This warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts and
labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the
BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or
damage in transit. Under no circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible for
shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty and
must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will
NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or
omission in this manual, even if advised of the possibility of such damages. Also, the technical information
contained herein regarding the CV-511 features and specifications is subject to change without further notice.
