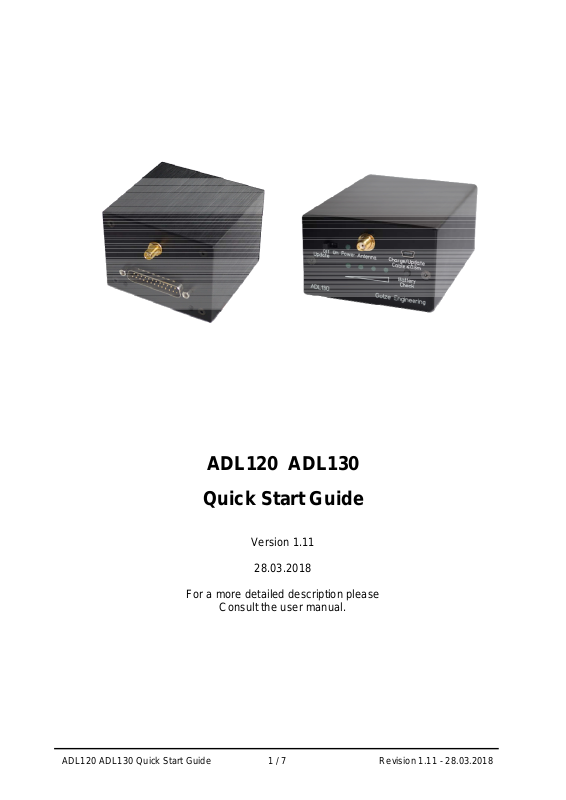

Golze Engineering ADL120, ADL13 Quick Start Manual

ADL120 ADL130

Quick Start Guide

Version 1.11

28.03.2018

For a more detailed description please

Consult the user manual.

ADL120 ADL130 Quick Start Guide 1 / 7 Revision 1.11 - 28.03.2018

1 General Description

This guide helps shows you how to do the first weather download with your ADL120.
For a more detailed description please consult the full user manual.

2 The Iridium satellite service

Before you can use the ADL120 or ADL130 you have to subscribe to one of our Iridium
satellite service plans. Please login to the ADL portal to order the different service
plans:
https://www.ing-golze.de/login.jsp

If you have no login yet please contact us by email at [e-mail].

3 Powering up the ADL120

The easiest way to power up the ADL120 is connecting it to a 12-28 Volt cigarette
lighter sockets with the supplied cable. For a first test experience has shown that you
can get good results by parking your car on a parking lot which a good view to the sky
and powering the ADL120 using the cigarette lighter socket of your car.

If using the cigarette lighter socket, please make sure you have a continuous
power supply. We had reports of loose or broken sockets causing the ADL120 to
reboot from time to time.

4 Powering up the ADL130

Make sure the ADL130 is charged then put the power switch on the “On” position. The
green light net to the switch should illuminate.

5 The Iridium antenna

Figure 1 The Iridium antenna

Connect the supplied Iridium antenna to the ADL120/130. Place the antenna on the
glareshield as far forward as possible giving it a good view to the sky.

ADL120 ADL130 Quick Start Guide 2 / 7 Revision 1.11 - 28.03.2018

6 Connecting your iPad/iPhone/Android device to the ADL120/130

After powering up the ADL device you have to connect your portable device to the WI­FI access point provided by the ADL device. Go to the setting screen of your device.
We show this step for the Apple iPad but other devices will work in a similar way.
Choose “Wi-Fi” on the left side. Then on the right side you will see the network
“ADLConnect”. Choose this network and make sure the iPad really connects to the
ADLConnect wireless network.

Figure 2 iPad Wi-Fi settings

ADL120 ADL130 Quick Start Guide 3 / 7 Revision 1.11 - 28.03.2018

7 Installing the ADLconnect App

Before you can start to use the ADL devices with your mobile device, you have to
install the ADLConnect iPad App. On Apple devices open the app store and search for
“ADLConnect” and install the free app. On Android devices please open the Google
play store and also search for “ADLConnect”.

8 Starting the ADLConnect app

Start the ADLConnect app. The top status bar will indicate if the app is connected to
your ADL device. When connected the Iridium and GPS signal quality will be displayed
in the top left corner.
If the app displays “Internet mode” in the top status bar it is not properly connected to
the ADL120/130. Please check the WiFi settings.

Figure 3 iPad ADLConnect user interface

ADL120 ADL130 Quick Start Guide 4 / 7 Revision 1.11 - 28.03.2018

9 Entering your login details

At the top part of the Config page you have to enter your login details. This is the same
email/password combination as used for your login at www.ing-golze.de.
Please note: In the past a "Deutsche Wetterdienst login" was required. This is no longer
the case.

Figure 4 Entering the login detailson the Config page of the iPad app

ADL120 ADL130 Quick Start Guide 5 / 7 Revision 1.11 - 28.03.2018

10 Your first weather download

Go to the Download page. Select Radar: FPL MQ, Strike: FPL, Wind/°C: FPL, Minima:
FPL and enter the ICAO code of an international airport below (for example EDDB).

Figure 5 SAT Page

Below press the button “Start ADL Download” and confirm you want to start the
download. Yow you can see the status messages of the ADL device below. If you have
good satellite reception and your DWD login is correct you will soon have downloaded
the weather data. Finally go to the MOVING MAP and METAR/TAF page, where you
will find your downloaded weather information.

ADL120 ADL130 Quick Start Guide 6 / 7 Revision 1.11 - 28.03.2018

Figure 6 Latest radar information shown on the moving map.

For a more detailed description please consult the user manual which can be
downloaded from the website http://www.ing-golze.de

11 Contact

Golze Engineering
Bredowstr. 29
10551 Berlin

http://www.ing-golze.de
[e-mail]

[phone]

ADL120 ADL130 Quick Start Guide 7 / 7 Revision 1.11 - 28.03.2018
