TEKNA PLUS SE MONITOR
USER MANUAL
TECHNOLOGY
INTRODUCTION
First ofall, we thank and congratulate you for purchasing this product manufactured by Golmar. Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification
and the manufacture of products like the one you have just purchased. Its advanced technology and strict quality control will ensure that customers and users enjoy the numerous features
that this device offers. To get the most out of them and ensure proper operation from day one, we recommend that you read this instruction manual.
CONTENTS
2
SAFETY PRECAUTIONS
- .Avoid overtightening thescrews of the monitor's wall mount connection block
- Always disconnect the power supply before making modifications to the device.
- .The fitting and handling of these devices must be carried out by authorised personnel
- .All of the wiring must run at least 40cm away from any other wiring
- Install the monitor in a dry protected location free from the risk of dripping or splashing water.
- .Do not place in humid, dusty or smoky locations, or near sources of heat
- Before connecting the system to the mains, check the connections between the door panel, power supply, distributors
and monitors
.
- .
Always follow the instructions contained in this manual
Introduc n....................................................................................................................................................................2tio
Contents........................................................................................................................................................................2.
Safety precautions......................................................................................................................................................... 2.
Characteristics...............................................................................................................................................................3
System operation...........................................................................................................................................................3.
Description of the monitor..................................................................................................................................................
D ..................................................................................................................................................................4
escription
..................................................................................................................................................................4.Status LED
................................................................................................................................................. 5.Function push buttons
...........................................................................................................................................................5.SW2 DIP switch
..............................................................................................................6.RJ-45 connector (installation with UTP cable)
............................................................................................................................................................6.EL-562module
...................................................................................................................7.RCTK-PLUS wall mount connection block
...............................................................................................................................................................8.Monitorfixing
Monitor programming
............................................................................................................................................... 9-10.
Quick monitor programming.........................................................................................................................................10
Advanced programming (monitor functions).....................................................................................................................
Men 1...................................................................................................................................................................... 11u .
- ..........................................................................................................................................11
Adjusting the call volume
- ................................................................................................................................. 11.Changing the ringtone melody
- .................................................................................................... 11.Activating / deactivatingthe doctormode function
Men 2......................................................................................................................................................................12u .
- ............................................................................................................................ 12..
Changing the button function
- ............................................................................................................................. 12. .Changing the button function
- ...........................................................................................................................12.Intercom with Tekna Plus monitors
Men 3......................................................................................................................................................................13u .
- ...........................................................................................................................................13
Repeating the ringtones
- ........................................................................................................13Adjusting the door panel communication time
- ...........................................................................................................................13Adjusting the door panel call time
- ........................................................................................................................................13Activating the in-call video
Men 4......................................................................................................................................................................14u .
- "Default setting"advanced programming(monitor functions)...................................................................................14
Optional connections........................................................................................................................................................
- ......................................................................................................................................15
Activating auxiliary devices
- ....................................................................... 15.Auxiliary pushbutton inputfor activatingthe doorpanel doorrelease
- ........................................................................................................................ 16.Intercom withinthe sameapartment
- ................................................................................... 16.Connection of theTekna Plusmonitor toa televisionor video
- ....................................................................................17.Push buttonfor receivingcalls fromthe apartmentfront door
- ................................................................................................................................................17Cleaning the monitor
Wiring diagrams
......................................................................................................................................................18-19
TEKNA PLUS SE MONITOR
CHARACTERISTICS
- Monitor forPlus /Uno installation.
- .3.5TFT colourscreen
- .Monitor with 3common wiresplus coaxialcable
- Monitor with4 commonwires plustwisted pair.
- Monitor withUTP cabling plusRJ-45 connector.
- Function and advancedprogrammingbuttons (to customise the monitor's functions).
- Completely privateconversation andimage.
- .Auto switch-on function
- .Auto spy functionwithout occupyinga channel
- Doctor mode function ( automaticdoor opening , see p.11).
- I .ntercom between twodevices inthe sameapartment
- .Input for callsfrom theapartment frontdoor
- Call volumecontrol (minimum,medium andmaximum).
- Input foroutside doorrelease pushbutton.
- Output toauxiliary callrepeater.
- Call to and s .master lave porter's exchange
- .Panic call toporter's exchange
- .Different ringtones toidentifycallorigin:Door panel, , intercom and interior doorof the apartmentporter's exchange
- Activation oftwo auxiliaryfunctions: secondcamera, courtesylights, etc.
- .Adjustmentof brightnessand colour
- .DIP switches forsetting the monitoraddress, call code and master/slave (quickprogramming mode)
- .Door release pushbutton
- .Monitor status LED
- .Programming LED
SYSTEM OPERATION
3
- To make acall, thevisitor presses the buttonfor theapartment, anumber ofaudible tonesindicate thatthe call is being
made andLED on the door panelilluminates. At thismoment, theapartment's monitor (telephone) receivesthe call. If the visitor presses the button for another apartment by mistake, the call can be cancelled by pressing the button for the correct apartment.
- In systems with several access doors, the other door panel(s) automatically disconnect. If another visitor attempts to
call, a numberof telephonetones willindicate thatthe channelis busyand LED on the doorpanel willilluminate.
- General entrance door panels (EL501 mode): If the call is being made from the general entrance door panel, the
interior door panel of the building being called and other possible general entrance door panels automatically disconnect. If another visitor attempts to call from either a busy interior door panel, a number of telephone tones will indicate that the channel is busy and LED of the door panel will illuminate, or from another general entrance door panel, a numberof telephonetones will indicatethat thechannel is busyand LED ofthe general entrancedoor panel will blink for3 seconds. Thedoor panelsof the otherinterior buildings willremain free tobe used.
- General entrance door panels (EL501 mode): If the call is made from an interior door panel, the other interior door
panels will remain free to be used. It is only possible to make calls to interior buildings from the general entrance door panels when their door panels are not in use. If an attempt is made to make a call to a busy interior door panel, a number of telephone tones will indicate that the channel is busy and LED of the general entrance door panel will blink for 3seconds.
- Thecall lastsfor 45 seconds, during which timean imageappears on the apartment's monitors for2 secondsafter the
call is received without the visitor knowing, and the status LED on the master monitor will illuminate (green). If the call is not answered within 45 seconds, the master monitor's status LED will illuminate (red), LED on the door panel will turn off andthe channel willbe free.
- To establish communication, lift the handset of the monitor (telephone), and the monitor's status LED (green) and the
door panel's LED will illuminate
.
-
The communication will last for one and a half minutes or until the handset is replaced.After the communication, the monitor's status LEDwill illuminate (red),the door panel'sLED will turnoff and thechannel will befree.
- To open the door, press the door release push button during the call or communication processes: one press will
activate the doorrelease for3 secondsand LED will also illuminatefor 3seconds.
- Descriptions ofthe functionbuttons canbe foundon page5.
TEKNA PLUS SE MONITOR

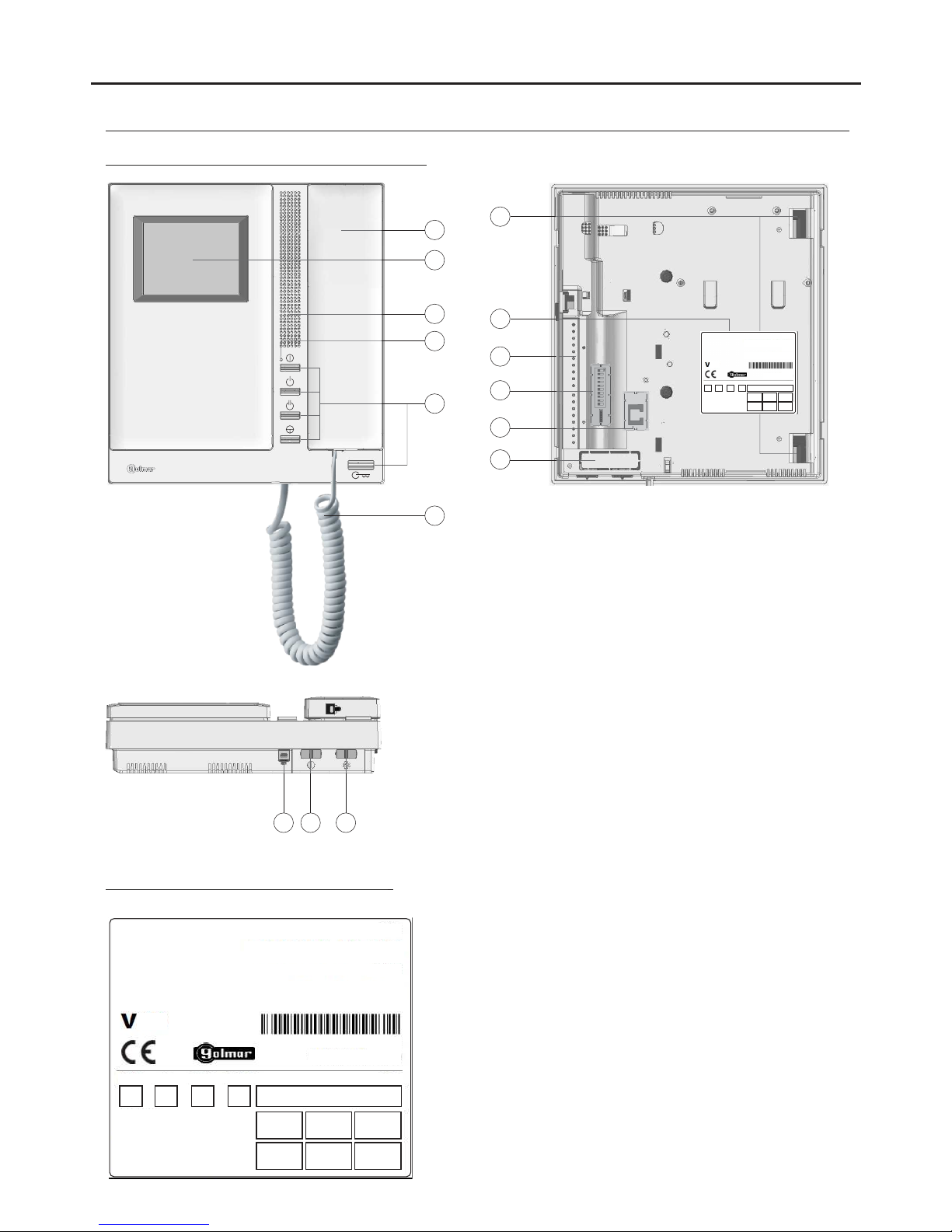

DESCRIPTION OF THE MONITOR
4
TEKNA PLUS SE MONITOR
a. b. c. d.
e. f . g. h. i . j . k. l . m. n. o.
Handset.
.
Colour screen
.Advanced programming LED
Monitor status LED (bicoloured):
- .Standby: LED illuminated red
-Call: LED illuminated green (master monitor).
-Communication: LED illuminated green.
-"Video-spy" if busy bus: LED fast blinking red.
(With monitor V03 or later).
-Night mode: LED blinking red.
-Doctor mode: LED blinking green
Function / programming push buttons.
.Telephone cord
Attachment holes. Identification label. Connect points.ing DIP switches. RJ-45 connector (installation with UTP cable). CN4 connector.
.Cord connector
.Contrast control
.Brightness control
a
g
b
n
o
d
k
h
f
e
To facilitate repair, replacement or the addition of monitors to
the existing installation, fill in the label with the relevant information
.
MASTER: .
main monitor
SLAVE: .secondary monitor INTER: .secondary monitor withintercom function A1: .monitor connected toan auxiliarydevice CODE: .call buttoncode STAIRWAY: codeof thechannel (building).
00000000000
.xx
MASTERINTER A1 SLAVE CODE
ESCALERA
STAIR
PISO
FLOOR
PUERTA
DOOR
ATENCIÓN Alta tensión. No abrir la tapa. Manipular sólo por personal del servicio técnico.
WARNING High voltage. Don't open cover. Handle only by technical service.
SN
REF.
TEKNA PLUS SE
CODE
11742105
00000000000
.xx
MASTERINTER A1 SLAVE CODE
ESCALERA
STAIR
PISO
FLOOR
PUERTA
DOOR
ATENCIÓN Alta tensión.No abrir la tapa. Manipular sólopor personal del serviciotécnico.
WARNING High voltage. Don't open cover. Handle only by technical service.
SN
REF.
TEKNA PLUS SE
CODE
11742105
1 2 3 4
5 6 7 8
9 10
I
j
m
c
l
Description of the identification label:
Description of the Tekna Plus SE monitor:
5
DESCRIPTION OF THE MONITOR

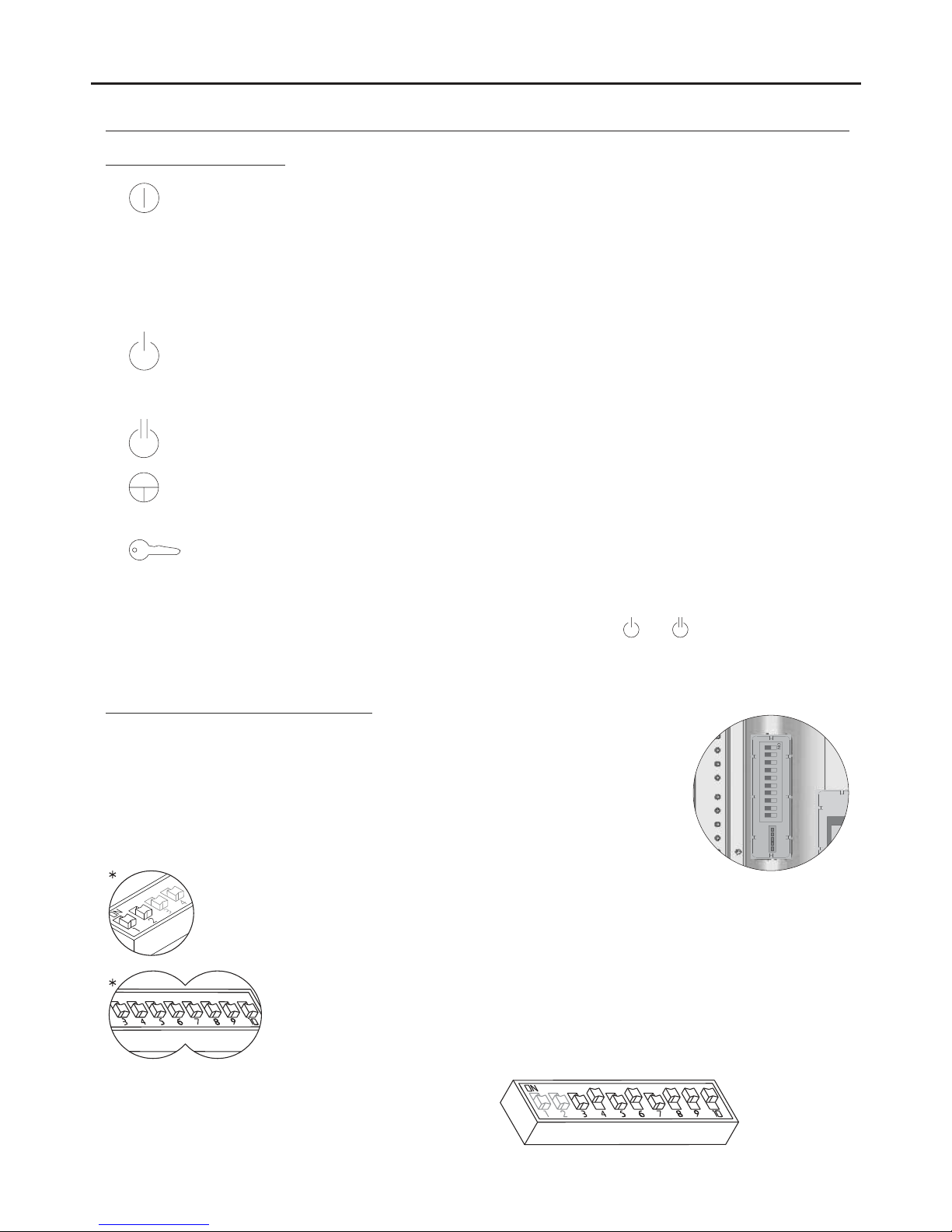

Function push buttons:
TEKNA PLUS SE MONITOR
(*) In advanced programmingmode, thedefault functionsof function push buttons and can be changed withone
of the following functions at the same time and per button: ” “ ” “intercom , auxiliary device activation , second camera activation or call to s (see page12).lave porter's exchange
One short press for 1 second, with the monitor in standby and the handset on or off the hook, activates
night mode on the monitor, confirmed by the status LED blinking red. During a call, the monitor does not emit aringtone unlessit isan apartment frontdoor call .
One long press for 3 seconds, with the monitor in standby and the handset on or off the hook, turns the
monitor on oroff.After anyresetting ofthe monitorand forthe following45 seconds,no operationwith it can be performed.
One long press for 3 seconds during a call cancels the call on the monitor. If there are more monitors in
the apartment, they will continue with the ringtones of the door panel. During communication with the door panel, thecommunication inprogress willend
.
With the handset lifted, the intercom (in the same apartment) is activated. One long press until a
confirmation tone can be heard will call all of the monitors in the apartment. To call individual devices, press the button once to call the master monitor, twice to call slave 1 , 3 times to call slave 2 , " "
" "4 times to call slave 3 and 5 times to call slave 4 . This selective intercom call mode is only available
with the TeknaPlus SEmonitor.This onlyfunctions ifno callor communicationis inprogress
.
Regardless of theposition ofthe handset,the auxiliarydevice isactivated.
With the handset hung up, the image from the door panel configured as master can be viewed (if busy
bus, m fast blinking red. ).the onitor status LED will indicate with With theWith monitor V03 or later handset lifted, audio and video communication can be established with the door panel if it has its auto switch-on function activated.This only functionsif nocommunication isin progress.
With the handset hung up, a panic call to the guard units configured to receive such calls is made. With
the handset lifted, a normal call can be made to the main guard unit. During call reception and communication processes, thedoor releasecan beactivated.
( )
*
( )
*
1 2 3 4
5 6 7 8
9 10
*Factory setting

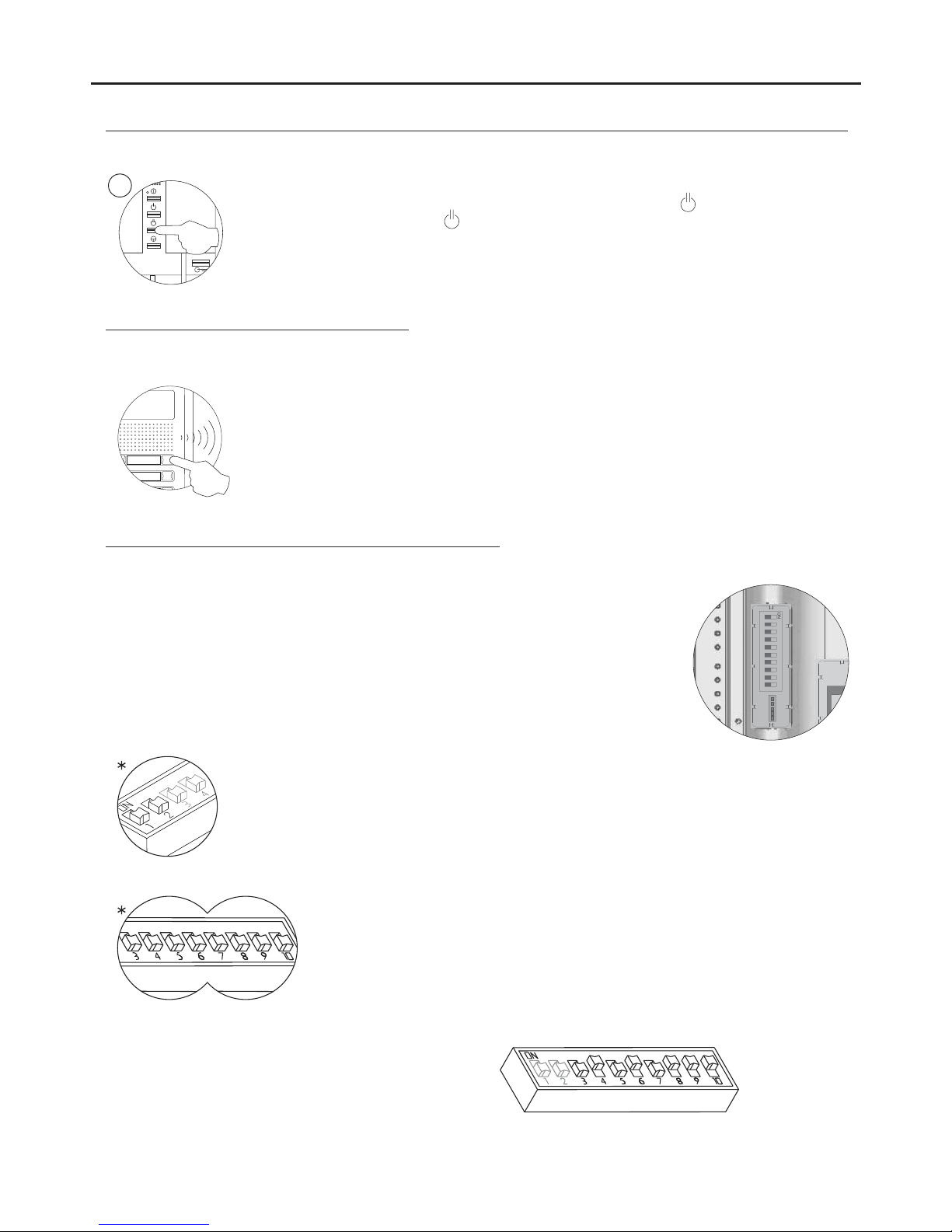

DIP3 to DIP10: To set the monitor address (addresses 1 to 255). The switches set to OFF
have a zerovalue. The values ofthe switchesset toON areshown inthe tablebelow. The monitor codeis thesum ofthe valuesof theswitches setto ON.
DIP1 and DIP2:To set the monitor as master / slave. DIP1 and DIP2 to OFF, master, DIP1 to
ON and DIP2 to OFF, slave 1, DIP1 to OFF and DIP2 to ON, slave 2, DIP1 and DIP2 to ON slave 3.
Example: 64+0+16+0+4+2+1=870+
Switch number:
ON:Value when
46453261678849210
1
3
128
Description of the SW2 DIP switch:
The SW2 DIP switch is located on the left-hand side of the back of the monitor.
It enablesthe monitorto beconfigured asmaster / slave andan addressto be assigned.
Important: This type of programming cannot be performed on a general
entrancedoor panel.
6
TEKNA PLUS SE MONITOR

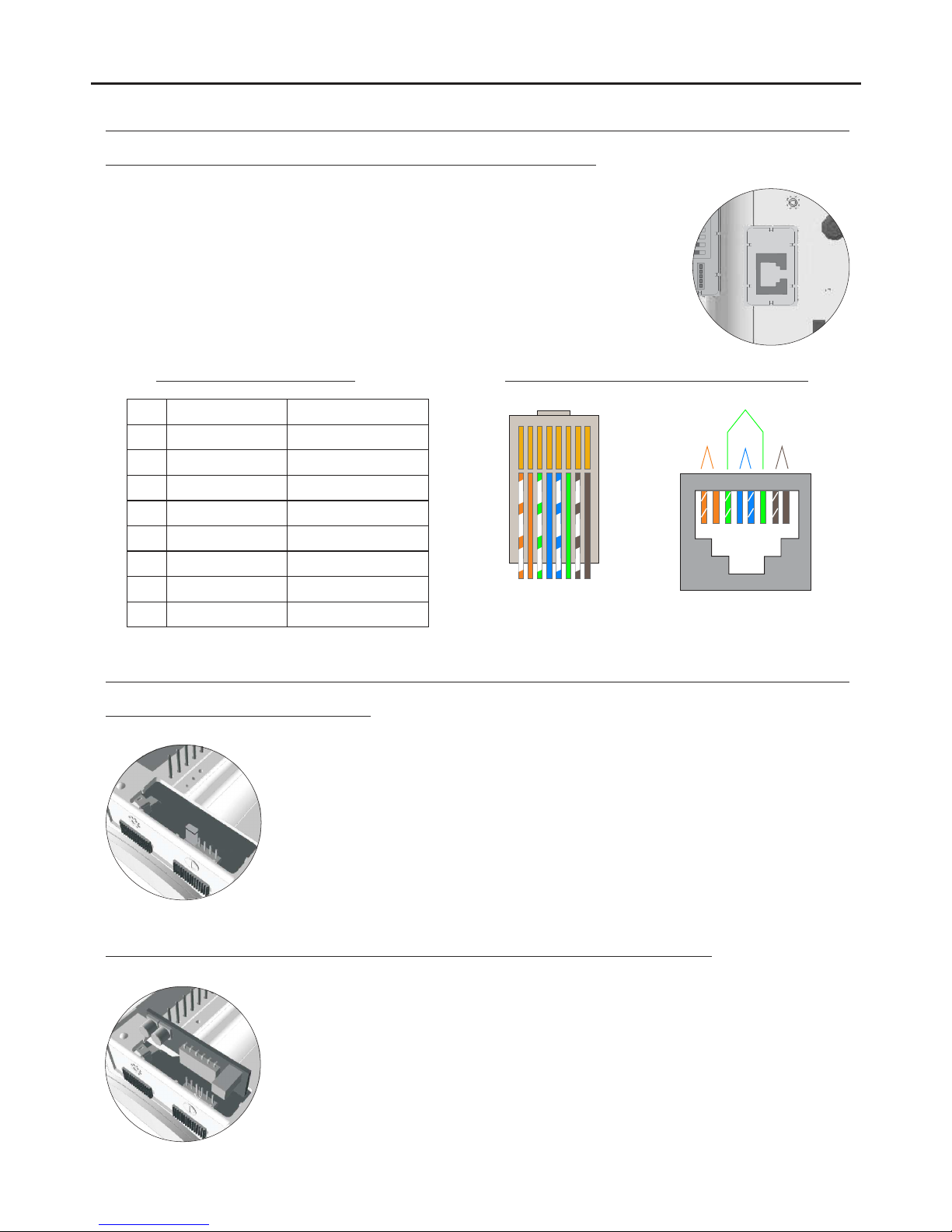

The monitor features an RJ-45 connector for installation with a UTP
cable. It islocated onthe left-handside ofthe backof themonitor. It enables connection of the system's main communication wires
(+, -, A, D, Vp y Mp) .in twisted-pair installations
RJ-45 connector (cable type: T568B)
Male connector Female connector
PA R 2I PA R 1I PA R 4I
PA R 3I
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
Ethernet cable
Golmar connection
White + Orange
GND (Audio) Audio GND (Dat )a +18V
+18V Data Vp
White + Brown
Mp
RJ-45 equivalence table
Description of the RJ-45 connector (installation with UTP cable):
Pin
1
2
3
4
5
6
7
8
Orange White + Green Blue
White + Blue Green
Brown
Locate the CN4connector atthe backof themonitor. To insertthe EL562module, removethe jumperthat isin theconnector.
NOTE: In thistype ofinstallation, setthe SW1-3DIP switcheson thesound moduleof the
door panel to ON, see instruction manual (page 13), or the SW1-3 DIPT632/Plus ML switches onthe EL500SEmicroprocessor toON, seemanual (page 7).TheT5000 ML door panel ofthe SV801SEGRF kitdoes notrequire modification. Use the specificwiring diagram.
The end ofline jumperis locatedon theCN4 connectorat theback ofthe monitor. In the case of twisted pair installations, the end of line jumper is located in the EL562
module (see nextsection).
Do not removethe jumper if thevideo cableends inthe monitor. Removethe jumperif the
video cable continuesafter themonitor.
DESCRIPTION OF THE MONITOR
MONITOR ADJUSTMENTS
Handling of the end of line jumper:
EL562 module for video door entry system installations with twisted pair cable:

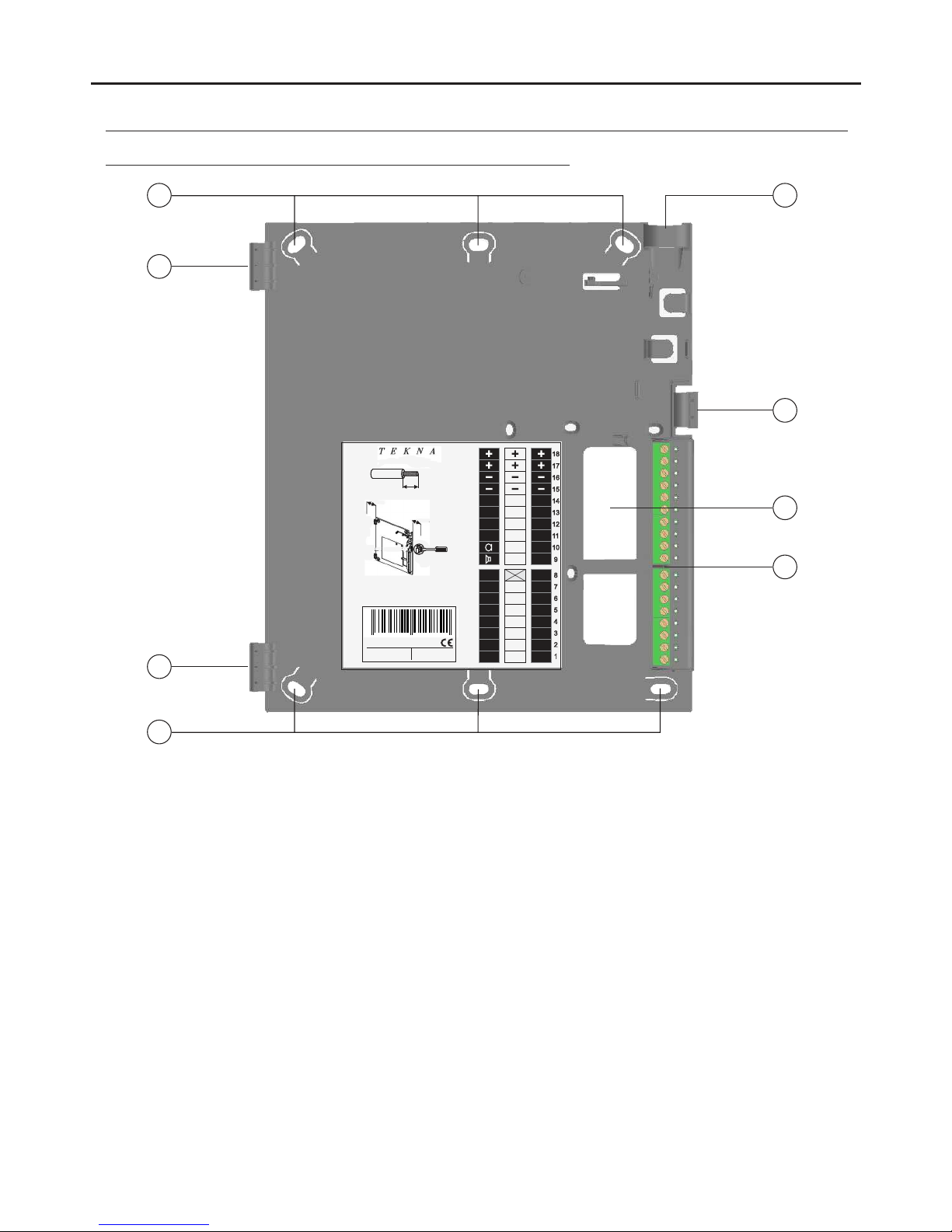

DESCRIPTION OF THE WALL MOUNT CONNECTION BLOCK
7
TEKNA PLUS SE MONITOR
Description of the RCTK-PLUS wall mount connection block:
a
a
b
b
f
e
d
c
8 4 2 9 8 9 8 0 1 1 8 5 1
90
50mm.
50mm.
Colocar la parte superior de la regleta a 1,60m. del suelo.
Place the top part of the monitor connector at 1,60m. from the floor.
Distancia mínima entre los laterales de la regleta y
cualquier objeto debe ser de 5cm.
Presionar para abrir.
Press to open.
COD E 11742 080
REF
RCT K-P LUS
LOT E
IMP 903 012
Max. 5mm
CABLE
Max. pelado del cable. Max. peeled cable.
Max. câble dénudé. Max. aanstrip lengte.
Vin
Vout
Malla
Shield
MP
Malla
Shield
CETK590
A D
INT
SA CTO OA1
VP
OA1
( )
*
( )
*
( )
*
18 17 16 15 14 13 12 11 10
9
8 7 6 5 4 3 2 1
Vin
Vout
Malla
Shield
HZ­INT SA
AP+
2C
VP MP
Malla
Shield
A1
PLUS
A D
Vin
Vout
Malla
Shield
HZ­SA 2C A1 VP
MP MP
Malla
Shield
VP
a. (x6).Holes for fixing to wall b. (x2).Monitor fixing clips c. Vertical wiring entry. d. Fixing clip. e. Central wiring entry. f. Connection terminals:
positive, negative
.
video signal input through coaxial cable.
.coaxial cable mesh
video signal output through coaxial cable.
.audio communication
.digital communication
.door bell push button input
intercom.
.auxiliary call repeater output
.auxiliary door opening push button input
.2nd camera activation output
auxiliary device activation output. balanced video signal (through twisted pair).
+, –: Vin : M :esh Vout : A : D : HZ- : INT : SA :
:AP+ 2C : A1 : Vp, Mp :
The +, and mesh terminals are duplicated to facilitate the cascade connection of other monitors or telephones. If the-
monitor is not positioned on the wall mount connection block, the cascade connected monitors or telephones will not receive power.
INSTALLATION OF THE MONITOR

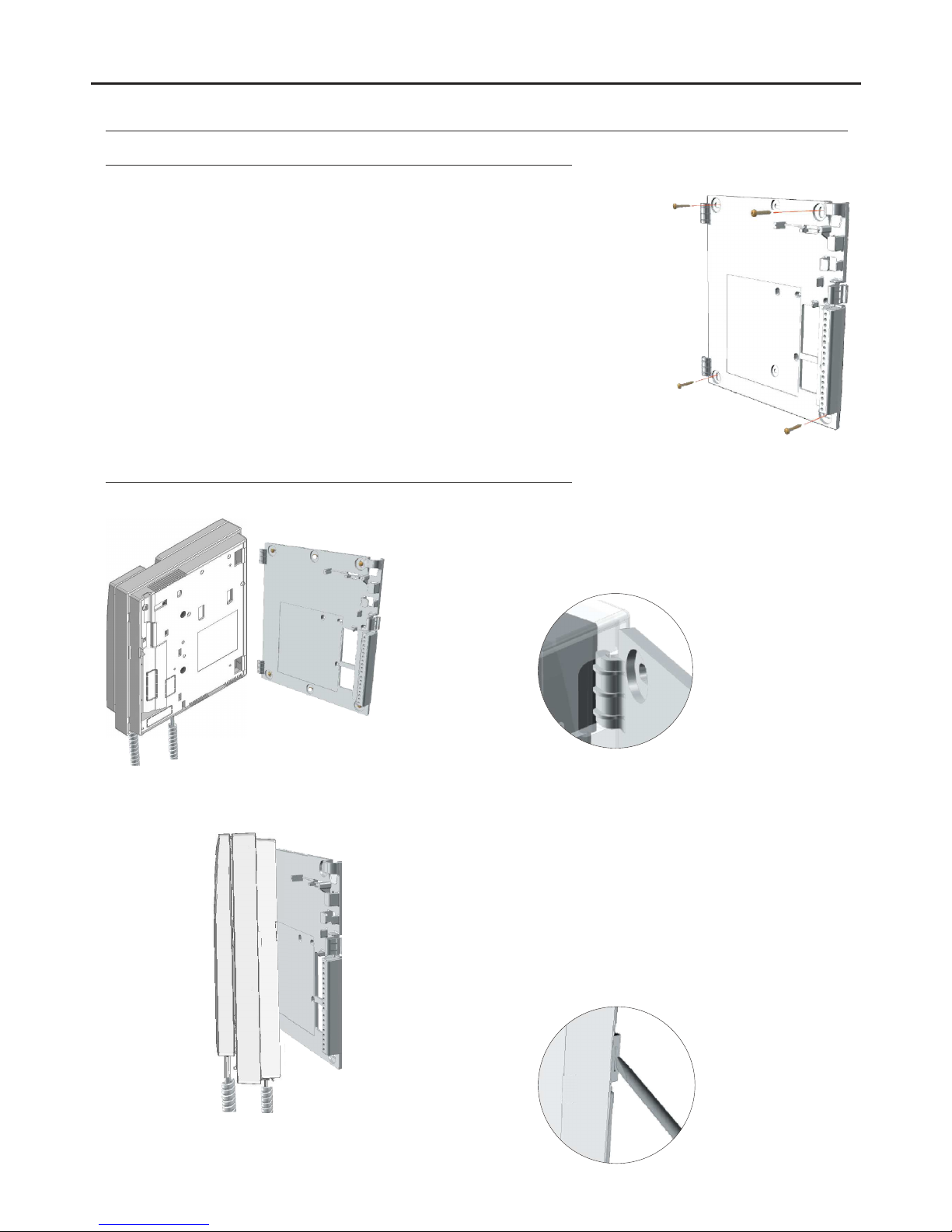

Fixing the monitor's wall mount connection block to the wall:
8
Avoid dusty orsmoky environments orlocations nearsources ofheat. To fix the monitor directly to the wall, drill four Ø6mm holes and use the
plugs and screwssupplied.
The top of the wall mount connection block must be positioned at a
height of 1.60m. The minimum distance between the sides of the wall mount connection block and the closest object must be 5cm.
Place the monitor at right angles to the wall mount connection block
and align the holes on its base with the fixing clips of the connection block, asshown inthe drawing.
Close the monitor like a book, applying pressure to the right-hand
side until the click of the connection block's fixing clips can be heard.
To remove the monitor from the connection block after installation,
use a flat screwdriver to release the fixing clips. Once the monitor has been released, open it like a book and remove it from the connection block, makingsure thatit doesnot fall.
Fixing the monitor's wall mount connection block to the wall:
TEKNA PLUS SE MONITOR
PROGRAMMING THE MONITORS
9
TEKNA PLUS SE MONITOR

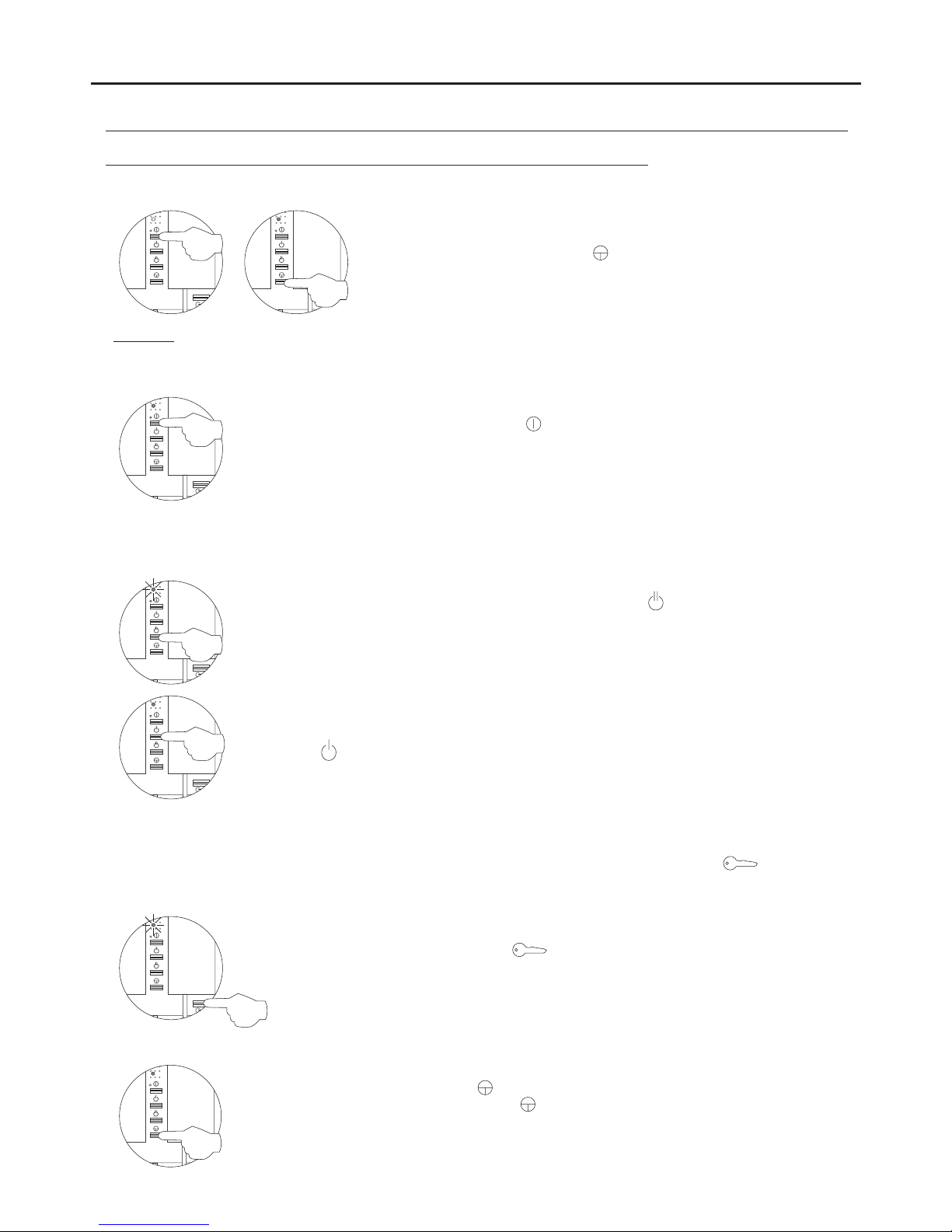

To programme the monitor as 1, press button once, and the status LEDSlave
will blink green once. Continue successively to Slave 4, pressing button four times, with thestatus LEDblinking greenfour times.
To programme the monitor as , press button and the statusSlave with intercom
LED will blinkgreen once.
Locate the SW2 DIP switch on the EL632 Plus sound module or the EL500SE
microprocessor and setto ON.
In systems with more than one door panel, only perform this procedure on the main door
panel of eachbuilding.
Important: To perform this programming, the monitor's SW2 DIP switches should be
set toOFF
.
Switch off the monitor to be programmed. Once switched off,press the doorrelease pushbutton.
While keeping the door release push button pressed, switch on the
monitor.
To show that the system is ready for programming, the door panel will
emit a number of tones and an image will appear on the monitor, at which point the door release push button can be released. To establish audio communicationwith thedoor panel,lift thehandset.
Press the doorpanel pushbutton
.
At this moment, the door panel will emit a number of tones andthe monitor'sLED willblink red.
To programme themonitoras , press button for 3 secondsMaster
.

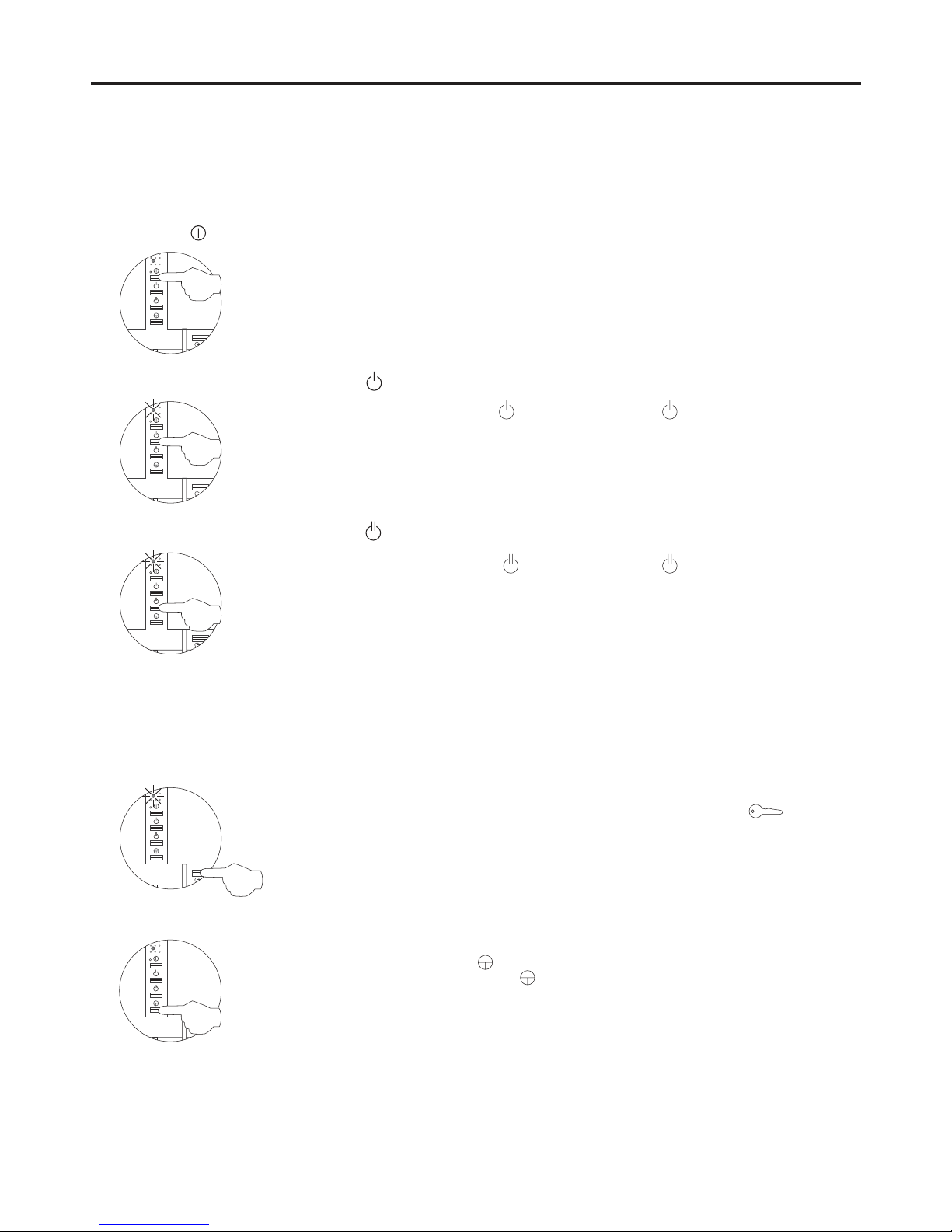

Programming the TEKNA PLUS SE monitor:
M
S
SI
Continued overleaf
Continued from the previous page.
10
TEKNA PLUS SE MONITOR
PROGRAMMING THE MONITORS
To programme the monitor as , press button and the status LED willSlave without video
blink green once. If button is pressed again, the monitor will return to being programmed as , and the status LED will blink green twice. The door panel video will beSlave with video displayed during a call depending on whether the monitor has been programmed as: Slave withvideo or Slave without video.
SV
Each apartment must only have one master unit; if there are parallel units, either monitors or telephones, they must be
configured as slaves.
Make a call to check that the monitor has been successfully programmed. Programme the
other telephones inthe sameway
.
Once the programminghas finished,set theprogramming switchto OFF. If thisis notdone, the
door panel willemit tonesto indicatethat thesystem isstill inprogramming mode.
1 2 3 4
5 6 7 8
9 10
*Factory setting
DIP3 toDIP10: To setthe monitoraddress (addresses 1 to255). The switches set
to OFF havea zerovalue. The values ofthe switchesset toON areshown inthe tablebelow. The monitor codeis thesum ofthe valuesof theswitches setto ON.
DIP1 and DIP2: To set the monitor as master / slave. DIP1 and DIP2 to OFF, master, DIP1
to ON and DIP2 to OFF, slave 1, DIP1 to OFF and DIP2 to ON, slave 2, DIP1 and DIP2 to ON slave 3.
Example: 64+0+16+0+4+2+1=870+
Switch number:
ON:
Value when
46453261678849210
1
3
128

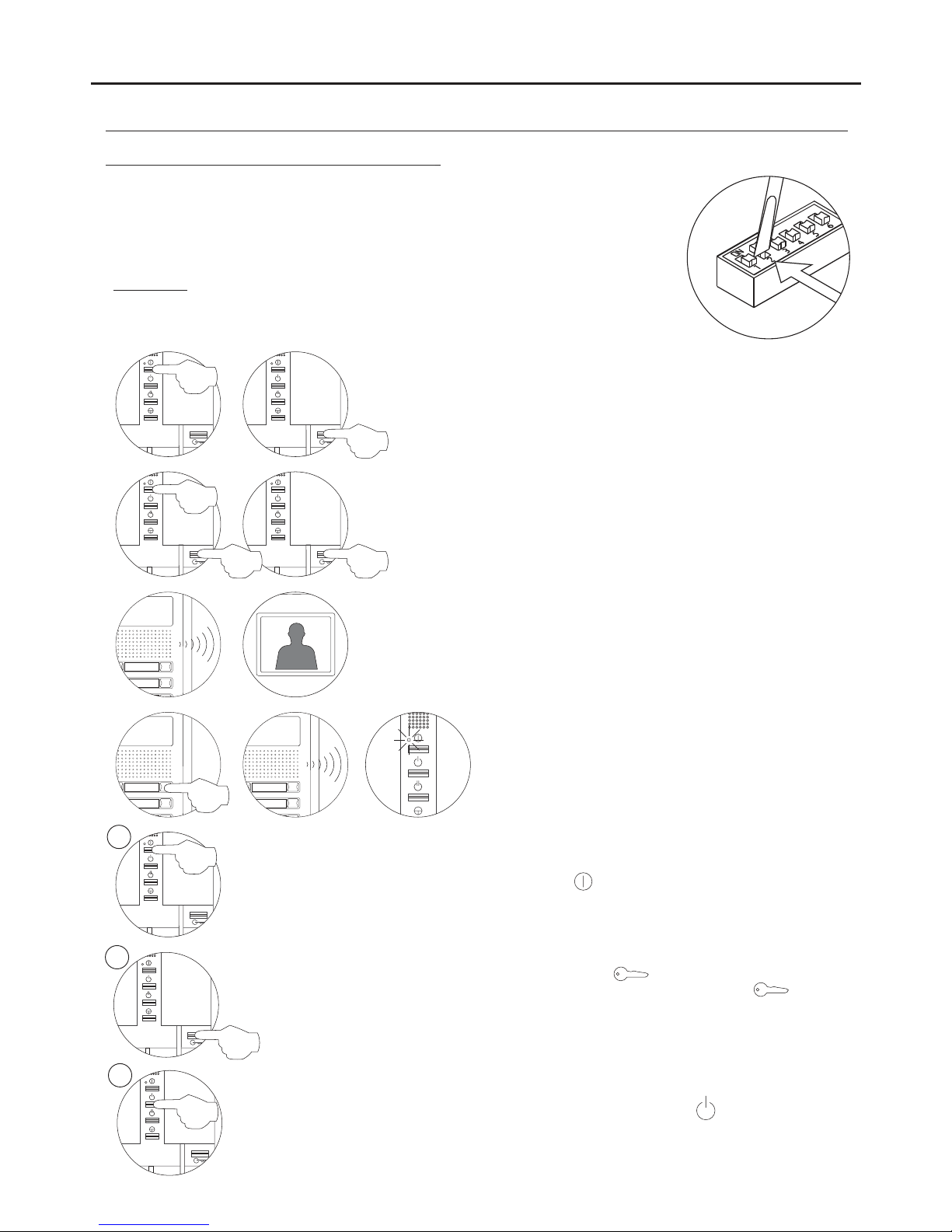

Quick programming of the Tekna Plus SE monitors:
The SW2 DIP switch is located on the left-hand side of the back of the monitor.
It enablesthe monitorto beconfigured asmaster / slave andan addressto be assigned.
Important: This type of programming cannot be performed on a general
entrancedoor panel.
11
ADVANCED PROGRAMMING (MONITOR FUNCTIONS)

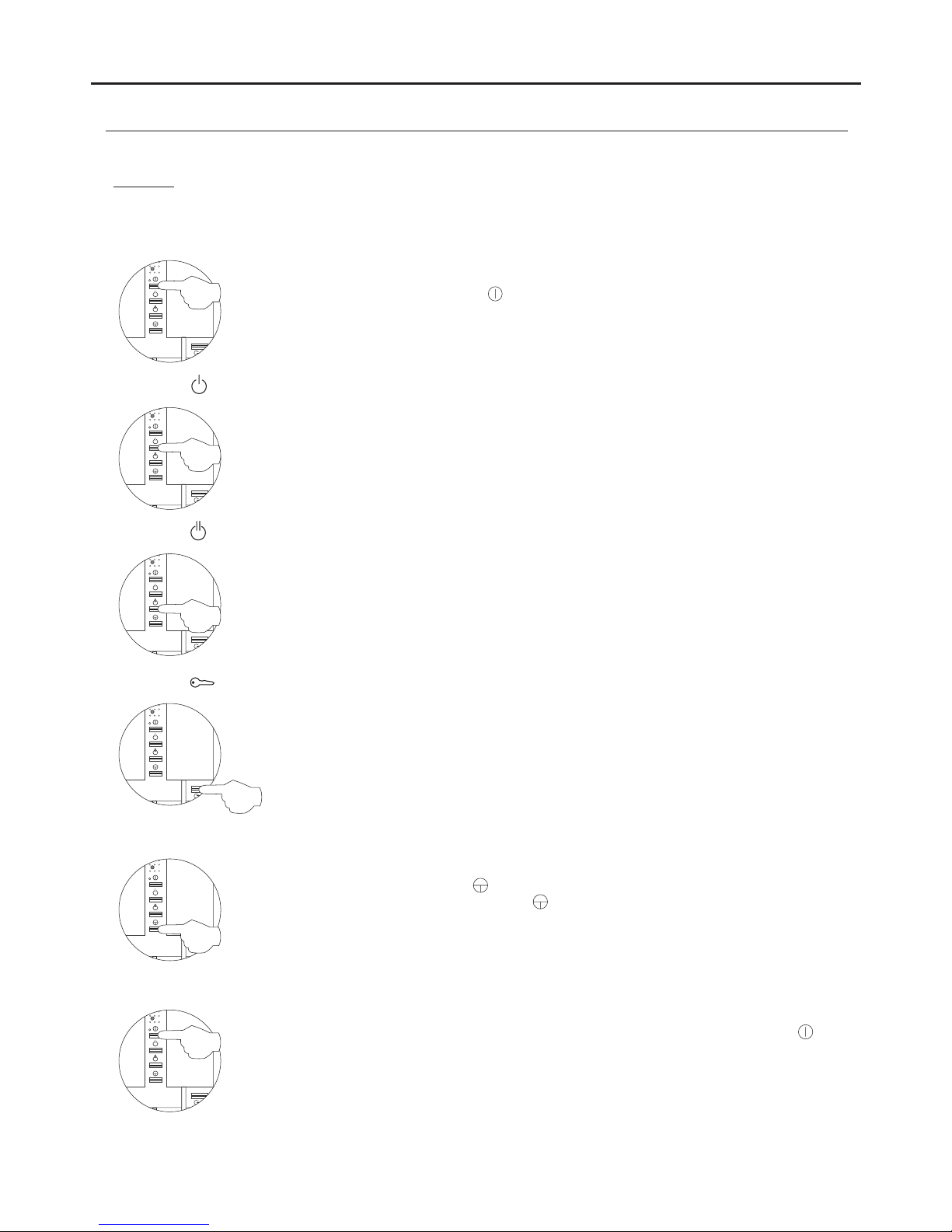

To activate doctor mode: Press button , and the programming LED will indicate with 2
blinks that thefunction isactivated orwith 1blink thatthe functionis deactivated.
Advanced programming enablesthe monitor'sdefault settingsto bechanged
:
Switch off themonitor to beprogrammed. Once switched off, press button for 3 seconds to enter of" "Menu 1
advanced programming, and the programming LED willilluminate
.

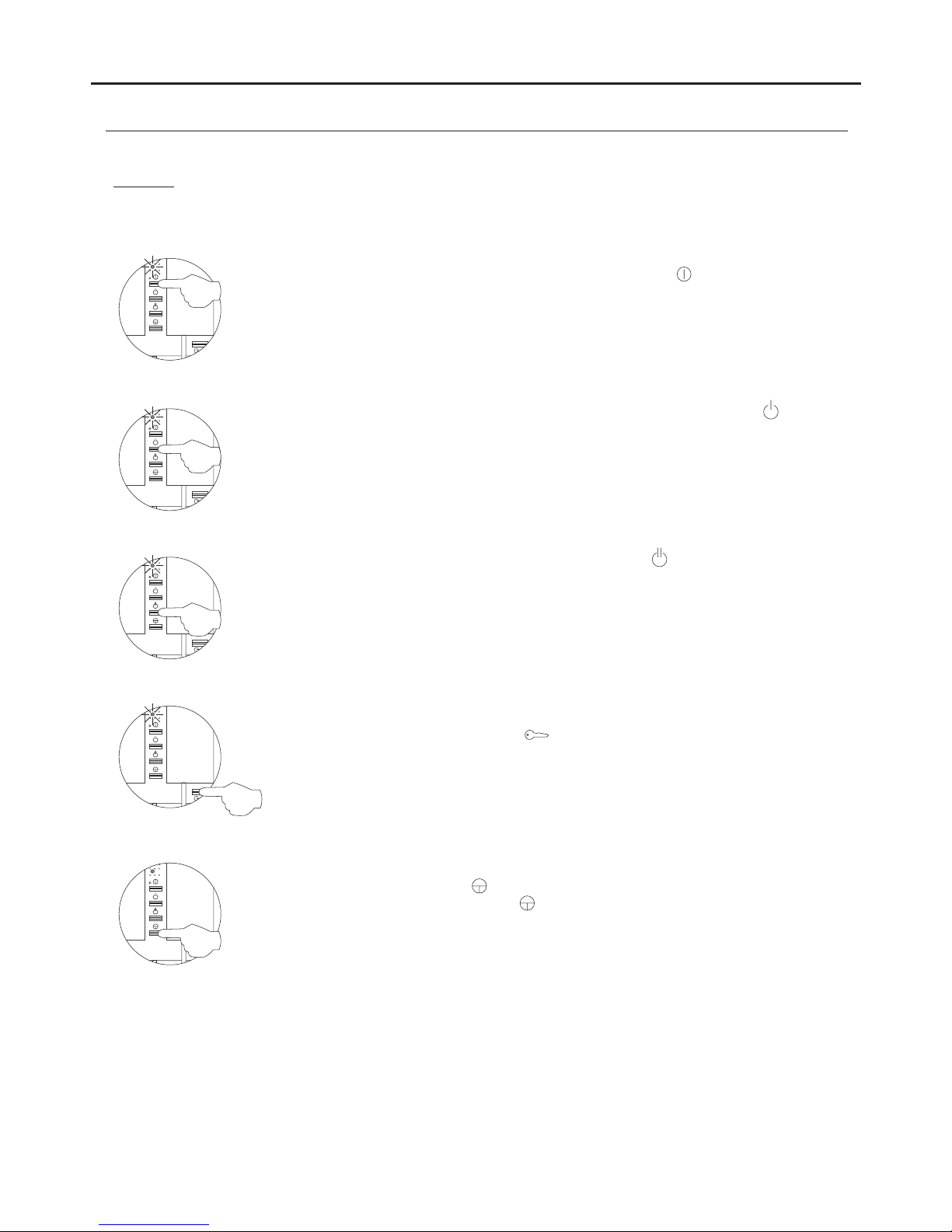

Adjusting the call volume: Press button to select the required volume. (Options:
minimum, medium and maximum). Regardless of the volume set, the apartment front door call ringtone will alwayssound atthe highestlevel.
Then adjust the settings as required:
- Adjusting the call volume: High volume (default setting).
Select the ringtone to be changed: Each press on button selects a ringtone which is
indicated with blinks (1 to 4 blinks) of the programming LED and in the following order: door panel, guard unit, intercom call and HZ apartment front door call. When the final selection is reached, the following press returns the user to the first selection and 1 blink of the programming LED (carouselmode).
- :Changing the ringtone melody
Then select the melody for the ringtone (selected in the previous step) by pressing
button untilthe required carousel mode melody is heard.
The monitor has different ringtones to identify the origin of the call. The melodies assigned by default to the
ringtones can beselected fromamong othersavailable onthe monitor
.
- .Activating / deactivating the doctor mode function: Doctor mode not activated (default setting)
The doctor mode function enables the door release to be activated automatically 6 seconds after making a call
from the doorpanel without having toestablish communicationor pressdoor release button .The callends after 20 secondsand thechannel isfreed.
(Only the master monitor should be configured with doctor mode ).
Men 1:u
Advanced programming of the functions of the Tekna Plus SE monitor:
TEKNA PLUS SE MONITOR
Continued overleaf
- Accessing Menu 2 or exiting programming mode:" "
To access , press button , and theprogramming LEDwill blink twice." "Menu 2 To exitprogramming mode,press button for3 seconds,and theprogramming LEDwill turn
off (see page14).
12
Continued overleaf
ADVANCED PROGRAMMING (MONITOR FUNCTIONS)
TEKNA PLUS SE MONITOR
Continued from the previous page.
No function
.
Men 2:u
Then adjust the settings as required:
- .Button has no function
- :Changing the function of button Intercom function (default setting).
Select the function to assign to button : Eachpress onbutton selects adifferent function
which is indicated with blinks (1 to 4 blinks) of the programming LED and in the following order: auxiliary device activation A1 , call to s , second camera" " lave porter's exchange activation 2C and intercom. When the final selection is reached, the following press" " returns the userto thefirst selectionand 1blink ofthe programmingLED (carouselmode).
- :Changing the function of button Auxiliary device activation function. A1 (default setting)." "
Select the function to assign to button : Eachpress onbutton selects adifferent function
which is indicated with blinks (1 to 4 blinks) of the programming LED and in the following order: auxiliary device activation A1 , call to s , second camera" " lave porter's exchange activation 2C and intercom. When the final selection is reached, the following press" " returns the userto thefirst selectionand 1blink ofthe programmingLED (carouselmode).
If anapartment hasTekna Plusand Tekna Plus SEmonitors, theTekna PlusSE monitors should beconfigured with
Intercom with Tekna Plus monitors mode, as Tekna Plus monitors do not allow an intercom call to a particular monitor in the apartment to be made (selective intercom call). So when an intercom call is made, all of the monitors in theapartment willreceive thecall.
- Intercom with Tekna Plus monitors: Intercom with Tekna Plus SE monitors (default setting).
To activate the Intercom with Tekna Plus monitors mode: Press button , and the
programming LED will indicate with 1 blink that the function is in Intercom with Tekna Plus monitors mode or with 2 blinks that the function is in Intercom with Tekna Plus SE monitors mode.
- Accessing Menu 3 or exiting programming mode" " :
To access , press button , and theprogramming LED willblink 3times." "Menu 3 To exitprogramming mode,press button for3 seconds,and theprogramming LEDwill turn
off (see page14).
13
Continued overleaf
ADVANCED PROGRAMMING (MONITOR FUNCTIONS)
TEKNA PLUS SE MONITOR
Continued from the previous page.
Men 3:u
Then adjust the settings as required:
- Repeating the ringtones: One repeat (default setting).
To repeat the ringtone on the monitor: Each press on button selects a repeat of the
ringtones which is indicated with blinks (1 to 3 blinks) of the programming LED and in the following order: 1, 2 or 3 repeats. When the final selection is reached, the following press returns the userto thefirst selectionand 1blink ofthe programmingLED (carouselmode).
- Adjusting the door panel communication time : 90 seconds (default setting).
Activating the in-call video: Press button , and the programming LED will indicate with 2
blinks thatthe videowill appear on themonitor when a callis received or with1 blinkthat the video will appearat theend ofthe ringtone.
- Activating the in-call video: The video appears when a call is received (default setting).
To adjust the door panel communication time : Each press on button selects a
communication time which is indicated with blinks (1 to 4 blinks) of the programming LED and inthe following order: 60,90, 120 and 150 seconds. Whenthe finalselection is reached, the following press returns the userto thefirst selection and 1 blink of the programming LED (carouselmode).
Not :e This adjustment canbe performed onNexa door panelswith EL632 Plussound module.
(Pleaseconsult our technicalservicedepartment for information aboutother models of door panel).
- Adjusting the door panel call time : 45 seconds (default setting).
T o adjust the door panel call time : Each press on button selects a call time which is
indicated with blinks (1 to 4 blinks) of the programming LED and in the following order: 30, 45, 60 and 90 seconds. When the final selection is reached, the following press returns the user to the first selection and1 blink ofthe programming LED (carousel mode).
Not :e This adjustment canbe performed onNexa door panelswith EL632 Plussound module.
(Pleaseconsult our technicalservicedepartment for information aboutother models of door panel).
- Accessing Menu 4 or exiting programming mode:" "
To access Menu 4 , pressbutton , andthe programming LED will blink 4times." " To exit programming mode, press button for 3 seconds, and the programming LED will turn
off (see page14).
14
ADVANCED PROGRAMMING (MONITOR FUNCTIONS)
TEKNA PLUS SE MONITOR
Continued from the previous page.
Men 4:u
Then adjust the settings as required:
No function.
- .Button has no function
No function.
- .Button has no function
No function.
- .Button has no function
- Accessing Menu 1 or exiting programming mode" " :
To access Menu 1 , pressbutton , and the programming LED willblink once (seepage 11)." " To exit programming mode, press button for 3 seconds, and the programming LED will
turn off.
When exiting advanced programming mode, the monitor will turn off: Press button for 3
seconds to turn the monitor back on. After any resetting of the monitor and for the following 45 seconds, nooperation withit canbe performed.
- Turning on the monitor when exiting programming:
- D setting ," efault " a :ll the advanced monitor programming options
Set to "default setting": Press button , the will indicate with acoustic tones thatalland monitor 2
the optionsof the advanced programming ofthe monitor are with its default(pag.11-14) setting.
(Withmonitor V03 and later).
OPTIONAL CONNECTIONS
15

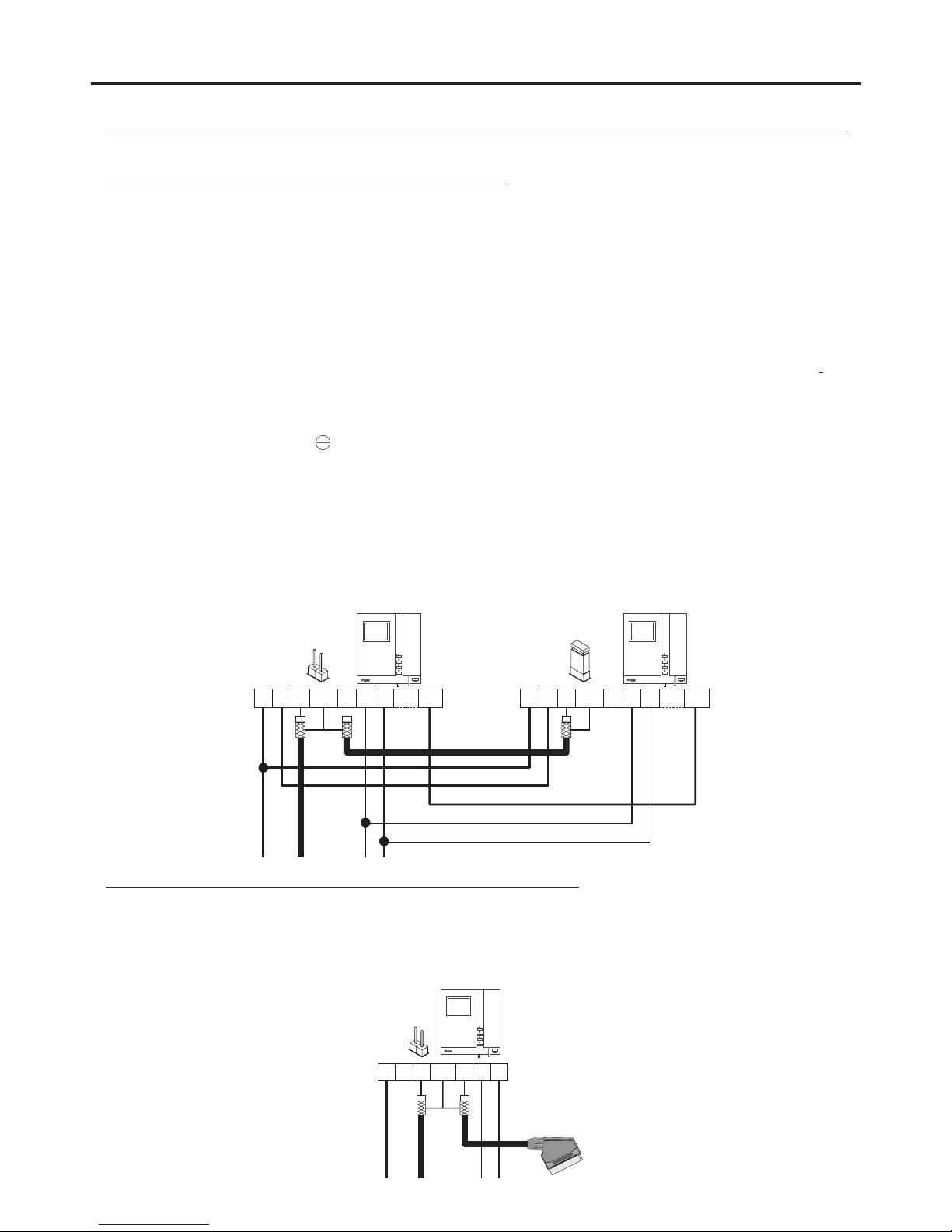

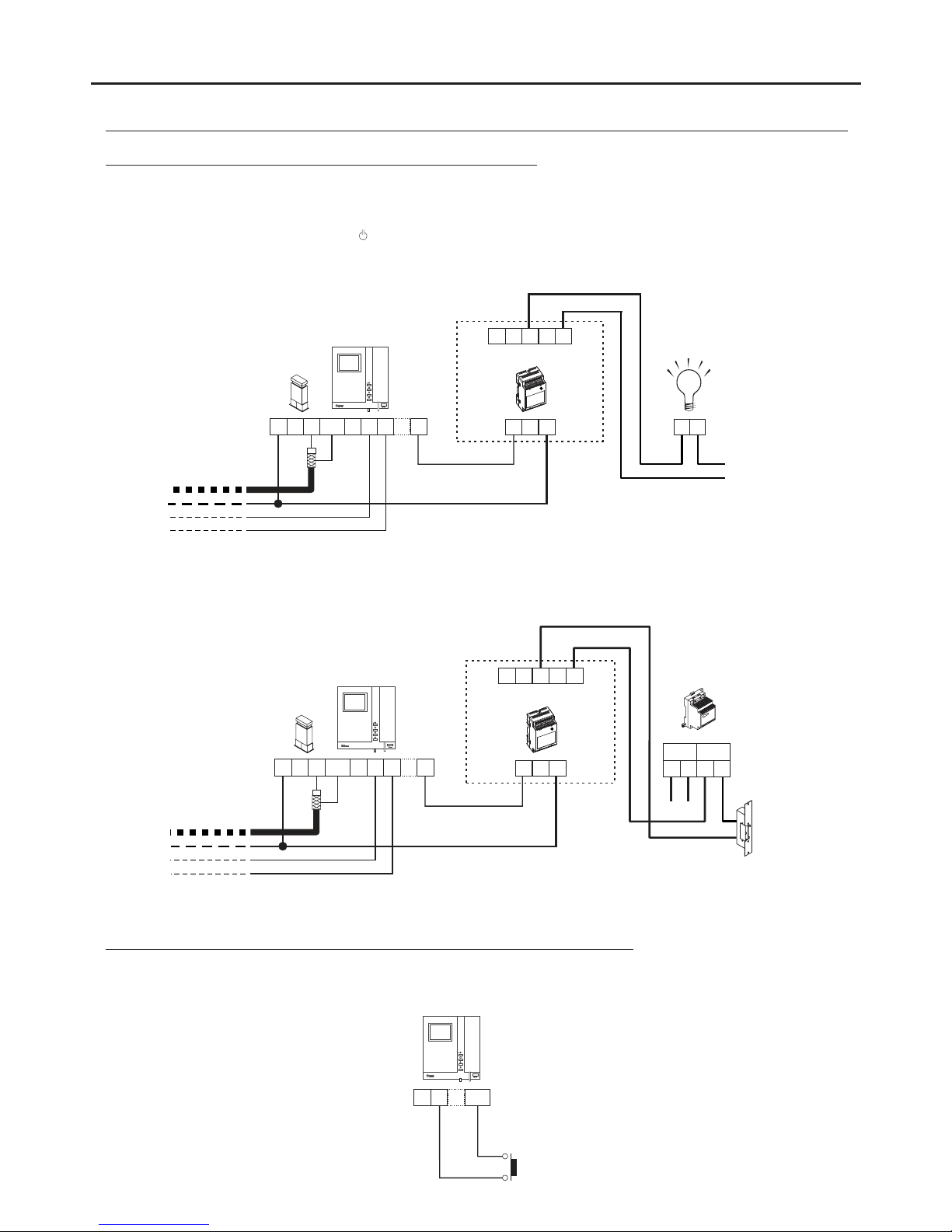

Auxiliary device activation with Tekna Plus SE monitors:
Continued overleaf
TEKNA PLUS SE MONITOR
To activate a second door release, a TF-104 transformer is required.
Auxiliary device activation requires the use of an SAR-12/24 relay unit. If the feature is shared by all monitors,
connect their A1 terminals; if, however, each monitor has its own feature, use an SAR-12/24 relay for each one and do notconnect theirA1 terminals.
This function is activated when button is pressed on the monitor at any time and regardless of the position of the
handset.
The most commonapplications areactivating thestairway lightsand openinga seconddoor.
A
_
+
D
Mesh
V
in
V
out
CN4
220 V /ac
1.8A max.
SAR-12/24
F
N
IN IN
NC NA C
( )
*
The neutral of the lighting power supply is arranged serially through the contacts of the SAR-12/24 relay and the
maximum consumption ofthe elementto beconnected doesnot exceed1.8A.
( )
*
To the distributor/
door panel.
To the stairway light activation push button
~~ ~~
Vac
lock release
T 104F-
Mains
PRI
SEC
SAR-12/24
IN IN
NC NA C
A1
A
_
+
D
Mesh
V
in
V
out
CN4
To the distributor/
door panel.
A1
Tekna Plus SE
Tekna Plus SE
Important: Place the varistor supplied with the sound module directly onto the terminals
of the lock release.
*
*
Exterior push button input for activating the door panel door release:
_
+
AP+
Tekna Plus SE
AP
This enables the door panel door release to be activated during a call or communication with the door panel. With the monitor in standby, it makes a panic call to the configured to receive this type of call.porter's exchanges
OPTIONAL CONNECTIONS
16
TEKNA PLUS SE MONITOR
A
_
+
D
Mesh
V
in
V
out
CN4

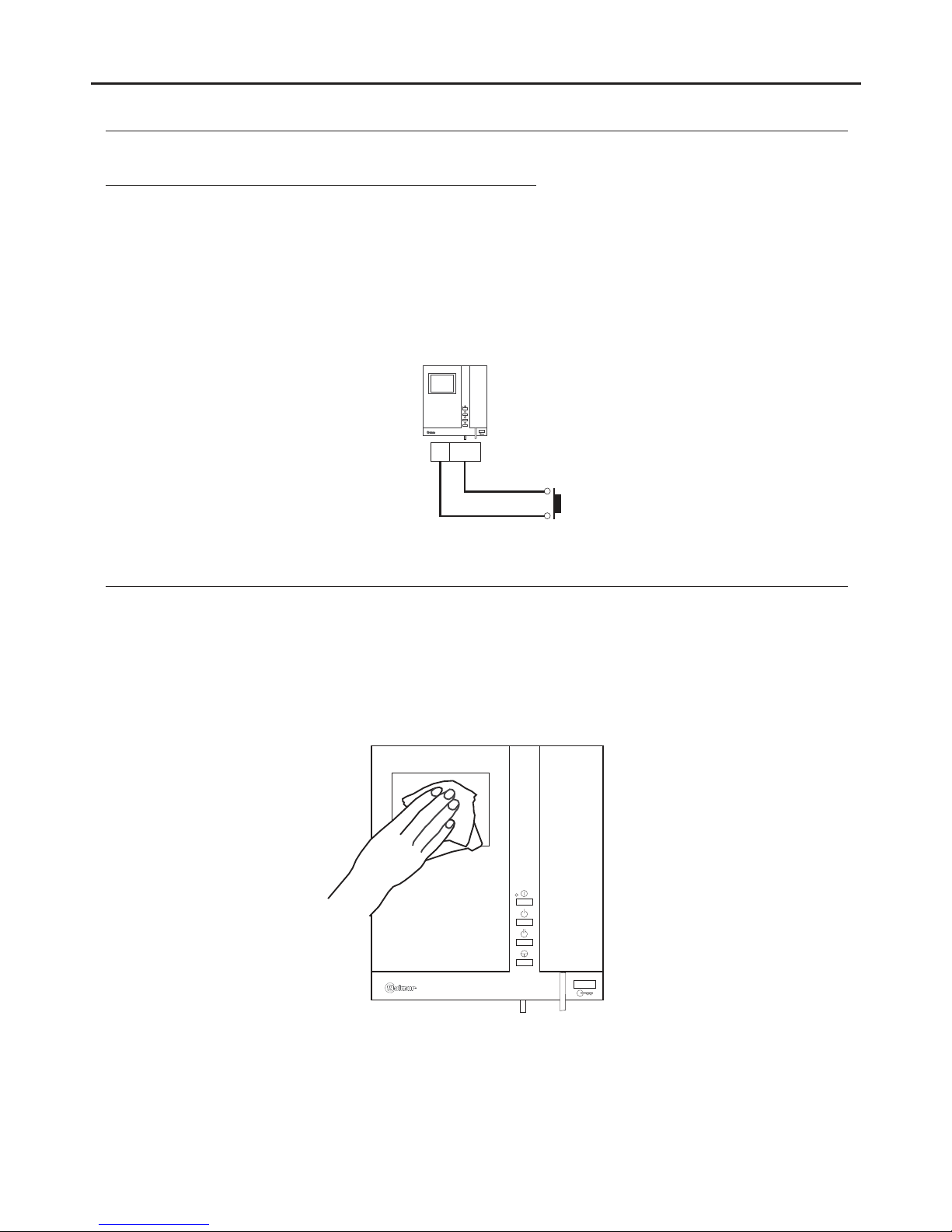

If the television or video has a SCART socket, an image of the caller can be displayed on the television screen via
the auxiliary channel.
Remove the 75-ohm end-of-line jumper resistor located on the CN4 connector on the back of the monitor. Connect
the coaxial cable toterminals 17 (mesh) and20 (live)of the SCART connector.
Intercom between two points in the same apartment:
A
_
+
D INT
Mesh
V
in
V
out
CN4
The Tekna Plus SE monitor features as standard an intercom function between two points in the same apartment.
To enablethis feature,the followingis necessary:
- One of the monitors needs to be configured as master and the other as slave with intercom, as described on
page 9. In the case of intercom between a monitor and a telephone, it is recommended to configure the monitor as themaster.
- The INTterminal of theintercom devicesneed tobe connected(see diagramattached).
To use the intercom function to call all of the monitors in the apartment, lift the handset and press the button until a
confirmation tone can be heard. To call individual devices, press the button once to call the master monitor," " twice to call slave 1 , 3 times to call slave 2 , 4 times to call slave 3 and 5 times to call slave 4 . This selective" " " " " " " " intercom call mode is only available with the Tekna Plus SE monitor. This only functions if no call or communication is in progress.A number of audible tones emitted by the handset will confirm that the call is being made or that the unit being called is in communication with the door panel. To establish communication, lift the handset of the unit being called. If a call is received from the door panel during an intercom process, the handset of the master unit will emit a number of audible tones and an image will appear. To establish communication with the door panel, press button on the unit configured as master or press the door release push button to simply open the door.
The ringtones varydepending onwhere thecall ismade fromto enablethe userto identifyits origin.
Note: If the apartment also has Tekna Plus monitors, the Tekna Plus SE monitors must be configured as Intercom"
with Tekna Plus monitors (see page 12). This configuration mode does not allow selective intercom calls to" different monitors in the apartment; when the intercom button is pressed, all of the monitors in the apartment will receive the call.
Tekna Plus SE
A
_
+
D INT
Mesh
V
in
V
out
CN4
Tekna Plus SE
Connection of the Tekna Plus monitor to a television or video:
Tekna Plus SE
Continued overleaf
Continued from the previous page.
CLEANING THE MONITOR
- Do notuse solvents,detergents orcleaning productsthat containacids, vinegaror abrasivecomponents.
- Use asoft dampcloth (notwet) thatsheds nobres.
- Always wipethe monitorin thesame direction,from topto bottom.
- After cleaningthe monitor, remove any moisturewith a softdry cloththat shedsno bres.
OPTIONAL CONNECTIONS
17
TEKNA PLUS SE MONITOR
Button for receiving calls from the apartment front door:
HZ-
-
The Tekna Plus SE monitor features as standard the ability to receive calls from the apartment front door. This
featureprecludes the need touse the bell bypositioninga switch between terminals HZand ofthe monitor “ ”
The ringtones vary dependingon wherethe call is made from toenable theuser toidentify its origin. If a callis made
from theapartment front door during a conversation with the door panel, the handset will emit a number of tones to indicate so.
Not :e Regardless of the volume set for the monitor's ringtones (see page 11) and the night mode function, the
apartment frontdoor call ringtone will alwayssound atthe highestlevel.
Tekna Plus SE
Continued from the previous page.
WIRING DIAGRAMS
18
TEKNA PLUS SE MONITOR
FA-Plus/C or FA-Plus
SEC
PRI
~~
Mains
+ +
--
Place this power supply as close as possible to the first distributor.
Remove the JP1 jumper from all of the distributors except the last.
A
A
_
_
+
+
D
D
Mesh
Mesh
V
in
V
in
V
out
V
out
CN4
CN4
A
_
+
D
Mesh
V
in
V
out
CN4
A
_
+
D
Mesh
V
in
V
out
CN4
E
E
D1
D1
D2
D2
+
+
D4L-PLUS
D4L-PLUS
JP1
JP1
S
S
SW1
SW2
M =Master.
M
D
Mesh
Vin-AinAout Vin+ Vout-Vout+
CN1
+-+CV1CV2
-
10
1
9 2
837
4
6 5
CN3
DC
lock release

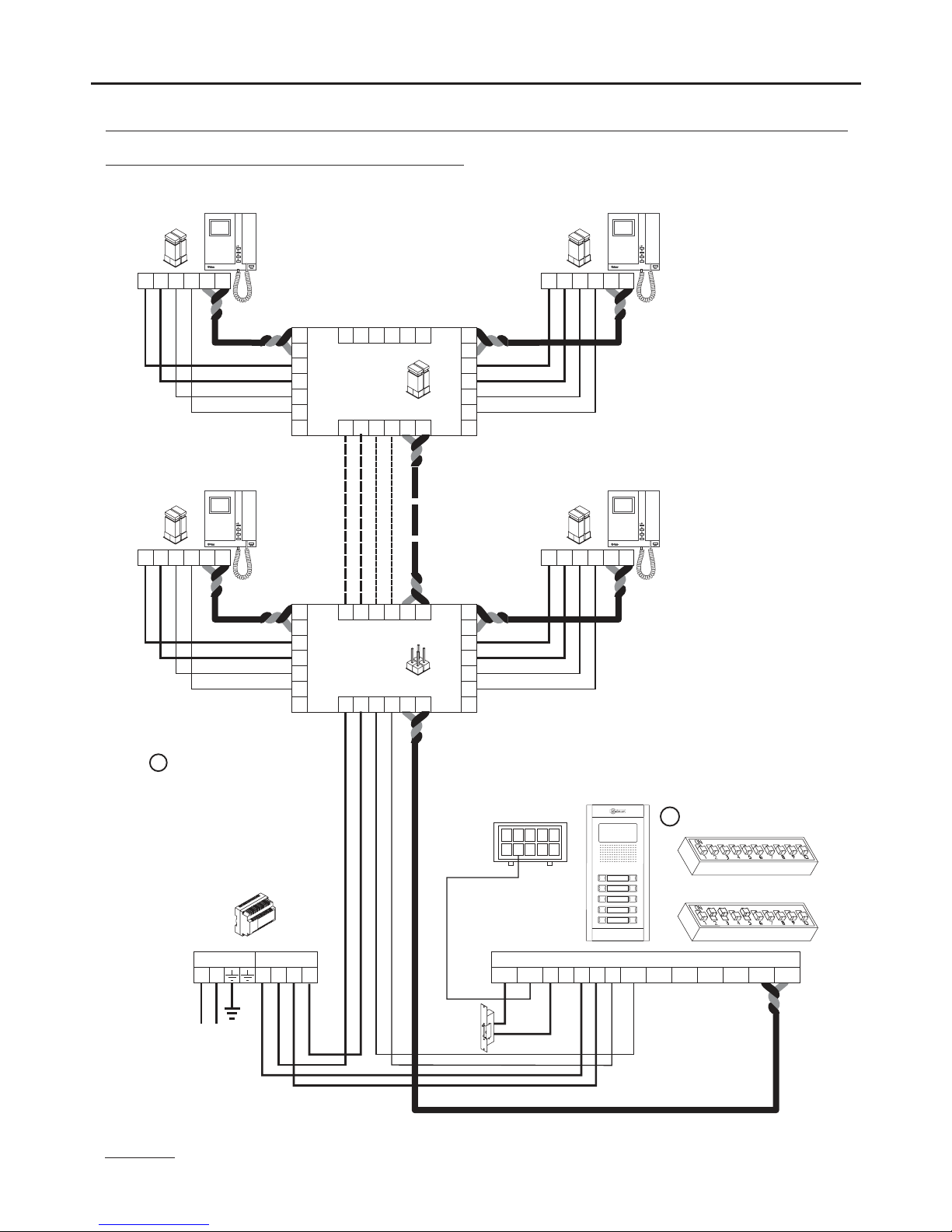

Video door entry system with coaxial cable:
Important:
For further information about the door panel, sections, distances, other wiring diagrams, etc., see the T632 PLUS ML User Manual . https://doc.golmar.es/search/manual/50121859
19
TEKNA PLUS SE MONITOR
WIRING DIAGRAMS

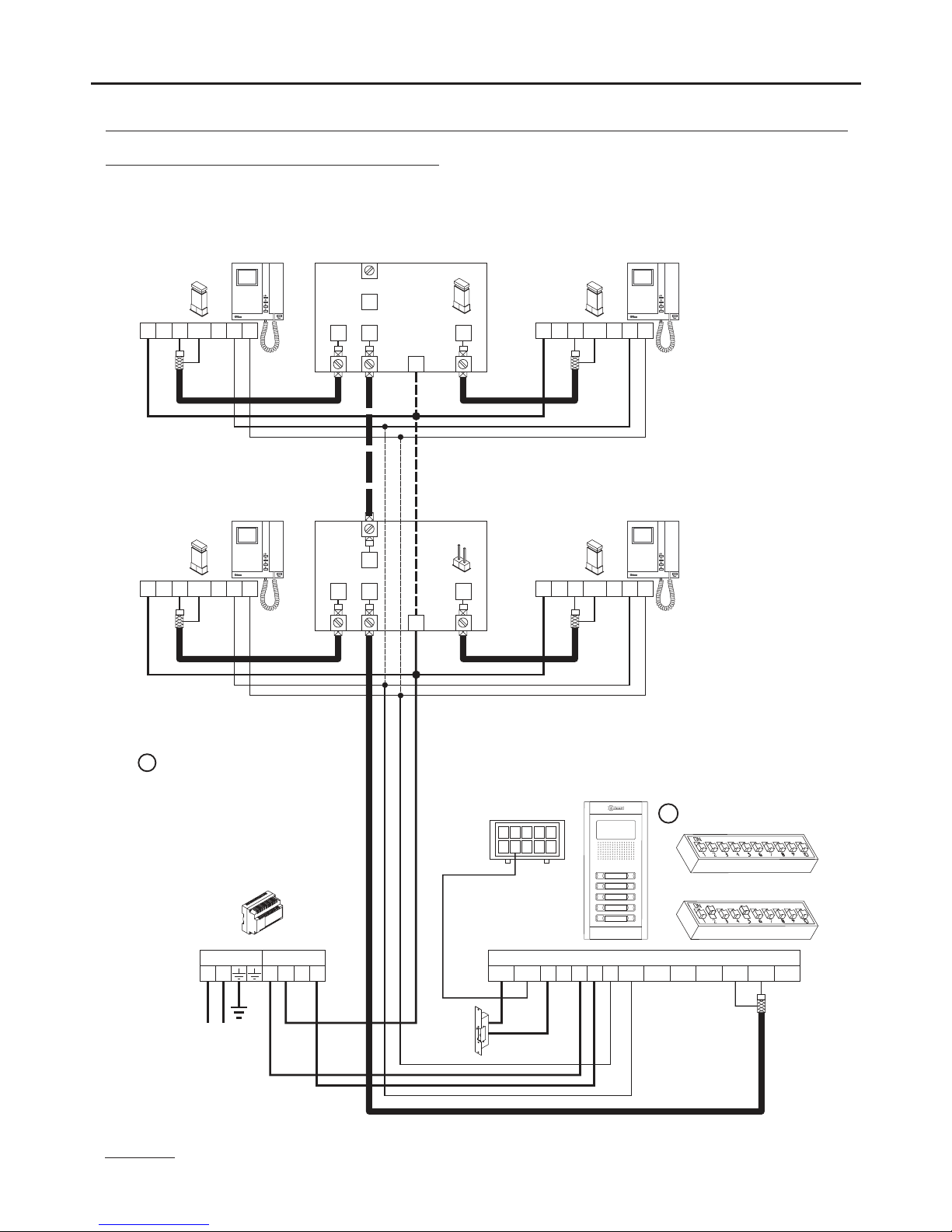

Video door entry system without coaxial cable:
FA-Plus/C or FA-Plus
SEC
PRI
~~
Mains
+ +
--
*Place this power supply
as close as possible to the first distributor.
* Remove the JP1 jumper
from all of the distributors
.except the last
JP1
AAD
D
CT
+
+
V
pi
V
d1
M
pi
M
d1
_
_
A D
CT
+
V
d6
M
d6
_
A D+
V
po
M
po
_
D6L-Plus/2H
VpM
p
A D
_
+
EL562 JP1
VpM
p
A D
_
+
EL562 JP1
JP1
AAD
D
CT
+
+
V
pi
V
d1
M
pi
M
d1
_
_
A D
CT
+
V
d6
M
d6
_
A D+
V
po
M
po
_
D6L-Plus/2H
VpM
p
A D
_
+
EL562 JP1
VpM
p
A D
_
+
EL562 JP1
M =Master.
D
Mesh
Vin-AinAout Vin+ Vout-Vout+
CN1
+-+CV1CV2
-
10 1
9 2
837
4
6 5
CN3
DC
lock release
SW1
SW2
M
Important:
For further information about the door panel, sections, distances, other wiring diagrams, etc., see the T632 PLUS ML User Manual .
https://doc.golmar.es/search/manual/50121859
golmar@golmar.es
www.golmar.es
Sistemas de comunicaciónS.A.
Golmar se reserva el derecho a cualquier modificación sin previo aviso.
Golmar se réserve le droit de toute modification sans préavis.
Golmar reserves the right to make any modifications without prior notice.
GOLMAR S.A.
C/ Silici, 13
08940- Cornellá de Llobregat
SPAIN
Loading...
