Page 1

TECHNOLOGY

USER MANUAL

MONITOR TEKNA PLUSHF

PLUS DIGITAL SYSTEM

Code 50122337 T HF ENTEKNA PLUS REV.0119

Page 2

TEKNA PLUS MONITORHF

INTRODUCTION

First of all, we thank and congratulate you for purchasing this product manufactured by Golmar. Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification

and the manufacture of products like the one you have just purchased. Its advanced technology and strict quality control will ensure that customers and users enjoy the numerous features

that this device offers. To get the most out of them and ensure proper operation from day one, we recommend that you read this instruction manual.

CONTENTS

Introduc ....................................................................................................................................................................2tion

Contents........................................................................................................................................................................2.

Safety precautions........................................................................................................................................... 2...............

Characteristics...............................................................................................................................................................3

System operation.......................................................................................................................................... 3..................

Description of the monitor...............................................................................................................................................

Descrip ..................................................................................................................................................................4tion .

Status LED, indicator LED and programming LED

....................................................................................................................... 4.Description of the connection terminals

................................................................................................................................................ .5.........Function buttons

........................................................................................................... 5.................................................SW1 DIP switch

..................................................................................................................... 6..End of line jumper and EL-562S module

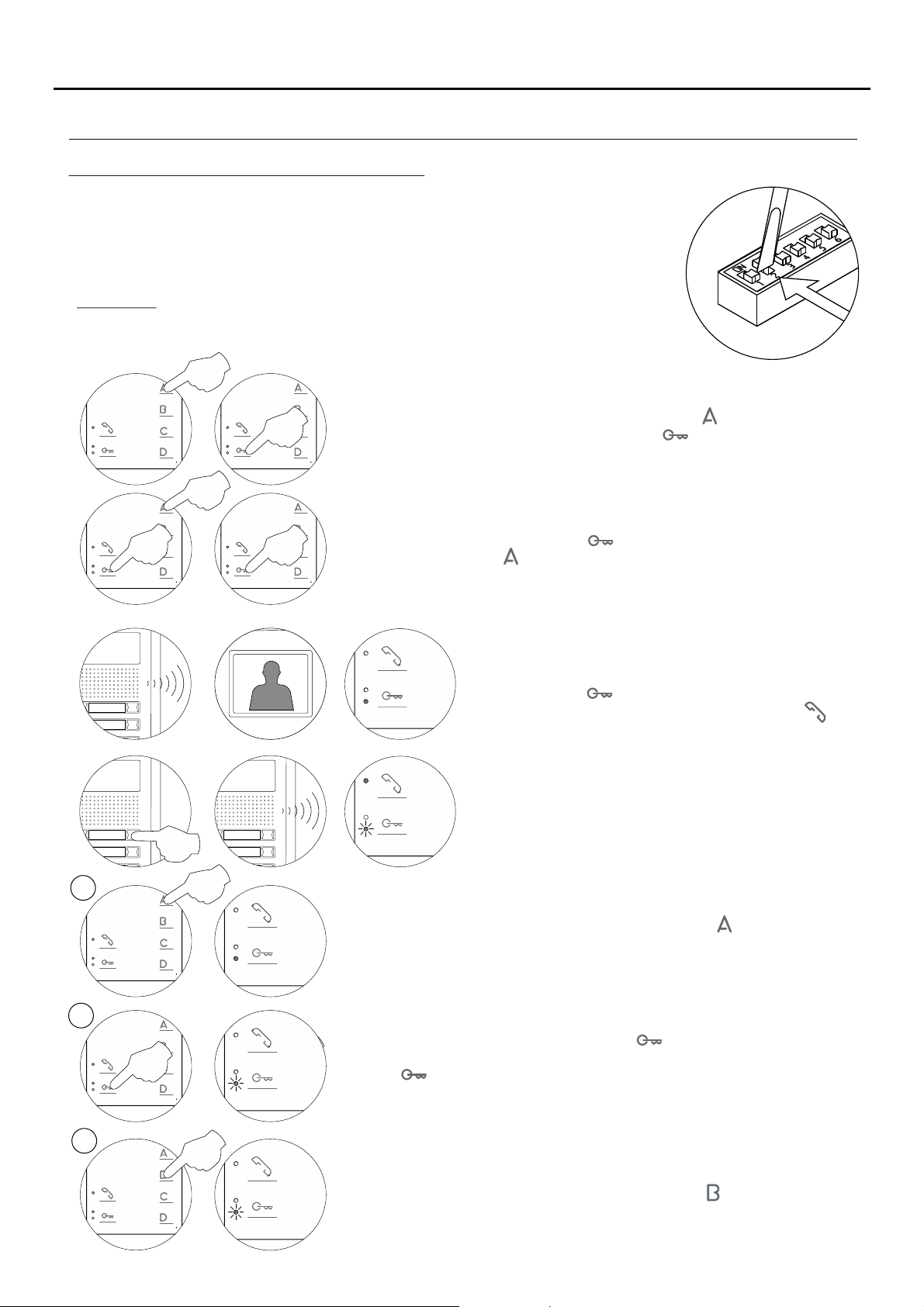

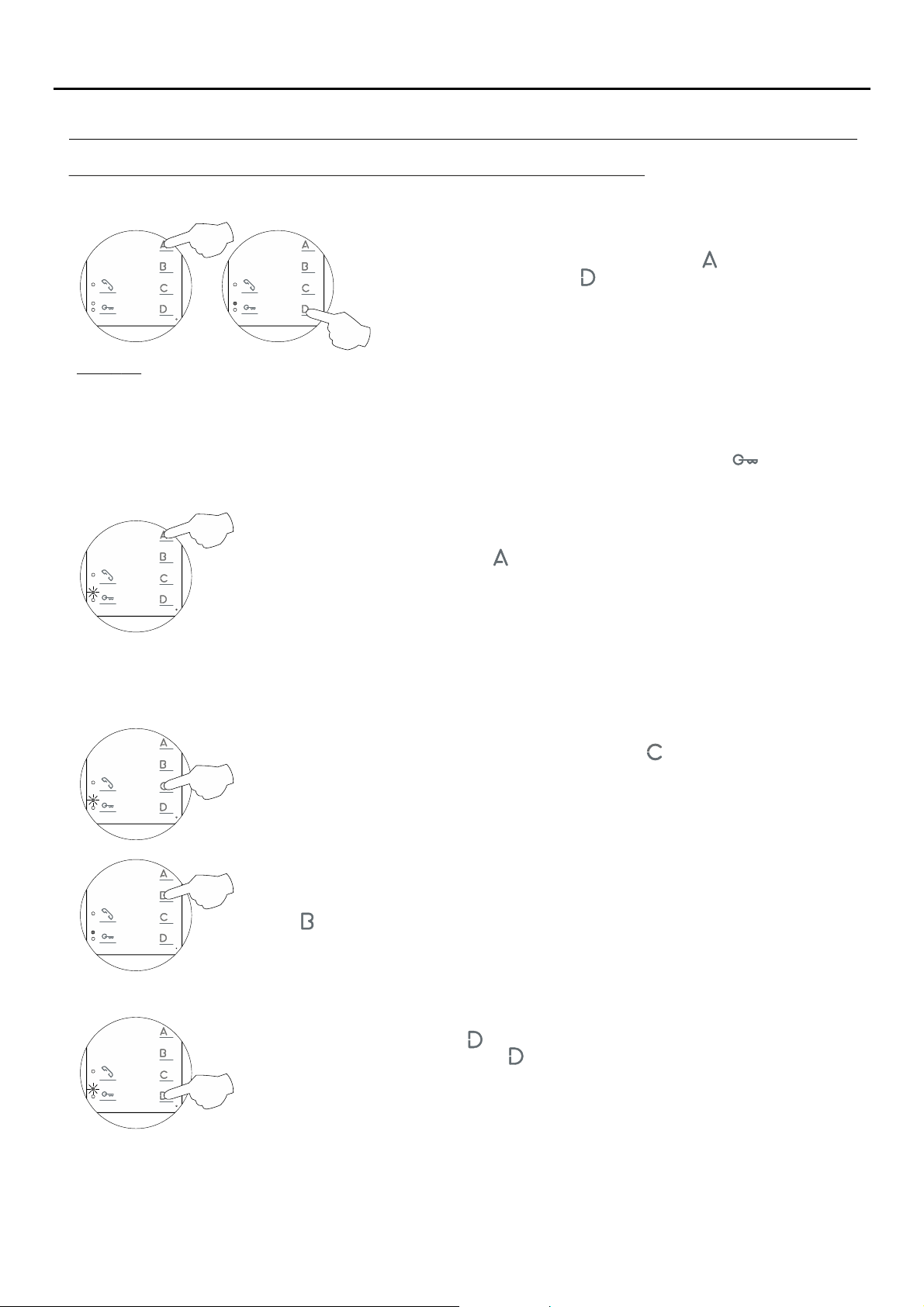

Monitor programming

Rapid monitor programming.................................................................................................................................. .10......

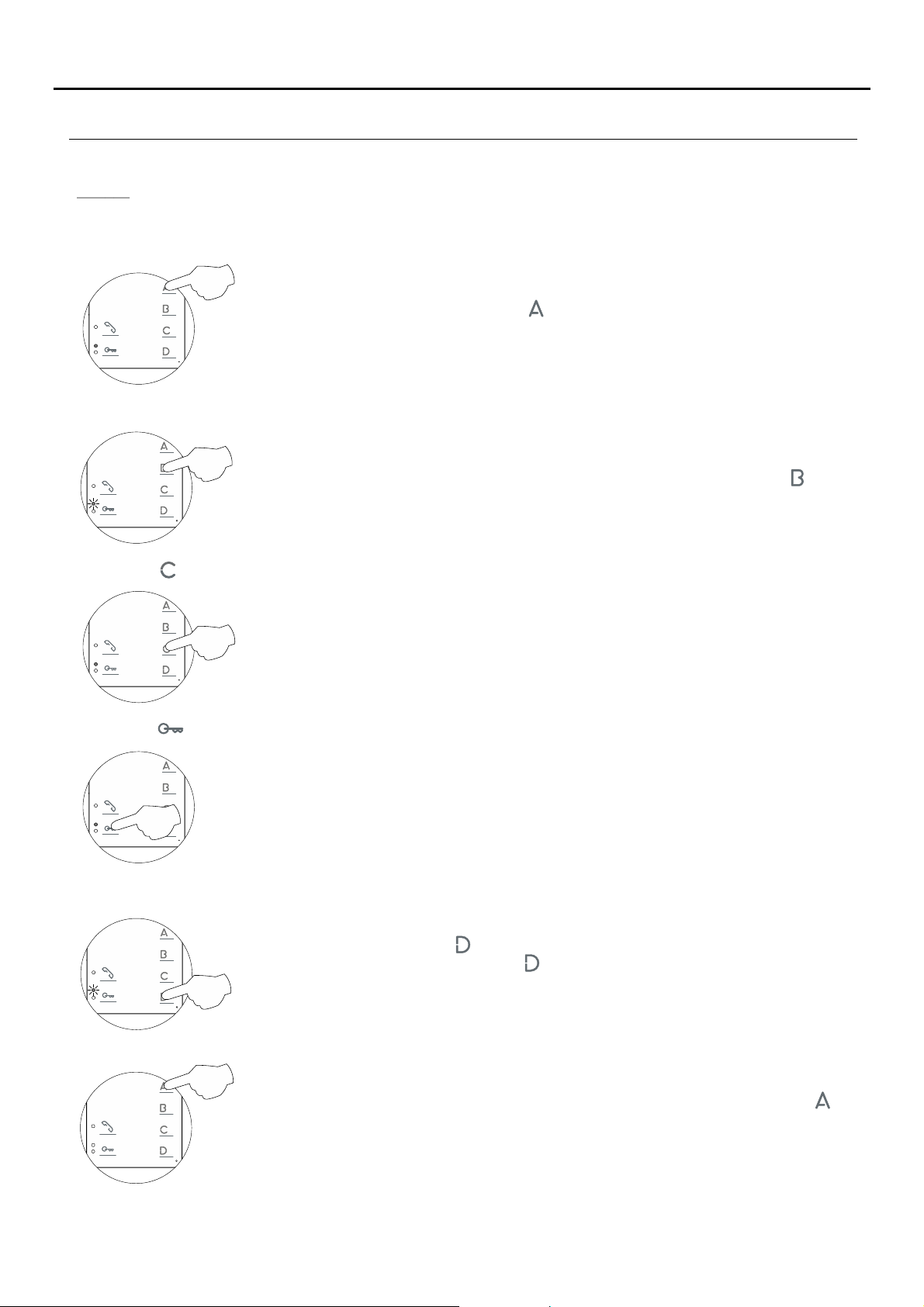

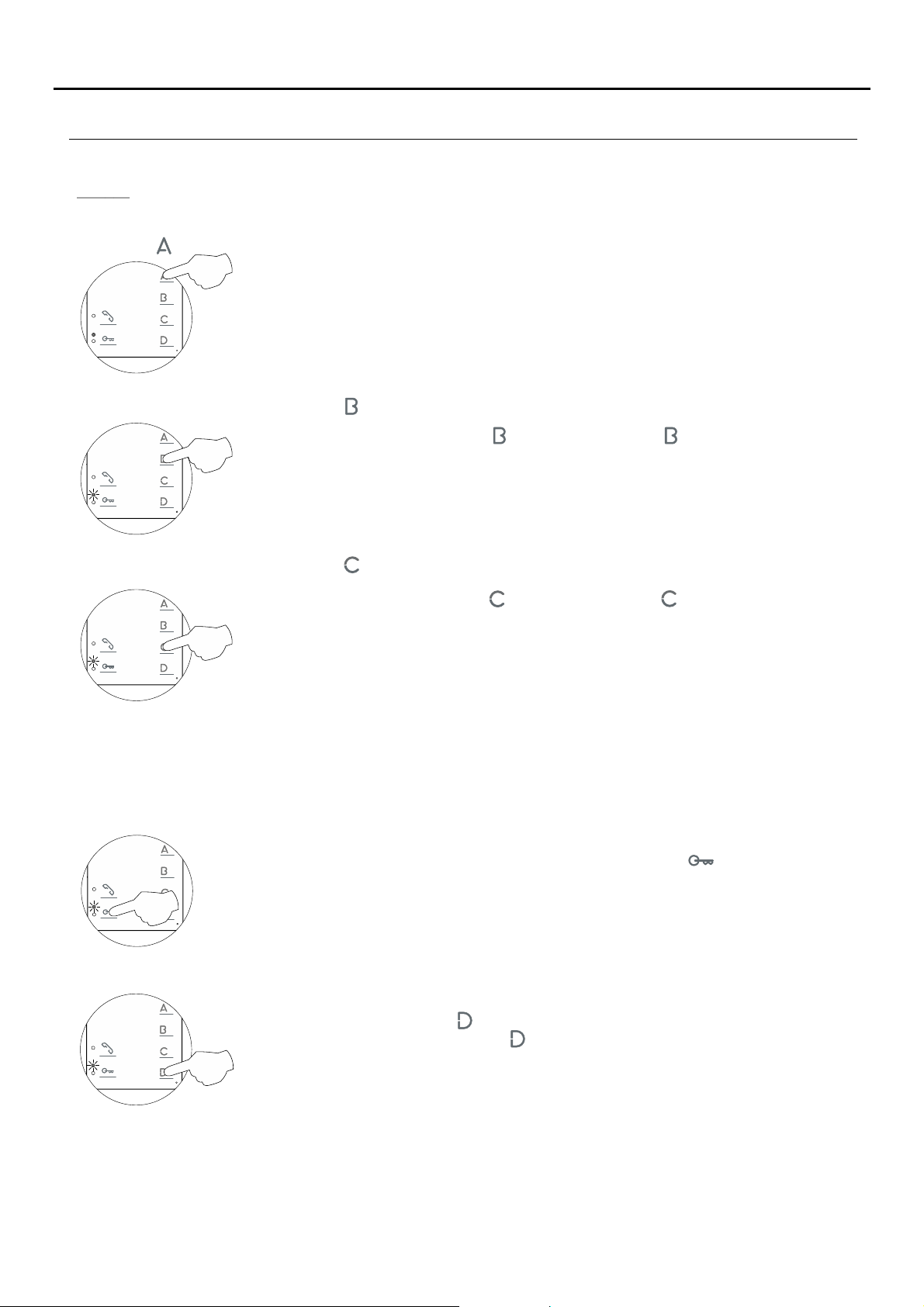

Advanced programming (monitor functions)........................................................................................................... ......

Men 1...................................................................................................................................................................... 11u .

Activating/deactivating the doctor mode function (automatic door opening)

- .............................................................11.

- ................................................................................................................ 11y ...................Changing the ringtone melod

Men 2...................................................................................................................................................................... 12u .

Changing the function of button

- ............................................................................................................................ 12.

- ...................................................................................................................... ... 12... .Changing the function of button

- .......................................................................................................................... 12..Intercom withTekna Plusmonitors

Men 3...................................................................................................................................................................... 13u .

Repeating the ringtones

- ........................................................................................................................... 13.................

- ............................................................................................ 13..............Adjusting the 'door panelcommunication time'

- ................................................................................................................ 13.............Adjusting the 'door panel call time'

- ................................................................................................................................ 13.........Activating the in-call video

Men 4...................................................................................................................................................................... 14u .

- .......................................... 14..............

Setting all of the monitor's advanced programming options to the 'default value'

- .......................................................................14.Activating/deactivating the 'communication withhearing aid' function

Optional connections

- ........................................................................................................................ 15...............

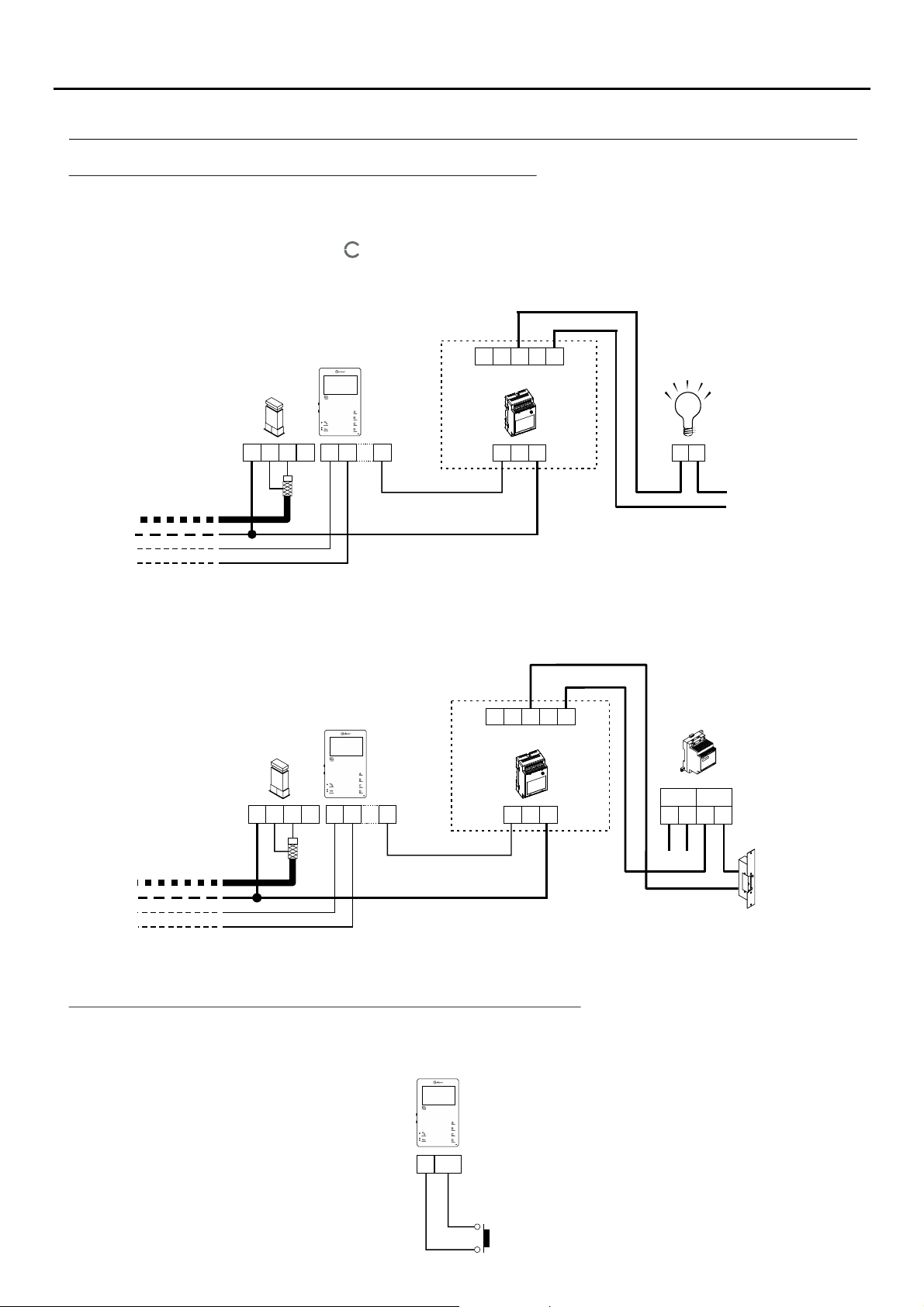

Activating auxiliary devices

- ....................................................................... 15..........Input for auxiliary button to activate the doorpanel lock release

- ................................................................................................................. 16.........Intercom within the sameapartment

- ........................................................................... .16.. ............... .Button forreceiving calls from theapartment front door

- ............................................................................. .17............................................. ...........Activating a second camera

- ................................................................................................................................................ 17.Cleaning the monitor

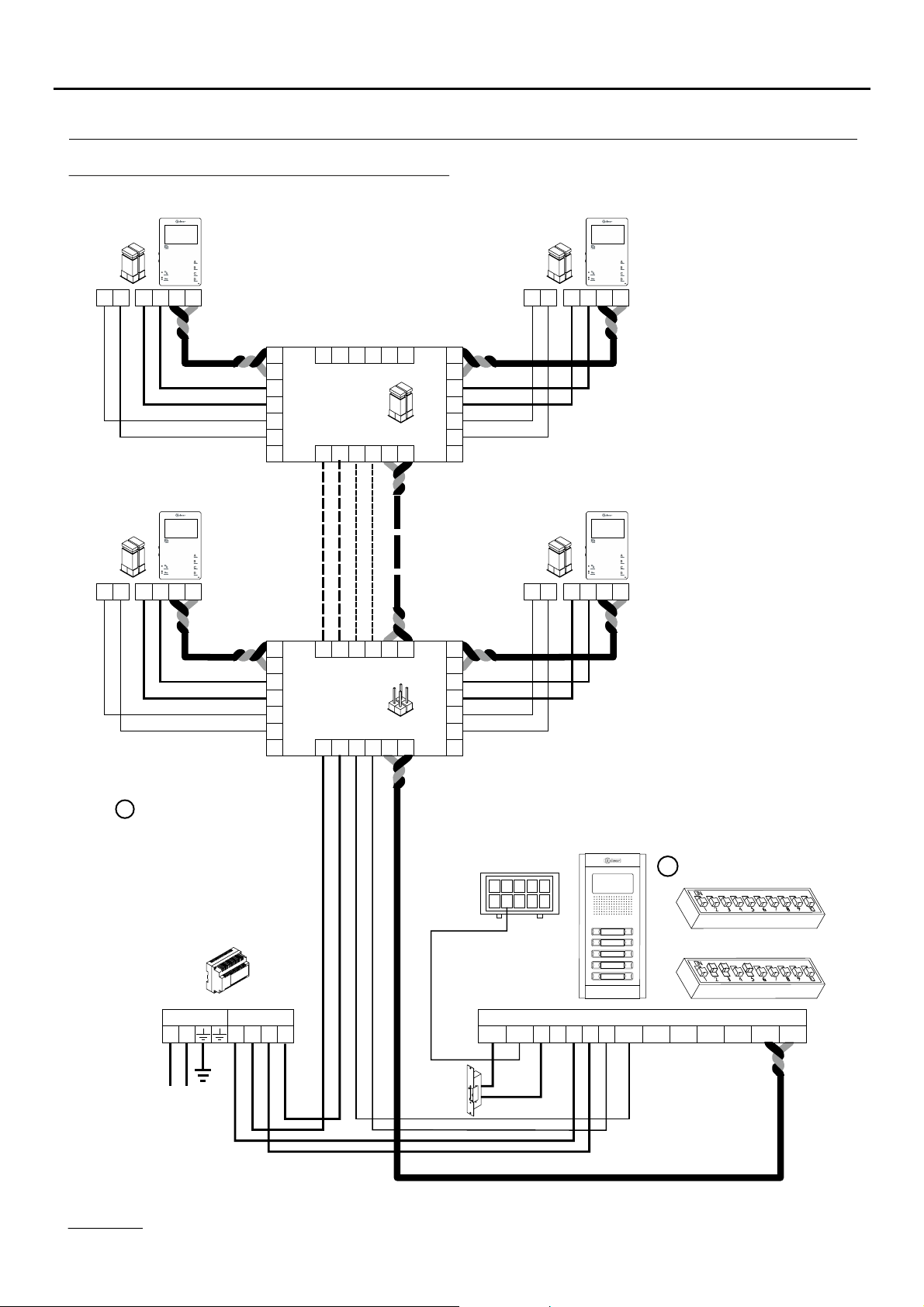

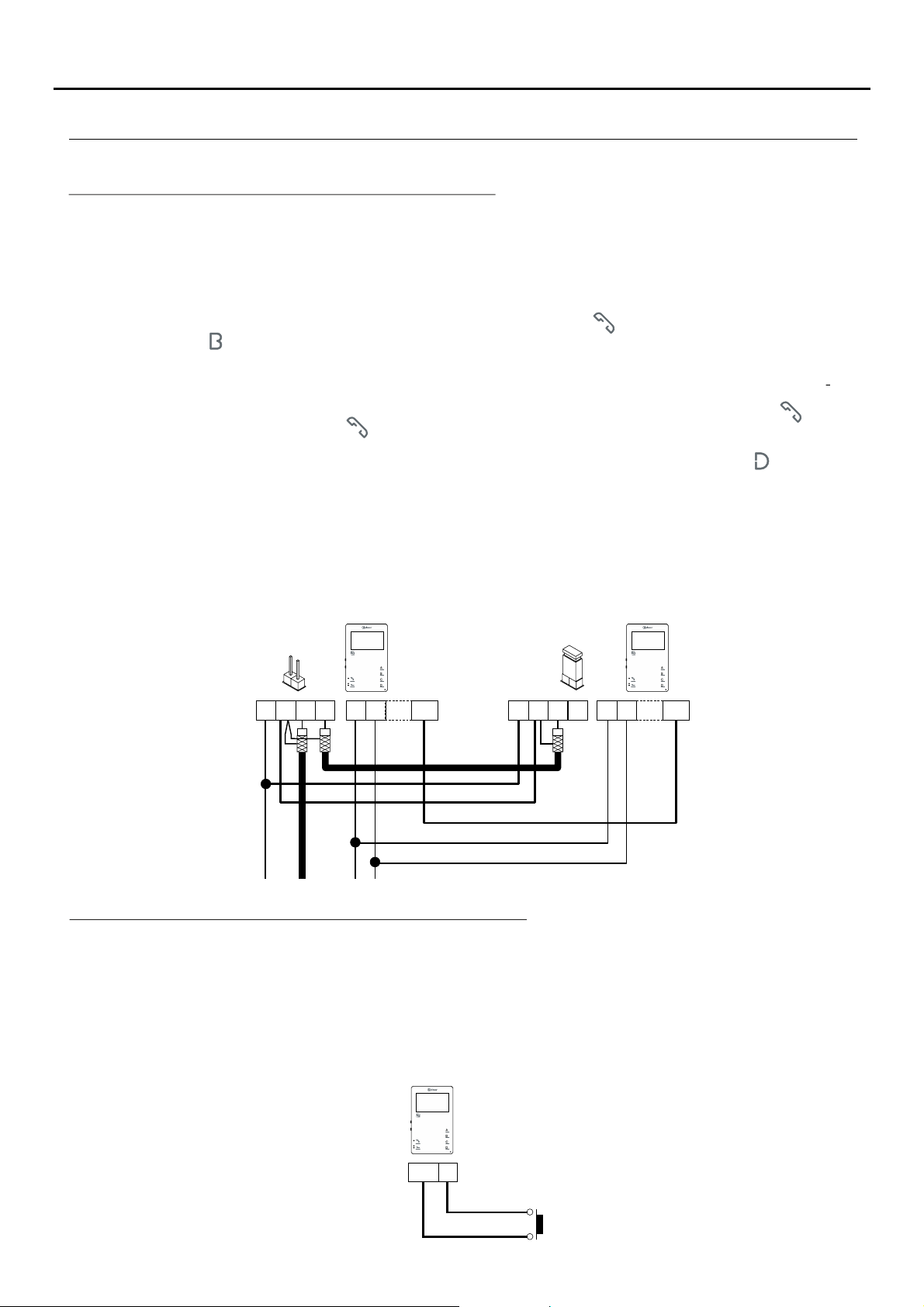

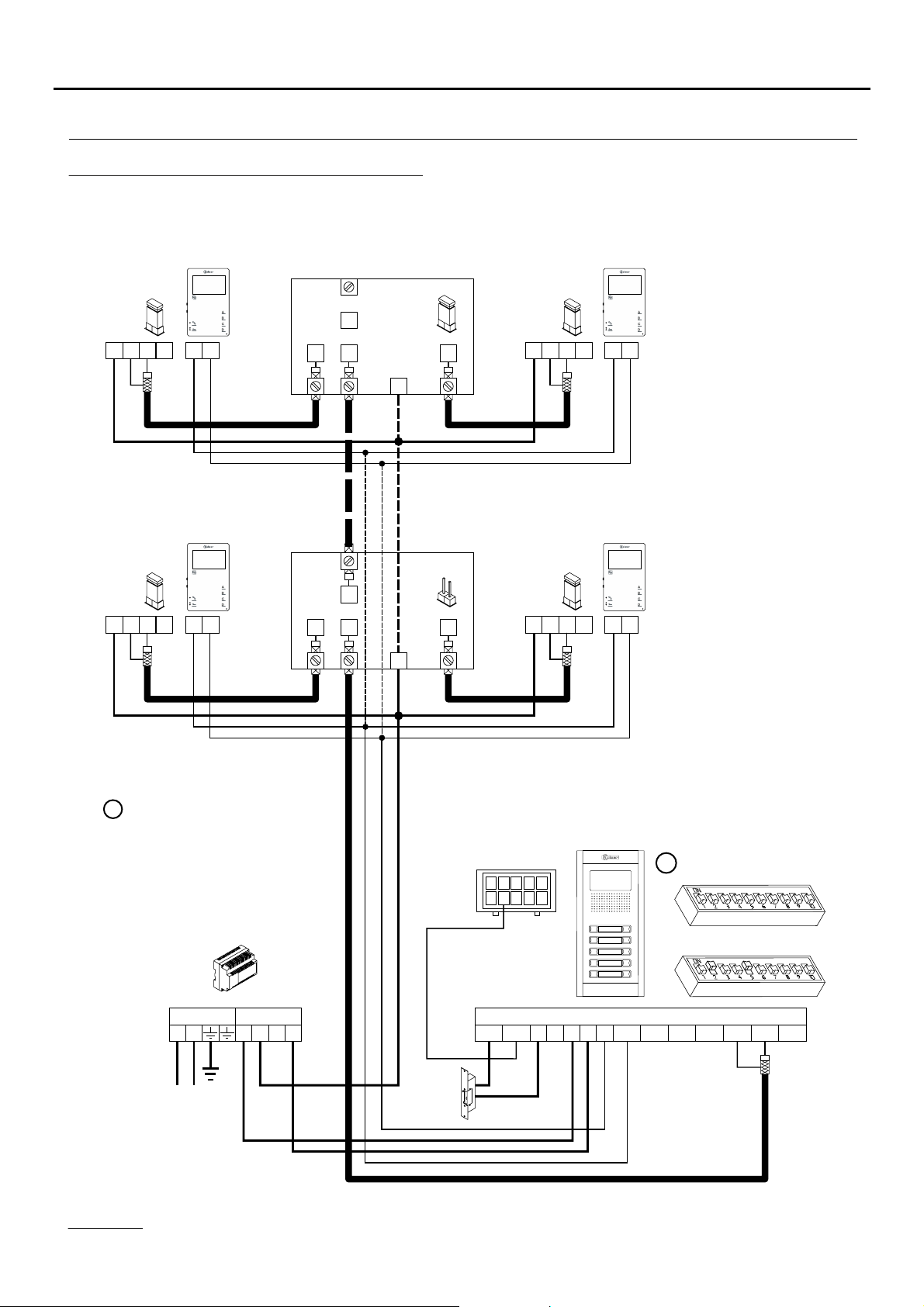

Wiring diagrams

......................................................................................................................................... 9-10.......

................................................................................................................................................ ....

....................................................................................................................................... ..18-19.............

.................................................................................................... 4....

..............................................................................................................6.RJ-45 connector (installation with UTP cable)

.....................................................................................................7.. .Installing the monitor in a wall mountingconnector

................................................................................................................. 8. .Installing the monitor in an embedding box

SAFETY PRECAUTIONS

- Avoid overtightening thescrews of the monitor connector.

- Always disconnect the power supply before installing or making modifications tothe device.

- The fitting and handling of these devices must be carried out by authorised personnel.

- All of the wiring must run at least 40cm away from any other wiring.

- Install the monitor in a dry protected location free from the risk of dripping or splashing water.

- Do not place in humid, dusty or smoky locations, or near sources of heat.

- Before connecting the system to the mains, check the connections between the door panel, power supply,distributors

and monitors.

- Always follow the instructions contained in this manual.

Page 3

TEKNA PLUS MONITORHF

CHARACTERISTICS

- Monitor for Plus/Uno installation.

- 4.3” TFT colour screen.

- Monitor with 3 common wires plus coaxial cable.

- Monitor with 4 common wires + plus twisted pair.

- Monitor with UTP cabling andRJ-45 connector.

- Enables communication with hearing aids equipped with T-mode, making conversation possible (inductive loop).

- Function and advanced programming accessbuttons(tocustomise the monitor's functions).

- Completely private conversation and image.

- Auto switch-on function.

- Auto spy function without occupying a channel.

- 'Doctor mode' function (automatic door opening, see p. 11).

- Intercom between two devices in the same apartment.

- Input for calls from the apartment front door.

- Call volume control (maximum, medium, minimum and no volume 'night mode.' See p. 5).

- Input for outside door release button.

- Output to auxiliary call repeater.

- Call to main and secondary guard unit.

- Panic call to guard units.

- Different ringtones to identifycallorigin: Door panel, guard unit, intercom and interior door of the apartment.

- Activation of two auxiliary functions: second camera, courtesy lights, etc.

- Control of brightness and colour.

- DIP switches forsetting the 'call code' monitor address and master/slave (quick programming mode).

- Lock release button.

- Monitor status LED.

- .Indicator LED

- .Programming LED

SYSTEM OPERATION

- To make a call, the visitor presses the button for the apartment, a number of audible tones indicate that the call is being

made and LED on the door panel illuminates. At this moment, the apartment's monitor receives the call. If the visitor presses the button for another apartment by mistake, the call can be cancelled by pressing the button for the correct apartment.

- In systems with several access doors, the other door panel(s) automatically disconnects; if another visitor attempts to

call, a number of telephone tones will indicate that the channel is busy and LED on the door panel will illuminate.

- General entrance door panels (mode EL501): If the call is being made from the general entrance door panel, the

interior door panel of the building being called and other possible general entrance door panels automatically disconnect. If another visitor attempts to call from either a busy interior door panel, a number of telephone tones will indicate that the channel is busy and LED of the door panel will illuminate, or from another general entrance door panel, a number of telephone tones will indicate that thechannel is busy and LED of the general entrance door panel will blink for 3 seconds. The door panels of the other interior buildings will remain free to be used.

- General entrance door panels (mode EL501): If the call is made from an interior door panel, the other interior door

panels will remain free to be used. It is only possible to make calls to interior buildings from the general entrance door panels when their door panels are not in use. If an attempt is made to make a call to a busy interior door panel, a number of telephone tones will indicate that the channel is busy and LED of the general entrance door panel will blink for 3 seconds.

- The call lasts for 45 seconds, during which time an image appears on the apartment's master monitor for 2 seconds

after the call is received without the visitor knowing, and the status LED and indicator LED of the master and slave monitor(s) will illuminate(green). If the call is not answeredwithin 45 seconds, the status LED onthe master and slave monitors will illuminate (red) and indicator LED on the master and slave monitor(s) will turn off. LED on the door panel will turn off and thechannel will become free.

- To establish communication,press button on the monitor, indicator LED will blink (green)and LED on the door

panel will illuminate. : Make sure that the hearing aid is 15-20 cm away from theCommunication with hearing aid monitor to ensure maximum audio quality during communication with the door panel. Set the hearing aidRemember: switch to position T.

- Communication will last for one and a half minutes or until button is pressed again. Once communication is

complete, the monitor's status LED will illuminate (red), indicator LED on the monitor and LED on the door panel will turn off and thechannel will become free.

- To open the door, press door release button during the call or communication processes: one press will activate

the lock release for 3 seconds and LED will also illuminate for3 seconds.

- A description of thefunction buttons can be found on p. 5.

Page 4

TEKNA PLUS MONITORHF

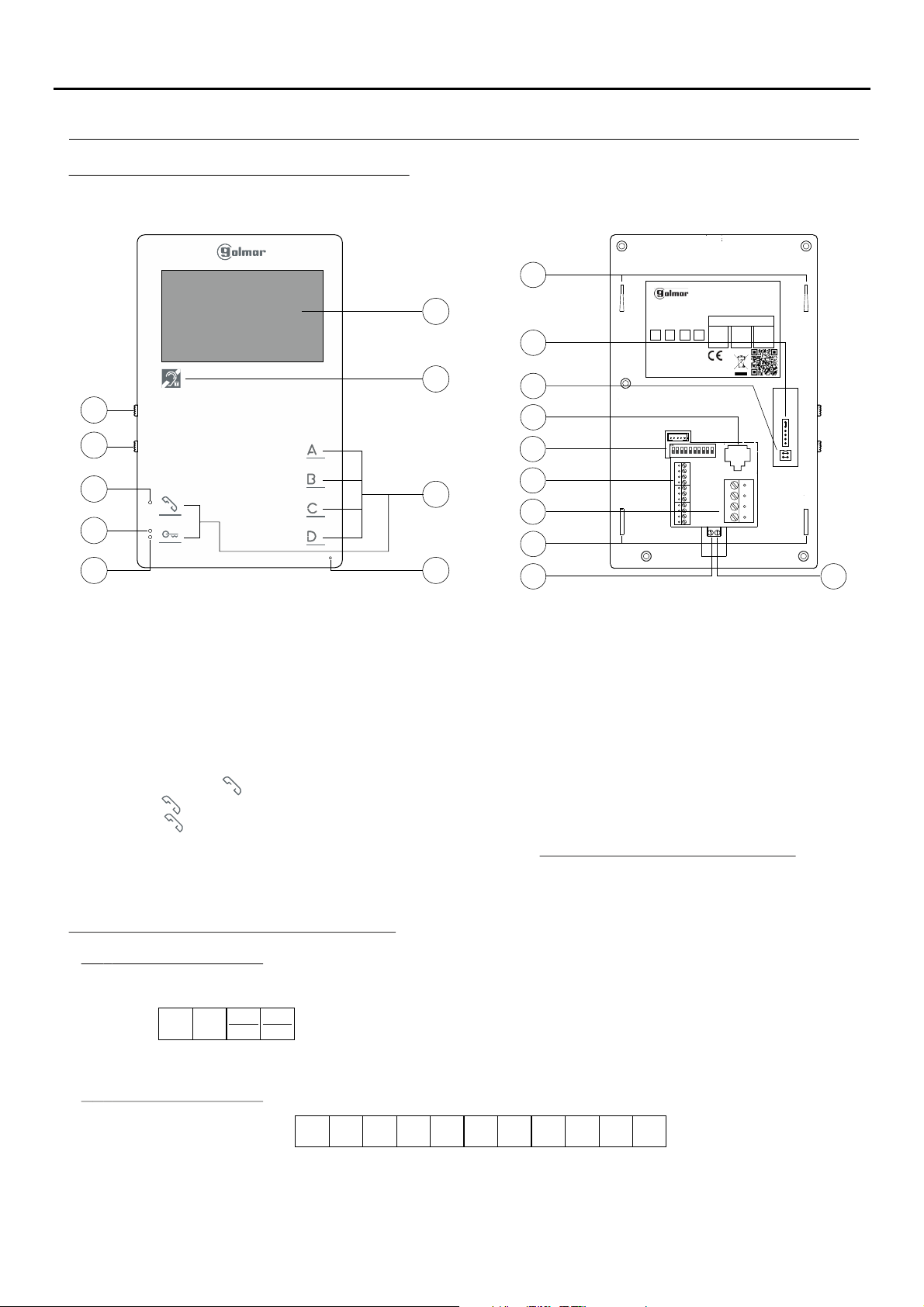

DESCRIPTION OF THE MONITOR

Description of the Tekna HF Plus monitor:

Hands-free monitor for the Plus system with button and coded panels.

4.3” TFT colour screen

Communication with hearing aid. Set the hearing aid switch to position T. Function/programming buttons.

Microphone.

Brightness control.

Colour control.

Indicator LED (two-colour):

- In call: green LED illuminated.

- In communication: green LED blinking.

- Function press to talk:

When is pressed, LED illuminated yellow. When is released, LED blinking yellow.

Advanced programming LED.

Led (bicolor) estado monitor:

Standby: LED illuminated red.

- Call: LED illuminated green.

18121000000 SN ADDRESS

INTER A1 SLAVE MASTER

ATENCIóN Altatensión. No abrir la tapa. Manipular sólo porpersonal delservicio técnico.

WARNING. GOLMAR S.A. HighVoltage. Don´t open cover C/ Silici, 13 Handle only bytechnical service 08940- SPAIN

TEKNA-HF PLUS

11742110 VXX

ESCALERA

PISO

PUERTA

STAIR

FLOOR

DOOR

n o

1 2 3 4 5 6 7 8 9 10

CN2

CN3

Communication: LED illuminated green.

- Auto spy if Bus busy: LED blinking red

rapidly.

- Night mode: LED blinking red.

- Doctor mode: LED blinking green.

Connector fixings.

CN4 connector (end of line).

JP1 jumper, remove in video installation with

twisted pair (see 'EL562S module' p. 6).

RJ-45 connector (installation with UTP cable).

SW1 DIP switches.

CN2 connection terminals.

CN3 connection terminals.

Handling by authorised personnel:

Monitor microphone volume control.

Monitor speaker volume control.

Description of the connection terminals:

C 3N connection terminals:

– :, +

Vin MP

C 2N connection terminals:

A : D : HZ- : AP+ : INT :

Audio communication. Digital communication. Door bell button input. Input for auxiliary door opening button. Intercom function.

Vout

Vin : – : Vout : Vp, Mp :

A D

Negative, positive (18Vdc power supply). Video signal input through coaxial cable. Coaxial cable mesh. Video signal output through coaxial cable. Balanced video signal (through twisted pair).

AP+

INT

2C A1 :

+ SA2C A1

Output for 2nd camera activation. Output (negative) for auxiliary device

activation (max. consumption 50mA).

SA :

Output (negative) for auxiliary call

repeater (max. consumption 250mA).

Page 5

SW1

1 2 3 4

5 6 7 8 9 10

CN2

CN3

TEKNA PLUS MONITORHF

DESCRIPTION OF THE MONITOR

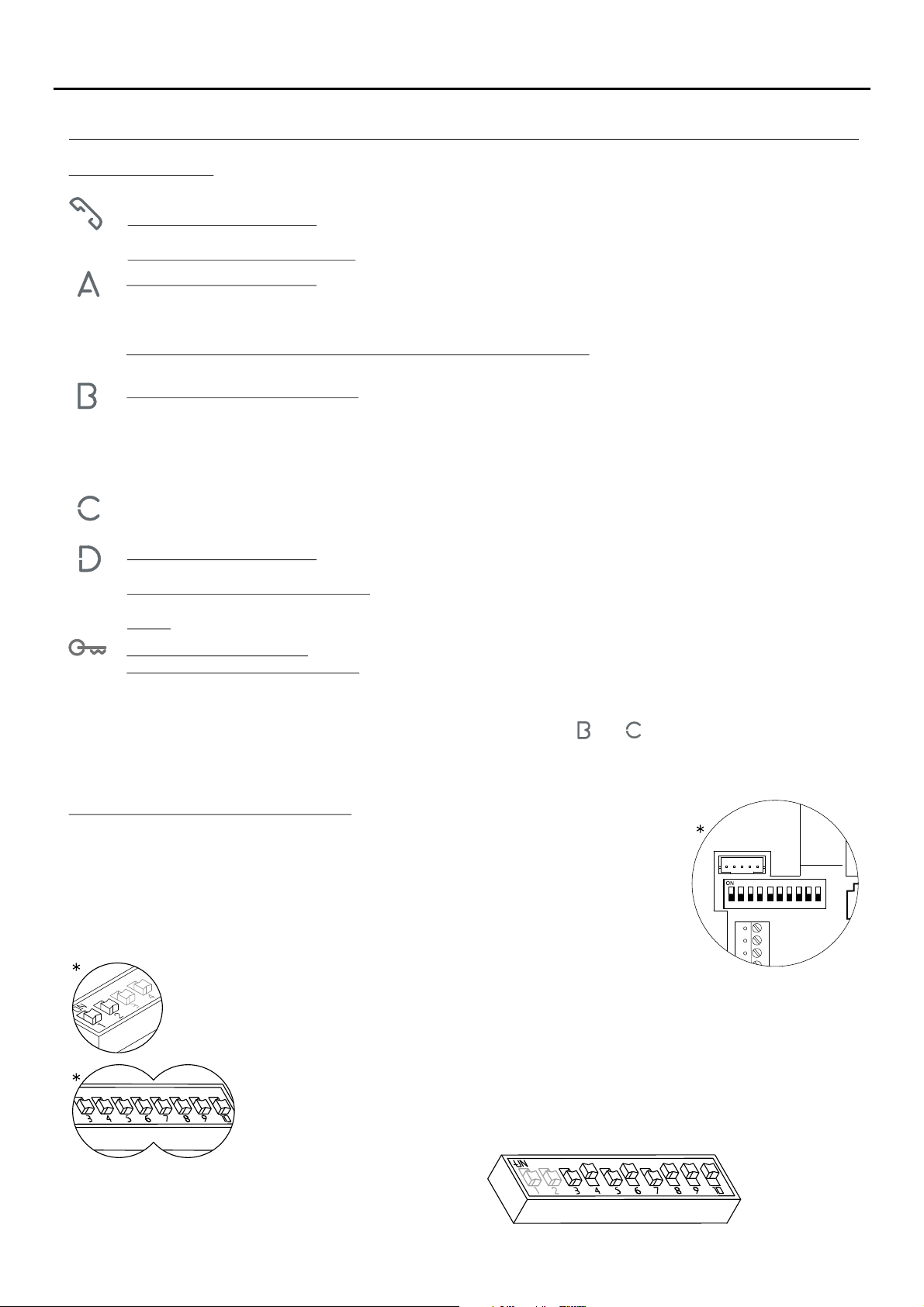

Function buttons:

Start/stop communication button. With the terminal in standby:

One short 1-second press activates the monitor in function mode (for 5 seconds).

During a communication process: it activates the talk/listen function.

With the monitor in standby: One long 2-second press activates 'ringtone volume' mode, with a tone indicating

the current volume selected. Then each long 2-second press (before 5 seconds elapse) selects a volume level: maximum, medium, minimum and no volume 'night mode' and so on (carousel mode). Note: The 'night mode' status LED blinks red.

With the monitor in standby, function mode, call or communication: One long 3-second press turns off the

monitor.Then one short 1-second press turns on the monitor.

( )

With the monitor in function mode: It activates the intercom (in the same apartment); one long press until a

confirmation tone can be heard will call all of the monitors in the apartment. To call individual devices, press the button once to call the 'master' monitor, twice to call 'slave 1,' 3 times to call 'slave 2,' 4 times to call 'slave 3' and 5 times to call 'slave 4.' This selective intercom call mode is only available with Tekna HF Plus / Tekna Plus SE monitors and the T540 Plus SE telephone. This only functions if no call or communication is in progress.

( )

In advanced programming mode, the default functions of function buttons and can be changed with one of the

Auxiliary device 'A1' is activated (with the terminal in standby or function, call, communication or intercom

mode).

With the monitor in standby: It enables the image from the door panel configured as main to be viewed (if the

bus is busy, the statusLED of the monitor will indicate so with a few quick blinks).

With the monitor in function mode: It enables audio and video communication with the door panel to be

established if it has its auto switch-on function activated. This only functions if no communication is in progress.

In call: A slave monitor enables theimage of the doorpanel to be captured.

With the monitor in standby:Apanic call to the guardunits configured to receivesuch calls is made. With the monitor in function mode: It enables a normal call to the main unit to be made. During call reception

and communication processes, it enables the lock release to be activated.

following functions at the same time and per button: 'intercom,' 'auxiliary device activation,' 'second camera activation' or 'call to secondary guard unit' (see p. 12).

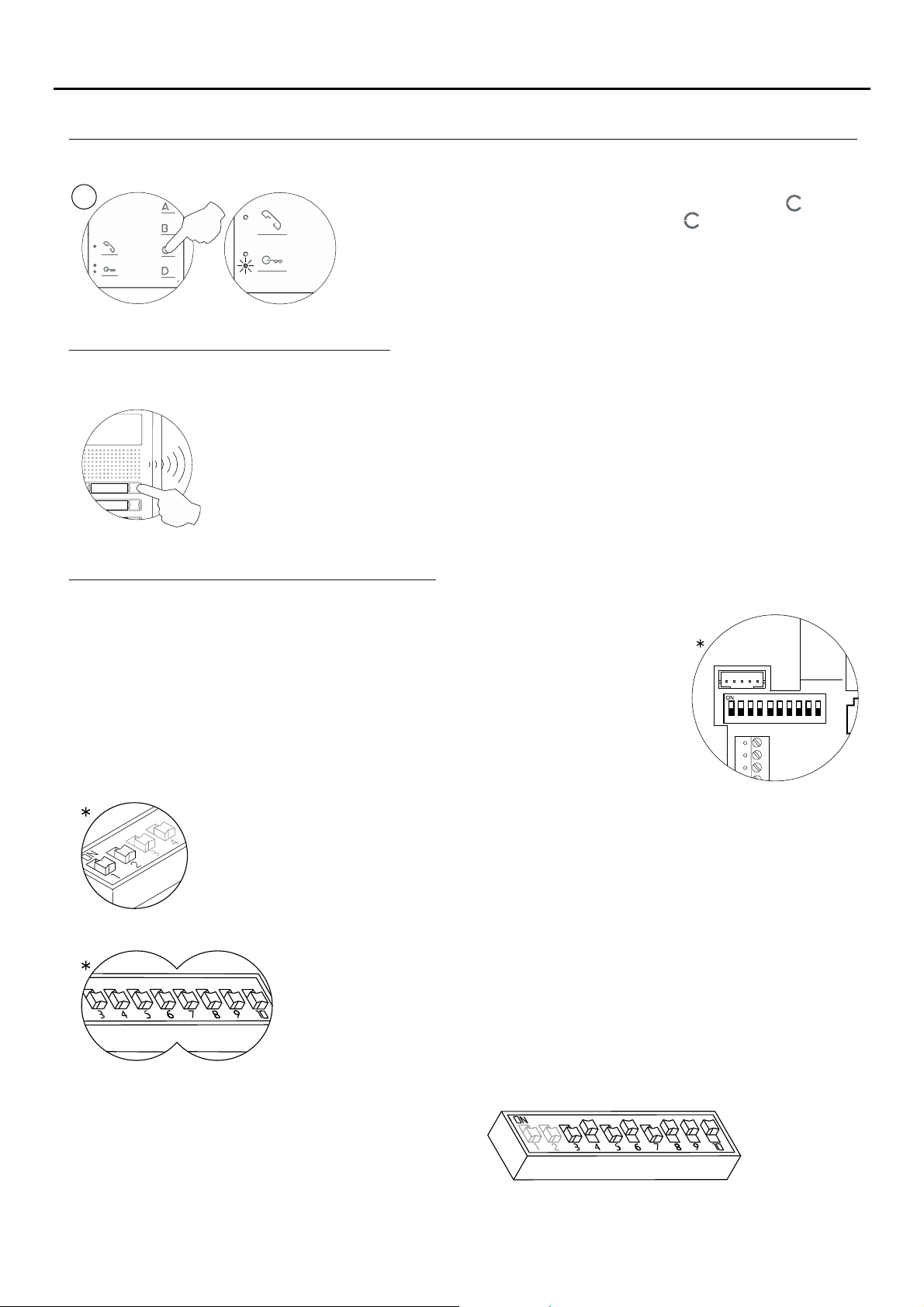

Description of the SW1 DIP switch:

The SW1 DIP switch is located on the left-hand side of the back of the monitor. It

enables the monitor to be configured as master/slave and an address to be assigned.

Important: This type of programming cannot be performed on a general entrance

door panel.

Switch no.: Value when ON:

Factory setting

DIP 1 and DIP 2: Sets the monitor as master/slave. DIP1 and DIP2 to OFF, master, DIP1 to

ON and DIP2 to OFF, slave 1, DIP1 to OFF and DIP2 to ON, slave 2, DIP1 and DIP2 to ON slave 3.

DIP 3 to DIP 10: To set the monitor address (addresses 1 to 255). The switches set to OFF

have a zero value. The values of the switches set to ON are shown in the table below. The monitor code is the sum of the values of the switches set to ON.

46453261678849210

128

Example: 64+0+16+0+4+2+1=870+

Page 6

5 6 7 8 9 10

CN2

CN3

CN4

JP1

TEKNA PLUS MONITORHF

DESCRIPTION OF THE MONITOR

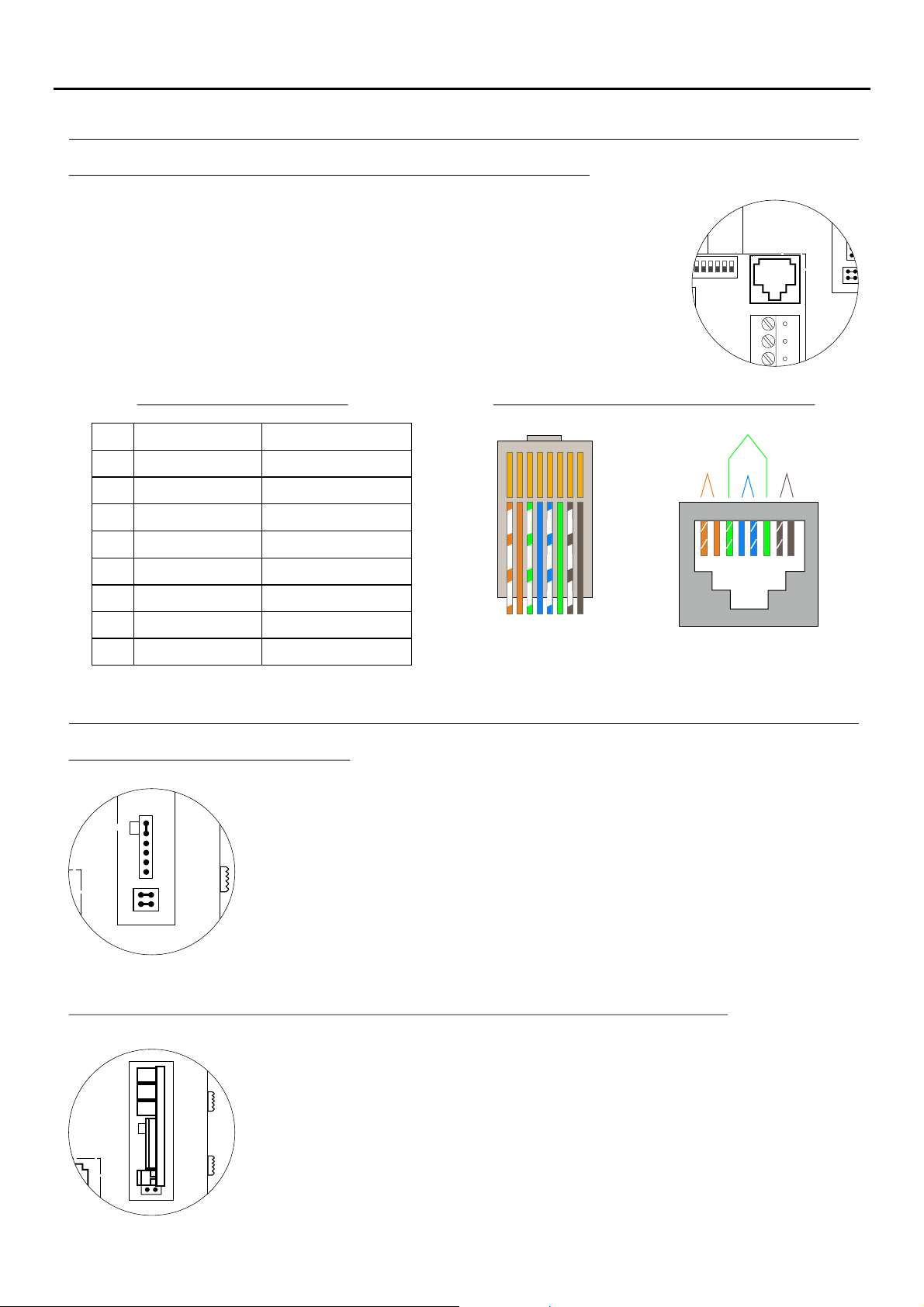

Description of the RJ-45 connector (installation with UTP cable):

The monitor features an RJ-45 connector for installation with a UTP cable. It is

located on the left-hand side of the back of the monitor. It enables connection of the system's main communication wires (+, -, A, D, Vp

and Mp) in twisted-pair installations.

RJ-45 equivalence table

Ethernet cable

White + Orange

Orange

White + Green

Blue

White + Blue

Green

White + Brown

Brown

Golmar connection

GND (Audio)

Audio

GND (Dat )a

+18V

Data

MONITOR SETTINGS

Handling of the end of line jumper:

The end of line jumper is located on the CN4 connector at the back of the monitor. In the case of twisted pair installations, the end of line jumper is located in the EL562

module (see next section).

Do not remove the jumperif the video cable ends in the monitor. Remove the jumper ifthe

video cable continues after the monitor.

RJ-45 connector (cable type: T568B)

PAR 3

PAR 2 PAR 1 PAR 4

1 2 3 4 5 6 7 8

Male connector Female connector

EL-562S module for video door entry system installations with twisted pair cable:

Locate the CN4 connector at the back of the monitor. To insert the EL-562S module, first remove the jumper located in the CN4 connector and

JP1 of the monitor.

NOTE: In this type of installation, set the SW1-3 DIP switch on the sound module of the

door panel to ON, see the instruction manual (p. 13) or set the SW1-3T632/Plus P/T DIP switch of the EL500SE microprocessor to ON, see the manual (p. 7).T5000 ML The door panel of the SV801SE GRF kit does not require modification. Use the specific wiring diagram.

Page 7

TEKNA PLUS MONITORHF

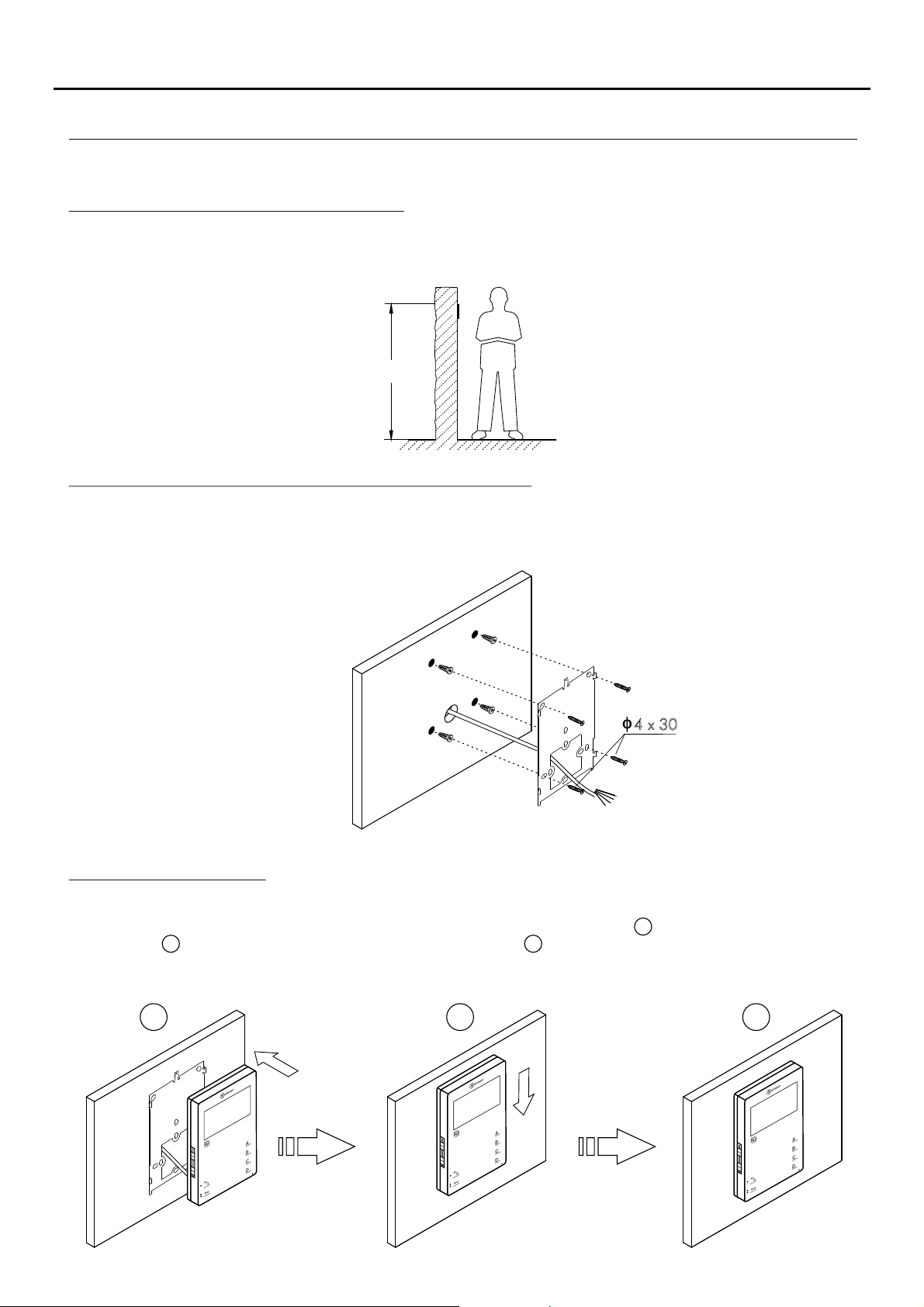

INSTALLING THE MONITOR IN A WALL MOUNTING CONNECTOR

Avoid dusty or smoky environments or locations near sources of heat.

Positioning the wall mounting connector:

The top of the connector must be positioned at a height of 1.60m. The minimum distance between the sides of the

connector and the closest object must be 5cm.

1 6. 0m

Fixing the monitor's wall mounting connector to the wall:

Fix the monitor's wall mounting connector to the wall by drilling two 6mm diameter holes and using the screws and plugs

supplied with the terminal.

x4 30

Positioning the monitor:

Connect the cables to the monitor (see p. 4), position the monitor in front of the wall mounting connector, ensuring

that the holes in the base of the monitor line up with those on the connector , and then move the monitor downwards until the monitor issecurely ﬁxed to the connector .

Remember to remove the protective covering from the front of the monitor once installation is complete.

1 2 3

Page 8

TEKNA PLUS MONITORHF

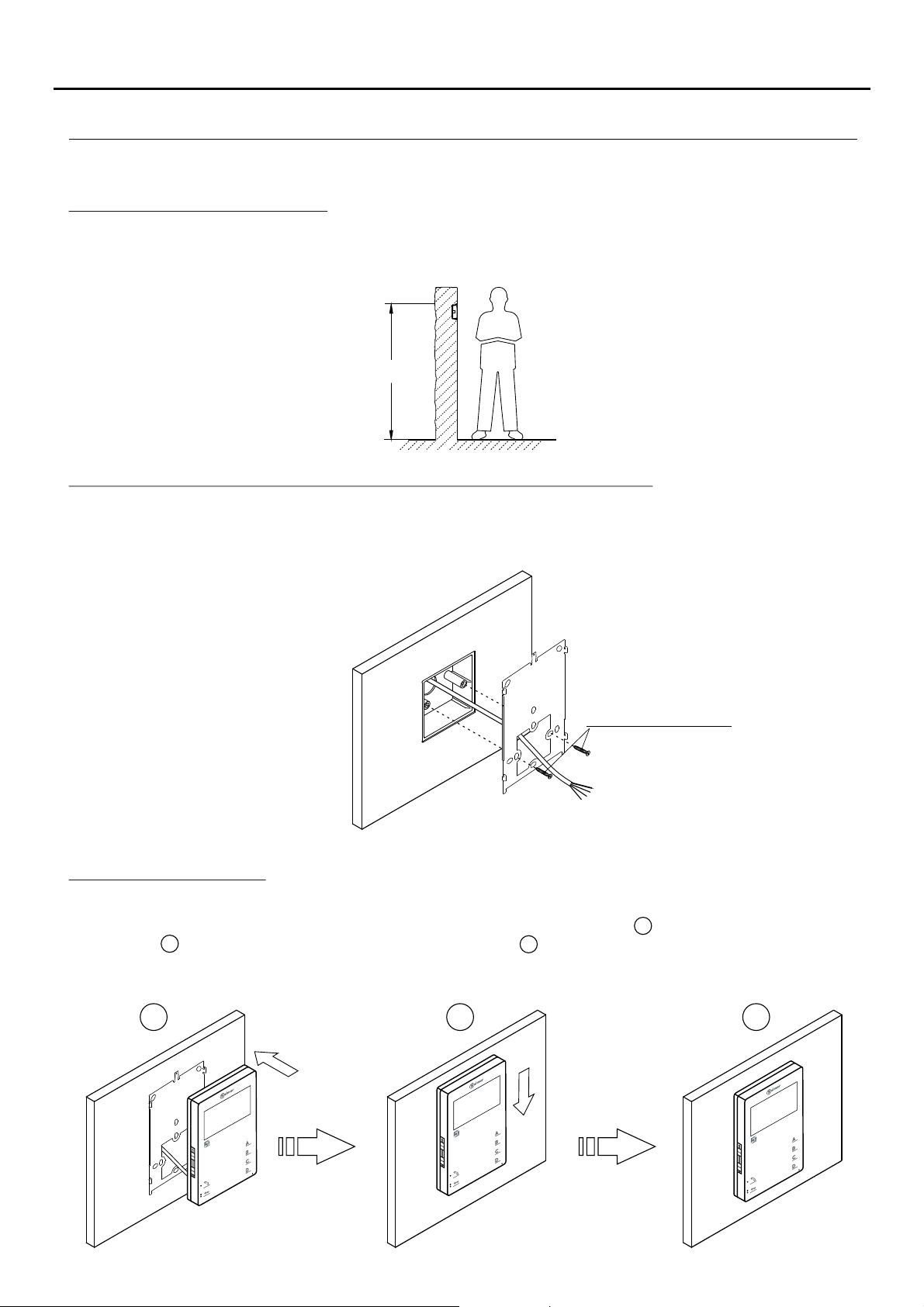

INSTALLING THE MONITOR IN AN EMBEDDING BOX

Avoid dusty or smoky environments or locations near sources of heat.

Location of the embedding box:

Make a hole in the wall to position the top of the universal embedding box at a height of 1.60 m from the ground. The

minimum distance between the sides of the embedding box and the closest object must be 5cm.

1 6. 0m

Positioning the embedding box and ﬁtting the wall mounting connector:

Pass the cable through the hole made in the embedding box. Embed the box and ensure that it is level and ﬂush.

Fix the wall mounting connector of the monitor to the embedding box with the screws supplied.

Screws supplied with the embedding box.

Positioning the monitor:

Connect the cables to the monitor (see p. 4), position the monitor in front of the wall mounting connector, ensuring

that the holes in the base of the monitor line up with those on the connector , and then move the monitor downwards until the monitor is securely ﬁxedto the connector .

Remember to remove the protective covering from the front of the monitor once installation is complete.

1 2 3

Page 9

TEKNA PLUS MONITORHF

PROGRAMMING THE MONITORS

Programming the TEKNA HF PLUS monitor:

Locate the SW2 DIP switch on the EL632 Plus sound module of the door panel or the

EL500SE microprocessor and set to ON.

In systems with more than one door panel, only perform this procedure on the main

panel of each building.

Important: To perform this programming, the monitor's SW1 DIP switch should be set

to .OFF

Turn off the monitor tobe programmed (press button for 3 seconds). Once switched off, press door release button .

Press and hold door release button and, without releasing it, switch on the

monitor(press button for 1 second).

To show that the device is ready for programming, the door

panel and monitor will emit a number of tones (the status LED on the monitor will illuminate red), enabling door release button to be released. To establish audio communication with the door panel, press button .

Press the door panel button that will call this monitor.

At this moment, the door panel and monitor will emit a number of tones (the status LED on the monitor will blink red and the indicator LED will illuminate red.

To programme the monitor as , press button for 3 seconds (theMaster

monitor's LED will illuminate red).

To programme it as , press button once and the status LED willSlave 1

blink (green) on ce. Continue s uccessively to , pressin gSlave 4 button four times and the status LED will blink (green) fourtimes.

To programme it as , press button and the LED will blinkSlave + Intercom

(green) once.

Continued overleaf

Page 10

SW1

1 2 3 4

5 6 7 8 9 10

CN2

CN3

TEKNA PLUS MONITORHF

PROGRAMMING THE MONITORS

Continued from previous page.

To programme it as (in call), press button and theSlave without video

status LED will blink (green) once. If button is pressed again, the monitor will return to being programmed as (in call) andSlave with video the status LED will blink (green) twice. The door panel video will be displayed duringa call if programmed to do so:

Each apartment must only have one master unit; if there are parallel units, either monitors or telephones, they must be

configured as slaves.

Make a call to checkthat the monitor has been successfully programmed. Programme theother

monitors in the same way.

Once the programming has finished, set the programming switch to OFF. If this is not done,

the door panel will emit tones to indicate that the system is still in programming mode.

Quick programming Tekna HF Plus monitors:

The SW1 DIP switch is located on the left-hand side of the back of the monitor.

It enables the monitor to be configured as master/slave and an address to be assigned.

Important: This type of programming cannot be performed on a general

entrance door panel.

DIP 1 and DIP 2: Sets the monitor as master/slave. DIP1 and DIP2 to OFF, master, DIP1 to

ON and DIP2 to OFF, slave 1, DIP1 to OFF and DIP2 to ON, slave 2, DIP1 and DIP2 to ON slave 3.

DIP 3 to DIP 10: To set the monitor address (addresses 1 to 255). The switches

set to OFF have a zero value. The values of the switches set to ON are shown in the table below. The monitor code is the sum of the values of the switches set to ON.

Switch no.: Value when ON:

*Factory setting

46453261678849210

128

Example: 64+0+16+0+4+2+1=870+

Page 11

TEKNA PLUS MONITORHF

ADVANCED PROGRAMMING (MONITOR FUNCTIONS)

Advanced programming of the functions of the Tekna HF Plus monitor:

Advanced programming enables the monitor's default settings to be changed:

Turn off the monitor tobe programmed (press button for 3 seconds). Once switched off, press button for 3 seconds to access of'Menu 1'

advanced programming and the programming LED will illuminate.

Men 1:u

Then adjust the settings as required:

- Activating/deactivating the doctor mode function: Doctor mode not activated (default setting).

The 'doctor mode' function enables the lock release to be activated automatically 6 seconds after making a call

from the door panel without having to establish communication or press door release button . The call ends after 20 seconds and the channel becomes free.

(Only the master monitor should be configured with 'doctor mode').

To activate doctor mode: Press button and the programming LED will indicate with 2 blinks

that the function is activated (and the status LED will blink green) or with 1 blink that the function is deactivated.

- Changing the ringtone melody:

The monitor has different ringtones to identify the origin of the call. The melodies assigned by default to the

ringtones can be selected from among others available on the monitor.

Select the ringtone to be changed: Each press on button selects a ringtone which is

indicated with blinks (1 to 4 blinks) of the programming LED and in the following order: door panel, guard unit, intercom call and 'HZ' apartment front door call. When the final selection is reached, the following press returns the user to the first selection and 1 blink of the programming LED (carousel mode).

Then select the melody for the ringtone (selected in the previous step) by pressing

button until the required'carousel mode' melody isheard.

- Accessing 'Menu 2' or exiting programming mode:

P¡To access press button and the programming LED will blink twice.'Menu 2,'

To exit programming mode, press button for 3 seconds, and the programming LED will turn

off (see p. 14).

Continued overleaf

Page 12

TEKNA PLUS MONITORHF

ADVANCED PROGRAMMING (MONITOR FUNCTIONS)

Continued from previous page.

Men 2:u

Then adjust the settings as required:

- Button has no function.

No function.

- Changing the function of button : Intercom function (default setting).

Select the function to assign to button : Each press on button selects a different function

which is indicated with blinks (1 to 4 blinks) of the programming LED and in the following order: auxiliary device activation 'A1', call to secondary guard unit, second camera activation '2C' and intercom. When the final selection is reached, the following press returns the user to the first selection and 1 blink of the programming LED (carousel mode).

- Changing the function of button : Activation of auxiliary device 'A1' function (default setting).

Select the function to assign to button : Each press on button selects a different function

- Tekna Plus intercom monitors: Tekna Plus SE and Tekna HF Plus intercom monitors (default setting).

If an apartment has Tekna Plus, Tekna Plus SE and Tekna HF Plus monitors, the Tekna Plus SE and Tekna HF Plus

monitors should be configured in 'Intercom with Tekna Plus monitors' mode, as the Tekna Plus monitor does not allow an intercom call to a particular monitor in the apartment to be made (selective intercom call). So when an intercom call is made, all of the monitors in the apartment will receive the call.

To activate the Intercom with Tekna Plus monitors mode: Pressbutton and the programming

LED will indicate with 1 blink that the function is in 'Intercom withTekna Plus monitors' mode or with 2 blinks that the function is in 'Intercom with Tekna HF Plus/Tekna Plus SE monitors' mode.

- Accessing 'Menu 3' or exiting programming mode:

To access press button and theprogramming LED will blinkthree times.'Menu 3,' To exit programming mode, press button for 3 seconds, and the programming LED will turn

off (see p. 14).

Continued overleaf

Page 13

TEKNA PLUS MONITORHF

ADVANCED PROGRAMMING (MONITOR FUNCTIONS)

Continued from previous page.

Men 3:u

Then adjust the settings as required:

- Repeating the ringtones: One repeat (default setting).

To 'repeat the ringtone' on the monitor: Each press on button selects a repeat of the

ringtones which is indicated with blinks (1 to 3 blinks) of the programming LED and in the following order: 1, 2 or 3 repeats. When the final selection is reached, the following press returns the user to the first selection and 1 blink of the programming LED (carousel mode).

- Adjusting the 'door panel communication time': 90 seconds (default setting).

To adjust the 'door panel communication time': Each press on button selects a

communication time which is indicated with blinks (1 to 4 blinks) of the programming LED and in the following order: 60, 90, 120 and 150 seconds. When the final selection is reached, the following press returns the user to the first selection and 1 blink of the programming LED (carousel mode). This adjustment can be performed on Nexa door panels with theNote: EL632 Plus and EL632 Plus P/T sound module. (Please consult our technical service department for information about other models of door panel).

- Adjusting the 'door panel call' time: 45 seconds (default setting).

To adjust the 'door panel call' time: Each press on button selects a call time which is

indicated with blinks (1 to 4 blinks) of the programming LED and in the following order: 30, 45, 60 and 90 seconds. When the final selection is reached, the following press returns the user to the first selection and 1 blink of the programming LED (carousel mode). ThisNote: adjustment can be performed on Nexadoor panels with the EL632 Plus and EL632 Plus P/T sound module. (Please consult our technical service department for information about other models of door panel).

- Activating the in-call video: The video appears when a call is received (default setting).

Activating the in-call video: Press button and the programming LED will indicate with

2 blinks that the video will appear on the monitor when a call is received or with 1 blink that the video will appear at the end of the ringtone.

- Accessing 'Menu 4' or exiting programming mode:

To access 'Menu 4', press button , and the programming LED will blink 4 times. To exit programming mode, press button for 3 seconds, and the programming LED will turn

off (see p. 14).

Continued overleaf

Page 14

TEKNA PLUS MONITORHF

ADVANCED PROGRAMMING (MONITOR FUNCTIONS)

Continued from previous page.

Men 4:u

Then adjust the settings as required:

- Setting all of the monitor's advanced programming options to the ' 'default value

Setting to the 'default value': Press button and the monitor will indicate with two audible

tones that all of the options of the monitor's advanced programming (p. 11-14) are set to their default setting.

- Activating/deactivating the 'communication with hearing aid' function: Communication with hearing aid

activated (default value).

To activate/deactivate the 'communication with hearing aid' function: Press button and the

programming LED will indicate with 1 blink that the function is activated or with 2 blinks that the function is deactivated.

- Button has no function.

No function.

- Button has no function.

No function.

- Accessing 'Menu 1' or exiting programming mode:

To access 'Menu 1',press button and the programmingLED will blink once(see p. 11). To exit programming mode, press button for 3 seconds and the programming LED will

turn off.

- Turning on the monitor when exiting programming:

When exiting advanced programming mode, the monitor will turn off: Press button for

2 seconds to turn the monitor back on. After any resetting of the monitor and for the following 45 seconds, no operation with it can be performed.

Page 15

TEKNA PLUS MONITORHF

OPTIONAL CONNECTIONS

Activating auxiliary devices with Tekna HF Plus monitors:

Auxiliary device activation requires the use of an SAR-12/24 relay unit. If the feature is shared by all monitors,

connect their A1 terminals; if, however, each monitor has its own feature, use an SAR-12/24 relay for each one and do not connect theirA1 terminals.

This function is activated when button on the monitor is pressed (with the terminal in standby or function, call,

communication or intercom mode).

The most common applications are activating the stairway lights and opening a second door.

Tekna HF Plus

CN4

CN3

To the distributor/

door panel.

( )

The neutral of the lighting power supply is arranged serially through the contacts of the SAR-12/24 relay and the

out

CN2

NC NA C

SAR-12/24

IN IN

To the stairway light

activation button

220 Va /c

1.8A max.

( )

maximum consumption of the element to be connected does not exceed 1.8A.

To activate a second lock release, a TF-104 transformer is required.

NC NA C

SAR-12/24

IN IN

T 104F-

PRI

Mains

SEC

~~ ~~

To the distributor/

door panel.

CN4

CN3

Tekna HF Plus

out

CN2

Lock release

Vac

Important: Place the varistor supplied with the sound module directly onto the terminals of the

lock release.

Input for outside button to activate the door panel lock release:

This enables the door panel lock release to be activated during a call or communication with the door panel. With the monitor in standby, it makes a panic call to the guard units configured to receive this type of call.

Tekna HF Plus

AP+

CN2

Continued overleaf

Page 16

TEKNA PLUS MONITORHF

OPTIONAL CONNECTIONS

Continued from previous page.

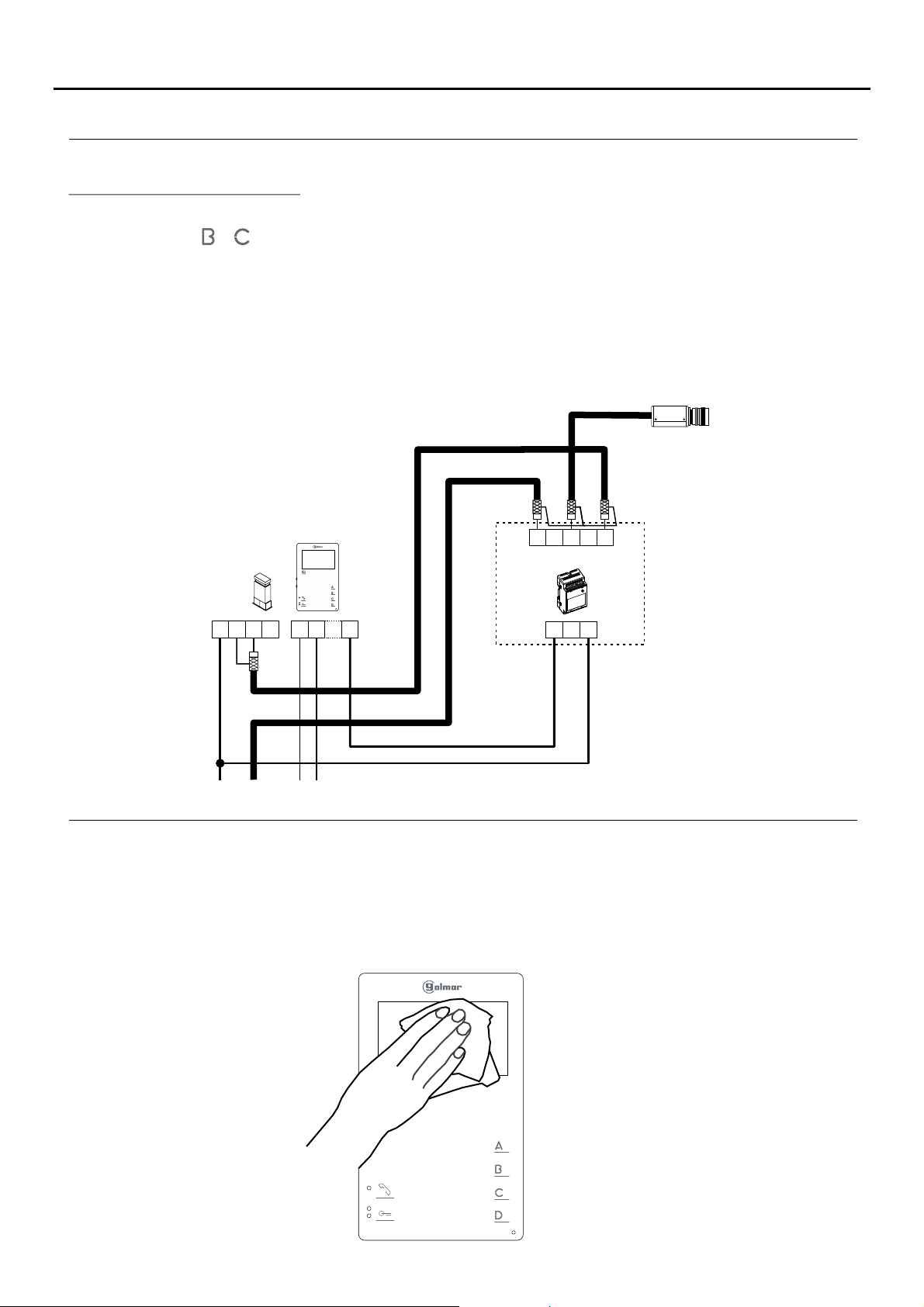

Intercom between two points in the same apartment:

The Tekna HF Plus monitor features as standard an intercom function between two points in the same apartment.

To enable this function,the following is necessary:

- One of the monitors needs to be configured as master and the other as slave with intercom, as described

on p. 9. In thecase of intercom between a monitor and a telephone, it isrecommended to configure the monitor as the master.

- The INT terminal of theintercom devices needs to be connected (see diagram attached).

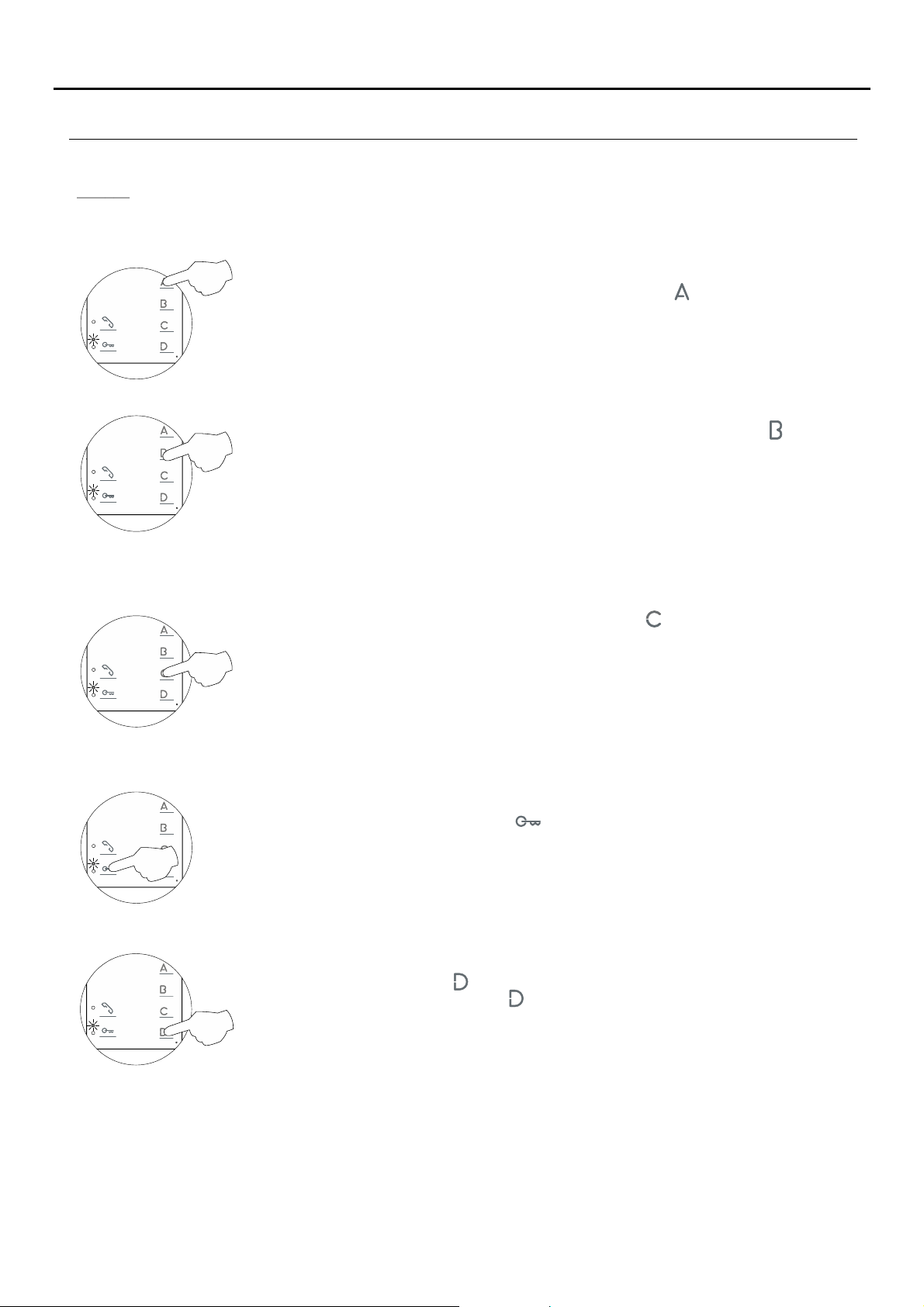

To use the intercom, activate the function mode on the monitor (press button for 1 second, see p. 5), then press

and hold button until you hear a confirmation tone call all of the monitors in the apartment. To call individual devices, press the button once to call the 'master' monitor, twice to call 'slave 1', 3 times to call 'slave 2', 4 times to call 'slave 3' and 5 times to call 'slave 4'. This selective intercom call mode is only available with Tekna HF Plus / Tekna Plus SE monitors. This only functions if no call or communication is in progress. A number of long audible tones on the monitor will confirm that the call is being made. To establish communication, press button on the Tekna HF Plus monitor, indicator LED will blink (green) and status LED will illuminate green. If a call is received from the door panel during an intercom process, the handset of the master unit will emit a number of audible tones and an image will appear; to establish communication with the door panel, press button on the unit configured as master or press the door release button to simply open the door.

The ringtones vary depending on where the call is being made from, enabling the user to identify its origin. Remember: If the apartment also has Tekna Plus monitors, the Tekna HF Plus andTekna PlusSE monitors must be

configured as 'Intercom with Tekna Plus monitors' (see p. 12). This configuration mode does not allow selective intercom calls to different monitors in the apartment; when the intercom button is pressed, all of the monitors in the apartment will receive the call.

out

Tekna HF Plus

D INT

CN2

CN4

CN3

Tekna HF Plus

CN4

out

D INT

CN2

CN3

Button for receiving calls from the apartment front door:

The Tekna HF Plus monitor features as standard the ability to receive calls from the apartment front door. This

feature precludes the need to use the bell by positioning a button between terminals 'HZ—' and '—' of the monitor.

The ringtones vary depending on where the call is being made from, enabling the user to identify its origin. If a call is

made from the apartment front door during a conversation with the door panel, the handset will emit a number of tones to indicate so.

Note: Regardless of the volume set for the monitor's ringtones (see p. 11) and the 'night mode' function, the

'apartment front door call' ringtone will always sound at the highest level.

Tekna HF Plus

HZ-

CN2

Continued overleaf

Page 17

TEKNA PLUS MONITORHF

OPTIONAL CONNECTIONS

Continued from previous page.

Activating a second camera:

To activate a second camera, it is necessary to use an SAR-12/24 relay unit and to change the configuration of

function button or on the monitor, as described onp. 12.

To activate this function, press the button configured for this function on the monitor at any time and regardless of

the position of the handset.

If the feature is shared by all monitors, connect their 2C terminals; if, however, each monitor or a group of monitors

has its own camera, use a SAR-12/24 relay for each one and do not connect the 2C terminals of the different groups.

This function can be usedto activate anything else, as described in the section on activation of auxiliarydevices, but

through the 2C terminal.

The most common applications could be to monitor access to the lift, to the entrance hall, etc.

2nd Camera

CN3

CN4

Tekna HF Plus

out

CN2

NC NA C

SAR-12/24

IN IN

CLEANING THE MONITOR

- Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components.

- Use a soft damp lint-free cloth with water.

- Always wipe the monitor in the same direction, from top to bottom.

- After cleaning the monitor,remove any moisture witha soft dry lint-free cloth.

Page 18

TEKNA PLUS MONITORHF

WIRING DIAGRAMS

Video door entry system with coaxial cable:

Remove the JP1 jumper from all of the distributors

Tekna HF Plus Tekna HF Plus

except the last.

D4L-PLUS

CN3

CN4

out

CN2

Tekna HF Plus Tekna HF Plus

CN4

out

CN2

JP1

D4L-PLUS

JP1

CN3

CN4

out

CN2

out

CN2

M =Master.

Place this power supply as close as possible to the first distributor.

FA-Plus/C or FA-Plus

PRI

Mains

+ +

SEC

CN3

DC lock

release

837

+-+CV1CV2

CN1

Vin-AinAout Vin+ Vout-Vout+

Mesh

SW2

SW1

Important:

For further information about the door panel, sections, distances, wiring diagrams, etc., see the T632 PLUS P/T manual.

https://doc.golmar.es/search/manual/50122328

Page 19

TEKNA PLUS MONITORHF

WIRING DIAGRAMS

Video door entry system without coaxial cable:

Tekna HF Plus Tekna HF Plus

CN2

EL562S JP1

A D

VpM

CN3

* Remove the JP1 jumper

from all of the distributors except the last.

+ _

A D+

AAD

JP1

D6L-Plus/2H

+ _

A D

CN2

EL562S JP1

A D

Tekna HF Plus Tekna HF Plus

CN2

EL562S JP1

A D

EL562S JP1

A D

VpM

CN3

+ _

A D+

AAD

JP1

D6L-Plus/2H

M V

+ _

A D

VpM

CN3

VpM

CN3

M =Master.

*Place this power supply as

close as possible to the first distributor.

FA-Plus/C or FA-Plus

PRI

Mains

SEC

+ +

CN3

DC lock

release

837

+-+CV1CV2

CN1

Vin-AinAout Vin+ Vout-Vout+

Mesh

SW2

SW1

Important:

For further information about the door panel, sections, distances, wiring diagrams, etc., see the T632 PLUS P/T manual.

https://doc.golmar.es/search/manual/50122328

Page 20

TEKNA PLUS MONITORHF

COMPLIANCE

Este producto es conforme con las disposiciones de las Directivas Europeas aplicables respecto a

la Seguridad eléctrica y la Compatibilidad Electromagnética .2014/35/CEE 2014/30/CEE

This product meets the essentials requirements of applicable European Directives regarding

Electrical Safety Electromagnetic Compatibility .20 / 5/ECC 20 4/ 0/ECC14 3 1 3,

El funcionamiento de este equipo está sujeto a las siguientes condiciones:NOTA:

(1) Este dispositivo no puede provocar interferencias dañinas, y (2) debe aceptar cualquier interferencia recibida, incluyendo las que pueden provocar un funcionamiento no deseado.

Operation is subject to the following conditions:NOTE:

(1) This device may not cause harmful interference, and (2) this device must accept any received interference, including the ones that may cause undesired operation.

Sistemas de comunicaciónS.A.

[email protected]

www.golmar.es

GOLMAR S.A.

C/ Silici, 13

08940- Cornellá de Llobregat

SPAIN

Golmar se reserva el derecho a cualquier modificación sin previo aviso.

Golmar se réserve le droit de toute modification sans préavis.

Golmar reserves the right to make any modifications without prior notice.
