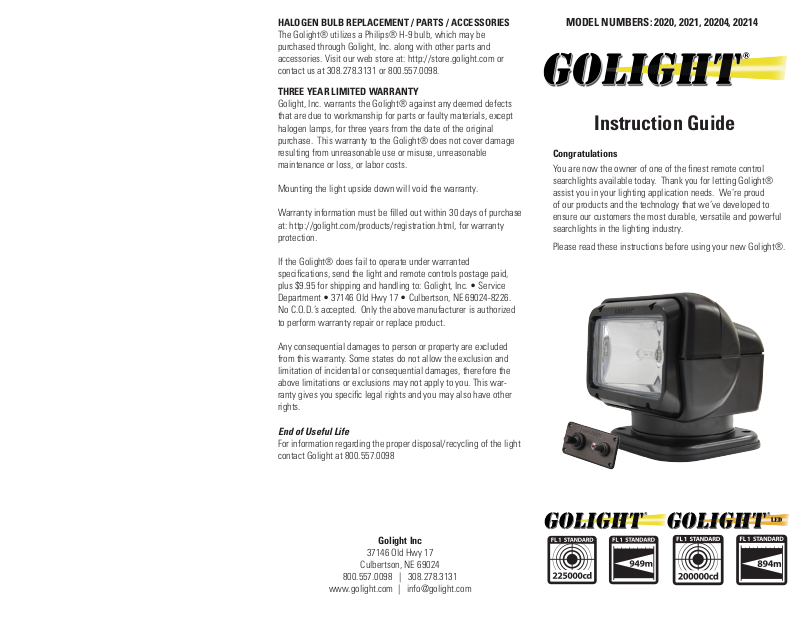

Golight 20204 User Manual
HALOGEN BULB REPLACEMENT / PARTS / ACCESSORIES
The Golight® utilizes a Philips® H-9 bulb, which may be
purchased through Golight, Inc. along with other parts and
accessories. Visit our web store at: http://store.golight.com or
contact us at 308.278.3131 or 800.557.0098.
THREE YEAR LIMITED WARRANTY
Golight, Inc. warrants the Golight® against any deemed defects
that are due to workmanship for parts or faulty materials, except
halogen lamps, for three years from the date of the original
purchase. This warranty to the Golight® does not cover damage
resulting from unreasonable use or misuse, unreasonable
maintenance or loss, or labor costs.
Mounting the light upside down will void the warranty.
Warranty information must be filled out within 30 days of purchase
at: http://golight.com/products/registration.html, for warranty
protection.
If the Golight® does fail to operate under warranted
specifications, send the light and remote controls postage paid,
plus $9.95 for shipping and handling to: Golight, Inc. • Service
Department • 37146 Old Hwy 17 • Culbertson, NE 69024-8226.
No C.O.D.’s accepted. Only the above manufacturer is authorized
to perform warranty repair or replace product.
MODEL NUMBERS: 2020, 2021, 20204, 20214
Instruction Guide
Congratulations
You are now the owner of one of the finest remote control
searchlights available today. Thank you for letting Golight®
assist you in your lighting application needs. We’re proud
of our products and the technology that we’ve developed to
ensure our customers the most durable, versatile and powerful
searchlights in the lighting industry.
Please read these instructions before using your new Golight®.
Any consequential damages to person or property are excluded
from this warranty. Some states do not allow the exclusion and
limitation of incidental or consequential damages, therefore the
above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other
rights.
End of Useful Life
For information regarding the proper disposal/recycling of the light
contact Golight at 800.557.0098
Golight Inc
37146 Old Hwy 17
Culbertson, NE 69024
800.557.0098 | 308.278.3131
www.golight.com | info@golight.com
The Golight® Models 2020/2021 & 20204/20214 are designed
to be permanently attached to a vehicle. The Searchlight with
Directional Flexibility is controlled by a wired dash mount
control, which gives the operator a full 370° horizontal rotation
and a 135° vertical tilt with fingertip control.
The Golight® provides superior light penetration with Cr5
PentaBeam™ technology in a halogen configuration or with
state of the art P-Vex™ lens and LED technology.
The Golight® Includes:
• Golight® Searchlight
• Wired Dash Mount Remote Control
• Permanent Mounting Gasket
• Screw and Caps
• Rockguard (not Available with LED units)
MOUNTING INSTRUCTIONS
Determine location of dash-mount remote. Create an opening
and insert dash-mount remote with correlating quick connect
on 20’ cord. (Extra 10’ and 20’ quick connect harnesses are
available, if needed.) Connect power wires to 12 v D.C.
The 12 Volt DC power wire should be joined to the power leads
on the 20’ cable with appropriate automotive wire attachments. It is critical that polarity be observed. The (+) lead of
the Golight® is marked with a red tag. The power should be
fused at 10 Amps and be on a dedicated circuit or wired to an
appropriate automotive relay system.
Determine location for Golight®. The small arrow on the base
indicates the normal forward direction of the light. Create
opening for Golight® cord. Place gasket on Golight® and
attach correlating quick-connect to Golight®. Position the connection point beneath the mounting surface and use silicone
sealant to ll opening around the harness. Set light in place
and mount light base to surface with screws provided. Cover
screws with the 4 caps provided.
NOTE: The small drain hole in the edge of the gasket should
normally face opposite the forward direction of the vehicle—
opposite the arrow molded in the front of the base. Silicone
or other like sealants should not be used around the base
gasket as it will limit the Golight’s ability to drain excess water
properly.
** Attach Dash-Mount Remote to designated location with
screws.
Unit is installed.
OPERATION OF GOLIGHT®
1. Use the toggle switch on the dash control to turn the light on/off.
2. The 4-way joystick on the dash control rotates your light to the
desired location.
USAGE:
» This light is intended for off-road and utility use only
» This light is intended to be mounted outside the vehicle while in
use
» This light may only be disassembled and repaired by an
authorized representative
MISUSE:
» This light is not approved for road or highway use
» This light is not approved for underwater use
» This light is not approved for inverted mounting
» This light is not approved for use inside a vehicle or enclosure
and power should be removed prior to placing the light in such
circumstance
» This light may be damaged if operated in icing conditions
» This light may only be dismantled by an authorized Golight
representative
» Any violation of the above referenced misuses will be considered grounds for warranty refusal
IMPORTANT SAFETY INFORMATION
This symbol is to alert you to important operating or servicing
instructions that appear in your instructions. Always follow basic
safety precautions when using this product to reduce the risk of
injury, fire or electric shock.
This light is for off road and utility use only. It is not designed for
road use as a driving light.
FCC RULE Part. 15.21 - Changes or modications made by the
user not expressly approved by Golight, Inc. for compliance could
void the user’s authority to operate the equipment.
For safe and efficient operation of your Golight®, observe these
guidelines:
Using your Golight® in icing conditions could damage the gear
motors.
The remote must be kept clean and dry to avoid damage to the
internal circuitry.
