PLASMA DISPLAY
USER’S MANUAL
GV-P42V
Proper use guarantees
product life.
Before using the product, be advised
that you read this owner’s manual well
and try to operate it.
2
This Owner’s Manual presents safety precautions and how to use the product.
After reading it thoroughly, use the product safely .
Keep this manual where the user can see it easily.
Failure to comply with warnings and cautions for the safe use of electric
appliances may cause fire or human injury.
• VGA wide Plasma Panel
• DVD Direct Connection / Outstanding Picture Quality Digital
Broadcasts Receive
DVD can be directly connected to the unit so that you can view clear digital images. You can enjoy even
higher quality images by connecting digital broadcasting receiver with which digital broadcasts can be
viewed.
•
PC Direct Connection
PC can be connected to the PDP without a separate device and can be used as a monitor making it ideal
for presentation, various events and exhibitions.
•
160º Wide-Angle Viewing Area
•
Flat Panel with No Distortion and Color Blurring
Since Plasma Monitor has no problems such as distortion, blurring, flickering unlike existing CRT type
displays you can enjoy Home Theater with super speaker.
•
Various Video Control
- 11 Languages OSD - 20 Step screen zooming function - Full-screen still function
- Various aspect ratio (16:9, Panorama, Normal, Enlarge LB, Enlarge LBS)
•
Worldwide : NTSC, PAL, SECAM / Free Volt (100-240V~, 50/60Hz)
•
DVI (Digital Visual Interface) Connection
When connection to PC, you can receive DVI digital signal as well as former analog signal by using DVI
input and D-Sub input. Furthermore, using the DVI Input, you can receive directly a digital signal of the
computer. Consequently, pictures on the screen is much more clear and fresh.
Features
Features
FCC RF INTERFERENCE ST
FCC RF INTERFERENCE STAA
TEMENT
TEMENT
NOTE :
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult authorized service centers for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not
expressly approved by the grantee or manufacturer could void the users
authority to operate such equipment,
Always obey all
safety messages.
•All the safety and
operating
instructions should
be read before the
product is operated.
If anything strange
happens, unplug
this product from
the wall outlet.
•Do not disassemble
or replace any parts
of the monitor.
Refer to a qualified
service personnel
for repair.
Safety Precautions
4
W ARNING
You can be dead
or seriously
injured if you do
not follow
instructions.
During a lightning storm, or when it is left
unattended and unused for a long period
of time, unplug it from the wall outlet.
It can result in fire.
When unplugging your monitor, always
grip plug firmly and pull straight out from
the receptacle.
It can result in fire or electric shock due to
damaged power cord.
This product must be properly grounded.
• Improper grounding may cause malfunction or
electric shock.
• When proper grounding is not possible, install
circuit breaker.
• Do not ground to gas pipe, water pipe, lightning
rod, or telephone line.
During a lightning storm, unplug the
monitor from the wall outlet, and do not
touch the antenna.
It can cause fire or electric shock.
Power
Installation
Do not use this product in the
neighborhood of a bath or shower.
It can result in electric shock or fire.
Do not place this monitor on an unstable
cart, stand, or table
It may cause the product and cart to overturn,
damaging equipment or causing possible injury.
5
While Using Monitor
Do not open cover (or back) because
high voltage is present within the
monitor’s enclosure.
It may cause electric shock.
Never push any kind of objects into
this product through openings at the
back of monitor.
It may cause fire or electric shock.
No objects filled with liquids, such as
vases, shall be placed on the monitor.
Spilled liquids may cause electric shock or
fire.
Do not allow children to play or hang
on the monitor.
These actions may tip it over, causing
personal injury.
Do not place candle or lighted
cigarette on the monitor.
If these fall into the inside of the monitor, it
may cause fire or explosion.
Do not disassemble batteries, and
do not allow children to swallow
them.
Heavy metal may contaminate environment,
and can be harmful or detrimental to human
health. (When children swallow the
batteries, go to hospital and consult with a
doctor.)
Do not spray water to the monitor or
wipe with damp cloth.
It may cause electric shock or fire.
Unplug the monitor from the wall
outlet when smoke or strange smell
occurs, then refer servicing to a
service personnel.
In the case of continuous use, it may cause
fire or electric shock.
Always obey all
safety messages.
• All the safety and
operating instructions
should be read before
the product is
operated.
Safety Precautions
6
Power
Installation
CAUTION
You can be injured,
or this product or
any other your
property can be
damaged if you
don’t follow
instructions.
When moving your monitor, remove the
power plug, antenna, and cables, and be
sure to move it by more than two people..
Failure to follow this instruction can result in
electric shock or personal injury.
Do not touch the power plug with wet
hands when plugging or unplugging.
It can result in a risk of electric shock.
Do not install the product where it will be exposed to
the direct sunlight, and the product should not be
near heat sources such as radiators, stoves, etc.
It may cause malfunction.
Do not install where there is oil, smog,
moist, or dust
It may cause malfunction.
For proper ventilation, separate the product
from the wall, and keep a distance of more
than 10cm (4”).
Due to the increase of temperature inside the
Monitor, it may cause fire.
Do not place the monitor where
ventilation is not ensured.
Due to the increase of temperature inside the
Monitor, it may cause fire.
If you wish to install this product on the
wall or ceiling, refer to the professional.
Failure to do so may cause damage to product
and injury to human.
When using an outside antenna system, do not
install it in the vicinity of overhead power lines.
When antenna touches such power lines, it may
cause electric shock.
77
During Use
Do not wipe the monitor using a
cloth damped with chemicals
(benzene, thinner, etc.).
Monitor appearance may be marred.
(Unplug the power plug and wipe with soft
cloth.)
Do not place any object or cover on
the monitor.
In an event of improper ventilation, the
monitor will be overheated causing fire.
Do not place heavy objects or heat
sources on the power cord.
It may damage the power cord, causing fire
or electric shock.
When watching the TV, the distance
between the Monitor screen and
your eye should be as 5~7 times as
the diagonal distance of the Monitor.
Watching the TV for a long time may hurt
your eye sight.
When cleaning of the inside of the
monitor is required, consult to the
qualified service personnel.
When the monitor is not cleaned for a long
period of time, dust in it may cause fire or
malfunction.
When the monitor is placed on a cart
or table, the front side of the Monitor
should not project outward.
Unbalance may cause the monitor to drop,
resulting in personal injury or equipment
malfunction and damage.
Do not grip speakers when moving
the monitor attached with speakers.
When moving the monitor while gripping
speakers, speakers may be fallen away
from the monitor due to its weight, causing
personal injury.
Do not allow a still picture to be
displayed for an extended period, as
this can cause a permanent ghost
image to remain on the Wide Plasma
Display.
Examples of still pictures include logos,
video games, computer images, teletext
and images displayed in 4:3 mode.
Warranty does not cover any damage
caused by image retention.
The plasma display panel consists
of fine cells. Although the panels are
produced with more than 99.9
percent active cells, there may be
some cells that do not produce light
or remain lit.
8
IN
P
U
T
S
E
L
E
C
T
P
O
W
E
R
D
IS
P
L
A
Y
Z
O
O
M
-
P
IC
T
U
R
E
M
O
D
E
S
C
R
E
E
N
M
O
D
E
F
R
E
E
Z
E
M
U
T
E
S
O
U
N
D
M
O
D
E
S
L
E
E
P
Z
O
O
M
+
M
E
N
U
V
O
L
V
O
L
Remote Control
1 UNIT
Audio Cable
1UNIT
PC(15pin) Cable
1 UNIT
A/V Cable
2 UNITS
Note
Check to be sure that the following items are
packed with your Plasma pannel.
Checking Accessories
Supplied Accessories
AC Cable 1 UNIT
9
Note
The following items are optional accessories.
Refer purchasing optional accessories from Gold
vision Electronics Local retailer or the retailer from
where you purchased the unit.
Optional Accessories
Table Top Stand
Speakers
GV-S42P
- Speaker Main Unit Dimension :
100(W) x 628(H) x 88.5(D) mm
3.94(W) x 24.72(H) x 3.48(D) inch
- Including Speaker Stand Dimension :
210(W) x 704(H) x 210(D) mm
8.27(W) x 27.72(H) x 8.27(D) inch
- Audio Amplifier : 10W + 10W
- Impedance : 8Ω
- Weight : 3.5kg(7.73 Lbs)
GV-S42T
- Dimension :
720(W) x 215(H) x 310(D) mm
28.35(W) x 8.45(H) x 12.2(D) inch
- Weight : 4.5kg(9.93 Lbs)
Wall Mounting Unit
GV-H42G
-
Variable Angles : 0o, 10o, 15o, 20
o
-
Dimension
:
601(W) x 592(H) x 35(D) mm
23.66(W) x 23.31(H) x 1.9(D) inch
-
Weight
: 4.5kg(10 Lbs)
11
4 • Safety Precautions
12 • Panel Controls
13 • Remote control
PREPARATION
CONNECTION
14 • Watching Digital Broadcasts
16 • Watching Cable Broadcasts
18 • Watching Satellite Broadcasts
20 • Watching a DVD Image
22 • Watching a VCR Image
24 • Watching a Camcorder/Game Console Image
26 • Connecting PC(15pin D-sub)
28 • Connecting PC(DVI)
APPLICATION
31 • Selecting Picture Mode
32 • Customizing Picture
34 •
Adjusting Screen Size
36 • Adjusting Screen Position and Size
38 • Enlarging Screen Size
40 • Watching a Still Image
41 • Adjusting Auto Sound Mode
42 • Customizing Sound Mode
44 • Selecting INPUT SIGNAL
46 • Checking the Current Input Signal
47 •
Selecting MENU Background Screen and Languages
49 • Select Image Sticking Minimization
51 • Setting Sleep Timer
MISC.
52 • Before Requesting Service
53 • SPECIFICATIONS
CONTENTS
Panel Controls
12
Front Panel, Back Panel, Remote Control
*
Items having same names on Plasma display and the remote control would function in exactly
the same way.
Front
Rear
Power
•
Power control sensor
•
Power Standby: Red - Standby
Green - ON
•
Power button
Select when adjusting volume or
select/adjust “MENU.”
Press when moving “MENU.”
STAND BY/OPERATE
Used when
manufacturing(For
manufacturer use only)
PC INPUT(15 pin
D-sub)
DVI-D
INPUT
COMPONENT A/V jacks
(DTV/DVD INPUT jacks)
S-VIDEO, A/V INPUT,
Cable Receiver INPUT
jacks
External
Speaker
Power
13
Remote Control
When Using Remote Control:
•
Be sure not to allow the Remote Control to drop or to become wet.
•
Keep it away from hot or moist locations.
Installing the Batteries in your Remote Control:
•
To remove the cover, slide it outwards while pressing it down.
•
Place two batteries in the remote control by properly orienting
them, then close the cover.
•
Batteries could explode if aligned incorrectly.
•
Align the batteries according to the (+) and (-) indication inside
the case.
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
Input Select button
Used to select a desired input.
Every press of the button cycles
through the five different modes:
Video 1 --> Video 2 -->PC -->DVI -->
Component 1 --> Component 2
Used to zoom the screen. To enlarge,
press the (+) button, and to return to the
previous condition, press the (-) button.
(ZOOM Mode: Zoom 0~20)
Select Menu by pressing (Up),
(Down), (Left), (Right) buttons.
Every press of the button cycles through the four
different modes: Normal --> Dynamic -->Cinema
- - > User.
Every press of the button cycles through
the five different modes: Normal --> Movie
--> Music --> News --> User.
Mutes sound.
Pressing the Power button of the Monitor
allows the Display to be standby. (Red light
is shown in the Remote Control Sensor.)
At this time, if you press the Power button
of the Remote Control, the Display is
turned ON (Green light in the Sensor).
Indicates the current state and resolution.
Used to display a desired menu.
Adjusts the volume.
Adjusts the size of the screen
(Normal, 16:9, etc.)
Used to view a still picture during
watching moving images. (Sound
can be heard.)
Each time you press this button, a different
input mode appears.
The sequence is as follows:
15 Min. -->30 Min. -->60 Min. -->90 Min. -->120 Min. -->OFF
After the time is selected, it automatically
becomes stand-by state.
44
32
Menu Select button
38
Screen Select button
31
Sound Mode button
41
Mute button
Aspect Ratio
34
Still
40
Sleep Timer
51
Power button
Display button
46
ZOOM button
Menu button
42
Volume button
32
Note
• Use two “AAA” batteries.
• Be sure to use replacement batteries of the
same type as the original ones.
• The life of a battery depends on how much
it has been used.
*
The number in
()
indicates the page in which
the function of each button is explained in detail.
Watching Digital
Broadcasts
• To watch digital
broadcasts:
- Purchase a separate
digital Broadcasting
Receiver(SET-TOP
BOX)
- Connect the PDP to a
Digital Broadcasting
Receiver as shown
below.
14

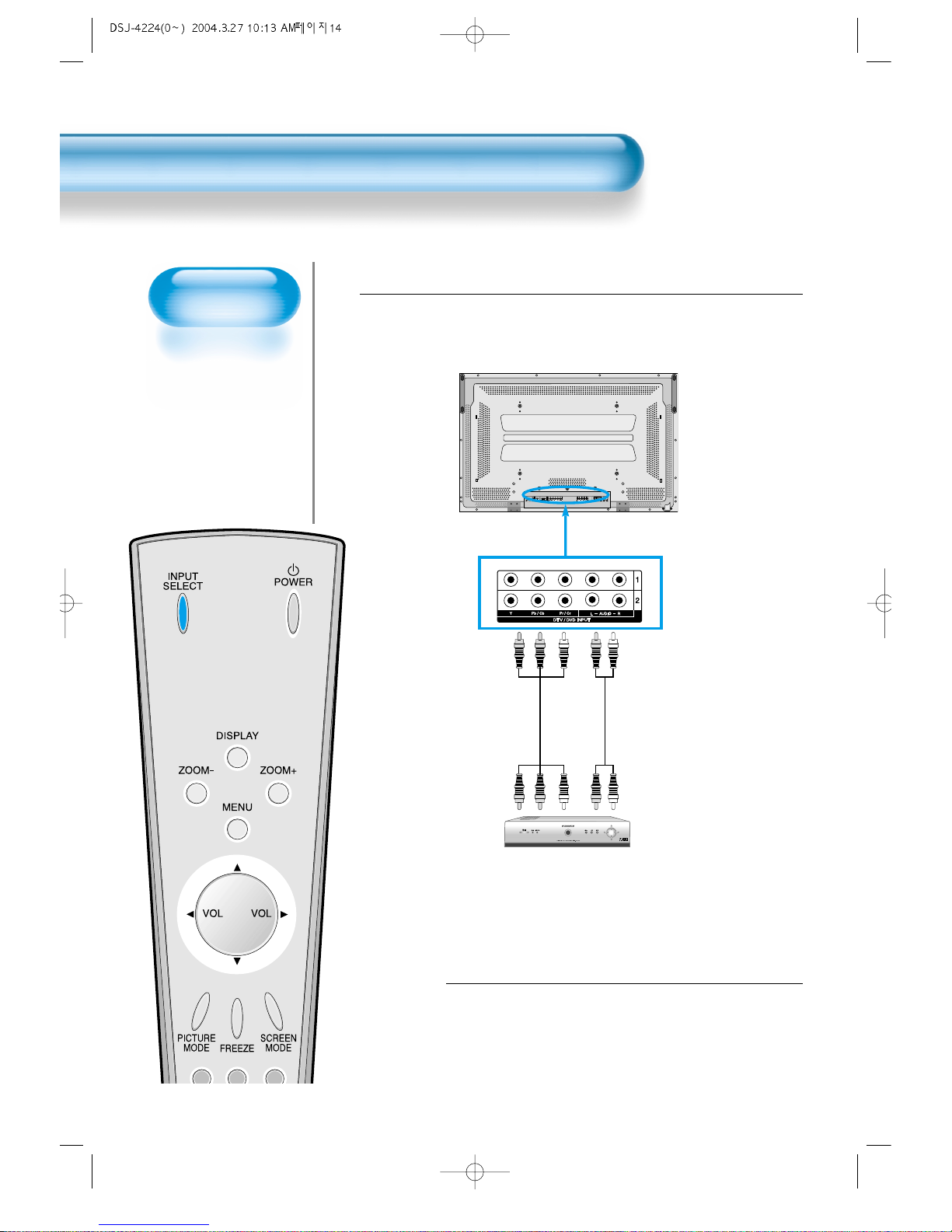

Watching Digital Broadcasts
Press the Power Buttons
• T urn the PDP and the Receiver ON.
2
Connect a Digital Broadcasting Receiver to the
PDP
• Prepare A/V Cables supplied.
• Connect the cables from the Digital TV Receiver output terminal to the
PDP(Component 1, 2) input terminal.
• When connecting the cables, be sure to match the cable colors.
1
Video
Digital Broadcasting Receiver
(Set-T op Box)
Audio
15
Input Select
INPUT
SELECT
• Select [Component 1 or Component 2] by
pressing the INPUT SELECT button of the
Remote Control or the PDP unit.
• Each time you press the INPUT SELECT
button, different input modes appear. The
sequence is as follows:
Select a Desired Channel and Function
• Select a desired channel and function by
using the Remote Control of Digital
Broadcasting Receiver.
3
4
NOTES:
1) You can select INPUT SELECT while you are using OSD(Menu).
Sequence: [Menu] --> [Input] -->[Component 1 or 2 (DTV/DVD)]
2) Digital Broadcasting signals available: 1080i, 720p, 480p.
3) Antenna Connection:
Apartment : Check if community antenna receives digital broadcasts.
Private Houses: Set the indoor/outdoor UHF antenna to the direction
of the digital broadcasting transmitting company.
4) For detailed connection method, refer to the Owner’s Manual of Digital
Broadcasting Receiver.
5) What is a component : Signals with which brightness and color are
separated, producing a sharp picture.
6) If the Digital Broadcasting Receiver has PC Output terminal or DVI
Output terminal, connect to ‘PC INPUT’ or ‘DVI INPUT’ at the back
panel of the PDP.
When watching the PDP by PC or DVI Input, some undesired signals
may be seen at the top and bottom area of the screen.
In this case, select [Menu] --> [Screen] -->[Vertical Size] to adjust.
Component1
PC
DVI
Component2
Video1
Video2
Watching Cable
Broadcasts
• To watch cable
broadcasts,
subscribe to your
local Cable TV
Broadcasting, and
then connect a cable
Broadcasting
Receiver TV to the
PDP as shown
below.
Watching Cable Broadcasts
16
Press the Power Buttons
• T urn the PDP and the Receiver ON.
2
Connect a Cable Broadcasting Receiver to the
PDP.
• Prepare the A/V cable.
• Connect the receiver(Output) to PDP(V ideo Input) as shown below .
• When connecting to an external AV source, be sure to match the colors.
1
VIDEO INPUT
L- AUDIO -RVIDEO
S-VIDEO
Video/Audio
Cable Broadcasting Receiver
17
Input Select
INPUT
SELECT
• Select [Video 1 or Video 2] by pressing
the INPUT SELECT button of the Remote
Control or the PDP unit.
• Each time you press the INPUT SELECT
button, different input modes appear. The
sequence is as follows:
Select a Desired Channel and Function
• Select a desired channel and function by
using the Remote Control of the Cable
Broadcasting Receiver.
3
4
NOTES:
1)
If your local cable company re-transmits digital broadcasts,
you may watch normal broadcasts or digital broadcasts
simultaneously. For detailed information, refer to your local
cable company.
Video1 Video2 PC
Component1 DVIComponent2
Watching Satellite
Broadcasts
• To watch satellite
broadcasting,
subscribe to Digital
Satellite
Broadcasting, then
connect setellite
Broadcasting
Receiver to the PDP
as shown below.
Watching Satellite Broadcasts
18
Press the Power Buttons
• T urn the PDP and the Receiver ON.
2
Connect a Satellite Broadcasting Receiver to
the PDP.
• Prepare the A/V cable.
• Connect the receiver(Output) to PDP(V ideo Input) as shown below .
• When connecting to an external AV source, be sure to match the colors.
1
VIDEO INPUT
L- AUDIO -R
VIDEO
S-VIDEO
Video/Audio
Satellite Broadcasting Receiver
19
Input Select
INPUT
SELECT
• Select [Video 1 or Video 2] by pressing
the INPUT SELECT button of the
Remote Control or PDP unit.
• Each time you press INPUT SELECT
button, a different input mode appears.
The sequence is as follows:
Select a Desired Channel and Function
• Select a desired channel and function by
using the Remote Control of the Satellite
Broadcasting Receiver.
3
4
Video1 Video2 PC
Component1 DVIComponent2
Watching a DVD
• Component Input is
set to 480i and 480p
mode.
• Connect the cable
from the DVD Video
Output (Y, Pb/Cb,
Pr/Cr) to the
Component Input at
the back of PDP, and
connect the cable
from DVD Audio
output (Left, Right)
to the Audio Input at
the back of PDP.
Watching a DVD Image
20
Press the Power Buttons
• T urn the PDP and the DVD ON.
2
Connect a DVD Player to the PDP.
• Prepare the AV cable.
• Connect the DVD(Output) to the PDP(Component or V ideo Input) as shown below .
• When connecting to an external AV source, be sure to match the colors.
1
Video
DVD DVD
Video/
Audio
S-
Video
Audio
21
Input Select
INPUT
SELECT
• Select [Component 1 or Component 2,
Video1, Video2] by pressing the INPUT
SELECT button of the Remote Control or
the PDP unit.
• Each time you press the INPUT SELECT
button, a different input mode appears. The
sequence is as follows:
Select a Desired Title and Function
• Select a desired title and function by
using the Remote Control of the DVD.
3
4
NOTES:
1) Y/Cb/Cr, which stands for DVD Player’s Output Terminal, can
also be written as Y/B-Y/R-Y, Y/Pb/Pr depending on the kinds
of DVD devices.
2) The way of connecting the DVD to the PDP is as follows:
Y <---> Y Cb <---> Pb, B-Y, Cr <---> Pr, R-Y
3) The DVD output can be Video, S-Video and/or Component
Video depending on the DVD devices. There are various
output modes, so be sure to check when you purchase it.
4) When connecting S-Video and Video simultaneously, only SVideo will be displayed on the screen.
Component1
PC
DVI
Component2
Video1
Video2
Watching a
VCR Image
• Video can use either
the video terminal or
the S-video terminal.
Watching a VCR Image
22
Press the Power Buttons
• T urn the PDP and the VCR ON.
2
Connect a VCR to the PDP.
• Prepare the AV cable.
• Connect the Video(Output) to PDP(Video Input) as shown below.
1
VIDEO INPUT
L- AUDIO -R
VIDEO
S-VIDEO
S-Video
VCR
Video/Audio
23
Input Select
INPUT
SELECT
• Select [Video 1 or Video 2] by pressing
the INPUT SELECT button of Remote
Control or PDP unit.
• Each time you press the INPUT
SELECT button, a different input mode
appears. The sequence is as follows:
Select a Desired Title and Function
• Select a desired title and function by
using the Remote Control of the
VCR.
3
4
NOTES:
1) When connecting a Video, the S-Video terminal provides a
better image than the Video terminal.
2) When connecting to the Video terminal, connect 3 color AV
cables (video, left audio, right audio) to the PDP; for the SVideo terminal, connect the Audio terminal (Left, Right) in the
same way, and connect the S-Video cable (sold separately).
3) When connecting the Video terminal and the S-Video
simultaneously, the S-Video terminal is selected. This can be
checked by the [Display] button of the Remote Control.
Video1 Video2 PC
Component1 DVIComponent2
Watching a
Camcorder/Game
Console Image
• Enjoy images
recorded by
camcorder or the
game console after
connecting to the
PDP.
W atching a Camcorder/Game Console Image
24
Press the Power Buttons
• Turn the PDP and the
Camcorder/Game Console ON.
2
Connect a Camcorder/Game Console to the
PDP.
• Prepare the AV cable.
• Connect the Video(Output) to the PDP(Video Input) as shown below.
• When connecting to an external AV source, be sure to match the colors.
1
VIDEO INPUT
L- AUDIO -R
VIDEO
S-VIDEO
Video/Audio
Game Console/Camcorder
25
Input Select
INPUT
SELECT
• Select [Video 1 or Video 2] by
pressing the INPUT SELECT button
of the Remote Control or the PDP
unit.
• Each time you press the INPUT
SELECT button, a different input
mode appears. The sequence is as
follows:
Select Function
• Select the Function by using the
Remote Control of Camcorder or
Game Console.
3
4
NOTES:
1) When connecting a Video, the S-Video terminal provides a
better image than the Video terminal.
2) When connecting to the Video terminal, connect 3 color AV
cables (video, left audio, right audio) to the PDP; for the SVideo terminal, connect the Audio terminal (Left, Right) in the
same way, and connect the S-Video cable(sold separately).
3) When connecting a component, refer to “Wattching a DVD
Image” on page 20-21.
Video1 Video2 PC
Component1 DVIComponent2
Connecting PC
• GOLD VISION
PLASMA supports
resolution of VGA,
SVGA, XGA, SXGA,
UXGA.
• Before connecting a
PC to the PDP, be
sure to adjust the
resolution of PC.
Connecting PC(15pin D-sub)
26
Connect the PC to the PDP.
• Prepare the PC cable (D-sub 15pin) and
the PC audio cable(Sold seperately).
• Connect the PC(Output) to the
PDP(Input) as shown below.
2
Before connecting to the PDP, set the
resolution of the PC.
• Go to SETUP-CONTROL PANEL-DISPLAY PROPERTIES in Window Screen.
• Choose the SETTINGS tab in the DISPLAY Menu.
•
In the SETTINGS Menu, select 640 x 480 or 800 x 600.
1
PC INPUT
L
R
AUDIO
15 PIN D-subAudio
PC
27
Input Select
INPUT
SELECT
• Select [PC] by pressing the INPUT
SELECT button of the Remote Control or
PDP unit.
• Each time you press the INPUT SELECT
button, a different input mode appears. The
sequence is as follows:
Enjoy Dynamic Ultra Screen Monitor by
Using PC’s Keyboard or Mouse.
4
5
Press the Power Buttons.
• Turn on the PDP and the PC.
3
NOTES:
1) The resolution of the PC monitor is best at 640 x 480 (VGA).
2) If there is a [Vertical Frequency]setting menu in the [Display]
Menu of the PC, adjust the frequency to 60Hz.
3) If the PC resolution is too high, it may be hard to read letters.
Select a suitable resolution.
PC
Component1
DVI
Component2Video1Video2
Connecting PC
• GOLD VISION
PLASMA supports
resolution of VGA,
SVGA, XGA, SXGA,
UXGA.
• Before connecting a
PC to the PDP, be
sure to adjust the
resolution of PC.
• This product is not
supported by Plug
and Play, so select
Standard Monitor
when setting PC
monitor.
Connecting PC(DVI)
28
Connect the PC to the PDP.
• Prepare the DVI cable and the PC audio
cable(Sold seperately).
• Connect the PC(Output) to the
PDP(Input) as shown below.
2
Before connecting to the PDP, set the
resolution of the PC.
• Go to SETUP-CONTROL PANEL-DISPLAY PROPERTIES in Window Screen.
• Choose the SETTINGS tab in the DISPLAY Menu.
• In the SETTINGS Menu,
select 640 x 480 or 800 x 600.
1
DVIAudio
PC
29
Input Select
INPUT
SELECT
• Select [DVI] by pressing the INPUT
SELECT button of the Remote Control or
PDP unit.
• Each time you press the INPUT SELECT
button, a different input mode appears. The
sequence is as follows:
Enjoy Dynamic Ultra Screen Monitor by
Using PC’s Keyboard or Mouse.
4
5
Press the Power Buttons.
• Turn on the PDP and the PC.
3
NOTES:
1) The resolution of the PC monitor is best at 640 x 480 (VGA).
2) If there is a [Vertical Frequency]setting menu in the [Display]
Menu of the PC, adjust the frequency to 60Hz.
3) If the PC resolution is too high, it may be hard to read letters.
Select a suitable resolution.
4) DVI input port receive only Digital Signal.
5) Depending on the graphic card when plug & unplug the DVI
connection the screen may not display correctly.
Restart the computer if this happens.
DVI
Component2Component1
Video1Video2PC
30
PC and DVI Input Resolution Available in PDP
• Depending on graphic card, problems like no signal detected or line noises can happen. If these
problems happen, contact the graphic card company for help.
Resolution
Horizontal Frequency(KHz) Vertical Frequency(Hz) Remark DVI PC
31.469
37.861
24.823
30.48
31.469
37.861
31.469
35
37.861
37.5
39.375
43.269
31.47
31.469
37.927
31.54
15.63
35.156
35.16
37.879
48.077
46.875
53.674
49.726
48.193(48.077)
48.363
53.95
56.476
60.241
60.023
68.677
80.66
70.84
54
63.851
67.5
77.094
61.796
71.713
45
60
75
85.938
46.433
63.981
70.66
74.88
78.125
78.855
79.976
81.13
91.416
62.5
75
81.25
87.5
93.75
100
640x350
640x400
640x480
720x400
720x480
720x576
800x600
832x624
1024x768
1152x864
1152x900
1280x720
1280x960
1280x1024
1600x1200
70.1
85.1
56.4
60.0
70.1
85.1
59.9
66.7
72.8
75.0
75.0
85.0
60.1
70.1
85.1
60.0
25.0
56.3
57.2
60.3
72.2
75.0
85.1
74.0
59.3(59.8)
60.0
66.1
70.1
74.9(74.6)
75.0
85.0
100.0
84.0
60.0
70.0
75.0
85.0
66.0
76.0
60.0
60.0
75.0
85.0
43.4
60.0
66.5
70.0
72.0
74.0
75.0
76.1
85.0
48.0
60.0
65.0
70.0
75.0
80.0
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
IBM
VESA
NEC
PGA
IBM (DOS)
VESA
DOS
Macintosh
VESA
VESA
IBM
VESA
VGA
IBM
VESA
480P
PAL
VESA
VESA
VESA
VESA
VESA
VESA
Macintosh
Macintosh (OAK)
VESA
XGA
HP & VESA
Macintosh
VESA
VESA
Fujitsu
SUN
VAX
VESA
VESA
VESA
SUN
SUN
720P
VESA
VESA
VESA
VESA
VESA
VAX
NEC
HP & HITA
Sony & NEC
VESA
SUN
VESA
VESA
VESA
VESA
VESA
VESA
VESA
Selecting Picture
Mode
• Select the Picture mode
that is appropriately set
depending on the kinds
of pictures, and enjoy
them.
Selecting Picture Mode
MODE
• Press the [PICTURE MODE] on the
Remote Control.
• Pressing the [PICTURE MODE] first time
will display the current PICTURE MODE.
Each Press of the Button Will Select
One of Four Picture Modes.
• Each time you press the button, a
different Picture mode appears. The
sequence used is as follows:
* Normal : For a highly defined image in a normally bright
room
* Dynamic: For a clear-cut image emphasizing high contrast
for sports viewing
* Cinema: For a movie
* User: Allows the user to customize settings as desired.
Menu on the Screen Will Disappear .
• After selecting a desired Picture mode, the
menu on the screen will disappear.
• Normal, Dynamic, and Cinema Modes are
factory preset values.
If you want to customize the Picture modes,
refer to the following page.
3
1
2
Selecting Picture Mode
31
NOTES:
1) Normal, Dynamic, and Cinema Modes are factory preset values.
2) When adjusting sub-menus while you are in Normal, Dynamic,
and Cinema Modes, the Picture Mode will be automatically
converted to User Mode, and the adjustments will be made.
3) Pressing of the [Initialize] button in the [Utility] Menu will allow
for the Brightness, Contrast, etc. to return to the factory preset
values.
MODE
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
Normal Dynamic
Cinema User
Customizing
• You can adjust the
color tone and
brightness to your
preference.
Customizing Picture
32
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
Press the / Button.
• After selecting [Picture] by the / buttons, press the
button that will display the following.
Select the Custom Mode.
• Select [User] by the / buttons.
3
Press the MENU Button.
• The MENU shown below will display on the screen.
1
2
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Color
Tint
Sharpness
Color T emp.
Normal
Normal
Move
Previous
Adjust
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Color
Tint
Sharpness
Color T emp.
User
Normal
Move
Previous
Adjust
MENU
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Color
Tint
Sharpness
Color T emp.
Normal
Normal
Move
Previous
Select
VOLVOL
VOLVOL
Select User Mode Adjustments
Picture Condition Adjustments
• Press the / buttons to adjust the picture at your
preference.
4
5
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Color
Tint
Sharpness
Color T emp.
User
Normal
Move
Previous
Adjust
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Color
Tint
Sharpness
Color T emp.
User
Normal
Move
Previous
Adjust
33
• While you are in [Picture Mode – User], press the / buttons to
select a specific adjustment item.
NOTES:
1) While you are in the PC or DVI INPUT mode, you can only
adjust brightness, contrast, sharpness and color temperature.
2) When you adjust Brightness, Contrast, Color, Tint in DTV
mode or adjust Brightness, Contrast in PC or DVI mode, the
picture is adjusted finely.
3) The adjusted values are memorized in each mode seperately.
4) The Tint control is used only when the input signal is NTSC
If input signal is NTSC, Tint control is displayed in picture
menu.
5) The Sharpness Menu adjusts the picture sharpness.
6) Adjusting the Color Temperature makes the mood warm or
cold.
VOLVOL
VOLVOL

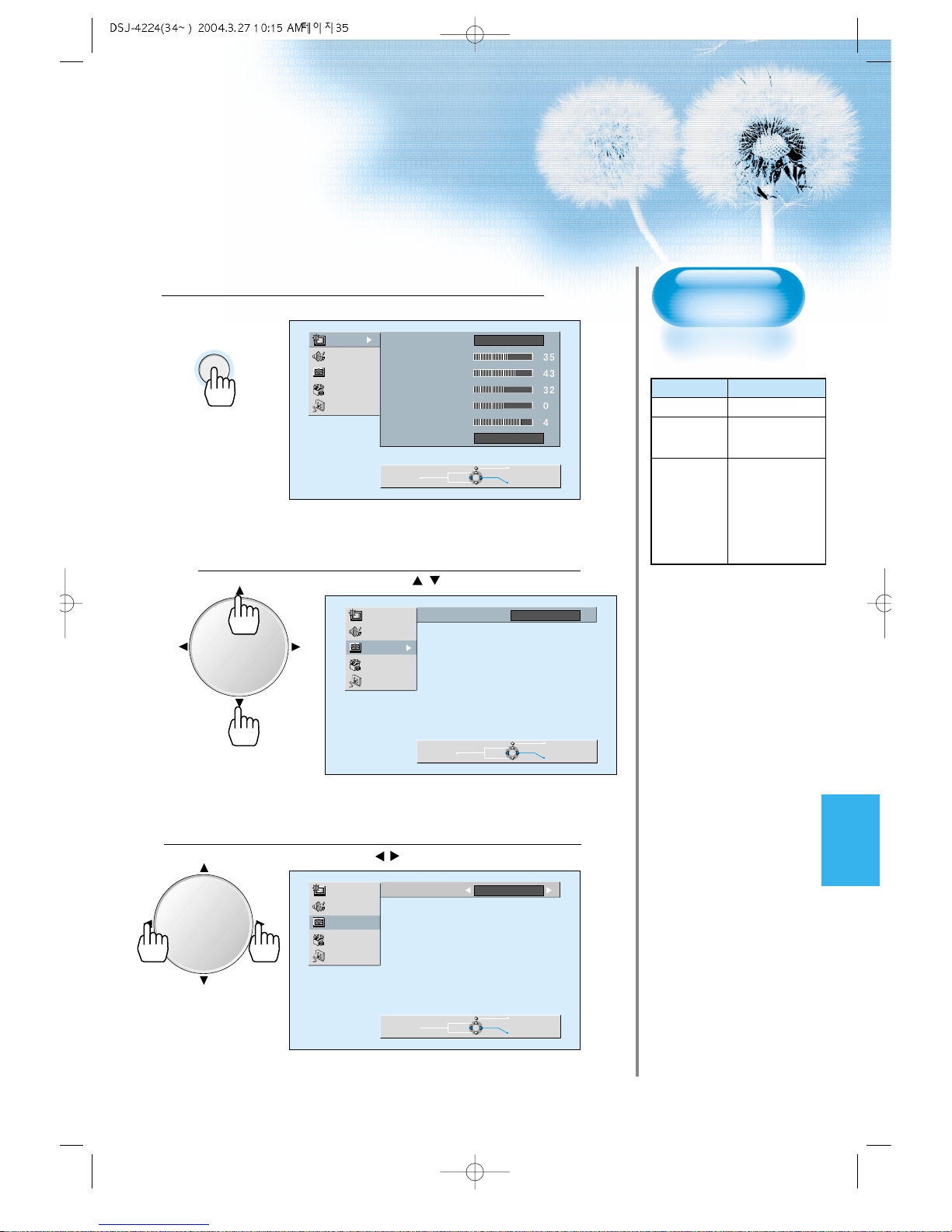

Adjusting
Screen Size
• You can adjust
screen size or
aspect ratio as
desired.
Adjusting Screen Size
34
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
Press the SCREEN MODE Button.
• Each time you press the SCREEN MODE button on the
Remote Control, a different SCREEN MODE appears. The
sequence used is as follows:
• The MENU shown below will display on the screen.
1
SCREEN
MODE
Enlarge LBS
Normal
16:9
Panorama
Enlarge LB
NOTES:
1) When the INPUT SIGNAL is DTV [in Component 1 or
Component 2], only the aspect ratios of 16:9 and 4:3(Normal)
will be applied by Input signal.
Etc) If input signal is 16:9, PDP displays in 16:9 mode.
2) The digital broadcasting (720p, 1080i) is fixed at the aspect
ratio of 16:9.
3) Displaying a picture in a normal mode (4:3) for a long time
may cause phosphor of the PDP to be burned. So avoid
displaying a picture in 4:3 screen size for a long time.
4) 16:9 : Theater-like 16:9 picture formats
Panorama : 16:9 picture formats with panorama effect
Normal : Displays pictures of original picture size.
Enlarge LB : Enlarges the screen as to fill the black part of
up and down.
Enlarge LBS: Enlarges the screen, and shifts up as to see
the subtitles in case you are watching video
with subtitles.
35
Press the MENU Button.
• Press the [MENU] button on the Remote Control.
Select “Screen”.
• Press the Channel / buttons to select “Screen.”
Select the Screen Size.
• Press the V olume / buttons to select “Screen Size”.
3
1
2
Adjusting from
MENU Screen
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Color
Tint
Sharpness
Color T emp.
Normal
Normal
Move
Previous
Select
Sound
Screen
Utility
Input
Mode Normal
Move
Previous
Select
Sound
Screen
Utility
Input
Mode Enlarge LB
Move
Previous
Adjust
MENU
VOLVOL
VOLVOL
• Available Screen Mode
Input Available Mode
PC,DVI None
Component 16:9, Normal
(480p or above)
Video 16:9,
Component Panorama,
(480i)
Normal,
Enlarge LB,
Enlarge LBS
Adjusting Screen
Position and Size
• You can adjust the
screen position and
size as desired.
• This function is only
used when adjusting
the screen position
and size on the PDP
monitor by using the
PC or DVI input
signal.
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
ZOOM+
MENU
VOL VOL
Press the MENU Button.
• The MENU screen as shown below will appear.
Press the / Button.
• Press the / buttons to select ‘Screen’.
1
2
Sound
Screen
Utility
Input
H. Size
V. Size
H. Position
V. Position
Phase
Frequency
Move
Previous
Select
36
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Sharpness
Color T emp.
Normal
Normal
Move
Previous
Select
Adjusting Screen Position and Size
MENU
VOLVOL
37
Press the V olume / Buttons.
• Press the V olume / buttons to select “Screen”.
• While you are in ‘Screen’ mode, press the
or button to select a desired item, and
then, adjust the value by pressing the or .
3
Sound
Screen
Utility
Input
H. Size
V. Size
H. Position
V. Position
Phase
Frequency
Move
Previous
Adjust
NOTES:
1) Horizontal/Vertical size and position values can be adjusted only in the
[PC] or [DVI] input mode.
2) H. Size: As the value increases, the screen width increases
3) V. Size: As the value increases, the screen height increases.
4) H. Position: As the value increases, the screen moves to the right.
5) V. Position: As the value increases, the screen mores up.
6) Phase: When there is jitter or blurring of the image, adjust this value.
7) Frequency: When there is jitter or blurring of the image, adjust this value.
VOLVOL
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
Press the ‘ZOOM+’ Button.
• Press the ‘ZOOM+’ button to show currently selected
screen size.
• Each time you press the ‘ZOOM+’ button, the screen size
will increase stepwise in 0 ~ 20 scale.
• To reduce the screen size, press the [ZOOM-] button.
1
38
Enlarging
Screen Size
• You can view
enlarged size of the
screen with this
function
Enlarging Screen Size
Zoom Level 0
ZOOM+
Zoom Level 0
Zoom Level 5
Zoom Level 10
Zoom Level 15
Zoom Level 20
Move the Screen Position.
• While you are in the ‘Zoom’ mode, press the / ,
/ buttons to move screen stepwise up/down,
left/right, respectively .
2
39
NOTES:
1) When the screen is enlarged, the pixel of the screen can
become thick and dim.
2) When only subtitle of zoom level remains, you can scroll the
image.
If subtitle of zoom level disappears, press zoom key, and
scroll the image.
3) You can enlarge the screen in freeze mode.
Zoom Level 6
VOLVOL
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
Press the ‘FREEZE’ Button.
• If you wish to freeze a picture, press the ‘FREEZE’ button.
Y ou can still hear the sound.
• Press FREEZE button to cancel the ‘FREEZE’ function.
• To view the enlarged images, press the [ZOOM+] button.
1
FREEZE
40
Watching a
Still Image
• You can view still
images temporarily
with this function.
However, displaying
the same images
such as still images
for a long time may
cause image sticking.
Watching a Still Image
NOTES:
1) Displaying the same images such as still images for a long
time may cause image sticking (after-image lagging).
2) In this case, such “image sticking” may become less
noticeable if moving images are later displayed for a long
time.
3) However, an image sticking may become a permanent one,
damaging the Plasma Display; therefore, avoid displaying
the same images for a long time.
4) Use the function [ISM], while displaying still images for a long
period of time to minimize this effect.
Freeze
Zoom Level 7
Move the Screen Position.
• While you are in ‘FREEZE’ mode, press the / , /
buttons to move screen stepwise up/down and left/right.
2
VOLVOL
Adjusting Auto
Sound Mode
• Enjoy various sound
modes by selecting
your favorite Sound
Mode depending on
the kinds of moving
pictures.
Adjusting Auto Sound Mode
41
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
Select SOUND Mode.
SOUND
MODE
• Press the [SOUND MODE] on the
Remote Control.
• Press of the [SOUND MODE] for the
first time will display the current
SOUND MODE.
Every Press of the Button Changes Modes.
SOUND
MODE
• Each time you press the button, a
different sound mode appears.
The sequence used is as follows:
* Normal : Suitable for watching any motion picture
* Movie : Select this mode to simulate being at a movie theater
* Music : Ideal for listening to music
* News : Allows human voice to be heard more clearly
* User : Allows the user to adjust as desired.
MENU will Disappear .
• After selecting a desired SOUND Mode,
on-screen menu will disappear in about
2~3 seconds.
• Normal, Movie, Music, News Modes are
factory preset values.
If you want to customize the sound modes
at your preference, refer to the following
page.
3
1
2
Normal Movie
Music UserNews
Customizing
Sound Mode
• This feature allows
the user to adjust at
his preference.
Customizing Sound Mode
42
Press the / Button.
• Select [Sound] by the / buttons, then press the
button to display the following.
Select SOUND BALANCE.
• Select [Sound Balance] by the / buttons, then
adjust it.
• Sound balance is best at ‘0’.
• Sound Balance: Adjusts sound balance of left and right
speaker.
3
Press the MENU Button.
• The MENU Screen as below will be displayed.
1
2
Sound
Screen
Utility
Input
Balance
Spatial Effect
Sound Mode
Off
Normal
Move
Previous
Select
Sound
Screen
Utility
Input
Balance
Spatial Effect
Sound Mode
Off
Normal
Move
Previous
Adjust
MENU
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Color
Tint
Sharpness
Color T emp.
Normal
Normal
Move
Previous
Select
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
VOLVOL
VOLVOL
Select the Spatial Effect Mode.
• Select Spatial Effect by pressing the / buttons, then select ON/OFF by
pressing the button.
• Spatial Effect: Used to emphasize stereo effect.
Select the Sound Mode.
4
5
Sound
Screen
Utility
Input
Balance
Spatial Effect
Sound Mode
On
Normal
Move
Previous
Adjust
Sound
Screen
Utility
Input
Balance
Spatial Effect
Sound Mode
Off
Normal
Move
Previous
Adjust
43
• Select the Sound Mode by pressing the / buttons, then
adjust it by pressing the / buttons.
* Normal : Suitable for watching any motion picture
* Movie : Select this mode to simulate being at a movie
theater
* Music : Suitable for listening to music
* News : Allows human voice to be heard more clearly
* User : Allows the user to adjust as desired.
NOTES:
1) Custom Mode : Used as an Equalizer with which the user can adjust the sound frequency as desired.
2) If you modify the sound frequency in auto Sound Mode (News, Movie, Music, etc.), it is automatically
switched to the User Mode.
3) Low frequency is emphasized as the frequency is lowered to 120 Hz, and high frequency as raised to 10
KHz.
4) When INPUT is MONO and if you make connection to the Left Audio Input, you can hear from both
speakers.
VOLVOL
VOLVOL
Normal Movie
Music UserNews
INPUT SIGNAL
• Used to select
INPUT signal of
external device
connected to the
PDP.
Selecting INPUT SIGNAL
44
Press the INPUT SELECT Button.
INPUT
SELECT
• Press the [INPUT SELECT] button on the Remote
Control or the PDP Display to select desired input signal.
• Each time you press the [input select] button, a different screen
mode appears. The sequence used is as follows:
1
NOTES:
1) If an external device is not connected or INPUT signal is not
applied, Warning Message (“No Signal”) would be displayed.
2) In this case, check if external device is connected and/or
terminal connection is properly done.
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
Component 1
Component1
PC
DVI
Component2
Video1
Video2
45
Press the MENU Button.
MENU
• Press the [MENU] button on the Remote Control.
1
Adjusting from the
MENU Screen
Select Input.
• Select [Input] by the / button.
Select Input Signal.
• Select [Input Signal] by the / buttons, then
press the button.
3
2
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Color
Tint
Sharpness
Color T emp.
Normal
Normal
Move
Previous
Select
Sound
Screen
Utility
Input
PC
DVI
Component 1 (DTV/DVD)
Component 2 (DTV/DVD)
Video 1
Video 2
Move
Previous
Select
Sound
Screen
Utility
Input
PC
DVI
Component 1 (DTV/DVD)
Component 2 (DTV/DVD)
Video 1
Video 2
Move
Previous
Select
VOLVOL
VOLVOL
Checking the
Current Input Signal
• Used to check the
INPUT signal mode,
resolution,
frequency, etc. of the
current screen.
Checking the Current Input Signal
46
Press the DISPLAY Button.
DISPLAY
• Press the [DISPLAY] button on the Remote Control.
1
1. If you watch Digital Broadcasts:
Displays which input terminal is used, and indicates the input signal mode.
Indicates the horizontal and vertical resolution of the current INPUT signal.
Indicates the frequency of the current INPUT signal.
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
Component 1
1920 x 1080
60 Hz
Component 1
1920 x 1080
60 Hz
2. If you watch DVD image:
Displays which input terminal is used, and indicates the signal mode.
Indicates the mode and frequency of the current INPUT signal.
Component 2
YUV 60 Hz
3. If you watch VCR image:
Displays which input terminal is used, and indicates the signal mode.
Indicates the mode and frequency of the current INPUT signal.
Video 1
NTSC 60 Hz
NOTES:
1) GOLD VISION PLASMA can receive NTSC, PAL, SECAM,
etc.
2) “1920 x 1080” displayed in the INPUT signal does not indicate
the resolution of the monitor, but the signal that is sent by
Digital Broadcasting Receiver.
Selecting
Languages
• Used to select
transparency of the
background screen
and language used
in MENU.
Press the MENU Button.
MENU
• The MENU screen will be displayed as below .
Press the / Button.
• Select [Utility] by the / button.
Select the menu Background Screen.
• Select the MENU [Background Screen] by pressing the button.
• Every press of the button while you are in the[Background
Screen] would switch between Translucent/Opaque.
3
1
2
Selecting MENU Background Screen and Languages
4747
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Color
Tint
Sharpness
Color T emp.
Normal
Normal
Move
Previous
Select
Sound
Screen
Utility
Input
Background
Language
Initialize
ISM
Opaque
English
Press key
Press key
Move
Previous
Adjust
Sound
Screen
Utility
Input
Background
Language
Initialize
ISM
Opaque
English
Press key
Press key
Move
Previous
Select
VOLVOL
VOLVOL
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
ZOOM+
MENU
VOL VOL
Back to
Initialization
• You can restore the
values of the
adjustment/setting
made in the MENU
to factory settings.
Selecting MENU Background Screen and Languages
Select MENU LANGUAGE SELECT by the /
Button.
• Select LANGUAGE by the / button.
• Every press of the button while you are in the
[LANGUAGE] mode would cycle through the different
languages.
INITIALIZA TION will Start.
• Select [Initialize] by the / buttons, then press
the button to start initialization.
4
5
Sound
Screen
Utility
Input
Background
Language
Initialize
ISM
Opaque
English
Press key
Press key
Move
Previous
Adjust
48
Sound
Screen
Utility
Input
Background
Language
Initialize
ISM
Opaque
English
Press key
Press key
Move
Previous
Adjust
When [INITIALIZA TION] is completed:
1) When [INITIALIZATION] is completed, those values that have been
set in the User Mode of [SCREEN MODE] and [SOUND MODE] will
be returned to the factory preset values.
2) Once initialized, you can not undo.
3) The items in the [SCREEN] Menu in PC or DVI INPUT are also
initialized (i.e., H. Size, V. Size, H. Position, V. Position, Phase,
Frequency, etc.)
4) Language, volume, OSD background, input mode are not initialized.
VOLVOL
VOLVOL
NOTES:
*
When Power is turned ON first time, ‘SELECT
LANGAUGE’ Mode will be displayed, then, select a
desired language by button. (Displayed only once)
49
ISM
• Image sticking
minimization.
• Displaying a still
image like PC input
for a long time
causes part image
sticking in the panel
• The ISM function
minimize this effect.
Press the MENU Button.
MENU
• The MENU screen will be displayed as below .
Press the / Button.
• Select [Utility] by the / button.
Select the MENU ISM SCREEN.
• Select the MENU [ISM] by pressing the / button.
• Press of the button while you are in the ISM.
3
1
2
Selecting Image Sticking Minimization
Sound
Screen
Utility
Input
Mode
Brightness
Contrast
Color
Tint
Sharpness
Color T emp.
Normal
Normal
Move
Previous
Select
Sound
Screen
Utility
Input
Background
Language
Initialize
ISM
Opaque
English
Press key
Press key
Move
Previous
Adjust
Sound
Screen
Utility
Input
Background
Language
Initialize
ISM
Opaque
English
Press key
Press key
Move
Previous
Select
VOLVOL
VOLVOL
50
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
ZOOM+
MENU
VOL VOL
Selecting Image Sticking Minimization
Select Functions.
• Every press of the button after select function by the
/ button would switch between ON/OFF.
4
Sound
Screen
Utility
Input
Move
Previous
Adjust
Pixel Shift
Low Bright
Image Invert
Off
Off
Off
VOLVOL
NOTES:
*
Pixel Shift : The whole screen shifts up/down,
left/right at 10sec interval to minimize
image sticking.
*
Low Bright : When displaying a stand picture or
a fixed pattern for a long time,
brightness level decreases to
minimize image sticking.
Return to the original brightness
level if picture change or mode off.
*
Image Invert : Displays inverted image.
Setting
Sleep Timer
• SLEEP TIMER turns
the PDP off after a
preset time.
Press the SLEEP Button.
SLEEP
• Press the [SLEEP] button on the Remote Control.
• Pressing the [SLEEP] button first time will display the
current setting for SLEEP TIMER.
• To cancel the SLEEP TIMER, press the [SLEEP] button to
select ‘OFF’.
1
Setting Sleep Timer
51
INPUT
SELECT
POWER
DISPLAY
ZOOM
-
MODE
SCREEN
MODE
FREEZE
MUTESOUND
MODE
SLEEP
ZOOM+
MENU
VOL VOL
NOTES:
1) On-screen information disappears if you do not
take any action for about two seconds after
pressing the SLEEP button.
2) If you turn the PDP off after setting SLEEP, the
setting is erased.
Sleep Timer off
Sleep Timer off
Sleep Timer 15 Minutes
Sleep Timer 30 Minutes
Sleep Timer 120 Minutes
Sleep Timer 90 Minutes
Sleep Timer 60 Minutes
Before Requesting Service
52
Before
Requesting for
Service
St
yo
mm
ps
C
h
e
c
k
s
A
c
t
i
o
n
• There are empty spots at the top
and the bottom area of the screen.
• Check if the screen size of an image
is wider than 16:9 aspect ratio
(theater screen size).
• When video screen is wider than
16:9 aspect ratio, you may see dark
areas at the top and the bottom of
the screen.
• The Display makes a snapping
sound.
• Check if the pictures and sound are
normal.
• This sound is produced due to
variations in room temperature.
• This sound does not indicate that the
Display has a problem if the pictures
and sound can be viewed and heard
properly.
• Remote control does not
function properly.
• Check for any obstacle between the
Remote Control and the Display.
• Check for dead batteries and
incorrect battery orientation.
• Check if the Remote Control is the
right one.
• Remove any obstacle between the
Remote Control and the Display.
• Replace batteries and use the correct
polarity (+) or (-) of the batteries.
• Use the correct Remote Control
proper to the model.
St
yo
mm
ps
C
h
e
c
k
s
A
c
t
i
o
n
• Screen size is suddenly
changed.
• The screen size of a video image
may not be matched to the size of
the dark initial screen.
• Check by using other video tape.
• There are spots on the screen
or screen rolls.
• Check if your product is affected by
any interference from automobiles,
high-voltage transmission lines, neon
signs or other potential sources.
Before requesting for service, check the following points once again.
53
SPECIFICA TIONS
In the event that the product has been submerged in the water
in rainy season:
Immediately wash it with clean water, and dry it in a shadow place,
then call for service from the nearest Gold Vision Service Center.
Never plug the Power Cord since there is risk of electric shock and
damage of the product.
*
Appearance and specifications of this product are subject to change for improving the product without prior notice.
DISPLAY UNIT
INPUT/OUTPUT TERMINAL
INPUT/OUTPUT ITEMS VIDEO AUDIO
COMPONENT INPUT
DTV/DVD ONLY (LEFT/RIGHT)
(Y, Pb/Cb, Pr/Cr), 2 sets 2 sets
EXTERNAL VIDEO INPUT two RCA jacks (LEFT/RIGHT)
INPUT S-VIDEO INPUT two 4 pin Mini DIN jack 2 sets
Computer(PC)
one 15 pin D-sub jack (LEFT/RIGHT)
one DVI-D(Digital only) jack 2 set each
AUDIO OUTPUT SPEAKER OUTPUT(sold separately) 20W (two 10W)
Diagonal Size 106cm (42 )
Screen Aspect Ratio 16 : 9
Display Resolution 852(H) 480(V) dots
Pixel Pitch 1.08(H) 1.08(V) mm
Video Signal NTSC, PAL, SECAM, PAL-M/N, NTSC4.43
Dimension 1042(W)
629(H) 82(D)mm
41.02(W) 24.76(H) 3.23(D)inch
Weight 28 kg (61.73Lbs)
Power Requirement AC 100-240V~, 50/60Hz
Loading...
