This manual is the latest at the time of printing, and does not
include the modifi ca tio n w hich ma y b e made after the pri nti ng, by
the consta nt improvement of product.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION: TO REDUCE THE RISK OF
CAUTION
RISK RISK OF OF ELECTRIELECTRICC
SHOCK SHOCK DO DO NOT NOT OPEN.OPEN.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the product s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
2
IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
Read all of these instructions. Save these instructions for later use. Follo w all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
FOR YOUR PERSONAL SAFETY
1.When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2.Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3.Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4.Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5.Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out par ts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6.If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7.If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8.Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9.Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a car t or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
3
PROTECTION AND LOCATION OF YOUR SET
11.Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
a built-in
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONALELECTRICAL CODE
ANTENNA
LEAD- INWIRE
GROUND CLAMP
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONALELECTRICAL CODE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NECSECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PARTH)
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
installer s
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
4
OPERATION OF YOUR SET
18.
This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
off
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25. When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
PRODUCT SPECIFICATION
MODEL:::: GV-1418
AMBIENT CONDITIONS::::
AMBIENT TEMPERATURE::::
OPERATING::::-10°°°°C ~ +40°°°°C
STORAGE::::-15°°°°C ~ +45°°°°C
HUMIDITY
OPERATING:<
STORAGE: <<<<90%
AIR PRESSURE: 86kpa ~ 106kpa
PREPARED BY : DATE:
:<80%
:<:<
APPROVED BY: DATE:
6
A: GENERAL SPECIFICATION:
1: CRT
X 37cm(14”) 51cm (20”)
54cm(21”) 64cm (25”)
74cm (29”) 84cm (34”) OTHER
2: CHASSIS:
DIGITAL NICAM STEREO X ANALOG
SURROUND SOUND TELETEXT GERMAN STEREO
S.VHS OTHER
3: CPU:
TSB M5C01TSB M5C03TSB M5ENG TSB M6/M6A TSB M7/M7A
TSB M8A TSB M8B TSB CTS-654A TSB M2A SS M4F
PHIL.CTV 222S MIT.(2911) SIE SDA 5352 X OTHERS M17
4: TV BROADCASTING SYSTEM AND COUNTRY
PAL-I PAL-BG PAL-DK PAL-DK.1
X PAL-DK.BG SECAM-BG SECAM-L X SECAM-DK.BG
PAL-N NTSC-M X NTSC3.579/4.43 AV MODE 21 MULTI
SYSTEM
UK HK GERMAN RUSSIA
CHINA USA E.EUROPE VIETNAM
CANADA DUBAI INDONESIA S.AFRICA)
MALAYSIA MID. AMERICA SINGAPORE
ISRAEL AUSTRALIA & NEW ZEALAND
TAIWAN X MOROCCO PHILIPPINES OTHER
5: RECEIVING CHANNELS
CH21--CH69 CH2--CH12(CCIR)
CHFA-CHS20(FRANCE BAND) CH2--CHS41(HYPER BAND)
CH21--CH69(FRANCE BAND) CH21--CH69(HYPER BAND)
7
CH2--CHS20(CABLE BAND) CH2--CH13(USA BAND)
CH21--CH69(CABLE BAND) CH14--CH83(USA BAND)
CHR1--CHR12(OIRT) CH1--CH12/CH13-CH57(CHINA BAND)
X OTHER CATV 470MHz
6: SCANNING LINES AND FREQUENCIES
625 LINES 15.625kHz 50Hz
525 LINES 15.75kHz 60Hz
X 525/625 LINES 15.625kHz /15.75kHz 50/60Hz
7: COLOUR SUB-CARRIER
X 4.433MHz
X 3.579MHz
3.58MHz
8: INTERMEDIATE FREQUENCIES
PICTURE 39.5MHz SOUND 6.0MHz
X PICTURE 38.9MHz X SOUND5.5MHz
PICTURE 38.0MHz X SOUND 6.5MHz
PICTURE 45.75MHz SOUND 4.5MHz
OTHER AM SOUND 6.5MHz
9: POWER CONSUMPTION:
65W X 70W 75W 80W 110W 120W
130W 140W 180W 190W OTHER
10: POWER SOURCE:
AC 120V 60Hz±10%
AC 200V 50Hz±10%
AC 220V 50Hz±10%
AC 220V 50Hz+10%~25%
AC 240V 50Hz±10%
X AC 110V-240V 50/60Hz±10%
OTHER
8
11: AUDIO OUTPUT POWER (7%THD)
13”& 14”---1W
20”& 21”---2W
20”& 21”---2W + 2W (R + L)
25”---4W + 4W (R + L)
29”---6W + 6W (R + L)
34”---8W + 8W(R + L)
X OTHER 14”>=2W+2W
12: AERIAL INPUT IMPEDANCE
X 75 Ω UNBALANCED DIN JACK ANT.INPUT75
75Ω UNBALANCED F TYPE ANT.INPUT FOR NTSC
300 Ω BALANCED(TWO TERMINALS ANT.INPUT)
OTHER
13: PRODUCT SAFETY REQUIREMENT
BS APPROVAL
VDE APPROVAL
UL APPROVAL
X CHINA APPROVAL
CB APPORVAL
OTHER
14: PRODUCT EMC/EMI REQUIREMENT
FTZ APPOVAL
FCC APPROVAL
X CHINA APPOVAL
OTHER
B: BASIC FEATURES OF CONTROLLER
1: CHANNEL TUNING METHOD
9
X VOLTAGE SYNTHESIZER (V.S.)
PLL FREQUENCY SYNTHESIZER (F.S.)
2: PRESETTABLE PROGRAM
50 PROGRAMS 99 PROGRAMS
X 100 PROGRAMS 181 PROGRAMS
OTHER
3: TUNING FOR VHF AND UHF BANDS
X AUTO SEARCH X MANUAL TUNING
X FINE TUNING
4: PICTURE AND SOUND ADJUSTMENT
X BRIGHT,CONTRAST,COLOUR AND VOLUME CONTROL
X TINT CONTROL(NTSC)
TREBLE,BASS,BALANCE CONTROL
X SHARPNESS CONTROL OTHER
5: TELETEXT
SIMPLE TEXT TOP(TABLE OF PAGES)
FLOF (FASTEXT) LIST
6: ON SCREEN DISPLAY
X GENERAL FEATURES∗ STEREO DUAL LAN.
FOUR S.EFFECT INDICATOR GERMAN STEREO INDICATOR
∗REMARK:OSD-GENERAL FEATURES OF CPU:
VOLUME,BRIGHTNESS,CONTRAST,COLOUR,PROGRAM,BAND,
AUTO SEARCH,MANUAL,TUNE,MUTING,AV AND SLEEP TIMER.
08-1418MU-MA1041-WJ0050-B00WIRE BARE JUMPER 5MM1 J408
08-1418MU-MA1041-WJ0050-B00WIRE BARE JUMPER 5MM1 J409
08-1418MU-MA1041-WJ0050-B00WIRE BARE JUMPER 5MM1 J410
08-1418MU-MA1041-WJ0050-B00WIRE BARE JUMPER 5MM1 J411
08-1418MU-MA1041-WJ0050-B00WIRE BARE JUMPER 5MM1 J412
08-1418MU-MA1041-WJ0050-B00WIRE BARE JUMPER 5MM1 J413
08-1418MU-MA1041-WJ0050-B00WIRE BARE JUMPER 5MM1 J414
08-1418MU-MA1041-WJ0050-B00WIRE BARE JUMPER 5MM1 J415
08-1418MU-MA1041-WJ0050-B00WIRE BARE JUMPER 5MM1 J416
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J005
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J009
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J012
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J102
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J112
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J116
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J239
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J243
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J251
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J604
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J623
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J906
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J908
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 R002
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 R044
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 R609
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 R617
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J108
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J627
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J630
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J903
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J115
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 R612
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 R619
08-1418MU-MA1041-WJ0060-B00WIRE BARE JUMPER 6mm1 J901
08-1418MU-MA1041-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J210
08-1418MU-MA1041-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J211
08-1418MU-MA1041-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J608
08-1418MU-MA1041-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J612
08-1418MU-MA1041-WJ0065-B00WIRE BARE JUMPER 6.5MM1 R133
08-1418MU-MA1041-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J048
08-1418MU-MA1041-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J214
26
08-1418MU-MA1041-WJ0065-B00WIRE BARE JUMPER 6.5MM1 J113
08-1418MU-MA1041-WJ0070-B00WIRE BARE JUMPER 7MM1 J101
08-1418MU-MA1041-WJ0070-B00WIRE BARE JUMPER 7MM1 J109
08-1418MU-MA1041-WJ0070-B00WIRE BARE JUMPER 7MM1 J233
08-1418MU-MA1041-WJ0070-B00WIRE BARE JUMPER 7MM1 J917
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J003
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J004
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J007
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J010
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J017
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J018
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J019
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J020
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J201
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J205
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J216
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J226
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J234
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J253
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J304
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J610
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J907
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 R920
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J013
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J014
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J609
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J607
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J213
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J240
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J417
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J418
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J419
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J912
08-1418MU-MA1041-WJ0075-B00WIRE BARE JUMPER 7.5MM1 J913
08-1418MU-MA1041-WJ0080-B00WIRE BARE JUMPER 8 MM1 J602
08-1418MU-MA1041-WJ0080-B00WIRE BARE JUMPER 8 MM1 J603
08-1418MU-MA1041-WJ0080-B00WIRE BARE JUMPER 8 MM1 J245
08-1418MU-MA1041-WJ0080-B00WIRE BARE JUMPER 8 MM1 J244
08-1418MU-MA1041-WJ0080-B00WIRE BARE JUMPER 8 MM1 J106
08-1418MU-MA1041-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J232
08-1418MU-MA1041-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J207
27
08-1418MU-MA1041-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J002
08-1418MU-MA1041-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J204
08-1418MU-MA1041-WJ0085-B00WIRE BARE JUMPER 8.5MM1 J237
08-1418MU-MA1041-WJ0090-B00WIRE BARE JUMPER 9MM1 J404
08-1418MU-MA1041-WJ0090-B00WIRE BARE JUMPER 9MM1 J905
08-1418MU-MA1041-WJ0090-B00WIRE BARE JUMPER 9MM1 J042
08-1418MU-MA1041-WJ0095-B00WIRE BARE JUMPER 9.5MM1 J235
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J006
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J008
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J021
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J028
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J029
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J034
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J121
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J122
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J123
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J209
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J231
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J238
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J241
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J605
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J606
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J624
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 J904
08-1418MU-MA1041-WJ0100-B00WIRE BARE JUMPER 10MM1 L904
08-1418MU-MA1041-WJ0110-B00WIRE BARE JUMPER 11MM1 J027
08-1418MU-MA1041-WJ0115-B00WIRE BARE JUMPER 11.5MM1 J246
08-1418MU-MA1041-WJ0115-B00WIRE BARE JUMPER 11.5MM1 J104
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J208
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J203
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 D406
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 R601
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J402
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J616
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J618
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J011
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J601
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J236
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J619
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J117
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J120
28
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J302
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J401
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 R310
08-1418MU-MA1041-WJ0125-B00WIRE BARE JUMPER 12.5MM1 J617
08-1418MU-MA1041-WJ0130-B00WIRE BARE JUMPER 13MM1 J621
08-1418MU-MA1041-WJ0130-B00WIRE BARE JUMPER 13MM1 J622
08-1418MU-MA1041-WJ0135-B00WIRE BARE JUMPER 13.5MM1 J229
08-1418MU-MA1041-WJ0135-B00WIRE BARE JUMPER 13.5MM1 J225
08-1418MU-MA1041-WJ0140-B00WIRE BARE JUMPER 14MM1 J230
08-1418MU-MA1041-WJ0140-B00WIRE BARE JUMPER 14MM1 J228
08-1418MU-MA1041-WJ0140-B00WIRE BARE JUMPER 14MM1 J227
08-1418MU-MA1041-WJ0140-B00WIRE BARE JUMPER 14MM1 J625
08-1418MU-MA1041-WJ0140-B00WIRE BARE JUMPER 14MM1 J626
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J015
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J022
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J023
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J024
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J025
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J026
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J030
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J031
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J032
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J033
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J242
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J247
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J303
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J614
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 R410
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 J107
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 D006
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 D007
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 D008
08-1418MU-MA1041-WJ0150-B00WIRE BARE JUMPER 15MM1 D009
08-1418MU-MA1041-WJ0155-B00WIRE BARE JUMPER 15.5MM1 J016
08-1418MU-MA1041-WJ0165-B00WIRE BARE JUMPER 16.5MM1 J217
08-1418MU-MA1041-WJ0165-B00WIRE BARE JUMPER 16.5MM1 J254
08-1418MU-MA1041-WJ0170-B00WIRE BARE JUMPER 17MM1 J036
08-1418MU-MA1041-WJ0175-B00WIRE BARE JUMPER 17.5MM1 J046
08-1418MU-MA1041-WJ0180-B00WIRE BARE JUMPER 18MM1 J223
08-1418MU-MA1041-WJ0180-B00WIRE BARE JUMPER 18MM1 J224
08-1418MU-MA1041-WJ0180-B00WIRE BARE JUMPER 18MM1 J218
29
08-1418MU-MA1041-WJ0180-B00WIRE BARE JUMPER 18MM1 J219
08-1418MU-MA1041-WJ0190-B00WIRE BARE JUMPER 19MM1 J222
08-1418MU-MA1041-WJ0190-B00WIRE BARE JUMPER 19MM1 J403
08-1418MU-MA1041-WJ0200-B00WIRE BARE JUMPER 20MM1 J250
08-1418MU-MA1045-COS503-KY0CER. RESONATOR ZTB503F21 X205
08-1418MU-MA1045-FIL6M0-0Y1CER. FILTER 6.0MHZ1 X206
08-1418MU-MA1045-OSC4M4-3Y0CRYSTAL 4.43MHZ (CL=16PF)1 X202
08-1418MU-MA1045-OSC8M0-0Y0CRYSTAL 8.0MHZ1 X001
08-1418MU-MA1045-SAW296-6M00GSAW FILTER K2966M1 Z101
08-1418MU-MA1045-TRA4M4-3Y0CER. TRAP 4.43 MHZ1 X209A
08-1418MU-MA1045-TRA5M5-0Y0CER TRAP TPS 5.5MHZ1 X204
08-1418MU-MA1045-TRA6M5-0Y0CER TRAP TPS 6.5MHZ1 X203
08-1418MU-MA1046-12866W-02X PIN BASE *2 S11-02Y1 P601 FFOR F.CAB(SPK)
08-1418MU-MA1046-20598W-04XPIN BASE *4 TJC1-4A1 P401 FFOR DY CONNECTOR
08-1418MU-MA1046-27404W-08XPIN BASE *8 TJC8-8Y1 S202 FFOR SECAM BD P202
08-1418MU-MA1046-33079W-02XPIN BASE *2 TJC3-2A1 P001 FFOR AGING TEST
08-1418MU-MA1046-33079W-02XPIN BASE *2 TJC3-2A1 P602 FFOR F.CAB(SPK)
08-1418MU-MA1046-33079W-04XPIN BASE *4 TJC3-4A1 P402 FFOR CRT BD P502
08-1418MU-MA1046-33079W-05XPIN BASE *5 TJC3-5A1 P201 FFOR CRT BD P503
08-1418MU-MA1046-33079W-06XPIN BASE *6 TJC3-6A1 P904 FFOR SIDE AV BD P1104B
08-1418MU-MA1046-33079W-06XPIN BASE *6 TJC3-6A1 P101 FFOR W.BAL. ADJUST
08-1418MU-MA1047-SCA001-XX0 SCART SOCKET 21 PINS SS101-P1 P903
08-1418MU-MA1048-TAC002-XX0TACT SWITCH1 S001
08-1418MU-MA1048-TAC002-XX0TACT SWITCH1 S002
08-1418MU-MA1048-TAC002-XX0TACT SWITCH1 S003
08-1418MU-MA1048-TAC002-XX0TACT SWITCH1 S004
08-1418MU-MA1048-TAC002-XX0TACT SWITCH1 S005
08-1418MU-MA1048-TAC002-XX0TACT SWITCH1 S006
08-1418MU-MA1054-268340-000SPONGE CUSHION 15 X 45 X 3MM1STICK ON H.SINK(IC601) & SECAM BD
08-1418MU-MA1062-10654X-00F UNI - TIE (2.5mmX95mm)8
08-1418MU-MA1062-226920-0HALED HOLDER1
08-1418MU-MA1062-227680-0UAHOLDER CABLE FOR FBT (2)1
08-1418MU-MA1062-291630-0HH MTG SPACER FBT&H.SINK1
08-1418MU-MA1063-B40150-AB2S/T SCREW B 4 X 15 AB1MTG FBT & H.SINK
08-1418MU-MA1064-B30080-104M/C SCREW B 3 X 81FOR IC601
08-1418MU-MA1064-P30060-104M/C SCREW 3 X 6 (ZINC)2FOR IC401 & IC402
08-1418MU-MA1064-P30100-104M/C SCREW P 3 X 102FOR IC301 & Q402
08-1418MU-MA1065-Z30050-23M NUT M 32FOR IC301 & Q402
08-1418MU-MA1066-343730-0B0HOLLOW RIVET 1.6X3.0XL3.24FOR T402
08-1418MU-MA1066-343730-0B0HOLLOW RIVET 1.6X3.0XL3.22FOR L412
08-1418MU-MA1066-343730-0B0HOLLOW RIVET 1.6X3.0XL3.22FOR L411
Flowchart chart of alignment procedure for M17 chassis:
B+ adjustmentVCO & AFT
Alignment
Sub-brightness
Adjustment
Pincushion and
screen width
adjustment
White balance
Adjustment
Screen center
& size
adjustment
(PAL)
NICAM
Adjustment
AgingAdjustment of
Screen center
& size
adjustment
(NTSC)
Electrical
properties
checking for
chassis
screen voltage
and focus
QC checking
RF AGC
adjustment
Sub-color &
Sub-tint
adjustment
ALIGNMENT PROCEDURE FOR M17 CHASSIS:
D-mode:
Enter D-Mode by pressing D-Mode ON/OFF key, and then you can enter the D-mode.
S-mode:
Enter S-Mode by pressing VOLUME DOWN key on the unit until the volume decrease to minimum
level, then press the DISPLAY key on the remote handset (don’t release the volume key) and you can
enter S- mode.
After enter D-mode or S-mode, you can adjust the setting according to the following procedure,
Press “1” to enter the white balance alignment menu,
Press “2” to enter picture geometry alignment menu for PAL system,
ItemDescription
VPOS50PAL V. Position
HIGH50PAL V. Size
VLIN50PAL V. Linearity
VSC50PAL V-S correction
OSDV50PAL V. position of OSD
HPOS50PAL H. Position
Press “3” to enter picture geometry alignment menu for NTSC system,
ItemDescription
VPOS60NTSC V. Position
HIGH60NTSC vertical size
VLIN60NTSC V. Linearity
VSC60NTSC V-S correction
OSDV60NTSC V. position of OSD
HPOS60NTSC H. Position
35
Press “4” to enter sharpness setting menu,
ItemDescriptionDefault data
SHPTV3
SHPAV3
SHPTV4
SHPAV4
SHPX
SHPN
Press “5” to enter sound ali gnment menu,
ItemDescriptionDefault data
NIMLNICAM sound output level07
VOL1Output level of left channel (FM)07
VOL2Output level of right channel (FM)07
DRIFTSync. Pulse error allowance03
HCOUNTSync. pulse counting06
Press “6” to enter AGC and volume setting,
ItemDescriptionDefault data
RFAGCAGC setting22
HAFC
S-R-YSub color for system09
S-B-YSub color for system06
VOL01
VOL25
VOL50
50% sharpness in 3.58 system (TV)
50% sharpness in 3.58 system (AV)
50% sharpness in 4.43 system (TV)
50% sharpness in 4.43 system (AV)
Maximum sharpne ss
Minimum sharpness
HAFC setting.
Volume output level at 1%
Volume output level at 25%
Volume output level at 50%
00
00
18
31
20
1A
1D
1A
3F
10
Press “7” to enter system setting,
ItemDescriptionDefault data
VCDM0
VCDM1
VCDM2
MOD0
MOD1
MOD2
OPTION
Press “8” to enter picture alignment menu 1,
ItemDescriptionDefault data
SCNTSub contrast for luminance signal
CNT XMaximum con tras t
CNT NMinimum contras t
BRTXMaximum brightness
BRTNMinimum brightness
COLXMaximum color
COLNMinimum color
Press “9” to enter picture alignment menu 2,
ItemDescriptionDefault data
CNTC50% contrast
BRTC50% brightness
COLC50% color
TNTC50% tint
COLPColor level for PAL
COLSColor level for SECAM
BRTSSub brightness for SECAM
System setting
System setting
System setting
System setting
System setting
System setting
System setting
68
00
40
00
32
F0
04
26
38
40
40
00
40
00
0A
3F
08
38
18
7F
00
36
Press “0” to enter OSD setting menu,
ItemDescriptionDefault data
OSDHorizo ntal position of OSD
TXCXOSD intensity when maximum contrast
RGCNOSD intensity when minimum contrast
TNTXMaximum tint level
TNTNMinimum tint level
I) Adjustment of B+ voltage
1. Apply 110-240VAC(±5V) to mains power input, and Philips standard testing pattern to RF input.
2. Adjust VR801 in STANDARD mode until voltage at TP2 (B +) is 112V ±0.5V.
II) Adjustment of VCO and AFT
1. Apply a 38.9MHz signal to the IF input.
2. Monitor the DC voltage at pin 48 of IC201.
3. Adjust T201 until the voltage at pin 48 of IC201 becomes 4.62 +/- 0.2V (the picture must stable).
4. Enter D-mode and press the AFT (update/BBE) button. It will start Auto AFT Adjustment and the
screen will show “PIFAFT OK” if the process is finished.
III) NICAM Adjustment (for NICAM model only)
1. Apply a 38.9MHz color bar with NICAM signal to the IF input.
2. Monitor the DC voltage at pin 15 of IC1101.
3. Adjust T1101 until the voltage at pin 15 of IC1101 becomes 2.5 +/- 0.1V.
4. Then check the waveform at pin 4 and 6 of P1103 and it must show correct audio signal.
0E
30
0D
7F
7F
IV) The alignment of RFAGC

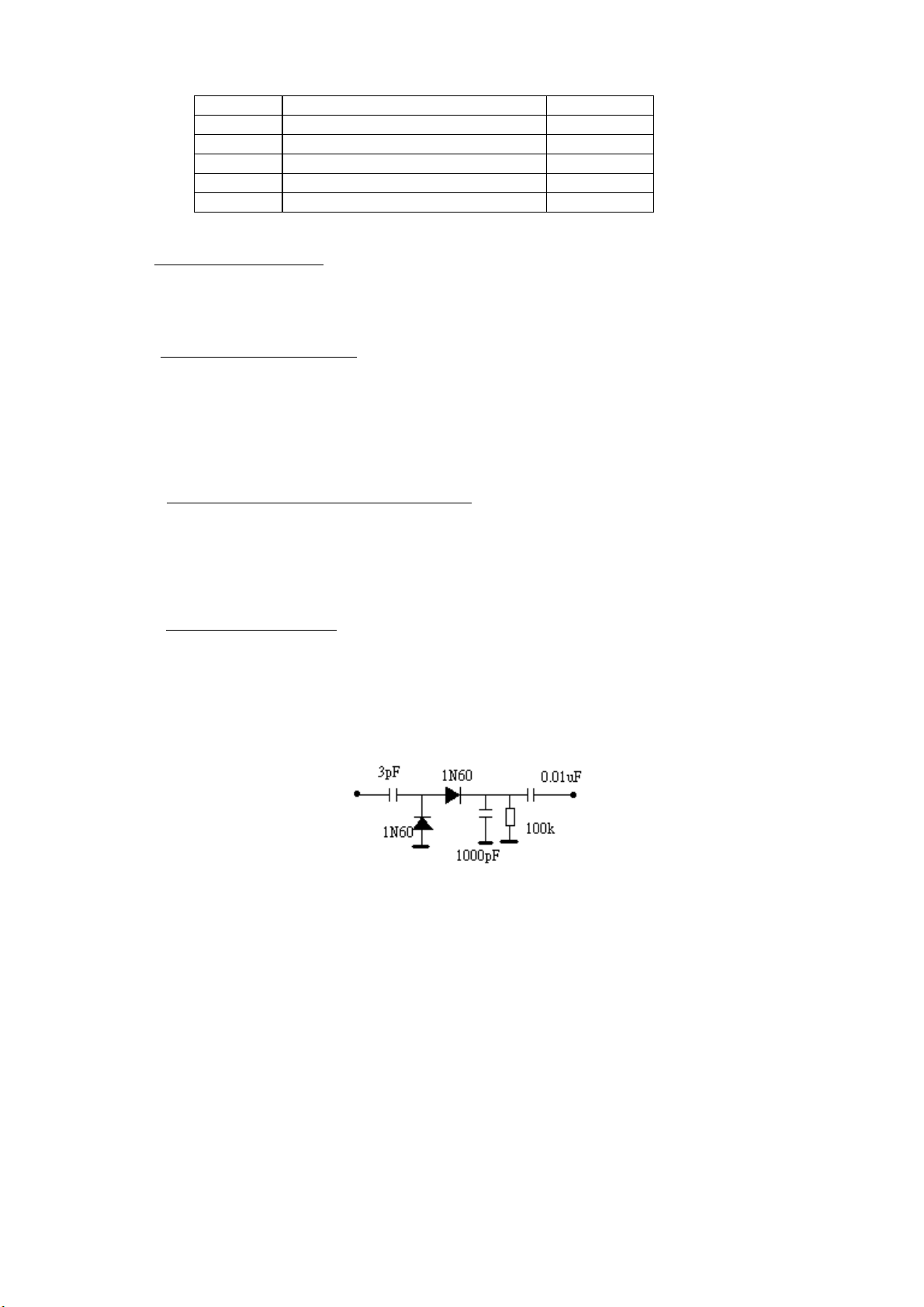

1. Connect the detector shown below to collector of Q101.
2. Receive a grey scale signal with 70dBµV amplitude.
3. Adjust RFAGC item until the output of the detector becomes 0.8Vpp
Collector
of Q101
To CRO
37
V) Adjustment of Sub-contrast, Sub-tint and Sub-co lour for NSTC and PAL signal.
A
b
1. Enter D-mode, and connect the probe of Oscilloscope to the conjunction between R217 and P201
(B-out).
2. Apply the Grey-scale/Colour-bar (NTSC signal) to the AV input, in STANDARD status.

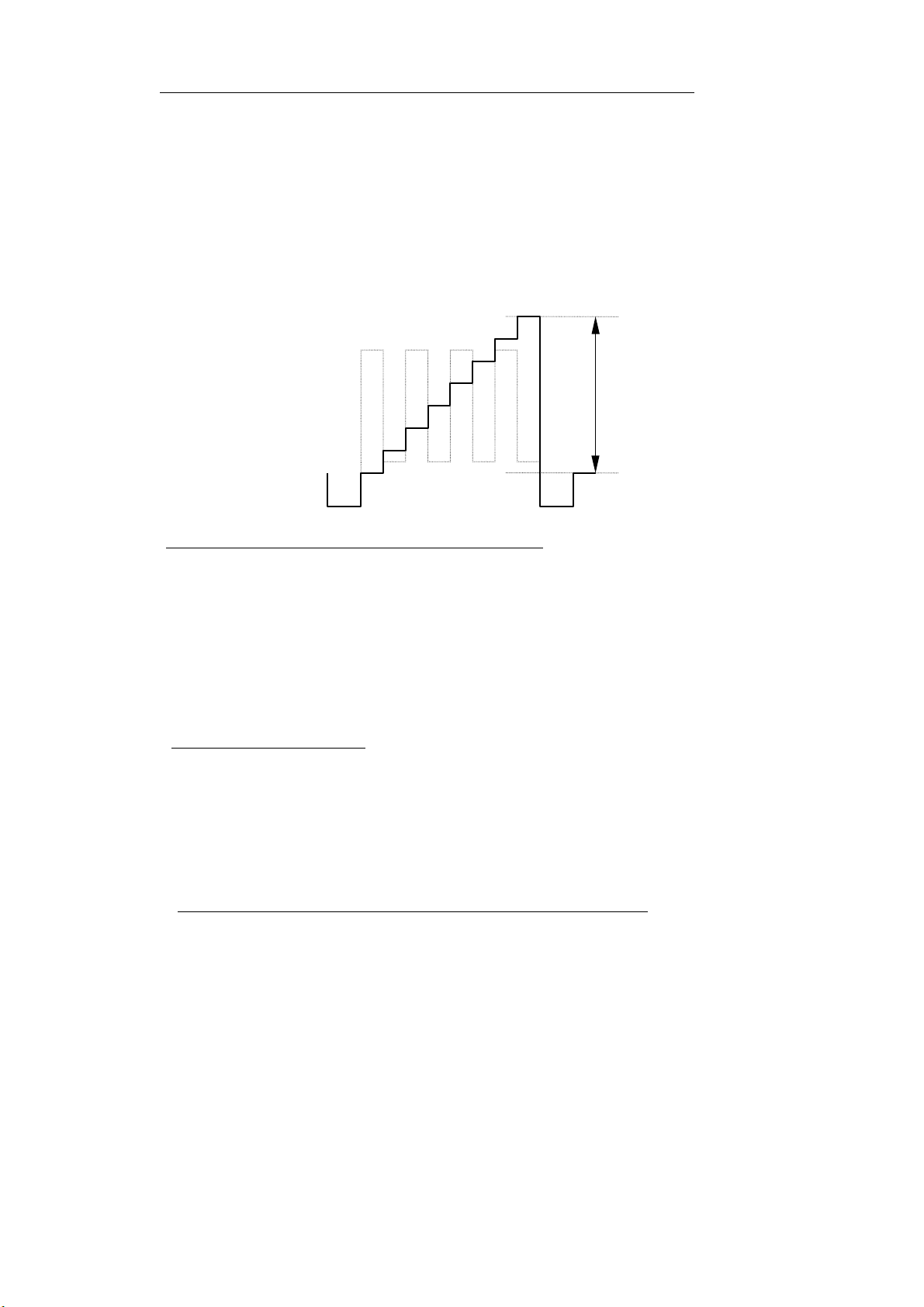

3. Select CNTC to adjust the sub-contrast, until that the amplitude “A” is 2.5V
4. Select COLC to adjust the sub-colour by tuning the amplitude of “a” and “d” to the same.
5. Select TNTC to adjust the sub-tint by tuning the amplitude of “b” and “c” to the same.
6. Apply the Grey-scale/Colour-bar (PAL signal) to the AV input, in STANDARD status.
7. Select COLP to adjust the sub-colour by tuning the amplitude of “a”, “b”, “c” and “d” to the
same.
a
c
d
as shown below.
P-P
VI) Adjustment of Focus, Screen Voltage and Sub-brightness
1. Receive a crosshatch pattern.
2. Adjust the “FOCUS” VR on the flyback the make the picture clear.
3. Enter D-mode and press “1--” key and the screen will become a horizontal line. Then adjust the
“SCREEN” VR on the flyback transformer to set the intensity of the line to a minimum visible
level (the line can just be seen).
4. Pr ess “1--” key again and the TV will become full raster.
5. Select BRTC to adjust the sub-brightness, until that the 2
be seen.
VII) Adjustment of White balance
1. Receive a black and white pattern at STANDARD status.
2. Use a color analyzer to measure the black side of the screen. By changing the value of BCUT and
GCUT, set the reading of the color analyzer to x=284, y=299.
3. T hen measure the white side of the screen. By changing the value of BDRV and GDRV, set the
reading of the color analyzer to x=284, y=299.
4. Repeat step 2&3 until you can get the correct reading for both black and white sides.
VIII) Adjustment of Pincushion and Picture Width (for pure flat model only)
1. Receive a crosshatch pattern.
2. Adjust VR302 until the vertical line become straight.
3. Adjust VR303 for horizontal size.
nd
dark bar of 8 level grey scales just can
38
IX) Adjustment of Picture Geometry (PAL)
1. Apply the crosshatch pattern (PAL signal) to the RF input, in STANDARD status.
2. Select HPOS50 to adjust the Horizontal center.
3. Select VPOS50 to adjust the Vertical center.
4. Select HIGH50 to adjust the Vertical amplitude.
5. Select VLIN50 to adjust the vertical linearity.
6. Select VSC50 to adjust the vertical S-correction.
X) Adjustment of Picture Geometry (NTSC)
1. Apply the crosshatch pattern (NTSC signal) to the RF input, in STANDARD status.
2. Select HPOS60 to adjust the Horizontal center.
3. Select VPOS60 to adjust the Vertical center.
4. Select HIGH60 to adjust the Vertical amplitude.
5. Select VLIN60 to adjust the vertical linearity.
6. Select VSC60 to adjust the vertical S-correction.
XI) Adjustment of OSD position
1. Enter D-mode and press key “0”, then choose OSD item and adjust the OSD horizontal position.
2. Enter D-mode and press key “2”, then choose the OSDV50 item and adjust the OSD horizontal
position.
3. Enter D-mode and press key “3”, then choose the OSDV60 item and adjust the OSD horizontal
position.
39
System setting of M17
VCDM0 (default value: 68)
BIT Item
0System switch: 0 : normal identify mode 1 : weak signal identify mode
1White peak suppress: 0: on 1: off
10: English 1: English + Chinese
2Low Noise Amp. at tuner: 0: off 1: on
3No use
4, 5, 6,7Muting time when power on:
8ms ×16 ×data (max. 1920ms)
40
MODE1
BIT Item
0Logo: 0: disable 1: TCL Logo
1No. of channel: 0: 49 1: 99
2No use
3Menu background 0: disable 1: black background
4No. of AV 0: 1 1: 2
5SECAM 0: off 1: on
6D-mode 0: enable 1: disable
7No use
MODE2
BIT Item
0Teletext 0: off 1: on
1NICAM & IGR 0: off 1: on
2No use
3No use
4B G : 0 : off 1 : on
5I : 0 : off 1 : on
6DK : 0 : off 1 : on
7M : 0 : off 1 : on
OPTION (default value: 04)
BIT Item
0When blue background off (mute pin of CPU): 0: audio mute on 1: audio mute off
1When blue background off (external mute pin of CPU):
0: audio mute on 1: audio mute off
2When change channel: 0: picture mute off 1 : picture mute on
3Audio demodulation gain setting: 0: 50KHz 1: 25KHz
4When no signal: 0: search channel by changing VT 1: use memorized VT
5P ower on mode: 0: previous 1: force standby
6No use
7No use
41

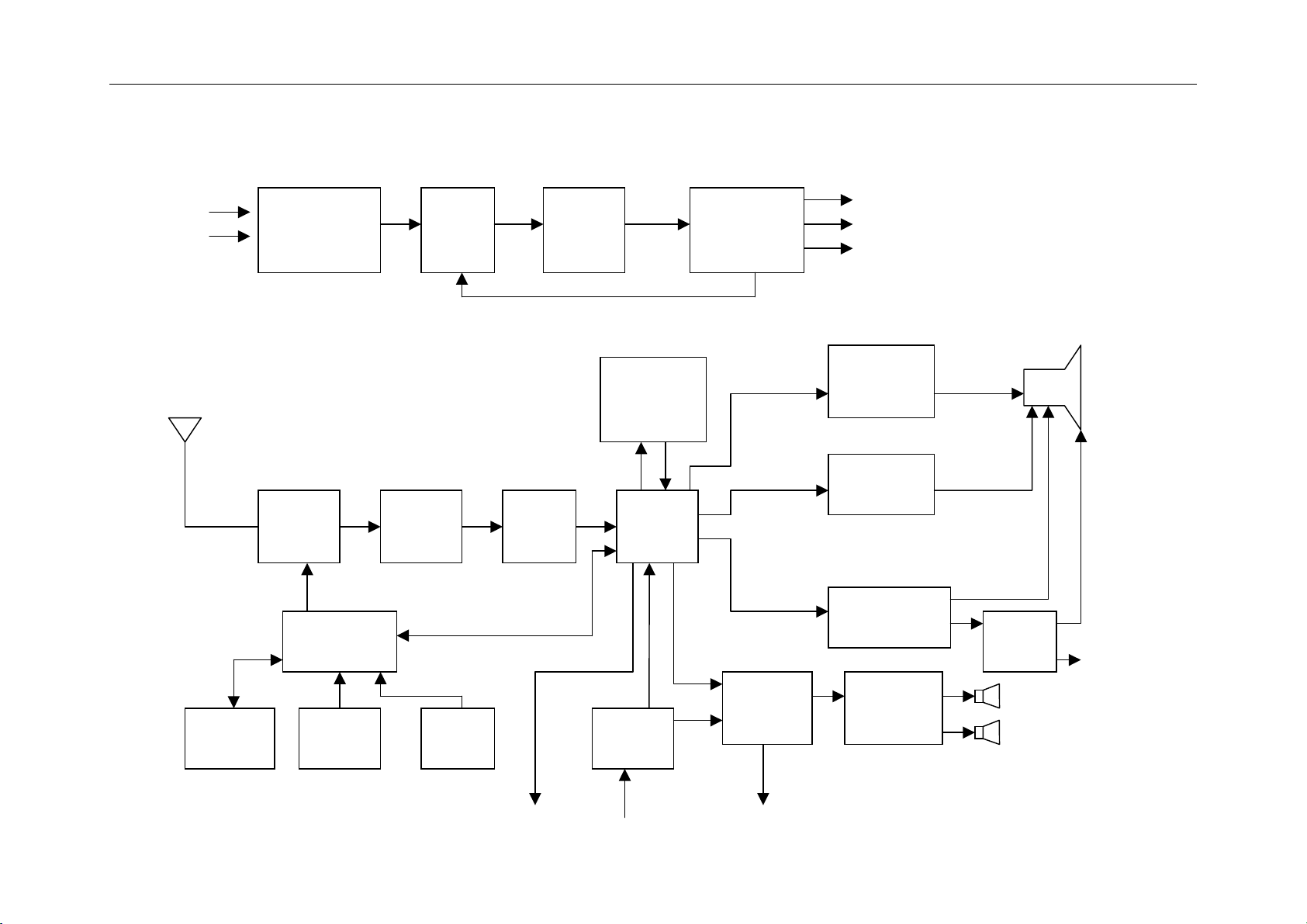

M17 Block Diagram By ZSM 2002/8/8
220V~
E2PROM
IC002
D801—D804IC801
Tuner
TU101
IF AMP
Q101
CPU
IC001
KEY
IR001
Sensor
SAW
Z101
Q801
AMP.
Optional Part
SECAM
IC701
TA1275AZ
TB1238
IC201
IC901
AV SW
T802
Transformer
R/G/B
V.out
H.out
IC603
TV/AV SW
112v
8V
24V
Q501 Q503
Q505 AMP.
V. AMP.
IC301
H.drive AMP.
Q401 Q402
Audio AMP.
IC601
FBT
T402
Speaker
CRTR/G/B
EHT
FOCUS
SCREEN
220V,24V
12V,6.3V
AV1/AV2 IN
AV Audio OutAV Vout

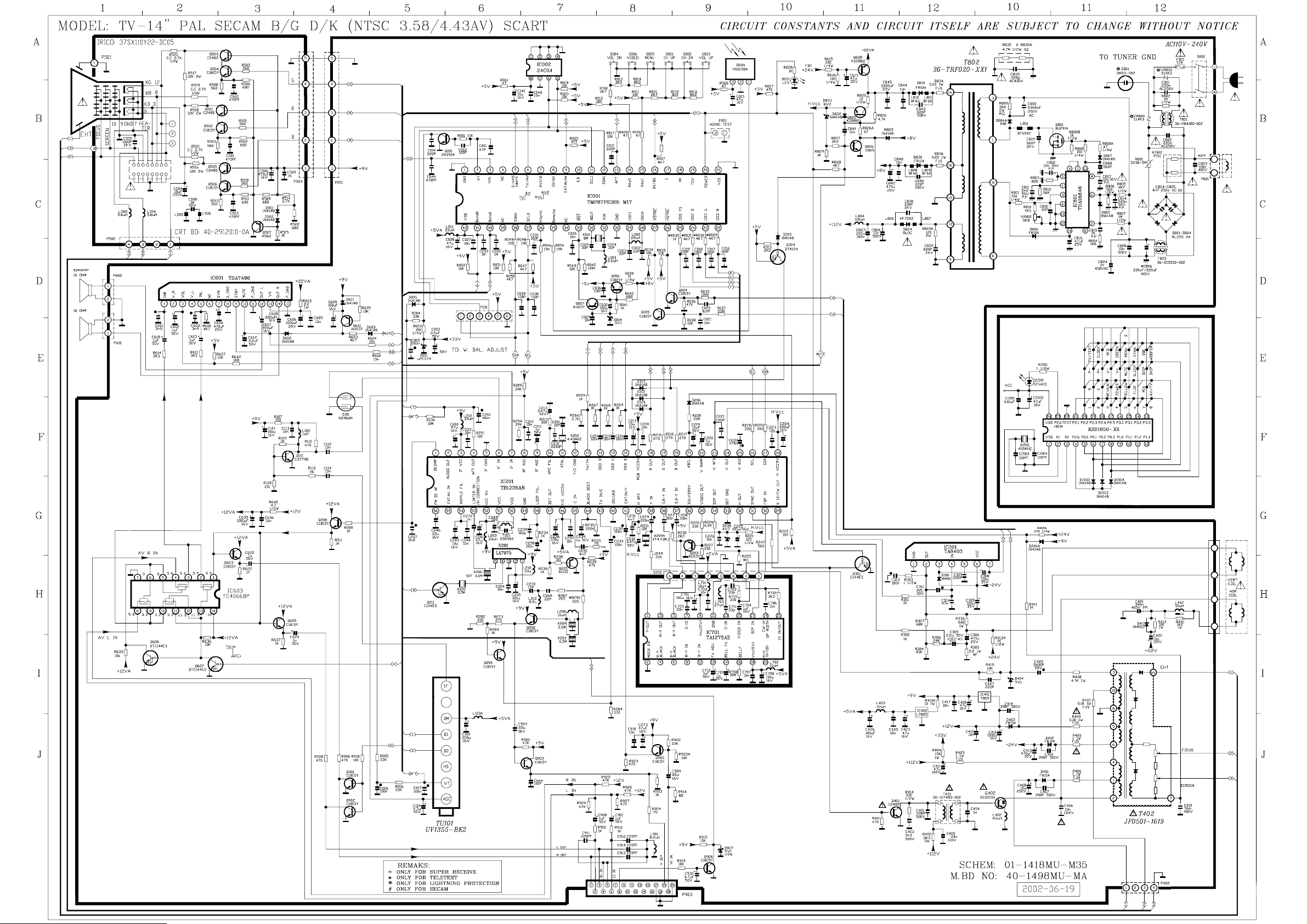

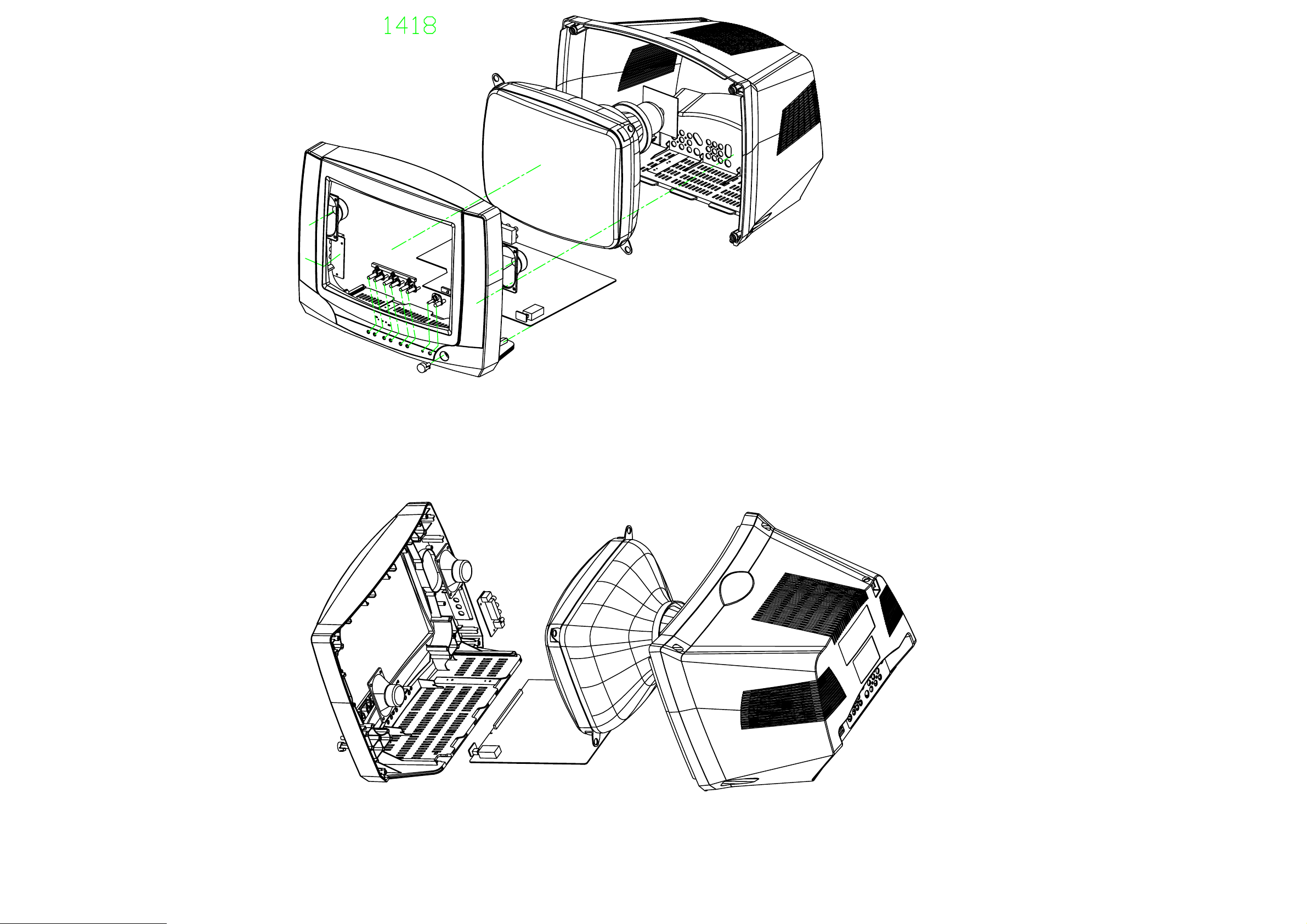

Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
