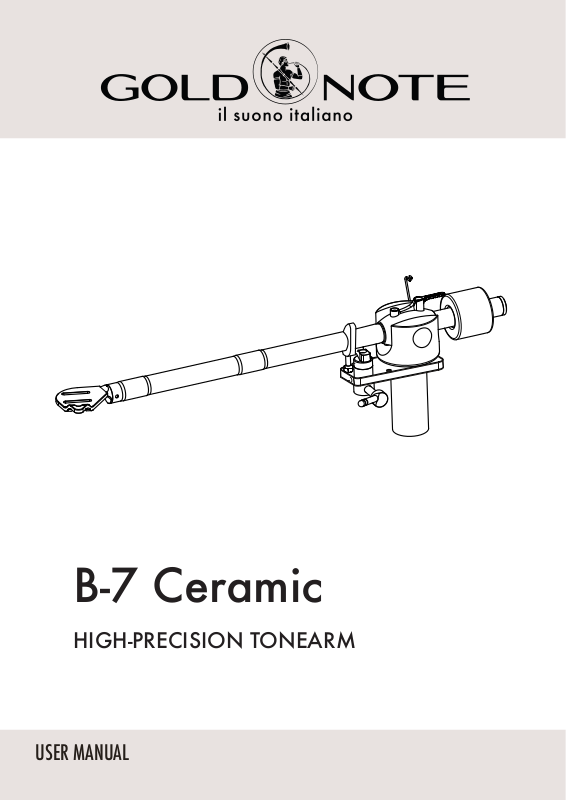

Gold Note B-7 User Manual

B-7 Ceramic

HIGH-PRECISION TONEARM

USER MANUAL

INDEX

PACKAGE CONTENT

DESCRIPTION AND SPECIFICATIONS................................................................................................................

INSTALLATION...............................................................................................................................................

OVERVIEW AND ANTI-SKATING
VTA…………………

WARRANTY AND SERVICE...............................................................................................................................

TROUBLESHOOTING...................................................................................................................................

IMPORTANT SAFETY INFORMATION.................................................................................................................

.........................................................................................................………………………..

.....................................................................................................................

..........................................................…...........................................................................

P. 3
P. 4
P. 6
P. 7
P. 8
P. 9
P. 10
P. 11

2

PACKAGE CONTENT

• 1 Cylindrical counterweight 110 g

• 1 Additional counterweight 28.5 g

• Nylon wire and antiskating weight (already assembled)

• Phono cable plus 1,5

• Protractor

• 1 Allen key 2,5mm

• 1 Allen key 2,0mm

• 1 Allen key 1,5mm

• 1 GN Stylus Gauge

• 1 User manual

3

DESCRIPTION AND SPECIFICATION

A well designed tonearm should perform at its best with every cartridge while keeping things simple and effective, being easy
to install and use, add quality materials and elegant looks to the equation and you'll get an idea of the B-7 Ceramic.

Carefully hand made in Italy with only one purpose: make your cartridge dive deep into the vinyl and bring to life the most

natural and detailed music.

Inside the B-7 Ceramic you'll find four high precision micro ceramic ball-bearings manufactured in Germany by GRW

treated singularly and sealed to preserve their integrity and extreme precision, a crucial factor to enable noiseless

functionality to let you enjoy every single nuance in your records.

B-7 Ceramic effective length of 242mm with 19mm overhang makes it easy to install on any turntable.

The rear arm wand is dampened with silicon spacer to reduce unwanted vibrations and handles a finely machined Stainless

Steel counterweight to set up most phono cartridges (up to 15 gram mass).

The vertical ultra-low friction ceramic ball-bearings are pivoted through stainless steel bolts manually adjusted, the

horizontal movement is driven by two micro ball-bearings directly inserted in the main rectified pivot.

With a 23mm diameter arm shaft, the B-7 Ceramic can be secured on every turntable, improving performances and every day

pleasure.

IMPORTANT NOTE

All our tonearms are perfectly calibrated before leaving our factory.

If further adjustments are needed, please contact Gold Note dealer as all interventions must be carried out or supervised
by qualified personnel.
