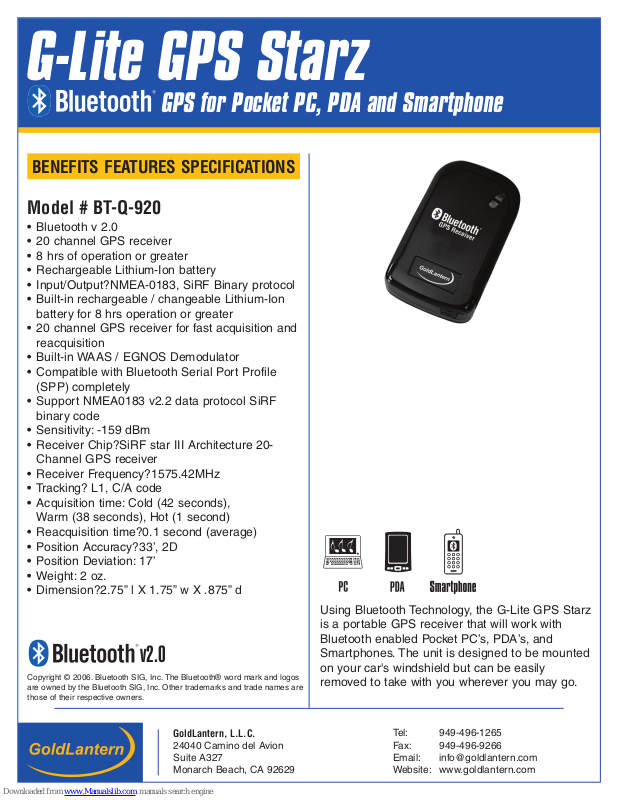

Gold Lantern G-LITE BT-Q-920 Specifications

G-Lite GPS Starz

GPS for Pocket PC, PDA and Smartphone

BENEFITS FEATURES SPECIFICATIONS

Model # BT-Q-920

• Bluetooth v 2.0

• 20 channel GPS receiver

• 8 hrs of operation or greater

• Rechargeable Lithium-Ion battery

• Input/Output?NMEA-0183, SiRF Binary protocol

• Built-in rechargeable / changeable Lithium-Ion
battery for 8 hrs operation or greater

• 20 channel GPS receiver for fast acquisition and
reacquisition

• Built-in WAAS / EGNOS Demodulator

• Compatible with Bluetooth Serial Port Profile
(SPP) completely

• Support NMEA0183 v2.2 data protocol SiRF
binary code

• Sensitivity: -159 dBm

• Receiver Chip?SiRF star III Architecture 20­Channel GPS receiver

• Receiver Frequency?1575.42MHz

• Tracking? L1, C/A code

• Acquisition time: Cold (42 seconds),
Warm (38 seconds), Hot (1 second)

• Reacquisition time?0.1 second (average)

• Position Accuracy?33’, 2D

• Position Deviation: 17’

• Weight: 2 oz.

• Dimension?2.75” l X 1.75” w X .875” d

v2.0

Copyright © 2006. Bluetooth SIG, Inc.The Bluetooth® word mark and logos
are owned by the Bluetooth SIG, Inc. Other trademarks and trade names are
those of their respective owners.

GoldLantern, L.L.C.

24040 Camino del A
Suite A327
Monarch Beach, CA 92629

vion

Using Bluetooth Technology, the G-Lite GPS Starz
is a portable GPS receiver that will work with
Bluetooth enabled Pocket PC’s, PDA’s, and
Smartphones. The unit is designed to be mounted
on your car's windshield but can be easily
removed to take with you wherever you may go.
