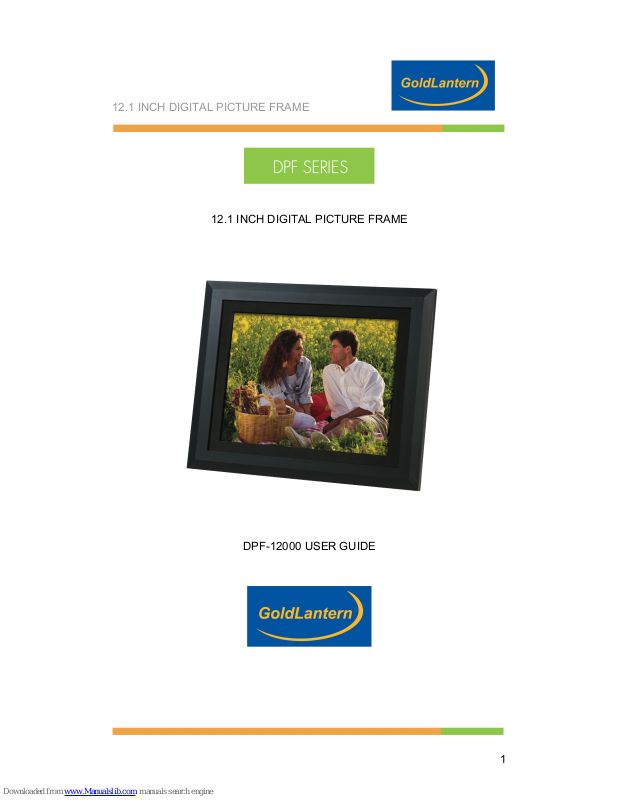

Gold Lantern DPF-12000 User Manual
12.1 INCH DIGITAL PICTURE FRAME
1
12.1 INCH DIGITAL PICTURE FRAME
DPF-12000 USER GUIDE
12.1 INCH DIGITAL PICTURE FRAME
2
Table of Contents
Introduction......................................................................................................3
Main Features.................................................................................................. 3
Precaution & Maintenance...............................................................................4
Cleaning the LCD screen .............................................................................4
Getting Started.................................................................................................5
Package Contents........................................................................................ 5
Installing your unit ........................................................................................ 6
Buttons and Cards slots...................................................................................7
Using your Remote Control.............................................................................. 8
Inserting Memory Cards................................................................................... 9
Viewing Pictures .............................................................................................. 9
Listening to MP3 music..................................................................................10
Watching video .............................................................................................. 10
Viewing File Structure.................................................................................... 11
Mounting the Digital Picture Frame................................................................ 11
Advanced Settings......................................................................................... 12
Changing the orientation for one particular picture.....................................12
Setup Menu................................................................................................ 12
OSD Lang .................................................................................................. 12
Preferences................................................................................................ 13

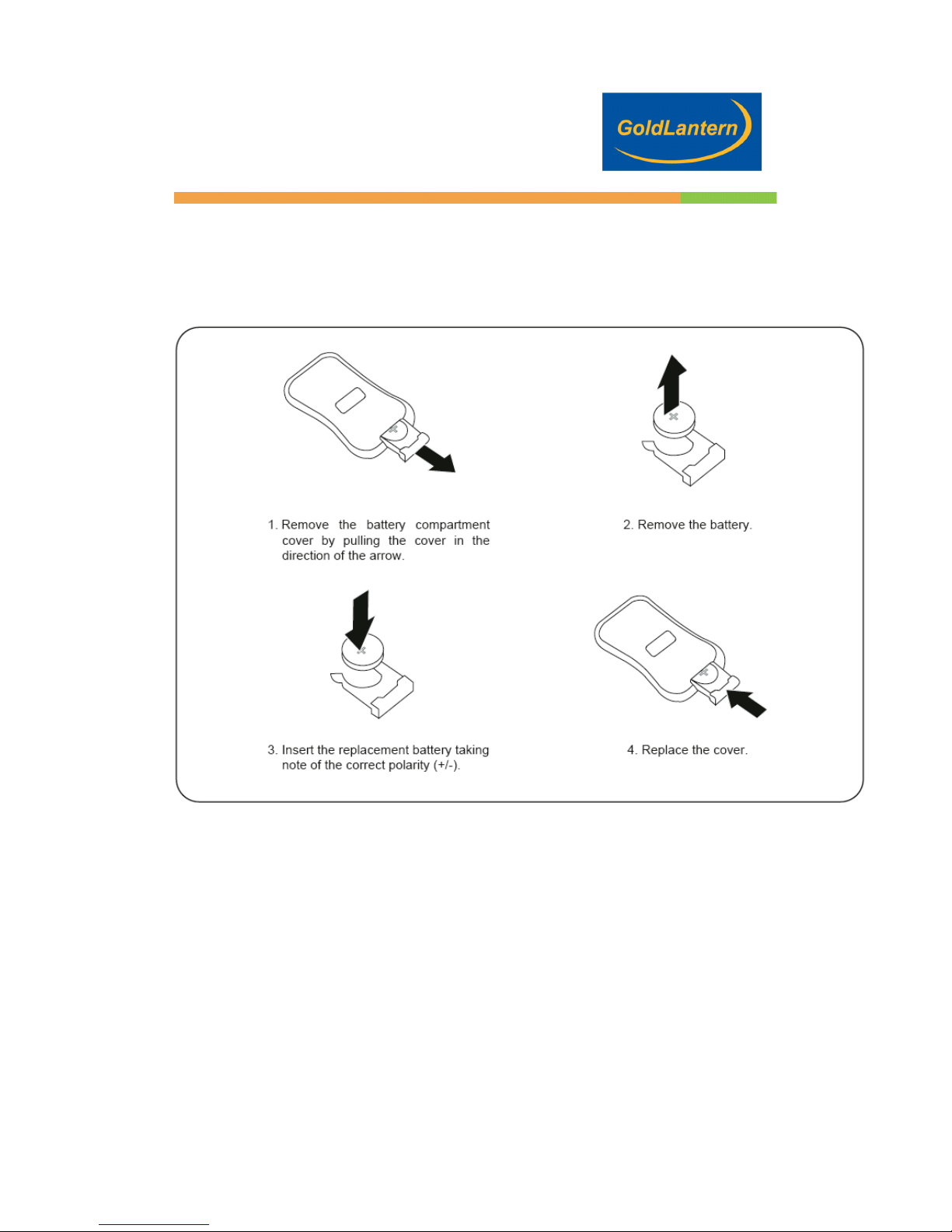

Replacing the remote control battery ............................................................. 14
Technical Support.......................................................................................... 15
Frequently asked questions .......................................................................15
Troubleshooting ......................................................................................... 17
Service and Warranty .................................................................................... 19
Your warranty............................................................................................. 19
Specifications .............................................................................................21
Regulatory Compliance ................................................................................. 22
CE Declaration of Conformity.....................................................................22
FCC Declaration of Conformity ..................................................................23
End-of-Life Disposal................................................................................... 23
(For customers in Canada and U.S.A.) ......................................................23
Waste Electronics and Electrical Equipment (WEEE) ................................24
12.1 INCH DIGITAL PICTURE FRAME
3
Introduction
Congratulations on your purchase of GoldLantern’s Digital Picture Frame,
model DPF-12000.
Before operating the unit, please read this manual thoroughly, and retain it for
future reference. This manual will help you use many of the exciting and
useful features that will make your Digital Picture Frame viewing more
enjoyable.
This Digital Picture Frame lets you view digital pictures directly from your
camera's memory cards. You will be able to create a slideshow using multiple
transition effects or display one picture at a time. No computer, digital camera
or Internet connection is required.
This Digital Picture Frame is compatible with the following popular memory
card formats: SD™, MultiMediaCard™, CompactFlash®, Memory Stick®,
Memory Stick PRO® and XD™ Picture Cards.
It can also read files stored on a USB Flash drive using the USB host port.
Main Features
Displays digital pictures (JPEG) without a computer.
Simply insert a compatible memory card into the Digital Picture Frame to
show photos, play MP3 music or supported video files (memory card not
included).
Compatible memory cards include Secure Digital Card (SD), MultiMedia Card
(MMC),
Memory Stick, Memory Stick Pro, Microdrive, Compact Flash (CF) and XD
Picture Cards.
Instantly plays MP3 music with the integrated speakers.
Instantly plays MPEG1 files stored on supported memory cards.
Instantly plays MPEG2 files stored on supported memory cards.
Instantly plays MPEG4 files stores on supported memory cards.
Supports up to 12 Mega Pixels image files (JPEG format).
Compatible with most digital cameras’ stored JPEG images and motion JPEG
files.
Includes a credit card style remote control.
Bright 12.1” TFT active matrix LCD screen.
Automatic slide show with multiple transition effects and display times.
Plays slide show with MP3 music on the background.
User-friendly on-screen display lets you access all controls easily.
12.1 INCH DIGITAL PICTURE FRAME
4
*Video files may not play properly if stored on a low speed card.
Precaution & Maintenance
The Digital Picture Frame is for indoor use only.
To reduce the risk of fire or electric shock; do not expose this appliance to rain
or moisture.
Do not block the ventilation holes on the back of the Digital Picture Frame at
any time.
Keep your Digital Picture Frames out of sunlight. Direct sunlight may cause
damage.
Do not open the case of the Digital Picture Frame. There is a risk of electric
shock, and there are no user serviceable parts inside. Opening the case will
void your warranty.
Do not use the Digital Picture Frame if conditions could allow condensation to
occur, or damage may result.
Your Digital Picture Frame is a complicated electronic device and cannot
withstand shock from drops.
Cleaning the LCD screen
Treat the screen gently. The screen on the Digital Picture Frame is made of
glass and can be scratched or broken.
If fingerprints or dust make the LCD screen dirty, we recommend using a soft,
non-abrasive cloth such as the camera lens cloth to clean the LCD screen.
If you use the LCD Cleaning Kit sold on the market, apply the cleaning liquid
to the cloth. Do not apply the liquid directly to your LCD screen.
12.1 INCH DIGITAL PICTURE FRAME
5
Getting Started
Package Contents
Digital Picture Frame and stand
User Guide
AC/DC Adapter
Remote Control
AV Cables
12.1 INCH DIGITAL PICTURE FRAME
6
Installing your unit
Open the package and remove the protective foam. Remove the protective
sleeve from the unit.
Install the Digital Picture Frame stand as the back of the unit.
Plug in the AC adapter into power outlet. Plug the other end into the unit.
After the content is stored on the target flash media; insert the media into the
correct slot.
Turn power to ON position via the ON/OFF switch.
Wall mount slots
LCD Screen Desktop Stand
12.1 INCH DIGITAL PICTURE FRAME
7
Buttons and Cards slots
Different memory cards can be read by your Digital Picture Frame:
12.1 INCH DIGITAL PICTURE FRAME
8
Using your Remote Control
BUTTON
FUNCTION
POWER
Turn frame On/Off
MENU
Changing settings
AV
AV Display
MUTE
Mute volume
Go to and display photo files
MUSIC
Go to and display music files
MOVE
Go to and display move files
FILE
Go to file library (all files)
DISPLAY
Display file information of selected file
ROTATE
Rotate photo 90°clockwise
SLIDE SHOW
Start/stop photo slideshow
SLIDE INTERVAL
Change slideshow delay (5/10/20
seconds.
SETUP
Open menu for changing settings
Move up when selecting on screen
CARD SELECTION
Choose a different memory card
+VOLUME
Increase volume
—VOLUME
Decrease volume
Move left in a menu
Move right in a menu
Move down in a menu
ZOOM
Zoom×4(photos only)
NP
Browse pictures in thumbnails mode
PLAY/PAUSE
Play/pause, confirm selections
STOP
Stop the selected file action
FF
Fast Forward videos
NEXT
Go to next file
PREV
Go to previous file
REPEAT
Play file repeatedly until stopped
