No.
DESCRIPTION
1
offset connector
2
excutcheon
3
washer
4
faucet
HIGH-QUALITY
FAU CET S
SERVICE PARTS:

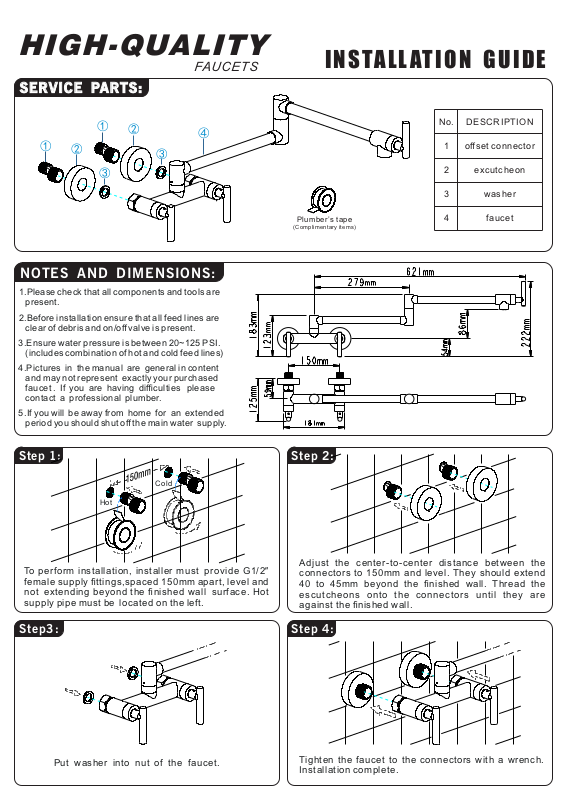

INSTA L L ATION GUIDE
①
①
②
②
④
③
③
NOTES AND DIMENSIONS:
1.Please check that all components and tools are
present.
2.Before installation ensure that all feed lines are
clear of debris and on/off valve is present.
3.Ensure water pressure is between 20~125 PSI.
(includes combination of hot and cold feed lines)
4.Pictures in the manual are general in content
and may not represent exactly your purchased
faucet . If you are having difficulties please
contact a professional plumber.
5.If you will be away from home for an extended
period you should shut off the main water supply.
Plumber ’s t ape
(Compl ime nta ry it ems )
Step 1:
Cold
Hot
To p erform installa tion, installer mus t provide G1/ 2″
female supply fittin gs,spaced 150mm apart, level and
not ex tending beyond the finishe d wall surface. Hot
supply pipe must be located on the left .
Step3:
Step 2:
Ad just th e cente r-to-ce nter di stance between t he
connectors to 150mm and level . They should exten d
40 t o 45mm beyond the finished wall. Threa d the
esc utch eon s ont o t he conn ecto rs unt il they ar e
against the finished wall.
Step 4:
Put wash er into nut of the faucet.
Tighten the faucet to the connector s with a wrench.
Instal lation complete.
