Chain
Φ4*H55mm
Junction Box
#8-32N*H25mm
Mounting
3/4"*1"
Green Ground
#8-32N*H10mm
Wire
P3
Threaded rod
3/8"*H140mm
Tube
Metal cover
PARTS & ASSEMBLY SHEET
Fixture Name: Candace 1260-3P PW/RBZ
This fixture assembled PO:__________ Date: ________
Notice: Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing
or damaged, please note onthis sheet and contact the place of purchase to arrange for replacement parts.
PARTS LIST
Canopy
1ea
5.2"DIA*1.1"
Chain
1 ea
6FT*Φ3.8mm
Connector
2 ea
Strap
1 ea
Top Loop
1 ea
3/8"IP*H58mm
Finial
1 ea
3/8"*15mm
Company Name:_______________________Co. Account #:_____________
to be filled out b y retailer
Nipple
Hex Nut
4 ea
3/8"*H3mm
Threaded Ring
1ea
Φ23-16T*H5mm
Screw Collar Loop
1ea
3/8"*H42.4mm
Screw
1 ea
Top Cap
1 ea
Ø82*H25mm
Plastic Washer
1 ea
Ø
53*H2mm
1 ea
3/8"*H45mm
Spring Washer
1ea
Φ15*H3mm
Screw
2 ea
Connectors
3 ea
Steel Washer
1 ea
Ø55
*H0.8mm
Bottom Cap
1 ea
Ø62
*H20mm
1ea
Part Needed Quantity
Part Needed Quantity
Reason why ( missing, scratched, broken glass, bent, bad finish)
Comments
Read and review installation instruction sheet before assembling the fixture.
NOTE: INSTALL THE GLASS ASSEMBLY AFTER THE FIXTURE IS HUNG.
For Customer Service, contact the place of purchase to arrange for replacement parts.
1ea
1ea
1260Series instructions_20120731m.xls
PARTS & ASSEMBLY SHEET
J
K
C
L
M
N
O
P
Q
R
T
S
U
V
W
X
Y
Fixture Name: Candace 1260-3P PW/RBZ
ASSEMBLING THE FIXTURE (Fig. 1)
1. This fixture is packed w it h t he ar ms closed.
Gently spread the Arms (M ) until evenly spaced.
2. Thread the Socket assembly (P) to Center
Column (N).
3. Pull the fixture wires t hr ough coupler( C),
Top Cap(K) and Top Loop (J) then screw
the Top Loop (J) to the coupler (C) until tight.
4. By measuring determine correct number of links
needed for proper hanging height. Use a pair of
pliers to open one link of the Chain then remove
the excess Chain and discard it.
5. Use one chain connector to attach one end of
the chain to the Top loop (J) and close the chain
connector.
6. Feed the fixture wires thr ough the Chain (every
three links) and pull the wires until taut.
7. Slip Canopy loop collar over the chain, then do
the same with the canopy.
8. When ready to complete t he inst allation Use the
other chain connector and at tach the other end of
the chain to the canopy loop and close the chain
connector.
9. Make sure the weight of t he chandelier is
supported by the chain-not the electrical wire.
*You may now hang the fixture
10. Screw the Threaded rod(Q) to coupler in
socket assembly, secure with hex nut.
11. Install the light bulbs in accordance with the
fixture's specifications.
12. Slide tthe Metal Sleeve (R) and the Cap (S)
onto rod (Q) and adjust the height, then
tighten with Hex Nut (W), slide Glass Shade (T),
Plastic Washer (U), Steel Washer (V) and tighten
with Hex Nut (W).
13. Place Bottom Cap onto the rod(Q) and thread
the Finial (Y) to the rod (Q) tightly.
DO NOT EXCEED MAXIMUM WATTAGE RATING!
Fig 1
For Customer Service, contact the place of purchase to arrange for replacement parts.
1260Series instructions_20120731m.xls
wiring connections.
CONNECTING THE WIRES (Fig 2)
the wire connector onto the wires.
fixture assembly sheet.

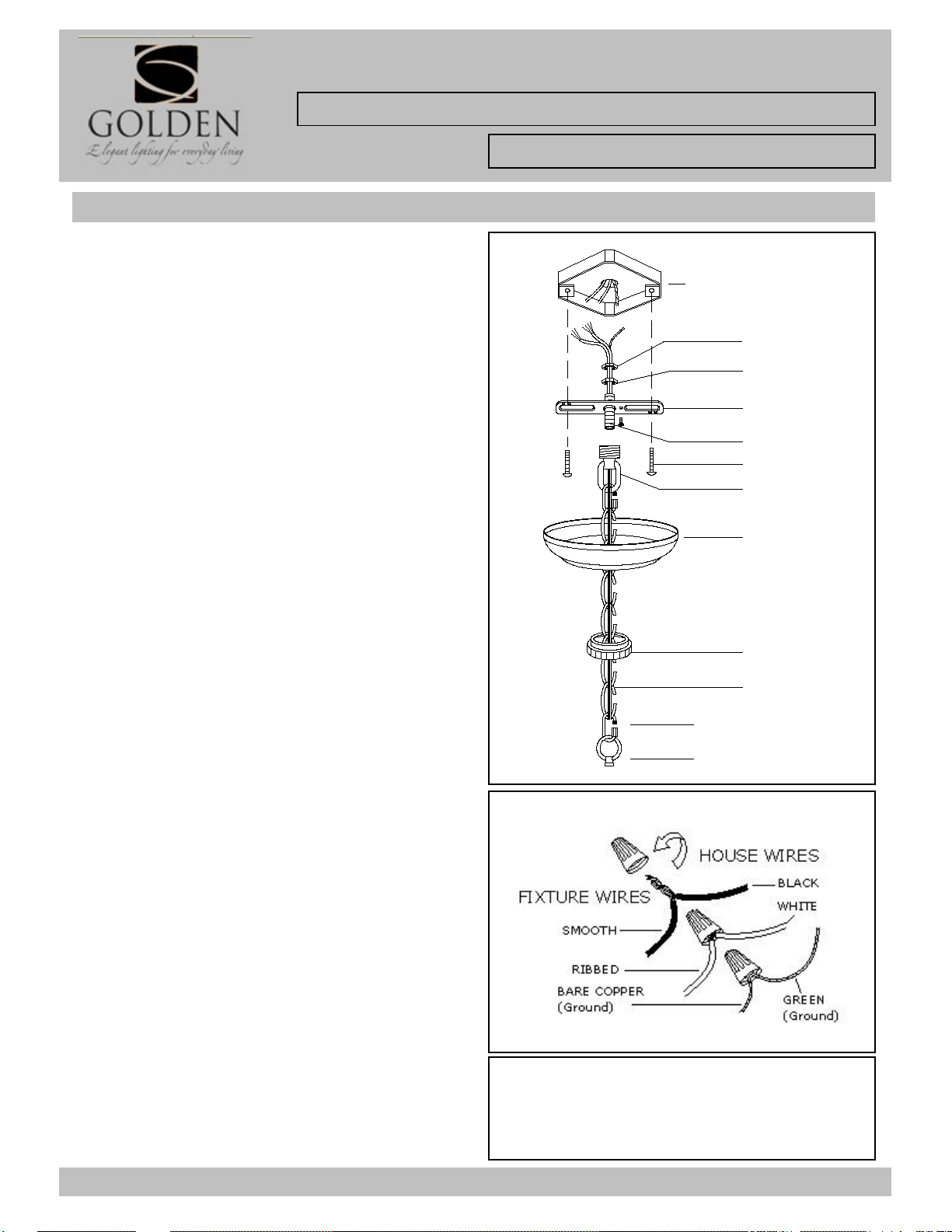

INSTALLATION INSTRUCTIONS
G
CHAIN
J
H
F
E
D
JUNCTION BOX
(CEILING)
A
C
B
L
Fixture Name: Candace 1260- 5 /-D5/-9/-3P PW/RBZ
For Chandelier Light Fixture
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holds all parts. Check that all parts are included
as shown in the illustration and parts list.
2. Shut off the power at the circuit breaker and remove old
fixture from ceiling, including the old mounting strap.
3. Thread Nipple(C) into Canopy Loop (F) until snug.
4. Thread other end of the Nipple (C) with Canopy Loop
attached into Mounting Strap (D).
5. Place Lock Washer (B) over end of Nipple (C) protruding
through Mounting Strap (D) and thread Hex Nuts (A) onto
Nipple until tight.
6. Take this mounting strap assembly and mount to ceiling
junction box with Mounting screws (E). Tighten screw securely
with screw driver.
7. Unscrew the Canopy loop collar(H )from the Canopy loop.
Take the canopy and pass over the Canopy loop.
approximately one half of the canopy loop exterior threads
should be exposed. Adjust until desired height is reached. *the
Canopy loop collar should fit snugly on the Canopy loop after
the canopy is installed. Remove Canopy and Canopy lock
collar.
8. Assemble the fixture and have an assistant or secure
support hold the weight of the fixture while you complete the
Fig. 1
9.Thread the fixture wires and ground wire of the assembled
fixture through the canopy loop and nipple and into the outlet
box.
10. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).
11. Attach the GROUND wire(GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green Ground
Screw on the Mounting Bracket (D) or connect both wires
together using the correct size of wire connectors.
NOTE: Twist the wires together in the same direction you twist
12. Tuck these wire connections neatly into the Junction Box.
FINISHING THE INSTALLATION
13. Raise the Canopy (G) to the ceiling. Secure in place by
tightening the Canopy Loop Collar (H) onto the Canopy Loop
(F).
14. Install the light bulbs and glass shade according to the
For Customer Service, contact the place of purchase to arrange for replacement parts.
Fig. 2
YOUR INSTALLATIO N I S NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX
AND TEST THE FIXTURE.
