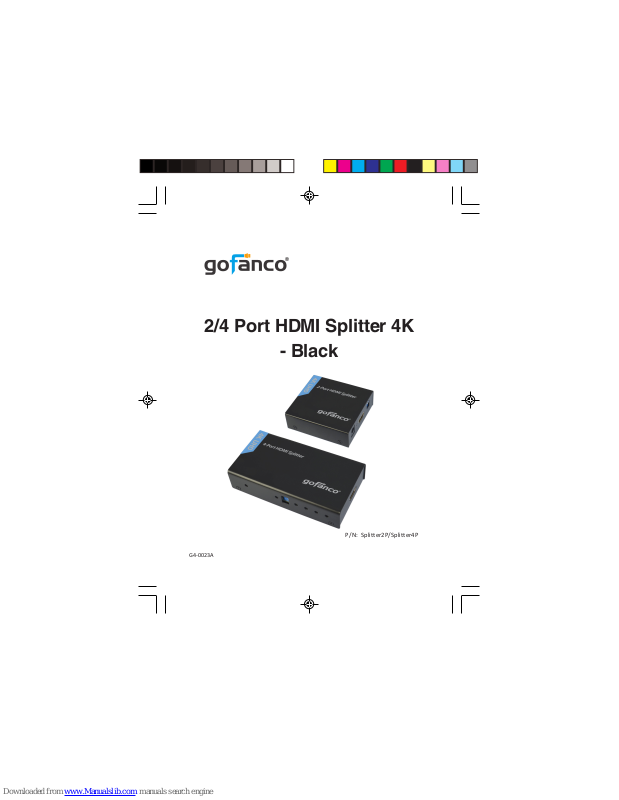

2/4 Port HDMI Splitter 4K
- Black
P/N: Splitter2P/Splitter4P
G4-0023A
Congratulations for owning a gofanco product. Our products
aim to meet all your connectivity needs wherever you go.
Have fun with our products!
Please read this manual carefully before first use.
If you need more information about our products, please
visit www.gofanco.com.
For technical support, please email us at support@gofanco.
com.
For drivers/manuals download, please go to http:// www.
gofanco.com/download.
2
Introduction
gofanco 2/4-Port HDMI Splitter 4K - Black ( part# Splitter2P/
Splitter4P ) distributes one HDMI source signal to two/four
displays simultaneously.
Specifications
Part No. Splitter2P Splitter4P
HDMI O utp ut P ort 2 4
Spec. HDMI v2.0
Compliance HDCP 1. 4, 36- bit d eep Colo r, 3D
Video Ba ndwidth 10.2Gbps
Video support 480p, 720p, 1080i, 1080p@60Hz, 4Kx2K (3840x2160 @60Hz YUV 4:2:0)
Audi o su ppo rt LPCM 7.1, Do lby T rue HD, Dol by Dig ital plus , DTS-HD mast er aud io
Connect ors
EDID Yes (4 E DID modes)
Transmissi on distance
(4Kx2K @60Hz)
Power adapter DC 5V/1A
Dimen sions 2.95" (W) x 0.99" (H) x 2.67" (D) 4.53" (W) x 0.98" (H) x 2.44" (D)
Weight 0.28lbs 0.46lbs
Input: HDMI x 1
Output: HDMI x 2
Input: 5m (Max.) for HDMI standard cable_26AWG
Output: 10m (Max.) for HDMI standard cable_26AWG
* Note: The transmission distance may vary by cable quality
Package Contents
• 2/4-Port HDMI Splitter 4K - Black
• Power Adapter
• User's guide
Input: HDMI x 1
Output: HDMI x 4
3
Layout
EDID switches
4
Power plug
HDMI Output Output LEDs
HDMI Input
Input LED
Figure 1 & 2: 2-Port HDMI Splitter 4K - Black
Power LED
Input LED
HDMI Outputs
Output LEDs
EDID switches
Figure 3 & 4: 4-Port HDMI Splitter 4K - Black
HDMI Output
HDMI Output
Power plug
HDMI Input
• Power plug : Power adapter plug
• Input LED : On when the input signal is detected
• HDMI input : Connect to HDMI source device
• EDID switches: Please refer to the table below to configure
EDID. There are 4 settings.
Position Setting
Mixed EDID
Copy EDID
1080p output
4Kx2K output (Default)
* Note: When changing EDID mode, it's required to unplug the
power from the source device and plug it back again.
- Mixed EDID:
Read EDID information from display with the lowest
resolution and use that resolution for all HDMl outputs.
- Copy EDID:
Splitter2P: Read EDID information from display
connected to Output 1 and use that resolution for
both HDMI outputs. If there's no display connected
to Output 1, Output 2 will display in 1080p resolution.
Splitter4P: Read EDID information from display
connected to Output 4 and use that resolution for all
5
HDMI outputs. If there's no display connected to
Output 4, all Outputs will display in 1080p resolution.
- 1080p output:
Display 1080p resolution to all HDMI outputs.
- 4Kx2K output:
Display 4K resolution to all HDMI outputs.
• Power LED : On when the power is connected
• Output LEDs : On when the output signal is detected
• HDMI Outputs : Connects to HDMI displays or TVs
Hardware Installation
1. Power off all devices you plan to connect to this splitter.
2. Connect your HDMI device to the splitter's HDMI Input
with an HDMI cable (cable not included).
3. Connect your HDMI displays to the splitter's HDMI
Outputs with HDMI cables (cables not included).
4. Connect the included power adapter to the splitter's
Power plug and plug it into a reliable power outlet.
5. Power on all of the connected devices.
6. The splitter is now ready to use.
6
Application
Split HDMI signals from an HDMI device (such as DVD player
or PC ) to 2/4 displays simultaneously at high resolutions
up to 4K.
HDMI device
(DVD player, PC, etc.)
HDMI display
HDMI display
HDMI display
* 3D support for 1080p (max)
HDMI display
7
®
Thank you for choosing gofanco
www.gofanco.com
