PRO-HDBaseT-U
4K HDR Extender over Single Cat.X with HDBaseT, RS-232,
Bi-direconal IR, PoC, USB & ARC
ReceiverTransmier
®
Made in Taiwan
User‘s Guide
®
PRO-HDBaseT-U
Congratulaons for owning a gofanco product. Our products aim to meet all your
connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit www.gofanco.com.
For technical support, please email us at support@gofanco.com.
For drivers/manuals download, please go to hp://www.gofanco.com/download.
®
PRO-HDBaseT-U
Please read all of these instructions carefully before you use the device. Save
this manual for future reference.
The PRO-HDBaseT-U 4K HDR Extender over Single Cat.X with HDBaseT, RS-232,
Bi-directional IR, PoC, USB & ARC has been tested for conformance to safety
regulations and requirements, and has been certied for international use. However, like all electronic equipments, the PRO-HDBaseT-U should be used with
care. Please read and follow the safety instructions to protect yourself from
possible injury and to minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of this
unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed for
this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
1. Safety and Notice
Table of Contents
1. Safety and Notice ..................................................................3
2. Introduction .......................................................................4
3. Features ...........................................................................5
4. Package Contents ..................................................................5
5. Specication ......................................................................6
6. Connection Diagram ...............................................................7
7. Panel Description ..................................................................8
8. IR Pass-Through ...................................................................10
9. HDMIPINDenition ...............................................................11
10. Hardware Installation .............................................................11
11. Notice ............................................................................12
12. Warranty .........................................................................13
3
®
PRO-HDBaseT-U
The PRO-HDBaseT-U 4K HDR Extender over Single Cat.X with HDBaseT, RS-232,
Bi-directional IR, PoC, USB & ARC boosts up your video/audio transmission dis-
tance up to 100m (330ft) in HDTV 1080p with 48-bit color depth and 70m (230ft)
at 4K-HDR. PRO-HDBaseT-U has new generation technology which makes sure
the HDBaseT extender can support HDMI2.0a and HDCP 2.2. PRO-HDBaseT-U also
supports the most advanced 3D video format complaint with HDMI specication
and therefore guarantees the highest 3D video compatibility on the market. With
only one cost-eective Cat.5/5e/6 cable, users can readily extend UHDTV sources from DVD players, Blu-ray Disc player, PS4, PC, and any other kinds of sources
compliant with TMDS to distant display monitors including HDMI or DVI enabled
TV sets or LCD PC monitors. With the advanced design for the latest HDMI technology, deep color video, DTS-HD or Dolby TrueHD audio, and HDCP support and
compatibility are all further insured. This exibility makes HDCP compliant DVD
players or PS4 transmit utmost high quality video and audio with a greater distance at the minimal cost, when integrating several components apart. In addition, PRO-HDBaseT-U is also equipped with bi-directional IR pass-through path and
RS-232 serial port control. These bonus features allow users to boost IR control
distance up to 100m (330ft) through only single Cat.5/5e/6 cable including HDMI
signals. In addition, serial port and USB2.0 oer the convenient path for interactive application, such as touch panels. In addition, PRO-HDBaseT-U also supports
PoC (Power over Cable) which can power both units from TX or RX with power
supply.
The PRO-HDBaseT-U includes two units: transmitting unit PRO-HDBaseT-U-TX and
receiving unit PRO-HDBaseT-U-RX. The transmitting unit is used to capture the input HDMI / DVI signals with control packets. The receiving unit is responsible for
equalizing the transmitted HDMI signal and reconstructing IR and serial control
signals. PRO-HDBaseT-U oers the most convenient solution for digital signage
with long distance A/V transmission path.
2. Introduction
4
®
PRO-HDBaseT-U
5
• HDMI 2.0a compliant
• Supports 4K2K@60 4:4:4 8bits
• Supports High Dynamic Range (HDR)
• Extends the HDMI Signal up to 100m (330ft) from the HDMI source at Full HD 1080p
48-bit and 70m (230ft) at 4K2K@60 4:4:4 (4K-HDR Technology)
• USB 2.0 over Cat.5/5e/6 cable transmission
• Bi-directional PoC (Power over Cable) support. Only 1 power adapter required to
power both the TX and RX
• Supports ARC on receiver unit
• HDCP & EDID Bypass
• CEC support
• Auto equalization
• Analog audio over Cat.5/5e/6 cable transmission from transmitter to receiver
• Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
• DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
• Supports full frequency IR signal from 20KHz to 60KHz
• Bi-directional IR pass-through
• Full Duplex RS-232 control up to 115,200 bps through connector
• Wall mounting housing design for easy and robust installation
The length depends on the characteriscs and quality of the cables. Higher resoluons
and longer transmission distances require low skew cables (<25ns/100m) for best performance. Unshielded CAT6 with metal RJ45 connectors is recommanded.
• 1x PRO-HDBaseT-U [TX & RX]
• 1x IR blaster
• 1x IR receiver
• 1x 12V 2A
• 4x Ear mount
• 1x User Manual
4. Package Contents
3. Features
®
PRO-HDBaseT-U
5.Specications
Item Description
Technical PRO-HDBaseT-U[Tx] PRO-HDBaseT-U[Rx]
Role of usage Transmitter [TX] Receiver [RX]
HDMI compliance HDMI 2.0a
HDCP compliance Yes (HDCP 2.2)
Video bandwidth
Single-link 600MHz [18Gbps]
Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
HDMI over UTP
1080p@60 100m (330ft) [CAT5e]
4K2K@60 (4:4:4 8bit) 70m (230ft) [CAT 5e]
Audio support Surround sound [up to 7.1ch] or stereo audio
Equalization Auto
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection
Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
IR pass-thru Bi-directional
RS-232 support Yes
USB support USB2.0
PoC support Yes
Input 1x HDMI, 2x 3.5mm 1x RJ-45, 1x 3.5mm
Output 1x RJ-45, 1x 3.5mm 1x HDMI, 2x 3.5mm, 1x SPDIF
In / Out 1x RS-232, 2x USB 1x RS-232, 2x USB
HDMI source control
Controllable via IR pass-through from RX to TX or TX to RX with IR extenders
HDMI connector Type A [19-pin female]
RJ-45 connector WE/SS 8P8C(Reverse Mode)
USB connector Type A & Type micro-USB
3.5mm connector IR receiver / IR blaster IR receiver / IR blaster
Mechanical
Housing Metal enclosure
Dimensions
[L x D x H]
Model 150x95x20mm[5.9" x3.7" x0.8"] 150x95x20mm[5.9“ x3.7“ x0.8“]
Package 264 x 170 x 77mm[10.3“ x 6.7“ x 3“]
Carton 430 x 358 x 291mm[1‘4“ x 1‘2“ x 11.5“]
Weight
Model 387g [13.6 oz] 406g [14.3 oz]
Package 1325g [2.9 lbs]
Fixedness Wall-mounting case with screws
Power supply 12V 2A DC
Power consumption 18 Watt [max]
Operation temperature
50°C [122°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
6
®
PRO-HDBaseT-U
6. Connection Diagram
7
®
PRO-HDBaseT-U

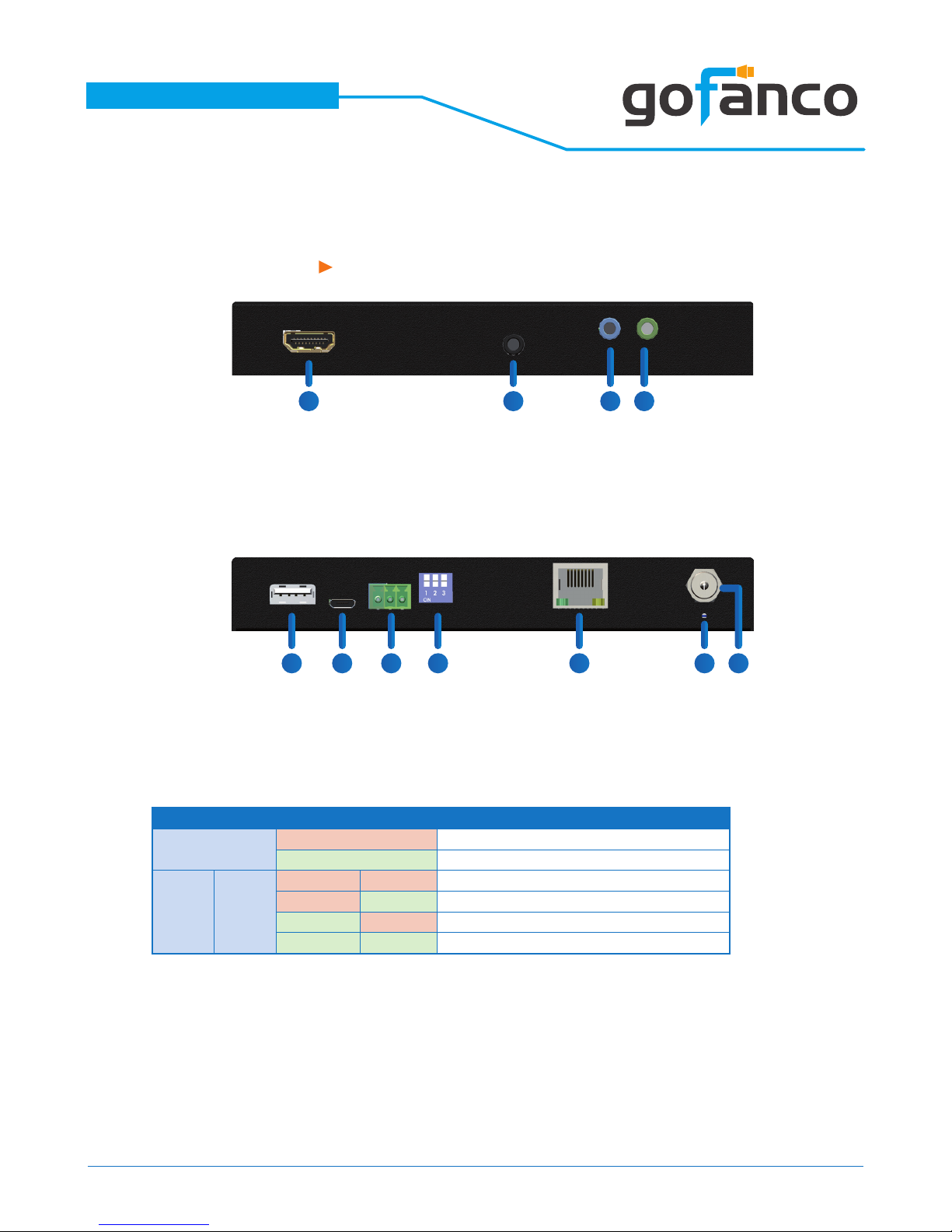

7. Panel Description
Front Panel
Rear Panel
1. HDMI IN: Connect to a HDMI source with a HDMI male-male cable
2. Stereo Input: Provide a channel to extend an external analog audio to receiver over HD-
BaseT
3. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
4. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
5. USB: Connect to USB Device
6. Micro-USB: Connect to USB Host
7. RS-232:Connect to serial port device with a DSUB-9 male-male or male-female cable
here F/W update for Valens chipset
8. DIP Switch
9. RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to the transmitting unit RX
[Green LED] Link indicator LED
[Yellow LED] When transmitting unit receive the HDMI signal, the LED light will shine
LED: Power indicator
+12V DC: Connect to a 12V DC power supply.
8
2 3 41
6 7 8 9
10
11
5
Transmitting unit PRO-HDBaseT-U-TX
DIP Switch Position Description
PIN#1
ON[]
Link to USB Host (USB-micro port)
OFF[]
Link to USB Device (USB Type A port)
PIN#2 PIN#3
ON[] ON[]
For HDBaseT Firmware Update
ON[] OFF[]
HDBaseT Monitor Mode
OFF[] ON[]
For System Firmware Update
OFF[] OFF[]
RS-232 Normal Use
ON[] OFF[]
10.
11.
®
PRO-HDBaseT-U
Receiving unit PRO-HDBaseT-U-RX
9
Front Panel
Rear Panel
1. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable
2. Stereo Output: External analog audio output from transmitter over HDBaseT
3. S/PDIF Output: local ARC output
4. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
5. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
6. USB: Connect to USB Device
7. Micro-USB: Connect to USB Host
8. RS-232:Connect to serial port device with a DSUB-9 male-male or male-female cable
here F/W update for Valens chipset
9. DIP Switch
RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to the transmitting unit TX
[Green LED] Link indicator LED
[Yellow LED] When receiving unit receive the HDMI signal, the LED light will shine
LED: Power indicator
+12V DC: Connect to a 12V DC power supply.
2 3 4 51
7 8 9
10
11
12
6
DIP Switch Position Description
PIN#1
ON[]
Link to USB Host (USB-micro port)
OFF[]
Link to USB Device (USB Type A port)
PIN#2 PIN#3
ON[] ON[]
For HDBaseT Firmware Update
ON[] OFF[]
HDBaseT Monitor Mode
OFF[] ON[]
For System Firmware Update
OFF[] OFF[]
RS-232 Normal Use
ON[] OFF[]
10.
11.
12.
®
PRO-HDBaseT-U
i

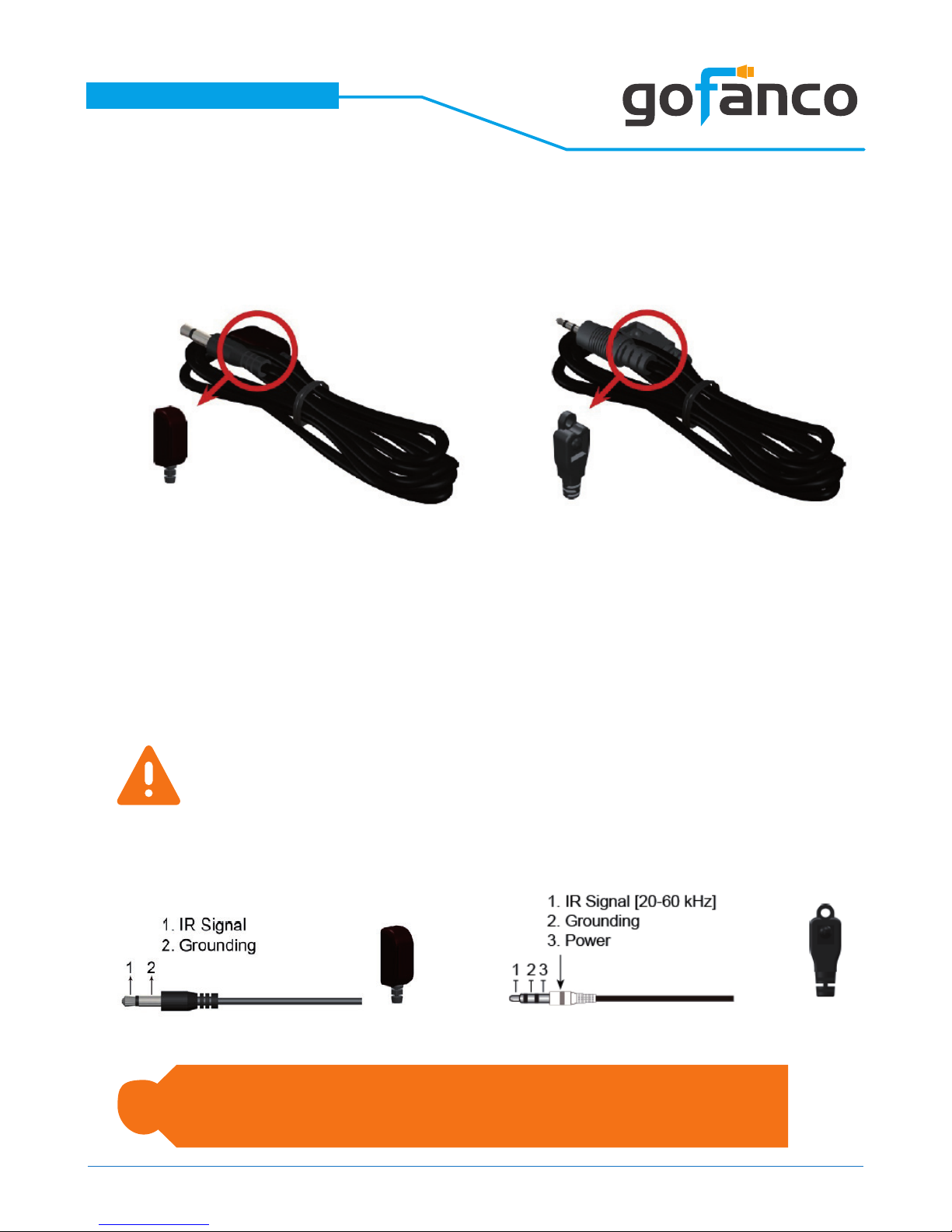

8. IR Pass-Through
IR Extenders
IR Sockets
IR Blaster IR Receiver
IR BLASTER:
plug in the IR blaster to emit all IR command signals received from the IR receiver from the
other end to control the devices corresponding to the IR signals.
IR RECEIVER:
plug in the IR receiver to receive all IR command signals from the IR remote controls of the
corresponding devices.
CAUTION
Incorrect placement of IR Blaster and Receiver may result in the failure of the
IR extenders. Please check carefully before plugging in the IR extender to the
respective IR sockets. Warranty will not cover the damage.
DenitionofIREarphoneJack
IR Blaster IR Receiver
You can buy any IR extension cables in the market that are compatible to
the definition of the IR sockets for the matrix if necessary for replacement
use. However, IR cables longer than 2m (6-ft) may not work.
10
®
PRO-HDBaseT-U
11
9.HDMIPINDenition
10. Hardware Installation
Type A (Receptacle) HDMI
Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield
Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock–
Pin 3 TMDS Data2– Pin 13 NC
Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on device)
Pin 5 TMDS Data1 Shield Pin 15 SCL
Pin 6 TMDS Data1– Pin 16 SDA
Pin 7 TMDS Data0+ Pin 17 DDC/CEC Ground
Pin 8 TMDS Data0 Shield Pin 18 +5V Power
Pin 9 TMDS Data0– Pin 19 Hot Plug Detect
Pin 10 TMDS Clock+
1. onnect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting
unit PRO-HDBaseT-U-TX.
2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit
PRO-HDBaseT-U-RX.
3. Connect IR Blaster/Receiver to both TX and RX units.
4. Connect USB Host/Device to both TX and RX units
5. Connect audio source to TX and audio receiver/speaker to RX unit.
6. Connect a Cat-5/5e/6 cable between the transmitting and receiving units.
7. Make sure this Cat-5/5e/6 cable is tightly connected and not loose.
8. Plug in 12V DC power supply unit to the power jack of the transmitting unit
PRO-HDBaseT-U-TX.
®
PRO-HDBaseT-U
12
11. Notice
1. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C & VG870B.
2. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR
extenders. Please check carefully before plugging in the IR extender to the respective IR sockets. Warranty will not cover the damage.
3. The transmission length is largely aected by the type of Cat-5/5e/6 cables, the
type of HDMI sources, and the type of HDMI display. The testing result shows solid
UTP cables (usually in the form of 300m [1,000ft] bulk cables) can transmit a lot
longer signals than stranded UTP cables (usually in the form of xed length patch
cords). Shielded STP cables are better suited than unshielded UTP cables. A solid
UTP Cat-5e cable shows longer transmission range than stranded STP Cat-6 cable.
For long extension applications, solid UTP/STP cables are the only viable choice.
4. EIA/TIA-568-B termination (T568B) for Cat-5/5e/6 cables is recommended for bet-
ter performance.
5. To reduce the interference among the unshielded twisted pairs of wires in Cat5/5e/6 cable, one can use shielded STP cables to improve EMI problems, which is
worsen in long transmission.
6. Because the quality of the CAT5/6 cables has the major eect on how long the
transmission limit can achieve and how good is the received picture quality, the
actual transmission range is subject to one’s choice of Cat-5/5e/6 cables. For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is recommended.
7. If your HDMI display has multiple HDMI inputs, it is found that the rst HDMI input
[HDMI input #1] generally can produce better transmission performance among all
HDMI inputs.
®
PRO-HDBaseT-U
13
12. Limited Warranty
The SELLER warrants the PRO-HDBaseT-U 4K HDR Extender over Single Cat.X with HD-
BaseT, RS-232, Bi-directional IR, PoC, USB & ARC free from defects in the material and
workmanship for 1 year from the date of purchase from the SELLER or an authorized
dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not
been subjected to accident, disaster, abuse or any unauthorized modications including
static discharge and power surge. This warranty is oered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal
housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current
price of parts and labor in eect at the time of repair. Such repairs are warranted for 90
days from the day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in transit. Under no
circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or tness or merchantability for any particular
purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables and power adapters
are limited to a 30 day warranty and must be free from any markings, scratches, and
neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate.
However, The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be liable for direct, indirect, incidental, special,
or consequential damages resulting from any defect or omission in this manual, even
if advised of the possibility of such damages. Also, the technical information contained
herein regarding the PRO-HDBaseT-U features and specications is subject to change
without further notice.
®
PRO-HDBaseT-U
14
®
PRO-HDBaseT-U
15
The product name and brand name may be registered trademarks of related manufacturers. TM and ®
may be omied on the user‘s guide. The pictures on the user‘s guide are just for reference, and there
may be some slight dierences with the actual products.
We reserve the rights to make changes without prior noce to a product or system described herein to
improve reliability, funcon, or design.
Disclaimer
www.gofanco.com
Thank you for choosing gofanco
®
March, 2018 Ver. A Copyright © 2018 by gofanco, LLC. All rights reserved.
Loading...
