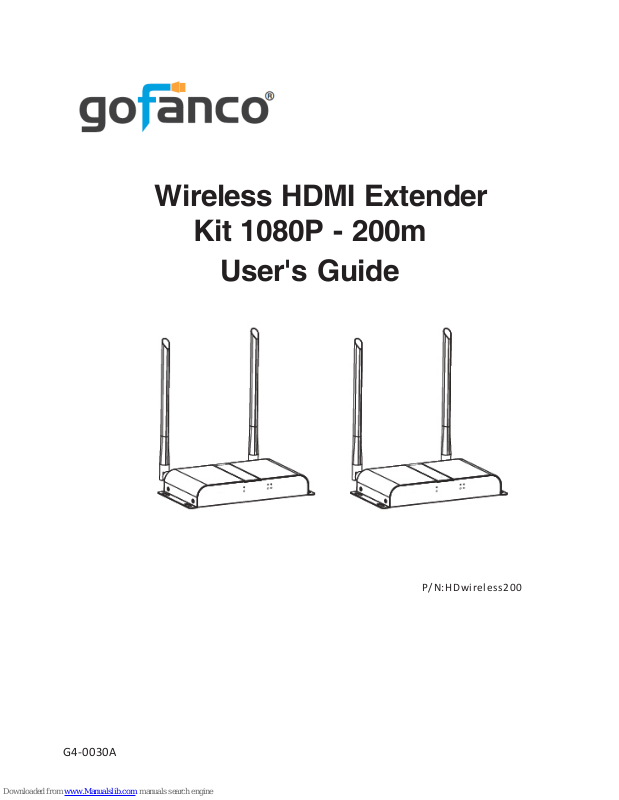

Wireless HDMI Extender
Kit 1080P - 200m
User's Guide
G4-0030A
P/N:HDwireless200
2
Thank you for purchasing from gofanco. Our products
aim to meet all your connectivity needs wherever you
go. For optimum performance and safety, please read
the instructions carefully and keep this User's Guide for
future reference. If you need more information about
our products, please visit www.gofanco.com. For
technical support, please email us at
support@gofanco.com. For drivers/manuals download,
please go to http://www.gofanco.com/download.
Important Safety Notices
Please read safety instructions carefully before installation
and operation.
• Please pay close attention to all warnings and hints
for this device
• Do not expose this unit to rain, heavy moisture, or
liquid
• Do not put any items into the device or attempt to
modify its operation
• Do not repair the device or open the enclosure
without professional guidance to avoid electric
shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to
avoid damage from overheating
• Shut off power and make sure environment is safe
before installation
• Do not plug the HDMI cables and IR cables
in/out when the device is in use to avoid cable
damage. Make sure they are plugged into the
correct ports
• Use the included DC5V power adapters only. Make
sure the specification matches if using 3rd-party
DC power adapters
3
Introduction
The Wireless HDMI Extender Kit 1080p - 200m extends
high definition HDMI signals wirelessly from a source
device to a display device up to 200 meters with the
advanced application of HDBitT transport protocol and
wireless technology. It requires no cables between the
transmitter (TX) and receiver (RX), making the installation
easy and clean. Great for homes and offices.
Note: Wireless transmission distance will vary due
to the environmental conditions. Thick walls, brick,
glass or electronic interference will shorten the
wireless transmission distance or cause signal loss.
Features
• Transmits HDMI signals from source device to
display device up to 200 meters wirelessly
• Supports IR remote control function to control the
source device from long distances
• No cables required between transmitter (TX) and
receiver (RX)
• Easy and clean installation
4
Package Contents
IR Blaster Extension
Cable (1pc)
Receiver (RX) (1pc)
DC5V/2A Power
Adapter (2pcs)
Transmitter (TX) (1pc)
IR Receiver Extension
Cable (1pc)
User's Guide (1pc)
Installation Requirements
1. HDMI source device (DVD player, PS3, XBOX, set
top box, PC, etc.)
2. HDMI display device (SDTV/Monitor, HDTV/
Monitor, projector, etc.)
3. HDMI Cables (not included)
5
Product Layout
Figure 1: Transmitter (TX)
1. Power LED Lights up when the transmitter is powered on
2. Data Transmission LED
Blinks slowly when searching for device
Blinks fast when device is detected successfully
3. Connection LED Lights up when the wireless signal is connected
4. Antennas Transmits wireless signals
5. Power Adapter Jack Connects to the included power adapter
6. Reset Button Press the button to reset the transmitter
7. HDMI Input Port Connects to the HDMI Source Device
8. IR Blaster Extension Cable Port Connects to the IR Blaster Extension Cable
Figure 2: Receiver (RX)
1. Power LED Lights up when the receiver is powered on
2. Data Transmission LED
Blinks slowly when searching for device
Blinks fast when device is detected successfully
3. Connection LED Lights up when the wireless signal is connected
4. Antennas Transmits wireless signals
5. Power Adapter Jack Connects to the included power adapter
6. Reset Button Press the button to reset the receiver
7. HDMI Output Port Connects to the HDMI Display Device
8. IRReceiver Extension Cable Port Connects to the IR Receiver Extension Cable
6
Hardware Installation
1. Power off all devices including your HDMI source
and HDMI display.
2. Install the included antennas to the TX and RX.
3. Connect your HDMI source device to the
Transmitter's HDMI Input connector with an HDMI
cable (HDMI cable not included).
4. Optional: Connect the IR Blaster Extension Cable
to the Transmitter's IR interface port. Face the eye
towards your HDMI source device's IR window.
This connection is needed only if you need to
control your HDMI source from the remote
location.
5. Connect your HDMI display to the Receiver's
HDMI Output connector with an HDMI cable
(HDMI cable not included).
6. Optional: Connect the IR Receiver Extension Cable
to the Receiver's IR interface port. This connection
is needed only if you need to control your HDMI
source from the remote location.
7. Plug the included power adapters into the
Transmitter's and Receiver's Power Jacks, then
plug both power adapters into reliable power
outlets.
8. Power on your HDMI source device and HDMI
display.The wireless extender is ready for use.
Note: For optimal signal range, install in a clear
environment with few obstacles. Wireless signals
from other devices, such as microwaves, wireless
mice and keyboard, etc. may interfere with
transmission. Contact our technical support team
if you have specific questions
7
Notice
• Wireless signals transmitted through walls, glass,
brick or other solid objects will cause signal loss
and decrease the transmission distance
• External wireless signals from microwaves, wireless
mice and wireless keyboards will interfere with
HDMI signal transmission
• Keep the unit in a well ventilated environment to
prevent it from overheating
• DO NOT expose the unit to rain, moisture, or liquids
• DO NOT place anything on the unit
• DO NOT open the housing, doing so will void the
warranty and may cause personal injury due to
electronic hazard
• DO NOT plug-in or remove the IR extension cables
when the unit is powered on
Figure 3: IR Application
IR Application
Transmitter (TX)
Receiver (RX)
8
FAQ & Solutions
Q: What if my display shows "Waiting for connection..."
on the bottom right corner?
A: Please check if the power adapters of Transmitter
(TX) and Receiver (RX) are connected and power
LED is ON.
Q: The display says, "Please check the TX input signal"
A: 1) Please check if there is HDMI signal input from
the Transmitter (TX) unit.
2) Use different HDMI cables.
3) If it's still not working, connect the HDMI source
device to the TV directly to see if there's a signal.
Q: The display is not clear or stable.
A: 1) Please adjust the position of Transmitter and
Receiver units and make sure they are within the
required signal range.
2) Check the HDMI cable lengths are within 2m.
3) Check the transmission distance is within 200m
(line-of-sight).
4) Press the "Reset" button on the Transmitter and
Receiver units and reconnect.
5) Remove other wireless signals and move any
obstacles that are blocking the signal line-of-sight.
6) Decrease the distance between the transmitter
unit and the receiver unit.
9
Specifications
Item Specification
HDMI Signal Fully compatible with HDCP
Transport Protocol HDBitT
Resolution
480i@60Hz, 480P@60Hz, 576i@50Hz,
576p@50Hz, 720p@50/60Hz,
1080i@50/60Hz, 1080p@50/60Hz
IR Remote Control Supports 20kHz~60kHz IR remote devices
Transmission Distance Up to 200m at 1080P@60Hz
Operating Temperature 32° - 140° F (0° - 60° C)
Power Adapter Output: DC5V/2A
Power Consumption TX: <8.5W / RX: <5.5W
Housing Material Metal
Product Dimensions (TX & RX) 7.7" (W) x 4.4" (D) x 1.2" (H)
Weight TX: 1.17 lbs / RX: 1.16 lbs
Color Black
10
Blank Page
11
Disclaimer
The product name and brand name may be registered
trademarks of related manufacturers. TM and ® may be
omitted on the user's guide. The pictures on the user's
guide are just for reference, and there may be some slight
differences with the actual products.
We reserve the right to make changes without prior
notice to a product or system described herein to improve
reliability, function, or design.
