gofanco HDMIExt2 User Manual

Download

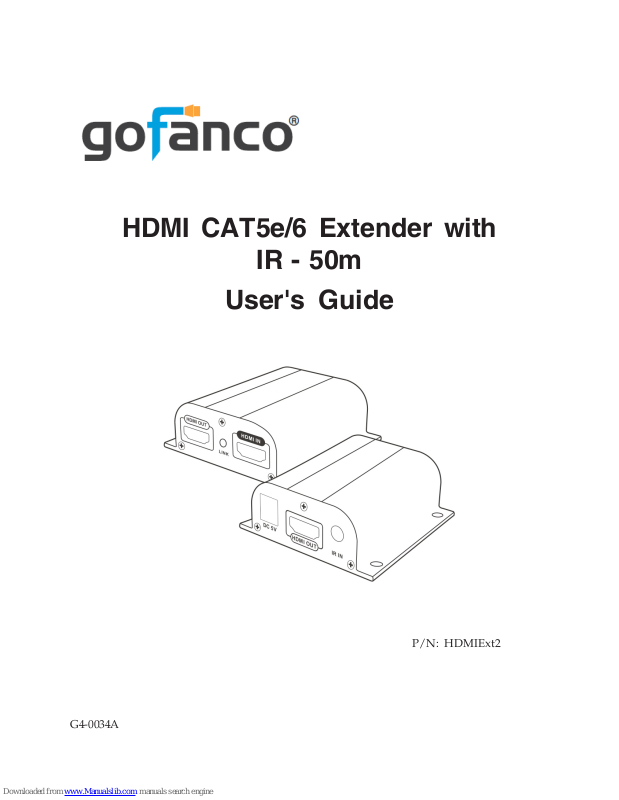

HDMI CAT5e/6 Extender with
IR - 50m
User's Guide
G4-0034A
P/N: HDMIExt2
2
Important Safety Notices
Please read safety instructions carefully before installation and operation.
• Please pay close attention to all warnings and hints for this device
• Do not expose this unit to rain, heavy moisture, or liquid
• Do not repair the device or open the enclosure without professional guidance to avoid electric shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to avoid damage from overheating
3
• Shut off power and make sure environment is safe before installation
• Do not plug the HDMI cables and IR cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports
• Use the included DC5V power adapters only. Make sure the specification matches if using 3rd-party DC power adapters
4
Transmitter (TX) (1pc) Receiver (RX) (1pc) User's Manual (1pc)
Power Adapter (2pcs)
IR Blaster Extension
Cable (1pc)
IR Receiver Extension
Cable (1pc)
Introduction
The HDMI CAT5e/6 Extender with IR - 50m extends high definition 1080p HDMI signals from a source device to a display device up to 50 meters using an economical CAT5e/6 cable.
Features
• Transmits HDMI signals from source device to display device up to 50 meters using economical CAT5e/6 cabling
• Supports IR remote control function to control the source device from long distances
• Easy and clean installation
Package Contents
5
Installation Requirements
1. HDMI source device (computer, DVD player, XBOX, PS3, etc)
2. HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.)
3. UTP/STP CAT5e/6 cable following IEEE-568B wiring standard
Product Layout
Figure 1: Transmitter (TX)
1. HDMI Out Connects to a local HDMI display
2. Link LED
Lights up when HDMI input signal detected Flashes when no HDMI input signal detected
3. HDMI Input Connects to the HDMI source device
4. IR Output Connects to the IR Blaster extension cable
5. RJ45 Output
Connects to the Receiver's RJ45 Input port
using a CAT5e/6 cable
6. Reset Button Press the button to reset the transmitter
7. Power Jack Connects to the included power adapter
6
Figure 2: Receiver (RX)
1. Reset Button Push the button to reset the receiver
2. RJ45 Input
Connects to the Transmitter's RJ45 Output
port using a CAT5e/6 cable
3. Link LED
Lights up when RJ45 from TX detected Flashes when RJ45 from TX not detected
4. Power Jack Connects to the included power adapter
5. HDMI Out Connects to remote HDMI display
6. IR Input Connects to the IR receiver extension cable
Hardware Installation
1. Power off all devices including your HDMI source and HDMI display(s).
2. Connect your HDMI source device to the Transmitter's HDMI Input connector with an HDMI cable (HDMI cable not included).
3. Optional: Connect a HDMI display to the Transmitter's HDMI out connector with an HDMI cable (HDMI cable not included) for local monitoring of the HDMI signal.
7
4. Optional: Connect the IR Blaster Extension Cable to the Transmitter's IR output port. Face the eye towards your HDMI source device's IR window. This connection is needed only if you need to control your HDMI source from the remote location.
5. Plug your CAT5e/6 cable between the Transmitter's RJ45 Output and Receiver's RJ45 Input.
6. Connect your HDMI display to the Receiver's HDMI ouput connector with a HDMI cable (HDMI cable not included).
7. Optional: Connect the IR Receiver Extension Cable to the Receiver's IR input port. This connection is needed only if you need to control your HDMI source device from the remote location.
8. Plug the included power adapters into the Transmitter's and Receiver's power jacks, then plug both power adapters into a reliable power source.
9. Power on all connected devices.
10. The HDMI extender is ready for use.
8
Application
Transmitter (TX)
Receiver (RX)
CAT5e/6 Cable
IR Blaster
Extension Cable
IR Receiver Extension Cable
HDMI Out
HDMI Out
HDMI In
Display
Display
DVD
9
FAQ & Solutions
Q: There is no video output or audio and
video display is not normal:
A: 1) Press the Receiver's reset button to reset
the unit.
2) Use a shorter network cable. Q: The Receiver's Link LED is flashing: A: 1) Make sure the network cable follows the
IEEE-568B wiring standard.
2) Check whether TX has HDMI signal input.
3) Reset both TX & RX and reconnect. Q: The extender is not working properly: A: 1) Please check the cable lengths below:
- HDMI cables: Up to 5m
- Network cables (CAT5e/6): Up to 50m
2) Press the reset button on the TX/RX and
reconnect. Q: RX Link LED is on but there is no image: A: 1) Press RX reset button to reset the unit.
2) Make sure the HDMI cable is firmly
connected to the display.
3) Use a higher quality network cable.
10
Specifications
Item Specifications
HDMI Compliance 1.4a
HDCP Compliance 1.2a
Video Bandwidth 225MHz (10.2Gbps)
Resolution
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,
1080i@50/60Hz, 1080p@50/60Hz
Audio Support PCM, AC3, DTS
Input TMDS Signal 1.2Vp-p
Loop-out on TX One HDMI loop-out on TX
IR Passback Yes
IR Frequency Range 20KHz-60KHz
Operating Temperature 32° - 140° F (0° - 60° C)
Power Adapter Output: 5VDC/2A
Power Consumption TX: <3W / RX: <2W
Product Dimensions 2.8" (L) x 2.6" (W) x 0.97" (H)
Weight TX: 0.18 lbs / RX: 0.17 lbs
Color Black
11
Disclaimer
The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
We reserve the right to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
Thank you for choosing gofanco
www.gofanco.com
