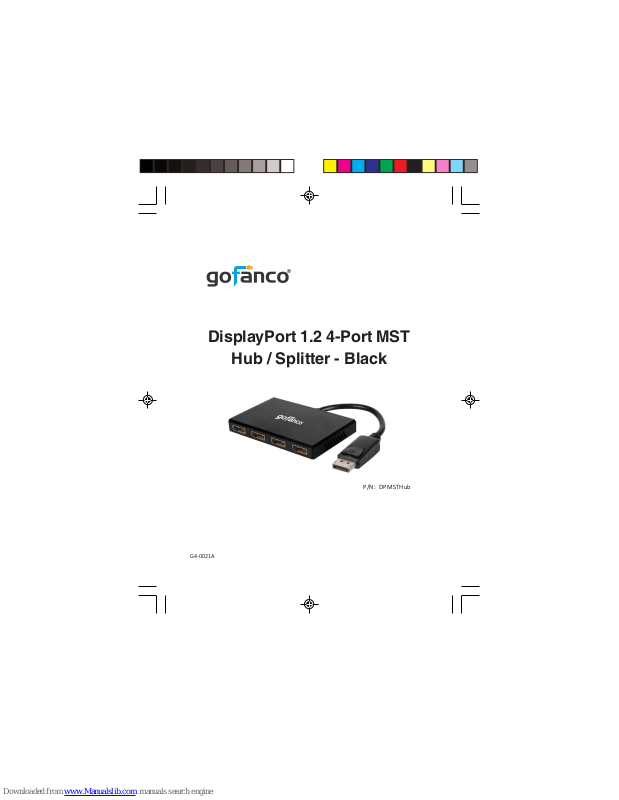

DisplayPort 1.2 4-Port MST
Hub / Splitter - Black
P/N: DPMSTHub
G4-0021A
Congratulations for owning a gofanco product. Our products
aim to meet all your connectivity needs wherever you go.
Have fun with our products!
Please read this manual carefully before first use.
If you need more information about our products, please
visit www.gofanco.com.
For technical support, please email us at support@gofanco.
com.
For drivers/manuals download, please go to http:// www.
gofanco.com/download.
2
Introduction
gofanco DisplayPort 1.2 4-Port MST Hub / Splitter - Black
(part# DPMSTHub) enables you to connect with four external
monitors to your DP enabled computer for multitasking.
Specifications
Output Signal DisplayPort
Ports 4
Compliance DP 1.2
Connectors
Resolution Up to 3840x2160 @30Hz
Audio Yes (2-CH)
Input: 1x DisplayPort, Male
Output: 4x DisplayPort, Female
Package Contents
• DisplayPort 1.2 4-Port MST Hub / Splitter - Black
• Micro-USB power cable
• User's guide
System Requirements
• PC with an available DisplayPort (DP 1.2 recommended)
• Windows® 10 / 8.1 & 8 / 7 (32-/64-bit)
3
Layout
Power jack (Micro-USB)
DP output (x4)
DP IN
Figure 1: DisplayPort 1.2 4-Port MST Hub / Splitter - Black
• DP IN: Connect to PC's DisplayPort
• DP output (x4): Connect to DisplayPort displays with DP
cables (not included)
Or connect to DP adapters (not included) to HDMI, DVI
or VGA to use with HDMI/DVI/VGA displays
• Power jack (Micro-USB) : Connect to PC's USB 3.0 port for
power with the included Micro-USB cable. *Note: This
connection is required to power this adapter.
4
Hardware Installation
Important: If the source DP output doesn't support DP 1.2,
the Multiple Stream Transport function will be disabled and
this hub becomes a Splitter, mirroring your video source
across all displays.
1. Power off all devices you plan to connect to the unit.
2. Connect the unit to your PC's DisplayPort connector.
3. Connect your DisplayPort monitors to the unit's DP
outputs with DisplayPort cables (not included).
4. Connect the unit's power jack to PC's USB 3.0 port for
power source with the included cable.
5. Power on all of the connected devices.
6. It is ready for use.
Application
Add 4 external monitors to maximize productivity.
Figure 2
5
Monitors & resolutions support
The total bandwidth of 21.6 Gbps is shared among all
attached monitors. If the total bandwidth is consumed with
high resolutions by the first few monitors, the remaining
monitors will be disabled (no video output).
Please refer to the examples below:
Average resolution bandwidth allocation:
• 3840x2160 @30Hz - 40%
• 2560x1600 @60Hz - 38%
• 2560x1440 @60Hz - 35%
• 1920x1200 @60Hz - 30%
• 1920x1080 @60Hz - 22%
Screen 1
Resolu tion
1920 x 1080 @60Hz
(22%)
1920 x 1200 @60Hz
(30%)
3840 x 2160 @30Hz
(40%)
3840 x 2160 @30Hz
(40%)
Screen 2
Resolu tion
1920 x 1080 @60Hz
(22%)
1920 x 1080 @60Hz
(22%)
1920 x 1080 @60Hz
(22%)
1920 x 1200 @60Hz
(30%)
Screen 3
Resolu tion
1920 x 1080 @60Hz
(22%)
1920 x 1080 @60Hz
(22%)
1920 x 1080 @60Hz
(22%)
1920 x 1080 @60Hz
(22%)
Screen 4
Resolu tion
1920 x 1080 @60Hz
(22%)
1920 x 1080 @60Hz
(22%)
OFF 84%
OFF 92%
Total Bandwidth
88%
96%
Note: When Screen 1 and 2 are set with resolution 3840 x 2160 @30Hz, the third
and fourth screens will be disabled.
6
For AMD Eyefinity Video Cards
Go to AMD Radeon Settings, and click Eyefinity for advanced
display mode setup such as video wall.
Refer to your graphic card menu for more details.
Figure 3
7
®
Thank you for choosing gofanco
www.gofanco.com
