PT-05 Personal Tracker
(GPS+SMS+GPRS)
User Guide
Version 1.0
Page 2
GPS tracker Page 1 of 46
Content
USER GUIDE..........................................................................................................................1
VERSION 1.0..........................................................................................................................1
1 INTRODUCTION................................................................................................................2
2 FEATURE:..........................................................................................................................3
3 SPECIFICATION................................................................................................................3
HARDWARE ............................................................................................................................4
OTHER ....................................................................................................................................5
4 HARDWARE DESCRIPTION..........................................................................................6
5 GET STARTED...................................................................................................................9
(5.1) ACCESSORIES...............................................................................................................9
(5.2) CHARGE BATTERY ......................................................................................................10
(5.3) BUY SIM CARD...........................................................................................................11
(5.4) INSTALL SIM CARD .................................................................................................11
6 OPERATION.....................................................................................................................11
7 DISPLAYING LOCATION ON MAP............................................................................18
8 MORE PROFESSIONAL SMS INSTRUCTION..........................................................24
9 SMS INSTRUCTION EXAMPLE:..................................................................................27
10 GPRS COMMUNICATION SETTING.......................................................................28
11 CAUTION:......................................................................................................................31
12 DIY !!! BUILD YOUR CONTROL CENTER SYSTEM ON YOUR PC.................32
13 TROUBLE SHOOTING.................................................................................................35

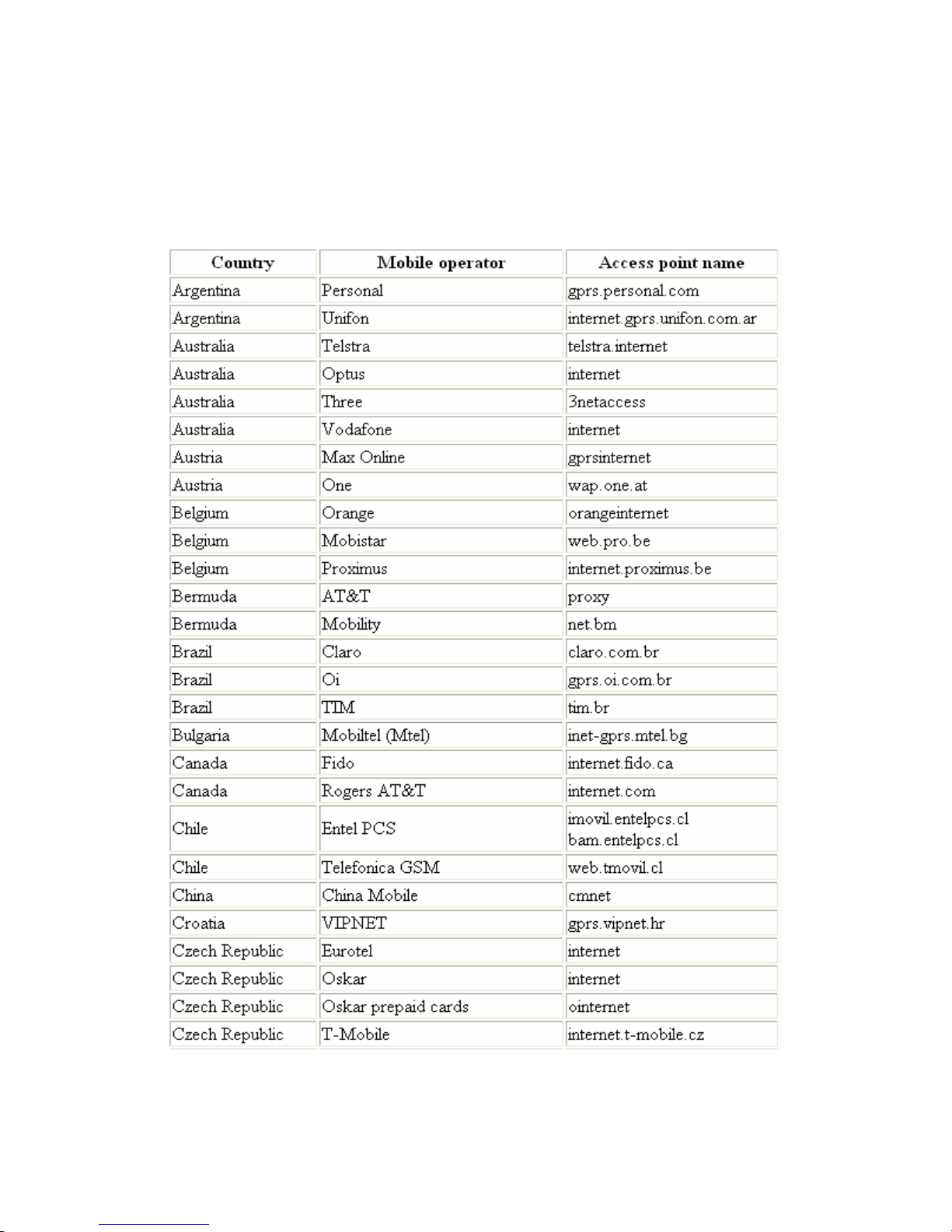

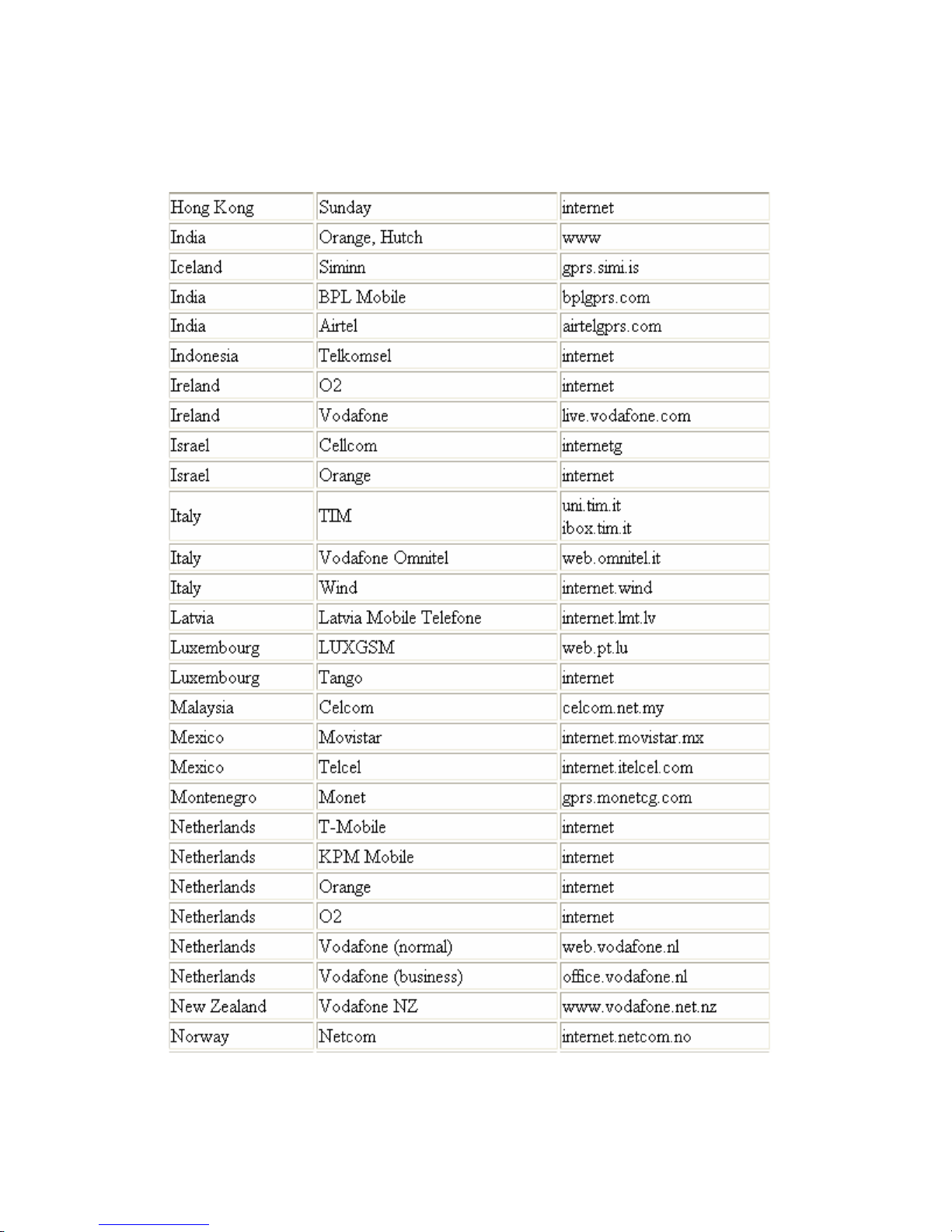

ATTACHMENT :WORLDWIDE APN (ACCESS POINT NAME) LIST...........................41
Page 3
GPS tracker Page 2 of 46
1 Introduction
PT-05 is a personal remote position device
with build-in GPS and GSM/GPRS modules.
It is a compact size, high accuracy remote
location tracking device.
Based on GPS satellite ,
it provides accurate position information
under dynamic conditions .
Personal remote position device transmit
the longitude and latitude coordinate to authorized cell phone.
You can use these features for protecting and searching children and old
persons. Further , you can use it as a security purpose and other purpose
which needs remote positioning such as asset protection and animal tracking.
Page 4
GPS tracker Page 3 of 46
2 Feature:
♦ Build-in GPS personal locator.
♦ GSM /SMS communication or GPRS TCP/UDP connection .
♦ Works worldwide! Support 3-frequency GSM 900/1800/1900 MHZ
And 4-frequency GSM 850/900/1800/1900 MHZ.(Optional)
♦ High sensitivity, new technology and latest GPS SiRF-Star III chipset!
Excellent for fixing the position even at a weak signal status.
♦ Compact size, and smaller than one name card. Easy to hide
♦ Very Low power consumption
♦ Fast Signal Acquisition
♦ Support single location and continuous tracking
♦ Support location triggered by tracker
♦ Support location triggered by authorized cell phone
♦ Support alarm and remote monitor
♦ Support quick dialing buttons for 3 preset phone numbers
♦ Support voice monitoring function
♦ Support Bi-Direction conversation without ear microphone
♦ Support removable internal battery
♦ Support check location by SMS and GPRS
♦ Support automaticly saving power
♦ Monitors can track the person without interfering him,
LIVE! Real-Time tracking!
♦ Locate the locator holder by the mobile phone via SMS (SMS system).
♦ SOS button send out exact location for immediate rescue/action.
♦ Geo-fencing to restrict movement to a defined radius.
♦ No monthly service charges to be paid to the call center
New feature:
★ USB configuration cable for bulk number
★ optional waterproof case;
★ with optional external battery ( extend to work for 7 days) ;
★ optional pet collar ;
★ Working with SMS modem , GPRS software kits and PDA tracking
kits .customer can watch the position and trace of their object on the
map real-time automatically at very low cost,without monthly
payment ,without any manual input. Support almost all navigation
map ,include Google earth.
Page 5
GPS tracker Page 4 of 46
3 Specification
Hardware
GSM module
embedded GSM 900/1800/1900Mhz
embedded GSM 850/900/1800/1900Mhz (Optional)
and GPRS TCP/UDP
GPS Chipset latest GPS SiRF-Star III chipset
GPS Sensitivity -158Db
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Position Accuracy 10 meters, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 38 sec., average
Cold start 42 sec., average
Altitude Limit
18,000 meters (60,000 feet) max.
Velocity Limit
515 meters/second (1000 knots) max.
Acceleration Limit Less than 4g
Jerk Limit 20 m/sec
Page 6
GPS tracker Page 5 of 46
Other
Operating temperature -25° to 65° C
Humidity
5% to 95% Non-condensing
Dimension 76 mm × 44mm × 20 mm× 13mm
Voltage
Rechargeable and replaceable 1200 mAh battery (3.7V),
5V for charging input.
Charging connector DC 5V (USB port)
Standby time
Over 60 hours
LED
3 LEDs showing Power, GPS and GSM status,
And other operation status.
KEY
SOS Emergency key, quick dial key B , quick dial
key C ,power key
Page 7
GPS tracker Page 6 of 46

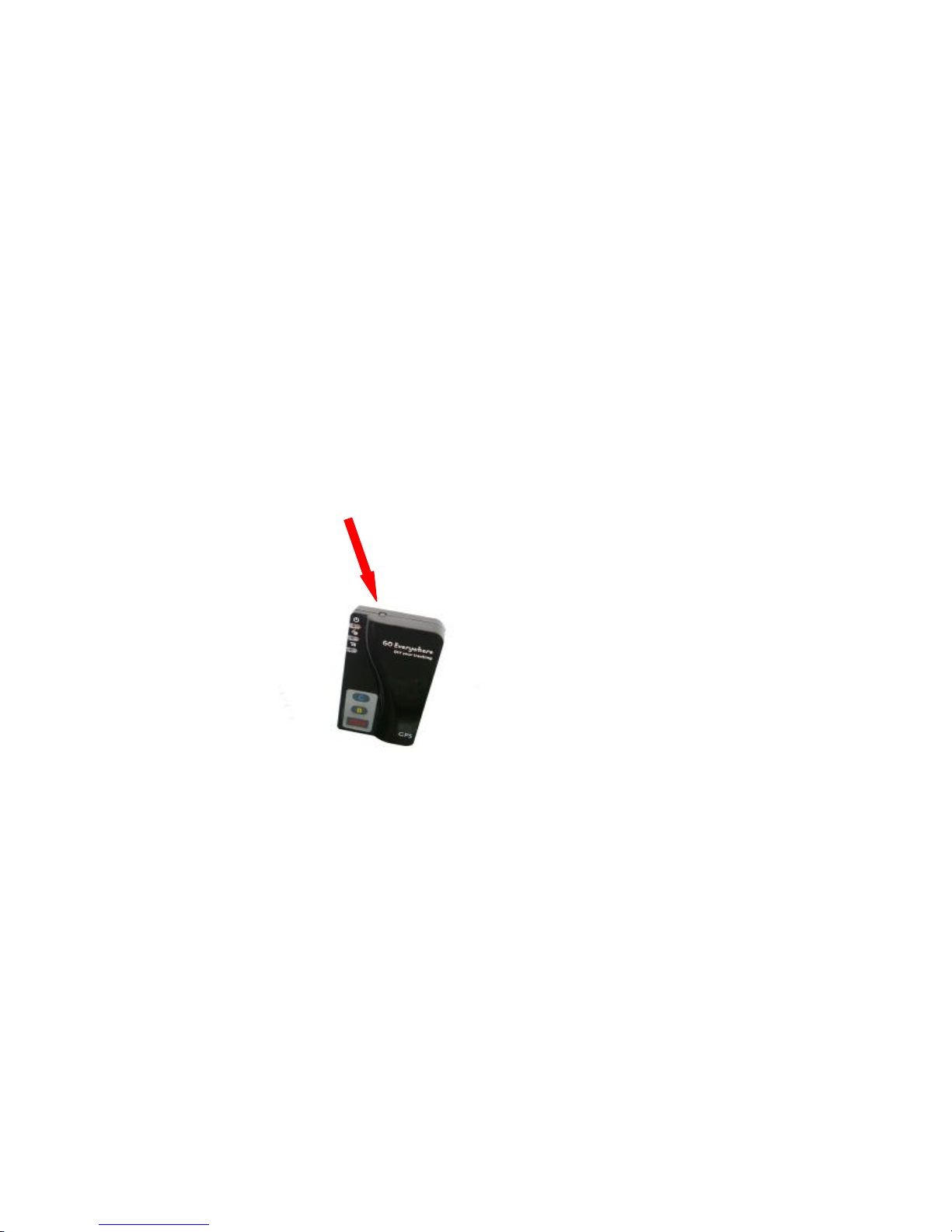

4 Hardware description
Red LED --- indicate power state：
State Meaning
Constant dark the power is too low to work
or Charging was completed.
Light 0.1s dark 0.1s The power is not enough
Constant Lighting Charging
Light 1s dark 2s Working
Blue LED -- indicate the GPS signal state:
State Meaning
Constant Lighting One key be pressed
Light 0.1s dark 0.1s Initial
Light 0.1s dark 2.9s GPS receiver work well
Light 1s dark 2s No GPS signal
Green LED -- indicate the GSM signal state:
State Meaning
Constant Lighting One call is coming
Light 0.1s dark 0.1s Initial
Light 0.1s dark 2.9s GSM receiver work well
Light 1s dark 2s No GSM signal
Page 8
GPS tracker Page 7 of 46

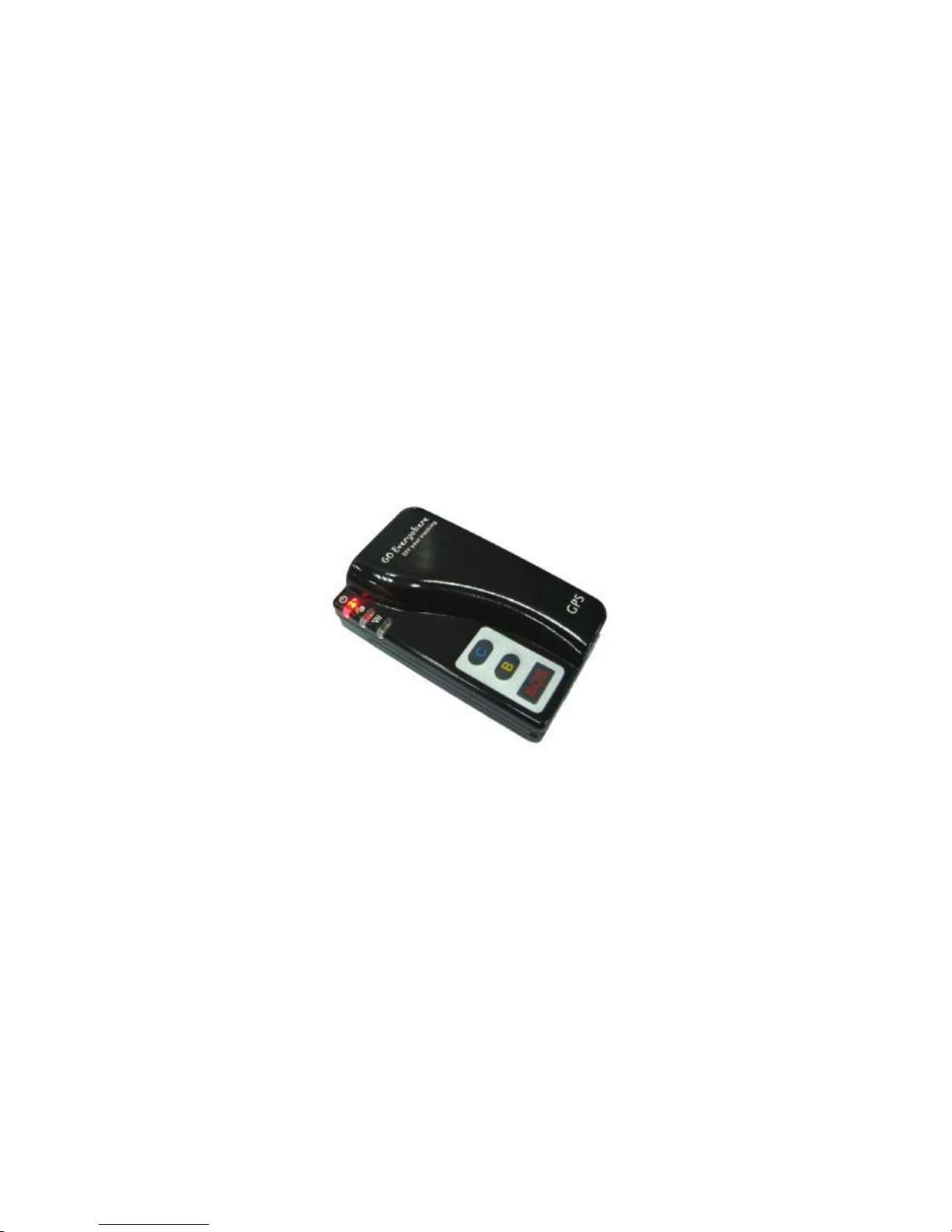

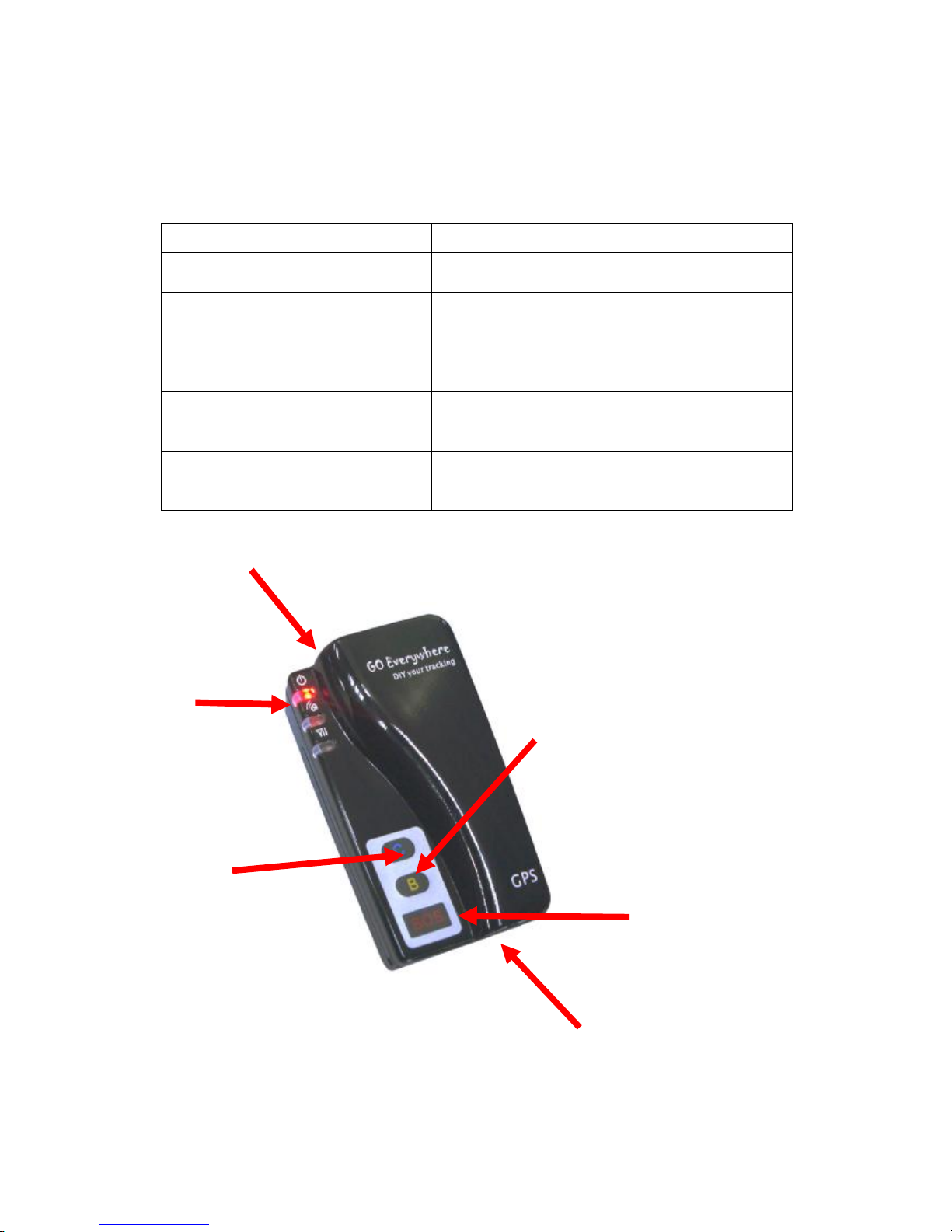

Button Function description
Button
Meaning
Power button
Turn on/Turn off .
Please see 6.1 for details for more details.

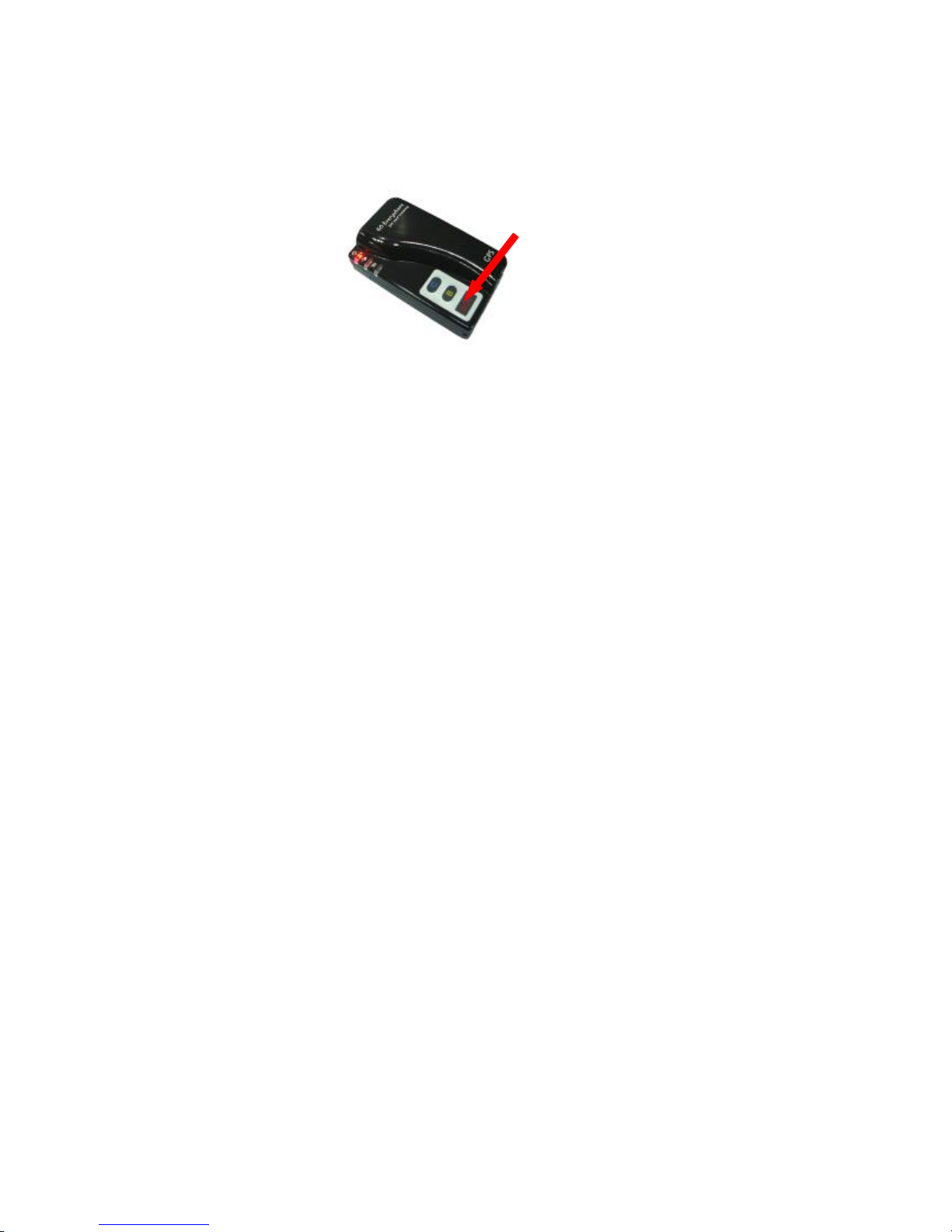

SOS button
You can assign a phone number to the SOS
button .When this button is pressed,PT05 will
send it’s location information to the preset phone
number by SMS ,at the same time,PT05 will dial
the preset phone number.
Call B button
You can assign a phone number to the Quick Call
B button .when this button is pressed,PT05 will
dial the preset phone number.
Call C button
You can assign a phone number to the Quick Call
C button .when this button is pressed, PT05 will
dial the preset phone number.

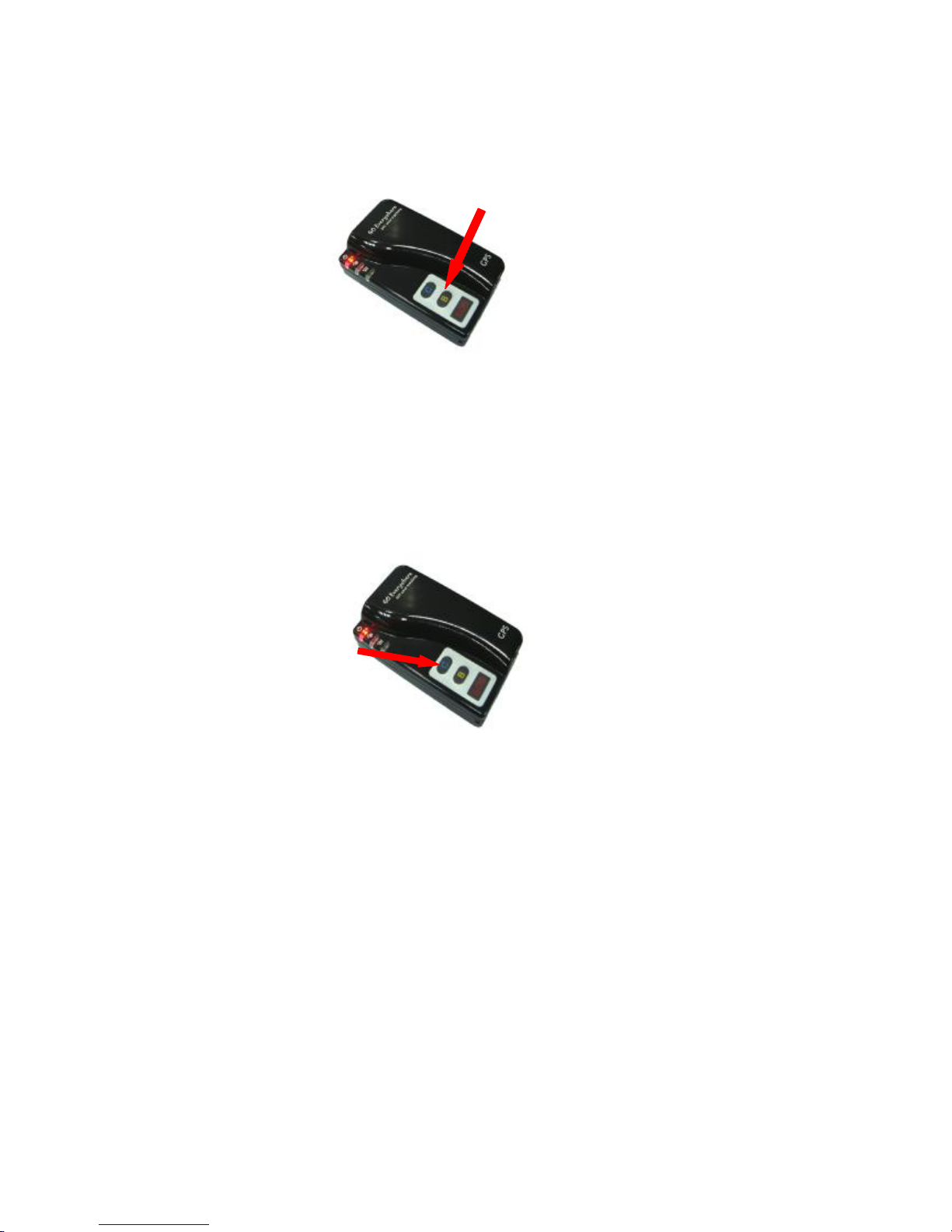

USB
SOS button
Call B button
Page 9
GPS tracker Page 8 of 46
SIM Card
Battery
Page 10
GPS tracker Page 9 of 46
5 Get Started
(5.1) Accessories

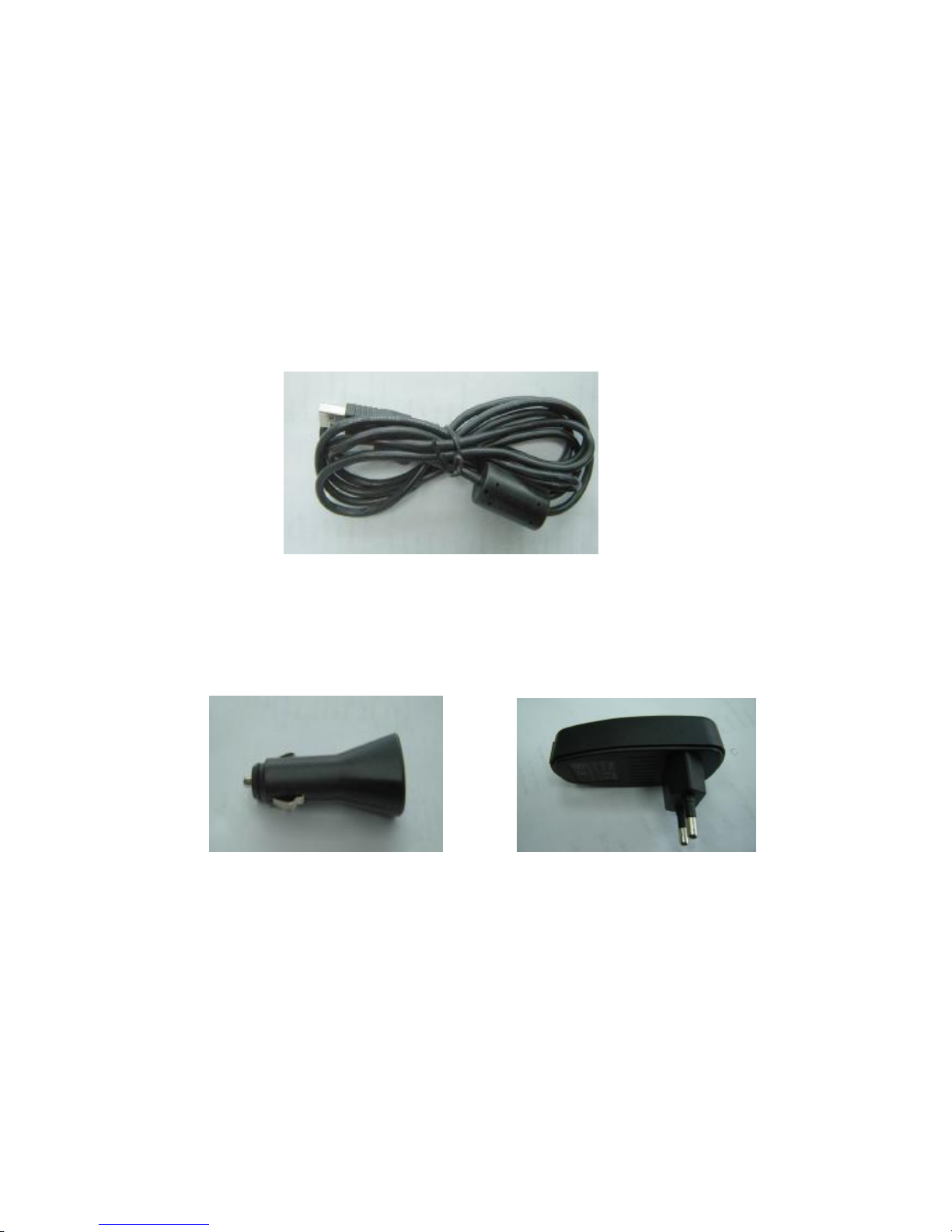

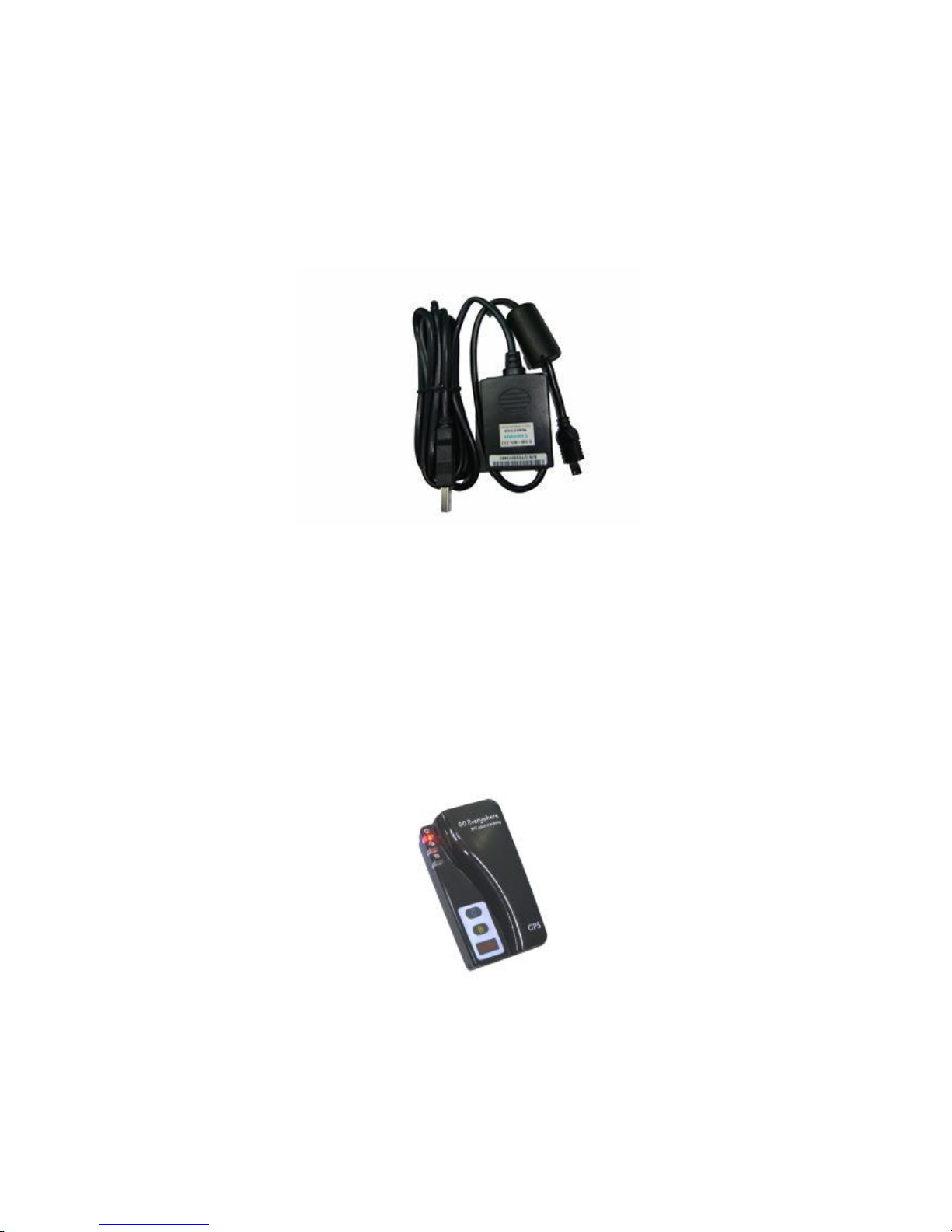

1. USB charged cable
2 Wall charger and car charger
Page 11
GPS tracker Page 10 of 46
3. CD –ROM ( Including our product document and program )
4. USB Configure cable for bulk number (Option)
(5.2) Charge battery
Before you can use the PT05, you must
FULLY charge the battery by USB cable at least 2 hours under the poweroff condition.
Charger state indicate :
Red light is On , it indicates that it is in charging.
Red light is Off , it indicates that charge completed.
Page 12
GPS tracker Page 11 of 46
(5.3) Buy SIM card
Buy SIM card from local telecommunication service provider .
( Note: Please make sure that your SIM card support SMS function and
have enough deposit )

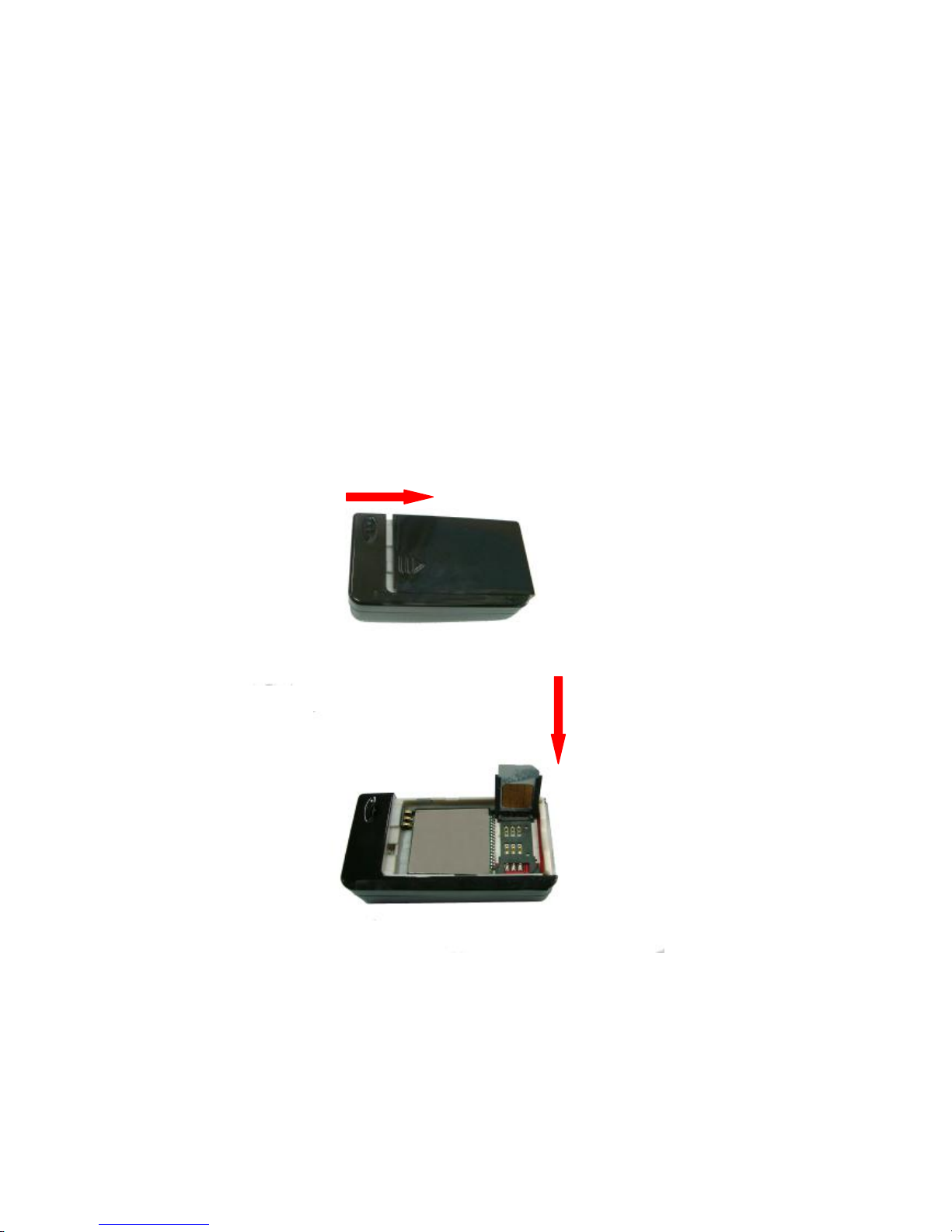

(5.4) Install SIM card

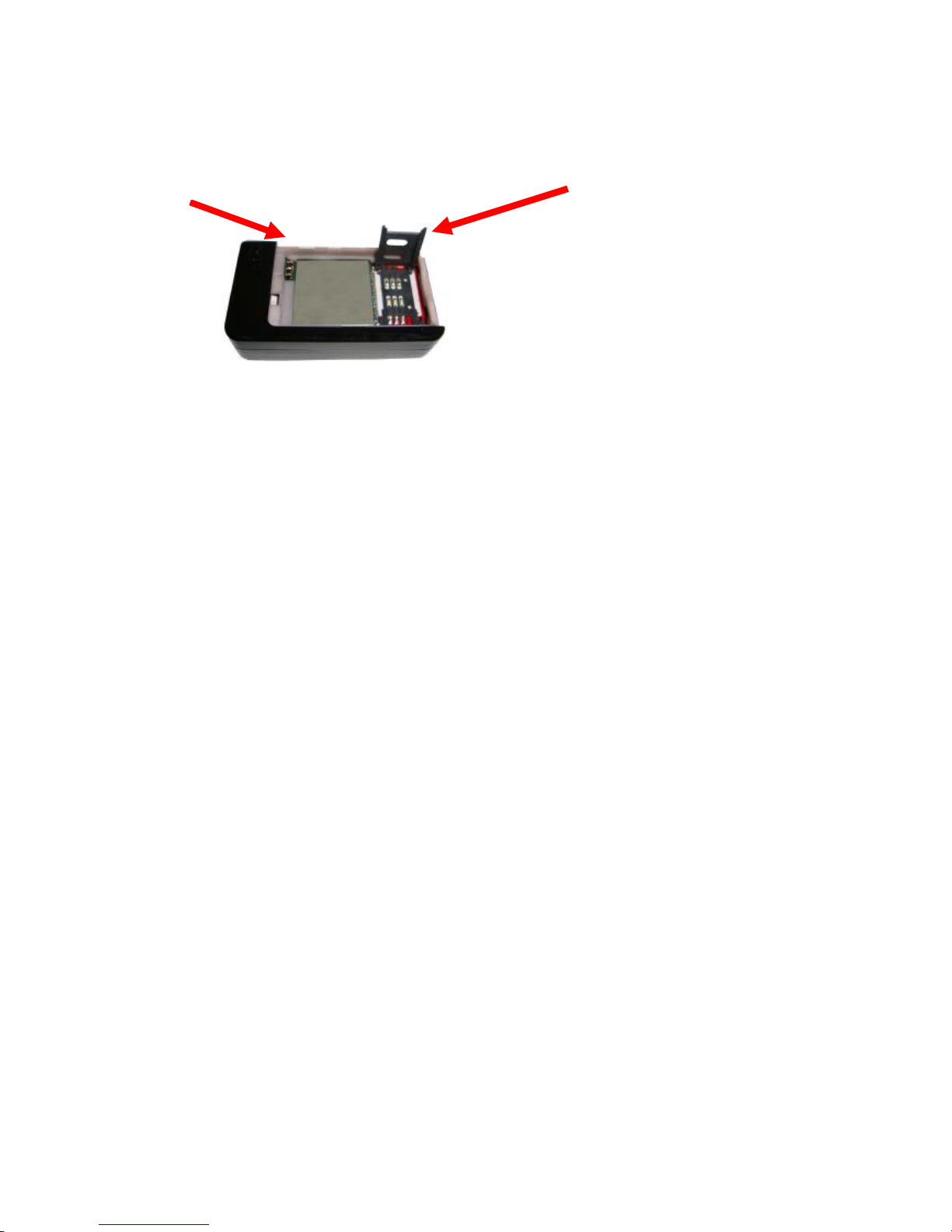

1 open the cover
2. instert the SIM Card
Page 13
GPS tracker Page 12 of 46
6 Operation
(6.1) Turn On / Turn Off
Turn on :
When the device is off ,press the power button and wait for about 8
seconds .It will enter standby mode .It is suggested that you be a outer
place where it can receive the better GPS signal when you turn on the
device.
Turn off :
When the device is on ,press the button and wait for 8 seconds .When
the LEDs go out ,it indicates that the device is in off for sure.
( tips: How to get better GPS signal:
1 Working outdoor,PT05 can get better GPS signal;
2 The front side of PT05 should be placed toward sky. )
(6.2) Apply for one position service
No matter where you are ,when you want to know the position of your
tracker , send a SMS or make a telephone call to PT05;it will report its
Page 14
GPS tracker Page 13 of 46
location back to you by SMS .

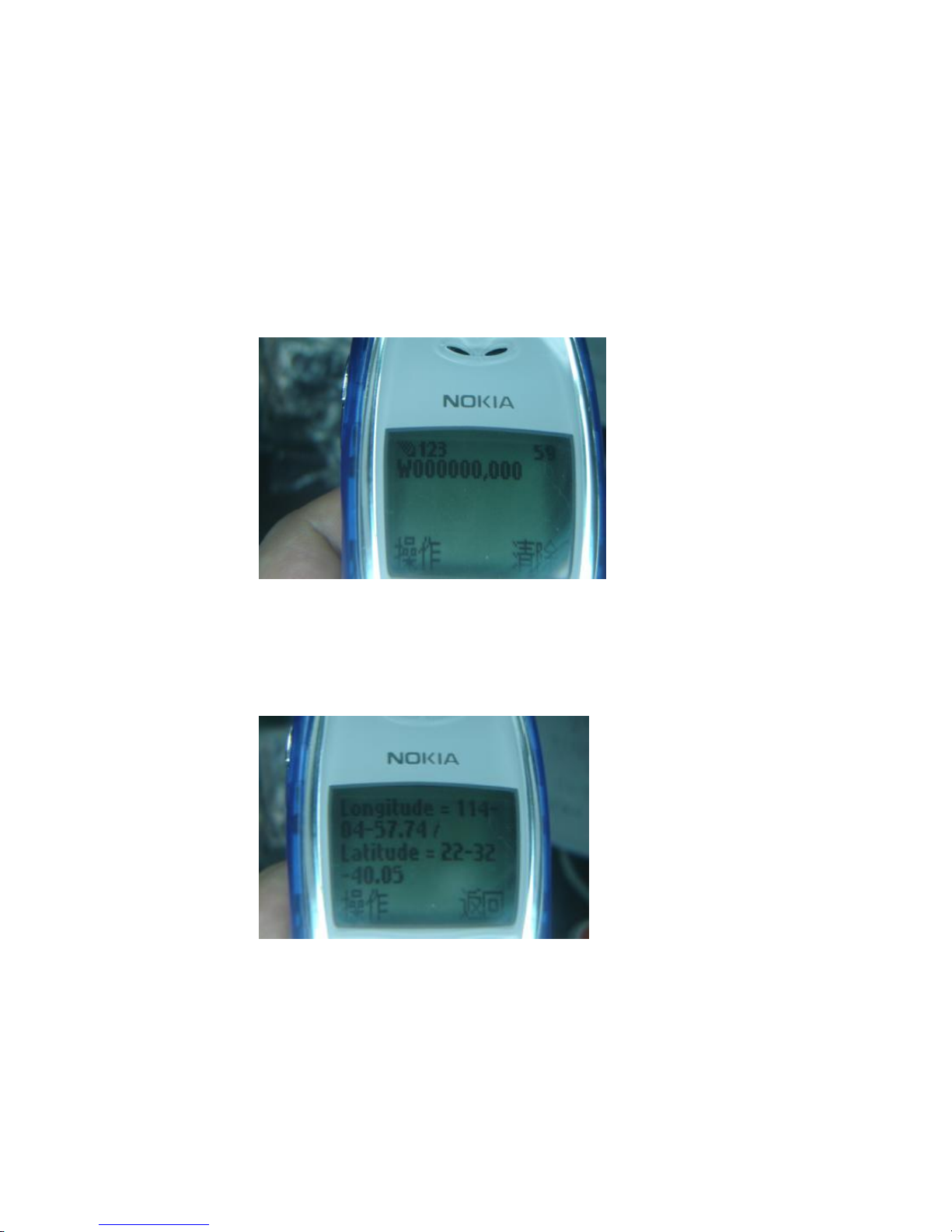

Edit a message as following format, then send it to PT05:
Format: W+Password+, +000
( init password is : 000000)
For example: W000000,000

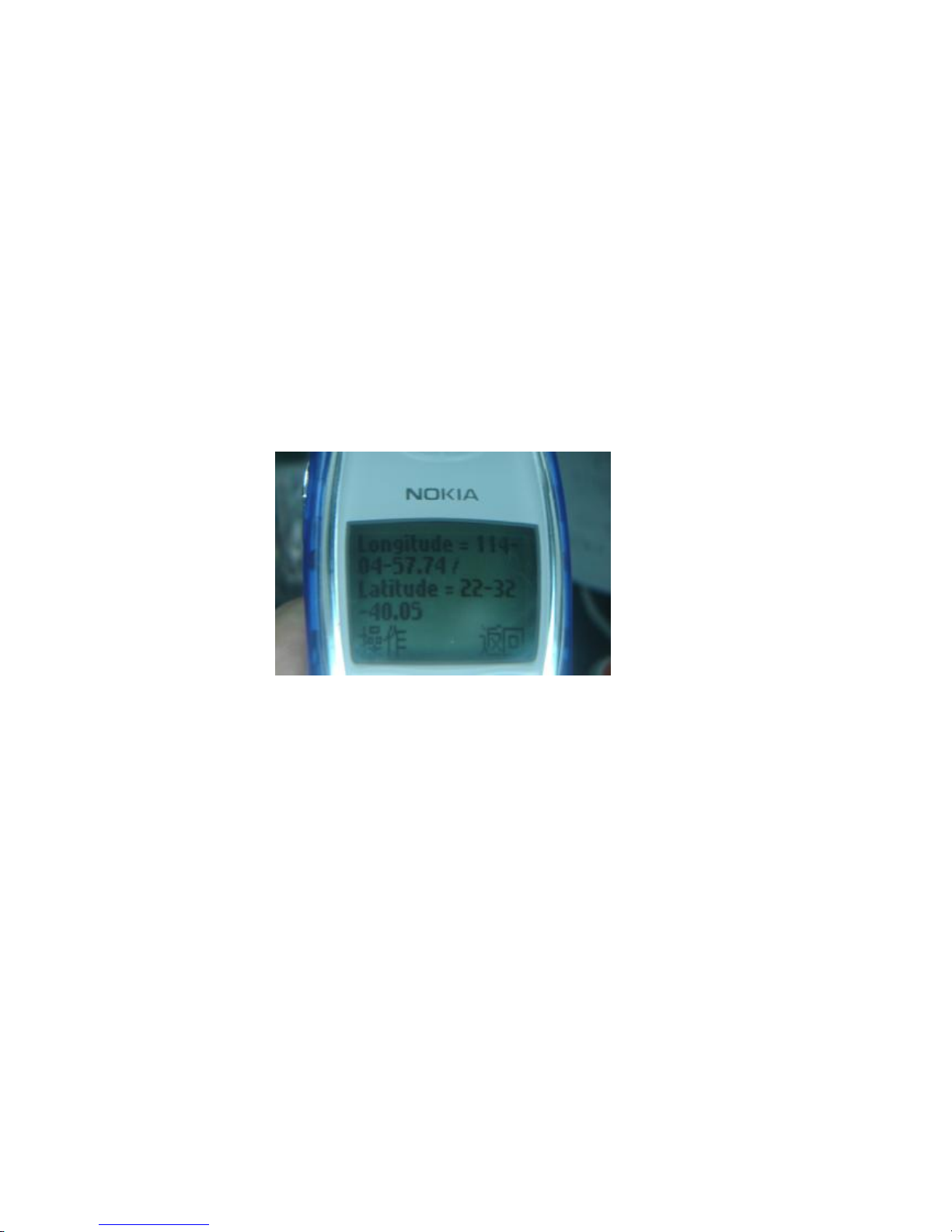

The PT05 send back one SMS ,which including the position information
Position Data means :
Longitude = 114 degree - 04 cent - 57.74 second
Latitude = 22 degree - 32 cent - 40.05 second
Page 15
GPS tracker Page 14 of 46
( Tips: Apply for one position service by another easier way:
(a) Dial the PT05 telephone number by your mobile phone
(b) After listening the ring of PT05 for 10~20 seconds, hang off the phone
(c) Then, after 20 second, your mobile phone will receive the Position SMS. )
(6.3). Set a time interval for tracking report function
Tracking report function can be turned on or off according to the
requirements of the user .Tracking function will continually report
tracker’s position until it get stop command. In this continuous tracking
mode,PT05 will send one position message at a preset time interval.
(It is say that PT05 will send one position message at every time interval )
Step1: Edit a message as following format, then send it to PT05:
----- W+Password+,+002,+XXX
(Note : XXX Unit: preset minutes interval
-- if XXX=000 it is STOP tracking )

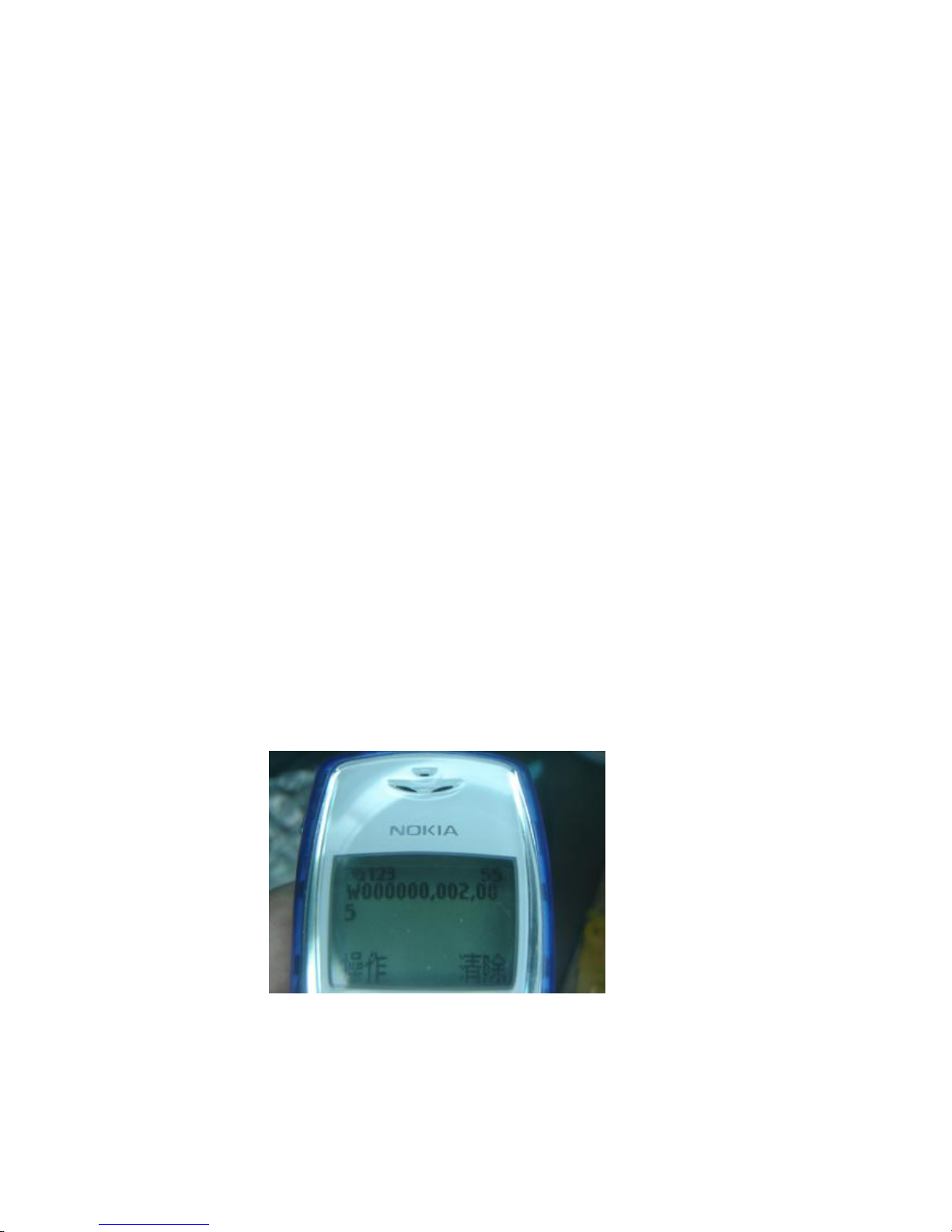

For example : W000000,002,005
(its means that PT05 will send Position Data each 5 minute.)
Step 2: PT05 will send back one SMS ---Set Time(preset time interval) OK
In this example ,the SMS is Set Time (005 Min) OK
Page 16
GPS tracker Page 15 of 46
This SMS means that PT05 is in tracking mode now and preset
time interval is 5 minutes.
Step3: PT05 will send back position SMS at present time interval.
In this example ,the SMS will send back position data at every 5
minutes. The target phone will receive the Position Data each 005
minute.
Position Data means :
Longitude = 114 degree - 04 cent - 57.74 second
Latitude = 22 degree - 32 cent - 40.05 second
( Note:
if SMS show:
Longitude = 000 degree - 00 cent - 00 second
Latitude = 00 degree - 00 cent - 00 second
It means that GPS signal is too weak to work well )
(6.4). Stop continuous tracking report function
This function is used to turn off tracking report function.
Page 17
GPS tracker Page 16 of 46
Edit a message as following format, then send it to PT05:
Format: W+passwaord+,+002+,+000
For example : W000000,002,000
The PT05 will send back one SMS-----Stop Timer OK. This message
means tracking report function is turned off.
(6.5) Set preset phone number for SOS key.
This function is used to set what telephone number will be dialed
when press SOS key..
Step1 . Edit a message as following format ,then send it to PT05
W+password+,+003+,+3+,+1+,+ area number +telephone number
For example
“W000000,003,3,1,008613628888444”
Step2 .About ten seconds later, the PT05 will send back one SMS----
Set Tel OK/003,3,1,008613628888444.This message means the
preset phone number for SOS key is OK.
step3 .Press the SOS button, the PT05 will send one Alarm
SMS to “0086 13628888444”, and then dial “ 0086
13628888444”.
Note:
(a) After SOS button be pressed, you can call and talk with another people by ear
microphone
(b) Press the Call Key B, you can hang up the call or cancel the SOS call
(c) After press the SOS key, PT05 do not go into normal state until you press Call key B
to cancel the SOS call
(d) About area number
In different countries ,the area number may different .Please contact with your
telecommunication provider to get the area number .
If any question about this function ,welcome to connect our technical support
Page 18
GPS tracker Page 17 of 46
(6.6) Make a SOS help
This function is especially useful when in emergency. When SOS key
is pressed, PT05 will in SOS state and 2 following SMS to the preset
phone number: SOS Alarm and the Position info. At the same time,
PT05 will dial preset telephone number. When the telephone be
picked up, 2 way communication starts.
Once the SOS button is pressed, a SOS help is made.
(6.7) Cancel a SOS call
When in SOS state ,press Call B key to hang up the phone , exit
SOS state and return normal state.
Page 19
GPS tracker Page 18 of 46
(6.8) Dial the preset phone number by Call B or Call C
Press the Call B button/ Call C button once, PT05 will call the
preset phone number of Call B/Call C, then you can talk with another
people.
If you want to complete this talking, you can hang up the calling by
pressing the Call B button.
(6.9) Receive one coming call
When one call coming, a ring will be made , you can press SOS key to
receive the coming call, then talk with another people directly.
Page 20
GPS tracker Page 19 of 46
If you want to complete this talking, you can hang up the calling by
pressing the Call B button.
Page 21
GPS tracker Page 20 of 46
7 Displaying location on map
(7.1) Download google earth software from http://earth.google.com/

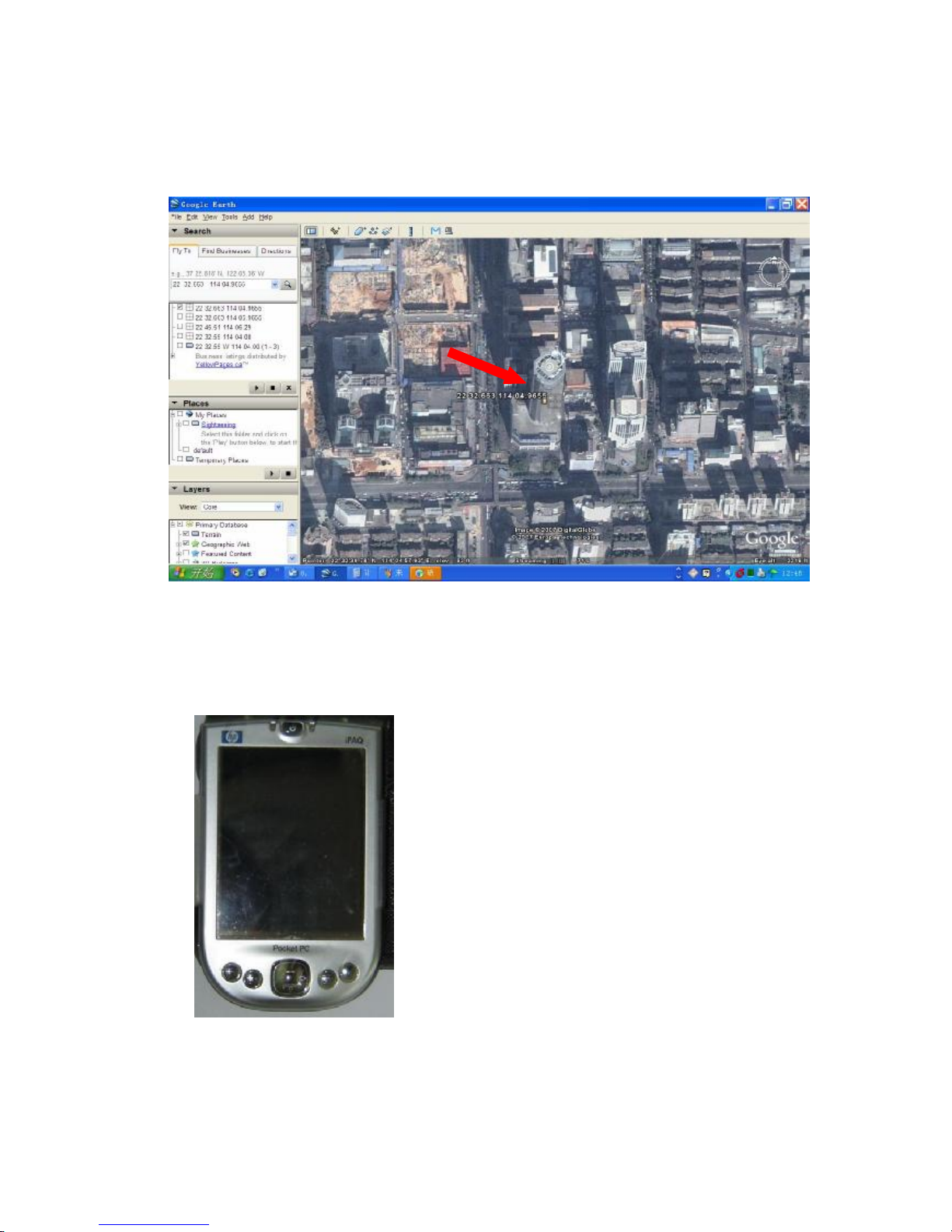

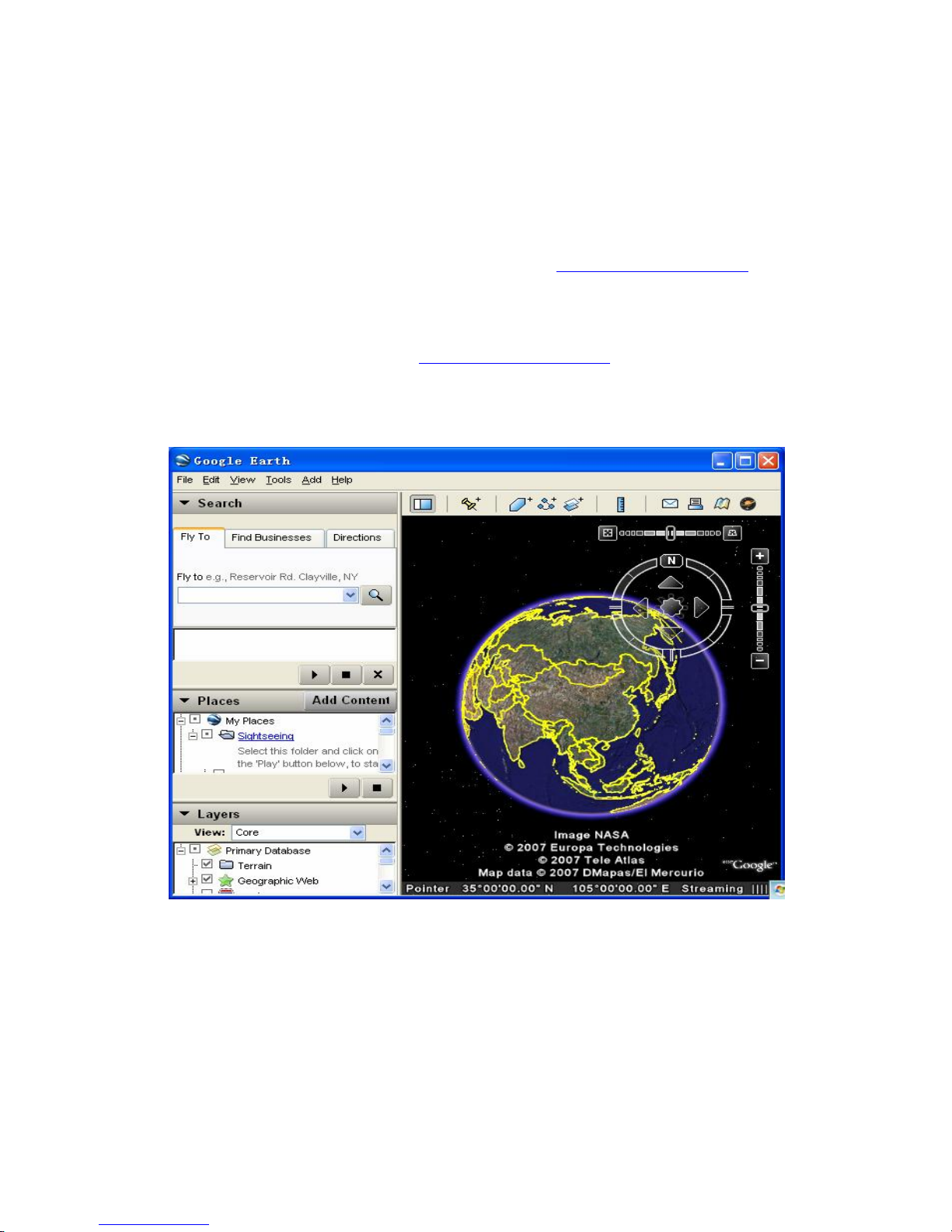

(7.2) Start the Google Earth software.(For more information about Google
Earth software, please refer to http://earth.google.com/) As following
picture shows:
Or you can start the Internet Explorer and type "http://maps.google.com"
to connect to Google Map website for displaying the location map.
Page 22
GPS tracker Page 21 of 46
(7.3) You can get the latitude & longitude data by sending “W+Password+,
+000” SMS command Code to the GPS Tracker PT-05. Input the latitude
and longitude that you receive from SMS and click on search button. The
Google earth will display the location map for you.
For example:
Step1: we you see the Position Data from SMS in you mobile phone:
Last: Latitude = 22 32 40.05N
Longitude = 114 04 57.74E

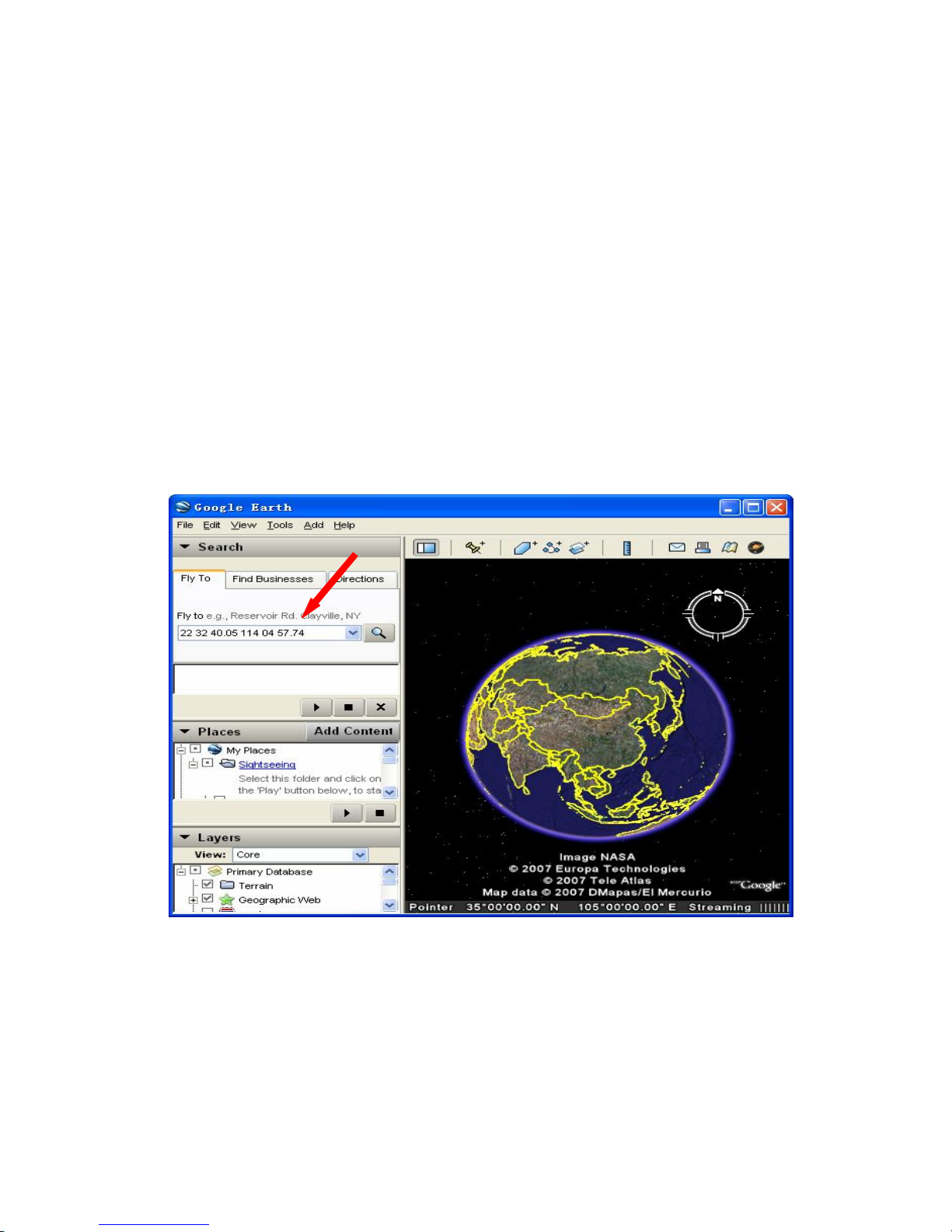

Step2: Now you can Input the latitude and longitude as following,and click
on the searching button.
(Note: pay attention to change the Position Data Format)
format : 22 32 40.05 114 04 57.74
Page 23
GPS tracker Page 22 of 46

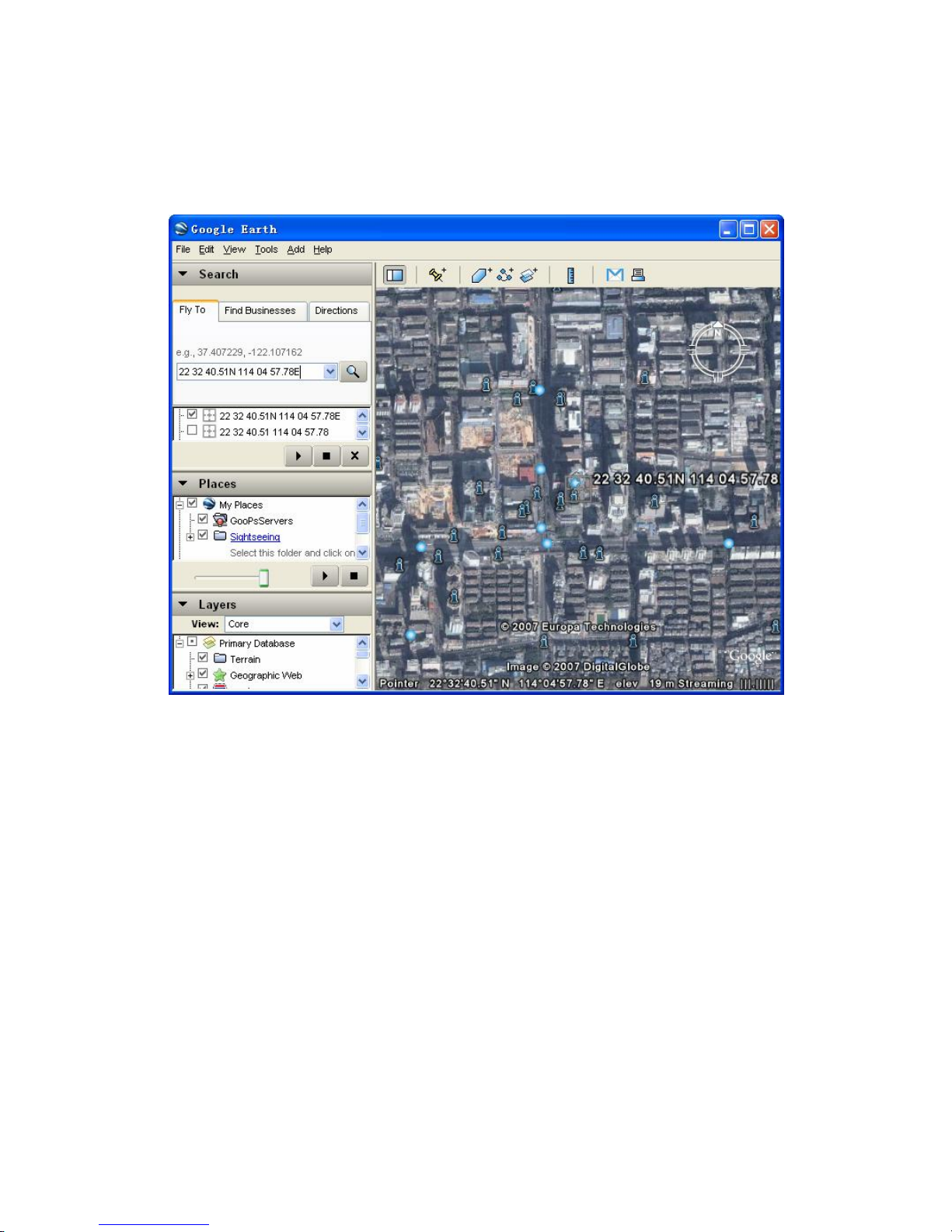

Step3:Now you can find the exact position of the tracker.

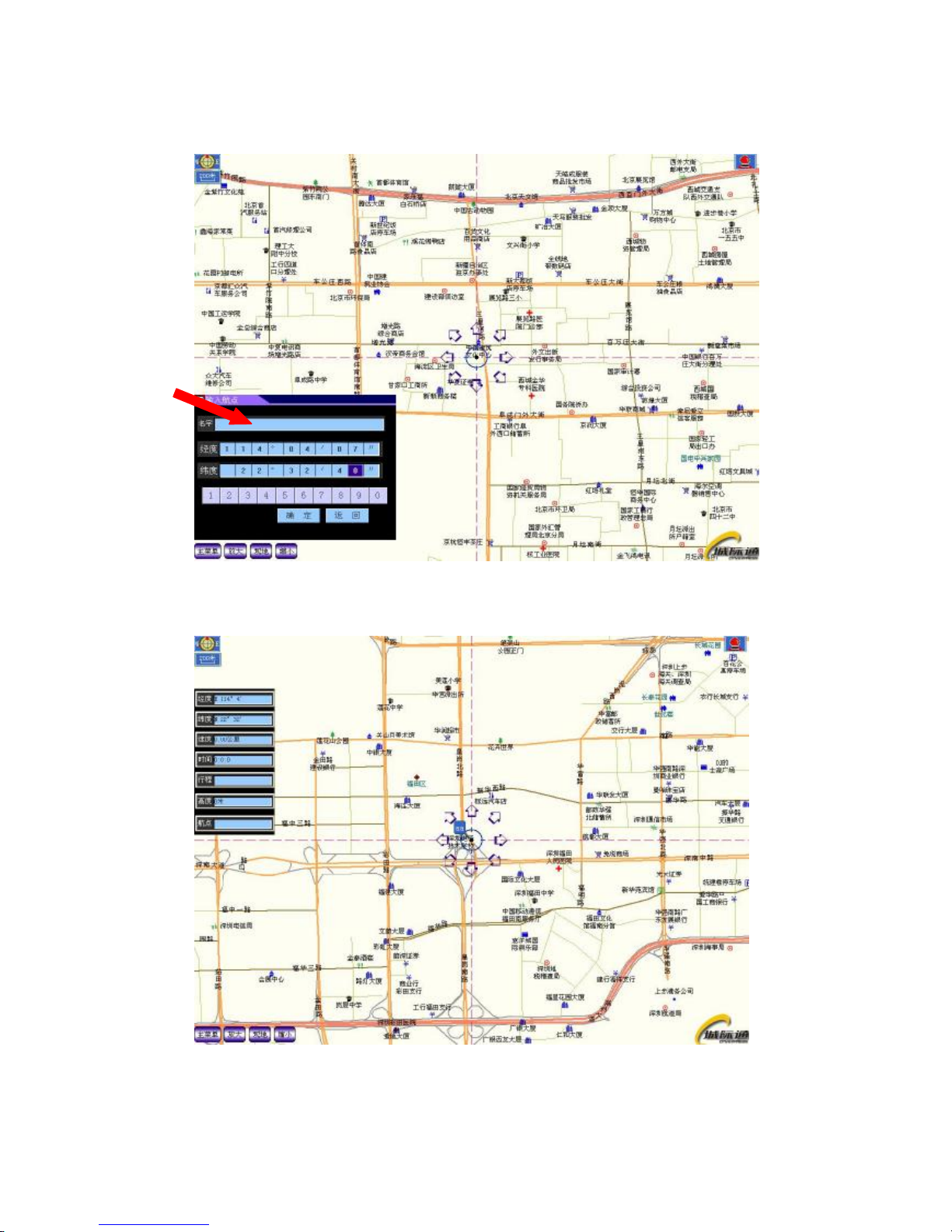

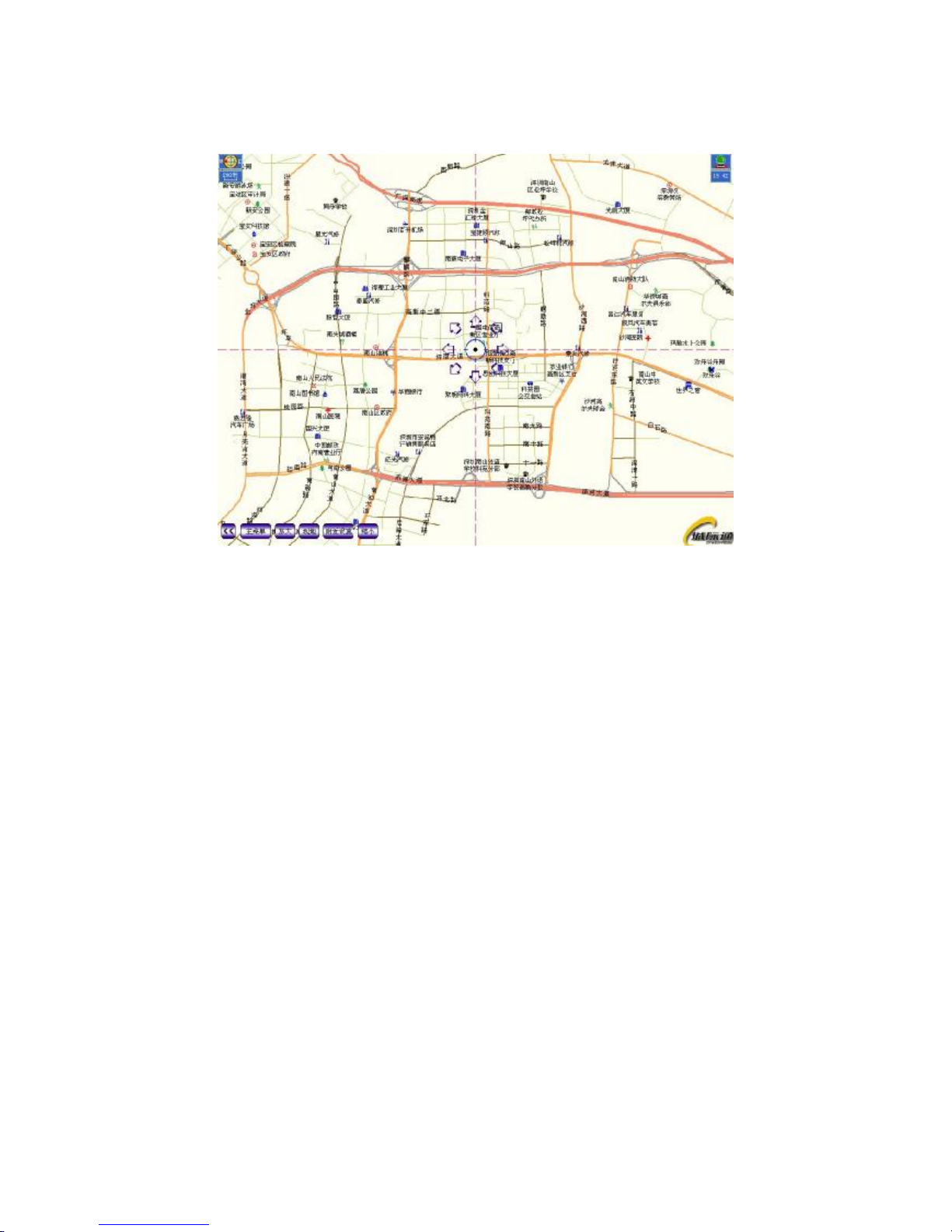

(7.4) Or you can use local map software on PDA or
Car Navigation Device , input the Position Data.
Page 24
GPS tracker Page 23 of 46
Page 25
GPS tracker Page 24 of 46
III More Professional SMS Instruction
****** is user password , and init password is 000000
SMS Instruction Format Note
1 Request one position W******,000
2 Modify user password W******,001,######
****** is old password
###### is new password
3 Set the time internal of
Continuous tracking when in
SMS working mode
W******,002,XXX
XXX(3 digital)
=000,stop
=[1,999] time internal (unit: mins)
4 Set a preset phone number
for SOS button/ Call B
button/
Call C button;
When this button is pressed,
it will dial the preset
number.
W******,003,F,P,TelNumber
F =0, close this function
=1, only send alarm SMS to the preset
number
=2, only Call the preset number
=3, Send alarm SMS ,then Call the
preset number
P =1, Set the preset number for SOS key
=2, Set the preset number for Call B
=3, Set the preset number for Call C
TelNumber: Preset Tel number
(TelNumber must <16 digits )
5 Set low power alarm
When the PT05 voltage is
lower than the preset value, it
will send one lower
power alarm SMS to the SOS
preset number.
W******,004,X
X (voltage preset value)
=0 , close
=1, <3.3V send SMS alarm
=2 , <3.4V send SMS alarm
=3 , <3.5V send SMS alarm
(default )
=4 , <3.6V send SMS alarm
=5 , <3.7V send SMS alarm
6 Set over speed alarm
When the PT-05 speed higher
than the preset value, It
will send one over speed
alarm SMS to the SOS preset
number.
W******,005,XX
XX (the speed preset value)
=00 , close
=[01<XX<20] (unit: 10Km)
Page 26
GPS tracker Page 25 of 46
7 Set Geo-fence alarm
When the PT-05 move out
preset scope, PT-05 will send
one Geo-fence SMS to the
SOS preset number.
W******,006,XX
XX ( preset distance to original
place )
=00 close
=01 30m
=02 50m
=03 100m
=04 200m
=05 300m
=06 500m
=07 1000m
=08 2000m
8 Extend setting
(note:
Please use this instruction
carefully)
W******,008,ABCDEFG###
A=0 , Close position report function
which get position SMS
by Calling PT05
A=1 , Open position report function
which get position SMS
by Calling PT05
B=0, position SMS format be analyzed
in order to read easily.
For example:
Longitude = 114 degree - 04 cent - 57.74
second
Latitude = 22 degree - 32 cent - 40.05
second
B=1, position SMS format is NMEA
0183 Format
For example:
$GPRMC,072414.000,V,3114.3763,N,12131.325
5,E,0.00,0.00,050805,*00
C=0, PT05 do NOT hung up when one
call incoming .
C=1, PT05 hung up after 4~5 rings
when call incoming
D=0, PT05 do NOT send one notice
SMS to SOS preset number when
the PT05 power on
D=1, PT05 do send one notice SMS to
SOS preset number when the
PT05 power on
E=0, PT05 do NOT shut down
automatically when the power
voltage lower than 3V
E=1, PT05 will shut down
automatically when the power
voltage lower than 3V
Page 27
GPS tracker Page 26 of 46
F=0, PT05 do NOT send the notice
SMS to the SOS preset number
when the GPS signal is weak
F=1, PT05 send the notice SMS to the
SOS preset number when the
GPS signal is weak
G=0, Open 3 LED when PT05 works
G=1, Close 3 LED when PT05 works
###, end char
(default value should be :
ABCDEFG=1011110 )
9 Set sleep mode for saving
power.
W******,021,XX###
XX=00 close sleep mode
XX=01 sleep
XX=02 deep sleep
GPRS setting
10 Set the TrackerID for pt-05
for GPRS
W******,010,ID
ID : the Tracker ID of the tracker,it
may set to telephone number
according the SIM card of
PT05
(Tracker ID must be < 14 digits)
11 Set APN W******,011,APN
APN : APN string
12 Set IP Address &port number W******,012,IP,PORT
IP: xxx.xxx.xxx.xxx
PORT： [1,65536]
13 Open / Close GPRS function W******,013,X
X=0 close GPRS
X=1 open GPRS
14 Set time interval of send a
GPRS package
W******,014,XXXXX
XXXXX:means times interval,
(Unit: 10s)
The max length of XXXXX is
in 5 digits
XXXXX=00001, means time
interval is 10s
15 Set the funcation of longest
sleep timer for saving power.
W******,026,XX XX=00 close longest time sleep
mode
XX=[01<XX<99] (unit: second)
16 Set monitor number function W******,030,T
T is the monitor telefhone
number, the length of T is no
more than 16 digits
Page 28
GPS tracker Page 27 of 46
9 SMS Instruction Example:
(1) Send Instruction “ W*****,000”
Meaning: Apply one position,PT-05 will reply one position SMS
(2) Send Instruction “W******,002,005”
Meaning: Set the time internal of position refresh, PT-05 will replay one position SMS
each 5 minutes in SMS working mode.
(3) Send Instruction “W******,003,3,1,(area number)＋13628888444”
Meaning: when the SOS button be pressed, the PT-05 will send one SMS to
“13628888444”, and then dial up “13628888444”. --
(4) Send Instruction “W******,003,3,2, (area number)＋13628888444”
Meaning: when the Dial button B be pressed, the PT-05 will send one SMS to
“13628888444”, and then dial up “13628888444”
(5) Send Instruction “W******,003,1,3, (area number)＋013628888444”
Meaning: when the Dial button C be pressed, the PT-05 will only send one SMS to
“13628888444”.
(6) Send Instruction “W******,005,03”
Meaning: when the speed is up 30 km/h, the PT-05 will send one Alarm SMS the mobile
phone linking to SOS alarm
(7) Send Instruction “W******,030, (area number)13628888444”
Meaning: when you call the PT-05 using the your telphone,whiich nuber is 13628888444,
you will montor the PT05. When you hang up it ,the monitor will stop .
（8）Send Instruction “W******,030,T”
T is the monitor telefhone number, the length of T is no more than 16 digits
Meaning: When you ring the tracker,you will monitor wthat they are saying around the
tracker.
Page 29
GPS tracker Page 28 of 46
10 GPRS communication setting
step1: Make sure that your SIM card in PT05 support the GPRS function
Step2: Set tracker ID of PT05 by send one SMS:
SMS Format: W******,010, Tracker ID
For example :
W000000,010,123456
“123456” can be considered to be the device’s name. (Tracker ID must be < 14 digits)
If there are several devices ,you can use their Tracker ID to differ from each other.
PT05 will response one SMS to confirm the setting.
Like “Set SIM OK/120”
Step3 : Set IP address and Port by send one SMS
SMS Format: W******,012,IP,PORT
IP: xxx.xxx.xxx.xxx
PORT： [1,65536]
Make sure that the IP should be the Extranet IP. If your pc is in Intranet ,you must know your
Extranet IP . You may need the help of you network administrator
For example :
W000000,012,202.116.11.12,8000
PT05 will response one SMS to check it.
Like “Set IP ok /202.116.11.12#8000”
Step4: Set APN
SMS format : W******,011, APNString
For example :
W000000,011, CMNET
PT05 will response one SMS to check it
Like “set APN OK /CMNET”
Page 30
GPS tracker Page 29 of 46
Step5:Set time interval of sending GPRS package
SMS format: W******,014 , XXXXX
( XXXXX：Be sure that the time interval MUST be FIVE digits).
XXXXX: means times interval,
(Unit: 10s)
The length of XXXXX is in 5 digits
XXXXX=00001, means time interval is 10s
For example:
W000000,014,00003
SMS meaning: Make PT05 send a GPRS package every 30 seconds
PT05 will response one SMS to confirm the setting .
Like “set GPRS Timer ok/00003”
Step6: Enable GPRS function
SMS format: W******,013,X
X=0 close GPRS
X=1 open GPRS
For example: W00000, 013, 1
SMS meaning： Make PT05 begin GPRS function.
PT05 will response one SMS to confirm the setting .
Like “open tcp ok”
( Note: 1 PT05 default value is GPRS Disable
2 SMS W0000,013,0 is disable GPRS function )

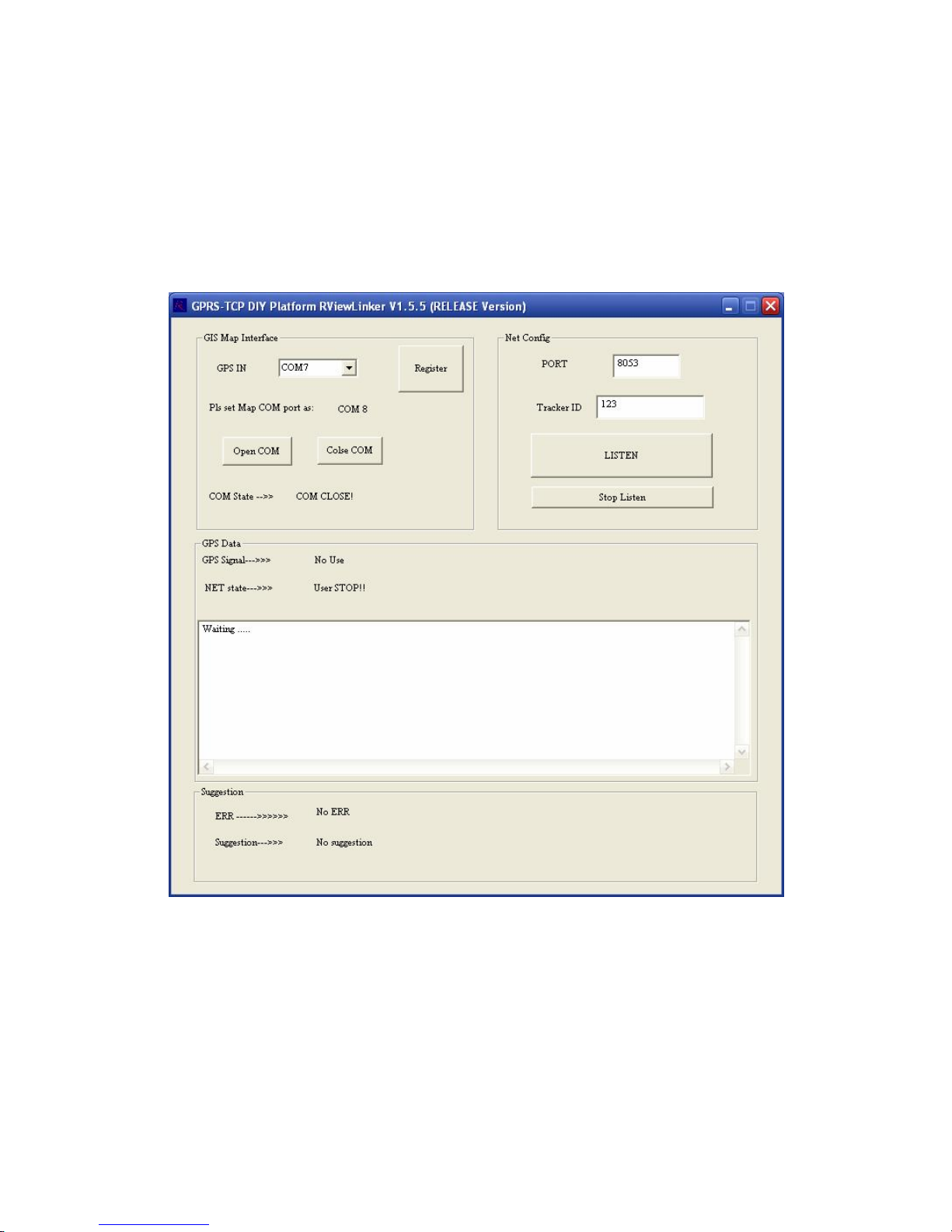

Step7 : According to the document of our GTP communication protocols of PT05 , the
server can analyses the GPRS data.
Page 31
GPS tracker Page 30 of 46
（tips:
1 You can get the latitude & longitude data sent from PT05 by GPRS every interval
time from the Any software of TCP receiver ,which is installed in your PC.
2 if you require the document about GTP communication protocol of PT05, please
contact us by mail.
3 for bulk number:

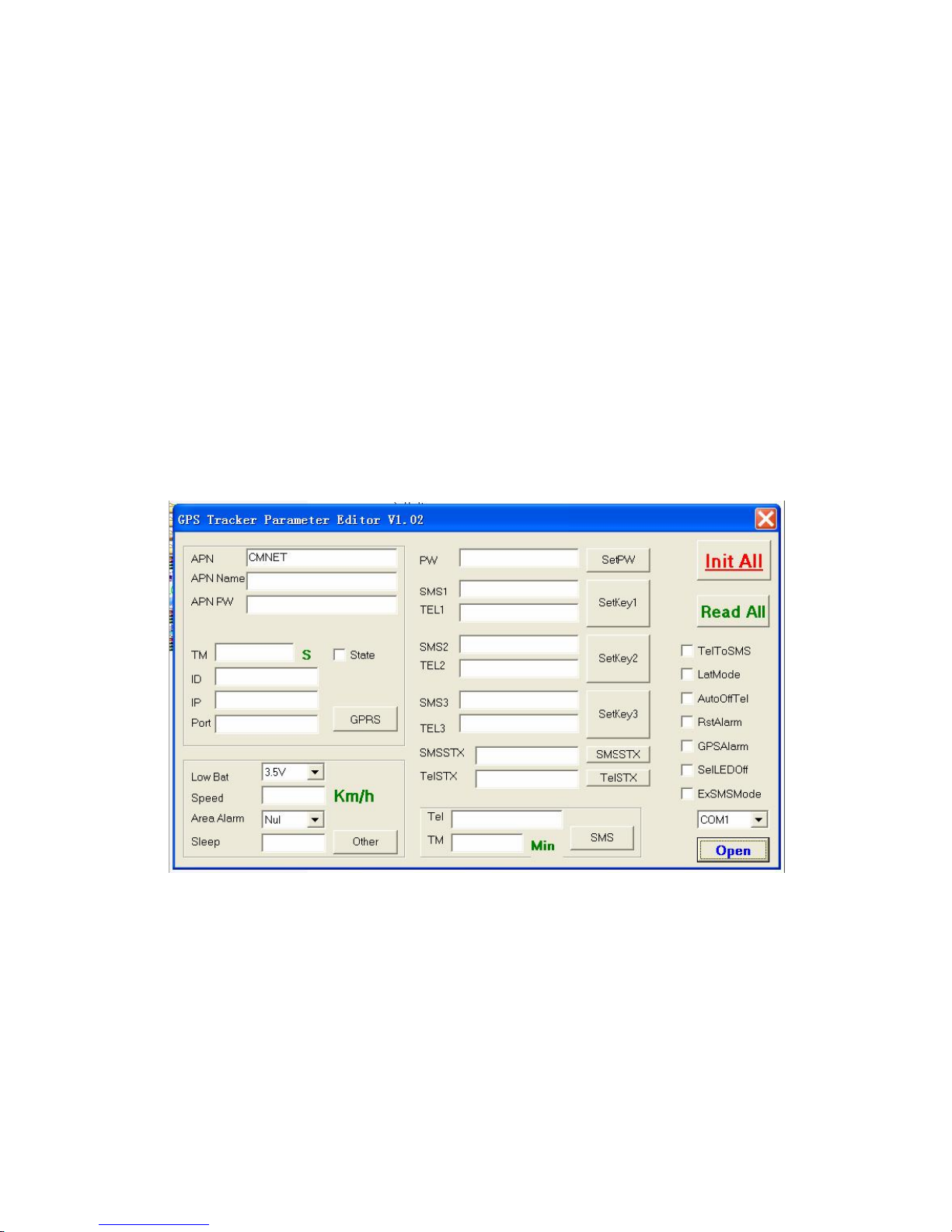

You can configure PT05 by PC tools named “Parameter Editor” in CD
----the tools is be designed by us, and it is for configuring bulk number of Tracker unit,
And the customers require one special USB configure cable from us which connect PC
with Tracker unit.
For detail, read Configuration tool V1.02 User Guide in CD
Page 32
GPS tracker Page 31 of 46
11 Caution:
a) This device is not design for water-proof, and you must use the
water-proof bag accessory
b) This device must work with GPRS/GSM network.
c) Make sure enough deposit in the SIM card to avoid any in convince.
Page 33
GPS tracker Page 32 of 46
12 Build your control center system on your PC
We provide one low cost solution help you build your control center system on your PC,
which is very cheaper than other center system.
You NEED: ---- ( very low cost)
(1) Google Earth Plus ( http://earth.google.com/products.html )
Or any other navigation map software (PC version)
(2) one PC
(3) SMS modem ( provided by us)
(4) Software on PC (provided by us)
(5) Some personal trackers ( provided by us)

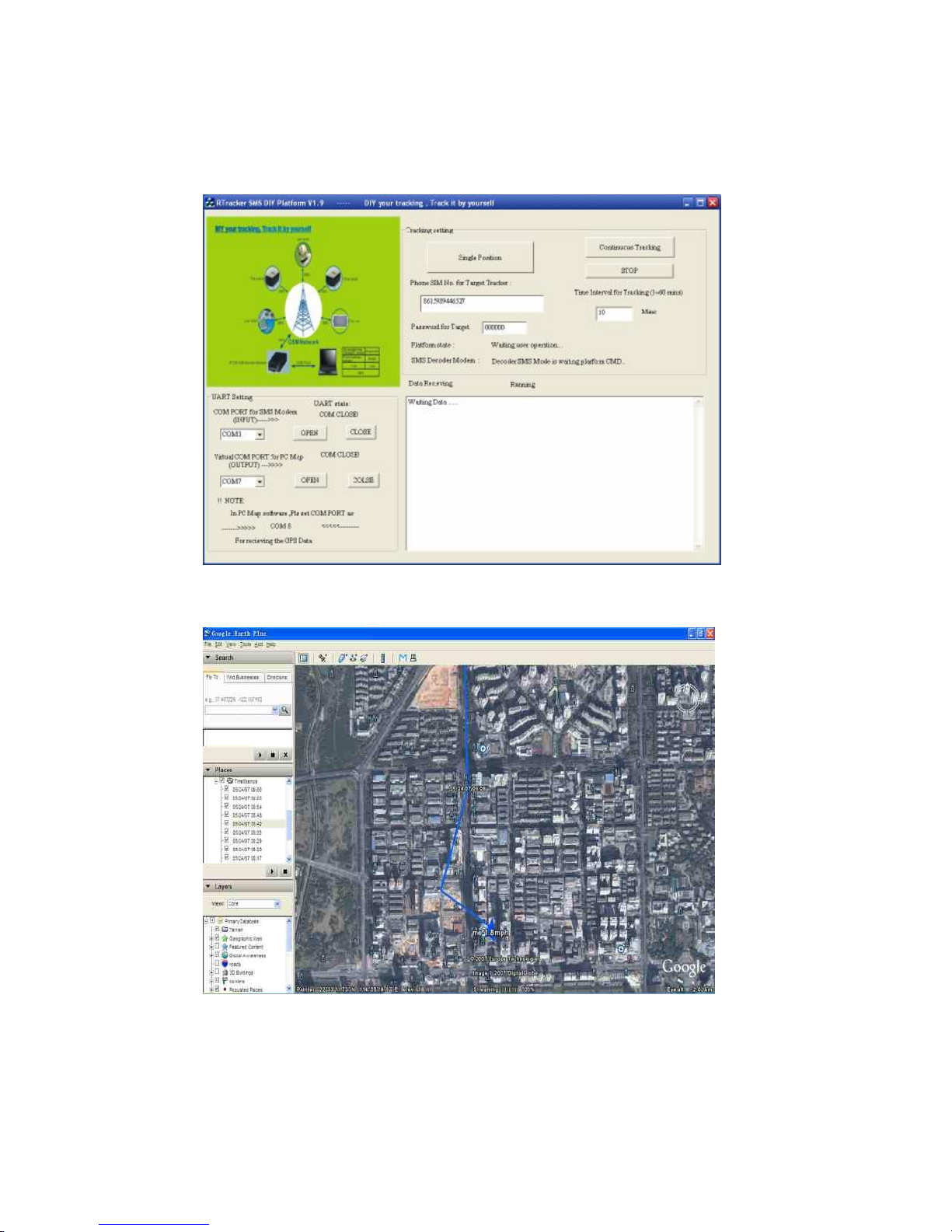

Software Interface
Page 34
GPS tracker Page 33 of 46
Google earth
One navigation map software
Page 35
GPS tracker Page 34 of 46
Page 36
GPS tracker Page 35 of 46
13 DIY Tracking Kits for GPRS-TCP
Overview
This DIY system was specially developed for GPS Trackers. With this
application software,
+ GPS Tracker, +Linker , you will be able to use your own PC to track the position of your
loved one without the need of a call center. For example, you can use this system to monitor
your child, the elders, the pets, your car, or the assets installed with our GPS Tracker - live and
real-time. Without any payment to the call center.
This application software enables you to use Google Earth to track your vehicle(s) LIVE &
Real-Time in office or home by your own PC; without the call center. It can also replay the
historical route(s) afterwards.
DIY call center. It is specially designed for small enterprise and family application. You
customer can setup its own call center at a very cheap cost, no monthly service payment is
required .The position and trace of the target can be shown on electronic map directly, without
manual input.
Features:
1 Build your own control center system at very low cost;
2 DIY your tracking, and Without any payment to center service;
3 Easily support up to 500 GPS Trackers;
4 Support the trace storage and replay;
5. Living and Real time;
6. Easily use, a good choice for small enterprise, home, small group.
7. The customers can select their faviorate map by themselves
Application :
1 Personal
2 SOHO
3 Small Enterprise
4 Small Organization
Page 37
GPS tracker Page 36 of 46
To build the DIY call center system,
You NEED: ---- ( very low cost)
(1) Google Earth ( http://earth.google.com/products.html )
Or any other navigation map software (PC version)
(2) One PC connecting internet
(3) GPRS-TCP DIY Tracking software on PC
(one license provided by us )
(4) Virtual UART driver program
(one license provided by us )
(5) Some Tracker Unit. ( provided by us)
Page 38
GPS tracker Page 37 of 46
14 Trouble shooting
If you find some trouble in using PT05, please refer the following:
(1) Check GPS signal is normal,
In normal ,the blue led should in rapid blink----light for 0.1 second and then dark for
2.8second in turn
If blue led is not in this correct state, it indicate GPS signal is too weak to get position
info.
please check following issue:
(a) Working outdoor,PT05 can get better GPS signal;
(b) The front side of PT05 should be placed toward sky;
(c )Charging PT05 3 hours for the tracker has enough power before usage
(2) Check GSM signal is normal
In normal ,the green led should in rapid blink ----light for 0.1second and then dark for
2.8s in turn
If green led is not in this correct state, it indicate GSM communication is wrong
please try following issue:
(a) Whether the GSM network is strong enough to make the track unit work.
You can judge it by calling someone thorough your cell phone.
(b) Whether the SIM card is installed correctly or not ,and try to pull out and insert
SIM card as following picture shows to ensure it; try this operation a few times
may help to ensure correct installation
(c) Whether there is enough deposit in SIM card or not;
(d) Whether your SIM card in PT05 support SMS function or not, (including send
SMS and receive SMS)
(f) Whether SIM card has specific requirement on cell phone or not,
for example whether the SIM card can only use in a appointed cell phone, other
cell phone cannot use the SIM card
(g) Whether SIM card is binding to the specific cell phone or not
Page 39
GPS tracker Page 38 of 46
(h) Whether SIM card need some authorization when using it
For example, you need type one password when you use the kind of SIM cards
(i) Whether the tracker has enough power to work, we strongly suggest it was
charged at least 3 hours before use it
(3) The SMS which be replied by PT05 is including the chars --- “ Last ……….”
It is indicate the GPS signal is weak.
Page 40
GPS tracker Page 39 of 46
Attachment A :
You can get the latitude & longitude data sent by the PT05 every interval
time from the software ,which is installed in your PC.
And then you must edit the data as format below
Format: 22 32 40.51N 114 04 57.78E
(N is the north latitude,and E is the east longitude)
Now you can Input the latitude and longitude as following,and click on the
searching buttion,.
Page 41
GPS tracker Page 40 of 46
Now you can find the exact position of the tracker
Page 42
GPS tracker Page 41 of 46

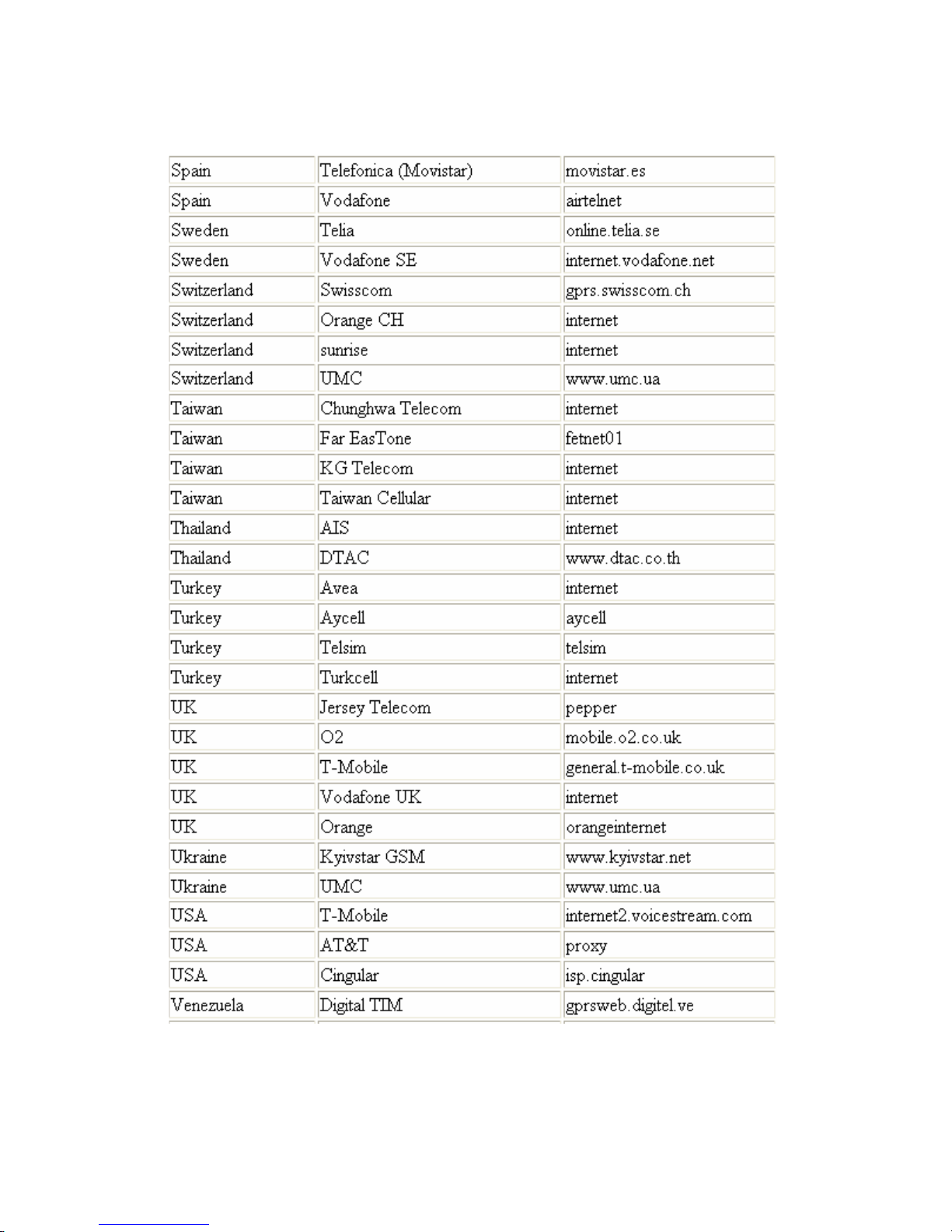

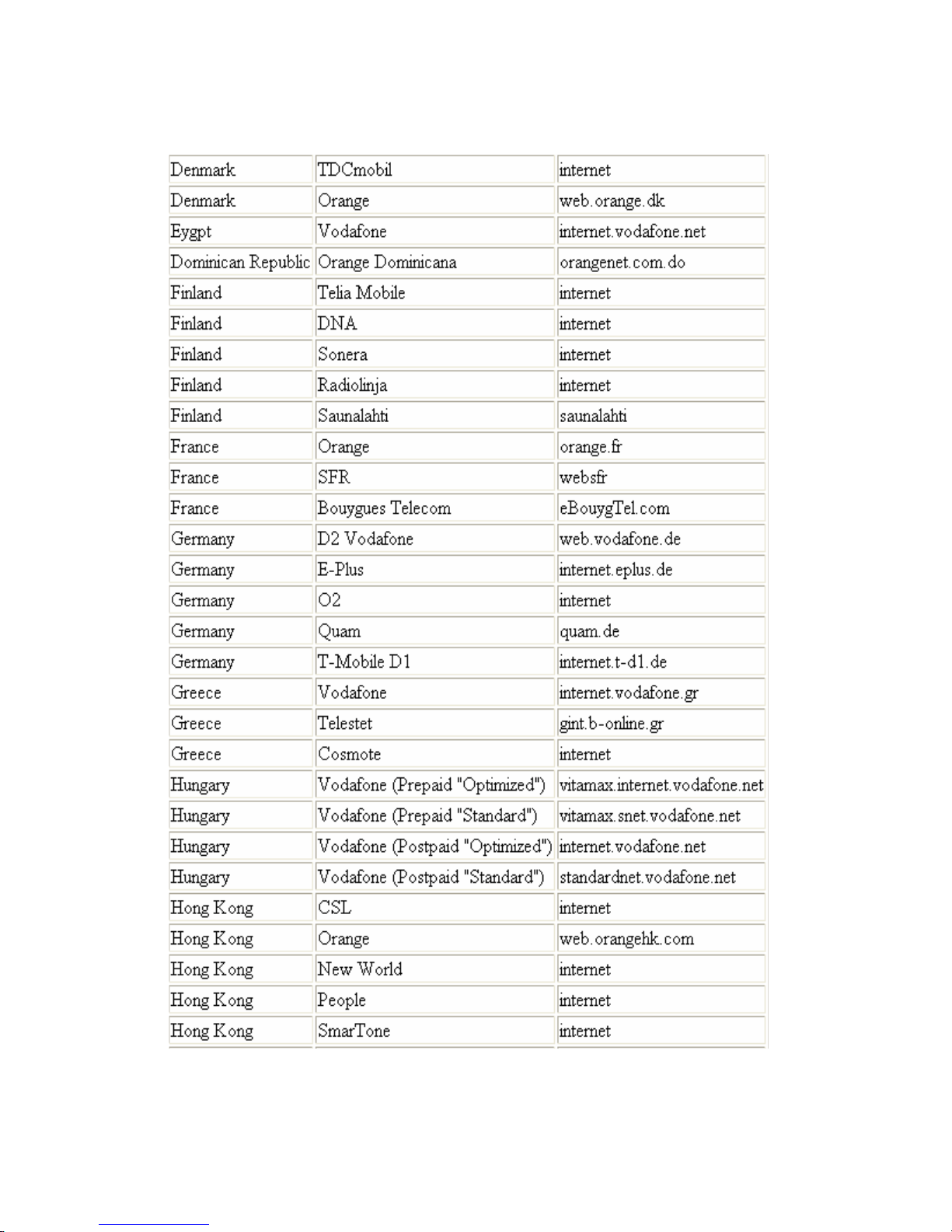

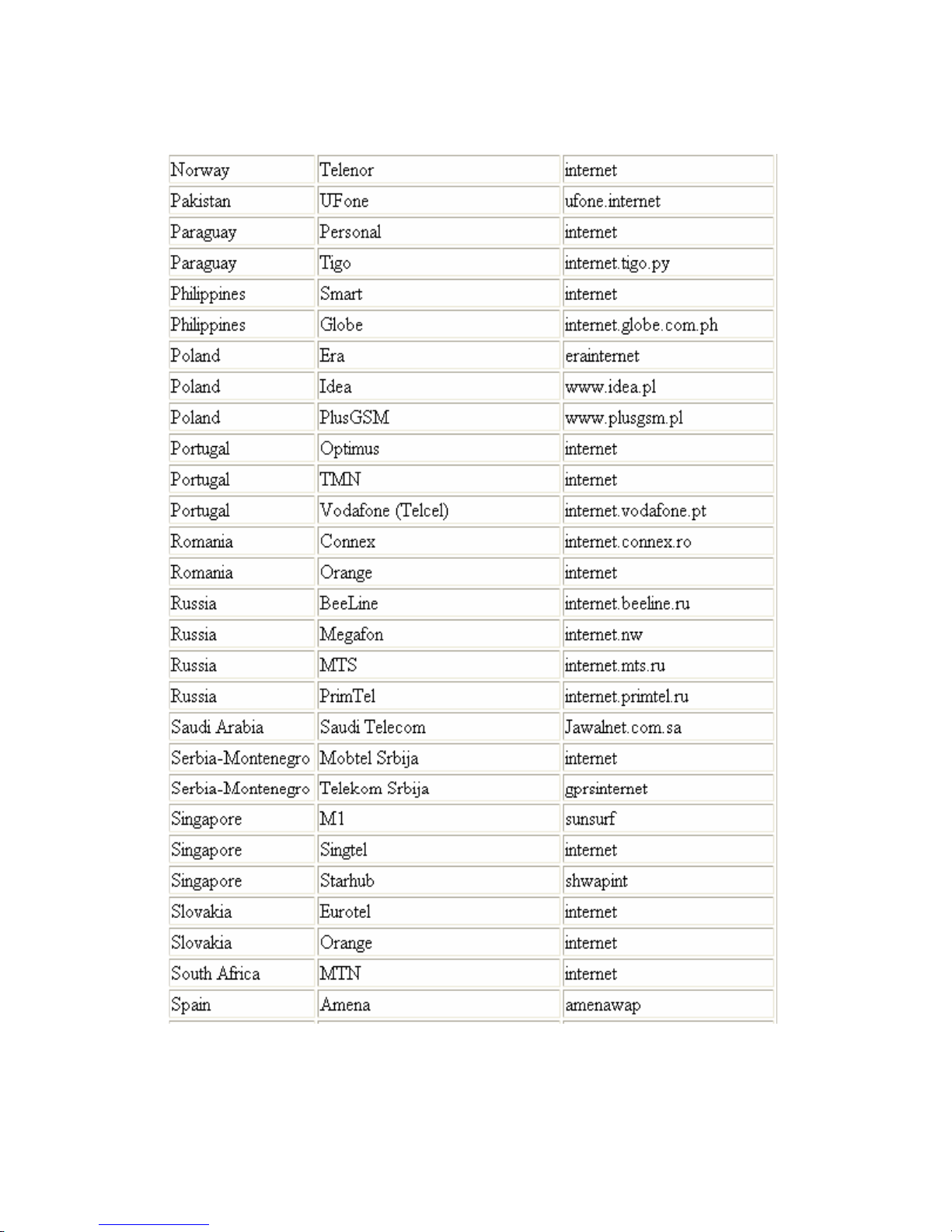

Attachment B: Worldwide APN (Access Point
Name) List
Page 43
GPS tracker Page 42 of 46
Page 44
GPS tracker Page 43 of 46
Page 45
GPS tracker Page 44 of 46
Page 46
GPS tracker Page 45 of 46
Loading...
