INSTRUCTION MANUAL 说明手册

中英文双语 / Chinese English Bilingual

在使用本产品之前：

请先仔细阅读本手册，以确保您能安全使用。请保存好本手册以备将

来查询参考。

Before using this product: Please read this user manual carefully in order to ensure your safety

and the proper operation of this product. Keep for future reference.

Foreword

Warning

Thank you for purchasing this product.

This TT350C camera flash applies to Canon series cameras and is

compatible with TTL autoflash. With this TTL compatible flash, your

shooting will become simpler. You can easily achieve a correct flash

exposure even in complex light-changing environments. This

camera flash features:

● GN36 (m ISO 100, @105mm).

● Fully support Canon E-TTL camera flash. Workable as Master or

Slave unit in a wireless flash group.

● With built-in 2.4GHz wireless remote system to support

transmitting and receiving.

● Provided multiple functions, include manual flash, multi flash, HSS

(up to 1/8000s), second curtain sync, FEC, etc.

● Support with firmware upgrade.

Always keep this product dry. Do not use in rain or in damp conditions.

Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.

Keep out of reach of children.

Stop using this product if it breaks open due to extrusion, falling or strong hit. Otherwise, electric shock may occur if you touch the electronic parts inside it.

Do not fire the flash directly into the eyes (especially those of babies) within short distances. Otherwise visual impairment may occur.

Do not use the flash unit in the presence of flammable gases, chemicals and other similar materials. In certain circumstance, these materials may be sensitive to the strong light emitting from this flash unit and fire or electromagnetic interference may result.

Do not leave or store the flash unit if the ambient temperature

reads over 50℃. Otherwise the electronic parts may be

damaged.

Turn off the flash unit immediately in the event of malfunction.

- 25 -

- 26 -

E l e c t r o n i c C a m e r a F l a s h

Thinklite TTL Camera Flash

Conventions used in this Manual

● This manual is based on the assumption that both the camera and

camera flash’s power switches are powered on.

● Reference page numbers are indicated by “p.**”.

● The following alert symbols are used in this manual:

The Caution symbol gives supplemental information.

The Note symbol indicates a warning to prevent shooting

problem.

- 27 -

Contents

Foreword

Warning

Name of Parts

Body

Control Panel

LCD Panel

What's in the Box of TT350C?

Separately Sold Accessories

Attaching to a Camera

Power Management

Flash Mode: TTL Autoflash

FEC (Flash Exposure Compensation)

High-Speed Sync

Second-Curtain Sync

Flash Mode – M: Manual Flash

Flash Mode – Multi: Stroboscopic Flash

Wireless Flash Shooting: Radio (2.4G) Transmission

Wireless Settings

Setting Master Unit’s Flash Mode

Setting the Communication Channel

TTL: Fully Automatic Wireless Flash Shooting

M: Wireless Flash Shooting with Manual Flash

Multi: Wireless Flash Shooting with Manual Flash

Other Applications

Auto Focus Assist Beam

Bounce Flash

Creating a Catchlight

ZOOM: Setting the Flash Coverage and Using the Wide Panel

Low Battery Indicator

C.Fn: Setting Custom Functions

Protection Function

Firmware Upgrade

Technical Data

Troubleshooting

Compatible Camera Models

Maintenance

- 28 -

MODE ZOOM SYNC SLAVE

SET

Name of Parts

● LCD Panel

(1) TTL Autoflash

Zoom : zoom display (Page 42)

TTL : TTL autoflash

Focus length (Page 42)

● Body

01. Catchlight Panel

02. Built-in Wide Panel

03. Flash Head

04. Optic Control Sensor

05. Focus Assist Beam

● Control Panel

11. <MODE>Mode Selection Button

12. <ZOOM>Zoom Selection Button

13.<SYNC>High-Speed Sync Button

14. <SLAVE> S1/S2 Optic Slave

Triggering Selection Button

(in non-wireless mode)

15. < > Power Switch

16. < > Test Button / Flash Ready

Indicator.

17. < >Custom Function Setting

Button (reusable button, long

- 29 -

06. Hotshoe

07. LCD Panel

08. Lock Ring

09. Battery Compartment

: Flash exposure

compensation (Page 33)

(2)M Manual Flash

(3)Multi Flash

Flash exposure

compensation amount

M : Manual flash

Manual flash output

Multi : Stroboscopic flash

Number of flashes

Flash frequency

10. USB Port

14 19 18 15 20

(4) Radio Transmission Shooting

● Master Unit

Firing group

Master

Flash mode

Channel

press for 2 seconds)

18. < > Wireless Selection

Button (reusable button, long press for 2 seconds)

● Slave Unit

19. <GR/CH> Group/Channel Button

(reusable button, in wireless

mode)

20. Select Dial

21.<SET> Set Button

Slave

- 30 -

● What’s in the Box of TT350C?

1. Flash unit　2. Mini stand　3. Protection case　4. Diffuser　

5. Instruction manual

● Separately Sold Accessories

The product can be used in combination with the following accessories sold separately, so as to achieve best photography effects: X1T-C wireless flash trigger, Mini softbox, White & Silver reflector, Honeycomb, Color gels, Snoot, etc.

Power Management

Use Power Switch to power the flash unit on (Long press the button for one second) or off. Turn off if it will not be used for an extended period of time. Setting as a master flash, it will turn the power off automatically after a certain period (approx. 90 seconds) of idle use. Pressing the camera shutter halfway or pressing any flash button will wake up the flash unit. Setting as a slave flash, it will enter sleep mode after a certain period (adjustable, 60 minutes by default) of idle use. Pressing any flash button will wake it up.

C.Fn

Disabling Auto Power Off function is recommended when the flash is used off camera. (C.Fn-ST, Page 43)

Flash Mode: TTL Autoflash

Attaching to a Camera

- 31 -

Attach the Camera Flash.

● Slip the camera flash’s mounting foot into the camera’s hotshoe all the way.

Secure the Camera Flash.

● Rotate the lock ring on the mounting foot until it locks up.

Detach the Camera Flash.

● Rotate the lock ring on the mounting foot until it is loosened.

This flash has three flash modes: TTL, Manual (M), and Multi (Stroboscopic). In TTL mode, the camera and the flash will work together to calculate the correct exposure for the subject and the background. In this mode, multiple TTL functions are available: FEC, HSS, second curtain sync, etc.

* Press <MODE> Mode Selection Button and three flash modes will display on the LCD panel one by one with each pressing.

TTL Mode

Press <MODE> Mode Selection Button to enter TTL mode. The LCD panel will display <TTL>.

● Press the camera release button halfway to focus.

● When the shutter button is fully pressed, the flash will fire a pre-

flash that the camera will use to calculate exposure and flash output the instant before the photo is taken.

Display“HI”: When the flash output value is up to the maximum

value, “HI”will be displayed and blinking for 3 seconds. Adjust the camera’s parameters if underexposure appears.

Display“Lo”: When the flash output value is up to the minimum

value, “Lo”will be displayed and blinking for 3 seconds. Adjust the camera’s parameters if overexposure appears.

- 32 -

　　 FEC: Flash Exposure Compensation

ZOOM SYNC SLAVE

SET

MODE ZOOM SYNC SLAVE

SET

MODE ZOOM SYNC SLAVE

SET

MODE ZOOM SYNC SLAVE

SET

MODE ZOOM SYNC SLAVE

SET

With FEC function, this flash can adjust from -3 to +3 in 1/3rd stops. It is useful in situations where minor adjusting of the TTL system is needed based on the environment.

Setting FEC:

Press the SET Button and

1 the flash exposure

compensation amount will be highlighted on the LCD panel.

Turn the Select Dial to set the

2 amount.

● “0.3”means 1/3 step,

“0.7”means 2/3 step.

● To cancel the flash

exposure compensation, set the amount to “+0”.

Press < SET > button again

3 to confirm the setting.

High-Speed Sync

High Speed Sync (FP flash) enables the flash to synchronize with all camera shutter speeds. This is convenient when you want to use aperture priority for fill-flash portraits.

Choose the < > button: Press the <SYNC> button to turn on high-speed sync function.

● With high-speed sync, the faster the shutter speed, the shorter the effective flash range.

● Multi flash mode cannot be set in high-speed sync mode.

● Over-temperature protection may be activated after 15

consecutive high-speed sync flashes.

● Try to avoid using high-speed sync flash, which will cut

short flash tube’s lifetime.

Second-Curtain Sync

With a slow shutter speed, you can create a light train following the subject. The flash fires right before the shutter closes.

● Press the <SYNC> button then the < > icon displayed on the

panel. The flash will without second-curtain sync function in the Multi mode and in the wireless mode.

- 33 -

M: Manual Flash

The flash output is adjustable from 1/1 full power to 1/128th power in 1/3rd stop increments. To obtain a correct flash exposure, use a hand-held flash meter to determine the required flash output.

Press < MODE > button so

1 that < M > is displayed.

Turn the Select Dial to choose

2 a desired flash output amount.

In high-speed sync mode,

the adjustable flash range is 1/16~1/1.

Flash Output Range

The following table makes it easier to see how the stop changes in terms of f/stop when you increase or decrease the flash output. For example, when you decrease the flash output to 1/2, 1/2-0.3, or 1/2-

0.7, and then increase the flash output to more than 1/2, 1/2+0.3, 1/2+0.7, and 1/1 will be displayed.

Figures displayed when reducing flash output level→

1/1-0.7

1/1-0.3

1/2+0.3

1/2+0.7

←Figures displayed when increasing flash output level

In the M mode, high-speed sync and second curtain sync functions can be achieved.

Optical S1 Secondary Unit Setting

In M manual flash mode, press the <SLAVE> button so that this flash can function as an optic S1 secondary flash with optic sensor. With this function, the flash will fire synchronously when the main flash fires, the same effect as that by the use of radio triggers. This helps create multiple lighting effects.

Optical S2 Secondary Unit Setting

Press the <SLAVE> button so that this flash can also function as an optic S2 secondary flash with optic sensor in M manual flash mode. This is useful when cameras have pre-flash function. With this function, the flash will ignore a single “preflash” from the main flash and will only fire in response to the second, actual flash from the main unit.

● S1 and S2 optic triggering and off camera high-speed

mode are only available in M manual flash mode.

1/2-0.3

1/4+0.7

1/2-0.7

1/4+0.3

······

1/41/21/1

······

- 34 -

Multi: Stroboscopic Flash

MODE ZOOM SYNC SLAVE

SET

MODE ZOOM SYNC SLAVE

SET

MODE ZOOM SYNC SLAVE

SET

ZOOM SYNC SLAVE

SET

With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture a multiple images of a moving subject in a single photograph.

You can set the firing frequency (number of flashes per sec. expressed as Hz), the number of flashes, and the flash output.

Long press the <MODE>

1 button for 2 seconds so that

<Multi> is displayed.

Turn the Select Dial to choose

2 a desired flash output.

Maximum Stroboscopic Flashes:

Flash output

1/4

1/8

1/16

1/32

1/64

1/128

6-7

10-19

8-9

60-90

20-50

Calculating the Shutter Speed

During stroboscopic flash, the shutter remains open until the firing stops. Use the formula below to calculate the shutter speed and set it with the camera.

Number of Flashes / Flash Frequency = Shutter Speed

For example, if the number of flashes is 10 and the firing frequency is 5 Hz, the shutter speed should be at least 2 seconds.

To avoid overheating and deteriorating the flash head, do not use stroboscopic flash more than 10 times in succession. After 10 times, allow the camera flash to rest for at least 15 minutes. If you try to use the stroboscopic flash more than 10 times in succession, the firing might stop automatically to protect the flash head. If this happens, allow at least 15 minutes’ rest for the camera flash.

● Stroboscopic flash is most effective with a highly reflective

subject against a dark background.

● Using a tripod and a remote control is recommended.

● Stroboscopic flash can be used with“buLb”.

● If the number of flashes is displayed as “--”, the firing will

continue until the shutter closes or the battery is exhausted. The number of flashes will be limited as shown by the following table.

- 35 -

Set the flash frequency and

3 flash times.

● Press the SET Button to

select the flash frequency. Turn the Select Dial to set the number.

● Press the SET Button

again to select the flash times. Turn the Select Dial to set the number.

Wireless Flash Shooting: Radio (2.4G) Transmission

● You can set up three slave groups for TTL autoflash shooting. With TTL autoflash, you can easily create various lighting effects.

● Any flash settings for the slave units on the master flash in TTL mode will be automatically sent to the slave units. So the only thing you need to do is to set the master unit for each slave group without any operation for the slave units at all during the shooting.

● This flash can work in TTL /M /Multi / OFF flash modes when set as a master unit.

When using Godox 2.4G wireless X system, TT350C is perfectly compatible with other products of our company.

As a master unit, TT350C can control the following slave unit models: AD600, AD600M, AD360II-C, AD360II-N, V860IIC, V850II, TT685C, TT600.

As a slave unit, TT350C can be controlled by the following master unit models: X1T-C, V860IIC, V850II, TT685C, TT600.

● Even with multiple slave units, the master unit can control

all of them via wireless.

● In this user manual, “master unit” refers to the camera flash

on a camera and “slave unit” will be controlled by the master unit.

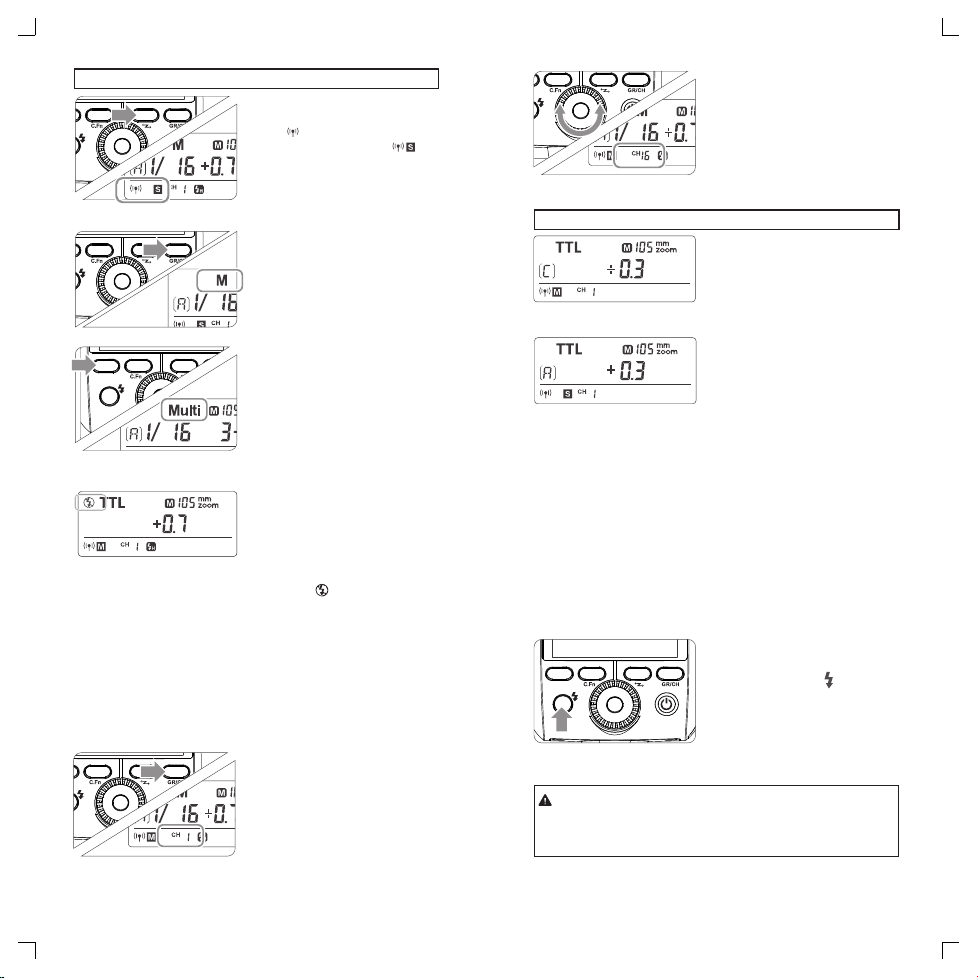

1. Wireless Settings

You can switch between normal flash and wireless flash. For normal flash shooting, be sure to set the wireless setting to OFF.

Master Unit Setting

Long Press the <SYNC>

1 button for 2 seconds so that

< > is blinking. Turn the Select Dial until the < > is displayed on the LCD panel, which means the master unit.

- 36 -

Slave Unit Setting

ZOOM SYNC SLAVE

SET

MODE ZOOM SYNC SLAVE

SET

ZOOM SYNC SLAVE

SET

ZOOM SYNC SLAVE

SET

MODE ZOOM SYNC SLAVE

SET

ZOOM SYNC SLAVE

SET

Long Press the <SYNC>

1 button for 2 seconds so that

< > is blinking. Turn the Select Dial until the < > is displayed on the LCD panel, which means the slave unit.

2. Setting Group Unit’s Flash Mode

Press the <SLAVE> Button to

1 choose the group from A/B/C.

Then, press the < MODE > Button so that the master unit can work in OFF / TTL / M flash mode. Choose one of them as the flash mode of master unit.

Press the <MODE> Button for

2 2 seconds to switch to Multi

mode.

3. Master Unit's Flash OFF

When the flash attach t o

1 camera, enter the external

sp ee dli te con tr ol on th e camera menu.

Turn off the master control

2 f l a sh o n t h e c a me r a .

The < > icon will blink on the TT350C panel, and the flash master control unit is disabled. Select turn on to cancel the master control unit disabled.

4. Setting the Communication Channel

If there are other wireless flash systems nearby, you can change the channel IDs to prevent signal interference. The channel IDs of the master unit and the slave unit(s) must be set to the same.

Long press the <SLAVE>

1 Button for 2 seconds until the

channel IDs is blinking. Turn the Select Dial to choose a channel ID from 1 to 16.

Press the <SET> button to

2 confirm.

5. TTL: Fully Automatic Wireless Flash Shooting

Autoflash Shooting with One Slave Unit

Master Unit Setting

● Attach a TT350C camera flash on the camera and set it as the master unit. (Page 36)

● A/B/C can be set as TTL mode independently.

Slave Unit Setting

● Set the TT350C that to be controlled as the wireless slave unit. (Page 37)

● The slave unit can be set

as A/B/C.

Check the communication

3 channel

● If the master unit and slave unit(s) are set to a different channel, set them to the same channel. (Page 37)

Position the camera and

4 flashes

● Position the camera and flashes as the picture shows. (Page 40)

Check the flash operation

● Press the master unit’s Test Button< >.

● Then, the slave unit will fire. If not, adjust the slave unit’s angle toward the master unit and distance from the master unit.

The slave unit might be out of order or fire an unwanted flash due to the nearby wifi routers or other 2.4G equipments. If in this case, please adjust the flash’s channel or turn off the 2.4G equipments.

- 37 -

- 38 -

6. M: Wireless Flash Shooting with Manual Flash

SET

MODE ZOOM SYNC SLAVE

SET

MODE ZOOM SYNC SLAVE

SET

This describes wireless (multiple shooting) using manual flash. You can shoot with a different flash output setting for each slave unit (firing group). Set all parameters on the master unit.

Setting the flash mode to

1 <M>

● Press the <MODE> Button to set the flash to M mode.

Setting flash output

● Turn the Select Dial to set the flash output of the groups.

Taking the picture

● Each group fires at the set flash ratio.

7. Multi: Wireless Flash Shooting with Manual Flash

Setting <Multi>

1 stroboscopic flash.

● Long press the <MODE> button for 2 seconds so that <Multi> is displayed. Long press the <MODE> button for 2 seconds again to exit.

Setting flash output/flash

2 frequency/flash times.

● Setting the flash output/flash frequency/flash times in the A group. Setting the multi flash mode. (see Page35 )

● B and C group can only control the ON/OFF of the slave unit by pressing the <MODE> Button.

Using a flash (master/slave) with a radio transmission wireless shooting function make it easy to shoot with advanced wireless multiple flash lighting, in the same way as TTL autoflash shooting.

The basic relative position and operation range are as shown in the picture. You can then perform wireless TTL autoflash shooting just by setting the master unit to <TTL>.

Slave/Master Unit's Positioning and Operation Range

● Autoflash Shooting with One Slave Unit

Transmission distance is about 30m.

● Use the supplied mini stand to position the slave unit.

● Before shooting, perform a test flash and test shooting.

● The transmission distance might be shorter depending on

the conditions such as positioning of slave units, the surrounding environment and whether conditions.

Wireless Multiple Flash Shooting

You can divide the slave units into two or three groups and perform TTL autoflash while changing the flash ratio (factor). In addition, you can set and shoot with a different flash mode for each firing group, for up to 3 groups.

● Auto Shooting with Two Slave Groups

● Auto Shooting with Three Slave Groups

- 39 -

- 40 -

Other Applications

ZOOM SYNC SLAVE

SET

Auto Focus Assist Beam

In poorly-lit or low-contrast shooting environments, the built-in auto focus assist beam will automatically light on to make it easier for autofocus. The beam will light up only when autofocus is difficult and get out as soon as the autofocus becomes correct.

If you want to turn off the auto focus assist beam, set the “AF” to “OFF” on the C.Fn settings.

Position

Center

Periphery

Effective Range

0.6~4m

0.6~2.5m

● If the wall or ceiling is too far away, the bounced flash might

be too weak and result in underexposure.

● The wall or ceiling should be a plain, white color for high

reflectance. If the bounce surface is not white, a color cast may appear in the picture.

Creating a Catchlight

With the catchlight panel, you can create a catchlight in the subject’s eyes to add life to the facial expression.

Point the flash head upward by

1 90°.

Pull out the wide panel. The

2 catchlight panel will come out

at the same time.

Bounce Flash

By pointing the flash head toward a wall or ceiling, the flash will bounce off the surface before illuminating the subject. This can soften shadows behind the subject for a more natural-looking shot. This is called bounce flash.

To set the bounce direction, hold the flash head and turn it to a satisfying angle.

- 41 -

270

-7-9 0

Push the wide panel back in.

● Push in only the wide panel.

● Follow the same procedures

as for bounce flash.

● Point the flash head straight ahead and then upward by 90°.

The catchlight will not appear if you swing the flash head left or right.

● For best catchlight effect, stay 1.5m/4.9ft away from the

subject.

ZOOM: Setting the Flash Coverage and Using the Wide Panel

The flash coverage can be set automatically or manually. It can be set to match the lens focal length from 24mm to 105mm. Also, with the built-in wide panel, the flash coverage can be expanded for 14mm wide-angle lenses.

In Manual Zoom mode, press the <ZOOM> button.

● Turn the Select Dial to change

the flash coverage.

● AUIf < > is displayed, the flash

coverage will be set automatically.

● If you set the flash coverage manually, make sure it covers

the lens focal length so that the picture will not have a dark periphery.

● When the low battery indicator is displayed, the ZOOM can

not be adjusted, it will constantly be 24mm.

- 42 -

Using the Wide Panel

Pull out the wide panel and place it over the flash head as shown. The flash coverage will then be extended to 14 mm.

● The catchlight panel will come out

at the same time. Push the catchlight panel back in.

● When pull out the wide panel, the ZOOM will constantly be

14mm. The <ZOOM> button will not work.

Low Battery Warning

If the battery power is low, < > will appear and blink on the LCD panel. P l ea se r e pl ac e t h e b a t te ry immediately. When the low battery indicator is displayed, the ZOOM can not be adjusted, it will constantly be 24mm.

C.Fn: Setting Custom Functions

The following table lists the available and unavailable custom functions of this flash.

C.Fn Custom Functions

Custom Function Signs

1. Press the < ZOOM > Button for 2 seconds until C.Fn menu is

displayed.

2. Turn the Select Dial to select the Custom Functions.

3. Press the <SET> Button and the Setting No. blinks.

4. Turn the Select Dial to set the desired number. Pressing the

<SET> Button will confirm the settings.

5. Press the <ZOOM> Button to exit.

- 43 -

Function

Auto sleep

(standby)

AF-assist beam

Backlighting

control

Setting No. Settings & Description

10 sec.

OFF

Off in 10 sec.

Always off

Always lighting

Protection Function

1. Over-Temperature Protection

● To avoid overheating and deteriorating the flash head, do not fire

more than 30 continuous flashes in fast succession at 1/1 full power. After 30 continuous flashes, allow a rest time of at least 10 minutes.

● If you fire more than 30 continuous flashes and then fire more

flashes in short intervals, the inner over-temperature protection function may be activated and make the recycling time over 10 seconds. If this occurs, allow a rest time of about 10 minutes, and the flash unit will then return to normal.

● When the over-temperature protection is started, is shown on

the LCD panel.

Number of flashes that will activate over-temperature protection:

Power Output Level

1/1

1/2 +0.7

1/2 +0.3

1/2

1/4(+0.3,+0.7)

1/8(+0.3,+0.7)

1/16(+0.3,+0.7)

1/32(+0.3,+0.7)

1/64(+0.3,+0.7)

1/128(+0.3,+0.7)

Number of flashes that will activate over-temperature protection in high-speed sync triggering mode:

Power Output

1/1

1/2(+0.3,+0.7);

1/4(+0.3,+0.7)

1/8(+0.3,+0.7);

1/16(+0.3,+0.7)

2. Other Protections

The system provides real-time protection to secure the device and your safety. The following lists prompts for your reference:

Prompts on LCD Panel

Number of Flashes

100

200

300

500

1000

Times

Meaning

A failure occurs on the recycling system so that the flash cannot fire. Please restart the flash unit. If the problem still exists, please send this product to a maintenance center. The voltage on two outlets of the flash tube is too high. Please send this product to a maintenance center. There are some errors occurred during the upgrading process. Please using the correct firmware upgrade method.

- 44 -

Firmware Upgrade

This flash supports firmware upgrade through the USB port. Update information will be released on our official website.

USB connection line is not included in this product. The USB port is a standard Micro USB socket. Common USB connection line is applicable.

Checking the version: Press the <MODE> Button and the turn the flash on. Then, the firmware update version (e.g. Version 1.0 will read U-1.0) will be displayed on the LCD panel.

Technical Data

Model

• Type

Compatible Cameras

Guide No.

(1/1 output @ 105mm)

Flash Coverage

Flash Duration (t0.1)

• Exposure Control

Exposure control system

Flash exposure

compensation (FEC)

Sync mode

Multi flash

• Wireless Flash (2.4G radio transmission)

Wireless flash function

Controllable slave groups

Transmission range

(approx.)

Channels

- 45 -

TT350C

Please reference to compatible camera models

36 (m ISO 100)

24 to 105mm

• Auto zoom (Flash coverage set automatically

to match the lens focal length and image size)

• Manual zoom

• Swinging/tilting flash head (bounce flash): 0 to 270°

horizontally and -7° to 90° vertically

1/350 to 1/20000 seconds

TTL autoflash and manual flash

Manual. FEB: ±3 stops in 1/3 stop increments

(Manual FEC can be combined.)

High-speed sync (up to 1/8000 seconds),

first-curtain sync, and second-curtain sync

Provided (up to 90 times, 90Hz)

Master, Slave, Off

3 (A, B and C)

≤30m

16 (1~16)

• Auto Focus Assist Beam

Effective range (approx.)

• Power Supply

AA batteries

Recycle time

Full power flashes

Power saving

• Sync Triggering Mode

• Dimensions

W x H x D

Weight without battery

Center: 0.6~4m

Periphery: 0.6~2.5m

Ni-MH batteries (recommended) or 2*LR6 alkaline batteries

Approx. 0.1-2.2 seconds (eneloop Ni-MH batteries of Panasonic).

Red LED indicator will light up when the flash is ready.

Approx. 210 (2500mA Ni-MH batteries)

Power off automatically after approx. 90 seconds

of idle operation. (60 minutes if set as slave)

Hotshoe, optic triggering

140*62*38 mm

200g

- 46 -

Troubleshooting Compatible Camera Models

If there is a problem, refer to this Troubleshooting Guide.

The Camera Flash cannot be charged.

● The battery is installed in the wrong direction.

→Install the battery in the correct direction.

● The camera flash’s internal battery is exhausted.

→If < > appears and blinks on the LCD panel, replace the

battery immediately.

The Camera Flash does not fire.

● The camera flash is not attached securely to the camera.

→Attach the camera’s mounting foot securely to the camera.

● The electrical contacts of the Camera Flash and camera are dirty.

→Clean the contacts.

The power turns off by itself.

● After 90 seconds of idle operation, auto power off took effect if the

flash is set as master.

→Press the shutter button halfway or press any flash button to

wake up.

● After 60 minutes of idle operation, the flash unit will enter sleep

mode if it is set as slave.

→Press any flash button to wake up.

Auto zoom does not work.

● The camera flash is not attached securely to the camera.

→Attach the camera flash’s mounting foot to the camera.

The flash exposure is underexposed or overexposed.

● You used high-speed sync.

→With high-speed sync, the effective flash range will be shorter.

Make sure the subject is within the effective flash range displayed.

● You used Manual Flash mode.

→Set the flash mode to TTL or modify the flash output.

Photos have dark corners or only parts of the target subject are illuminated.

● The focal length of lens exceeds the flash coverage.

→Check the flash coverage you set. This flash unit has the flash

coverage between 24 and 105mm, which fits medium-format cameras. Pull the wide panel out to extend the flash coverage.

- 47 -

This flash unit can be used on the following Canon camera

models:

5D Mark III

100D 1100D Digital X

This table only lists the tested camera models, not all Canon series cameras. For the compatibility of other camera models, a self-test is recommended. Rights to modify this table are retained.

80D 7D 760D 60D 600D 30D

Maintenance

● Shut down the device immediately should abnormal operation be detected.

● Avoid sudden impacts and the product should be dedusted regularly.

● It is normal for the flash tube to be warm when in use. Avoid continuous flashes if unnecessary.

● Maintenance of the flash must be performed by our authorized maintenance department which can provide original accessories.

● This product, except consumables e.g. flash tube, is supported with a one-year warranty.

● Unauthorized service will void the warranty.

● If the product had failures or was wetted, do not use it until it is

repaired by professionals.

● Changes made to the specifications or designs may not be reflected in this manual.

FCC Warning

Any Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

the equipment. This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth

for an uncontrolled environment. This transmitter must not be co-

located or operating in conjunction with any other antenna or

transmitter.

- 48 -

Godox Thinklite TT350C User Manual [ru]

Specifications and Main Features

Frequently Asked Questions

User Manual
