1. Introduction

Thank you for choosing SkyATA-102 VoIP USB Adapter. SkyATA-102 allows you
to make a traditional PSTN call or Skype™ call, the internet software telephony,
using a regular analog wired/cordless phone or DECT (Digital Enhanced Cordless
Telecommunications) phone. Even SkyATA-102 is not plugged into PC USB port,
PSTN line is still available for emergency call. It supports both Multi-Call (call
switch among multiple Skype contacts) and Conference call (talking to several
Skype contacts simultaneously) either through PSTN line or Skype line. With
these functions through SkyATA-102’s user friendly interface, it is simple and
convenient for you to chat with some Skype contacts during the same period of
time. SkyATA-102 also supports landline and phone RJ11 ports Auto-detection
and Auto-swapping function to prevent user’s neglect to have wrong connection
for both RJ11 ports. Through Cheese Button function, user can quickly switch to
SkypeOut™ or PSTN call to your contact by pressing two keys through phone
keypad whenever PC to PC Skype communication quality is not good. User
doesn’t need to look for phone book and then make the call.

SkyATA-102 offers simple and convenient user interface for operation. You can
easily operate it on a regular analog telephone. By connecting SkyATA-102 with a
cordless or DECT phone, you can make/ receive a Skype call through the handset
keypad without having to stay close to your computer. With PSTN and Skype
through one cordless or DECT phone, you can carry the handset away from
computer and won’t worry about missing any PSTN or Skype call.

Now SkyATA-102 also supports other IM/Softphone as an audio device. User can
make/receive an IM call from PC, then pick up phone for conversation.

The document of SkyATA-102 comprises of several parts as follows: A quick
installation guide to help install and use SkyATA-102 quickly. For any questions
about this product, please refer to the SkyATA-102 user manual or SkyATA-102
on-line help. On-line help can be read from the SkyATA-102 system tray icon at
the right-bottom corner of Windows desktop once the SkyATA-102 AP program is
installed. Also, FAQs (Frequently Asked Questions) can be found from on-line
help and user manual. For further questions, please feel free to contact us directly.
The contact information for customer service is provided in on-line help and our
company website. Thank you again.

4

1.1 Package Contents

 SkyATA-102 VoIP USB Adapter
 Type B USB cable(Male A to male B)
 Installation CD including SkyATA-102 AP

setup program, quick installation guide
and user manual

1.2 Product Specification

Model Number SkyATA-102
Dimensions L x W X H: 95 X 66 X 22 mm
Operating System Support Microsoft Windows 7, Vista, Windows XP

or Windows 2000(SP4 or later)

Skype Version Support 2.5 or above
Interface Ports

One USB port for computer

One Phone port for an analog phone
One Line port for PSTN line

LED Indicator: Blue(Skype), Green(PSTN)

Stand by (Slow on/off)
Ringing (Fast on/off)
Call Active (Always on)
Error (Always off)

Audio 16 bit PCM
Power USB power and no external power needed
Operation Temperature 0 to 55 degrees Celsius
Regulatory Compliance FCC Class B, CE
Warranty 1 year

Note: Specifications are subject to change without notice.

1.3 Main Features

Flexibility

 Make both Skype and PSTN calls with an existing regular or cordless phone
 Support 20, 25, 30 and 50Hz ring frequency
 Support 2 REN standard loads
 Support standard windows USB audio device with unique device ID
 Support international busy tone generation to connect with PBX feasibly

5

 SkyATA-102 is at PSTN mode by default (even without PC) for emergency

call

Mobility

 Connect Skype through your phone, no need of microphone and speaker
 Support various cordless phones including DECT, 2.4GHz, 900 MHz or

others

Simplicity

 Support Skype/ SkypeOut speed dial and SkypeOut direct number dial

through the phone keypad

 Auto-configure Skype audio device after SkyATA-102 is connected to PC

USB port and initialized completely

 When PSTN line is not connected, auto-switch to Skype line
 Receive a Skype call in the way as you do with your existing phone line
 Similar dialing behavior as a traditional PSTN call
 Support FSK caller ID for Skype calls with speed dial number for easy call

back

 Easy of use and user friendly interface
 SkyATA-102 AP program automatically live updates from internet
 Cheese Button: If Skype audio quality is not good or Skype contact doesn’t

answer the call.… Just press two keys through phone keypad to switch to a

presetting SkypeOut/PSTN call

 Phone and Line RJ11 ports Auto-Detection and Auto-Swap:

Functionality

 USB internal power
 Switch between Skype and PSTN mode by pressing phone key “＃”

 Create a Multi-Call and switch between held calls circularly by phone key

“＊1”

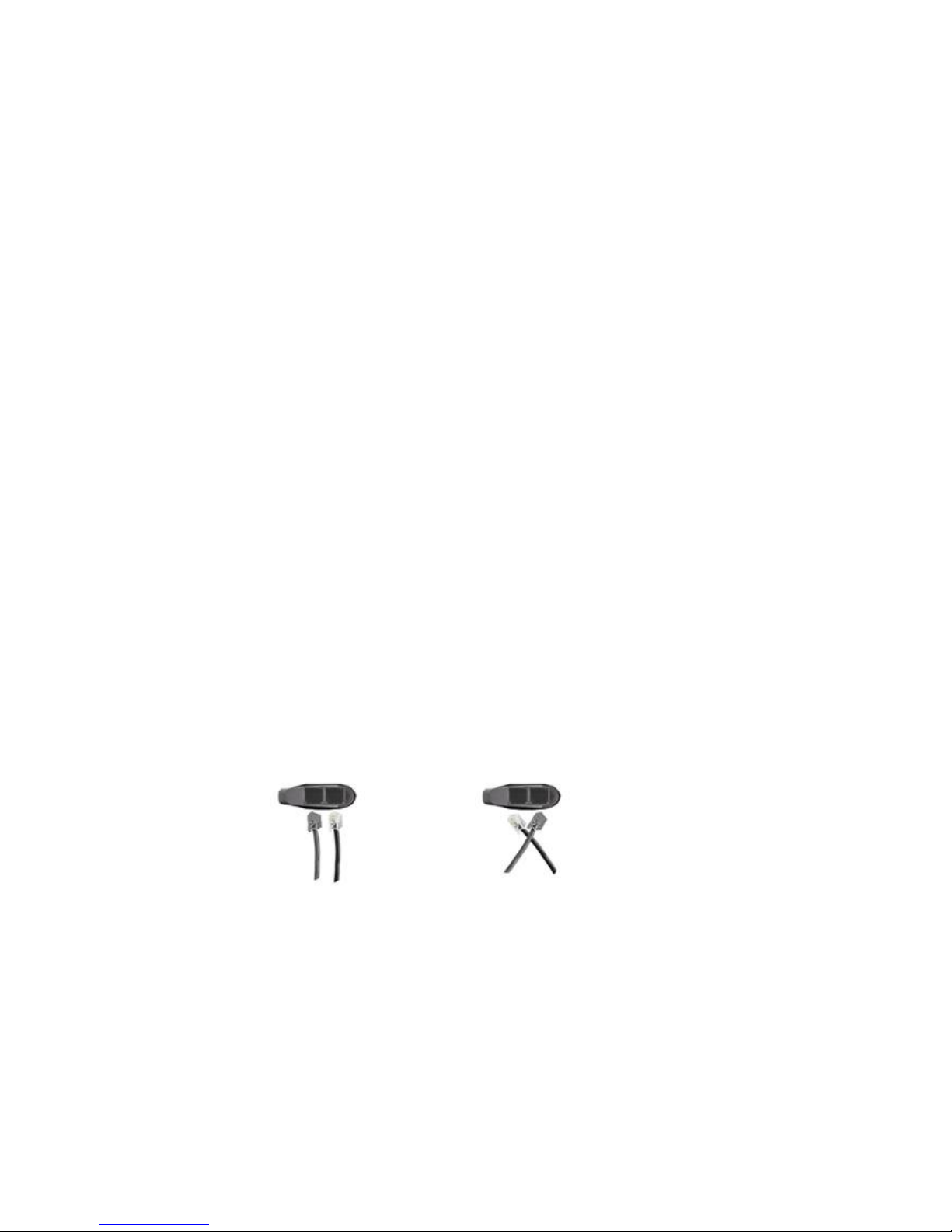

Normal Wiring

Wrong Wiring but
Functional

6

 Create a conference call and join new calls (Skype or PSTN call) into the

conference sequentially by phone key “＊2”

 Support call waiting (Skype PSTN)

1.4 Minimum System Requireme nts

To keep normal functions of SkyATA-102, user needs to make sure his/her
system to meet the following minimum requirements:

 One Computer running at 800 MHz or better, 128 MB RAM with a USB port,

and a CD-ROM drive

 Microsoft Windows 7, Vista, Windows XP or 2000(SP4 or later)
 50MB free hard disk space
 Skype version 2.5 or above( free download from http://www.skype.com/

)

 Internet connection(WiFi, ADSL, 56kbps Modem, ...., etc

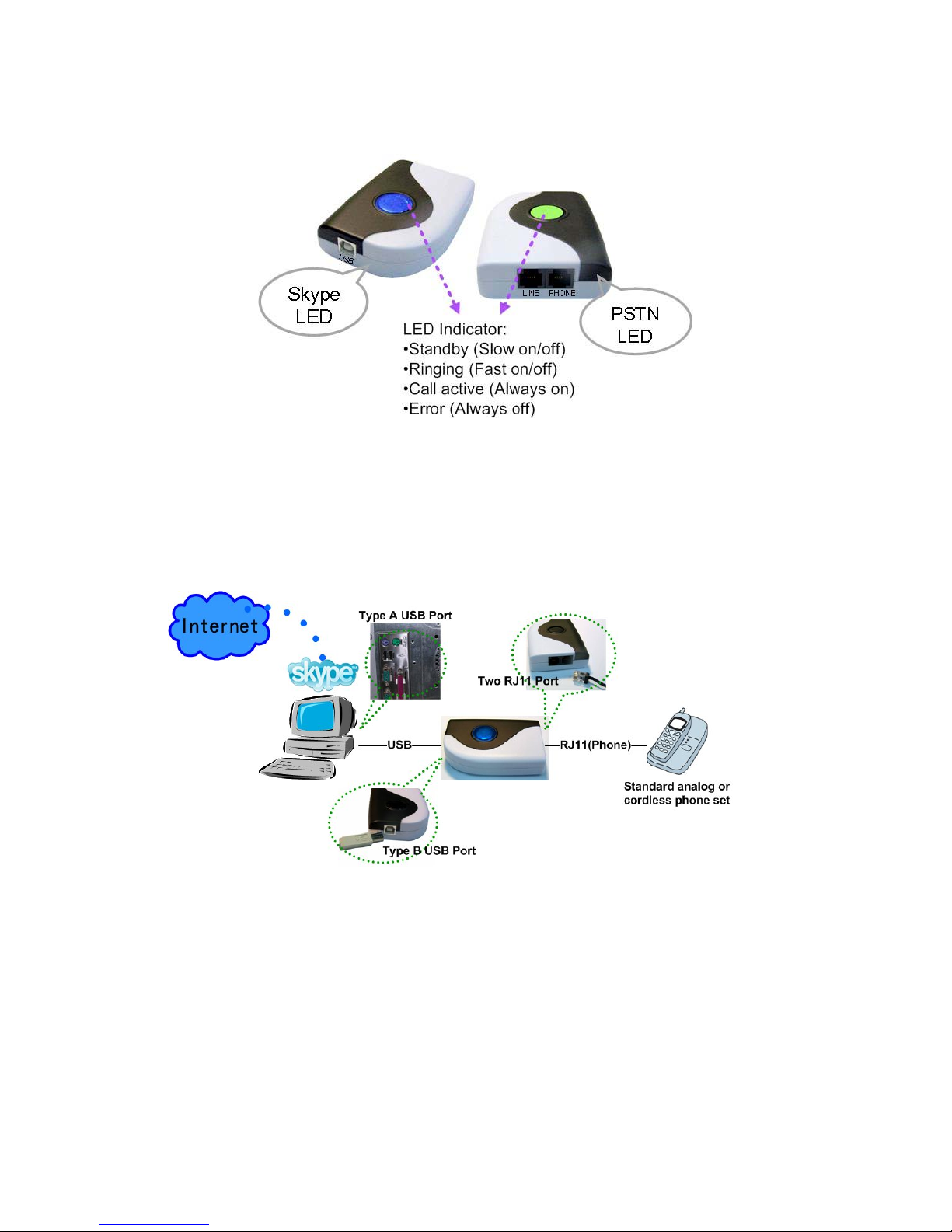

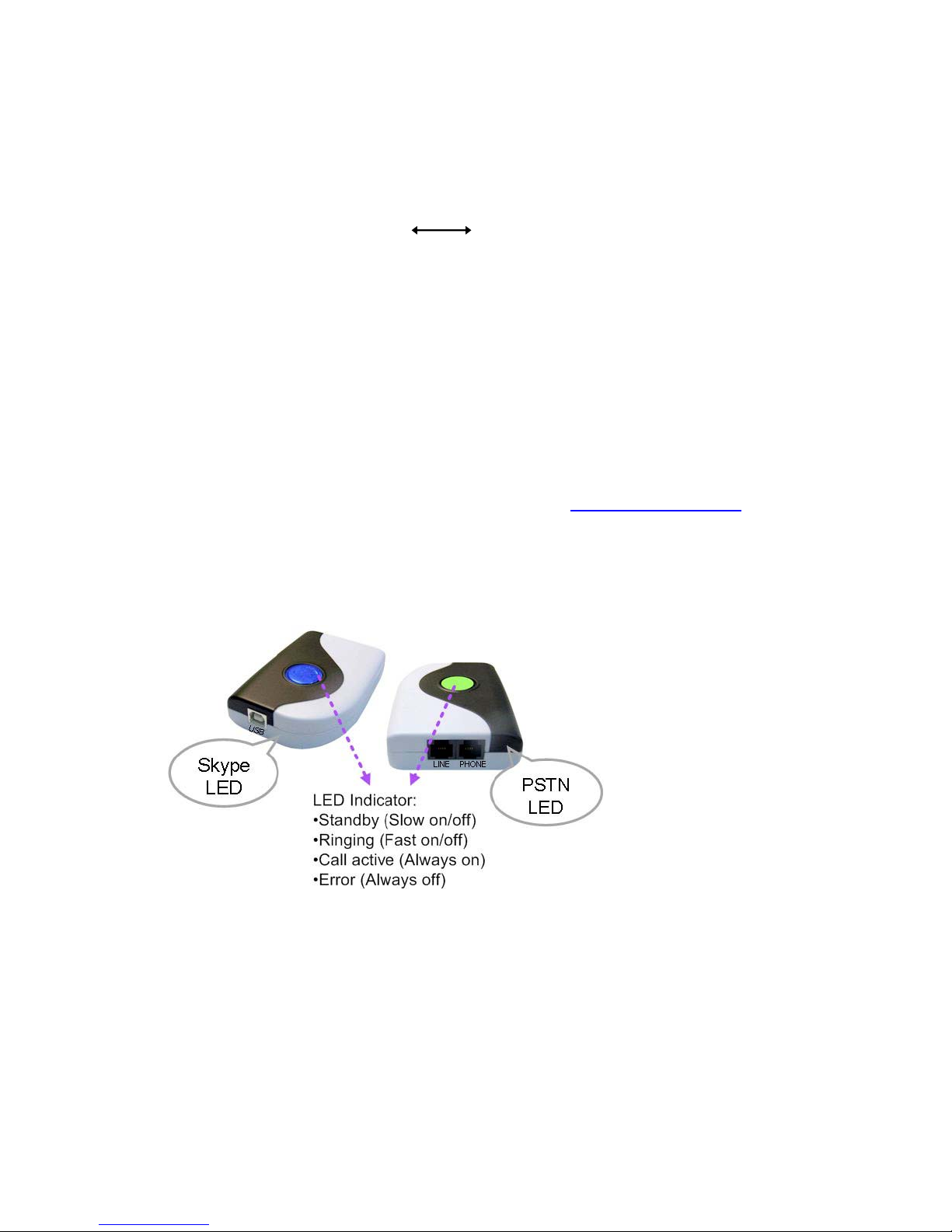

1.5 SkyATA-102 LED

2. Install Skype Software

The first step of setting up SkyATA-102 is to install Skype on the computer. This
chapter describes Skype version 2.5 installation procedures in two sections:
Install Skype and Quick Start and Set a Speed-Dial Number.

7

2.1 Install Skype and Quick Start

If Skype has been installed, check if it is the version which SkyATA-102 claims to
support as this user manual section 1.4 Minimum System Requirements

. If the
answer is yes, user can skip this section and go to the next section. If not,
download the most updated Skype version. Since Skype might change API for the
new release, we can't guarantee our current SkyATA-102 AP can work with the
new update seamlessly. You should be able to adopt it for basic Skype talk,
but you always can download the latest SkyATA-102 AP program from our web
site or get help from our supporting people.

1. Open an Internet browser, and, in the address bar, enter:

http://www.skype.com/

2. When the Skype web page appears, click Download Skype. The download
is free.

3. After downloading, double-click on the SkypeSetup.exe icon.

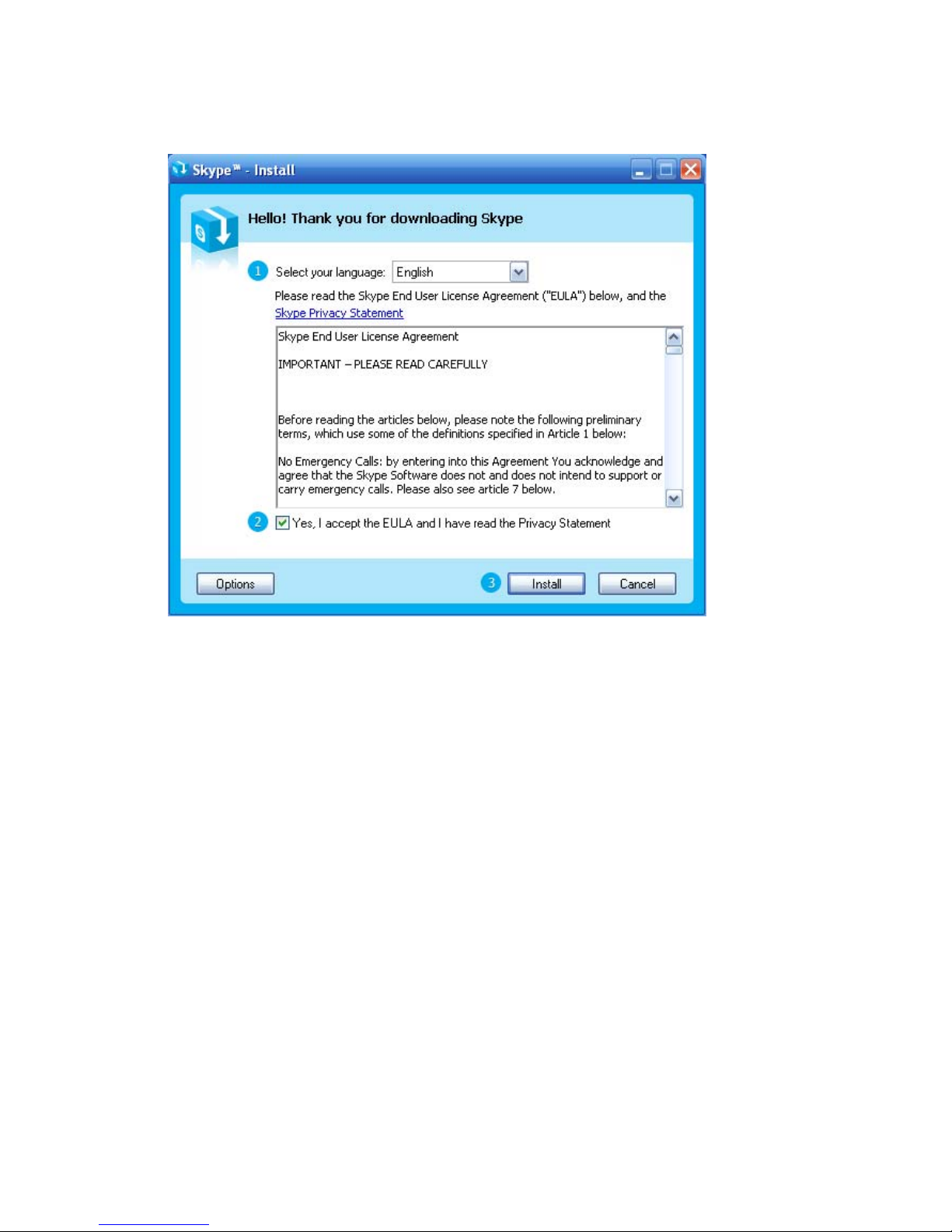

4. The Skype welcome window as below will appear. Follow blue circles 1~3
to select a language by scrolling the bar, accept Skype End User License
Agreement and click Install.

8

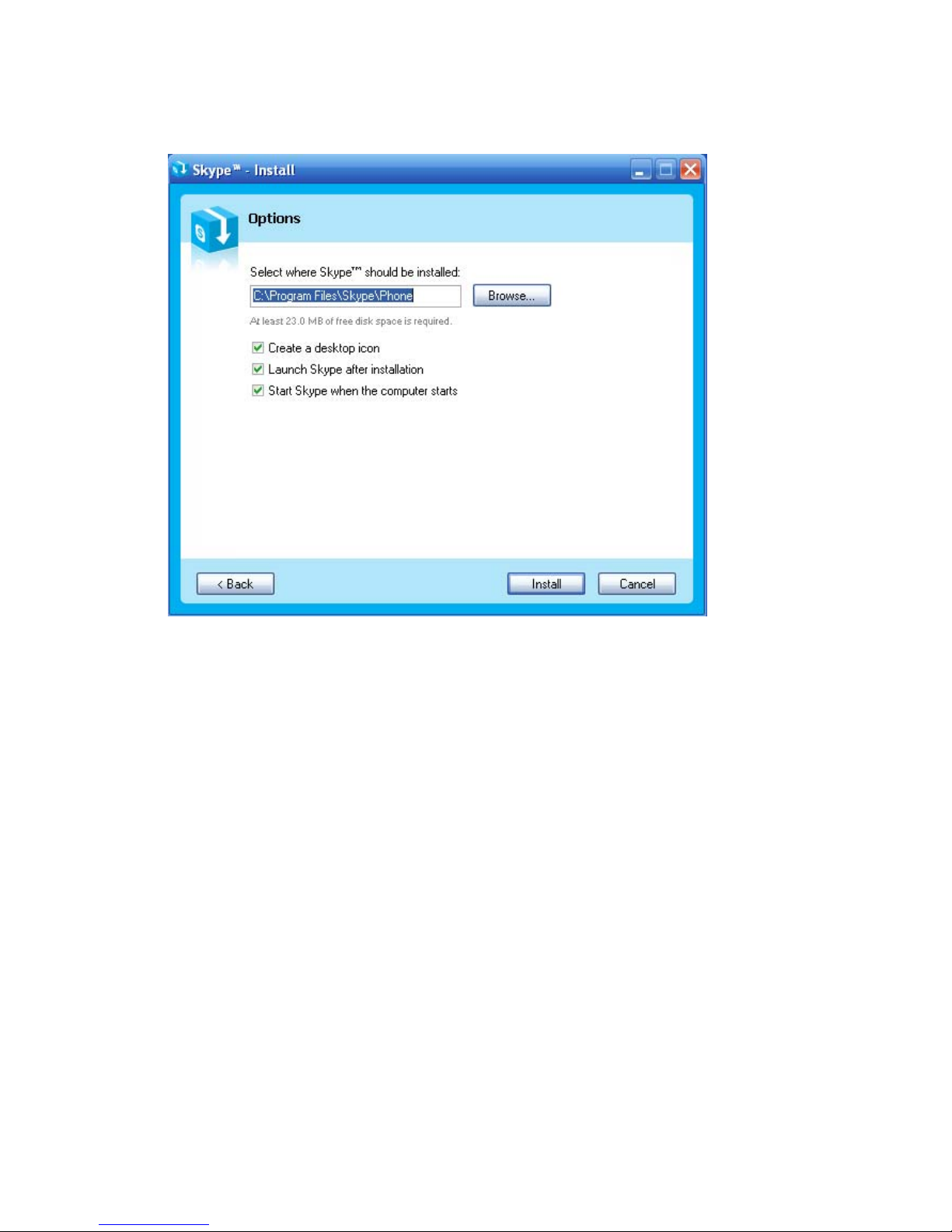

5. If user choose Options button in the previous step. An Options window will
pop up and user can choose preferred installation folder by Browse. User
can choose to check boxes for Create a desktop icon, Launch Skype after
installation, or Start Skype when the computer starts. Then click Install.

9

Note: user can always click Back to go back to the previous step.

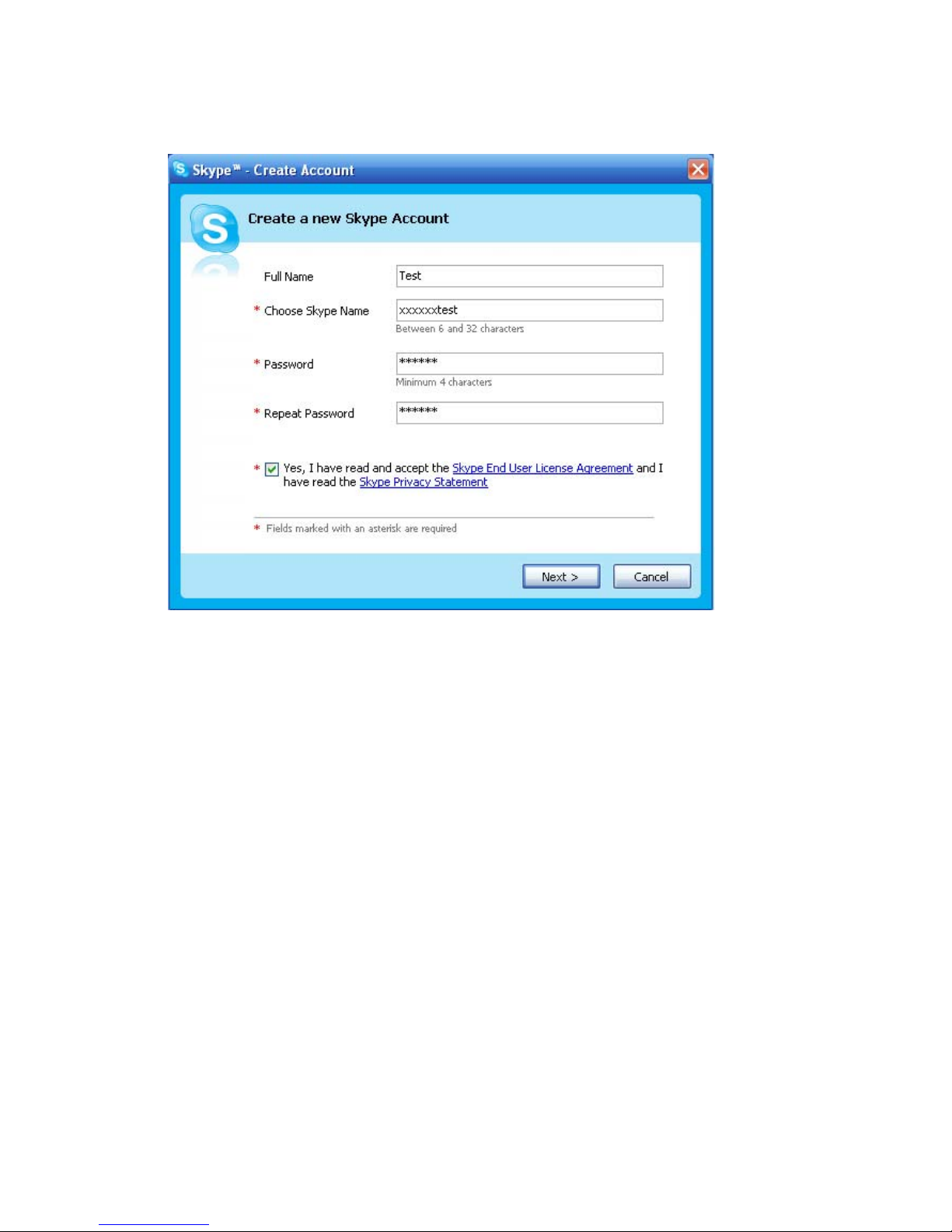

6. After installation, Skype will ask for Create Account. Then click Next.

10

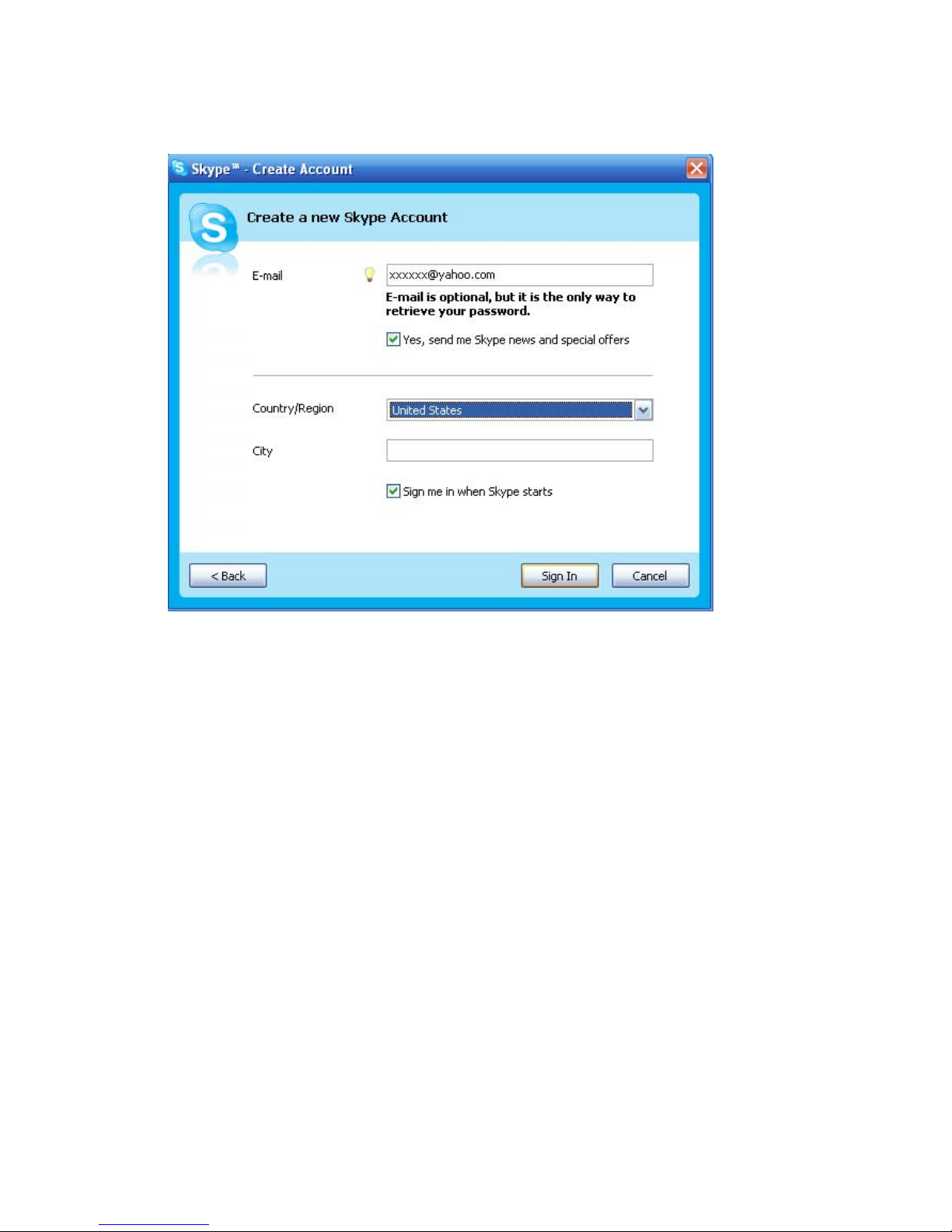

7. User can provide e–mail address and country information and then click Sign
In.

11

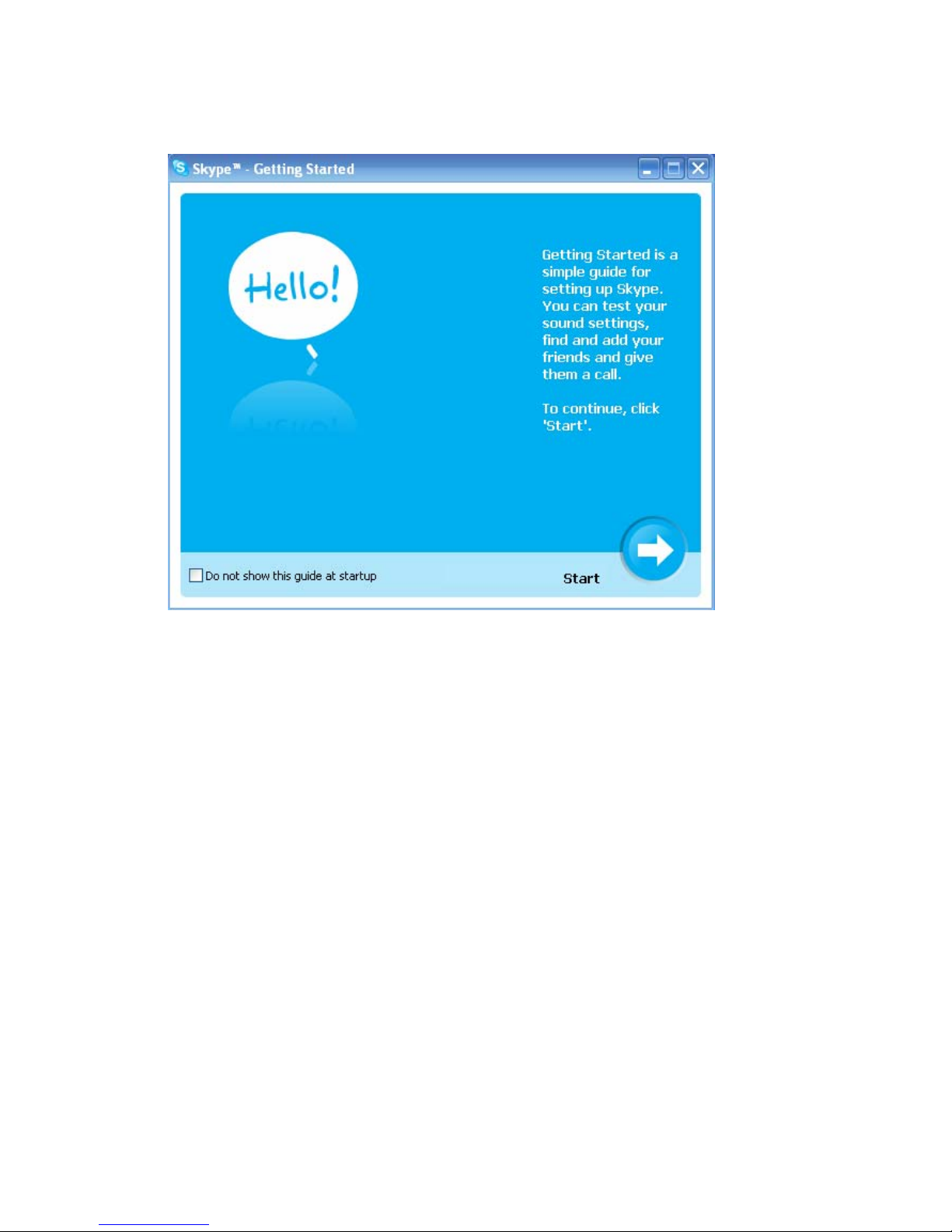

8. A Getting Started window comes up. Press Start button to get a simple guide
for setting up Skype.

12

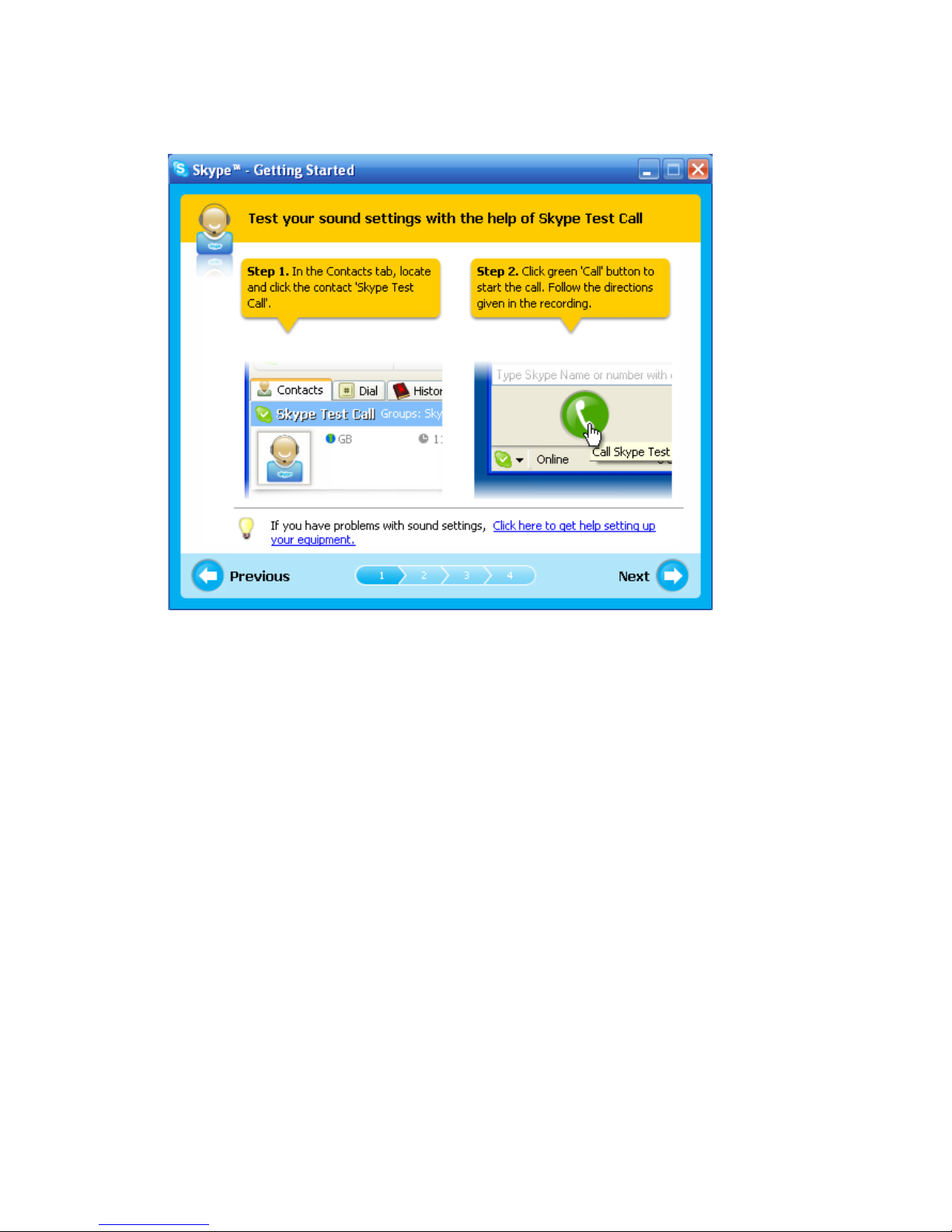

9. The next window will help user to check your sound settings by making a
Skype test call. Click Next.

13

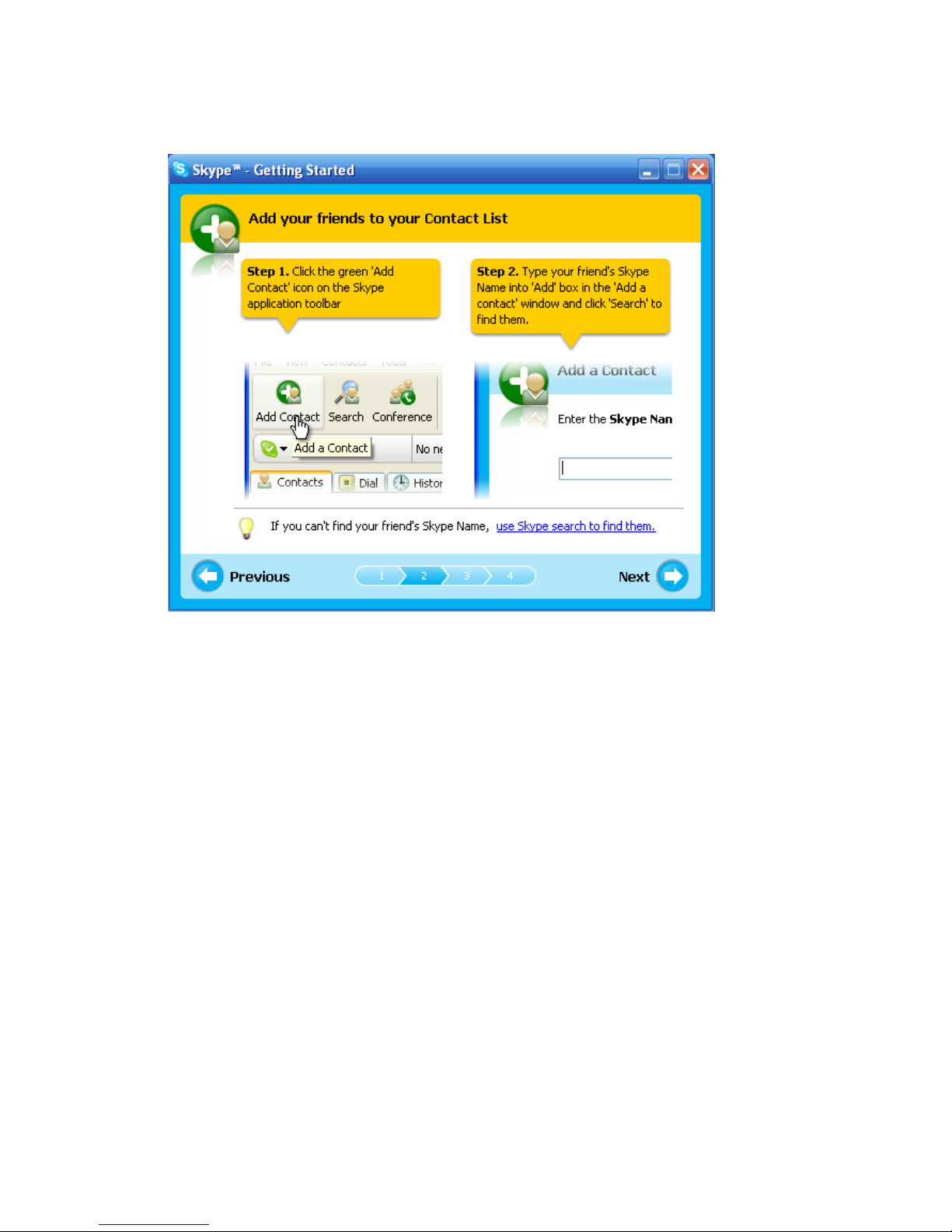

10. The next window will guide user to add friends to user’s Skype contact list.
Click Next.

14

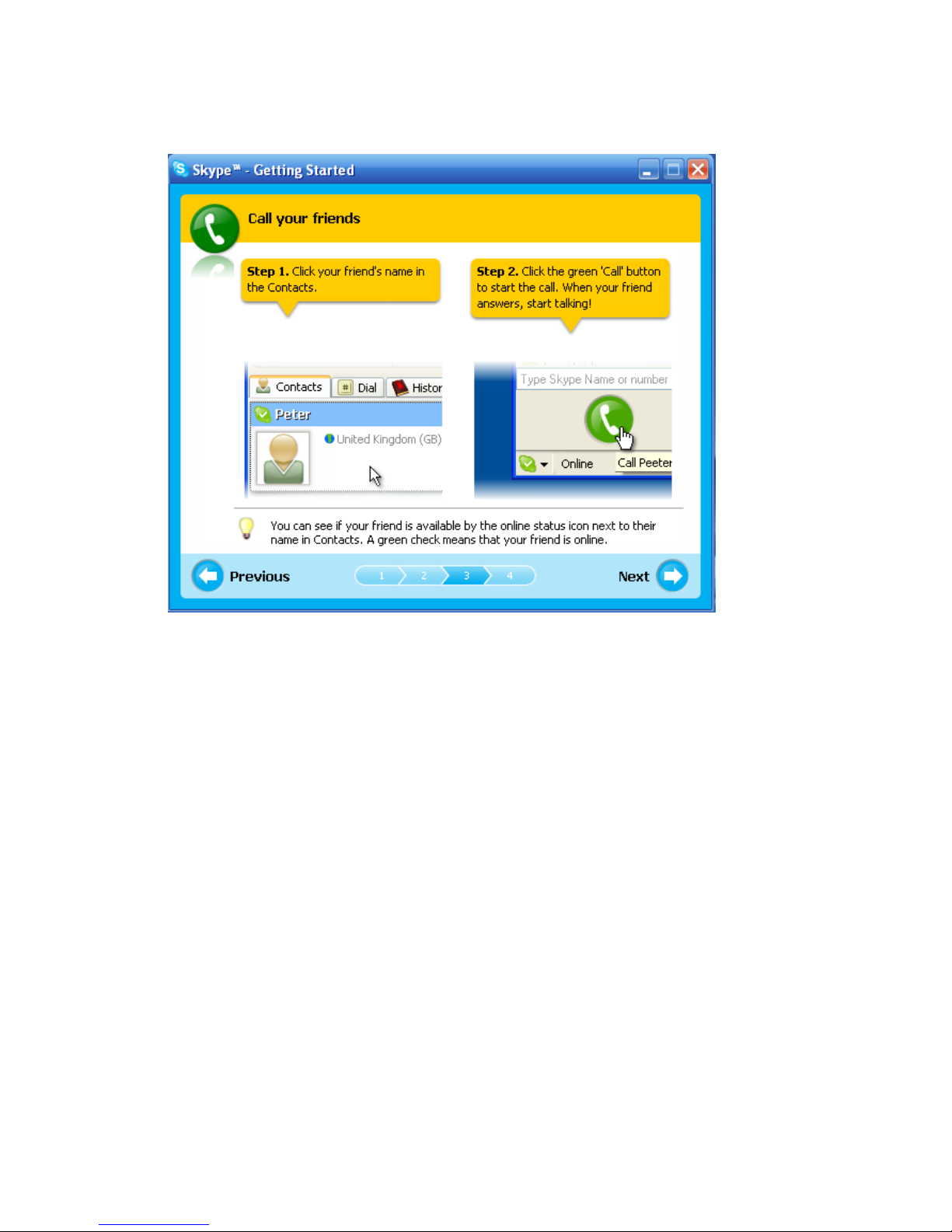

11. Then user can try to call friends. Click Next.

15

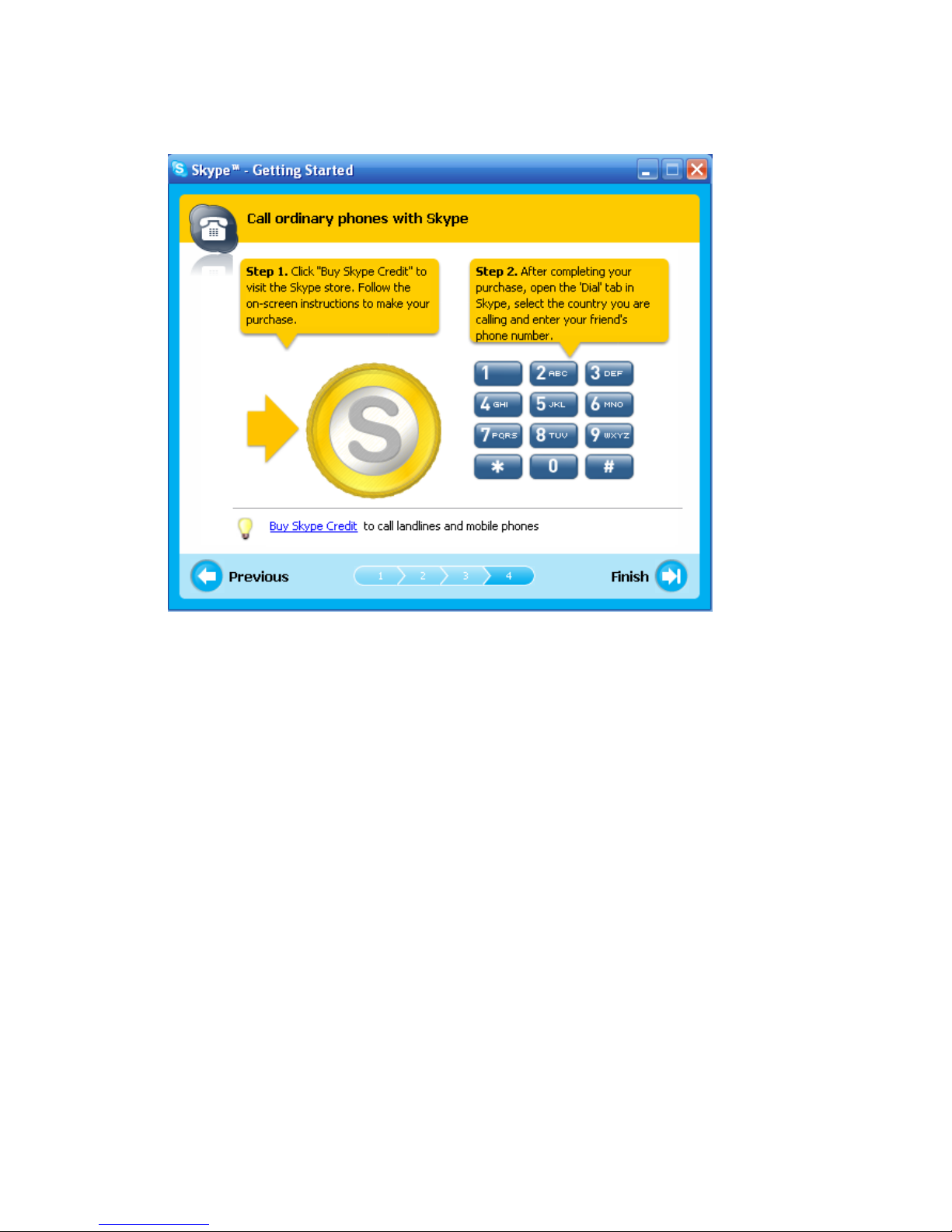

12. Next window will guide user to call ordinary phones with Skype(SkypeOut)

and click Finish.

16

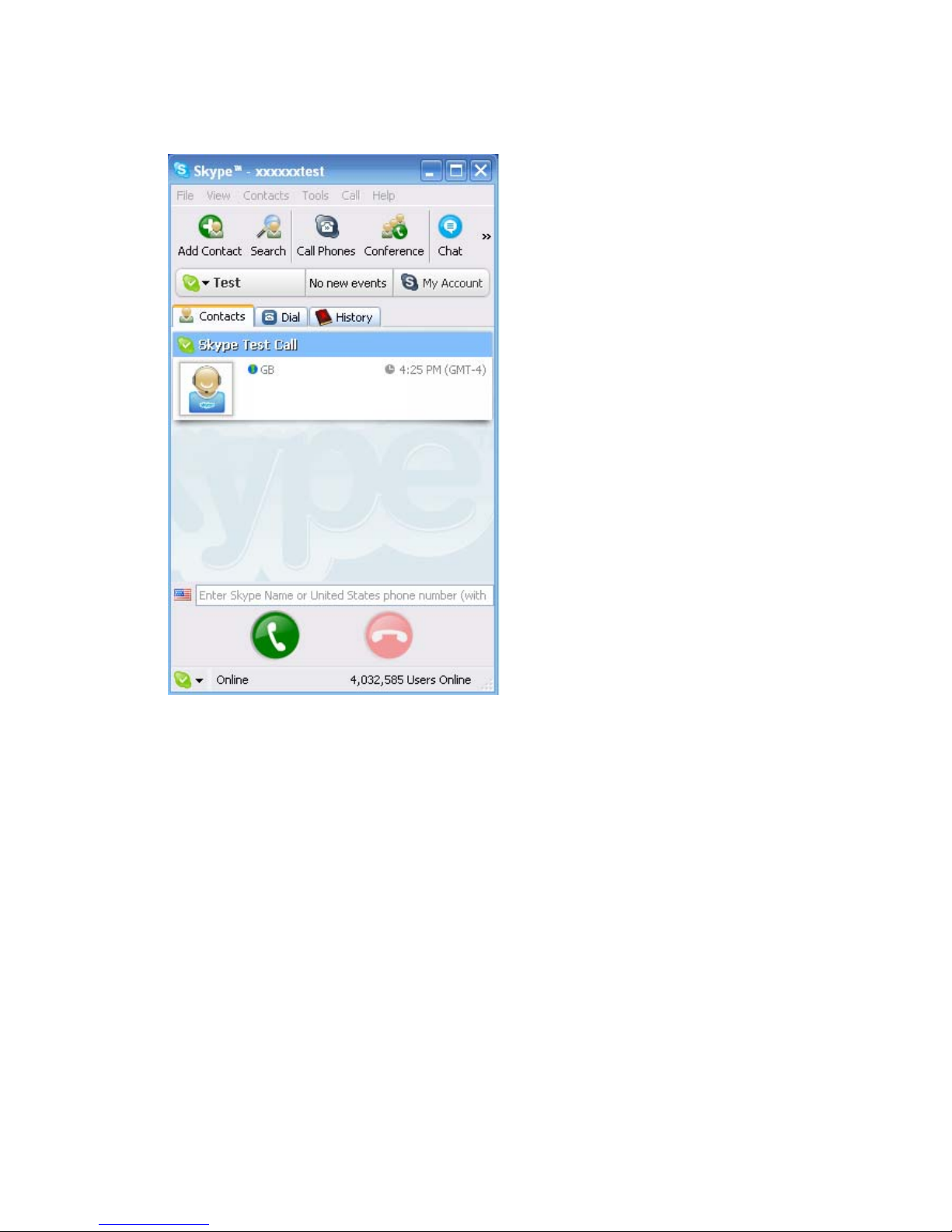

13. Next, Skype main window will pop up and user can start to enjoy Skype.

17

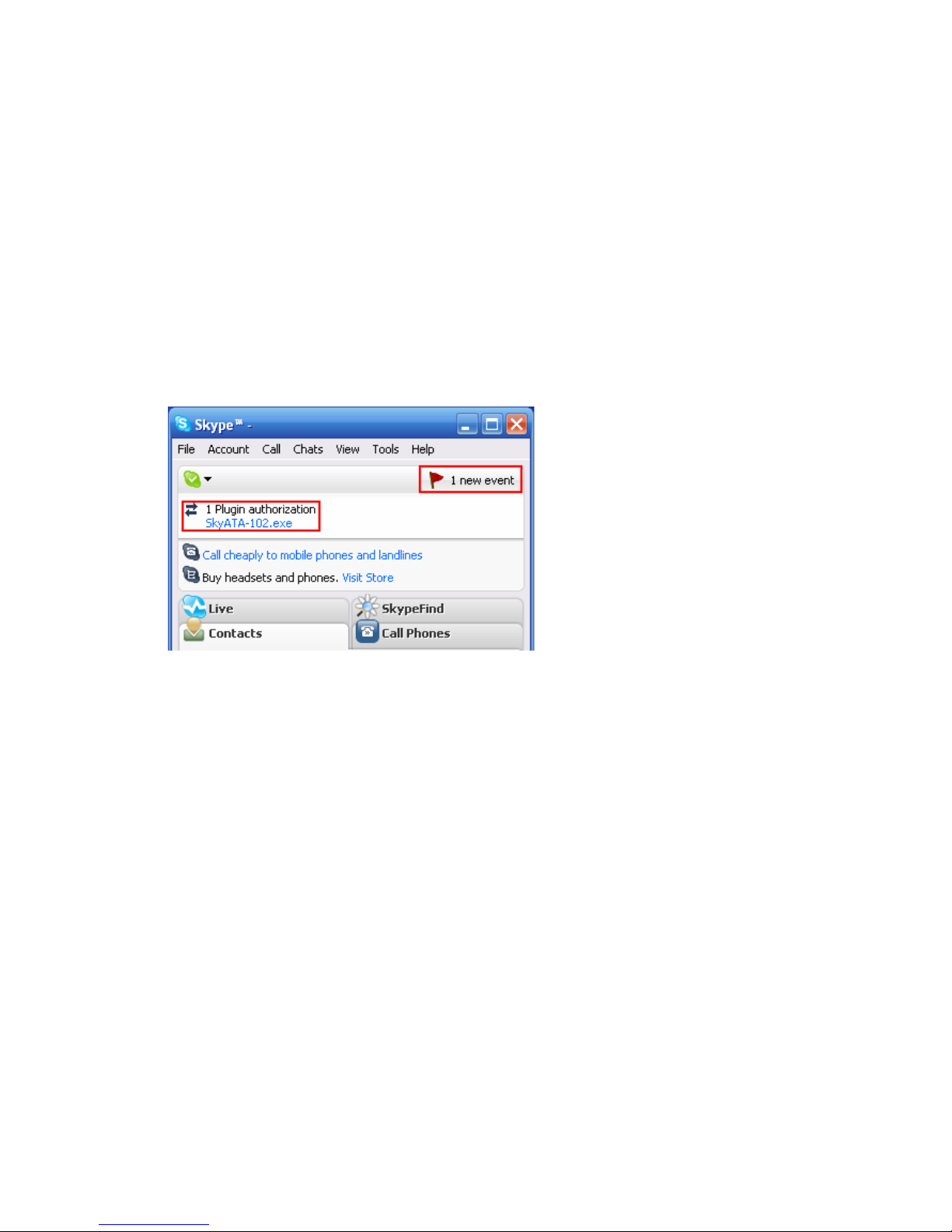

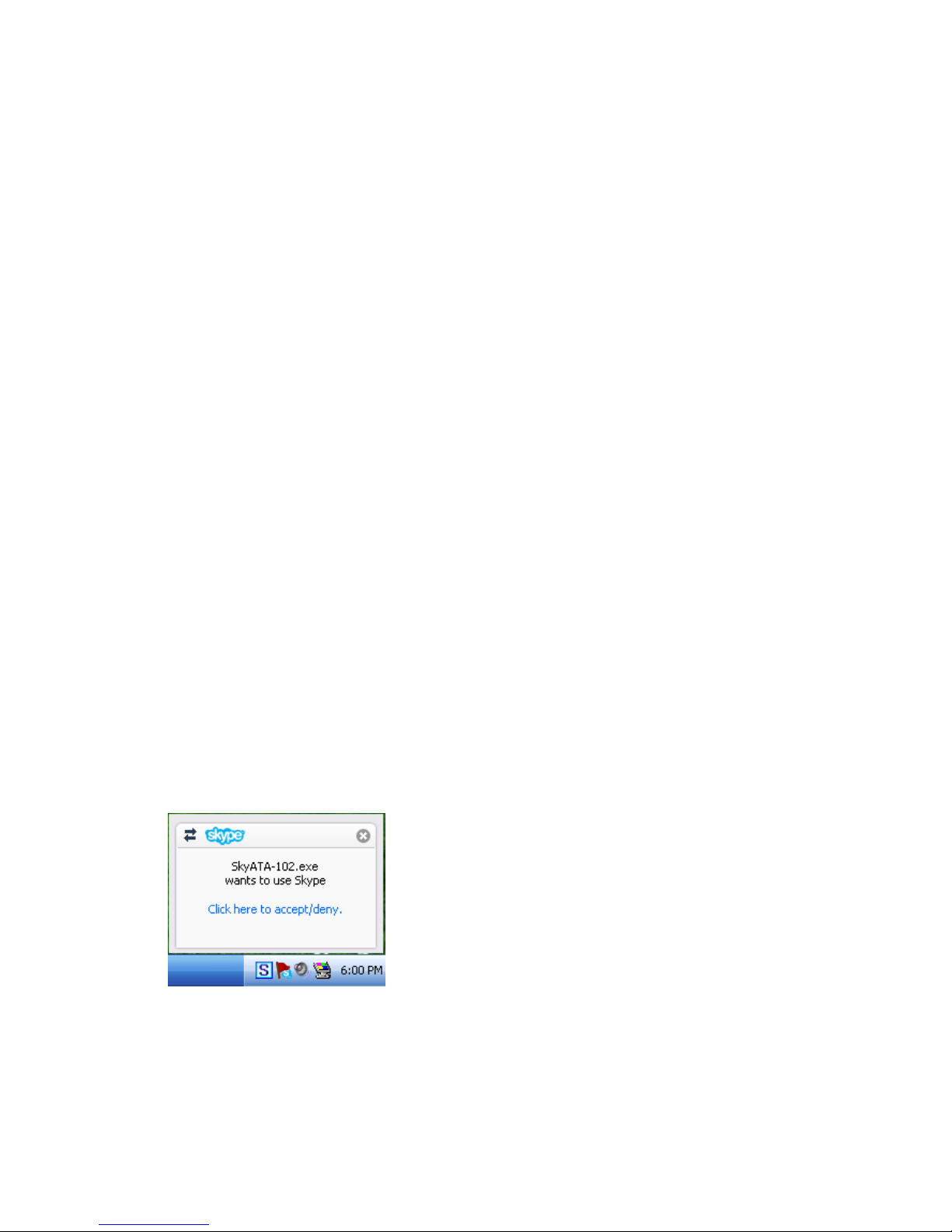

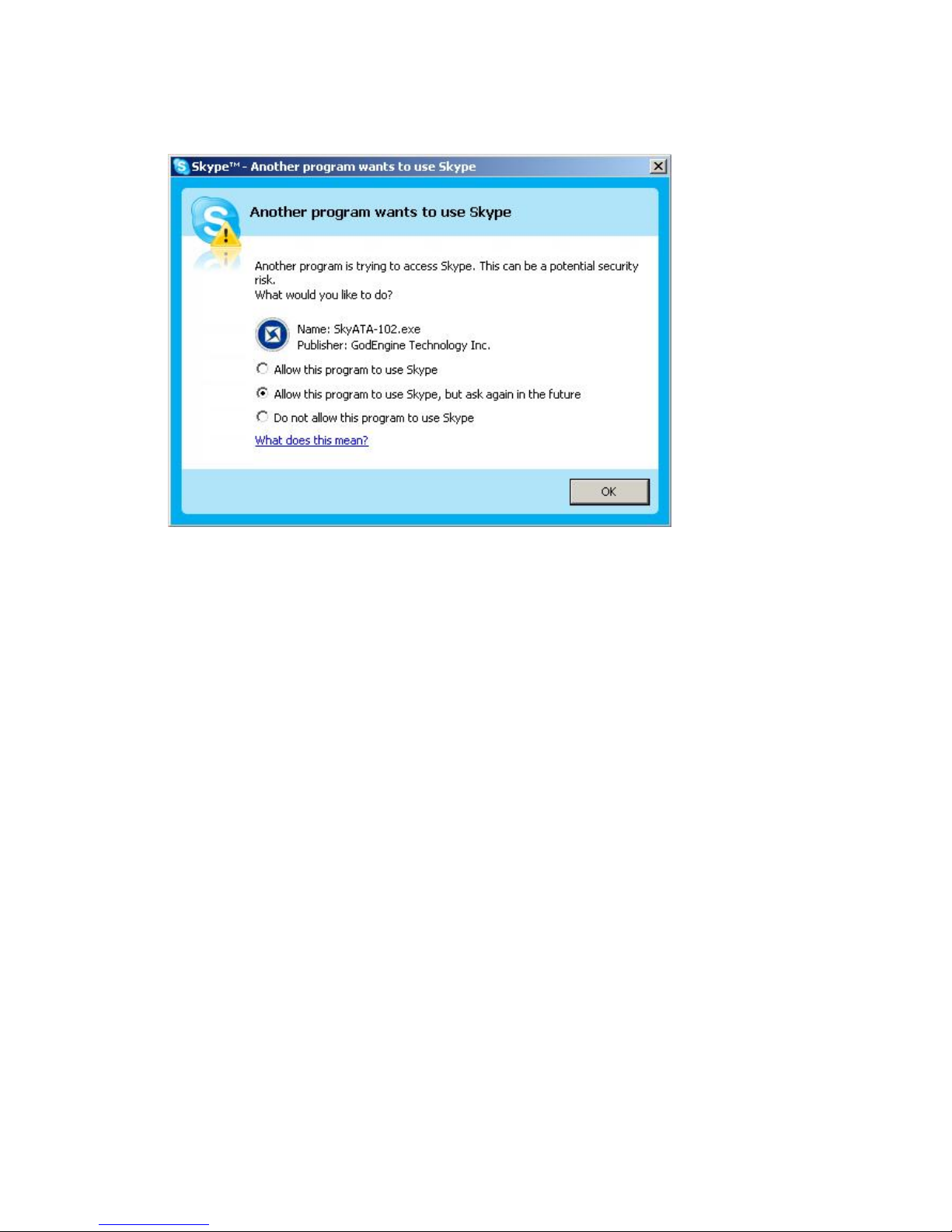

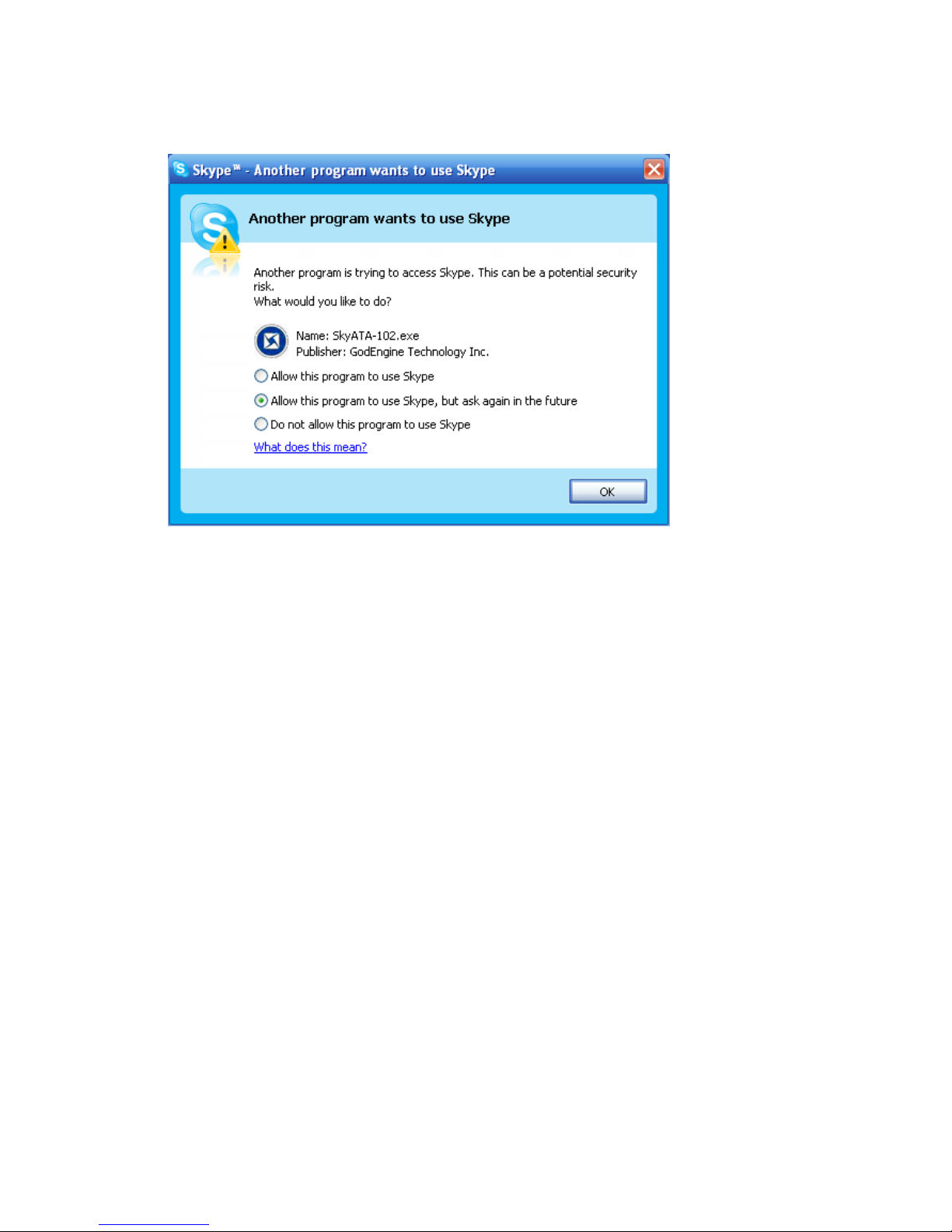

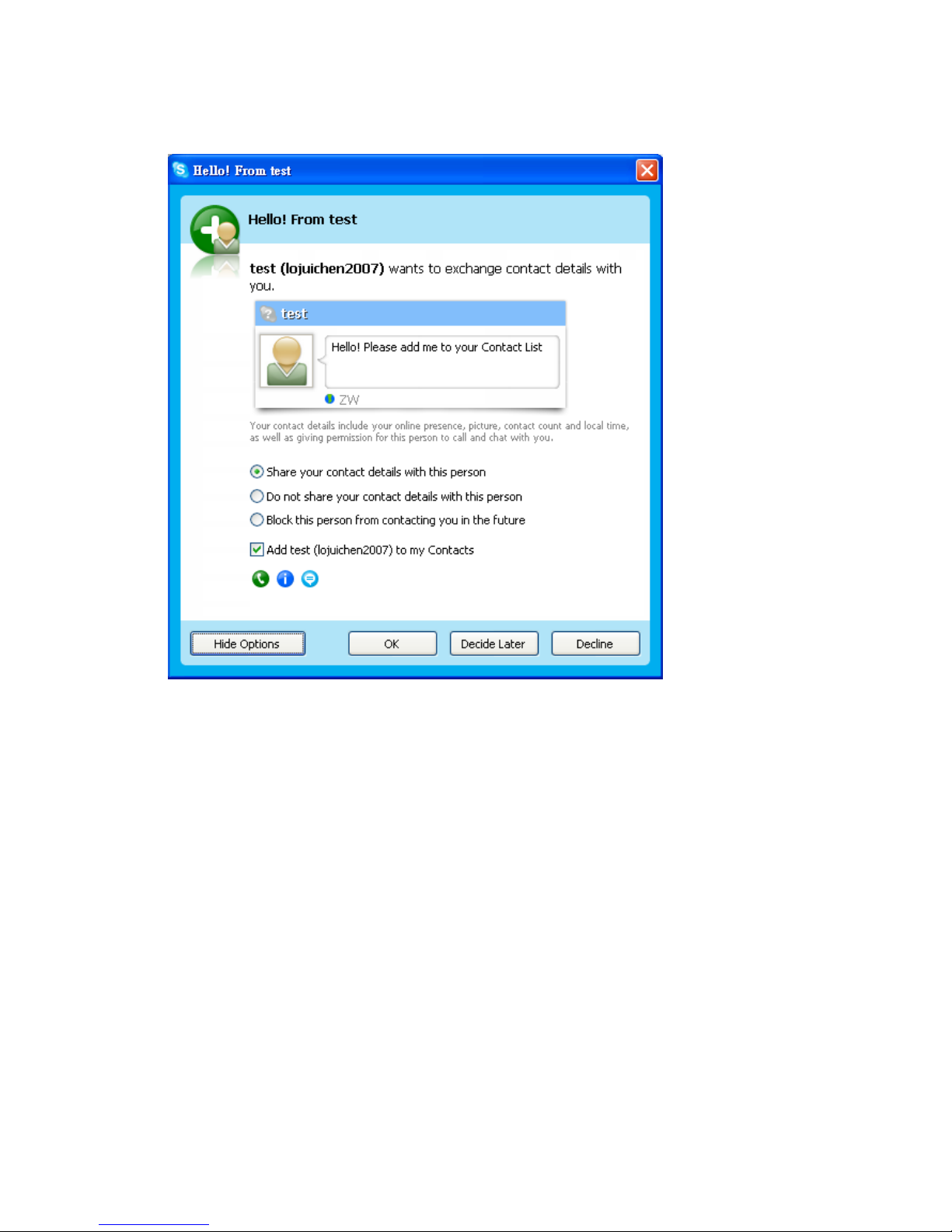

14. When a new Skype contact calls you, Skype will ask for your authorization.
User can make own decisions and click OK.

18

2.2 Set a Speed-Dial Number

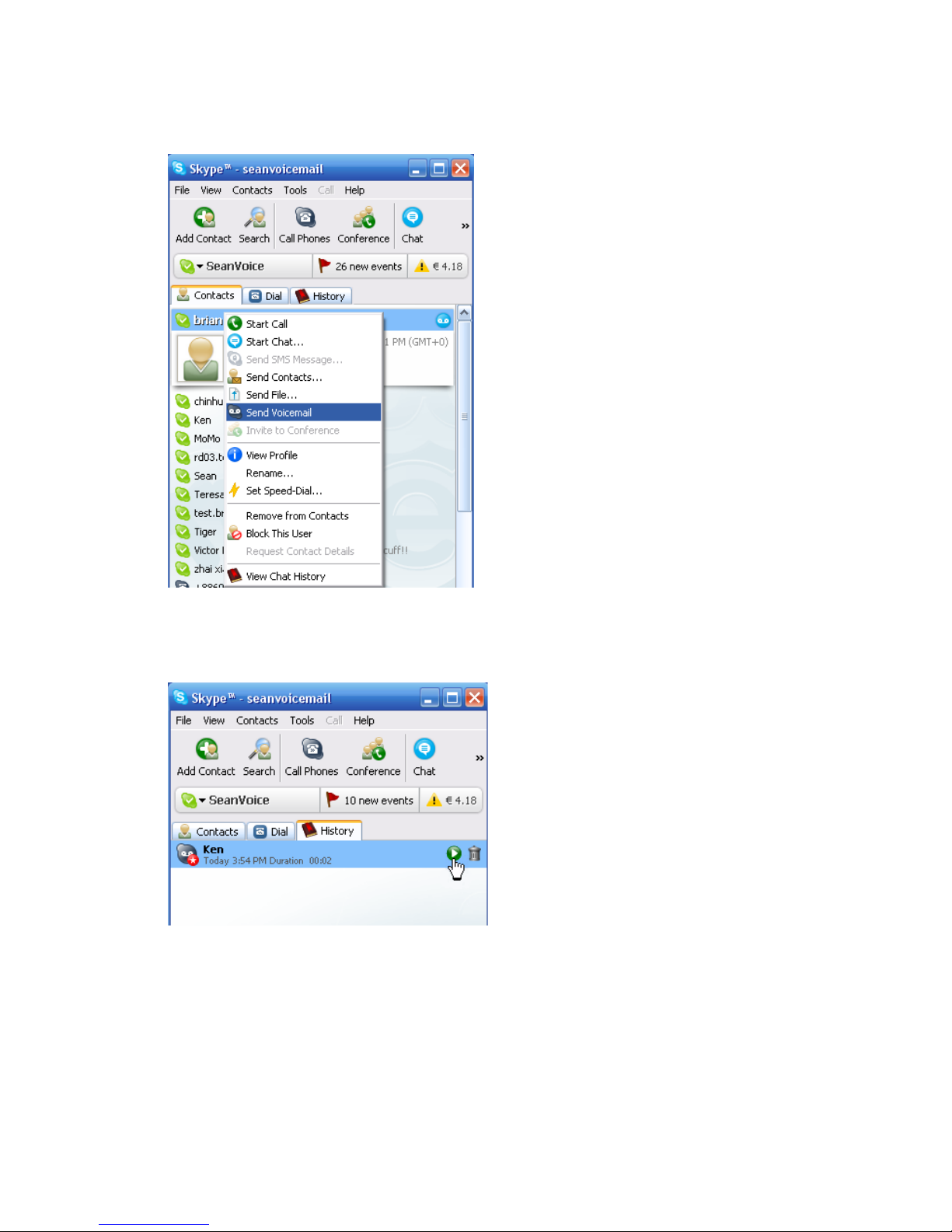

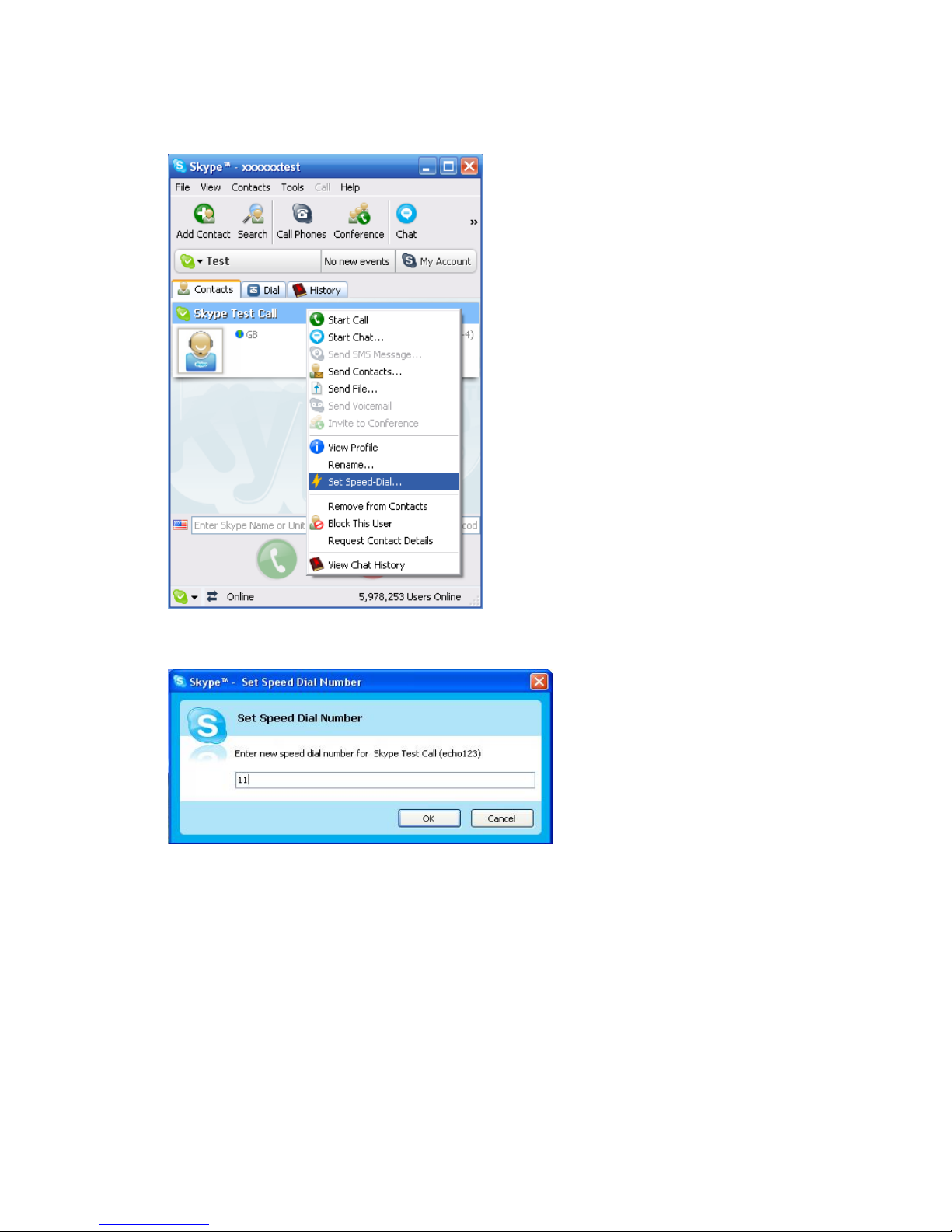

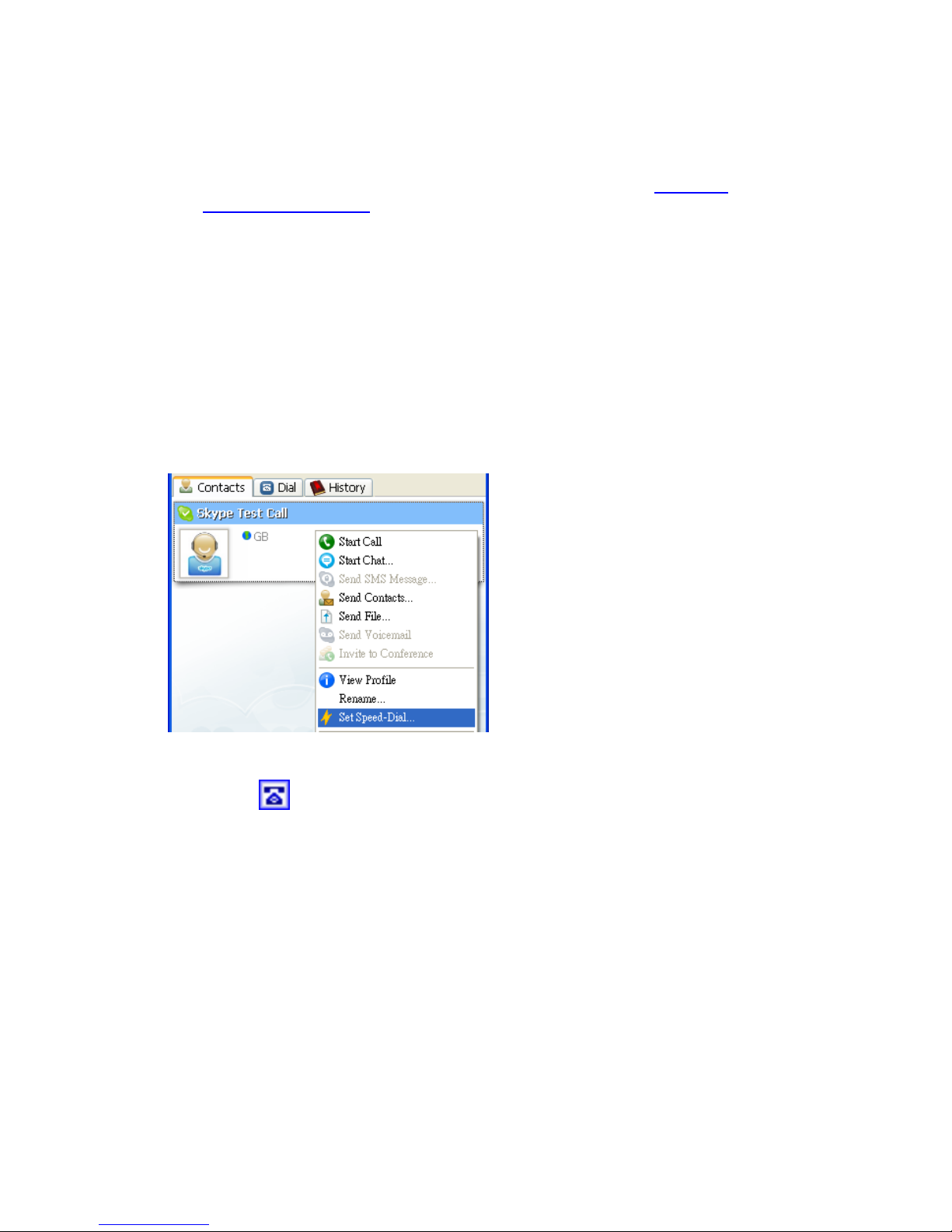

1. From the main Skype window, select the “Contacts” tab, choose a contact

name and right-click on the contact name and select “Set Speed-Dial” in the
appearing menu.

19

2. In the next window, enter a one or two digits speed-dial number. Then click

OK

3. The speed-dial number is set to the contact. Follow the same procedure to

set a Speed-Dial Number to the other contacts.

3. Setup SkyATA-102

3.1 SkyATA-102 Hardware Setup

1. Get the SkyATA-102 from SkyATA-102 package.

20

2. Connect SkyATA-102 USB port with user computer USB port through the

USB cable.

3. Connect one telephone cable between the Phone port of SkyATA-102 and

the telephone RJ11 port.

4. Connect one telephone cable between the Line port of SkyATA-102 and

PSTN line.

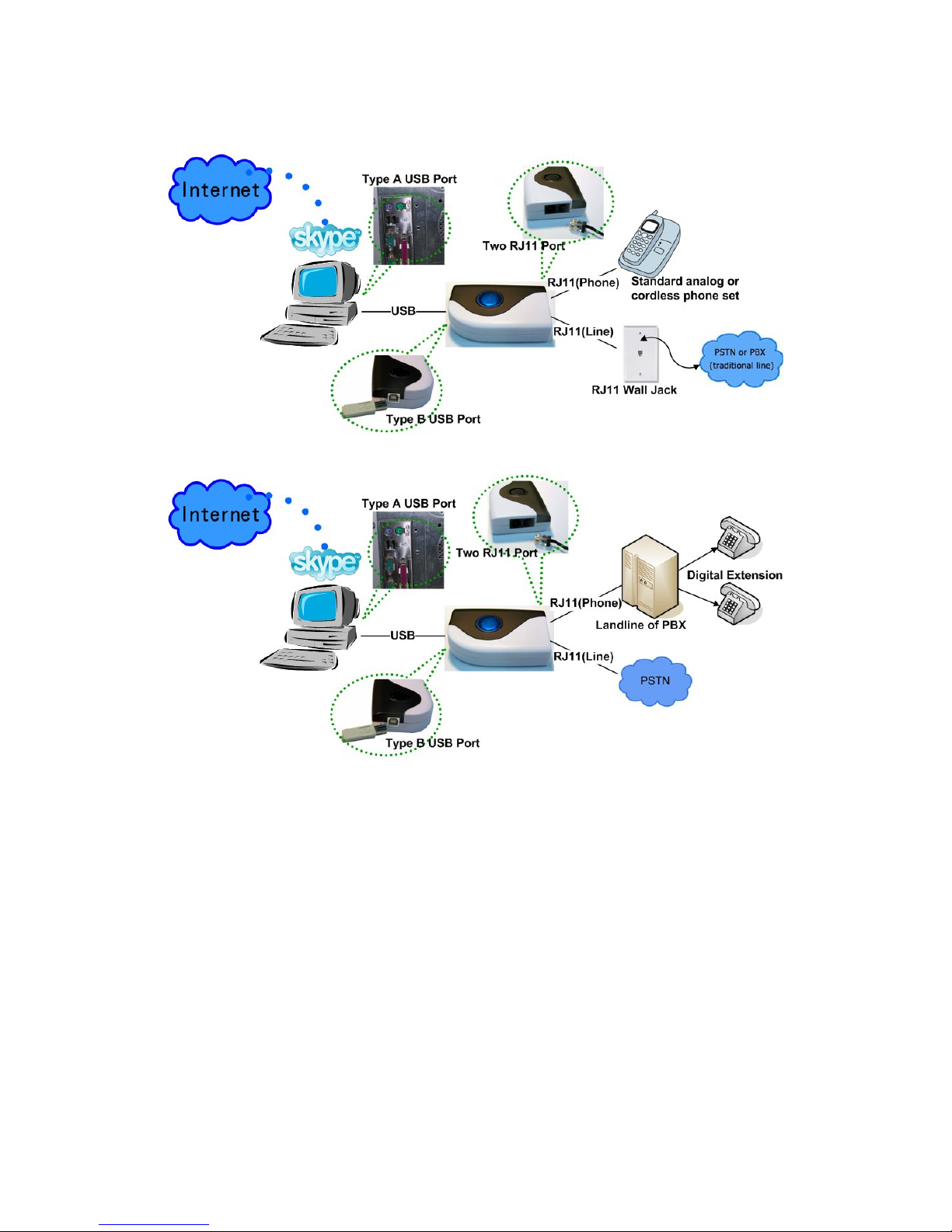

Connect SkyATA-102 to a standard analog or cordless phone set only

21

Connect SkyATA-102 to a phone set and PSTN line

Connect SkyATA-102 to PBX and PSTN line

Important note: Don’t connect SkyATA-102 Phone and Line ports to both PSTN
lines, otherwise SkyATA -102 might be damaged.

3.2 SkyATA-102 Software Setup

After the installation of the Skype software and the SkyATA-102 hardware setup,
the next step is to install the SkyATA-102 AP (Application Program) software into
the computer.

To install the SkyATA-102 AP software:

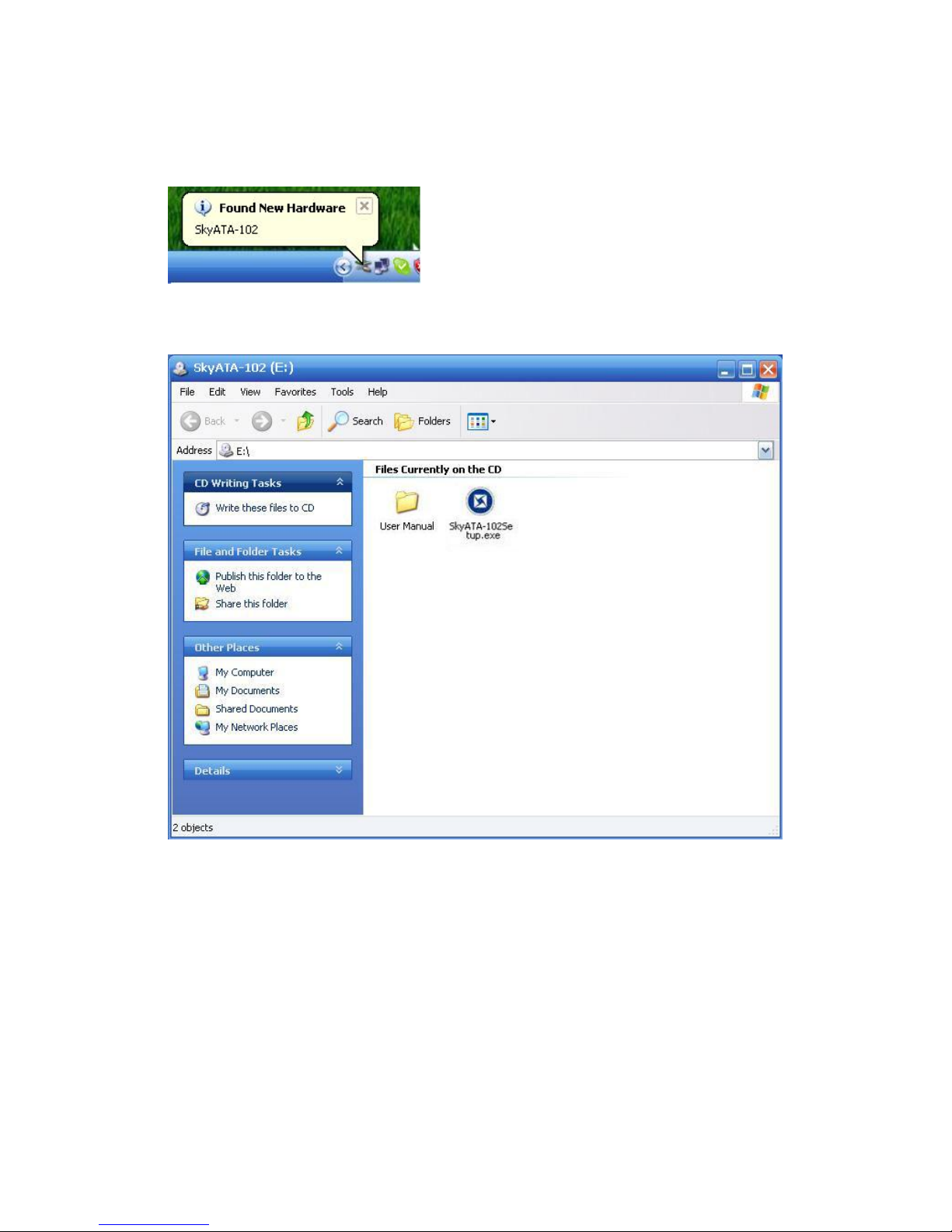

1. After the SkyATA-102 is connected to the computer, it will take up to 15

22

seconds for the “Found New Hardware” window to appear.

2. Insert the Installation CD into the CD-ROM drive of the computer. Double

click the setup.exe file. Then follow the instructions to install the SkyATA-102
AP program.

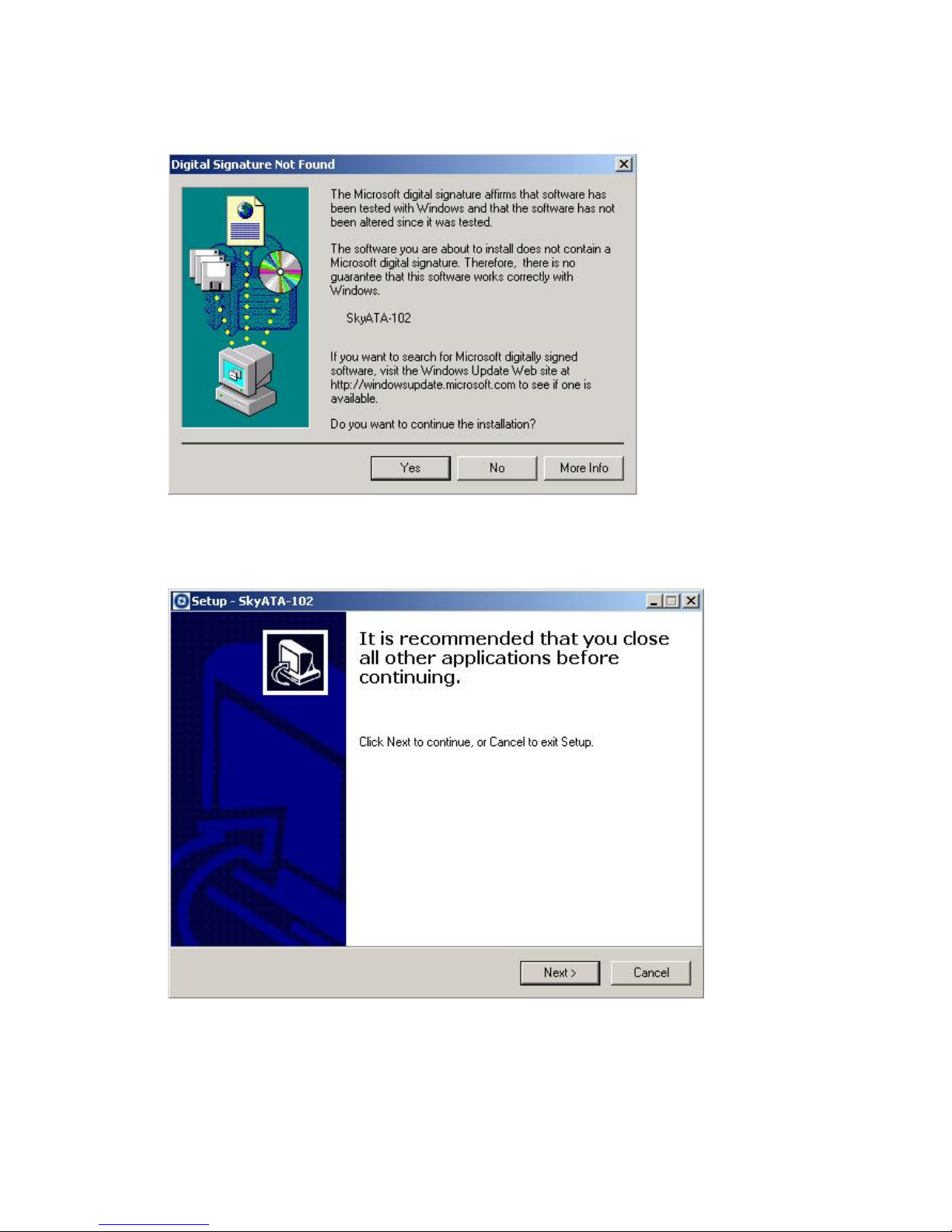

3. In Windows 2000, user might get below “Digital Signature Not Found” window .

Click Yes to continue installation.

23

4. Then next window will recommend user to close other application programs

before continuing to install. After other applications are closed, click Next.

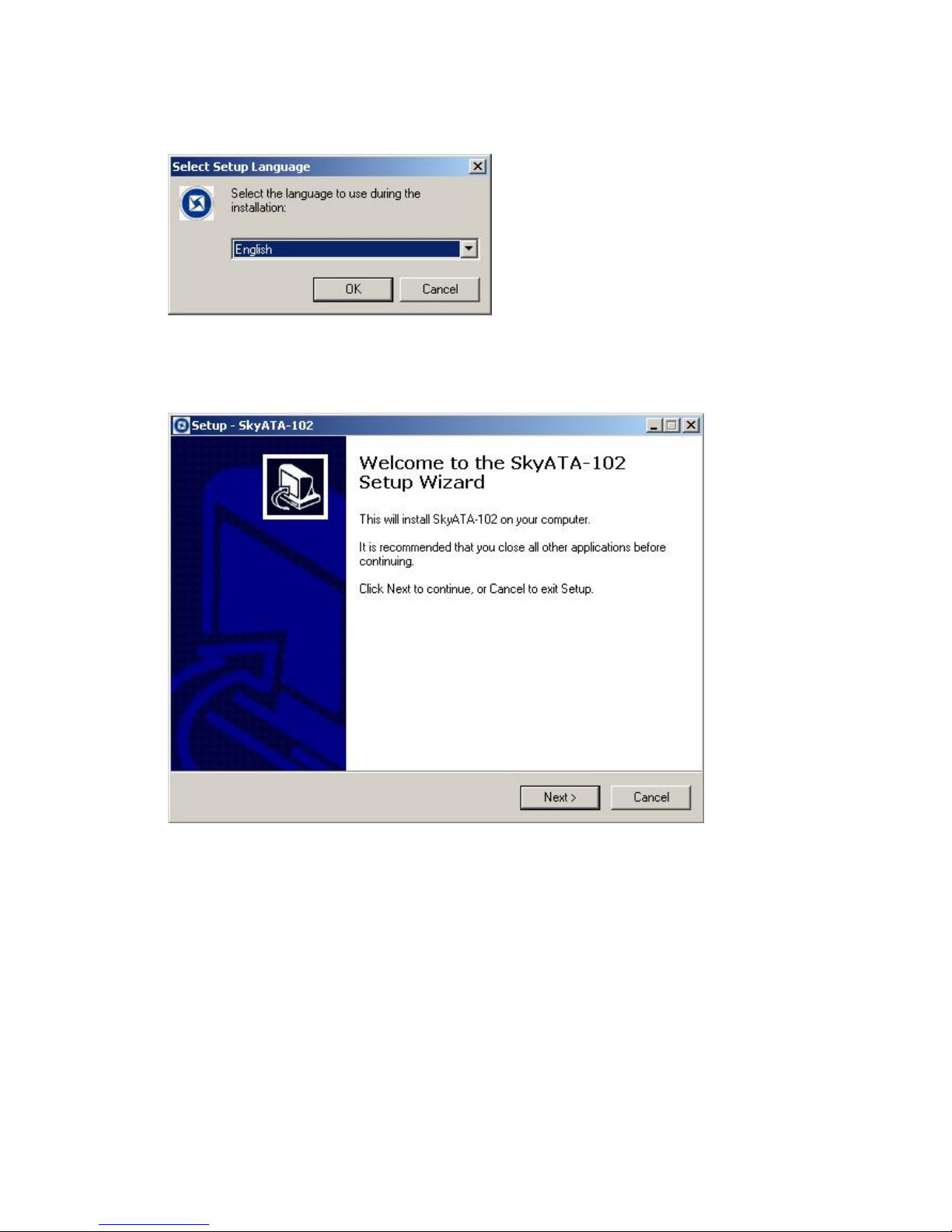

5. The “Select Setup Language” window pops up. Choose a preferred

language by scrolling down the selection bar. After choosing the language,
click OK.

24

6. The “Welcome to the SkyATA-102 Setup Wizard” appears. Read the

on-screen instructions and click Next.

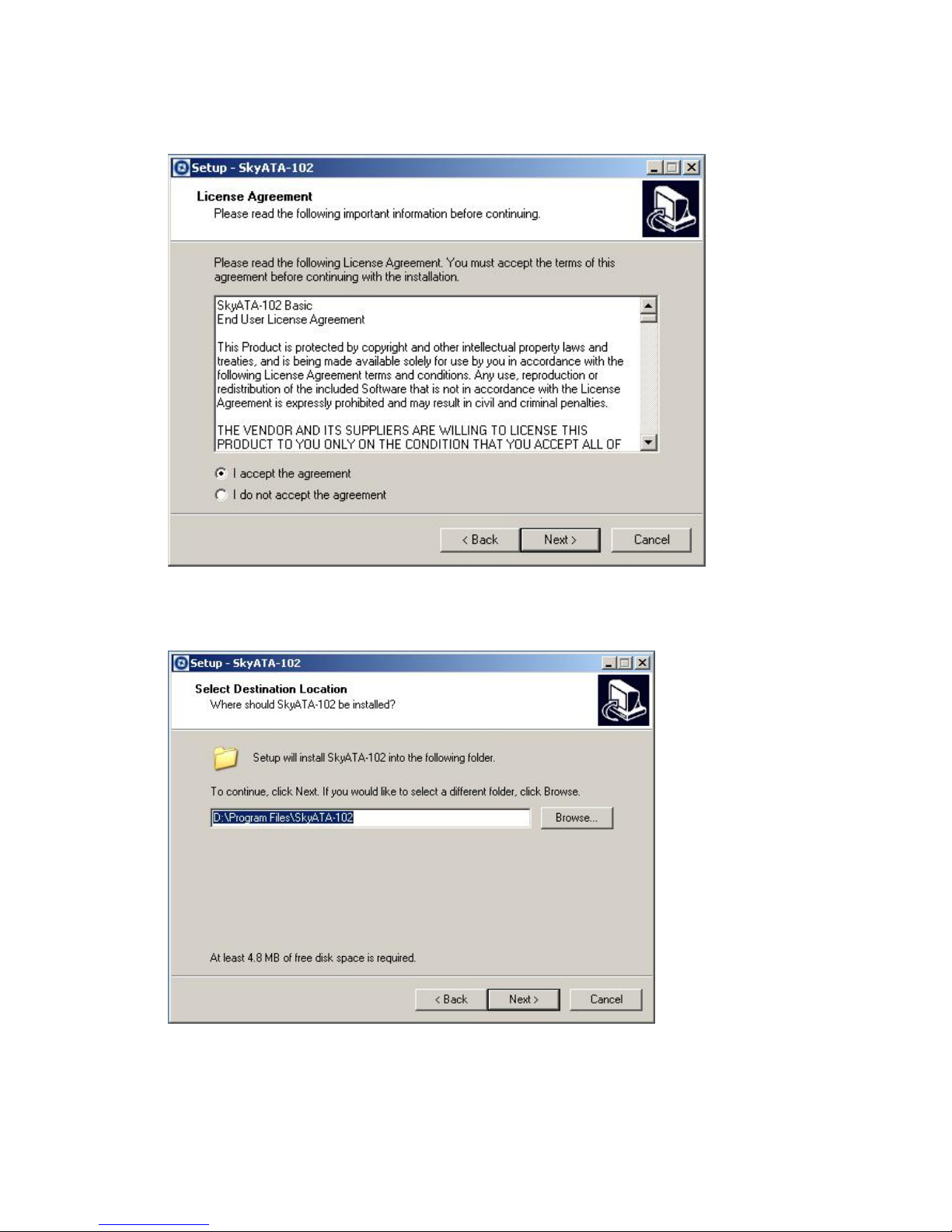

7. In the next window, check the box of “I accept the agreement” after reading

the agreement carefully. Then Click Next.

Note: User can click Back to go back to the previous step anytime during

installation.

25

8. In the next window, designate a folder for the installation. A default folder will

appear. If this is not a preferred folder for user, click Browse and choose a
folder from the list. After deciding folder for the installation, click Next.

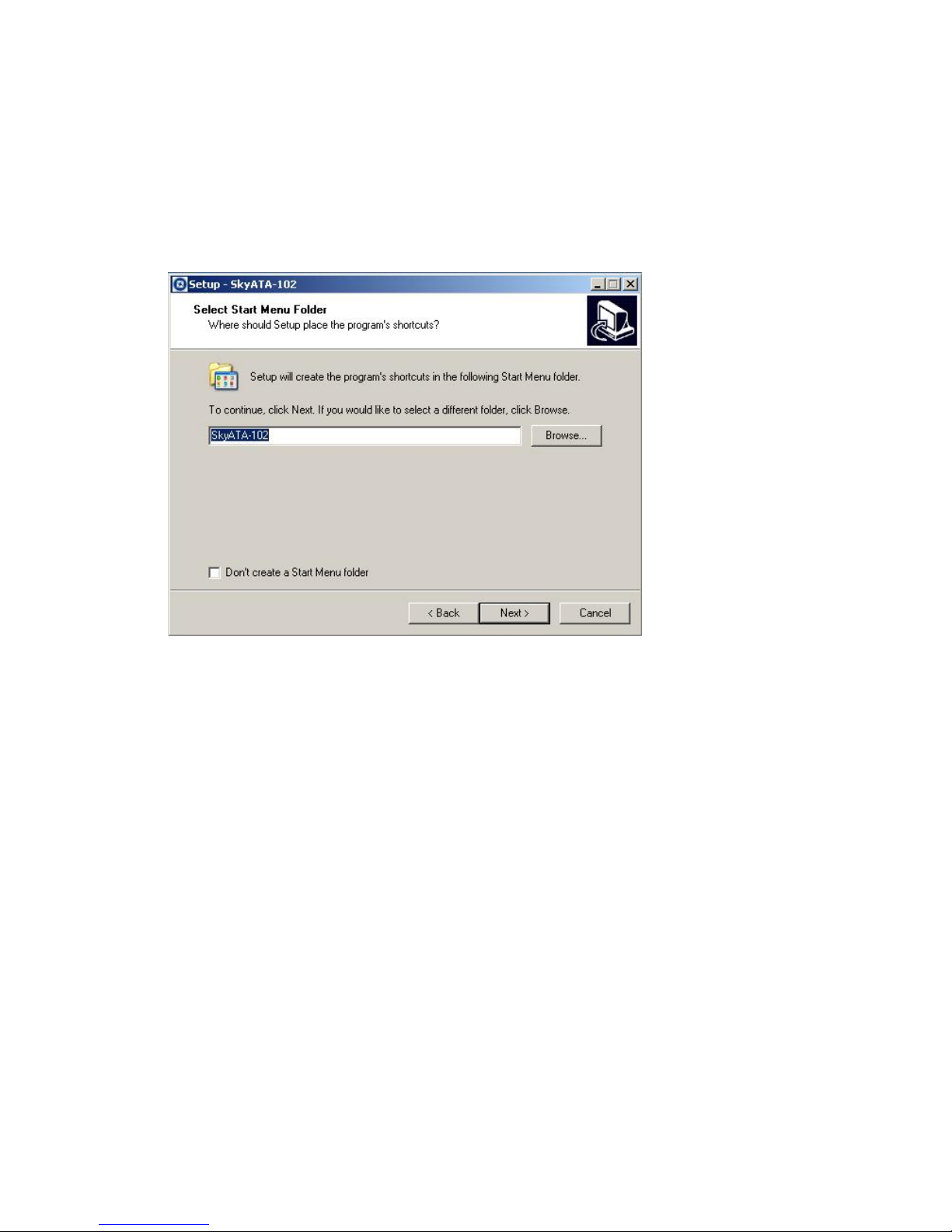

9. In the next window, choose a preferred folder for SkyATA-102 program’s

shortcuts in Start Menu folder. A default folder will appear. If this is not a

26

preferred folder, click Browse and choose a folder from the list. User can
choose not to create a Start Menu folder. If this is the case, check the box of
“Don’t create a St art Menu folder”. Click Next when the setting is done.

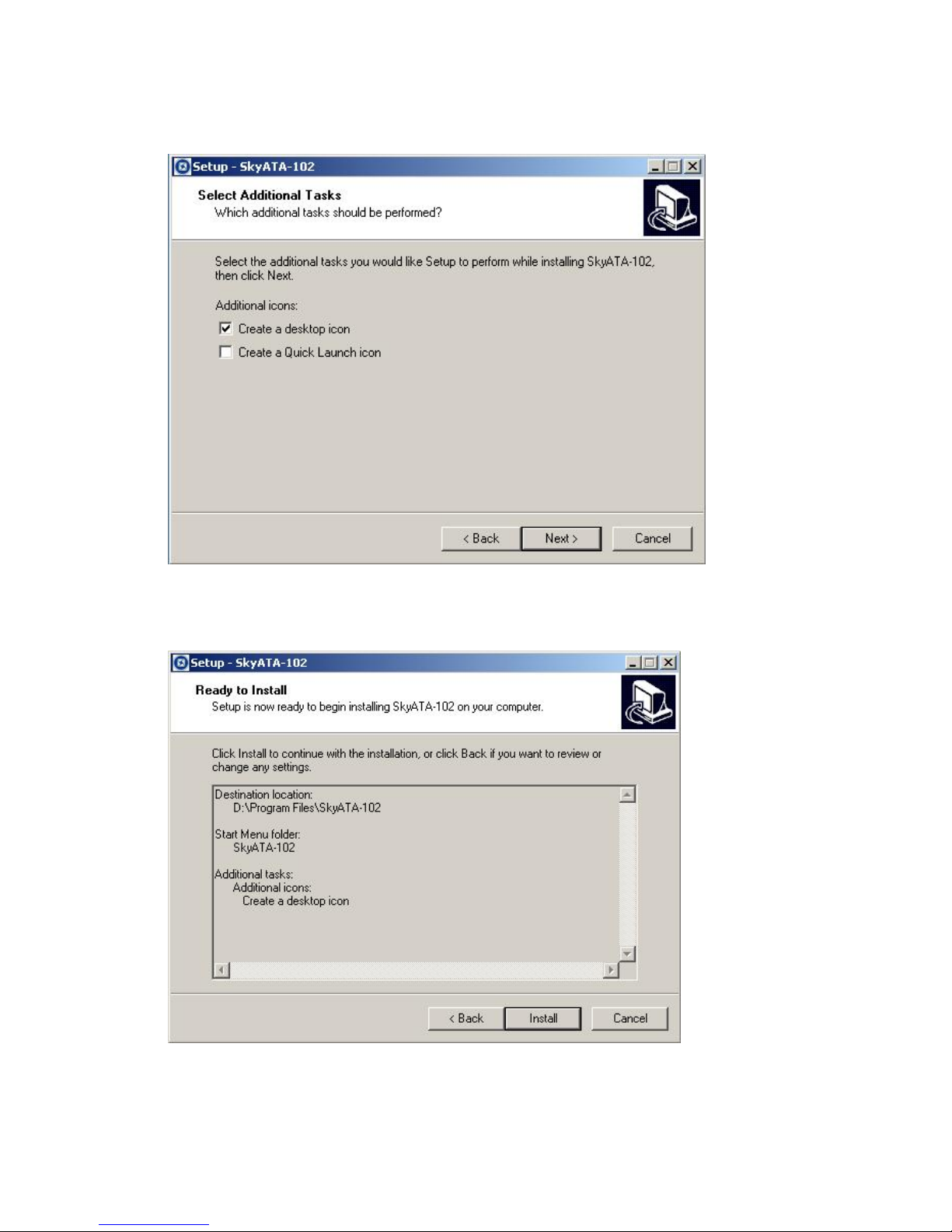

10. The next window is to create the Desktop icon or the Quick Launch icon.

Check the appropriate box as desired. After SkyATA-102 AP is launched, the
Desktop icon will appear on the computer desktop and the Quick Launch icon
will appear in the left bottom corner of the Windows screen. Click Next.

27

11. The next window contains the related installation information and allows the

user to select to start the installation. Carefully examine the configurations. If
configurations need to be changed, click Back to make necessary
modifications. If not, click Install to start the installation.

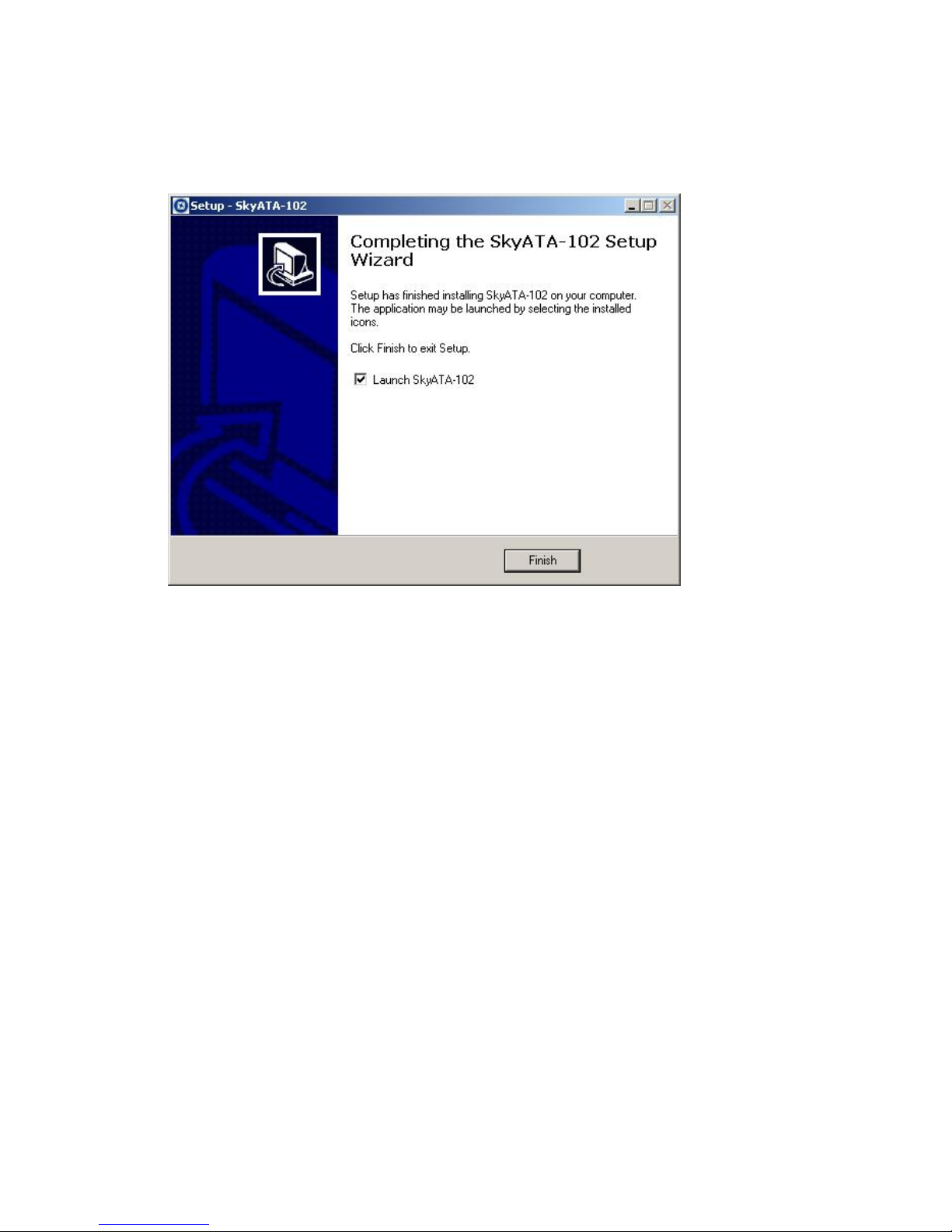

12. In the next window, user can choose to launch SkyATA-102. Check the “Launch

28

SkyATA-102” box (default is enable). Click Finish to finish the setup.

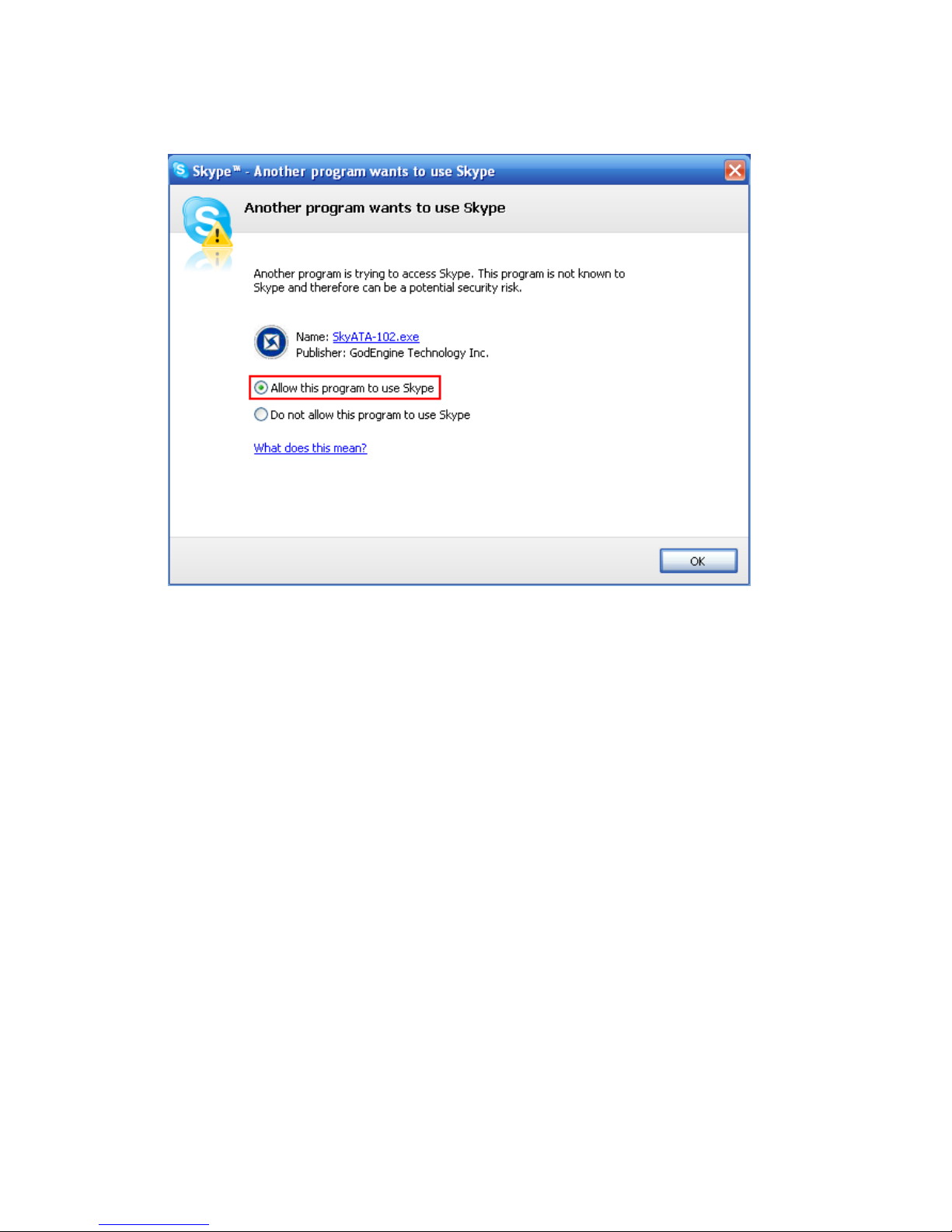

13. If user chooses to launch SkyATA-102 in previous step, Skype will invoke one

warning window “Another program wants to use Skype”. Choose “Allow this
program to use Skype” or “Allow this program to use Skype, but ask again in the
future”. Check the appropriate box. Then click OK.

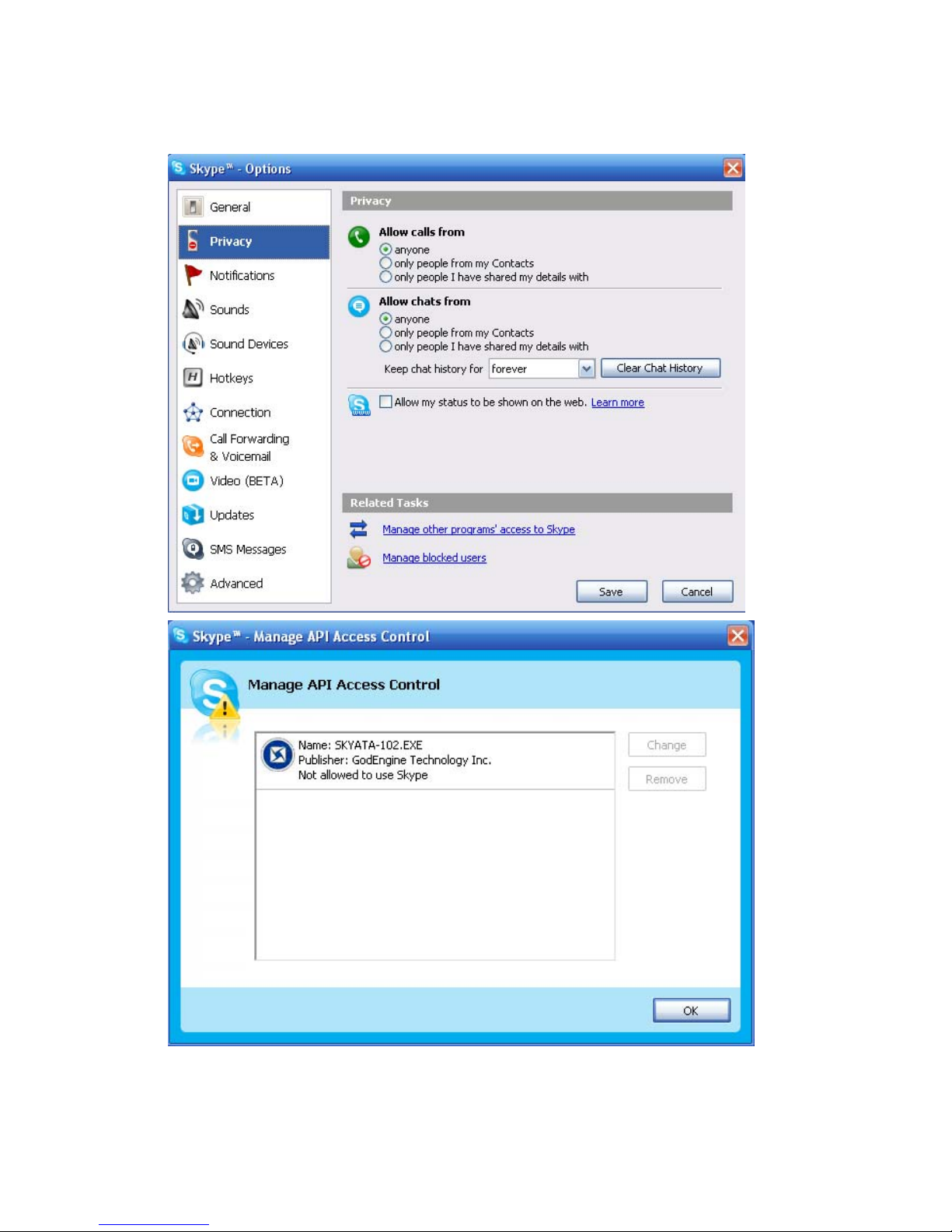

Note: Please do not choose the option of “Do not allow this program to use

Skype”. If this option has been chosen, and user still wants to use
SkyATA-102, please refer to Q7 of Chapter 5 FAQs for solution.

29

4. Use SkyATA-102

4.1 Before Making a Call

Before making a call using SkyATA-102, please make sure the following
requirements have been met:

30

 The whole computer system and internet connection meet or exceed the

minimum system requirements in this user manual Sec. 1.4 Minimum

System Requirements

 The computer is connected to the Internet
 SkyATA-102 is connected to one computer USB port
 A telephone is connected to the SkyATA-102 Phone port and SkyATA-102 Line

port is connected to PSTN line via phone cables

 A Skype program version 2.5 or above is installed and launched
 A Skype account has been created and cont acts have been added
 User sets a Skype Speed-Dial number for a contact as below:

From the main Skype window, select the "Contacts" tab, choose a contact name

and right-click on the contact name and select "Set Speed-Dial" in the appearing
menu.

 SkyATA-102 AP program is installed and launched successfully by checking if

SkyATA-102 system tray icon at the right-bottom corner of Windows desktop
shows

 When user picks up the phone receiver, there is a PSTN dial tone coming up
 Blue or green LED is slow blinking when SkyATA-102 is ready

solid-on when the phone is off-hook
fast blinking when the phone rings
off when Sky911 has any problem

4.2 SkyATA-102 Icons

Desktop and Quick Launch icon

31

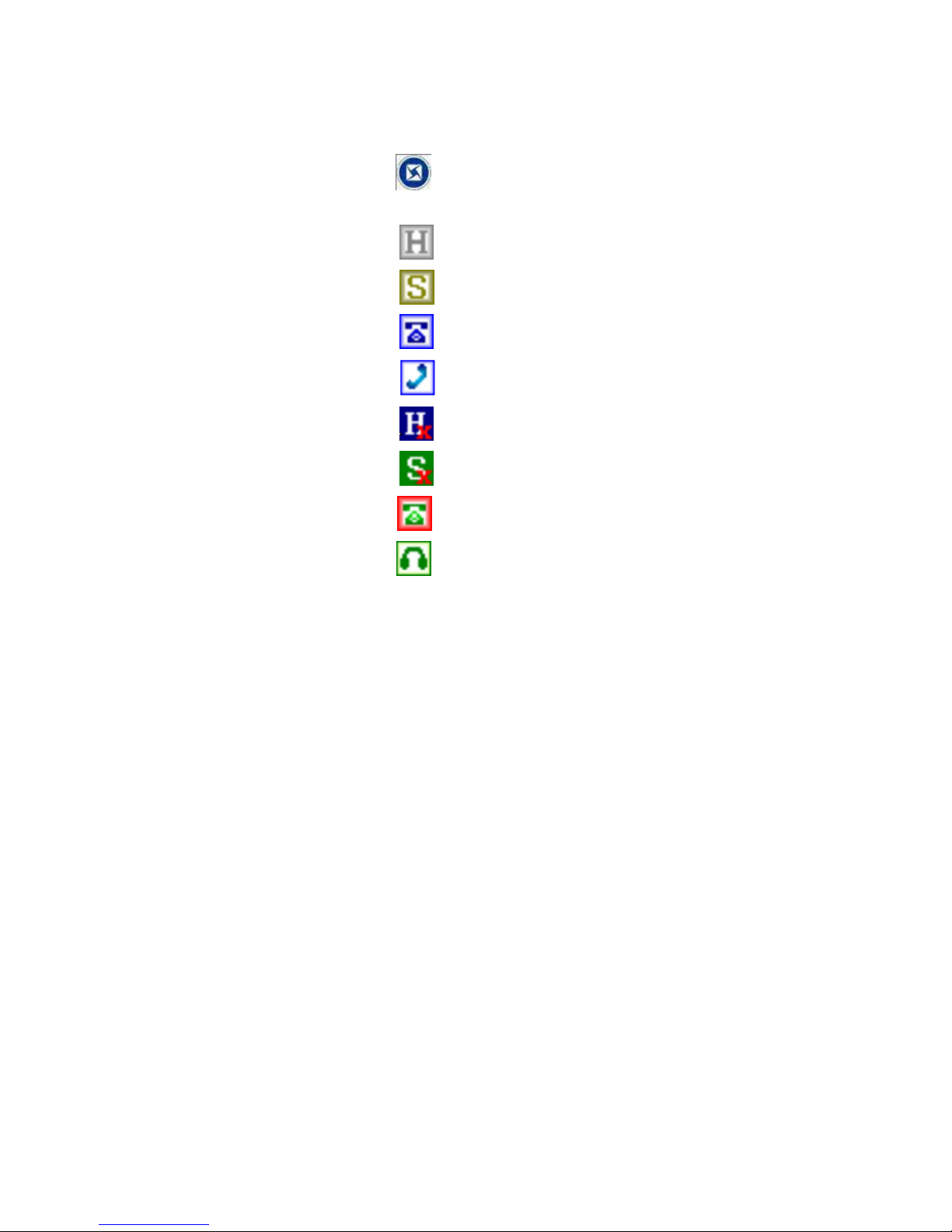

System tray icons at the right-bottom corner of Windows desktop

Hardware Initializing

Communicating with Skype

Ready

Off Hook

Hardware failure

Skype unavailable

VoIP Only

IM Mode

4.3 SkyATA-102 GUI

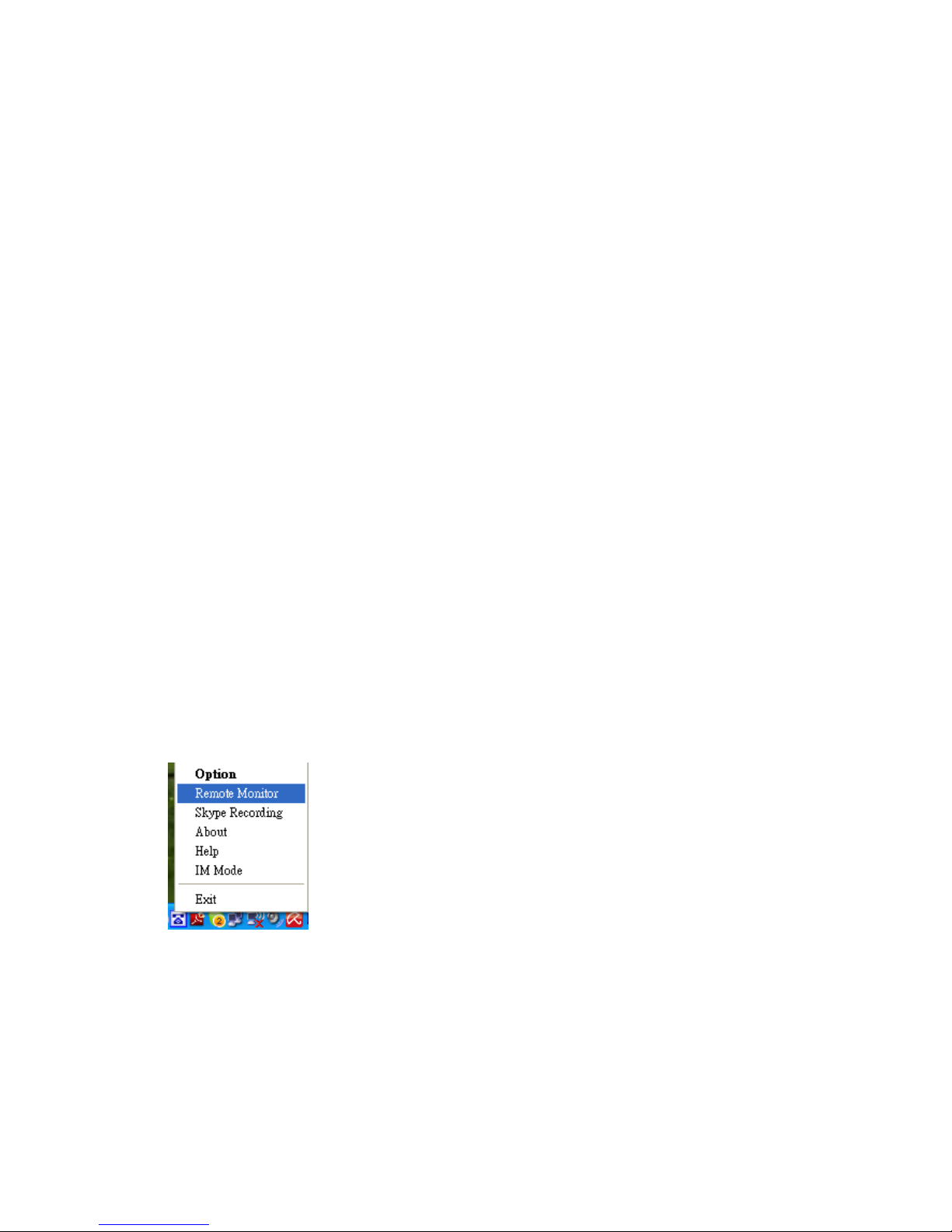

There are five choices (Option, About, Help, IM Mode and Exit) when user clicks
SkyATA-102 system tray icon at the right-bottom corner of Windows desktop. Option
has all settings for SkyATA-102. About will tell user SkyATA-102 AP software
version. The on-line help will be launched when user chooses Help from
SkyATA-102 system tray icon. On-line help supports language English, Traditional
Chinese and Simplified Chinese. IM Mode can be an audio device for other
IM/Softphone. Exit will close SkyATA-102 AP (Application Program) program.

Following are detailed descriptions about SkyATA-102 Option settings.

4.3.1 Option

The Option dialogue includes the settings most commonly selected by users. When
user clicks the OK button at the bottom of Option dialogue after making a new setting,
the new setting will be activated and Option dialogue closes immediately. If user

32

clicks the Apply button at the bottom of Option dialogue after making a new setting,
the new setting will be activated immediately and user can continue to make more
changes if necessary. User chooses either OK or Apply button, the new setting will
be saved and user has the updated setting when user launches Sky911 again. User
can use Cancel button to cancel the changes and Option dialogue closes
immediately. Besides, user can click Default button to refresh settings to default
settings in every pages. There are following seven pages:

General

Setting Page

Speed Dial

Setting Page

Audio

Setting Page

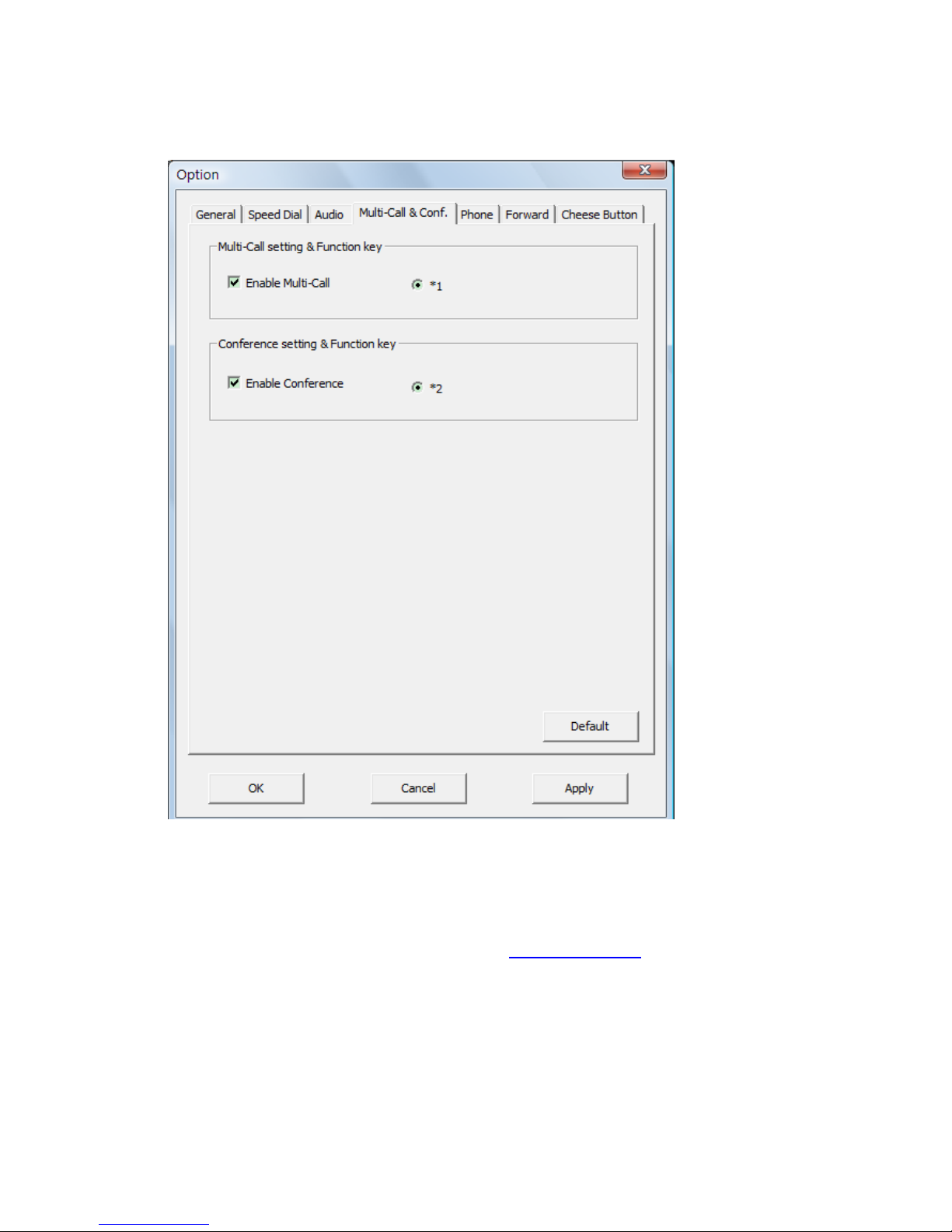

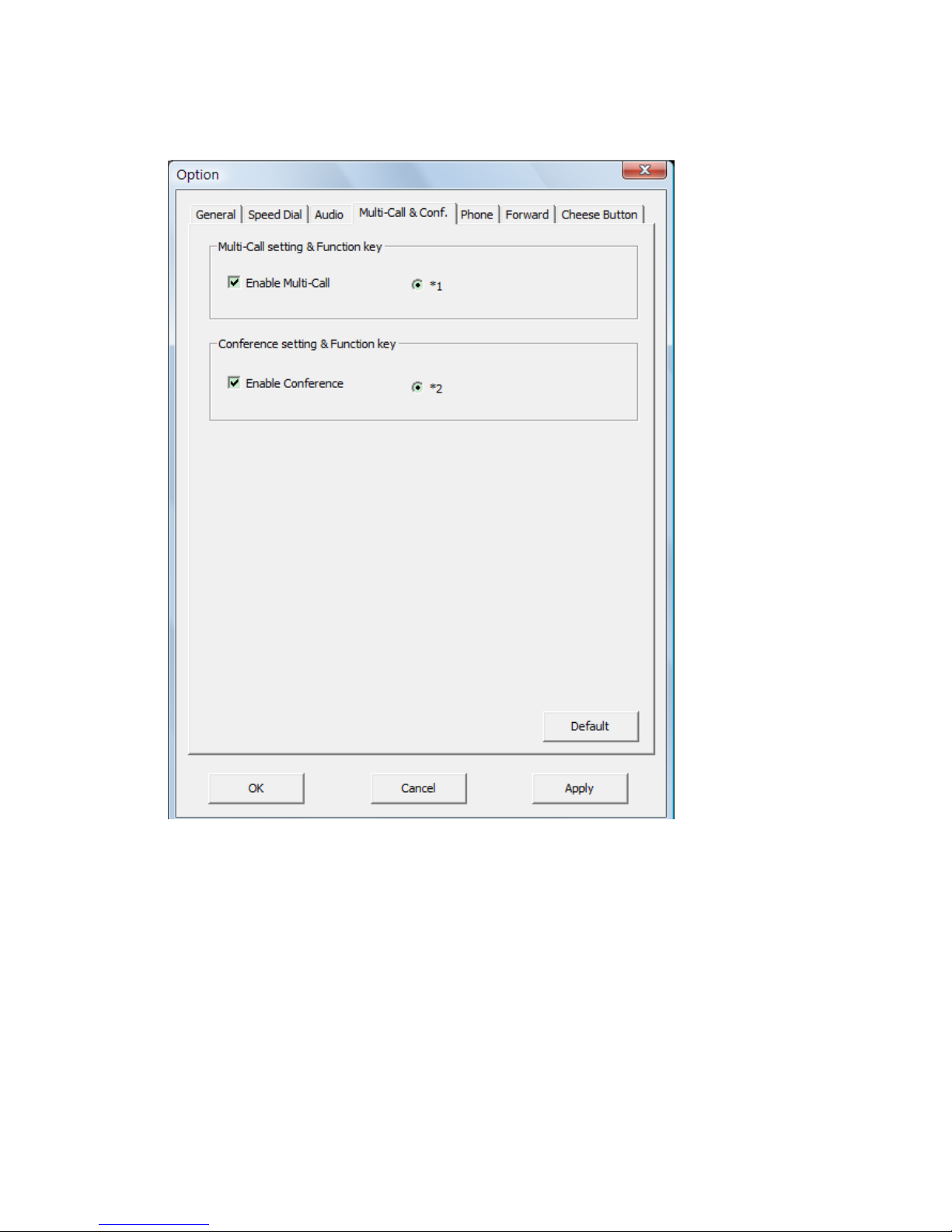

Multi-Call and Conference

Setting Page

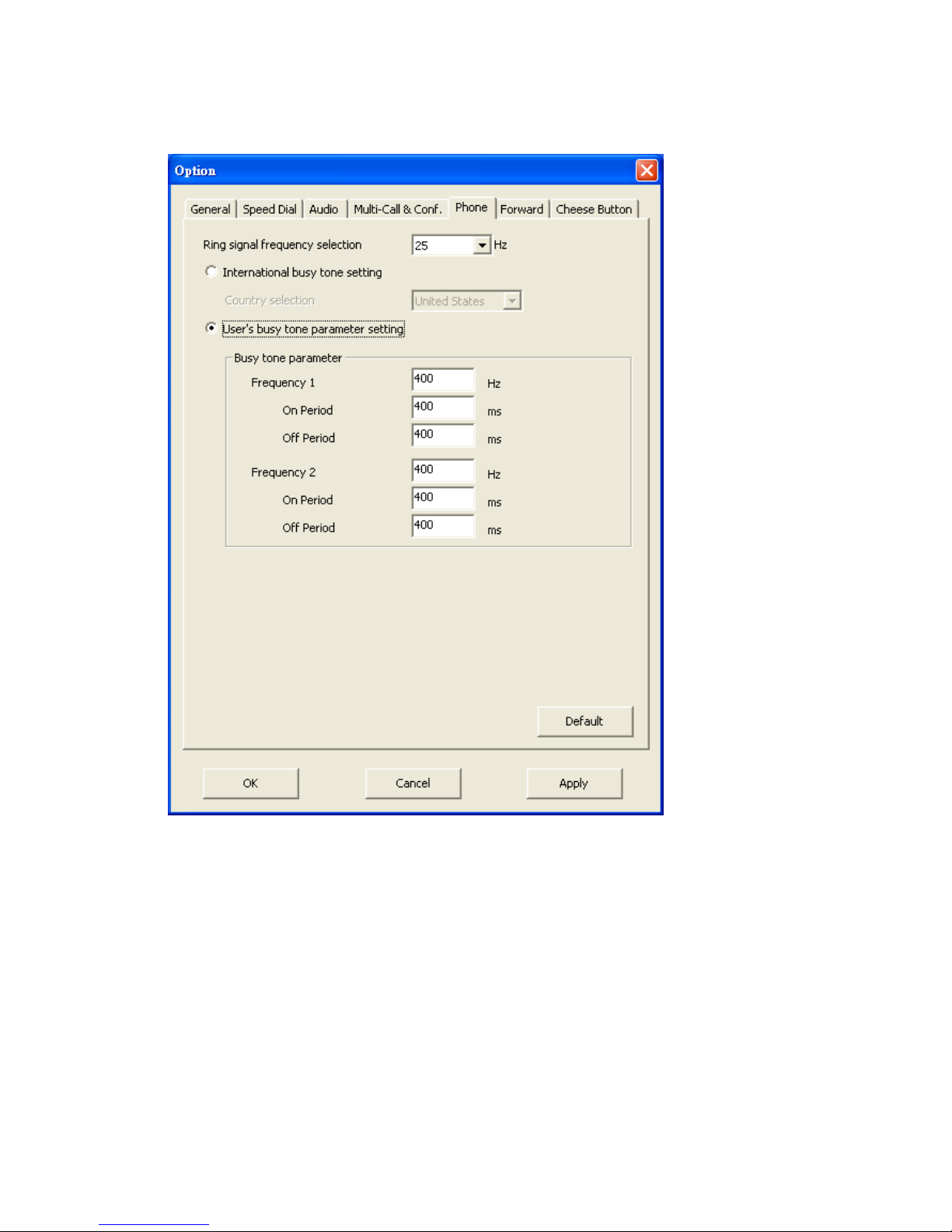

Phone

Setting Page

Call Forward

Setting Page

Cheese Button

Setting Page

33

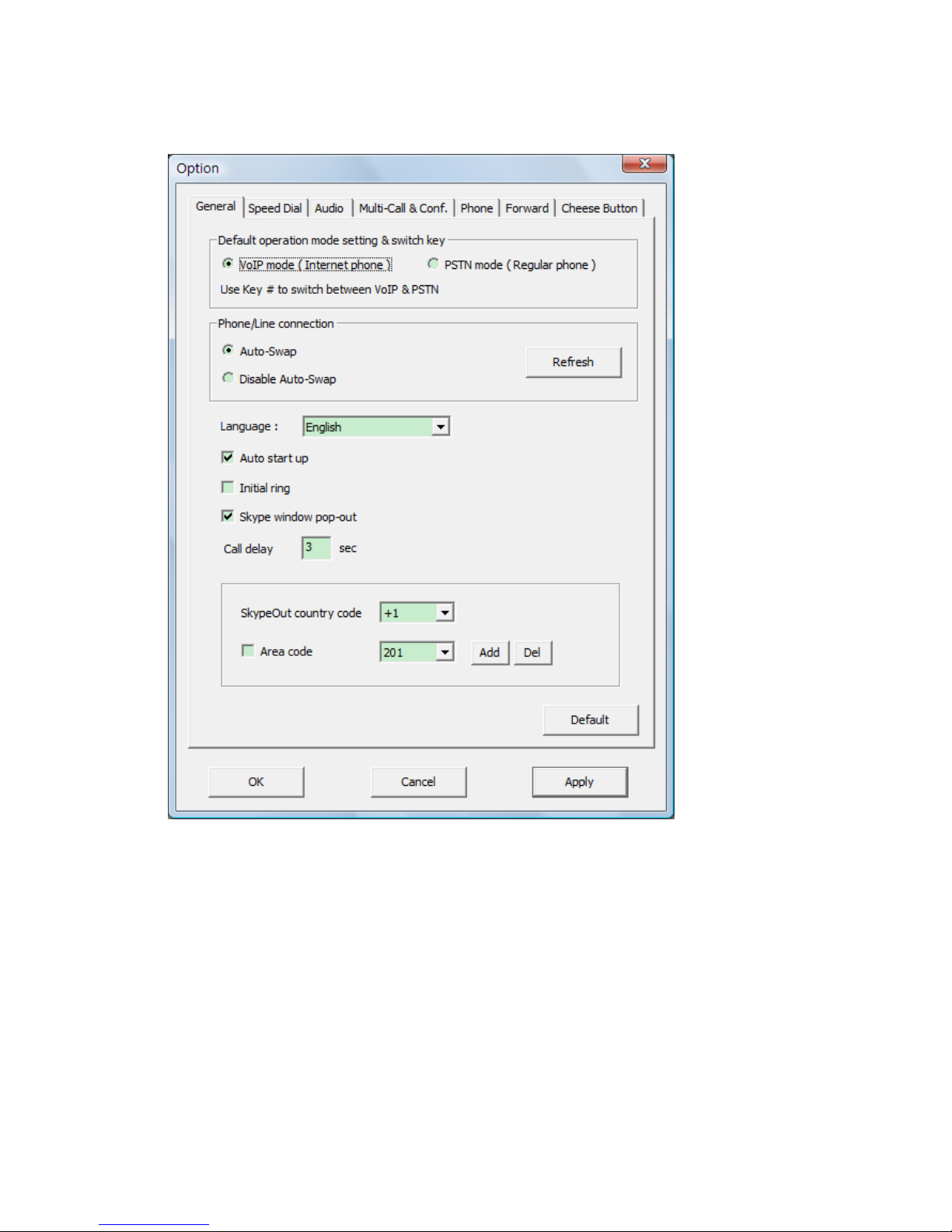

4.3.2 General Setting Page

This option dialogue provides the basic operation settings, including Default
operation mode setting & switch key, Phone/Line connection, Language, Auto start
up, Initial ring, Skype window pop-out, Call delay, SkypeOut country code and Area
code.

34

Default operation mode setting & swit ch key

SkyATA-102 supports either VoIP or PSTN default operation mode. User can
distinguish which operation mode by LED or the different dial tones. LED is blue for
VoIP mode and green for PSTN mode.

When user selects VoIP as the default operation mode, user can dial a Skype call
directly after user picks up phone. For PSTN call, user needs to dial “#” key first and
then hears a PSTN dial tone. Make a PSTN call as user did in the past.

When user selects PSTN as the default operation mode, user can dial a PSTN
number directly after user picks up phone. For Skype call, user needs to dial “#” key
first and then hears a Skype dial tone. Then make a Skype call.

35

User can use “#” key to switch between VoIP and PSTN modes to add more contacts
when calls have been put on hold during a Multi-call

or Conference. User can't switch

operation mode when there is any call in progress.
Default is VoIP mode.

Phone/Line connection

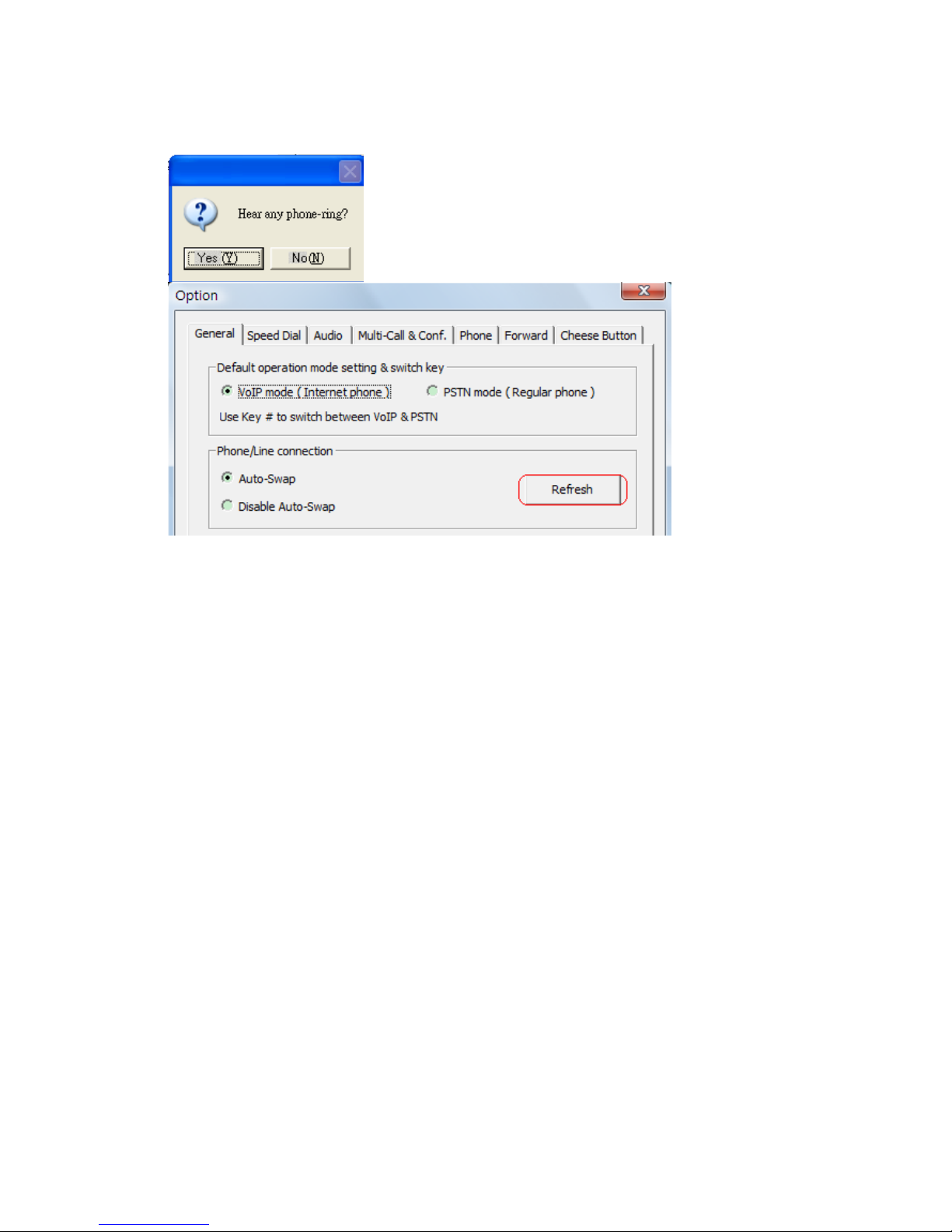

If user changes Phone/ Line connection status after SkyATA-102 AP program is
launched or something abnormal happens for Skype or PSTN application, please
press Refresh button to force Auto-Swap function. It will automatically swap both line
connections internally even user has a wrong connection.

If user chooses Disable Auto-Swap function, user needs to make sure Phone/ Line
ports have correct connection. Otherwise SkyATA-102 might not work properly.

Default is Auto-Swap enable.

Language

Three languages are available: English, Simplified Chinese, and Traditional Chinese.
If user installs SkyATA-102 in the operation system whose language is not in our

supported languages list, then Language will be set to English automatically.
The default language is determined by the “Select Setup Language” setting during

SkyATA-102 setup program is installing.
Auto start up
If this setting is enabled, SkyATA-102 program will be automatically loaded and

executed when the computer operating system is started.
The default setting is enable.

Initial ring

If this setting is enabled, an initial ring from the connected phone will be activated to
inform user SkyATA-102 is now ready for use, once the device initialization is
successfully completed.

The default setting is disable.

Skype window pop-out

If this setting is enabled, SkyATA-102 program will automatically bring up the Skype
window when user picks up the phone receiver and bring down the Skype window
when user hangs up the phone.

The default setting is enable.
Call delay
Call delay means how long the Skype call will be dialing out if user doesn't add "#"

key after pressing the Skype number. User can input number like 5, then the Skype
number will be dialed out after 5 seconds if user doesn't add "#" key after the Skype
number.

36

The default setting is 3 seconds.

SkypeOut country code

User can choose the country code number where the user stays, then user doesn't
need to add country code when user makes a SkypeOut call within this country.

The default setting depends on user's Window operation system language. For
example, the default SkypeOut country code setting is +1(USA & Canada) for English
Windows operation system.

Area code
Only Taiwan, China, USA and Canada area code are supported now. User needs to

click Area code checkbox and choose the appropriate area code. After that, user
doesn't need to dial the area code of a traditional local number for a SkypeOut
call. Sky911 program tries to collect the complete area code numbers, but user
needs to add area code by himself in case there is any area code missing or new
added to prevent possible wrong number dialed out. After user clicks "Add" button,
there will be one "Input a new area code" window pop out, user needs to fill in the
area code or mobile prefix number and the digit of the tradition local number or
mobile number. Then click OK to make it valid.

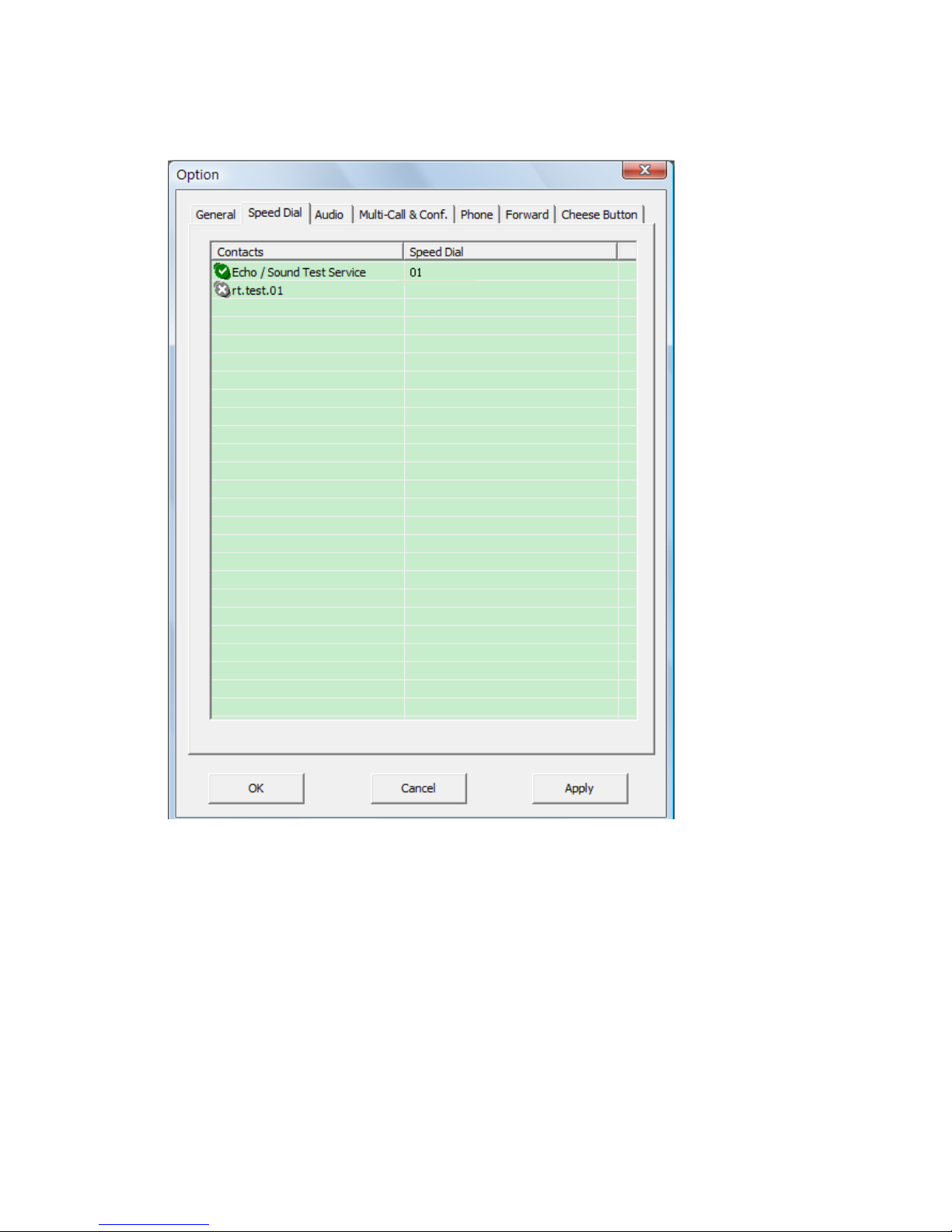

4.3.3 Speed Dial Setting Page

Skype doesn't support speed dial function for version 4.0 and later. User can use this
page to set speed dial for any Skype user or SkypeOut number. There are up to 5
digits for setting. If user's Skype version is earlier than Skype 4.0 and user has set
some speed dial numbers in Skype GUI, these settings still work unless they conflict
with the settings in SkyATA-102 Speed Dial setting page. If there is a speed dial
setting conflict between both settings, SkyATA-102 will choose SkyATA-102
speed dial setting page as the first priority.

37

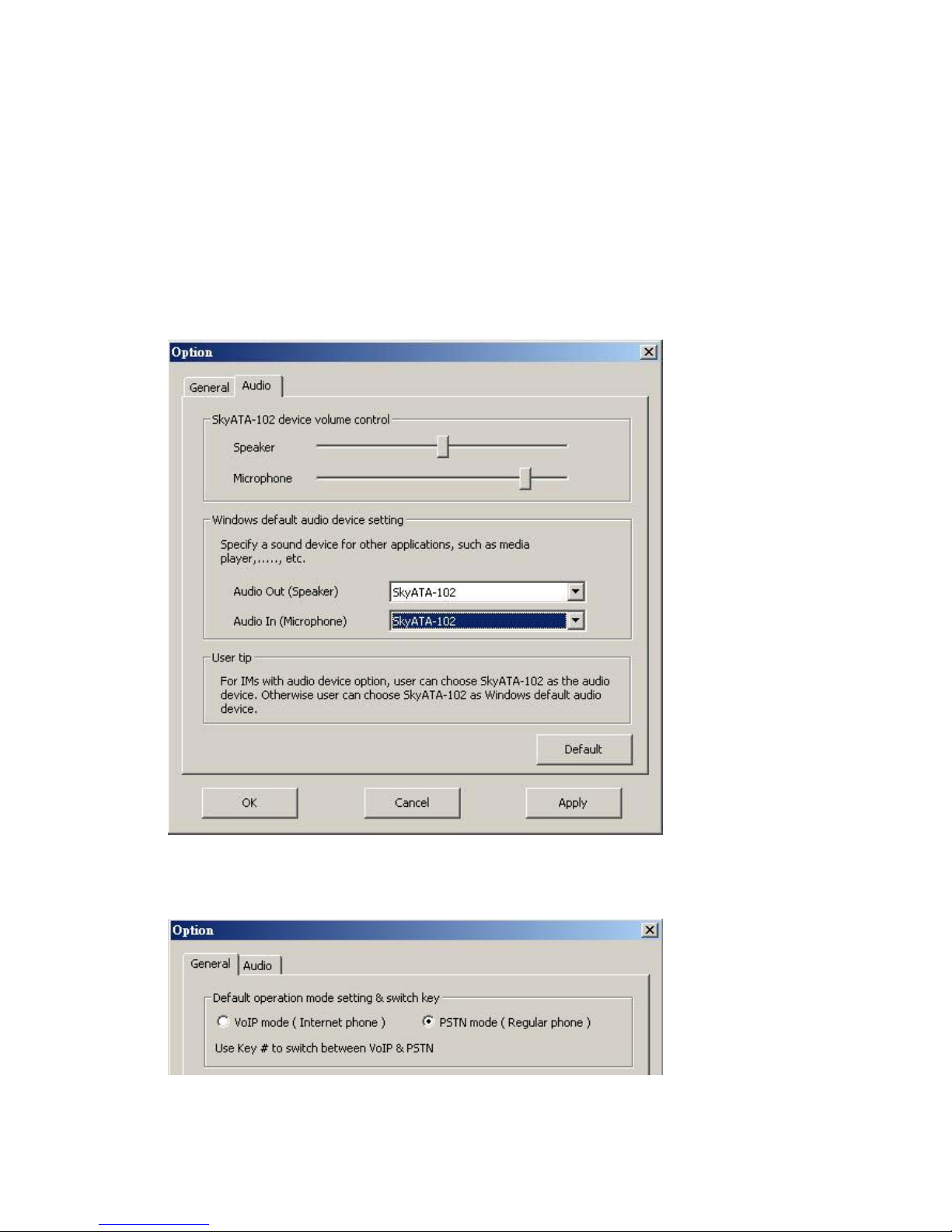

4.3.4 Audio Setting Page

In Audio setting page, user can change audio settings including SkyATA-102 device
volume control and Windows default audio device setting.

38

SkyATA-102 device volume control

User can individually adjust the speaker volume and the microphone volume of
SkyATA-102.

To adjust the audio wave output volume, drag the speaker volume scroll bar.
To adjust the audio wave input and recording volume, drag the microphone volume
scroll bar.
Notice: If user attempts to change SkyATA-102 volume from Sounds and Audio
Devices in control panel, SkyATA-102 program will adjust the volume to its

default value. If user attempts to change SkyATA-102's microphone volume
from Sounds and Audio Devices in control panel and the volume exceeds
SkyATA-102's default value, Sky911 will adjust the volume to its maximum

39

value.

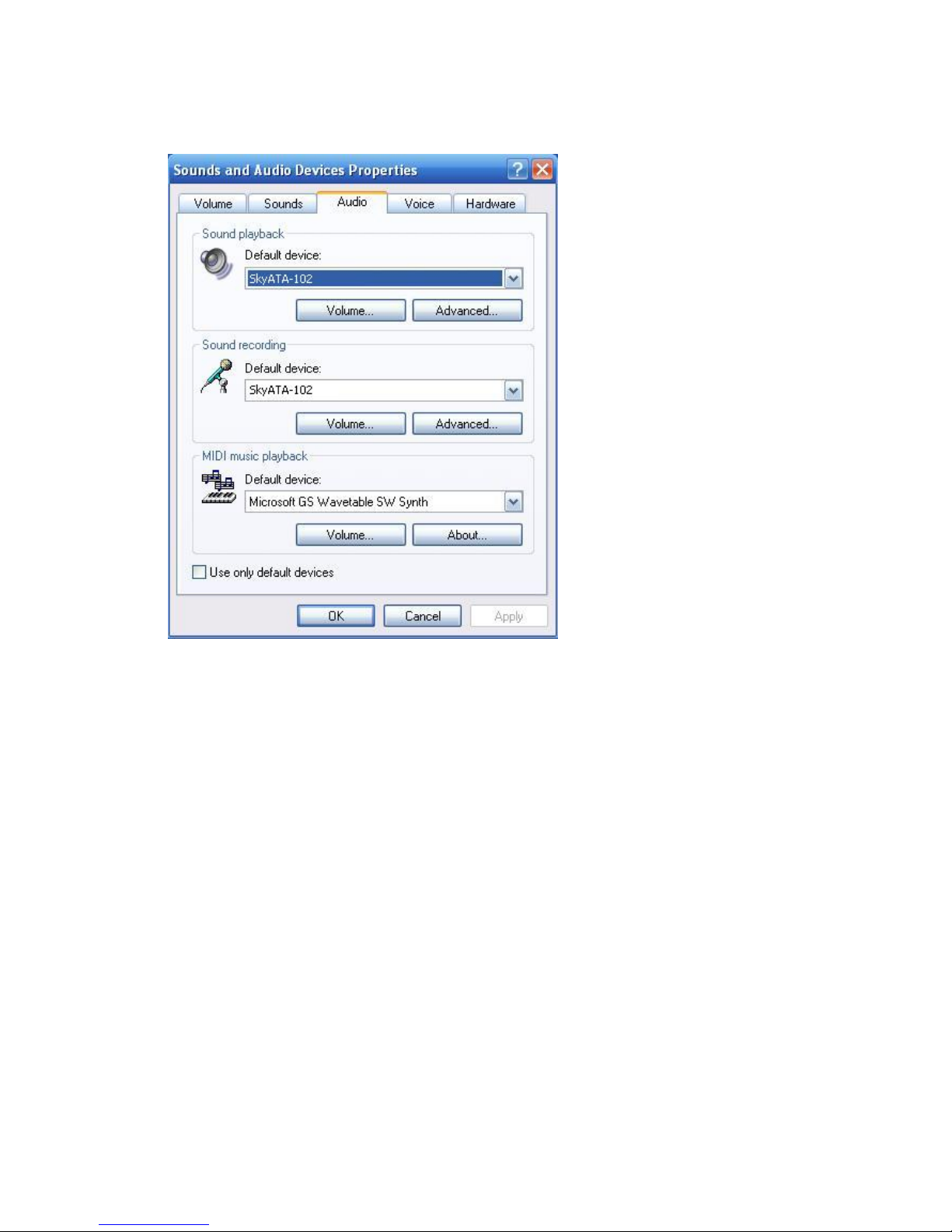

Windows default audio device setting

User can select an audio device for other Windows application including audio in and
audio out device. Some USB audio devices might change Windows default audio
device. With this function, user can easily change Windows default audio device for
different applications.

4.3.5 Multi-Call and Conference Setting Page

User can select to enable the functions of Multi-Call and Conference individually. The
page includes settings for Multi-Call setting & Function key and Conference setting &
Function key. After Multi-Call or Conference function is enabled, the corresponding
function key is selected.

40

Multi-Call setting & Function key

When Multi-Call function is enabled, the function keys for Multi-call are “＊1”. Then
user can make a one-on-one talk with the maximum of 3 Skype contacts and 1 PSTN

contact during the same period of time. User can switch talk within the reserved
Skype/PSTN calls by pressing function keys ”＊1”. For detailed operation instructions,

please refer to this user manual section 4.10 Make a Multi-Call

.

The default setting for Multi-Call is enable.

Conference setting & Function key

When Conference function is enabled, the function keys for Conference are “＊2”.
Then user can make a one-on-many talk with the maximum of 4 Skype contacts and

41

one PSTN contact simultaneously. For detailed operation instructions, please refer to
this user manual section 4.11 Make a Conference Call

.

The default setting for Conference is enable.

4.3.6 Phone Setting Page

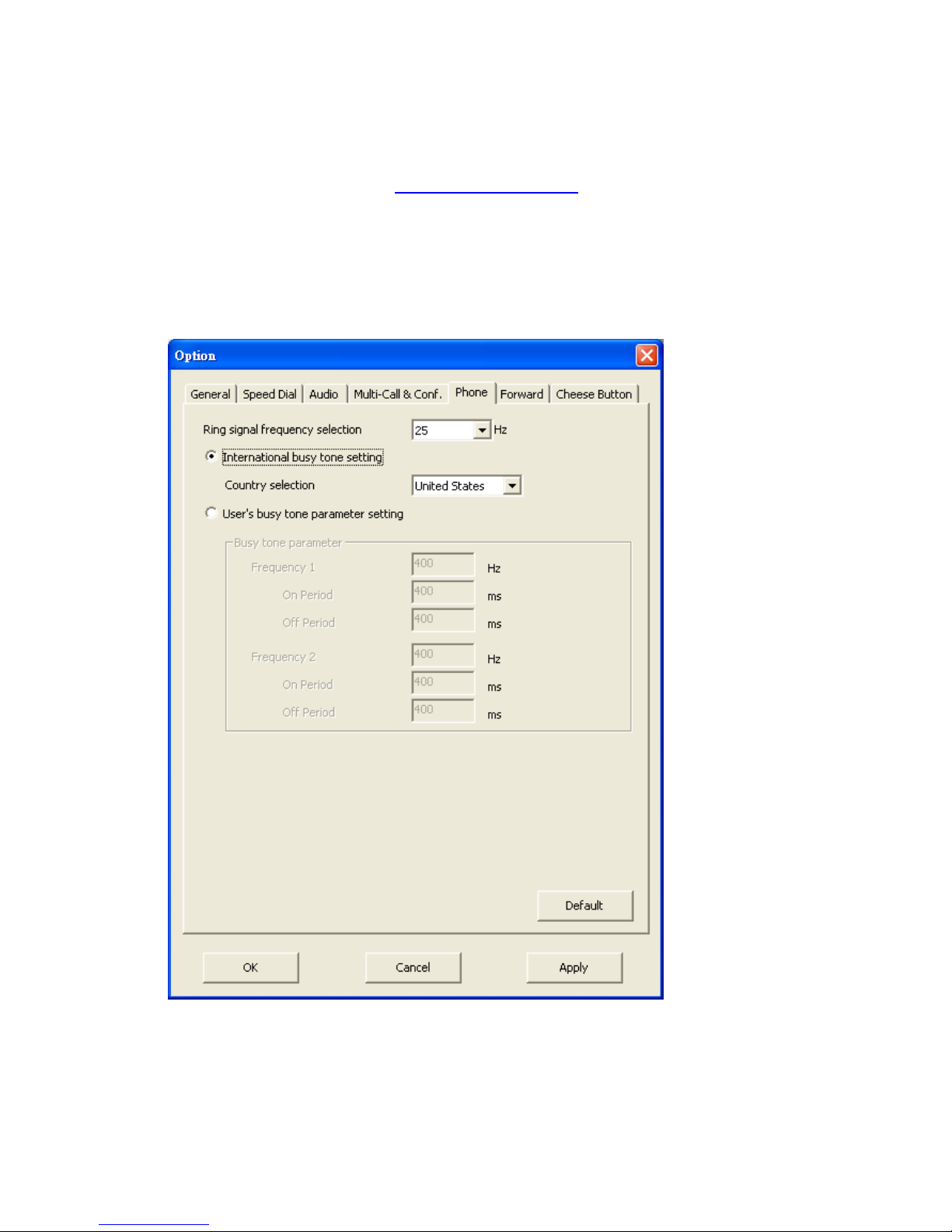

This page provides the related configurations about phone settings, such as Ring
signal frequency selection and International busy tone setting which includes Country
selection and User’s busy tone parameter setting.

Ring signal frequency selection

Here supports four types of ring signal frequency, 20Hz, 25Hz, 30Hz & 50 Hz. User
can choose a proper ring signal frequency according to the ring frequency of the

42

phone user adopts.
Usually the ring signal frequency adopted in the U.S.A. is 20Hz.
The ring signal frequency in Europe is 25Hz.
The ring signal frequency adopted by the major countries in the world ranges from 20

to 50Hz.
The default setting is 25Hz.

International busy tone setting

User can choose the living country from country selection list to get the familiar busy
tone. When user can’t find the living country from the list, user can configure the busy
tone parameters themselves if they know the appropriate setting. Then click OK. It is
not necessary for user to change this setting for general application. However, user
needs to set proper busy tone if user wants to use Call Forward function, otherwise
there would be forwarding call non-disconnection problem even the caller has hung
up the initial call.

This feature also allows user to set the appropriate settings of busy tone when
Sky911 is connected with one PBX for different application. By selecting a country,
the device will activate the specific busy tone frequency and cycle adopted by local
Public Switched Telephone Networks in that country. Sometimes, the connecting
PBX doesn't have the exact busy tone parameter as defined in user's country. For
this case, user might encounter busy tone detection and unfamiliar busy tone
problems even selecting user's country. User can configure the busy tone
parameters themselves if they know the appropriate setting. Enable user's busy tone
parameter setting option as below figure and fill in appropriate parameters, then click
OK. The parameter will be saved and active.

The default international busy tone country setting is decided by the “Select Setup
Language” selection when SkyATA-102 is installed. For example, when user selects
English, the default country will be United States. SkyATA-102 supports busy tone for
23 countries now.

43

4.3.7 Call Forward Setting Page

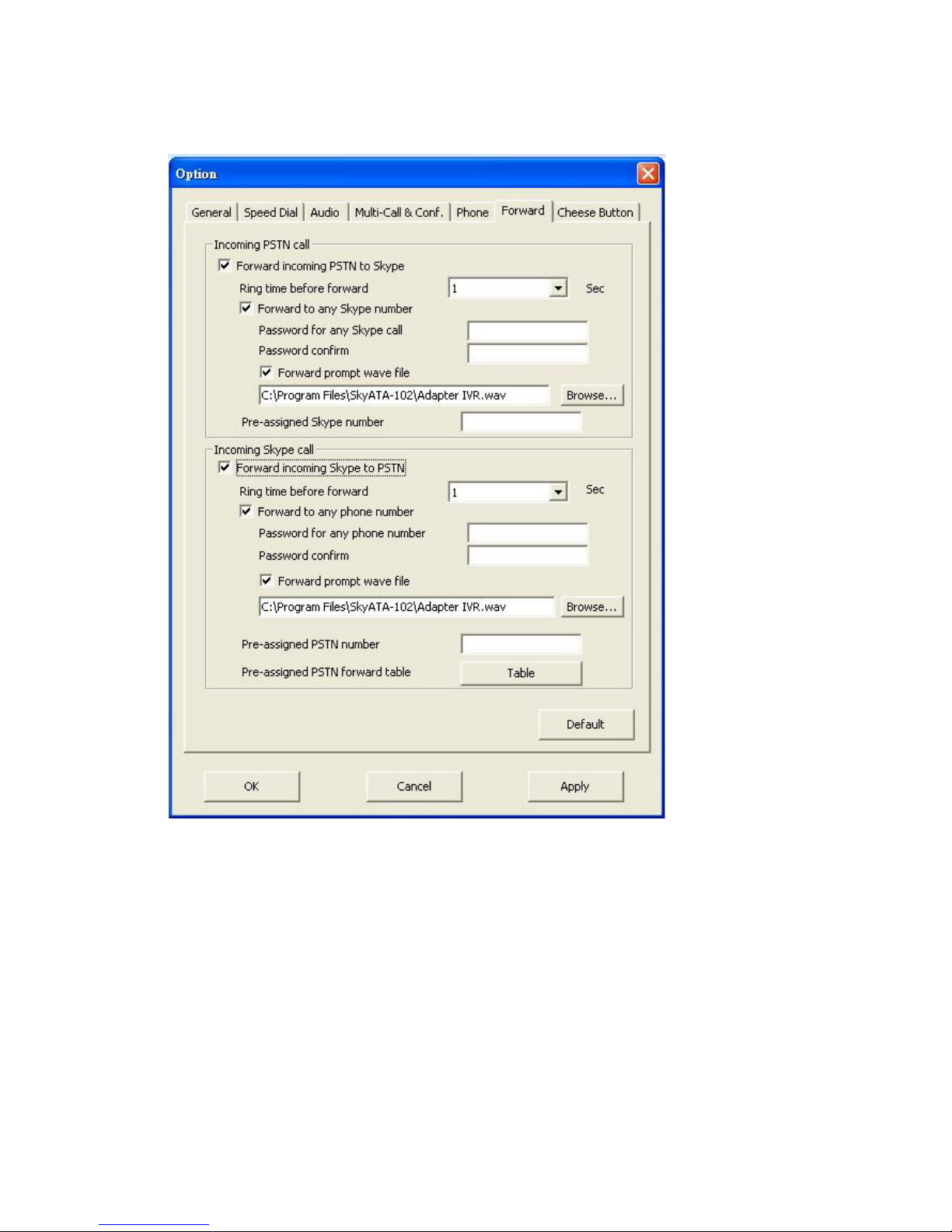

This page provides two kinds of Call Forward settings including Incoming PSTN call
and Incoming Skype call.

44

Incoming PSTN call
Forward incoming PSTN to Skype

User can utilize this device remotely to make a long distance or international
SkypeOut call through PSTN to Skype forwarding function by checking Forward
incoming PSTN to Skype box.

Default is disable.

Ring time before forward

User can choose preferred Ring time before forward. For example, if user chooses 1
second as the Ring time before forward, any incoming PSTN call will be forwarded if
user doesn’t pick up phone after 1 second. There are options from 0 to 30 seconds.

45

Default is 1 second.

Forward to any Skype number

Only this option is also enabled, then user can make a PSTN to any Skype/SkypeOut
forwarding.

Default is disable.

Password for any Skype call

User needs to type up to 6 digits 0~9 Arabic numerals as password to prevent
unwanted Skype/SkypeOut call forwarding. This password can protect user from any
unwanted Skype/SkypeOut call forwarding. Suggest user to change password
regularly to protect possible password leak and only enable Call Forward function
when it is necessary.

Forward prompt wave file

There is a default Forward prompt wave file( two “Beep” tones) to inform user it is
time to place a Skype forward call when Forward to any Skype number box is
checked. User can also record personal Forward prompt message in wave file and
browse the file to enable it.

Pre-assigned Skype number

User can set a fixed Skype number for PSTN to Skype call forward. With Forward
incoming PSTN to Skype function enabled, any incoming PSTN call will be forwarded
to the Pre-assigned Skype number if user doesn’t pick up the incoming call within the
preset Ring time before forward.

Incoming Skype call
Forward incoming Skype to PSTN

User can utilize this device remotely to make a PSTN call through Skype to PSTN
forwarding function or forward any incoming Skype call to the assigned PSTN
number by checking Forward incoming Skype to PSTN box.

Default is disable.

Ring time before forward

User can choose preferred Ring time before forward. For example, if user chooses 1
second as the Ring time before forward, any incoming PSTN call will be forwarded if
user doesn’t pick up phone after 1 second. There are options from 0 to 30 seconds.

Default is 1 second.

Forward to any phone number

Only this option is also enabled, then user can make a Skype to any PSTN number
forwarding.
Default is disable.

46

Password for any phone number

User needs to type up to 6 digits 0~9 Arabic numerals as password to prevent
unwanted PSTN call forwarding. This password can protect user from any unwanted
PSTN call forwarding. Suggest user to change password regularly to protect possible
password leak and only enable Call Forward function when it is necessary.

Forward prompt wave file

There is a default Forward prompt wave file( two “Beep” tones) to inform user it is
time to place a PSTN forward call when Forward to any phone number box is
checked. User can also record personal Forward prompt message in wave file and
browse the file to enable it.

Pre-assigned PSTN number

User can set a fixed PSTN number for Skype to PSTN call forward. With Forward
incoming Skype to PSTN function enabled, any incoming Skype call will be forwarded
to the Pre-assigned PSTN number if user doesn’t pick up the incoming call within the
preset Ring time before forward.

Pre-assigned PSTN forward table

In addition to one Pre-assigned PSTN number for all incoming Skype calls, user can
use the Pre-assigned PSTN forward table to assign different Skype contacts with
different PSTN forwarding numbers. User can type the forwarding numbers and click
Save button to keep the forward table settings for future usage as below figure.

4.3.8 Cheese Button Setting Page & Usage

This page includes setting for Cheese Button enable, “*” key delay time and
Refresh.

Cheese Button

User needs to make sure Cheese Button function is enabled by checking Cheese
Button box before using this function.

Default is enable.

“*” key delay time

47

Sometimes user needs to use one or more “*” keys as delay time before dialing
PSTN number. User can choose appropriate delay time for each “*”. There are
options for 1~5 seconds.

Default is 2 seconds.

Refresh

Skype contact list might not be updated in time, user can click Refresh button to
update Skype contact list immediately.

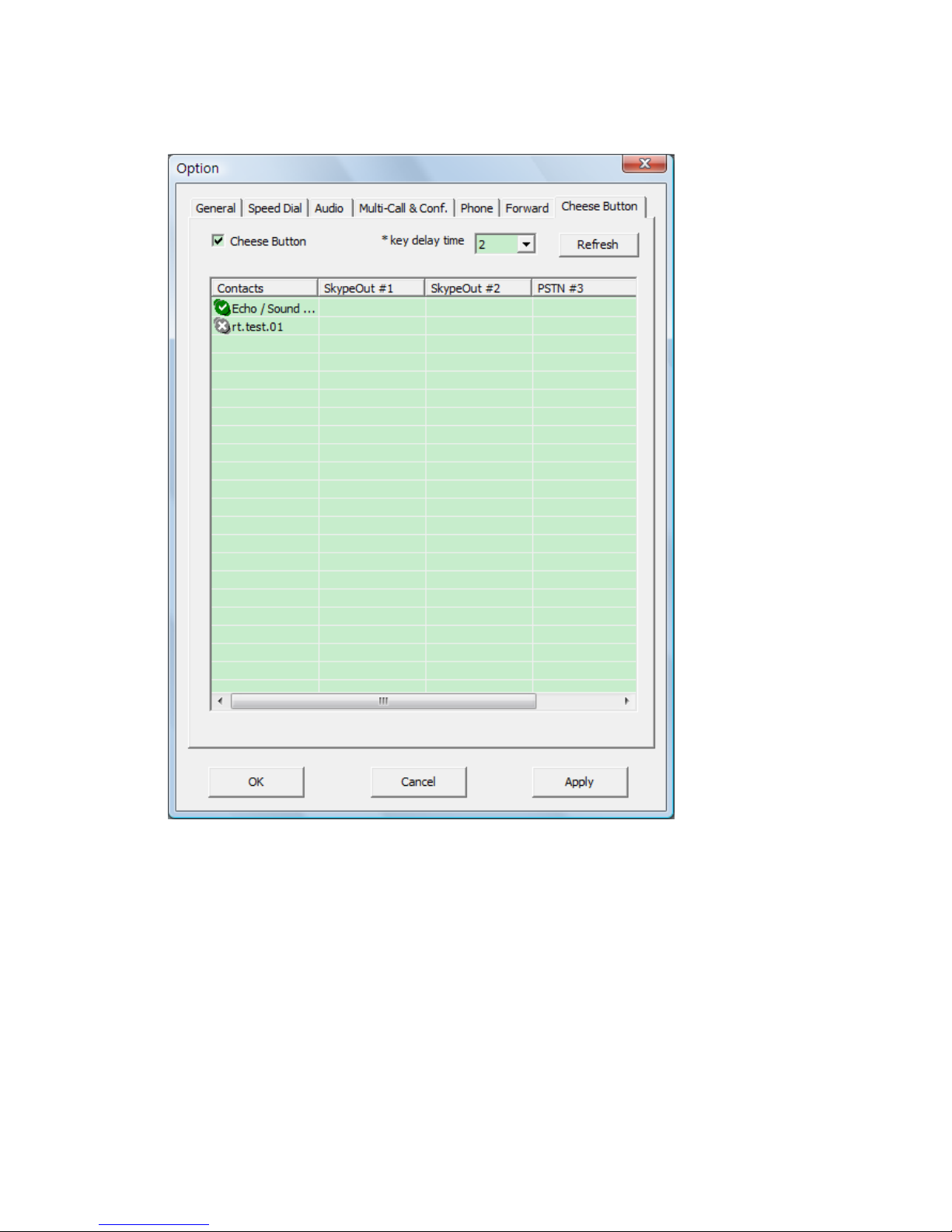

User can add friend's SkypeOut & PSTN numbers in below Cheese Button mapping
table and make sure Cheese Button box is checked, then start to enjoy the
convenience of Cheese Button function whenever there is a bad Skype
communication or the contact unavailable.

Through Cheese Button, user can quickly switch to a SkypeOut or PSTN call by
pressing two keys through phone keypad during a PC to PC Skype call with a bad
communication quality or the contact unavailable. It is not necessary and

prohibitive to hang up the current Skype call if user wants to use Cheese
button function. After pressing keys " # + (1, 2, 3 or 4)", user can either talk to the

contact through SkypeOut or PSTN line. User can continue the conversation without
the efforts of looking for phone book and then making a call again.

Press "#1" keys to call the SkypeOut number 1 as user set.
Press "#2" keys to call the SkypeOut number 2 as user set.
Press "#3" keys to call the PSTN Number 3 as user set.
Press "#4" keys to call the PSTN Number 4 as user set.
Notice: 1. If user didn't set the Cheese Button mapping table in advance, pressing

keys ” # + (1, 2, 3 or 4)” won't have any effect.

2.

User might need to use ”＊” in the phone number to add delay for PSTN

line to dial out in some cases.

3. SkyATA-102 has a live-update of Skype status for contacts in Cheese
Button list. However, Refresh button in below figure is for user to easily
and immediately update the new added or removed contacts after
SkyATA-102 AP is launched.

4. When user wants to use Cheese Button function, user needs to press key
"1, 2, 3, or 4" after "#" key within 3 seconds. Otherwise the function won't
work.

48

4.4 Make a Skype/PSTN Call

Make an internet phone call or a PSTN call using SkyATA-102. User might encounter
trouble for service call such as 800 when user presses“＊”or “#” key during the

service call.

Default Operation mode: PSTN

1. Pick up the phone receiver and user can find SkyATA-102 green color LED

49

solid-on. After hearing a familiar PSTN dial tone, user can make a regular PSTN
call just as user did in the past.

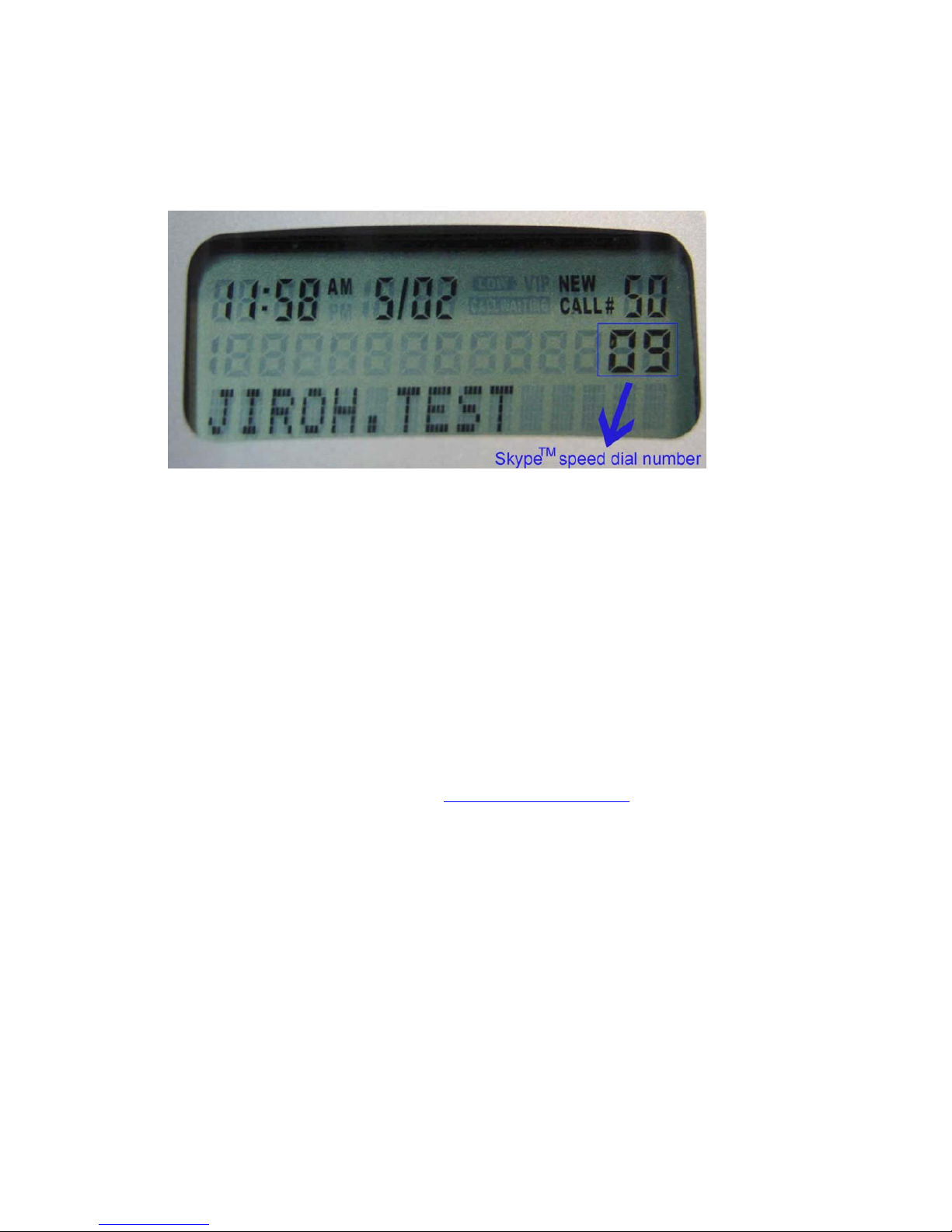

2. User can press “#” key from phone keypad and find SkyATA-102 blue color LED

solid-on and then a Skype dial tone comes up. Dial the speed dial number of the
Skype contact and wait for 3 seconds for the call to be dialed out. Or, to make an
immediate call without wait by adding “#” key after the speed dial number. Speed
dial number will also be displayed in Skype user interface in addition to being
displayed in phone.

3. Use the Skype window interface to make a Skype call. Choose the contact name

in the Skype window and click the Call/Answer button at the bottom of the Skype
window with the mouse or keyboard. Then pick up the phone receiver and wait
for the contact to proceed with the call.

4. User will hear a busy tone until phone is on-hook if the Skype contact is Offline,

rejects to take user’s call or hangs up before user does. The busy tone will be
generated when user’s status is Offline and phone is picked up or user dials a
wrong speed dial number.

Default Operation mode: VoIP

1. Pick up the phone receiver and user can find blue color LED solid-on. Follow

above steps 2~3 in default PSTN operation mode procedures to make a Skype
call.

2. User will hear a busy tone until phone is on-hook if the Skype contact is Offline,

rejects to take user’s call or hangs up before user does. The busy tone will be
generated when user’s status is Offline when phone is off-hook or user dials a
wrong speed dial number.

3. If user needs to make a PSTN call, user can press “#” key from phone keypad to

switch to PSTN mode. Then SkyATA-102 green LED is solid-on and a familiar
PSTN dial tone comes up. User can make a regular PSTN call just as user did in
the past.

4.5 Make a SkypeOut Call

User needs to subscribe for SkypeOut credits in advance of making a SkypeOut Call.
Subscription can be made on Skype web site http://www.skype.com/

. When the
on-line subscription has been completed, user should be able to find one “service”
message bar with account status added in the Skype window. Then user can start to
use SkypeOut service. Calls, even the international calls, can be made at PSTN
numbers or at mobile phone numbers. The rate is much cheaper than the regular
PSTN rate.

1. Set a Speed-Dial number for the SkypeOut contact. User can refer to this user

manual Sec. 4.3.3 Speed dial Setting Page

. Pick up the phone receiver. Wait for

50

a dial tone. Then dial the speed dial number of the Skype contact. Wait for 3
seconds for the call to be dialed out. Or to make an immediate call without wait
by adding “#” key after the speed dial number.

2. Use the Skype window interface to make a call. Choose the SkypeOut contact

name in the Skype window and click the Call/Answer button at the bottom of the
Skype window with the mouse or keyboard. Then pick up the phone receiver and
wait for the contact to proceed with the call.

3. Another method to make the call is to dial the number directly from the

phone keypad without the effort of making SkypeOut contact. SkypeOut
call number format is 00 or “+” key + country code + local PSTN/Mobile
number. For example, user can make a call to U.S.A. by pressing
00-1-408-888-8888. User can omit 00 + country code when making a
SkypeOut call by selecting SkypeOut country code from General page
after choosing "Option" of SkyATA-102 system tray icon. SkyATA-102
supports smart dialing for calling to USA, Canada, Taiwan and China.
When user's dialing number for these areas reaches a valid phone
number, SkyATA-102 will dial out immediately. For other areas, user
needs to add "#" key after the dialing number to call out immediately or
wait for 5 seconds call delay. The delay time between two dialing digits of
the SkypeOut number can't exceed call delay time 5 seconds, or an
incomplete number will be dialed out.

51

4. User will hear a busy tone if the SkypeOut contact doesn’t answer the call.

Please refer to this user manual Sec. 4.4 Make a Skype/PSTN call

for more

information about busy tone.

5. User can't call contact’s office number through SkypeOut by adding “＊”key

between office number and extension number. User needs to make a SkypeOut
call to a contact's office number first and then dial extension number through

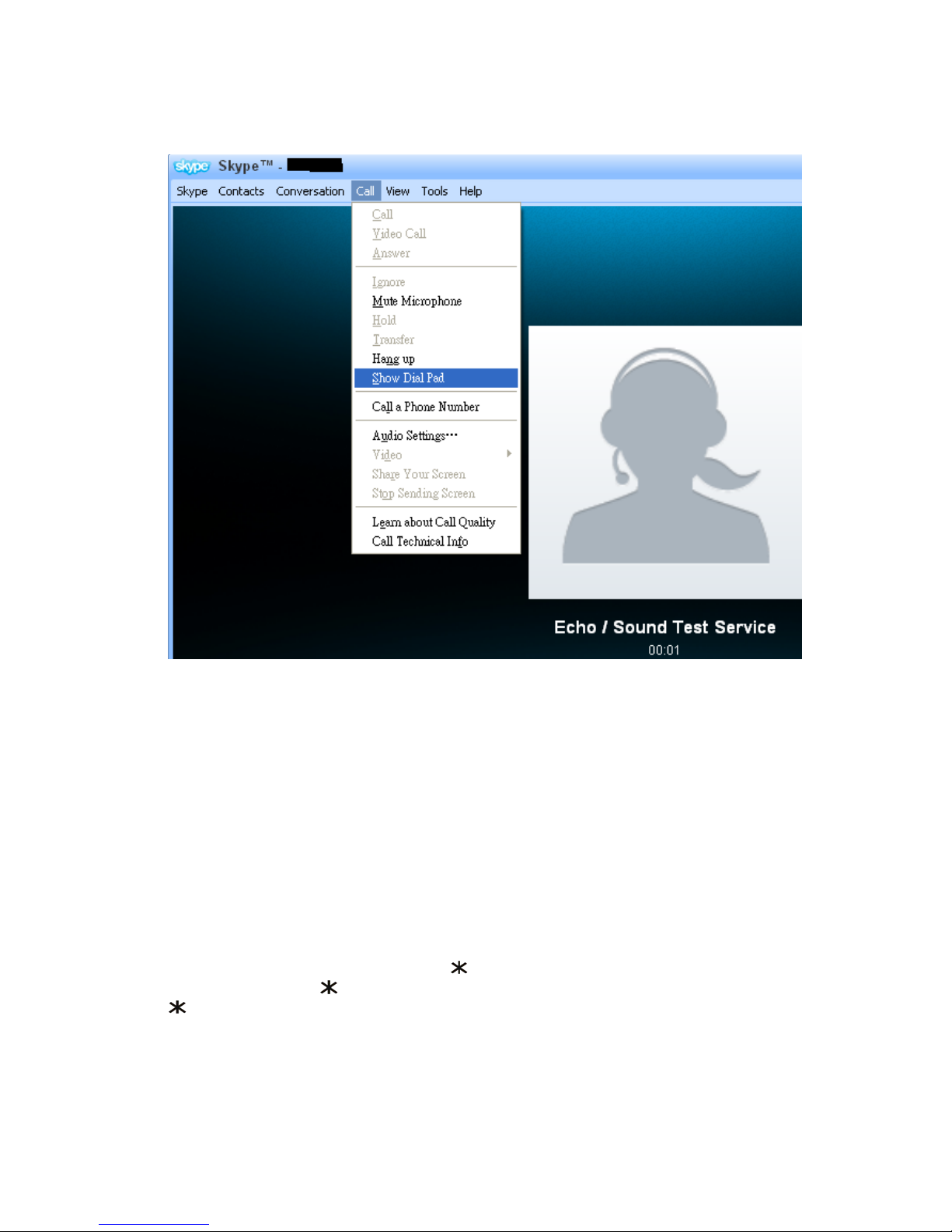

phone keypad or Skype keypad (can be pulled down from Skype dial tab when
you are making the call) when user makes the call through Skype window
interface.

52

4.6 Answer a Call

1. Pick up the phone receiver and proceed with the call when the phone rings.

2. Use the Skype window interface to answer a Skype call. When there is an

incoming Skype/SkypeIn

TM

call, click the Call/Answer button at the bottom of the
Skype window with the mouse or keyboard. Pick up the phone receiver and wait
for the contact to proceed with the call.

3. User will hear a busy tone if the caller hangs up the call before user does.

4.7 End a Call

User can hang up the phone to end a PSTN or Skype call or click Skype Hang
Up/Reject button to end a Skype call.

4.8 Use Skype Voicemail

After user enables Voicemail by subscribing from Skype, user can leave Voicemail to
any contact by choosing the contact and right-clicking mouse to choose Send
Voicemail. User with Voicemail enabled can get Voicemail if he didn't answer a call.

53

User can pick up phone receiver and click History tab of Skype main menu to check
Voicemail. Voicemail can be retrieved by clicking play icon to start and stop as below
picture. Once Voicemail ends, there will be a dial tone coming up and user can
choose to check another Voicemail or make another call.

4.9 Skype Caller ID

SkyATA-102 can support Type I FSK Caller ID for Skype call. If SkyATA-102 is
connected to one phone with FSK Caller ID support, then user can see the caller's
Skype account from display screen when there is an incoming Skype call and the

54

phone is on-hook. As below figure, our SkyATA-102 program can provide information
about caller's Skype account, caller's Skype speed dial number and the calling time.

Caller's Skype speed dial number will only be displayed if callee did setup a Skype
speed dial number for the caller and callee can call back the Skype contact by using
the speed dial number easily without searching efforts. User might be able to use
phone's redial function to call back the contact by Skype speed dial number, however,
please make sure SkyATA-102 is at VoIP mode by default. If SkyATA-102 is at PSTN
mode by default and user wants to press “#” key from phone keypad to switch to VoIP
mode and redial contact’s Skype speed dial number, it might not work.

The displayed calling time will be the callee's PC local time and the time displayed
will also be decided by the phone supporting format and whether the phone supports
time display or not.

There are two ways to set Skype speed dial number: One is to set from Skype GUI
for Skype version earlier than 4.0. For Skype version after 4.0, Skype doesn't support
Skype speed dial and user can use SkyATA-102 GUI to set speed dial number by
following this user manual sec 4.3.3 Speed Dial Setting Page

. If Skype speed dial
number is set in both Skype GUI and SkyATA-102 GUI, Skype Caller ID will take
SkyATA-102 setting speed dial number for display.

4.10 Make a Multi-Call

Make sure Multi-Call function is enable before making a Multi-Call and Multi-Call
function key is“＊1＂. User can engage in a one-on-one talk with the maximum of 3

Skype contacts and one PSTN contact and switch between them by using the
function key“＊1＂. Multi-Call can be done when user is making or answering a call.

55

Note: 1. In order to prevent possible troubles when user presses“＊”key during

a PSTN service call such as 800, we need user to start a Multi-Call from
a Skype call. User can’t make a PSTN call first and then add another

Skype contacts for a Multi-Call.

2. If user is calling a Skype contact with a voice mail on-going, the call
can't be reserved and user can press “＊”key to disconnect the call.

4.10.1 Make a Skype Multi-Call

1. When a Skype call is undergoing, pressing the Multi-Call function key“＊1＂ will
put the current Skype call on hold. There will be a dial tone to inform user it is

56

time to add another Skype contact by dialing the speed dial number(followed by
“#＂key for an immediate call). The same procedure can be repeated until the

maximum of 3 Skype contacts have been added.

2. User can also use the Skype window interface to make a Multi-Call. Then pick up
the phone receiver and wait for the contacts to proceed with the call.

3. When there are more than two Skype users in a Multi-Call, user might hear a
busy tone for 5 seconds if the Skype contact doesn’t answer the call or hang up
during conversation. Then a Skype dial tone comes up and user can decide to
add a new contact or press “＊1” keys to switch to the reserved call. However,

there won’t be busy tone played if the reserved contacts hang up.

4. When user presses Multi-Call function key “＊1”, user needs to press key “1”
after key “＊” within 3 seconds. Otherwise the current call will be hung up
and won’t be reserved.

4.10.2 Make a PSTN/Skype Multi-Call

In order to prevent possible troubles when user presses “＊”key during a PSTN
service call such as 800, we need user to start a Multi-Call from a Skype call. User

can’t make a PSTN call first and then add another Skype contacts for a Multi-Call.

1. User can follow previous section - Make a Skype Multi-Call

to add Skype
contacts. If user would like to add PSTN contact for a Multi-Call, user needs to
press Multi-Call function key “＊1＂to hold current Skype contact, then press “#”

key to switch to PSTN mode and make a PSTN call.

2. Add the waiting call into a Multi-call during a Skype call: When user is talking with
a Skype contact and there is another incoming PSTN or Skype call coming, user
will hear an interrupt tone. There will be one tip to guide user to press “＊1” keys

to reserve the current Skype call and answer the incoming PSTN call. At this
moment, user can press “＊”key to cancel the current Skype or PSTN call. If

the PSTN contact is disconnected, user needs to press “＊”key to close the
PSTN call and get a Skype dial tone. Now user can add a new PSTN call. User

can press keys “＊1” twice to switch back to the reserved Skype contact. After
pressing “＊1” keys one time, user will hear a Skype dial tone, user can add a
new Skype or PSTN( only one PSTN contact in a Multi-Call) contact or switch

back to reserved Skype contact by pressing “＊1” keys again. If user doesn’t
answer the incoming Skype call after 10 seconds and tool tip disappears, the

incoming call will be rejected. If the incoming call is PSTN, waiting call tool tip will
disappear after 10 seconds, user can still talk to the PSTN contact by pressing
“＊1＂and “#” keys if the PSTN caller is still waiting. Please be reminded that

user will take the waiting PSTN call if the waiting PSTN is still calling you when
user wants to add another PSTN for the Multi-Call by pressing “＊1” and “#” keys.

After picking the waiting PSTN call, user can press “＊”key to cancel this PSTN

57

call and get a Skype dial tone. Then add a new PSTN call for the Multi-Call.

3. Add the waiting call into a Multi-call during a PSTN call: When user is talking with
a PSTN contact and there is another Skype call coming, user will hear an
interrupt tone. There will be one tip to guide user to press “＊1” keys to reserve

the current PSTN call and answer the incoming Skype call. User can press keys
“＊1” twice to switch back to the reserved PSTN call. After pressing “＊1” keys

one time, user will hear a Skype dial tone, user can add a new Skype contact
( only one PSTN contact in a Multi-Call) or switch back to reserved PSTN contact
by pressing “＊1” keys again. If user doesn’t answer the incoming Skype call

after 10 seconds and tool tip disappears, the incoming call will be rejected.

4. For busy tone, user can refer to this user manual Sec. 4.10.1 Make a Skype

Multi-Call .

5. When user presses Multi-Call function key “＊1”, user needs to press key “1”
after key “＊”within 3 seconds. Otherwise the current call will be hung up and
won’t be reserved.

4.10.3 Switch calls in a Multi-Call

When user wants to switch between contacts in a Multi-Call, he/she can press the ”
＊”and “1” keys and soon there is a Skype dial tone coming up. Pressing the

“＊”and “1” keys again after the dial tone, the talk is then switched to the next
reserved call.

The sequence of the switch circulation is the same as the sequence these calls were
established. For example, user sets up call 1 to call 5. After user talks to call 5, the
next switch will be call 1.

4.10.4 Hang up the current call

1. During a Multi-Call call (at least 2 contacts), the current call will end after 3
seconds if user presses “＊” key. A Skype dial tone comes up and user can

decide to make a new call or switch back to the reserved call.

2. If the current call is a PSTN call, pressing “＊” key will disconnect the PSTN

call and switch to VoIP mode, and then a Skype dial tone comes up.

3. When user wants to cancel the current dialing call, press the “＊” key. The
dialing call can be cancelled and then a dial tone comes up. User can decide to

make a new call or press Multi-Call function key “＊1” to switch to next reserved
call.

4. When user makes a Multi-Call to a contact with Skype Voicemail function enable,
user can decide to hang up the call by pressing “＊” key or Multi-Call function key

“＊1” when the call enters contact’s Voicemail. Then a dial tone comes up and
user can decide to make a new call or switch to a reserved contact by pressing

58

Multi-Call function key “＊1” again.

5. When user makes a Multi-Call to a contact with an answering machine phone,
user can decide to hang up the call by pressing “＊” key when the call enters

contact’s answering machine voice mailbox. Then a dial tone comes up and user
can decide to make a new call or switch to a reserved contact by pressing
Multi-Call function key “＊1”.

4.10.5 End all calls

User can hang up the phone to end all calls.

4.11 Make a Conference Call

User must make sure Conference call function is enable and the function key is“＊2＂.

59

User should be able to setup a one-on-many talk with the maximum of 4 Skype users
and 1 PSTN user simultaneously, but it can only be started when user is on a Skype
call.

In order to prevent possible troubles when user presses“＊”key during a PSTN
service call such as 800, we need user to start a Conference call from a Skype call.

User can’t make a PSTN call first and then add another Skype contacts for a
Conference call.

60

4.11.1 Make a PSTN/Skype Conference Call

In order to prevent possible troubles when user presses “＊”key during a PSTN
service call such as 800, we need user to start a Conference call from a Skype call.

User can’t make a PSTN call first and then add another Skype contacts for a
Conference call.

1. Default operation mode is PSTN mode: Press “#” key to switch to VoIP mode
and make a Skype call and then the Conference function key “＊2”. The current

Skype call will be put on hold. Soon there will be a dial tone coming up to inform
user it is time to add another contact. If you want to add one Skype contact, dial
the speed dial number of the Skype contact (followed by “#” key for an
immediate call). Then three parties will be in a Conference. However, user needs
to press “#” key to switch to PSTN mode if user wants to add a PSTN contact.
The same procedures can be repeated until the maximum of 4 Skype contacts
and one PSTN contact join the Conference.

2. Default operation mode is VoIP mode: Press the Conference function key “＊2”
when user is on a Skype call. The current call will be put on hold. Soon there will

be a Skype dial tone to inform user it is time to add another contact. If user wants
to add another Skype contact, dial the speed dial number of the Skype contact
(followed by “#” key for an immediate call). Then three parties will be in a
Conference. However, user need to press “#” key to switch to PSTN mode if user
wants to add a PSTN contact and then call the contact’s phone number. The
same procedure can be repeated until the maximum of 4 Skype contacts and
one PSTN contact join the Conference.

3. User can also use the Skype window interface to make a Skype Conference call.
Then pick up the phone receiver and wait for the contacts to proceed with the
call.

4. During a Conference call, when any contact hangs up the call or is disconnected
incidentally, there will be a busy tone coming up for 3 seconds. If the hang up call
is a PSTN call, user can press “＊”key to only cancel the PSTN call and then

make a new PSTN call, otherwise user can’t invite another PSTN contact for
Conference. However, user can directly add another Skype contact if the hang
up contact is a Skype call.

5. When user makes a Conference call to a contact with Skype Voicemail enable,
the call will be put separately when Voicemail function starts. The call won't join
Conference automatically. User can decide to hang up the call by pressing “＊

2”key. Then a dial tone comes up and user can decide to make a new call or go
back to the Conference by pressing Conference function key “＊2”.

6. When user makes a Conference call to a contact with an answering machine
phone, please be reminded the Conference conversation might be recorded by

the answering machine. For confidences, user can choose to hang up the phone

and re-establish the Conference call for this case.

61

7. When user presses Conference function key “＊2”, user needs to press key “2”
after key “＊” within 3 seconds. Otherwise the current call will be hung up and
won’t be reserved.

4.11.2 Hang up a Conference Call

User can press “＊”key to hang up the established PSTN contact and user can add
another PSTN contact. However Skype contact in the Conference won't be hung up

by pressing “＊”key.
User can hang up the phone to close the Conference call.

4.12 How to use Call Forward

User can use SkyATA-102 Call Forward function to either make a PSTN-Forward
to-Skype call or make a Skype-Forward to-PSTN call after appropriate boxes are
checked and forward numbers are assigned.

Important notes: 1. User needs to make sure the international busy tone in

SkyATA-102 GUI Phone Setting Page is correctly set, otherwise
Call Forward function might not work properly. For example, user
might find the forward call is not disconnected although user has
hung up the initial call for call forwarding. User needs to set the
international busy tone as setting for user’s staying country local
Public Switched Telephone Networks by selecting proper country
or fill in proper busy tone parameters. For details, user can refer
to this user manual Sec. 4.3.6 Phone Setting Page

international

busy tone setting.

2. SkyATA-102 only supports Call Forward function for Windows XP,
Vista and Win 7.

4.12.1 PSTN to Skype Call Forward

User can enable PSTN to Skype Call Forward function by checking “Forward
incoming PSTN to Skype” box. Choose a preferred Ring time before forward like 1
second and one password(up to 6 digits 0~9 Arabic numerals). This password can
protect user from any unwanted Skype/SkypeOut call forwarding. There is a default
Forward prompt wave file( two “Beep” tones) to inform user it is time to place a Skype
forward call when “Forward incoming PSTN to Skype box” is checked. Or user can
record personal Forward prompt message in wave file and browse the file to enable
it.

62

Then user can make a PSTN call remotely to SkyATA-102 PSTN line. With “Forward
incoming PSTN to Skype” and "Forward to any Skype number" function enabled,
user can make any Skype/SkypeOut call through call forwarding function with or
without password protection. User needs to press password +"＊" (or"＊" only if user

doesn’t set password) from phone keypad after the PSTN call is connected and
Forward prompt message (two "Beep" tones as default prompt) is finished. Then user
will hear one Skype dial tone if password is pressed correctly, otherwise user will get
password incorrect reminding message up to two times. User can press password +"
＊" (or"＊" only if user doesn’t set password)again. After hearing Skype dial tone,

user can dial any Skype speed dial number or SkypeOut number +"#" keys from
phone keypad. "#" key can be saved and the call will be dialed out after 3 seconds.
The first digit of Skype or SkypeOut number needs to be pressed within 3 seconds, or

63

the call will be disconnected. And the delay between any two continuous dialing digits
can't exceed 3 seconds, or the forwarding calling number might be partially dialed
out.

With PSTN to Skype Call Forward function enabled, user can set a pre-assigned
Skype number to get the regular PSTN call when the incoming PSTN call can’t be
picked up within the preset ring time. The incoming PSTN call will be forwarded to the
pre-assigned Skype or SkypeOut number.

Note: Recommend user to change password regularly to protect possible
password leak and only enable Call Forward function when it is

necessary.

4.12.2 Skype to PSTN Call Forward

User can enable Skype to PSTN Call Forward function by checking “Forward
incoming Skype to PSTN” box. After choosing a preferred Ring time before forward
(like 1 second), then any incoming Skype call will be forwarded if u ser doesn’t pick up
the call after phone rings for 1 second. User needs to type up to 6 digits 0~9 Arabic
numerals as password. This password can protect user from any unwanted PSTN
call forwarding.

64

After user enables “Forward incoming Skype to PSTN” and "Forward to any phone
number" function, there are three kinds of call forwarding options. The first one is
user can make a Skype call to SkyATA-102 remotely. Then user can make any PSTN
call through Call Forward function with password protection. The second option is to
set up a Pre-assigned PSTN number in advance and any incoming Skype call will be
forwarded to the Pre-assigned PSTN number if user doesn’t answer the call within
the preset Ring time before forward. The third option is user can assign different
forwarding numbers for different Skype contacts in the Pre-assigned PSTN forward
table.

For Forward to any phone number, user needs to press password +"＊" (or "＊" only
if user doesn’t set password) from Skype dialing pad/PC keyboard or Skype phone

device after the Skype call is connected and Forward prompt message (two "Beep"

65

tones as default prompt) is finished. Then user will hear the familiar PSTN dial tone if
password+"＊" or "＊" is pressed correctly, otherwise user will get password incorrect

reminding message up to two times. User can press password +"＊" (or "＊" only if
user doesn’t set password) again. After hearing PSTN dial tone, user can dial any

PSTN number.
With Skype to PSTN Call Forward function enabled, user can set a pre-assigned

PSTN number to get the incoming Skype call when the Skype call can’t be picked up
within the preset ring time. The incoming Skype call will be forwarded to the
pre-assigned PSTN number.

User can assign different PSTN forwarding numbers for different Skype contacts.
Then the forwarding PSTN number will be decided according to the Pre-assigned
PSTN forwarding table and incoming Skype call caller ID if user doesn’t answer the
incoming Skype call within the preset Ring time before forward. The forward priorities
will be Pre-assigned PSTN number, then Pre-assigned PSTN forward table.

Note: Recommend user to change password regularly to protect possible password

leak and only enable Call Forward function when it is necessary.

4.13 Skype Remote Monitor

SkyATA-102 can integrate Skype video function and Web CAM to let user monitor
home remotely. And it is easy and free. With Remote Monitor function enabled, user
can make a Skype call to home’s Skype account which is running with SkyATA-102.

(Don’t set Skype’s built-in call forwarding function in home’s Skype account or
login this Skype account in another PC. But SkyATA-102’s call forwarding
function can be set for use simultaneously). SkyATA-102 will automatically pick

up the incoming Skype call and enable PC Skype video after user presses the preset
password. With a smart phone which supports Skype video, user can easily make a
Skype call to check home status. Compared with many existing IP CAMs which need
a fixed IP address for remote access, SkyATA-102’s remote monitor function is easy
and free. Even when user travels abroad, you can care your pets at home easily and
free. This function is only available for latest SkyATA-102 hardware.

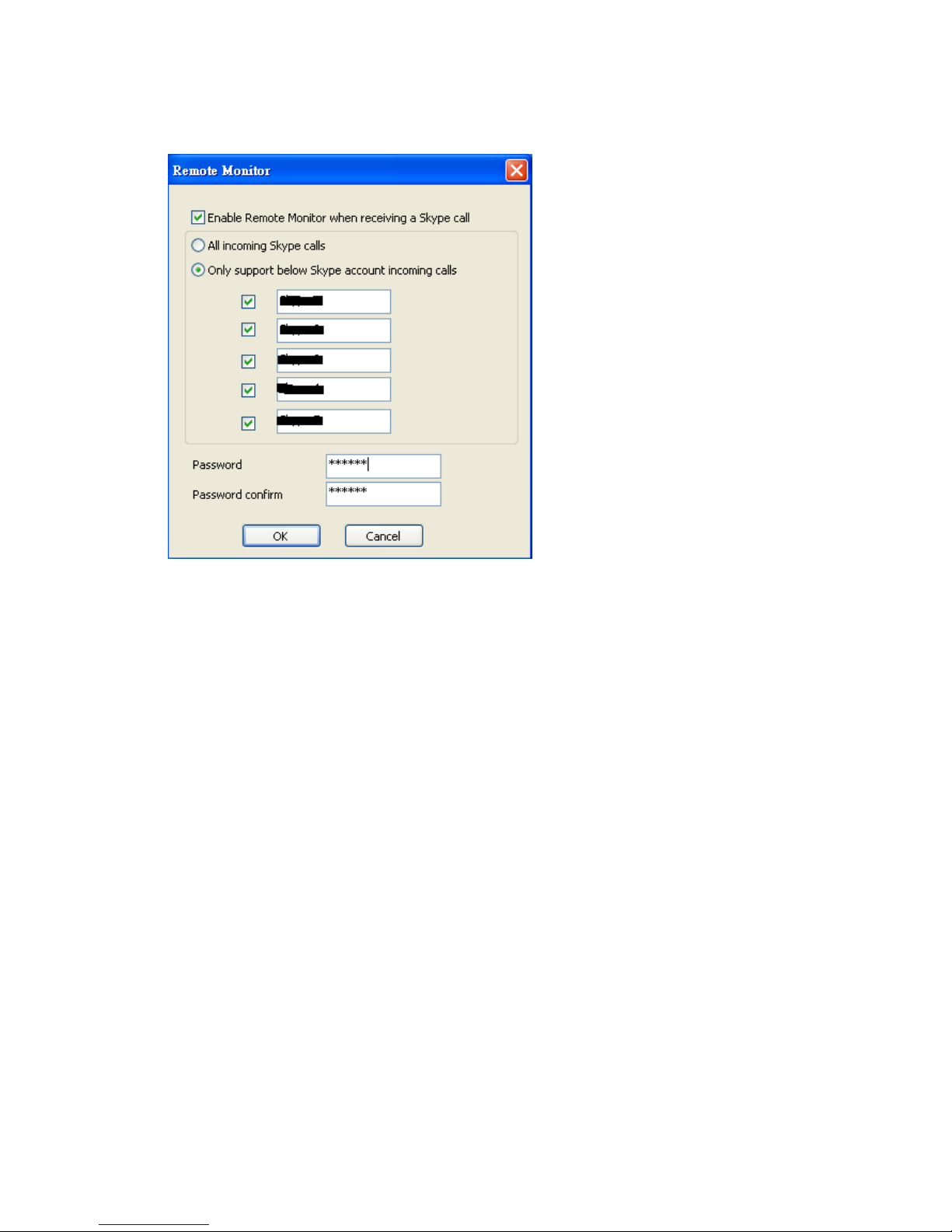

User can click SkyATA-102 tray icon at the right-bottom corner of Windows desktop
with right mouse and choose Remote Monitor, then Remote Monitor window will pop
out. User needs to click “Enable Remote Monitor when receiving a Skype call” and
choose to accept all incoming Skype calls or only assigned Skype accounts for this
function. Then set password for this function. Password can be up to 6 digits 0~9
Arabic numerals. If user chooses to accept all incoming Skype calls for remote

monitor, password is not necessary. But SkyATA-102 call forwarding function can't

66

be set simultaneously if user doesn't set password for this case. Password is
necessary for accepting assigned Skype accounts setting.

If user chooses to accept ”All incoming Skype calls” for Remote Monitor function, all
incoming Skype calls will be picked up automatically by SkyATA-102 and there is no
ring for the phone connected with SkyATA-102 until two beeps are heard by caller
and caller doesn’t press any key within 5 seconds. If SkyATA-102 doesn’t receive any
phone key/DTMF tone after two beeps from the caller within 5 seconds, SkyATA-102
will ring the connected phone and then this call will follow the normal call process. If
the correct password + "＊" key are pressed within 5 seconds, the Remote Monitor

function will start to work. With this option, any caller needs to wait at least 5 seconds

(two beeps + 5 seconds) to ring the callee to talk. Or user can press "#" key after
hearing two beeps to shorten the ring-time wait if user wants to make a regular call to
the Skype account with remote monitor enabled. Even after Skype video is started,
user can press "#" key to ring the phone for voice talk with the remote site. For
security and privacy reasons, it is not recommended to enable this option unless
there is a specific application.

If user chooses to accept the assigned Skype accounts for Remote Monitor function,
the assigned incoming Skype calls will be picked up automatically by SkyATA-102
and there is no ring for the phone connected with SkyATA-102 until two beeps are
heard by caller and caller doesn’t press any key within 5 seconds. If SkyATA-102
doesn’t receive any phone key/DTMF tone after two beeps from the caller within 5
seconds, Sky911 will ring the connected phone and then this call will follow the
normal call process. User can press "#" key after hearing two beeps to shorten the

ring-time wait if user wants to make a regular call with the assigned Skype accounts.
Even after Skype video is started, user can press "#" key to ring the phone for voice
talk with the remote site. If the correct password + "＊" key are pressed within 5

seconds, the Remote Monitor function will start to work. For incoming Skype calls
from unassigned Skype accounts, SkyATA-102 will ring the phone immediately and
follow the normal call process once there is an incoming call.

67

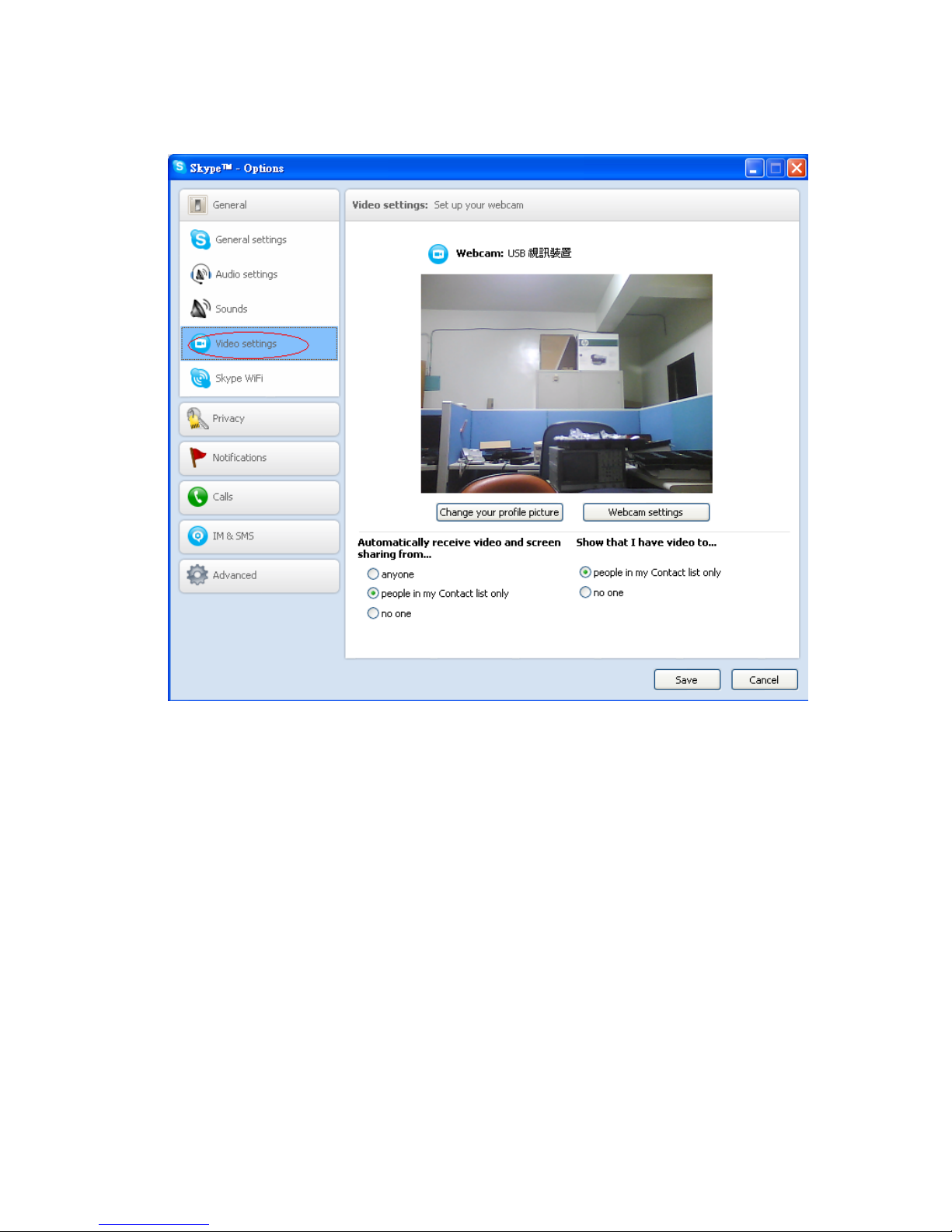

It is strongly recommended to check if Skype can find the camera which user will use
for Skype remote monitor and test it before using it. From Skype main window,
choose Tools->Options->Video Settings as below figure. User can adjust camera
angle for the space which user wants to monitor.

68

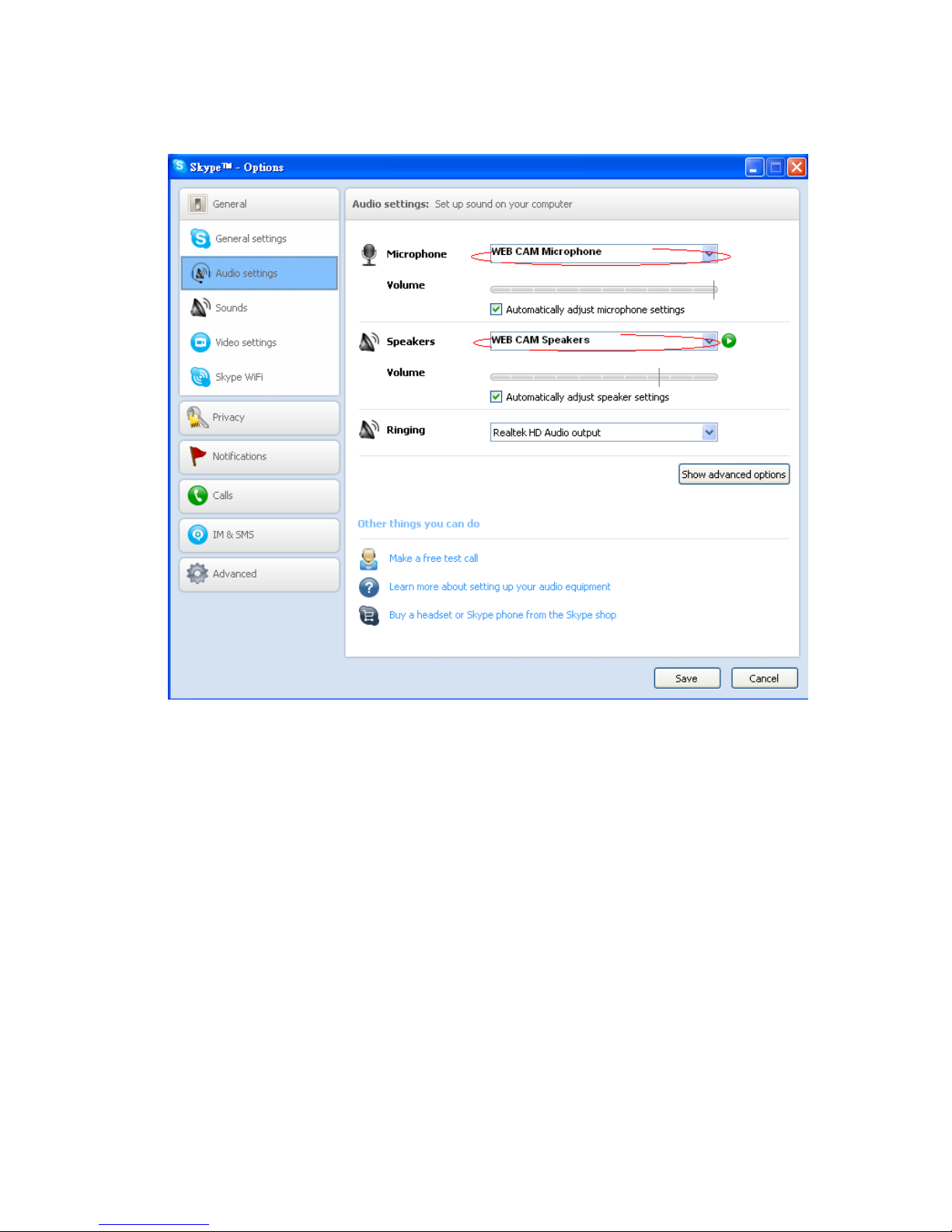

Some camera might have microphone and speakers built-in. With such devices, user
can also have voice interaction with the people under monitor. From Skype main
window, choose Tools->Options->Audio Settings as below figure to change Skype
Microphone and Speakers as the built-in microphone and speaker of camera. When
remote monitor function is disabled, SkyATA-102 will automatically change Skype
Microphone and Speakers back to SkyATA-102 and user needs to make the change
again when he/she wants to use this feature.

69

After the setting is done, user can use the assigned Skype account (or any Skype
account when user chooses to accept “All incoming Skype calls”) to make a call to
the Skype account which is running with SkyATA-102 when user is not home. The
incoming Skype call will be picked up by SkyATA-102 automatically and two beep
tones (prompt message) will be played, then user needs to press preset password + "
＊" key within 5 seconds through Skype keypad, PC keyboard or Skype device. If the

input is correct, SkyATA-102 will enable Skype video. If the input is incorrect, the call
will be disconnected. User can still use the assigned Skype account to make a call to
the Skype account running with SkyATA-102 for general voice talk if user doesn’t
press any phone key within 5 seconds or press “#” key after hearing two beeps.
However SkyATA-102 will have a longer delay to ring the connected phone. Even

after Skype video is started, user can press "#" key to ring the phone for voice talk
with the remote site.

Note:

1. When user wants to use Remote Monitor function, the PC with SkyATA-102
can’t enter into power saving mode. If user doesn’t want the PC keep

70

running, user can disable “When Call Forwarding or Remote Monitor
function is enabled, PC won’t enter into power saving mode “setting. But
user needs to wake up the PC remotely (like sending Magic Packets) or turn
on PC automatically via software program when user wants to use this
function. Once the Skype account status turns from off-line to on-line, then
user can starts to do call forwarding.

2. When user wants to use Remote Monitor function via smart phone, please

make sure there is no internet down load or running too many programs
when user needs to send out password+

key. Password and key need

to be sent in time.

3. Recommend user to change password regularly to protect possible
password leak and only enable Skype Remote Monitor function when it is
necessary.

4. Skype Dial Pad during a call is located at different locations for different Skype
version. Below is the example for Skype 5.6.0.110.

71

4.14 Skype Recording

User can choose Skype recording for caller, callee or both during a Skype call. The
recording files will be saved under My document/Skype record folder. User can
manually delete it.

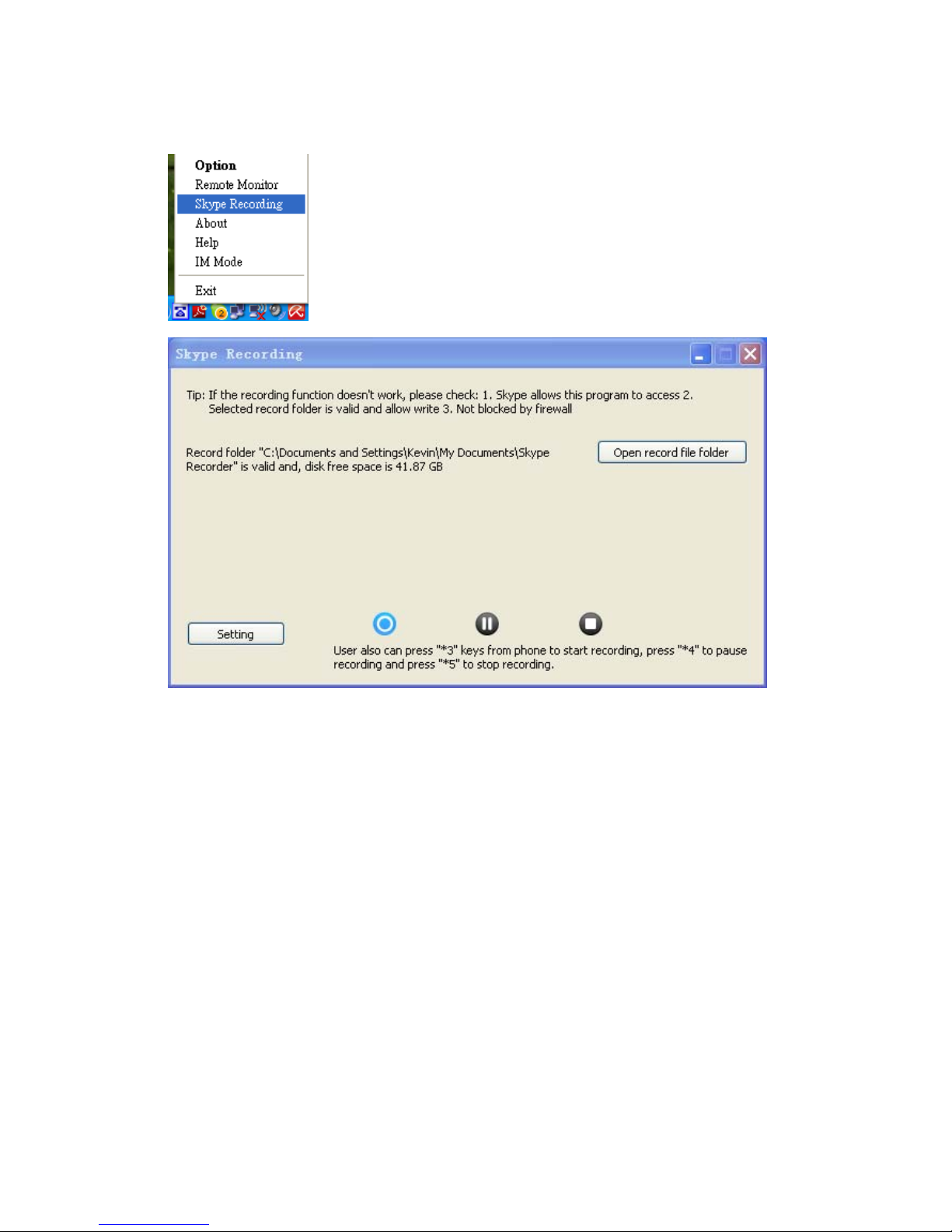

User can click SkyATA-102 tray icon at the right-bottom corner of Windows desktop
with right mouse and choose Skype Recording, then Skype Recording window will
pop out. When there is a Skype/SkypeOut call in progress, user can press Record
button to start recording (or press

3 from phone), press Pause button to pause

recording (or press

4 from phone), or press Stop button to stop recording (or press

5 from phone).

72

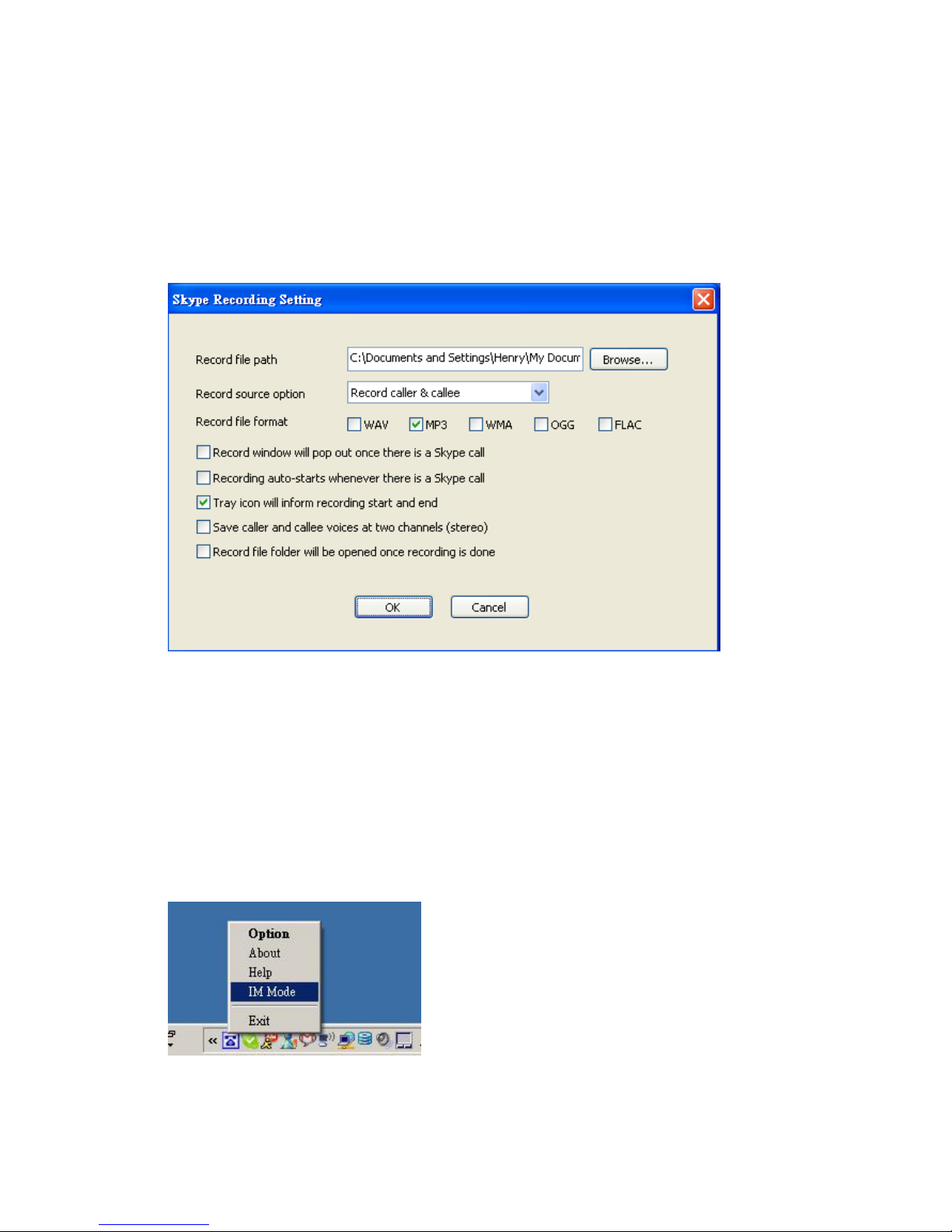

If user clicks “Setting” button, below Skype recording setting page will pop out. After
finishing setting changes, please press OK button to save the changes.

Record file path: The default folder is My document/Skype record. User can choose
own preferred folder.

Record source option：User can choose to record voices from caller & caller, caller

only or callee only. Default setting is Record caller & callee.

Record format：Support data format WAV, MP3, WMA, OGG and FLAC. Default

setting is MP3

Record window will pop out once there is a Skype call：If it is enabled, Recording

window will automatically pop out when there is a Skype call in progress. Default
setting is disable.

Recording auto-starts whenever there is a Skype call：If it is enabled, recording will

automatically start based on the recording setting once there is a Skype call in
progress. Default setting is disable.

Tray icon will inform recording start and end：Default setting is enable.

73

Save caller and callee voices at two channels (stereo)：Voices from Caller and callee

will be saved at two channels. If it is not set, voices will be saved at one channel
(Mono). Default setting is disable.

Recording file folder will be opened once recording is done：Default setting is disable.

4.15 Other IM Mode

User can use SkyATA-102 for other IMs/Softphones like AOL Instant Messenger/AIM,
Windows Live

TM

Messenger/MSN, Yahoo! Messenger, ..., etc as an audio device by
choosing IM mode from SkyATA-102 system tray icon at the right bottom corner of
Windows desktop. But user can’t press phone keypad to make or answer a call.

74

Some other IMs have their own audio device selection like Skype and Yahoo. User
can choose SkyATA-102 as the audio device from IM’s audio device setting when
SkyATA-102 is connected to a PC. After making/receiving a call from a PC, user can
pick up the phone connected with SkyATA-102 for conversation. For IMs without
audio device setting GUI, user can set PC system audio device as SkyATA-102.
However, PC’s music output will go to the phone instead of user’s PC speaker.
Changing PC’s system audio device setting can be done through Option page of
SkyATA-102 system tray icon as below figure. After SkyATA-102 is chosen as PC’s
system audio device, please click OK or Apply.

Call operation for IM Mode
In different default operation mode as below figure, call operation will be different

when SkyATA-102 enters into IM Mode.

75

When SkyATA-102 is set in IM Mode and the default operation mode is VOIP, user
can press “#” key from phone keypad to switch to PSTN mode, after hearing the
familiar PSTN dial tone, user can make regular PSTN calls just as did before. If the
default operation mode is PSTN, user just picks up phone and makes regular PSTN
calls.

How to answer the interrupt PSTN call.
When SkyATA-102 is set in IM Mode and the default operation mode is VOIP, user

can pick up phone to take to the contact after making or answering an IM call from PC.
During the IM call, user can press “#” key from phone keypad to pick up the interrupt
PSTN call after hearing an interrupt tone. However, user can’t press “#” key again to
switch back to the waiting IM call. User can hang up the PSTN call and pick up phone
again to take the waiting IM call.

When SkyATA-102 is set in IM Mode and the default operation mode is PSTN, after
making or answering an IM call from PC, user needs to press “#” key from phone
keypad to switch to VOIP mode, then talk to the contact. During the IM call, user can
press “#” key to pick up the interrupt PSTN call after hearing an interrupt tone.
However, user can’t press “#” key again to switch back to the waiting IM call. After
switching to the PSTN call, user can hang up the PSTN call and press "#" key from
phone keypad after picking up phone again to take the waiting IM call.

How to answer the interrupt IM call.
When user is talking with a PSTN contact and there is another IM call coming, user

can’t press “#” key from phone keypad directly to answer the incoming IM call.
In order to answer the interrupt IM call, user needs to hang up the current PSTN call

first. When SkyATA-102’s default operation mode is VoIP, user can talk to the IM
contact after answering the incoming IM call from PC and pick up phone. When
SkyATA-102’s default operation mode is PSTN, user can talk to the IM contact after
answering the incoming IM call from PC and picking up phone with pressing “#” key
from phone keypad.

76

5. FAQs

Any encounters of problems regarding using this product, please refer to the
following troubleshooting information, which contains a list of many frequently asked
questions (FAQ).

Q1: Why SkyATA-102 can't work properly after SkyATA-102 is correctly

installed in my PC USB port?

A: SkyATA-102 is quite different with regular USB devices like USB keyboard or

mouse. It needs 5V, 500mA power from the USB port. If SkyATA-102 can't work
properly after this device is successfully installed, please unplug this device and
plug into another PC USB port, or replace the USB cable with a new good quality
one between this device and PC USB port or use USB hub with enough power
supply to connect this device and PC USB port.

We found some PC USB port is extended from motherboard through extension

connector/cable and sometimes the connector/cable is at bad quality, it will cause
SkyATA-102 malfunction. For this case, we recommend you to re-plug
SkyATA-102 into another USB port or use one USB hub with enough power to
connect PC USB port and SkyATA-102.

Q2: User needs to manually allow SkyATA-102 to access Skype if user’s Skype

version is 3.6.0.248 or above. Otherwise SkyATA-102 can't be allowed to
access Skype and work with Skype properly. The latest SkyATA-102 AP
will automatically allow the access, but user can follow below instruction if
there is any problem.

A: User can follow below procedures to manually allow SkyATA-102 to access

Skype.

77

(a) After SkyATA-102 and Skype version 3.6.0.248 or above are installed and

launched, user might get above pop up window to ask user to accept or deny
SkyATA-102 to access Skype. The pop up window just shows up for around 3
seconds. If user clicks the pop up window, there will be one new event and
possible one plugin authorization for SkyATA-102.exe shown in Skype main
window as below. User can click the new event if user doesn't see plugin
authorization for SkyATA-102.exe. Then plugin authorization for SkyATA-102.exe
will appear.

(b) Click SkyATA-102.exe under one Plugin authorization, then one Skype “Manage

API Access Control” window will pop up. Choose “Allow this program to use
Skype” and click OK button.

78

Q3: Why SkyATA-102 doesn’t work after SkyATA-102 setup program is

installed in Windows Vista?

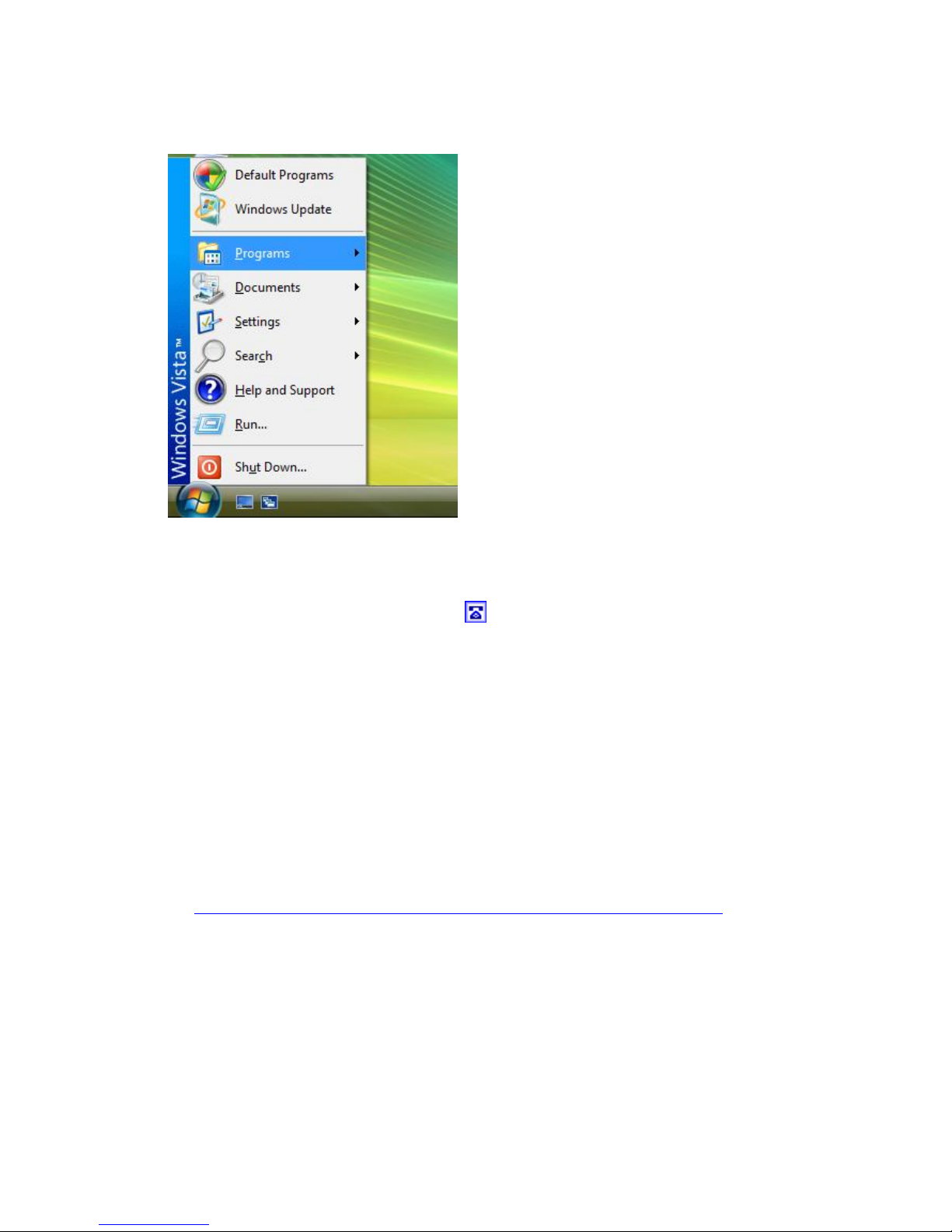

A: For Windows Vista, user needs to manually launch SkyATA-102 again after

SkyATA-102 setup program in installed. From “All Programs” of Windows start
menu or SkyATA-102 icon in Windows desk, user can launch SkyATA-102
program. For Windows XP and Windows 2000, SkyATA-102 will automatically be
launched after setup program finishes installation in default. The reason is
because of Vista’s new architecture for security.

79

Q4: How do I know that SkyATA-102 is successfully installed?
A: The easy way is to check below items.

a. Check whether SkyATA-102 system tray icon at the right-bottom corner of

Windows desktop presented as

or system tray icon shows SkyATA-102

when mouse cursor is put on SkyATA-102 system tray icon or not.

b. Hear the PSTN dial tone when you pick up the phone receiver and SkyATA-102

LED is solid green if the default operation mode of Option dialogue in
SkyATA-102 system tray icon is PSTN. SkyATA-102 LED will turn solid blue if
you press “#” key and will hear a different Skype dial tone.

Q5: Why some of my computer USB ports don't work with SkyATA-102?
A: Some Windows 2000 or Windows XP systems might have driver problem with

their USB 2.0 ports since both operation systems have been released before USB

2.0 is available. However, Microsoft's Windows 2000/XP latter service pack has
added support for USB2.0. User can access Microsoft web site and search by
USB/FAQ or link

http://www.microsoft.com/whdc/system/bus/USB/USBFAQ_intro.mspx

to

find more information.

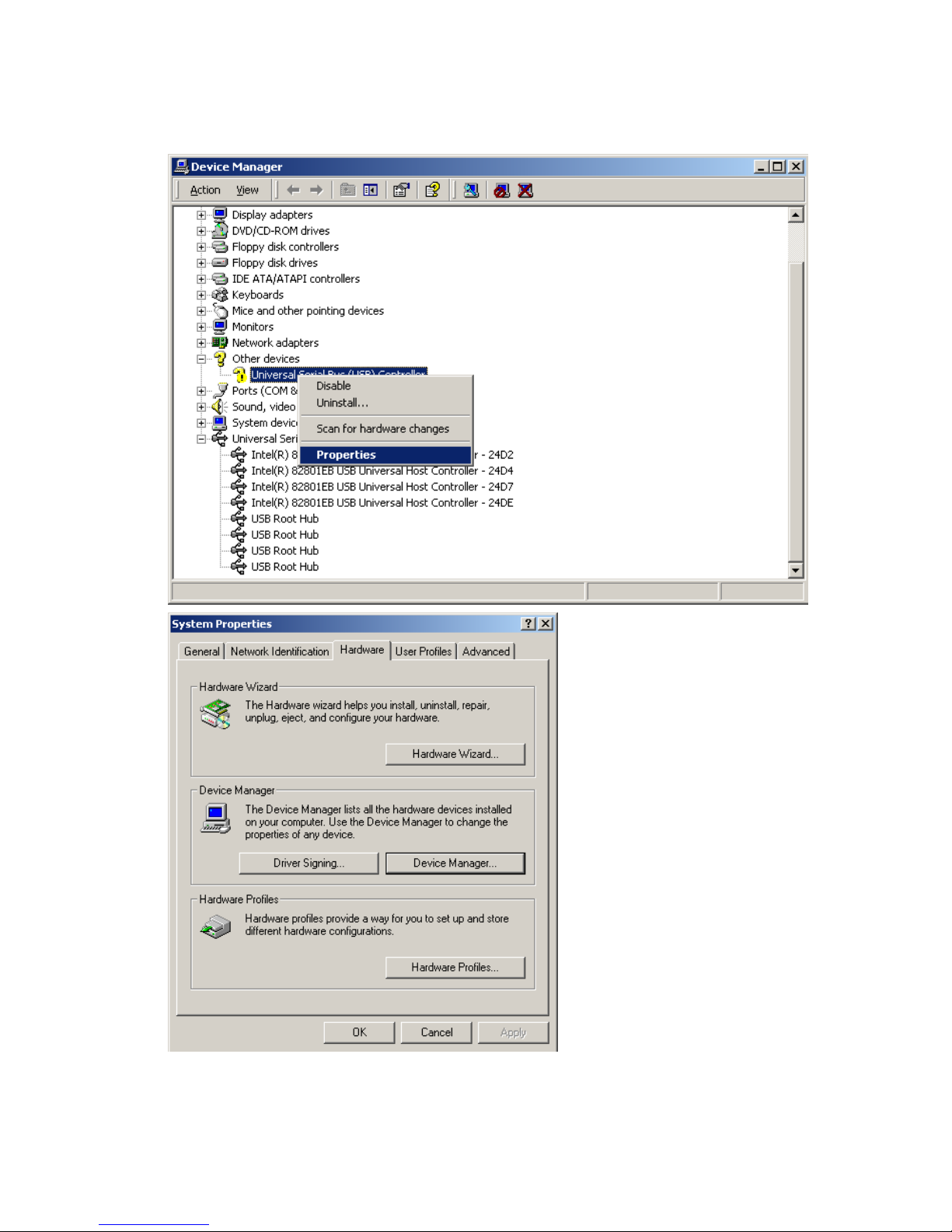

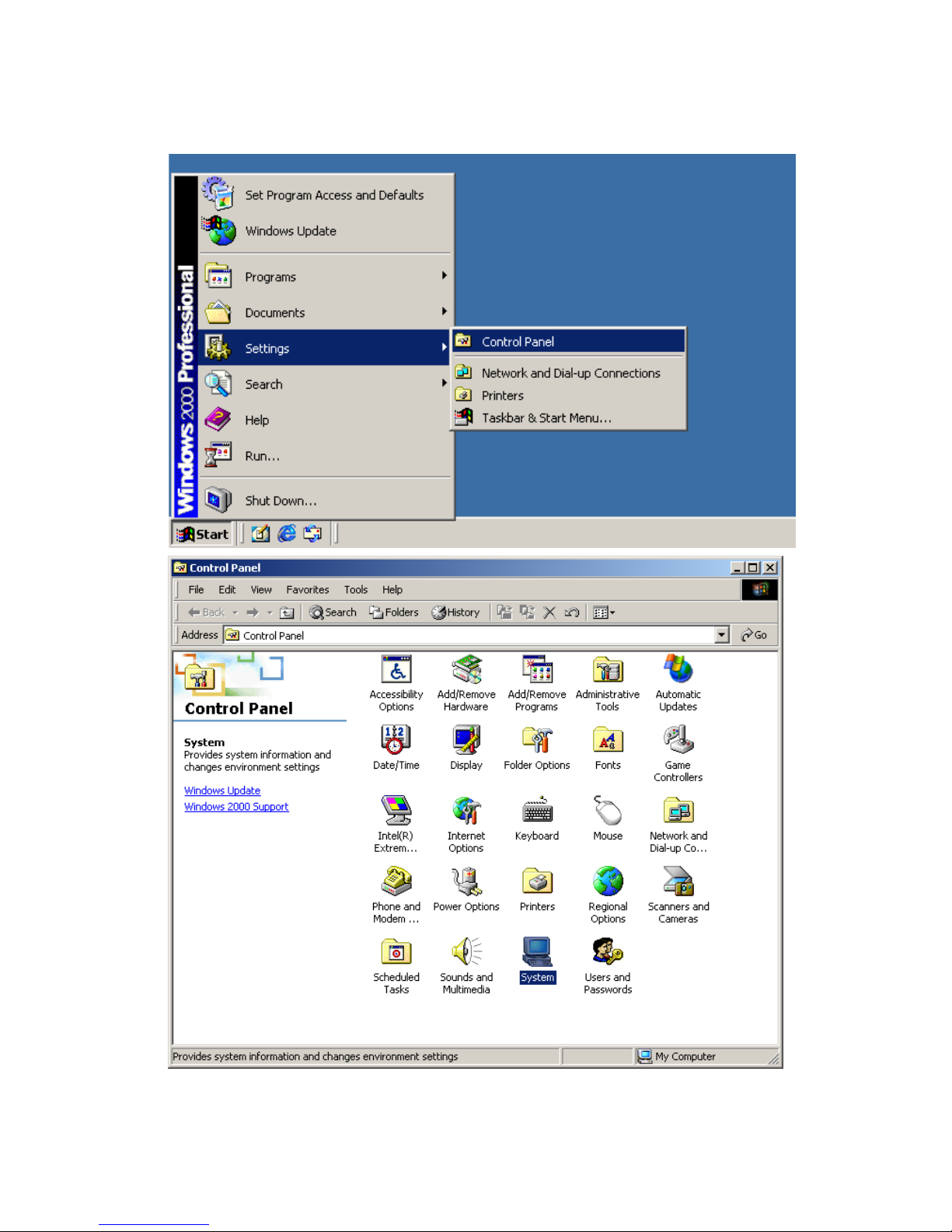

User can check Windows device manager as following procedures to see whether

your problem is related with USB driver or not. After USB driver is updated, your
USB ports should work with SkyATA-102 and other USB devices.

80

81

82

Q6: In some computers, user might get Windows pop-out message to ask for

Windows to restart after user 1st time plugged in SkyATA-102 into one
USB port. Should user restart Windows to make the new setting valid?

A: It is not necessary to restart Windows as the pop-out message. Just ignore it and

continue to install SkyATA-102 AP program, then enjoy SkyATA-102 without
restarting Windows. In some Windows 2000 systems, user might encounter
problems after SkyATA-102 program installation completes and Windows 2000

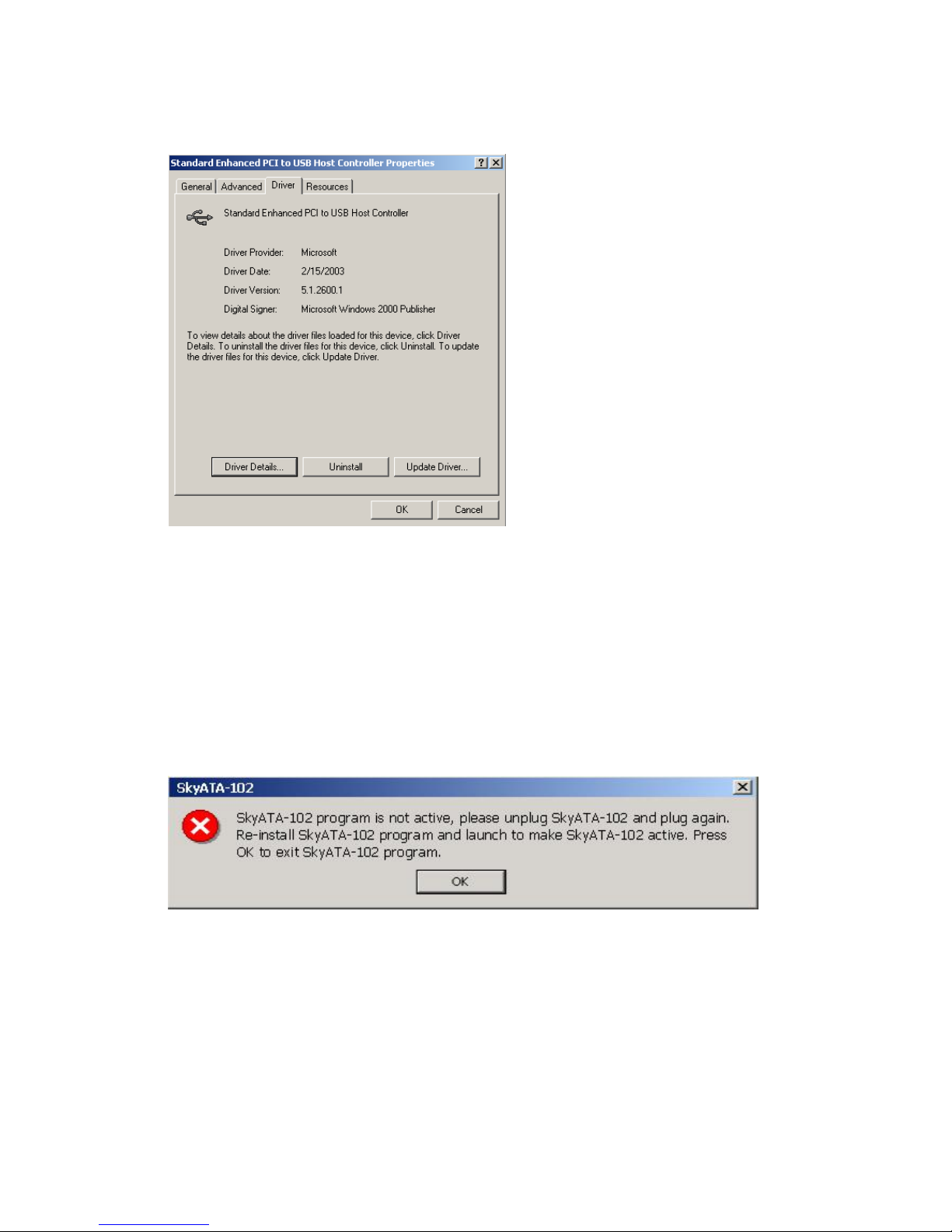

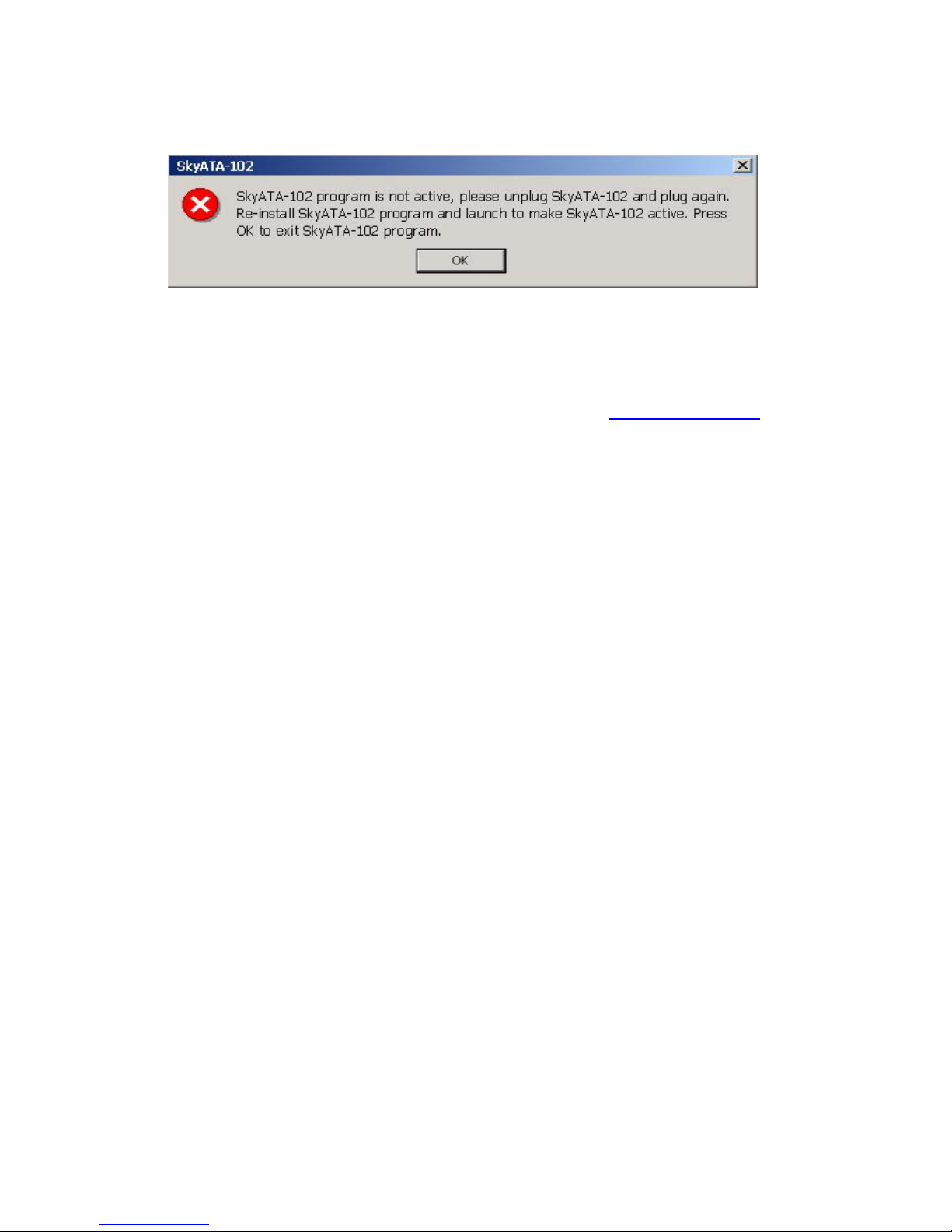

pops up message as below. User can click OK button, then unplug SkyATA-102
and plug again or restart Windows 2000. Re-install SkyATA-102 AP program and
launch through start menu or SkyATA-102 desk icon to make SkyATA-102 active.

Q7: Why I still can’t use SkyATA-102 after the hardware and software are

successfully installed?

A: Whenever the SkyATA-102 AP software is launched, Skype will invoke one

warning window "Another program wants to use Skype". If you choose "Do not
allow this program to use Skype", but still want to use SkyATA-102, please go to

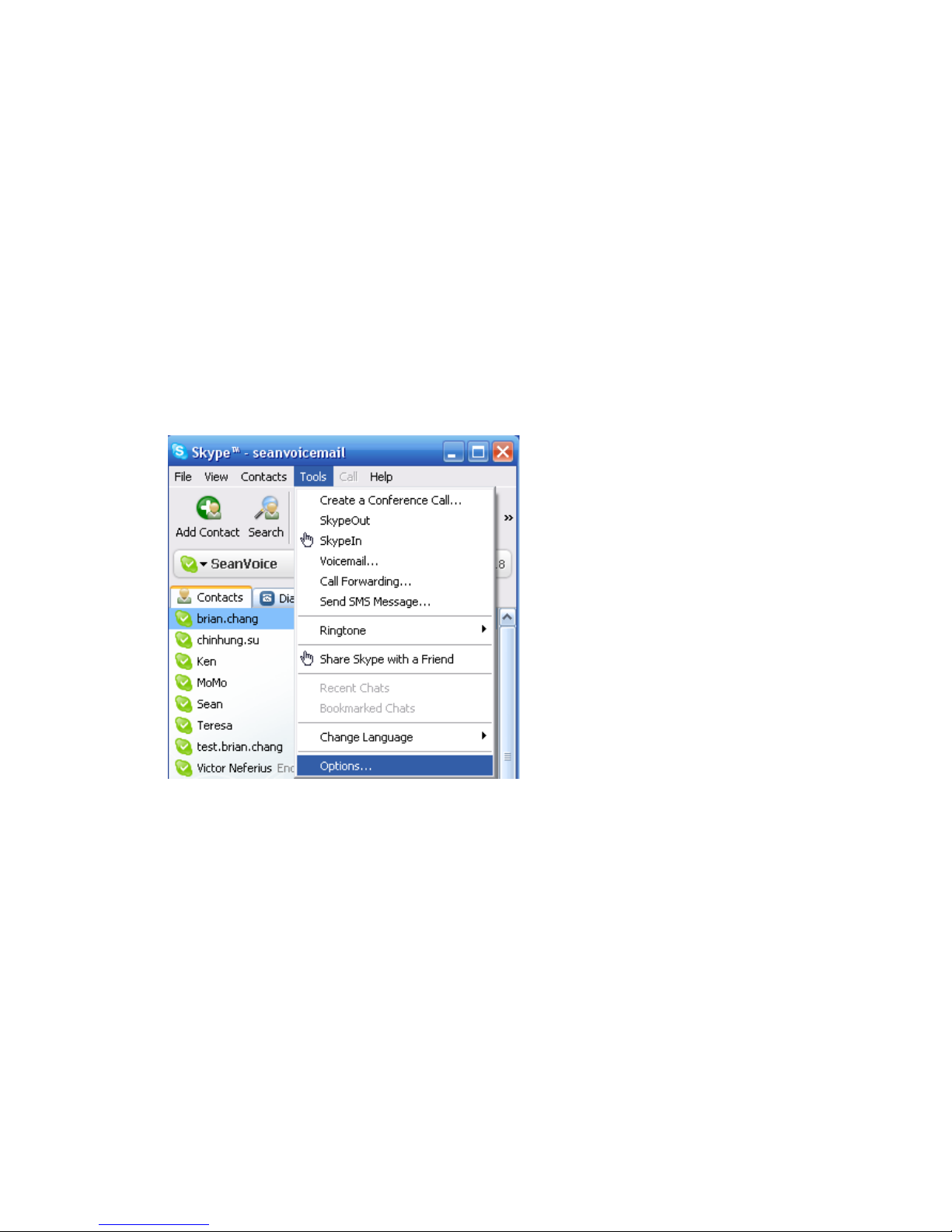

the Skype window main menu Tools and choose Options. In the next window,

83

choose Privacy tab in the left. Double click "Manage other program's access to
Skype” in "Related Tasks" on the lower side of the window. There will be a
"Manage API Access Control" window coming up. Scroll down the bar to find
device Name: SkyATA-102.exe. "Not allowed to use Skype". Choose this device
and click Change button to get the warning window "Another program wants to
use Skype" and make proper choice like "Allow this program to use Skype, but
ask again in the future". Or choose this device and Remove button on the right
side. Click OK.

Re-launch SkyATA-102 through start menu or SkyATA-102 desk icon. Then
Skype will invoke the warning window "Another program wants to use Skype"
again. Make a proper choice. After this modification, SkyATA-102 will work.

If user doesn't want Skype to pop out this warning message whenever user

reboots PC, user can choose "Allow this program to use Skype".

84

85

Q8: Why does SkyATA-102 fail to initialize?
A: The phone receiver is not on-hook properly.
Q9: Why doesn’t SkyATA-102 work properly in some USB ports of Windows

2000 system?

A: We strongly recommend user to install SkyATA-102 AP program when user 1

st

time plugs SkyATA-102 into one certain USB port of any Windows 2000 system.
Or user needs to remember to plug SkyATA-102 into the same USB port which
user 1

st

time plugged in and install SkyATA-102 AP program if user didn't install

SkyATA-102 AP program at 1

st

time.

In some case, user might have 1

st-

time plug SkyATA-102 into one Windows 2000
system USB port without installing SkyATA-102 AP program. Next time, user
might plug SkyATA-102 into another USB port and install SkyATA-102 AP
program and it worked perfect. Later on if user plugged SkyATA-102 into the USB
port which use r 1

st

time plugged in, then user might have problem to use
SkyATA-102 unless user re-install SkyATA-102 AP program. The quick solution is
to install SkyATA-102 program again as the pop-up message suggests. Also you
can refer to FAQ 5 if you still encounter problem.

This problem might happen in Windows 2000 system only.

86

Q10: Why doesn’t the phone ring when there is an incoming call?
A: a. Please make sure your phone ring is on.

b. Please check whether SkyATA-102 is successfully installed or not as

description FAQ 4.
c. Try to change the Ring signal frequency selection in Phone setting page.
d. Try with other analog phone because some phone might have special driving

requirements although we have tried to make our device compatible.

Q11: Why can't I hear dial-tone when I pick up the handset?
A: a. If the default operation mode of Option dialogue in SkyATA-102 system tray

icon at the right-bottom corner of Windows desktop is VoIP, user can press “#”

key to switch to PSTN mode and check whether there is familiar PSTN dial tone

or not.
b. Please make sure whether SkyATA-102 is successfully installed or not as

description in FAQ 4.
c. Make sure SkyATA-102 has been chosen as the Skype sound device for Audio

In/Out, please refer to FAQ 12.
d. Please check whether your computer has entered into power saving mode or

not. If user’s SkyATA-102 supports VoIP mode only (no PSTN line), then user

won’t hear any dial tone. If user’s SkyATA-102 supports both VoIP and PSTN

modes, user will only hear PSTN dial tone and there is no Skype dial tone even

user presses “#” key to switch to VoIP mode. User needs to make PC wake up

from power saving mode and SkyATA-102 will re-initialize before normal

operation. Please remember to make sure phone is on-hook when SkyATA-102

is initializing.
e. User might have an incorrect feedback to SkyATA-102 software when there is

one "Hear any phone-ring" pop out window as below. User can click "Refresh"

button in the Option page of SkyATA-102 system tray icon and give

SkyATA-102 software correct responses and it should work.

87

Q12: Why can't I hear any voice after I pick up phone receiver and Skype shows

connected when I make or answer a call?

A: Make sure SkyATA-102 has been chosen as the Skype sound device for Audio

In/Out. Go to the Skype window main menu Tools and choose Options. In the
next window, click "Sound Devices" tab in the left and choose SkyATA-102 from
Audio In and Audio Out scroll bar.

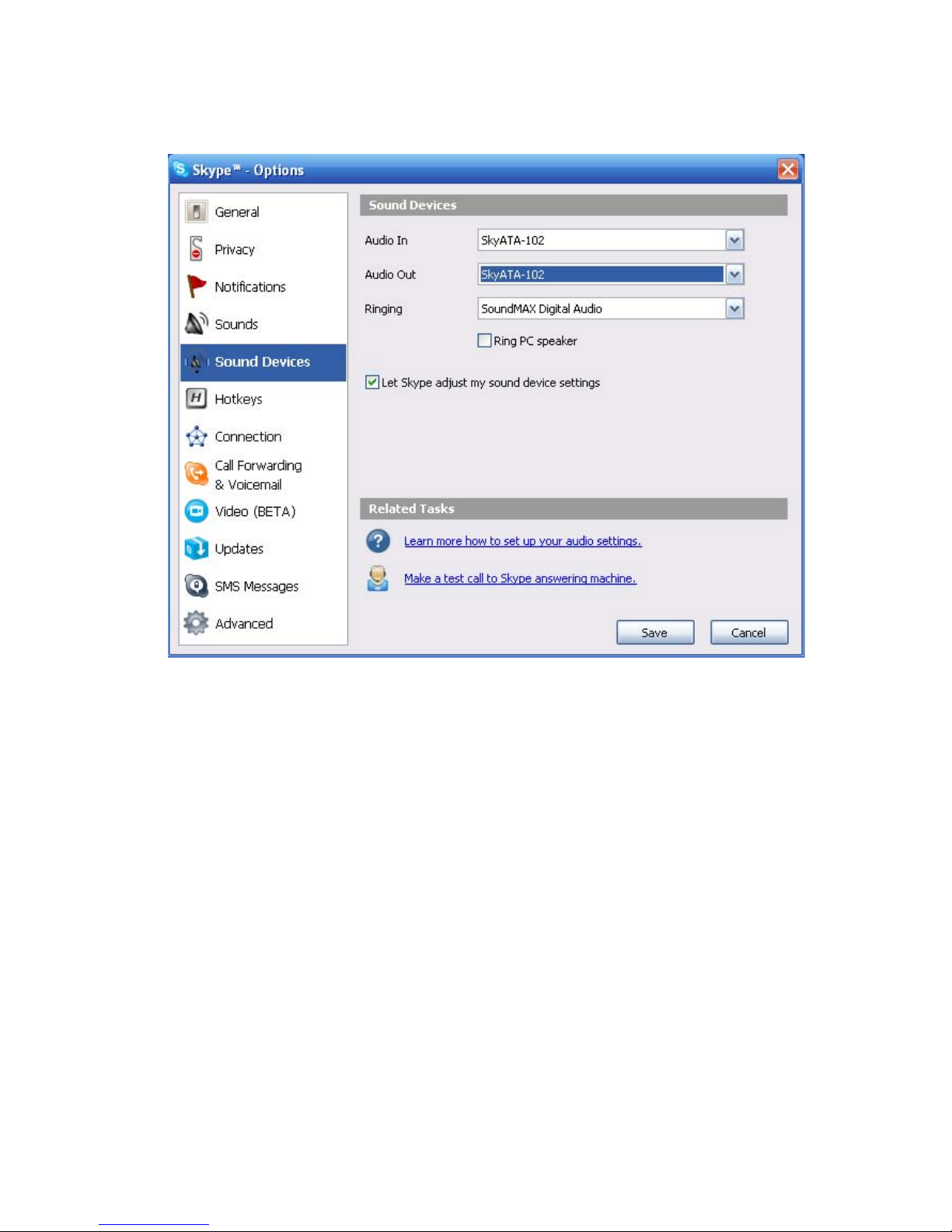

88

Q13: After I connected SkyATA-102 with my computer, I couldn't hear music or

voice from my computer. What can be done so that I can listen to music

from the original sound device?

A: Right-click the "volume" system tray icon at the right-bottom corner of Windows

desktop, choose "Adjust Audio Properties". It will come out the "Sounds and
Audio Devices Properties" window. Choose the default Windows audio device like
sound card. Then you should be able to listen to music from your original sound
device like speaker.

89

Q14: Do I need to restart my computer whenever I re-plug the SkyATA-102?
A: There is no need to restart the computer, but we suggest that you re-open your

Skype software, then launch SkyATA-102. We recommend that you plug in the
Sky911 first then launch SkyATA-102 AP program and close the SkyATA-102 AP
program first before you un-plug the SkyATA-102.

Q15: How can I uninstall SkyATA-102 AP program?
A: Please follow below two steps.

a. Close SkyATA-102 program by clicking SkyATA-102 system tray icon at the

right-bottom corner of Windows desktop and choosing Exit.
b. Use Windows Start menu, choose "All Programs" and find SkyATA-102. There

is "Uninstall” option. Choose it and then click Yes button.

Q16: How can I dial "+" sign when making a SkypeOut call?
A: You can use "00" to stand for "+".
Q17: Why can't I start my computer after I plug in SkyATA-102?

90

A: Please check your computer's system BIOS Boot up device option setting. Your

computer might have boot up device setting as USB device. You can refer to your
computer BIOS setting procedure to change USB boot up setting.

Q18: How can I know the SkyATA-102 AP program version?
A: Right-click SkyATA-102 system tray icon at the right-bottom corner of Windows

desktop and choose "About".

Q19: Why does SkyATA-102 system tray icon at the right-bottom corner of

Windows desktop show Hardware Error

?

A: a. SkyATA-102 might not plug in the computer USB port properly. Please unplug

SkyATA-102 and make sure to plug SkyATA-102 into the computer USB port

properly.

b. The phone receiver is picked up before SkyATA-102 finishes initialization.

Please make sure phone is on-hook before SkyATA-102 initialization

completes.

Q20: Why does SkyATA-102 system tray icon at the right-bottom corner of

Windows desktop show Skype unavailable

?

A: Please make sure Skype is launched and on-line. User can re-launch Skype and

refer to the following possible cases.

a. SkyATA-102 program is launched, but Skype is not active owing to no internet

access.
b. Skype program is closed after SkyATA-102 program is launched.
c. User changes Skype status to Offline. Skype status needs to be changed to

Online for normal operation.

Q21: Why can't I use existing Skype audio devices after SkyATA-102 is

installed?

A: After SkyATA-102 is installed, Skype sound device will be set as Sky911

SkyATA-102 as figure in FAQ 12. If user wants to use other Skype device, user
can change Skype sound device as the one user wants to use. Similarly, user
needs to change Skype sound device as SkyATA-102 if other Skype USB audio
device is adopted first and then user wants to use SkyATA-102.

Q22: What should I do if my PSTN line or Skype line doesn’t work although

91

SkyATA-102 Phone/Line ports are connected?

A: SkyATA-102 has Auto-Swap/Auto-Detection function. In some case, user might

remove cable connection and connect again or have phone and line ports
connection after SkyATA-102 initialization completes. User can click Refresh
button in the Option dialogue of SkyATA-102 system tray icon at the right-bottom
corner of Windows desktop, then SkyATA-102 AP program will immediately
correct Phone and Line port connections even although user makes a wrong
connection. For Auto-Detection support, there will be one pop-up message to
guide user to connect Phone/Line port correctly. User can refer to this user
manual Section 3.1 SkyATA-102 Hardware Setup

for detailed information.

Q23: Why I can’t setup a Multi-Call or Conference call when I am on a PSTN

call?

A: In order to prevent possible troubles when user presses “＊" key during a PSTN

service call such as 800, we need user to start a Multi-Call or Conference call
from a Skype call. User can’t make a PSTN call first and then to add another
Skype contacts for a Multi-Call or Conference call. However, user can invite the
incoming Skype call for a Multi-Call when user is on a PSTN call.

Q24: Can I use Skype version later than SkyATA-102 claims to support in this

user manual Section 1.4Minimum System Requirements

?

A: Since Skype might change API for the new release, we can't guarantee our

current SkyATA-102 AP can work with the new update seamlessly. You should be
able to adopt it for basic Skype talk, but you always can download the latest
SkyATA-102 AP program from our web site or get help from our supporting
people.

6. Regulation

Regulatory Compliance Notices

Class B Equipment

This equipment has been tested to comply with the limits for a Class B device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not

92

installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that inter­ference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
implementing one or more of the following measures:

 Reorient or relocate the receiving antenna;
 Increase the separation between the equipment and receiver;
 Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected;

 Consult the dealer or an experienced radio or television technician for

help.

Modifications

The FCC requires the user to note that any changes or modifications made to this
device that are not expressly approved may void the users’ authority to operate the
equipment.

Declaration of conformity for products marked with the FCC logo in the United States
only.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

1. This device may not cause harmful interference

2. This device must accept any interference received, including interference that

may cause unwanted operation.
