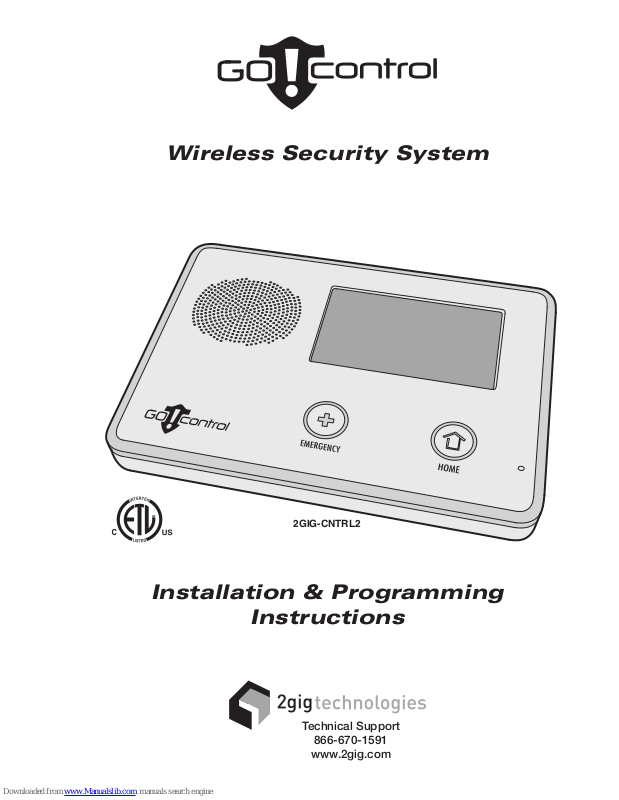

Wireless Security System

Installation & Programming

2GIG-CNTRL2

Instructions

Technical Support

866-670-1591

www.2gig.com

National Fire Protection Association Standard #72

Recommendations for Smoke Detectors

STANDARD FOR ALARM LOCATION

Smoke detectors used with this system should be installed in accordance with Chapter 2 of the National Fire Alarm Code, ANSI/NFPA 72 (National Fire Protection Association , Batterymarch Park, Quincy, MA 02269) which reads as follows:

2-1.1.1 Smoke alarms shall be installed outside of each separate sleeping area in the immediate vicinity of the bedrooms and on each additional story of the family living unit including basements and excluding crawl spaces and unﬁ nished attics. In new construction, a smoke alarm shall be installed in each sleeping room.

2-1.1.2 For family living units with one or more split levels (i.e., adjacent levels with less than one full story separation between levels), a smoke alarm required by 2-1.1.1 shall sufﬁ ce for an adjacent lower level, including basements. (Exception: Where there is an intervening door between one level and the adjacent lower level, a smoke alarm shall be installed on the lower level.)

✔ Ceiling mounted smoke alarms should be located in the center of the room

or hall, or not less than 4 inches from any wall. When the alarm is mounted on a wall, the top of the alarm should be 4 to 12 inches from the ceiling.

✔ Do not install smoke alarms where normal ambient temperatures are above

100°F (37.8°C), or below 40°F (4°C). Also, do not locate alarm in front of air conditioners, heating registers, or other locations where normal air circulation will keep smoke from entering the detector.

A-2.5.2.1 Smoke Detection - Are More Smoke Alarms Desirable? The required number of smoke alarms might not provide reliable early warning protection for those areas separated by a door from the areas protected by the required smoke alarms. For this reason, it is recommended that the householder consider the use of additional smoke alarms for those areas for increased protection. The additional areas include the basement, bedrooms, dining room, furnace room, utility room, and hallways not protected by the required smoke alarms. The installation of smoke alarms in kitchens, attics (ﬁ nished or unﬁ nished), or garages is not normally recommended, as these locations occasionally experience conditions that can result in improper operation.

Smoke alarms are not to be used with detector guards unless the combination has been evaluated and found suitable for the purpose.

THIS SECURITY SYSTEM COMPLIES WITH

NFPA REQUIREMENTS FOR TEMPORAL

PULSE SOUNDING OF FIRE NOTIFICATION

APPLIANCES.

Figure 1. Smoke Alarm Locations

Table of Contents

Introduction ................................................................................ 2

System Overview ....................................................................... 3

Control Panel Features .............................................................4

Installation Outline .................................................................... 5

Wireless Installation Tips .......................................................... 5

Wireless System Sensors ......................................................... 6

2GIG-DW10 Thin Door/Window Contact ............................... 6

2GIG-DW20R Recessed Door Contact ................................. 6

2GIG-PIR1 Passive Infrared Motion Detector ........................ 6

2GIG-KEY1 4-Button Key Ring Remote ................................ 6

2GIG-PANIC1 Panic Button Remote ...................................... 6

2GIG-GB1 Glass Break Detector ........................................... 6

2GIG-SMKT2 Smoke and Heat Detector ............................... 6

2GIG-PAD1 Wireless Keypad ................................................ 6

2GIG-TAKE-345 Super Switch Wireless Takeover Module .... 6

System Accessories .................................................................. 7

2GIG-GSMx GSM Module ..................................................... 7

2GIG-ANT1 Internal GSM Antenna ....................................... 7

2GIG-ANT1X External In-wall GSM Antenna ........................ 7

2GIG-ANT2X External Attic Mount GSM Antenna................. 7

2GIG-ANT4X External In-wall GSM Antenna ........................ 7

2GIG-BATT1 Standard Battery Pack .....................................7

2GIG-BATT1X Extended Battery Pack ..................................7

2GIG-AC1 Replacement Power Supply ................................. 7

Installation .................................................................................. 8

Control Panel Mounting Plate ................................................ 8

Wireless Sensors ...................................................................8

Hardwired Loops .................................................................... 8

Remote Alarm Sounder ......................................................... 9

Solid State Output .................................................................. 9

Communicator Telephone Line .............................................. 9

Optional GSM Module Installation ....................................... 10

Control Panel Wiring ............................................................ 11

Backup Battery Connection and Power Supply Wiring ........11

Control Panel and Power Supply Mounting ......................... 11

Main Display Screens .............................................................. 12

Home Screen .......................................................................12

Security Screen ................................................................... 12

Arming Screen ..................................................................... 12

Menu Screen ....................................................................... 12

Status Screen ...................................................................... 12

Toolbox Screens ...................................................................... 13

Toolbox Screens ..................................................................13

Installer Code Entry Screen .................................................13

Installer Toolbox Screen ....................................................... 13

System Conﬁ guration Screen .............................................. 13

System Status Icons ............................................................... 14

AC Power Icon .....................................................................14

Phone Line Failure Icon .......................................................14

Sounder Disable Icon .......................................................... 14

Backup Battery Status Icon ................................................. 14

Test Mode Icon .................................................................... 14

Remote Installer Access Icon .............................................. 14

GSM Radio Icon .................................................................. 14

Programming Navigation ........................................................ 15

Navigation Arrows & Go To Button ....................................... 15

Questions without Sub-options ............................................ 15

Questions with Sub-options ................................................. 15

Questions with Data to Enter ............................................... 15

Other Buttons Displayed ......................................................15

Programming Outline .............................................................. 16

SIA CP01 Defaults ...............................................................16

Programming Question Table ................................................. 17

System Sensor Types .............................................................. 18

Sensor Types (Zones) .......................................................... 18

System Vocabulary Table ........................................................19

Installer Programming ............................................................ 20

RF Sensor Programming ..................................................... 20

RF Sensor Programming Outline ...................................20

RF Sensor Summary Screen ......................................... 21

RF Sensor Programming Steps ..................................... 22

Wired Sensor Programming ................................................ 24

Wired Sensor Programming Outline .............................. 24

Wired Sensor Summary Screen .................................... 24

Wired Sensor Programming Steps................................. 25

RF Key Fob Programming ................................................... 26

RF Key Fob Programming Outline .................................26

RF Key Fob Summary Screen ....................................... 26

RF Key Fob Programming Steps ................................... 27

RF Keypad Programming .................................................... 28

RF Keypad Programming Outline .................................. 28

RF Keypad Summary Screen ........................................ 28

RF Keypad Programming Steps ..................................... 29

Control Panel Programming Questions ............................... 30

Final Installation Setup ........................................................... 38

Exiting Programming ........................................................... 38

Customizing the Installation .................................................38

Installer Testing........................................................................39

Testing the System .............................................................. 39

Sounder Disable/Enable ...................................................... 39

Zone Reporting Test ............................................................ 39

Walk Test Mode ....................................................................40

Signal Strength Indicators ..............................................40

Radio Status Mode .............................................................. 41

GSM Radio Test ............................................................. 41

Telephone Test ..................................................................... 41

Restoring Programming Defaults ......................................... 42

Restore Defaults .................................................................. 42

Regulatory Information & Limited Warranty ......................... 43

Wireless Product Notice ...................................................... 43

FCC Notice .......................................................................... 43

FCC Telephone Rules and Regulations ............................... 43

Industry Canada Notices ..................................................... 43

Limited Warranty .................................................................. 43

Reference Programming Question Table ...............................44

Reference System Vocabulary Table ...................................... 45

Notes ......................................................................................... 46

Index ......................................................................................... 48

Introduction

The Go!Control Security System represents a signiﬁ cant advancement in fully supervised wireless security systems. The security system Control Panel incorporates many advanced and sophisticated features. The system can be expanded and customized to ﬁ t the installation’s speciﬁ c needs.

Designed to meet or exceed the requirements for ETL Listed residential security installations, the system also conforms to the Security Industry Association’s Control Panel Standard ANSI/SIA CP-01-2007.

✓ NOTE: Failure to install the Control Panel and accessories in

accordance with ETL requirements listed in this manual voids the ETL listing mark assigned by Intertek.

Many insurance companies offer discounts on homeowners’ and renters’ policies when a security system is installed. Discount credits vary with different companies and generally increase in savings with an increase in the level of protection. Inform the user to ask their insurance agent about savings available.

This security system is ETL Listed. For an ETL smoke alarm system, there must be at least one smoke detector programmed into the Control Panel to meet National Fire Protection Association (NFPA) Rule 72-Chapter 2, and UL 217 requirements. Many insurance companies require meeting these requirements to qualify for a discount. For an ETL smoke alarm system, use only approved model smoke detectors with this Control Panel.

✓ NOTE: Some cities and municipalities may require an alarm

system permit. Check with the local authorities before installing this system.

2GIG-CNTRL2

REFERENCE ONLY - REFER TO ADDENDUM 230373 FOR PROPER

INSTALLATION AND WIRING DIAGRAM

UL NOTE: WIRING FOR ALL WIRED SENSORS AND ANNUNCIATORS MUST USE

UL LISTED LOW VOLTAGE CL2X OR BETTER GRADE WIRE. SENSOR AND DISPLAY

VOLTAGES MUST COMPLY WITH CLASS 2 LOW VOLTAGE REQUIREMENTS.

HARDWIRE LOOPS CAN BE PROGRAMMED AS NORMALLY OPEN OR CLOSED

NORMALLY

OPEN

CONTACT

2.2 K

END-OF-LINE RESISTORS ARE

OPTIONAL ON HARDWIRE LOOPS

OPEN COLLECTOR OUTPUT 250 mA @ 16 VDC MAXIMUM

1 K LED

NORMALLY CLOSED

CONTACT

2.2 K

SUPERVISED BELL OUTPUT

6-12 VDC @ 120 mA MAXIMUM

PIEZO SIREN

120 VAC 60 HZ

PLUG-IN 14 VDC

1.7 AMP SWITCHING POWER SUPPLY

TELEPHONE LINE

FROM RJ31X

TELEPHONE JACK

CONTROL PANEL

TELEPHONE JACK

8 - HARDWIRE LOOP 2

7 - HARDWIRE LOOP 1

6 - BELL (-)

5 - BELL (+)

4 - OPEN COLLECTOR OUTPUT

3 - GROUND

2 - 14 VDC POWER INPUT (-)

1 - 14 VDC POWER INPUT (+)

NOTE: TERMINAL 1 WILL ONLY PROVIDE DC POWER WHEN THE CONTROL PANEL'S POWER SUPPLY IS CONNECTED TO AN AC POWER SOURCE

ALL OUTPUT VOLTAGES ARE CLASS 2

EXAMPLE HOOKUP SHOWING AN ARMED LED, THE OPEN COLLECTOR OUTPUT CAN BE PROGRAMMED TO ACTIVATE DURING VARIOUS CONDITIONS

Figure 2. Control Panel Wiring Diagram

OBSERVE

POLARITY WHEN

CONNECTING THE

POWER SUPPLY !!!

System Overview

The system’s Control Panel features a color touch screen display that allows control of all system functions and programming. The display clearly shows the installer and subscriber system and installation status. The helpful scrolling text, along with the voice prompts that the Control Panel sounds, make installation, programming, and operation very easy compared to keypad-programmed and operated security systems of the past.

The system supports 48 wireless sensors of various types, two hardwire loops, 15 sensor response types, a supervised bell output, and a programmable solid-state control output. An on-board digital communicator reports alarms and trouble to a central monitoring station receiver via the standard telephone network. The Control Panel also supports 2-way voice communications with the Central Station.

An internal narrow-band radio receiver detects signals from wireless system sensors. The high-gain receiver allows for easy placement of the wireless sensors so signals can be received in even the toughest of installation environments.

For enhanced operation, an optional Model 2GIG-GSMx global system for mobile communications module (GSM radio modem) can be installed in the ﬁ eld. With the optional GSM radio modem installed, the system will have wireless Central Station reporting capability. 2-way voice communication with the Central Station can also go “over-the-air” through the GSM radio modem.

The optional GSM radio modem also allows 2-way communications with the Alarm.com server. Through this server, subscribers can query and control their system using a computer browser from anywhere in the world. The Alarm.com server can also send messages, time corrections, and software updates to the Control Panel. Special messages from the server are displayed to the subscriber on the Control Panel’s color touch screen.

For home control, the Control Panel’s built-in Z-Wave radio module allows controlling and monitoring various home automation devices such as lighting, heating, and air conditioning.

Eight user codes including a duress code are supported. User “one” is the master code that can add or delete the other seven user codes. The Installer Code has access to system programming.

The front panel indicators. Pressing the

and buttons serve as controls as well as

button displays emergency icons on the

display for Panic, Fire, and Emergency alarm activation (each has programmable options and can be enabled or disabled). Pressing the

button changes the system display to the Home Screen.

Hardwire

Loop

Door / Window Sensors

Glass Break

Sensors

Smoke

Sensors

Up to 48 Wireless Sensors per System

Hardwire

Loop

Existing

Sensor

Installation

PIR

Motion

Sensors

Panic

Buttons

Hardwire Inputs

Sensor

Receiver

Key

Fobs

Subscriber

Siren

Voice

Speaker

Microphone

CONTROL PANEL

Remote

Wireless Keypad

Touch Screen

Color Display

Home &

Emergency

Buttons

Color LCD

Display with

Touch Screen

CPU

Bell

Output

Piezo Siren

Digital

System

Powe r

Supply

120 VAC

Input

Powe r

Subscriber’s

Computer

Optional

Communicator

GSM

Module

Z-Wave

Radio

Public

Switched

Telephone

Network

GSM

Telephone

Network

Subscriber’s

PDA

Thermostat

Lighting

Control

Other Z-Wave

Home

Automation

Devices

Central Station

Receiver

Alarm.com

Server

Alarm.com

Infrastructure

Cell Site

Alarm.com

Web site

Database

Figure 3. System Block Diagram

Control Panel Features

ALARM SOUNDER

AND SPEAKER

Sounds all system local alarms, voice prompts, system sounds, and

2-way voice communications

audio for with the Central Station

EMERGENCY

BUTTON / INDICATOR

Lights WHITE when enabled for emergency alarm

Flashes WHITE during emergency alarm

Sensor Status

Arming Status

Alarm Memory

Lights GREEN when ALL sensors are closed (ready to arm) Not lit when ANY sens

Lights RED while system is armed

Blinks RED during the Entry Delay

Blinks RED during an alarm Blinks RED after an alarm while system is still armed

HOME

BUTTON / INDICATOR

or is open (not ready to arm)

2GIG-CNTRL2

Power Outage

COLOR DISPLAY

WITH TOUCH SCREEN

Shows all system information, status, programming, and functions as the

keypad.

Display also cycles clock, calendar, and weather (press to manually change)

MICROPHONE

For voice communication with the Central Station

HOME

BUTTON / INDICATOR

Indicator flashes during power outages (system on battery backup)

Flashes GREEN when ALL sensors are closed (ready to arm) Flashes ORANGE when ANY sensor is open (not ready to arm) Flashes RED while system is armed

BACKUP BATTERY PACK

7.2 Volt Ni-mh battery pack is included with the Control Panel, replacement part number 2GIG-BATT1

For UL985 installations, use the Model 2GIG-BATT1X battery pack

TELEPHONE JACK

For RJ45 connection to installation's RJ31X telephone jack, incoming and outgoing lines for full line seizure

GSM ANTENNA (HIDDEN)

Internal Model 2GIG-ANT1 GSM antenna mounts in the side of the Control Panel case

Figure 4. Control Panel External Features

TERMINAL BLOCK

Connections for power, solid state output bell, and hardwire loops

"THIRD HAND"

HANGER STRAP

Hooks onto mounting plate during installation to hold the Control Panel while wiring

TELEPHONE LINE

MONITOR TERMINALS

Terminals for connecting lineman's "buttset" for monitoring the telephone line

SENSOR RECEIVER MODULE

345 MHz receiver for wireless sensors

OPTIONAL GSM RECEIVER MODULE

Model 2GIG-GSMx GSM Module for over-the-air communication with the Alarm.com Central Station

Figure 5. Control Panel Internal Features

Installation Outline Wireless Installation Tips

The following outline is intended to guide the installing alarm dealer through the complete installation of a Go!Control system.

Use the following outline in conjunction with this copy of the Installation Instructions to guide you through the installation.

1. Unpack the system. Identify the system components.

2. Plan the installation by creating an installation ﬂ oor plan.

Determine the best centralized location for the Control Panel. Decide on where the wireless sensors will be installed.

3. Identify an un-switched 120 VAC power source for plugging in the Control Panel’s power supply.

4. Identify or install a U.S.O.C. RJ31X telephone jack for connection of the Control Panel’s communicator.

5. Use the Control Panel’s mounting plate as a template to mark the mounting location for the Control Panel. Mark any drywall cutouts behind the mounting plate required for the installation and make the cutouts.

6. Attach the mounting plate to the wall using three screws.

7. Install each of the system’s wireless sensors. If either of the

two hardwire loops are going to be used, install the contacts and route the loop wire to the Control Panel’s wall cutout. Use the log in the quick programming guide to document each sensor’s ID number and location.

8. Install the optional remote sounder, and route the connection wire to the Control Panel’s wall cutout.

9. Route the telephone line from the RJ31X jack to the Control Panel’s wall cutout.

10. Using the “third hand” strap, hang the Control Panel on the mounting plate in preparation for wiring.

11. Connect all wiring to the Control Panel’s terminal block.

12. Plug the telephone line into the Control Panel’s telephone

jack.

13. Plug the backup battery connector into the connector on the Control Panel’s circuit board.

14. Swing the Control Panel up, placing the bottom over the lip of the mounting bracket. Push the top of the Control Panel into the mounting bracket until it snaps into place, then secure it with the retaining screw.

15. Plug the power supply into the un-switched 120 VAC wall outlet.

16. Program the system as described in this manual and mark the check boxes in the Operation and User’s Guide to indicate any custom setup to the subscriber.

17. Test the system as described in this manual.

18. Instruct the subscriber on the system operation and provide

the Operation and User’s Guide to the subscriber.

When installing any wireless system, certain limitations must be considered. Low power wireless transmitter signals will not broadcast equally through all types of construction materials. The Control Panel contains a very sensitive receiver that should allow placement of transmitters in almost all locations.

Here are some general wireless guidelines that should be reviewed before beginning the installation. Follow these tips to create the best possible functioning wireless installation.

CONTROL PANEL LOCATION RELATIVE TO SENSORS

CENTRALLY LOCATE

CONTROL PANEL

CONTROL PANEL LOCATION HEIGHT

CONTROL PANEL

BASEMENT

RIGHT

MOUNT CONTROL PANEL AS HIGH ABOVE

EARTH LEVEL AS PRACTICAL

SENSOR SIGNAL LOSS THROUGH MATERIALS

90% - 100%

OF FULL POWER

WALLBOARD AND

WOOD STUDS

65% - 95%

OF FULL POWER

LIGHT CONCRETE

OR BRICK

SENSORS AT THE OTHER END OF HOUSE MIGHT BE TOO FAR AWAY

LOCATING CONTROL PANEL BELOW

EARTH LEVEL WILL IMPAIR RANGE

WRONG!RIGHT

CONTROL PANEL

BASEMENT

WRONG!

10% - 70%

OF FULL POWER

CONCRETE WITH STEEL

REINFORCEMENT OR

METAL LATH AND PLASTER

SENSOR

Min. 3 ft.

LOCATION OF SENSORS

Less

DOOR

RIGHT

Concrete

slab floor

SENSOR

than

above

slab

DOOR

3 ft.

WRONG!

Figure 6. Wireless Installation Tips

Concrete

slab floor

Wall

SENSOR

WRONG!

Large metal

appliance

(refrig.)

Wireless System Sensors

2GIG-DW10 Thin Door/Window Contact

• For narrow applications, sensor is only 3/4” wide

• Fully supervised

• Rare earth magnet

• Lithium battery

• Supports internal and external contacts

• Can be used for two zones of protection

• 345 MHz

• ETL Listed

2GIG-DW20R Recessed Door Contact

• Compact size, only 2-1/2” long

• Fully supervised

• Rare earth magnet

• Lithium battery

• 345 MHz

• ETL Listed

2GIG-GB1 Glass Break Detector

• Monitors for the sound of breaking glass

• Two test LEDs

• Dual shatter recognition technology (thud then crash)

• Lithium battery

• 345 MHz

• ETL Listed

2GIG-SMKT2 Smoke and Heat Detector

• Photoelectric-type detector with rate-of-rise and ﬁ xed 135° heat sensors

• Status indicator

• Built-in 85 dBA sounder

• Lithium battery

• 345 MHz

• ETL Listed

2GIG-PIR1 Passive Infrared Motion Detector

• Dual element sensor with 50’ by 50’ range

• 45 lb. pet immune

• 90 degree look down

• Lithium battery

• 345 MHz

• ETL Listed

2GIG-KEY1 4-Button Key Ring Remote

• Arms system in Stay or Away Mode

• Disarms system

• Auxiliary output and emergency functions

• Lithium battery

• 345 MHz

• ETL Listed

2GIG-PAD1 Wireless Keypad

• Arms system in Stay or Away Mode

• Disarms system

• Fire and Panic emergency functions

• Lithium batteries

• 345 MHz

• ETL Listed

2GIG-TAKE-345 Super Switch Wireless Takeover Module

• Eight-channel transmitter

• Converts up to eight hardwired loops into eight wireless sensor zones

• 9-16 VDC, 50 mA

• Can be powered from existing Control Panel

• 345 MHz

• ETL Listed

2GIG-PANIC1 Panic Button Remote

• For triggering emergency alarm

• Small and lightweight

• 5-second button lockout

• Lithium battery

• 345 MHz

• ETL Listed

System Accessories

2GIG-GSMx GSM Module

• Cellular telephone module

• Plugs into Control Panel

• Provides 2-way GSM radio communication

• Enrolls with cellular service provider

2GIG-ANT1 Internal GSM Antenna

• Antenna installs inside Control Panel

• Plugs into GSM module

• Small size

• Locking connector

2GIG-BATT1 Standard Battery Pack

• Standard battery supplied with Control Panel

• Also available as a replacement item

• Nickel metal hydride (NiMH) battery

2GIG-BATT1X Extended Battery Pack

• Optional extra capacity battery

• Replaces standard internal Control Panel battery

• Required for UL985 ﬁ re warning system listing

• Nickel metal hydride (NiMH) battery

2GIG-ANT1X External In-wall GSM Antenna

• Antenna installs in the wall behind Control Panel

• 2-foot cable

• Plugs into GSM module

• Locking connector

2GIG-ANT2X External Attic Mount GSM Antenna

• Antenna installs in attic above Control Panel

• 10-foot cable

• Plugs into GSM module

• Locking connector

2GIG-AC1 Replacement Power Supply

• High efﬁ ciency switching power supply

• 120 VAC @ 60 Hz input

• 14 VDC @ 1700 mA output

• Screw terminals for wiring connecting to the Control Panel

• Includes retaining bracket for standard and Decora style outlets.

2GIG-ANT4X External In-wall GSM Antenna

• Antenna installs in the wall behind Control Panel

• 2-foot cable

• Plugs into GSM module

• Locking connector

Installation

Control Panel Mounting Plate

The Control Panel should be mounted on the wall in an easy location for the subscriber to operate the system.

1. Remove the locking screw from the top of the Control Panel case and

remove the mounting plate.

2. Use the mounting plate as a template to mark the wall for the wiring

cutout slot. Use a drywall saw to cut the slot. If using the optional Model 2GIG-GSMx GSM module with the external Model 2GIG-ANT1X or Model 2GIG-ANT2X antenna, remove the plastic knockout labeled “EXTERNAL ANTENNA” on the mounting plate. Mark and cut a slot in the drywall for the external antenna.

3. Attach the mounting plate to the wall using three screws.

Wireless Sensors

Each wireless sensor needs to be installed at its desired location.

1. Following the instructions included with each wireless sensor, install each

sensor at its desired location.

2. Use the Installation Log to document each sensor’s ID number and

location.

Hardwired Loops

Hardwired loops can be programmed either normally open (N/O) or normally closed (N/C). End-of-line resistors (EOLR) can also be used to supervise the loops.

Only contacts should be used with the hardwired loops. The Control Panel does not support powering external devices (PIR’s, etc.).

✓ NOTE: HARDWIRED LOOPS CANNOT BE USED FOR A CO

OR FIRE SENSOR LOOP.

1. If either of the two hardwired loops are going to be used, install the contacts

and route the loop wire to the Control Panel’s wall cutout.

2. If end-of-line supervision is required for the loop, install a 2.2K ohm resistor

(not supplied) as shown in the loop illustration.

MOUNTING PLATE

REMOVE CASE SCREW AND MOUNTING PLATE

USE MOUNTING PLATE AS A TEMPLATE TO MARK WIRE CUTOUT HOLE IN DRYWALL

Figure 7. Wall Mounting Template

Figure 8. Typical Door Sensor Installation

IF USING EXTERNAL GSM ANTENNA, REMOVE

KNOCKOUT

MOUNT PLATE WITH 3 SCREWS

HARDWIRE

GROUND

LOOP 1 OR 2

N.C.

LOOP

HARDWIRE LOOPS NEED TO BE PROGRAMMED FOR CONTACT TYPE

HARDWIRE

LOOP 1 OR 2

N.O.

LOOP

GROUND

HARDWIRE LOOP WIRING EXAMPLES

HARDWIRE

2.2K EOLR

EOL LOOP

LOOP 1 OR 2

GROUND

N.C.

Figure 9. Hardwired Loop Wiring

HARDWIRE

LOOP 1 OR 2

N.O.

2.2K EOLR

N.O.

EOL LOOP

GROUND

HARDWIRE

LOOP 1 OR 2

N.C.

N.O.

2.2K EOLR

MIXED

EOL LOOP

GROUND

Remote Alarm Sounder

The Control Panel provides two terminals for an optional connection to a remote electronic alarm sounder. DO NOT CONNECT AN ELECTROMECHANICAL BELL TO THESE TERMINALS. The bell terminals can be supervised. If bell trouble reporting is enabled and the wire between the Control Panel and sounder is cut, the Control Panel will report bell trouble.

1. Install the remote sounder in a secure location where it can easily be

heard.

2. Route wiring from the remote sounder location to the Control Panel’s wall

cutout.

Solid State Output

The Control Panel provides one solid state output that can be programmed to activate during various conditions. The output can switch up to 250 Ma @ 16 VDC to ground. Refer to Figure 11 for examples of devices wired to the output.

This output will only function while the Control Panel is receiving power from the wall power supply.

1. Install the device to be controlled by the solid state output.

2. Route wiring from the device location to the Control Panel’s wall cutout.

➜ WARNING: Do not connect an electromechanical bell to these

terminals. Damage to the output will occur.

Communicator Telephone Line Both an incoming telephone line and an outgoing telephone line

will be connected to the Control Panel. When the communicator activates, all local telephones will be disconnected to prevent an off-hook telephone on the premises from blocking the communicator’s call. See Figure 12 for RJ31X jack wiring details.

1. Run a 4-conductor telephone cable from the telephone company

demarcation box to the Control Panel mounting plate.

2. At the demarcation box, disconnect the house telephones that are

wired to the box output. DO NOT DISTURB THE TELCO INPUT

“DROP” SIDE OF THE BOX OR ANY EARTH GROUNDS.

3. At the demarcation box, connect the RED cable wire to the

box RING, and the GREEN cable wire to the box TIP.

4. At the demarcation box, connect the BLACK cable wire

to the house telephone RING wire(s), and the YELLOW cable wire to the house telephone TIP wire(s).

5. At the Control Panel, connect the cable’s RED wire to

the RJ31X jack’s RING IN terminal, and the GREEN wire to the RJ31X jack’s TIP IN terminal.

6. At the Control Panel, connect the cable’s BLACK wire to

the RJ31X jack’s RING OUT terminal, and the YELLOW wire to the RJ31X jack’s TIP OUT terminal.

7. Snap the cover on the jack. Plug one end of the modular cable into the

jack and slide it through the hole in the mounting plate into the wall.

THE BELL OUTPUT CAN BE PROGRAMMED FOR SUPERVISION TO DETECT IF THE WIRE TO THE BELL IS CUT

SUPERVISED BELL OUTPUT

PIEZO SIREN

USE SOLID STATE SOUNDERS ONLY DO NOT CONNECT TO AN ELECTROMECHANICAL BELL !!!

6-12 VDC @ 120 mA MAXIMUM

Figure 10. Remote Sounder Wiring

OPEN COLLECTOR OUTPUT 250 mA @ 16 VDC MAXIMUM

OUTPUT SWITCHES TO GROUND WHEN ACTIVATED

1 K LED

EXAMPLE HOOKUP SHOWING AN ARMED LED, THE OPEN COLLECTOR OUTPUT CAN BE PROGRAMMED TO ACTIVATE DURING VARIOUS CONDITIONS

NOTE: FOR ETL LISTING, AN EXTERNAL DC BACKUP POWER SUPPLY IS REQUIRED FOR A LOAD CONNECTED TO TERMINAL 4

Figure 11. Solid State Output Wiring

RED (RING IN)

GREEN (TIP IN)

RJ31X

TELEPHONE

JACK

BLACK (RING OUT)

YELLOW (TIP OUT)

PLUG CABLE

FROM CONTROL

PANEL INTO JACK

Installation

8 - HARDWIRE LOOP 2

7 - HARDWIRE LOOP 1

6 - BELL (-)

5 - BELL (+)

4 - OPEN COLLECTOR OUTPUT

3 - GROUND

2 - 14 VDC POWER INPUT (-)

1 - 14 VDC POWER INPUT (+)

8 - HARDWIRE LOOP 2

7 - HARDWIRE LOOP 1

6 - BELL (-)

5 - BELL (+)

4 - OPEN COLLECTOR OUTPUT

3 - GROUND

2 - 14 VDC POWER INPUT (-)

1 - 14 VDC POWER INPUT (+)

NOTE: TERMINAL 1 WILL ONLY PROVIDE DC POWER WHEN THE CONTROL PANEL'S POWER SUPPLY IS CONNECTED TO AN AC POWER SOURCE

INCOMING TELEPHONE LINE FROM DEMARCATION BOX

IMPORTANT !

FOR PROPER LINE SEIZURE, ALL HOUSE TELEPHONE CONNECTIONS MUST PASS THROUGH THE RJ31X JACK

OUTGOING TELEPHONE LINE TO HOUSE TELEPHONES

CONTROL PANEL

TELEPHONE JACK

PLUG CABLE

FROM JACK

INTO CONTROL

PANEL

Figure 12. Telephone Jack Wiring

Installation

Optional GSM Module Installation

If using the optional GSM module and one of the GSM antennas. Refer to the following steps:

1. Plug the GSM module into the connector on the Control Panel’s circuit

board. Secure it with the two screws.

2A. If using the Model 2GIG-ANT1 internal antenna, remove the antenna

access cover. Route the antenna lead through the opening in the case and place the ﬂ at antenna into the slot. Route the antenna wire under the clip behind the speaker and plug the antenna connector into the GSM module. Replace the antenna access cover. See Figure 13.

✓ NOTE: The routing of the GSM antenna wire is very critical.

Route the wire as directed or GSM radio interference will occur inside the Control Panel.

2B. If using one of the external antennas, simply plug the antenna connector

into the GSM module. The antenna will drop into the wall or mount in the attic with the cable passing through the slot in the Control Panel’s mounting plate. See Figures 14 & 15.

✓ NOTE: The GSM SIM card should have been pre-activated by

the factory; if not, contact your service provider. For the GSM module to function with the system, it will have to be activated before it can be enrolled by creating an account with the service provider.

PLUG GSM MODULE INTO CONTROL PANEL

PRY OPEN ANTENNA ACCESS COVER

PLACE ANTENNA INTO SLOT AS SHOWN

ANTENNA HANGS DOWN INSIDE WALL

GSM CONNECTOR

ROUTE GSM ANTENNA CABLE

EXACTLY AS SHOWN !!!

SECURE GSM MODULE WITH TWO SCREWS

ROUTE GSM ANTENNA CABLE

EXACTLY AS SHOWN !!!

Figure 13. Optional GSM Module Installation

2GIG-ANT2X GSM ANTENNA

MOUNTED AS HIGH AS POSSIBLE

2GIG-ANT1X

ANTENNA

Figure 14. ANT1X In-wall GSM Antenna Installation

COAX TO CONTROL PANEL

Figure 15. ANT2X Attic GSM Antenna Installation

Control Panel Wiring

The Control Panel includes a “third hand” plastic strap that allows the unit to hang on the mounting plate during installation.

1. Hang the Control Panel on the mounting plate using

the “third hand” strap (see Figure 16).

2. Connect the hardwire loop, external sounder, and open collector

output wiring (if used ) to the Control Panel’s terminal block.

3. Plug the telephone line (if used ) into the connector

on the Control Panel’s circuit board.

Backup Battery Connection and Power Supply Wiring

The backup battery connects to the Control Panel’s circuit board with a two-pin header assembly.

The power supply features a two-position terminal block for connecting the power supply to the Control Panel power terminals (connection wire not included).

1. Determine a good location where there’s a 120 VAC outlet for the

plug-in power supply. The 120 VAC outlet must be un-switched (an outlet not controlled by a wall switch). DO NOT CONNECT THE POWER

SUPPLY TO A RECEPTACLE CONTROLLED BY A SWITCH.

2. Route 2-conductor 18 AWG wire from the power supply

location to the Control Panel mounting plate.

3. BEING CAREFUL TO OBSERVE POLARITY, connect the

power supply’s DC + and DC - terminals to the 18 AWG wire. DO NOT PLUG IN THE POWER SUPPLY YET.

4. BEING CAREFUL TO OBSERVE POLARITY, connect the

18 AWG wire to the Control Panel +14 VDC Terminal #1 (+) and -14 VDC Terminal #2 (-) power input terminals.

✓ NOTE: Grounding of the Control Panel is NOT required for

proper operation.

5. Plug the backup battery pack’s connector into the connector

on the Control Panel’s circuit board. (The Control Panel will not recognize that the battery is connected until AC power is connected to the power supply.)

★ IMPORTANT: Applicable regulatory agencies require

installation of the extended life backup battery (P/N 2GIG-BATT1X) inside the Control Panel for UL985 Household Fire applications.

HANG CONSOLE ON STRAP

CONNECT HARDWIRE LOOPS, EXTERNAL SOUNDER, AND OPEN COLLECTOR OUTPUT TO TERMINALS

Figure 16. Control Panel Mounting

POWER SUPPLY

LEFT

TERMINAL

+ 14 VDC

Installation

PLUG TELEPHONE LINE INTO TELEPHONE JACK

TERMINAL #2

- 14 VDC

RIGHT

TERMINAL

- 14 VDC

Figure 17. Power Supply Wiring

CONNECT BATTERY

TERMINAL #1

+ 14 VDC

OBSERVE POLARITY WHEN CONNECTING THE POWER SUPPLY!!!

CONTROL PANEL

TERMINALS

SWING CONSOLE UP AND SNAP ONTO THE MOUNTING PLATE

Control Panel and Power Supply Mounting

With all the wiring complete, the Control Panel is ready to power up.

1. Swing the Control Panel up, placing the bottom over the lip of the

mounting bracket. Push the top of the Control Panel into the mounting bracket until it snaps into place, then secure it with the retaining screw.

2. Peel off the adhesive backing from the power supply retaining bracket

and attach the bracket to the outlet with a wall plate screw. Note the orientation for a standard or Decora style outlet (see Figure 19).

3. Spread the retaining bracket ears and plug the Control Panel’s

power supply into the un-switched 120 VAC outlet. Slots are provided on the bracket to secure the power supply with a zip-tie.

4. After about ﬁ ve seconds, the Control Panel will indicate that

power has been applied. IF THE CONTROL PANEL DOES NOT

POWER UP, CHECK THE POWER SUPPLY POLARITY!!!

ALIGN MOUNTING PLATE INSIDE OF CONSOLE BOTTOM EDGE

Figure 18. Connecting Battery and Closing Panel

POWER SUPPLY

BRACKET INSTALLED FOR STANDARD STYLE OUTLET

POWER SUPPLY

BRACKET INSTALLED FOR DECORA STYLE OUTLET

Figure 19. Securing the Power Supply

AFTER INSTALLING, SECURE CONSOLE WITH SCREW IN RETAINING HOLE

Main Display Screens

The Control Panel is programmed and operated using the color touch-screen display. The display will show various buttons, indicators, and text to guide the installer and user.

Home Screen

The Home Screen is the top level screen. It shows the system status with icons to indicate system conditions. It also displays the time and date. System information scrolls along the top of the display. The Home Screen displays the SECURITY and HOME SERVICES buttons. When the system is operating, pressing the button on the Control Panel will display the Home Screen.

Security Screen

The Security Screen shows the system status and offers three buttons for ARM, MENU, and STATUS. It also displays the time and date. If messages, alarm, or trouble alerts are pending, the Security Screen will display buttons indicating the number of pending messages or issues.

Arming Screen

The Arming Screen is used to arm the security portion of the system. It displays the system status and arming buttons for STAY and AWAY.

Two option check box buttons for ENTRY DELAY and SILENT EXIT are displayed. To arm the system without an entry delay, un-check the ENTRY DELAY check box. To arm silently without sounding the Exit Delay beeps, check the SILENT EXIT check box. Stay Mode arming always has a silent exit.

Menu Screen

The Menu Screen shows the system status and offers buttons for ARM and TOOLBOX. If any of the 24-hour emergency options are enabled, an EMERGENCY button is displayed. Two option check box buttons for CHIME and VOICE are displayed.

Installer setup is accessed using the TOOLBOX button.

The CHIME button enables/disables chimes for the entire system (chimes can be independently enabled or disabled for each sensor number from the Toolbox).

The VOICE button enables/disables voice announcements for the entire system (voice announcements can be independently enabled or disabled for each sensor number from the Toolbox).

Voice announcements always sound during alarm conditions.

Figure 20. The Home Screen

Trouble Alert

Alarm Memory

Message

Figure 21. The Security Screen

Figure 22. The Arming Screen

Status Screen

The Status Screen lists system status and any alerts. The date and time of alerts are listed in the displayed log.

One option button for SILENCE is displayed; it temporarily stops the voice announcement of the system status during the status display.

Figure 23. The Menu Screen

Figure 24. The Status Screen

The Control Panel is programmed using the “toolbox” screens. Users can access basic programming functions. Installers can access basic and Installer Toolbox functions. Users and installers must enter a valid code to access the programming functions in the toolbox. Other functions do not require entering a code.

Toolbox Screens

From the Menu Screen, pressing the TOOLBOX button displays the Toolbox Screen one. The arrow button displays Toolbox Screens two and three. Each Toolbox Screen shows option buttons that display sub-menus.

Installer Code Entry Screen

The INSTALLER TOOLBOX button goes to the main programming area of the Control Panel and can only be accessed by the installer

while the system is disarmed by entering a correct access code. THE INSTALLER CODE CANNOT DISARM THE SYSTEM.

Installer Toolbox Screen

The Installer Toolbox Screen displays system setup and testing buttons. Main programming is accessed using the SYSTEM CONFIGURATION button. The other buttons support system tests and resetting the Control Panel to its programming default values.

System Conﬁ guration Screen

When the SYSTEM CONFIGURATION button is pressed, the Control Panel will display questions for each programming step. To help the installer program the Control Panel quickly, the programming questions are arranged so that the commonly set values appear early in the question order.

Toolbox Screens

Figure 25. Toolbox Screen One

Figure 26. Toolbox Screen Two

Figure 27. Toolbox Screen Three

Figure 28. Installer Toolbox Code Entry Screen

Figure 29. Installer Toolbox Screen

Figure 30. System Conﬁ guration Question “Q-1”

System Status Icons

The top line of the Control Panel’s display is the status bar that shows the current system mode, the status of the sensors, and any current system trouble alerts. Special icons are displayed to visually show the system’s current condition.

AC Power Icon

The AC power icon indicates the Control Panel’s AC line power status. The icon displays a white plug when the AC power is present; the icon will display with a red “X” over the white plug when AC power is absent.

Phone Line Failure Icon

If the Control Panel detects that the telephone line is disconnected, the phone line failure icon will be displayed.

STATUS BAR SHOWING

AC POWER IS ON

Figure 31. System Status Bar

AC POWER ON

Figure 32. AC Power Icons

PHONE LINE

AC POWER OFF

FAILURE

Sounder Disable Icon

If the system’s internal sounder has been lowered and external sounder has been disabled by the installer for testing, the sounder disable icon will be displayed.

Backup Battery Status Icon

If the Control Panel’s backup battery tests low, the low backup battery icon will be displayed.

Test Mode Icon

When the system is being tested in Walk Test Mode, the test mode icon will be displayed on the status bar.

Remote Installer Access Icon

When the system is being remotely accessed over the telephone by the PC downloader software, the remote installer access icon will be displayed on the status bar.

Figure 33. Phone Line Failure Icon

SOUNDER DISABLED

Figure 34. Sounder Disable Icon

LOW BACKUP

BATTERY

Figure 35. Backup Battery Status Icon

SYSTEM IN

TEST MODE

Figure 36. Test Mode Icon

REMOTE INSTALLER ACCESS IN

PROCESS

GSM Radio Icon

If the system’s optional GSM radio modem is installed, the GSM radio icon will be displayed while the Control Panel is receiving over-the-air ﬁ rmware updates.

Figure 37. Remote Access Icon

OVER-THE-AIR

UPDATE IN

PROCESS

Figure 38. GSM Radio Icon

When the installer is using the System Conﬁ guration menus, the Control Panel will present each programming question sequentially. Most programming questions have a single numeric value response or a simple enabled/disabled selection. Some programming questions have sub-options that can be set. These sub-options are displayed for the question selected and can be accessed through navigation keys on the display.

Navigation Arrows & Go To Button

The programming question screens display up, down, left, and right navigation arrows. They are used to move through the programming questions and sub-options.

The GO TO button is used to jump directly to a programming question. Pressing GO TO will prompt the installer for the two-digit question number to jump to. The GO TO button changes to CANCEL while waiting for a question number, press CANCEL to back out.

Questions without Sub-options

Most of the programming questions do not have sub-options. They navigate as follows. Questions without sub-options do not

display a SKIP button.

• The ↑ & ↓ arrows select the next or previous programming question.

• The ← & → arrows choose values for the question or move the cursor left

and right along the white data entry ﬁ eld.

Programming Navigation

Figure 39. Navigation Arrows & Go To Button

Figure 40. Questions without Sub-options

Questions with Sub-options

Some of the programming questions have sub-options. They navigate as follows. Questions with sub-options display a SKIP

button during the question.

• The SKIP button advances to the next programming question/section.

• The ↑ & ↓ arrows select the next or previous programming sub-question.

• The ← & → arrows choose values for the question or move the cursor left

and right along the white data entry ﬁ eld.

Questions with Data to Enter

Some of the programming questions require entering numeric or alphabetic data. For devices that can be named, the Control Panel contains a large vocabulary with words to choose from (see Pg. 19).

• The INSERT button displays a word from the vocabulary. The words can

be scrolled through using the ← & → arrows, or selected by entering their 3-digit index number.

• The BKSP (backspace) button moves the cursor to the left, deleting the data one character at a time.

• The DELETE button deletes any data characters that are highlighted.

• The FWD (forward) button highlights the next word in multi-word data ﬁ elds.

• The BACK button highlights the previous word in multi-word data ﬁ elds. The BACK button displays the previous screen in some cases.

• When the SHIFT button is displayed, pressing it will display alternate characters on the keypad that can be used for data entry.

Other Buttons Displayed

Depending on the programming question, other buttons may be displayed.

• The ESC (escape) button serves as an “undo”. Pressing ESC restores the value that was previously stored for the question or sub-question.

• The SUM (summary) button displays a summary of the values stored for the programming question and sub-options.

• The END button displays a summary of the values stored for the entire Control Panel memory.

• The LEARN button is used to set the system to receive a sensor’s serial number when transmitted during programming the wireless sensors.

• The PASTE button repeats the last sensor serial number entered.

• The EXIT button exits programming.

Figure 41. Questions with Sub-options

Figure 42. Questions with Data to Enter

Figure 43. Other Buttons Displayed

Programming Outline

Each system installed will require programming. Most installations being performed by the professional alarm installer for a speciﬁ c organization will have common values set in every Control Panel reporting to the same Central Station. Other programming values, such as the account number and sensor setup, will be unique for each installation.

Following is an outline to guide the professional alarm installer through the programming of the Control Panel.

If you don’t read anything else, read this outline!

Use the following outline in conjunction with this copy of the Installation and Programming Instructions to guide you through the installation.

Because of the many programming options available with this Control Panel, thoroughly reading this manual is very important. Understanding the Control Panel’s programming structure will help to save time during each installation.

At this stage, all the wireless and hardwired sensors should be installed, and the Control Panel should be mounted, connected, and powered-up.

1. Start at the Home Screen.

2. Press the Go!Control logo at the lower right corner of

the screen. (The Installer Toolbox can also be accessed via the second screen of the System Toolbox.)

3. Enter the Installer Code (default = 1561) to display the Installer Toolbox.

4. Press SYSTEM CONFIGURATION and begin

programming as described on Page 18.

5. USE THE INSTALLATION LOG SHEET TO RECORD

PROGRAMMED VALUES FOR THE SYSTEM.

6. After setting all the required programming values for the sensors and

the Control Panel, press END, then EXIT, to save the changes.

7. After the Control Panel restarts, press SECURITY, MENU,

TOOLBOX, then USER CODES. Enter the Master User Code

(default = 1111) and setup the user’s codes. Be sure to set a Duress Code as User #8. Press BACK when ﬁ nished.

8. Press BRIGHTNESS / VOLUME and set the levels for the installation.

The volume setting DOES NOT affect the volume of alarm sounds.

9. Press ➜ to view the second toolbox screen.

10. Press BACKLIGHT TIMEOUT and set the display lighting timeout.

11. Press SET DATE / TIME and set the clock and calendar. (If the GSM

module is installed, the date and time are set automatically.)

12. Press the

After all setup and programming, refer to the Operation and User’s Guide for details on operating the system. Check off the

programmed options for the system in the User’s Guide.

Be sure to instruct the subscriber on the proper operation of the system, and leave the User’s Guide at the installation site for reference.

SIA CP01 Defaults

Several system programmable options have the defaults pre-set to provide compliance with the Security Industry Association CP01 Standard. All other system settings and functions that are required to comply with SIA CP01 are permanently programmed into the Console and cannot be changed. Refer to the table for each programmable option that has a required SIA CP01 programming default.

button to return to the Home Screen.

Press logo to access

the Installer Toolbox

Figure 44. The Home Screen

Installer Toolbox can be

accessed here also

Figure 45. Toolbox Screen Two

Figure 46. Installer Toolbox Screen

Figure 47. System Conﬁ guration Question “Q-1”

PROGRAMMING QUESTION SIA CP01 DEFAULT RANGE

Q-1 Wireless Sensor Dialer Delay 30 Seconds On or Off

Q-2 Wired Sensor Dialer Delay 30 Seconds On or Off

Q-5 Exit Delay 60 Seconds 45-120 Seconds

Q-6 Entry Delay #1 30 Seconds 30-240 Seconds

Q-7 Entry Delay #2 45 Seconds 30-240 Seconds

Q-10 Call Waiting Disable Code No Default Code 0-6 Digits

Q-20 Swinger Shutdown Count 1 Trip 1-2 Trips

Q-26 Auto Stay Enabled Enabled or Disabled

Q-27 Exit Delay Restart Enabled Enabled or Disabled

Q-31 Cancel Time 5 Minutes 6-254 Minutes

Q-32 Cancel Display Enabled Enabled or Disabled

Q-35 Abort Window Dialer Delay 30 Seconds 15 or 45 Seconds

Programming Question Table

Q # QUESTION DEFAULT

Q-1

Select RF sensor # (01-48)

Select RF sensor (#) type (00) unused

Select RF sensor (#) equipment type

Select RF sensor (#) equipment code (0000) other

Enter RF sensor (#) other equipment code (0-9999) 0 (Only shown if other is selected)

Enter RF sensor (#) serial number (7 digits) 0000000

Select RF sensor (#) equipment age (0-1) (0) new

Select RF sensor (#) loop number (1-3) Varies with sensor model selected

Select RF sensor (#) dialer delay (0-1) ‡ (1) enabled (except for ﬁ re & CO)

Q-1 SUB-QUESTIONS

Construct RF sensor (#) voice descriptor No default

Select RF sensor (#) reports (0-1) (1) enabled

Select RF sensor (#) supervised (0-1) (1) enabled

Select RF sensor (#) chime (0-5) (0) disabled

Q-2

Select wired sensor # (1-2)

Select wired sensor (#) type (00) unused

Select wired sensor (#) equipment type

Enter wired sensor (#) equipment code (0-9999) 0

Select wired sensor (#) equipment age (0-1) (0) new

Select wired sensor (#) normal state (0) not used

Select wired sensor (#) dialer delay (0-1) ‡ (1) enabled

Construct wired sensor (#) voice descriptor No default

Q-2 SUB-QUESTIONS

Select wired sensor (#) reports (0-1) (1) enabled

Select wired sensor (#) chime (0-5) (0) disabled

Q-3

Select fob # (1-8)

Select fob (#) used (0-1) (0) unused

Select fob (#) equipment code (0000) (0000) other

Enter fob (#) other equipment code (0-9999) 0 (Only shown if other is selected)

Enter fob (#) serial number (7 digits) 0000000

Select fob (#) equipment age (0-1) (0) new

Select fob (#) emergency key (0-4) (0) disabled

Select fob (#) key 2 can disarm (0-1) (1) enabled

Q-3 SUB-QUESTIONS

Construct fob (#) voice descriptor keyfob #

Select fob (#) arm no delay (0-1) (0) disabled

Select fob (#) key 4 output (0-2) (0) disabled

Q-4

Select RF keypad # (1-4)

Select RF keypad (#) used (0-1) (0) unused

Select RF keypad (#) equipment code (0000) other

Enter RF keypad (#) other equipment code (0-9999) 0 (Only shown if other is selected)

Enter RF keypad (#) serial number (7 digits) 0000000

Select RF keypad (#) equipment age (0-1) (0) new

Select RF keypad (#) emergency keys (0-1) (1) enabled

Q-4 SUB-QUESTIONS

Construct RF keypad (#) voice descriptor keypad #

Q-5

Enter exit delay, in seconds (45-120) ‡ 60 seconds

Q-6

Enter entry delay 1, in seconds (30-240) ‡ 30 seconds

Q-7

Enter entry delay 2, in seconds (30-240) ‡ 45 seconds

Q-8

Select dialer (0-1) (0) disabled

Q-9

Enter dialing preﬁ x (0-4 digits) No default

Q-10

Enter call waiting disable code (0-6 digits) ‡ No default

Q-11

Enter CS #1 phone number (0-25 digits) No default

Q-12

Enter CS #1 account number (4 digits) No default

Q-13

Select 2-way voice (0-1) (1) stay on line

Q-14

Select silent panic/burglary listen only (0-1) (1) enabled

Q-15

Select dialing type (0-1) (0) touch tone

Q-16

Select police emergency key (0-2) (1) audible

Q-17

Select ﬁ re emergency key (0-1) (1) audible

Q-18

Select emergency key (0-1) (1) audible

Q-19

Select quick arming (0-1) (1) enabled

Q-20

Select swinger shutdown count (1-2) ‡ (1) one trip

Q-21

Select siren supervision time (0-3) (0) disabled

Q-22

Enter CS lack of usage notiﬁ cation time (0-255) 7 Days

Q-23

Enter radio modem network failure time (0-255) 30 minutes

Varies by RF sensor type (Only shown for some sensor types)

Varies by wired sensor type (Only shown for some sensor types)

Q # QUESTION DEFAULT

Q-24

Select radio modem network failure causes trouble (0-1) (1) enabled

Q-25

Select radio modem network failure reports (0-1) (1) enabled

Q-26

Select auto stay (0-1) ‡ (1) enabled

Q-27

Select exit delay restart (0-1) ‡ (1) enabled

Q-28

Select quick exit (0-1) (1) enabled

Q-29

Enter periodic test, in days (0-255) 30 days

Q-30

Enter offset for periodic test start (0-24) (6) 6 hours

Q-31

Enter cancel time, in minutes (5-255) ‡ 5 minutes

Q-32

Select cancel display (0-1) ‡ (1) enabled

Q-33

Select cross sensor 47-48 (0-1) (0) disabled

Q-34

Enter cross sensor timeout, in seconds (10-120) 10 seconds

Q-35

Select abort window dialer delay (0-2) ‡ (1) 30 seconds

Q-36

Select burglary bell cutoff (0-4) (0) 4 minutes

Q-37

Select ﬁ re bell cutoff (0-4) (0) 4 minutes

Q-38

Enter time to detect AC loss, in minutes (0-30) 10 minutes

Q-39

Select random AC loss report time (0-1) (1) enabled

Q-40

Enter CS #2 phone number (0-25 digits) No default

Q-41

Enter CS #2 account number (4 digits) No default

Q-42

Select remote control phone (0-3) (3) data and voice

Q-43

Enter installer code (4 digits) 1561

Q-44

Select lock installer programming (0-2) (0) disabled

Q-45

Select lock default programming (0-2) (0) default all

Q-46

Select trouble doesn’t sound at night (0-1) ♦

Q-47

Select trouble resound after holdoff (0-7) (0) disabled

Q-48

Enter download csid (6 digits) 000000

Q-49

Select programming mode entry reports to CS (0-1) (0) disabled

Q-50

Select trouble reports to CS (0-1) (1) enabled

Q-51

Select manual bypass reports to CS (0-1) (0) disabled

Q-52

Select AC loss reports to CS (0-1) (1) enabled

Q-53

Select system low battery reports to CS (0-1) (1) enabled

Q-54

Select RF low battery reports to CS (0-1) (1) enabled

Q-55

Select opening reports to CS (0-1) (0) disabled

Q-56

Select closing reports to CS (0-1) (0) disabled

Q-57

Select alarm restore reports to CS (0-1) (0) disabled

Q-58

Select trouble restore reports to CS (0-1) (1) enabled

Q-59

Select bypass restores reports to CS (0-1) (0) disabled

Q-60

Select AC restore reports to CS (0-1) (1) enabled

Q-61

Select system low battery restore reports to CS (0-1) (1) enabled

Q-62

Select RF low battery restores reports to CS (0-1) (1) enabled

Q-63

Select phone fail detect (0-1) (0) disabled

Q-64

Select smart test reports (0-1) (0) disabled

Q-65

Select RF jam causes trouble (0-1) (0) disabled

Q-66

Select daylight saving (0-1) (1) enabled

Q-67

Select daylight saving start month (01-12) (03) March

Q-68

Select daylight saving start Sunday (1-7) (2) 2nd

Q-69

Select daylight saving end month (01-12) (11) November

Q-70

Select daylight saving end Sunday (1-7) (1) 1st

Q-71

Select system tamper causes trouble (0-1) (1) enabled

Q-72

Select quick bypass (0-1) (0) disabled

Q-73

Select disarming keyfob after alarm (alert) (0-1) (0) disabled

Q-74

Select keyfob arm / disarm conﬁ rmation (0-1) (0) disabled

Q-75

Select auto unbypass for manual bypass (0-1) (1) enabled

Q-76

Select force bypass reports (0-1) (0) disabled

Q-77

Select event log (0-3) (3) all events

Q-78

Select output (00-10) ‡

Q-79

Select Z-Wave feature (0-3) (1) disabled but visible

Q-80

Select Z-Wave switches feature (0-1) (0) disabled

Q-81

Select Z-Wave thermostats feature (0-1) (0) disabled

Q-82

Select temperature display units (0-1) (0) degrees Fahrenheit

‡ Default set for SIA CP01 compliance

♦ For UL985 Installations, this feature mus t be disabled

(1) enabled

(11) follows internal sounder alarm and status

System Sensor Types

Each sensor (wireless or wired) installed in the system is programmed to a speciﬁ c sensor number and sensor type ( zone).

The sensor number identiﬁ es the speciﬁ c sensor when it is displayed on the Control Panel, recorded in the event log, or reported to the Central Station. This allows pin-point information about any sensor in the system.

The sensor type determines how and when the Control Panel responds to signals from the sensor. Some sensors are armed all the time, others are armed only in certain arming levels, some cause Central Station reports any time they are activated. The sensor’s type, along with other programming options, determine this.

Sensor Types (Zones)

(00) Unused

This is the setting for unused sensor numbers that do not have a sensor programmed into them. No system action occurs at any time from this sensor type.

(01) Exit/Entry 1

This sensor type is reserved for doors that are used for exit and entry of the protected premises. When the system is armed in the Away Mode or Stay Mode, the Exit Delay timer starts. There is an Exit Delay regardless of whether the system is armed in Stay Mode or Away Mode. When the Exit Delay timer expires, the system is fully armed.

With the system fully armed, when this type of sensor is triggered, the Entry Delay #1 timer starts. The system must be disarmed before the Entry Delay #1 time expires, or an alarm will occur.

If the Entry Delay is turned off during arming, the exit/entry delay sensors will act as non-delayed instant sensors at the end of Exit Delay.

(02) Exit/Entry 2

This sensor type operates the same as the Exit/Entry 1 sensor type except it will start the Entry Delay #2 timer. This provides a method of having a longer Entry Delay on certain openings, such as a garage door, to provide the user more time to disarm the system.

(03) Perimeter

This sensor type is for perimeter doors and windows that will not be used to enter or exit the protected premises while the system is armed.

An instant alarm will occur when this type of sensor is triggered with the system armed in either the Stay Mode or Away Mode.

(04) Interior Follower

This sensor type is for interior sensors such as motion detectors, mat switches, interior doors, and other sensors that detect human presence inside the protected premises.

This type of sensor is called a “follower” due to its action when the system is armed in the Away Mode. After the Exit Delay expires and the system is armed, if an interior follower sensor is triggered, an instant alarm will occur. If an exit/entry delay sensor is triggered ﬁ rst, the interior follower sensor will also be delayed.

Interior follower sensors are always bypassed and not active when the system is armed in Stay Mode. This allows the premises to be occupied while still protecting the perimeter.

(05) Day Zone

This sensor type is the same as a perimeter zone, except when the system is disarmed, a violation displays a trouble alert on the Console’s display.

Common uses for this sensor type are protection of sensitive areas that require notiﬁ cation and possibly a Central Station trouble report, but not an alarm when the system is disarmed.

(06) 24-hour Silent Alarm

This sensor type is active independent of the system arming status. The code for silent panic is sent to the Central Station, but for safety, there are no visual or audible indications locally that this sensor type has been triggered.

(07) 24-hour Audible Alarm

This sensor type is continuously armed 24-hours a day. A sensor programmed to this type will trigger a local alarm and the bell output regardless of the mode the system is in. Typical use would be an audible panic alarm.

(08) 24-hour Auxiliary Alarm

This sensor type is continuously armed 24-hours a day. A sensor programmed to this type will trigger an alarm regardless of the mode the system is in. The bell output will not activate, but the local sounder will continue until it’s acknowledged at the Control Panel. Typical use would be for a monitoring device such as a ﬂ ood or temperature sensor. There is no timeout for the internal sounder, it will continue until a User Code is entered.

(09) 24-hour Fire †

This sensor type is continuously armed 24-hours a day. A sensor programmed to this type will trigger the local alarm ﬁ re sounder and the bell output regardless of the mode the system is in. Typical use would be for wireless smoke detectors. This sensor type is always active and cannot be bypassed.

(10) Interior with Delay

This sensor type operates as a delayed sensor when the system is armed in the Away Mode, and when triggered, will start the Entry Delay #1 timer. If the system is armed in Away Mode with no Entry Delay (armed instant), this sensor type will trigger an instant alarm.

If the system is armed in Stay Mode (or Stay Mode with no Entry Delay), this sensor type will be bypassed.

(14) 24-hour Carbon Monoxide †

This sensor type is continuously armed 24-hours a day. A sensor programmed to this type will trigger the local alarm pulse sounder and the bell output regardless of the mode the system is in. Typical use would be for wireless carbon monoxide detectors. This sensor type is always active and cannot be bypassed.

(16) 24-hour Fire with Veriﬁ cation †

This sensor type is continuously armed 24-hours a day. A sensor programmed to this type can trigger the local alarm ﬁ re sounder and the bell output regardless of the mode the system is in. Typical use would be for wireless smoke detectors. This sensor type is always active and cannot be bypassed.

For veriﬁ cation, this sensor type must be violated twice in two minutes, or remain violated for 30 seconds. If any other ﬁ re sensor (veriﬁ ed sensor type or not) violates within two minutes, both sensors will cause a ﬁ re alarm.

(23) No Response Type

This sensor type is a special zone that can be monitored for activity or inactivity by the Central Station. It does not affect security system status.

(24) Silent Burglary

This sensor type is for silent triggering the burglary alarm with perimeter doors and windows that will not be used to enter or exit the protected premises while the system is armed. The Control Panel’s sounder and the bell output will not activate.

An instant silent alarm will occur when this type of sensor is triggered with the system armed in either the Stay Mode or Away Mode.

† Indicates Sensor types that are not allowed for hardwired loops.

System Vocabulary Table

# WORD

002

ABORT

003

004

ACCESS

005

ALARM

006

AND

007

ANNOUNCEMENT

008

AREA

009

ARM

010

ARMED

011

ARMING

012

013

ATTIC

014

AUDIO

015

AUTO

016

AUTOMATION

017

AUXILIARY

018

AWAY

019

BABY’S

020

BACK

021

BASEMENT

022

BATHROOM

023

BATTERY

024

BEDROOM

025

BONUS

026

BREAK

027

BUTTON

028

BYPASS

029

BYPASSED

030

CABINET

031

CANCEL

032

CARBON MONOXIDE

033

CELLAR

034

CELLULAR

035

CELL RADIO

036

CENTER

037

CHECK

038

CHEST

039

CHILDREN’S

040

CHIME

041

CLOSET

042

CODE

043

COMMUNICATIONS

044

COMPUTER

045

CONTROL

046

COOL

047

CRAWL

048

CURRENT

049

DAY

050

DEGREES

051

DEN

052

DETECTOR

053

DIM

054

DINING

055

DISARM

056

DISARMED

057

DOCK

058

DOOR

059

DOWNSTAIRS

060

DRIVEWAY

061

EAST

062

EIGHT

063

EIGHTEEN

064

EIGHTY

065

ELECTRIC

# WORD

066

ELEVEN

067

EMERGENCY

068

ENTER

069

ENTRANCE

070

ENTRY

071

ERROR

072

EXERCISE

073

EXIT

074

EXIT NOW

075

EXTERIOR

076

EXTERNAL

077

FAILURE

078

FAMILY

079

FAN

080

FIFTEEN

081

FIFTY

082

FIRE

083

FIRE ALERT

084

FIRE DETECTOR

085

FIRST

086

FIVE

087

FLOOD

088

FLOOR

089

FLUID

090

FOIL

091

FOR

092

FORTY

093

FOUR

094

FOURTEEN

095

FOURTH

096

FREEZE

097

FREEZER

098

FRONT

099

FURNACE

100

GAME

101

GARAGE

102

GAS

103

GLASS

104

GLASS BREAK

105

GUEST

106

GUN

107

HALL

108

HALLWAY

109

HANGING

110

HANG UP

111

HEAT

112

HIGH

113

HOME

114

HOUSE

115

ICE

116

INSIDE

117

INSTANT

118

INTERIOR

119

INTRUSION

120

121

KEY

122

KEYFOB

123

KEYPAD

124

KIDS

125

KITCHEN

126

LAUNDRY

127

LEFT

128

LEVEL

129

LIBRARY

# WORD

130

LIGHT

131

LIGHTS

132

LIQUOR

133

LIVING

134

135

LOCK

136

LOFT

137

LOW

138

MAIN

139

MAINTENANCE

140

MASTER

141

MEDICAL

142

MEDICINE

143

144

MIDDLE

145

MONITOR

146

MOTION

147

MOTION DETECTOR

148

MUD

149

NINE

150

NINETEEN

151

NINETY

152

NORTH

153

NOT

154

NOT READY

155

NO DELAY

156

NO ENTRY DELAY

157

NURSERY

158

OFF

159

OFFICE

160

161

ONE

162

ONE HUNDRED

163

OUTPUT

164

OUTSIDE

165

PANEL

166

PANIC

167

PANTRY

168

PATIO

169

PERIMETER

170

PHONE LINE

171

PLAY

172

POLICE

173

POOL

174

POUND

175

POWER

176

PRESS

177

178

PUMP

179

RADIO

180

READY

181

REAR

182

RELAY

183

REMOTE

184

REPEAT

185

RF JAM

186

RIGHT

187

ROOM

188

SAFE

189

SECOND

190

SECURITY

191

SENSOR

192

SENSORS

193

SESSION

# WORD

194

SET

195

SEVEN

196

SEVENTEEN

197

SEVENTY

198

SHED

199

SHOP

200

SIDE

201

SILENT

202

SIREN

203

SIX

204

SIXTEEN

205

SIXTY

206

SKYLIGHT

207

SLIDING

208

SMOKE

209

SOUNDER

210

SOUTH

211

SPACE

212

SPARE

213

STAIRS

214

STAR

215

STATUS

216

STAY

217

STOP

218

STORAGE

219

STUDY

220

SUMP

221

SUPERVISION

222

SYSTEM

223

TAMPER

224

TEMPERATURE

225

TEN

226

TERMINATED

227

THERMOSTAT

228

THIRD

229

THIRTEEN

230

THIRTY

231

THREE

232

233

TOOL

234

TRANSMITTED

235

TRANSMITTER

236

TROUBLE

237

TURN

238

TWELVE

239

TWENTY

240

TWO

241

UNLOCK

242

UPPER

243

UPSTAIRS

244

USER

245

UTILITY

246

VALV E

247

VOICE

248

WALL

249

WATER

250

WEST

251

WINDOW

252

WIRELESS

253

YARD

254

ZERO

255

ZONE

Installer Programming

RF Sensor Programming

RF Sensor Programming Outline

The Control Panel can be programmed with up to 48 RF sensors of different types. In addition to the 48 multi-purpose RF sensors, eight RF remote control key fobs and four RF remote control keypads can be programmed into the system.

Programming the RF sensors into the Control Panel involves selecting the sensor number for a particular device, selecting the RF sensor type, setting or learning the RF sensor’s serial number, and selecting the other options for the sensor.

• RF sensors #1 - #48 report as system sensors #1 - #48

Refer to Figure 48 for an outline of the steps required to program RF sensors into the Control Panel. The options that can be set for each RF sensor are:

• Sensor Number — Sensor number 01-48

• Sensor Type — Exit/entry, perimeter, interior, etc.

• Sensor Equipment Type — Certain sensor types will ask for equipment type

• Sensor Equipment Code — Sensor model (door/window, PIR, smoke detector, etc.)

• Sensor Other Equipment Code — Enter special equipment code (only shown for sensors set as “other”)

• Sensor Serial # — Serial number labeled on sensor; manually enter or “learn” by sending signal

• Sensor Equipment Age — New install or existing sensor

• Sensor Loop Number — Built-in contacts or external contacts on DW10 door/window sensor

• Sensor Dialer Delay — Delayed or instant

Q-1 SUB-QUESTIONS

communicator reports for the sensor (delay time is set by dialer abort window)

• Sensor Voice Descriptor — Name assigned to the sensor

• Sensor Reports — Communicator reports or no communicator reports for the sensor

• Sensor Supervised — Control Panel checks for status reports from the sensor, or does not check for status reports

• Sensor Chime — Select voice announcement and chime options for the sensor

Installer Programming

RF SENSOR PROGRAMMING (Q-1) OUTLINE

STEP DOWN

THROUGH OPTIONS

SELECT RF SENSOR #

FOR NEXT OPTIONPRESS

SELECT RF

SENSOR TYPE

FOR NEXT OPTIONPRESS

SELECT RF SENSOR

EQUIPMENT TYPE

(ONLY FOR SOME SENSOR TYPES)

FOR NEXT OPTIONPRESS

SELECT RF SENSOR

EQUIPMENT CODE

FOR NEXT OPTIONPRESS

ENTER RF SENSOR

OTHER EQUIPMENT CODE

(ONLY FOR "OTHER" EQUIPMENT)

FOR NEXT OPTIONPRESS

SELECT OPTION WITH

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

OR PRESS SKIP TO JUMP TO Q-2

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD

THESE KEYS

RF Sensor Summary Screen

After setting all the options for a sensor, the RF sensor summary screen is displayed. The screen can also be displayed for programmed sensors during RF sensor program editing by pressing the SUM button.

• The ← and → arrow buttons step through the RF sensor numbers.

• The EDIT CURRENT and EDIT NEXT buttons return to sensor programming.

• Pressing SKIP goes to question number Q-2 (wired sensor programming).

Figure 49. RF Sensor Summary Screen

ENTER RF SENSOR

SERIAL NUMBER

FOR NEXT OPTIONPRESS

SELECT RF SENSOR

EQUIPMENT AGE

PRESS

FOR NEXT OPTION

SELECT RF SENSOR

LOOP NUMBER

FOR NEXT OPTION

SELECT RF SENSOR

DIALER DELAY

FOR NEXT OPTION

CONSTRUCT RF SENSOR

VOICE DESCRIPTOR

FOR NEXT OPTION

SELECT RF SENSOR

REPORTS

FOR NEXT OPTION

ENTER ON KEYPAD OR PRESS

shift learn

THEN

AND SEND SIGNAL FROM SENSOR

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

insert

PRESS FOR EACH WORD

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

SELECT RF SENSOR

SUPERVISED

PRESS

SELECT RF SENSOR

CHIME

TO FINISH FOR THIS SENSOR, THENPRESS

FOR NEXT OPTION

ENTER ON KEYPAD OR PRESS

edit

Figure 48. RF Sensor Programming Outline

TO SELECT FROM LIST

FOR NEXT SENSOR, OR FOR Q2

skip

Installer Programming

RF Sensor Programming Steps

Q-1 Select RF sensor # (01-48)

Up to 48 wireless RF sensors can be used with each Control Panel. The options for each sensor are programmed with sub-option questions.

• Begin by entering the RF sensor number or

select it using the ← or → arrows.

• After selecting the sensor number, program the sensor details by

using the ↑ and ↓ arrows to select each of the sub-options.

✓ NOTE: To skip RF sensor programming, press SKIP to jump from

question Q-1 to question Q-2 (wired sensor programming).

Select RF sensor (#) type DEFAULT: Unused (00)

Each RF sensor needs to be assigned to a sensor type. The sensor type determines how and when the Control Panel responds to signals from the sensor.

Use this step to assign the sensor to a sensor type (zone).

• Select the sensor type that matches the sensor’s function using the

← or → arrows, or enter the sensor type number directly on the keypad.

SENSOR TYPES

(00) unused

(01) exit/entry 1

(02) exit/entry 2

(03) perimeter

(04) interior follower

(05) day zone

(06) 24-hour silent alarm

(07) 24-hour audible alarm

(08) 24-hour auxiliary alarm

(09) 24-hour ﬁ re

(10) interior with delay

(14) 24-hour carbon monoxide

(16) 24-hour ﬁ re with veriﬁ cation

(23) no response type

(24) silent burglary

Select RF sensor (#) equipment type DEFAULT: Varies by RF sensor type

✓ NOTE: This question is only displayed when certain sensor types are selected.

The equipment type selection will affect the sensor’s extended reporting code.

The following sensor types require equipment type selection:

Select RF sensor (#) equipment code DEFAULT: (0000) other

The equipment code is a 4-digit code that is assigned to the model of sensor being used. The Control Panel will display a list of sensor models and their associated 4-digit equipment code.

• Select the model of RF sensor being programmed for this

sensor number using the ← or → arrows, or enter the equipment code number directly on the keypad.

• Select “(0000) other” if the sensor model is not shown on the list. The equipment code for the sensor can be entered using the next sub-question.

SENSOR EQUIPMENT CODES

(0000) other

(0862) DW10-345 thin door/window contact

(0863) DW20R-345 recessed door contact

(0869) PIR1-345 PIR with pet immunity

(0864) GB1-345 glass break detector

(0895) SMKT2-345 GE smoke/heat detector (USA/Canada)

(0872) SMKE1-345 smoke detector (USA)

(0871) SMKE1-345C smoke detector (Canada)

(0868) PANIC1-345 panic button remote

(0860) CO1-345 CO detector (USA)

(0859) CO1-345C CO detector (Canada)

(0873) TAKE-345 takeover module

(0637) HW D/W “5816”

(0470) HW R-D/W “5818MNL”

(0533) HW PIR “5890”

(0530) HW PIR “5894PI”

(0519) HW Glass Break “5853”

(0589) HW Smoke “5808W3”

(0557) HW Heat Sensor “5809”

(0624) HW Flood Sensor “5821”

(0491) HW Panic Pendant “5802MN2”

(0655) Existing door/window contact

(0609) Existing motion detector

(0475) Existing glass break detector

(0616) Existing smoke detector

(0692) Existing CO detector

(0708) Existing heat sensor

(0556) Existing ﬂ ood/temp sensor

SENSOR TYPE EQUIPMENT TYPES AVAILABLE

(04) interior follower

(06) 24-hour silent alarm

(07) 24-hour audible alarm

(08) 24-hour auxiliary alarm

(10) interior with delay

(23) no response type

(1) = motion (2) = contact

(1) = contact (11) = emergency

(1) = contact (6) = freeze (8) = water

(10) = temperature (11) = emergency

(1) = motion (2) = contact

(1) = contact (2) = motion

• Select the equipment type that matches the sensor equipment using the

← or → arrows, or enter the equipment type number directly on the keypad.

Enter RF sensor (#) other equipment code (0-9999) DEFAULT: 0

✓ NOTE: This question is only displayed if “(0000) other”

is selected for a sensor’s equipment code.

The equipment code is a 4-digit code that is assigned to the model of sensor being used. If new equipment becomes available, the new equipment code should be entered here if the new equipment is not listed in the Sensor Equipment Codes table above.

• Enter the equipment code number directly on the keypad for the RF sensor. (Enter “0” if the new equipment code is unknown.)

Installer Programming

Enter RF sensor (#) serial number (7 digits) DEFAULT: 0000000

RF sensor serial numbers can be manually entered or learned from the sensor.

• For manual entry, enter the sensor number that was logged for the sensor being programmed. Use the SHIFT button to access alpha characters.

• For automatic entry, press SHIFT, then press LEARN. The Control Panel will wait for a sensor transmission. Trigger the sensor being programmed and the Control Panel will beep four times and learn the sensor’s serial number.

If the sensor being learned is already in memory, the Control Panel will display a sensor learning failure screen when the programming changes are being saved.

For certain sensors with more than two loops, the tamper switch must be used to send a signal to the Control Panel during sensor learning. First press of tamper switch will learn as Loop #1, the second press of tamper switch will learn as Loop #2, the third press of tamper switch will learn as Loop #3. Wait 15 seconds between each press of the tamper switch. The programmed loop number of the sensor in the Control Panel may need changing to suit the operation of the device. See the Installation Instructions of the sensor for details.

Select RF sensor (#) equipment age (0-1) DEFAULT: New (0)

The Control Panel can be used with new or existing RF sensors.

• If this RF sensor is new for the installation, leave the default of new (0).

• If this RF sensor is already installed, select existing (1).

✓ NOTE: If the RF sensor has more than one loop and is being

programmed into multiple sensor numbers to support the loops, set only one loop as “new” and the other loops as “existing”. This will prevent incorrect inventory of the installed sensors.

Construct RF sensor (#) voice descriptor DEFAULT: No default

The voice descriptors are the words the Control Panel will announce for this RF sensor if this sensor is programmed for voice annunciation. Up to ﬁ ve words are allowed.

• Press INSERT to place a word from the vocabulary into the data entry ﬁ eld.

• Use the ← or → arrows to scroll through the words, or enter the

word’s 3-digit index number (see vocabulary table on Page 19).

• Press INSERT again for the next word. Up to ﬁ ve words are allowed.

• To move between words, press the FWD and BACK buttons.

• To remove a word, press DELETE.

Select RF sensor (#) reports (0-1) DEFAULT: Enabled (1)

RF sensors can trigger a report to the Central Station or not.

• The default (1) enables reporting for this RF sensor number.

• To prevent reporting for this RF sensor number, select disabled (0).

Select RF sensor (#) supervised (0-1) DEFAULT: Enabled (1)

When a sensor is set to supervised, the Control Panel will expect regular timed signals from this sensor or else a sensor supervisory trouble alert will occur.

• The default (1) allows supervision for this RF sensor.

• To turn off supervision for this RF sensor, select disabled (0).

✓ NOTE: Portable sensors such as panic buttons should not be set as

supervised if the sensor will be removed from the premises at times.

Select RF sensor (#) loop number (1-3) DEFAULT: Varies with sensor model selected

2GIG-DW10 door/window sensors have two inputs: an internal magnetic contact and an external normally closed hardwired input. Either or both sensor inputs can be used. Some sensors have three loop inputs.

When using both the internal magnetic contact AND the external input, THE

MAGNETIC CONTACT AND THE EXTERNAL CONTACT NEED TO BE ASSIGNED A DIFFERENT RF SENSOR NUMBER. BOTH SENSOR NUMBERS WILL SHARE THE SAME SENSOR SERIAL NUMBER.

• When programming the sensor to use the built-in magnetic contact, set the loop number to (2).

• When programming the sensor to use its hardwired input, set the loop number as (1).

• When programming a 3-loop sensor to use an additional input, set the loop number as (3).

• When entering the sensor number for the sensor’s loop two or three, the PASTE button can be used to recall the last programmed sensor’s serial number. (The sensor number will be ﬁ lled in automatically if LEARN is used.)

Select RF sensor (#) dialer delay (0-1) DEFAULT: Enabled (1) (Required SIA CP01 Default)

RF sensors can trigger the communicator immediately or after a delay. The delay time is set by the abort window dialer delay programming question Q-35 (the default delay is 30 seconds).

• The default (1) causes delayed dialing for this RF sensor number.

• For immediate dialing for this RF sensor number, select disabled (0).

✓ NOTE: This setting for CO and smoke detectors is automatically set to

disabled (0), and this sub-question is skipped for these sensor types.

✓ NOTE: This default can be changed without affecting SIA CP01 compliance.

Select RF sensor (#) chime (0-5) DEFAULT: Disabled (0)

Each RF sensor can be set to sound a “ding-dong” chime and/or sound its voice descriptor when the sensor is triggered. This step determines the initial setting for the sensor. The end user can change the chime setting for sensors using CHIME SETUP in the User Toolbox.

• The default (0) disables the chime for this RF sensor.

• If a chime and/or voice is required for this RF sensor, choose one of the other chime options:

RF SENSOR CHIME

(0) disabled

(1) voice only

(2) voice with ding-dong #1

(3) ding-dong #2

(4) voice with ding-dong #2

(5) ding-dong #1

Installer Programming

Wired Sensor Programming

Wired Sensor Programming Outline

The Control Panel can be programmed with up to two wired sensors. The wired sensors are hardwired contact loops connected to the loop input terminals on the Control Panel’s terminal strip.

✓ NOTE: WIRED SENSORS CANNOT BE USED FOR A

CO OR FIRE SENSOR LOOP!!!

Programming the wired sensors into the Control Panel involves selecting the sensor number (1 or 2), selecting the wired sensor type, setting the equipment code, loop type (open, closed, or end-of-line resistor), and selecting the other options for the sensor.

• Wired sensors #1 & #2 report as system sensors #49 & #50

WIRED SENSOR REPORTING CODES

Wired sensor #1 Reports as sensor #49

Wired sensor #2 Reports as sensor #50

Refer to Figure 51 for an outline of the steps required to program wired sensors into the Control Panel. The options that can be set for each wired sensor are:

• Wired Sensor Number — Sensor number 1 or 2

• Wired Sensor Type — Exit/entry, perimeter, interior, etc.

• Wired Sensor Equipment Type — Certain sensor types will ask for equipment type

• Wired Sensor Equipment Code — 4-digit equipment code that matches installed sensor

• Wired Sensor Equipment Age — New install or existing sensor

• Wired Sensor Normal State — normally open, closed, or end-of-line resistor loop

• Wired Sensor Dialer Delay — Delayed or instant communicator reports for the sensor

Q-2 SUB-QUESTIONS

(delay time is set by dialer abort window)

• Wired Sensor Voice Descriptor — Name assigned to the sensor

• Wired Sensor Reports — Communicator reports or no communicator reports for the sensor

• Wired Sensor Chime — Select voice announcement and chime options for the sensor

Wired Sensor Summary Screen

After setting all the options for a sensor, the wired sensor summary screen is displayed. The screen can also be displayed for programmed sensors during wired sensor program editing by pressing the SUM button.

• The ← and → arrow buttons step through the wired sensor numbers.

• The EDIT CURRENT and EDIT NEXT buttons return to sensor programming.

• Pressing SKIP goes to question Q-3 (key fob programming).

WIRED SENSOR PROGRAMMING (Q-2) OUTLINE

STEP DOWN

THROUGH OPTIONS

SELECT WIRED SENSOR #

FOR NEXT OPTIONPRESS

SELECT WIRED

SENSOR TYPE

PRESS

SELECT WIRED SENSOR

(ONLY FOR SOME SENSOR TYPES)

ENTER WIRED SENSOR

PRESS

SELECT WIRED SENSOR

PRESS

SELECT WIRED SENSOR

PRESS

SELECT WIRED SENSOR

PRESS

CONSTRUCT WIRED SENSOR

PRESS

SELECT WIRED SENSOR

PRESS

FOR NEXT OPTION

EQUIPMENT TYPE

FOR NEXT OPTIONPRESS

EQUIPMENT CODE

FOR NEXT OPTION

EQUIPMENT AGE

FOR NEXT OPTION

NORMAL STATE

FOR NEXT OPTION

DIALER DELAY

FOR NEXT OPTION

VOICE DESCRIPTOR

FOR NEXT OPTION

REPORTS

FOR NEXT OPTION

SELECT OPTION WITH

THESE KEYS

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

OR PRESS SKIP TO JUMP TO Q-3

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

insert

PRESS FOR EACH WORD

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

Figure 50. Wired Sensor Summary Screen Figure 51. Wired Sensor Programming Outline

SELECT WIRED SENSOR

CHIME

TO FINISH FOR THIS SENSOR, THENPRESS

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

edit

FOR NEXT SENSOR, OR FOR Q3

skip

Installer Programming

Wired Sensor Programming Steps

Q-2 Select wired sensor # (1-2)

Two hardwired loops can be used as sensors with each Control Panel. The options for each wired sensor are programmed with sub-option questions.

• Begin by entering the wired sensor number or

select it using the ← or → arrows.

• After selecting the wired sensor number, program the wired sensor

details by using the ↑ and ↓ arrows to select each of the sub-options.

✓ NOTE: To skip wired sensor programming, press SKIP to jump

from question Q-2 to question Q-3 (RF key fob programming).

Select wired sensor (#) type DEFAULT: Unused (00)

Each wired sensor needs to be assigned to a sensor type.

• Select the sensor type that matches the wired sensor’s function using the

← or → arrows or enter the sensor type number directly on the keypad.

SENSOR TYPES

(00) unused

(01) exit/entry 1

(02) exit/entry 2

(03) perimeter

(04) interior follower

(05) day zone

(06) 24-hour silent alarm

(07) 24-hour audible alarm

(08) 24-hour auxiliary alarm

(10) interior with delay

(23) no response type

(24) silent burglary

Select wired sensor (#) equipment type DEFAULT: Varies by wired sensor type

✓ NOTE: This question is only displayed when certain sensor types are selected.

The equipment type selection will affect the sensor’s extended reporting code.

The following sensor types require equipment type selection:

(04) interior follower (1) = contact (2) = motion

SENSOR TYPE

(06) 24-hour silent alarm (1) = contact (11) = emergency

(07) 24-hour audible alarm (1) = contact (11) = emergency

(08) 24-hour auxiliary alarm

(10) interior with delay (1) = contact (2) = motion

(23) no response type (1) = contact (2) = motion

• Select the equipment type that matches the sensor equipment using the

← or → arrows, or enter the equipment type number directly on the keypad.

✓ NOTE: This Control Panel does not provide auxiliary accessory output power.

Connecting a hardwire PIR using equipment type “motion” will require an external stand-alone battery backed-up power supply for the PIR.

Select wired sensor (#) equipment code (0-9999) DEFAULT: (0)

The wired sensor equipment code deﬁ nes the sensor’s manufacturer and type.

• Enter the 4-digit equipment code for the sensor.

Select wired sensor (#) equipment age (0-1) DEFAULT: New (0)

The Control Panel can be used with new or existing wired sensors.

• If this wired sensor is new for the installation, leave the default of new (0).

• If this wired sensor is already installed, select existing (1).

EQUIPMENT TYPES AVAILABLE

(1) = contact (6) = freeze (8) = water (10) = temperature (11) = emergency

Select wired sensor (#) normal state DEFAULT: Not used (0)

The two hardwired loops can be wired for normally open (N/O) or normally closed (N/C) contacts, or for end-of-line (EOL) resistor.

• The default (0) disables this wired sensor.

• To use this wired sensor, select the way the loop is wired:

WIRED SENSOR NORMAL STATE

(0) not used

(1) closed

(2) open

(3) end-of-line resistor

Select wired sensor (#) dialer delay (0-1) DEFAULT: Enabled (1) (Required SIA CP01 Default)

Wired sensors can trigger the communicator immediately or after a delay. The delay time is set by the abort window dialer delay programming question Q-35 (the default delay is 30 seconds).

• The default (1) causes delayed dialing for this wired sensor number.

• For immediate dialing for this wired sensor number, select disabled (0).

✓ NOTE: This default can be changed without affecting SIA CP01 compliance.

Construct wired sensor (#) voice descriptor DEFAULT: No default

The voice descriptors are the words the Control Panel will announce for this wired sensor if this wired sensor is programmed for voice annunciation. Up to ﬁ ve words are allowed.

• Press INSERT to place a word from the vocabulary into the data entry ﬁ eld.

• Use the ← or → arrows to scroll through the words, or enter the

word’s 3-digit index number (see vocabulary table on Page 19).

• Press INSERT again for the next word. Up to ﬁ ve words are allowed.

• To move between words, press the FWD and BACK buttons.

• To remove a word, press DELETE.

Select wired sensor (#) reports (0-1) DEFAULT: Enabled (1)

Wired sensors can trigger a report to the Central Station or not.

• The default (1) enables reporting for this wired sensor number.

• To prevent reporting for this wired sensor number, select disabled (0).

Select wired sensor (#) chime (0-5) DEFAULT: (0) Disabled

Each wired sensor can be set to sound a “ding-dong” chime and/or sound its voice descriptor when the sensor is triggered.

• The default (0) disables the chime for this wired sensor.

• If a chime and/or voice is required for this wired sensor, choose one of the other chime options:

WIRED SENSOR CHIME

(0) disabled

(1) voice only

(2) voice with ding-dong #1

(3) ding-dong #2

(4) voice with ding-dong #2

(5) ding-dong #1

Installer Programming

RF Key Fob Programming

RF Key Fob Programming Outline

The Control Panel can be programmed with up to eight RF remote control key fobs.

Programming the RF key fobs into the Control Panel involves selecting the sensor number for a particular device, setting or learning the RF key fob’s serial number, and selecting the other options for the sensor.

• RF key fobs #1 - #8 report as system sensors #51 - #58 for opening/closing, emergency, and low battery reports.

RF KEY FOB REPORTING CODES

RF key fob #1 Reports as sensor #51

RF key fob #2 Reports as sensor #52

RF key fob #3 Reports as sensor #53

RF key fob #4 Reports as sensor #54

RF key fob #5 Reports as sensor #55

RF key fob #6 Reports as sensor #56

RF key fob #7 Reports as sensor #57

RF key fob #8 Reports as sensor #58

Refer to Figure 53 for an outline of the steps required to program RF key fobs into the Control Panel. The options that can be set for each RF key fob are:

• Key Fob Number — Key fob number 1-8

• Key Fob Used — Key fob used or not

• Key Fob Equipment Code — Key fob model

• Key Fob Other Equipment Code — Enter special

equipment code (only shown for key fobs set as “other”)

• Key Fob Serial # — Serial number labeled on key

fob; hand enter or “learn” by sending signal

• Key Fob Equipment Age — New unit or existing key fob

• Key Fob Emergency Key — Choose

function of double-press on top buttons

• Key Fob Can Disarm — Choose whether a

Q-3 SUB-QUESTIONS

key fob is allowed to disarm the system

• Key Fob Voice Descriptor — Name assigned to the key fob

• Key Fob Arm No Delay — Choose if key fob

will arm instantly without an Exit Delay

• Key Fob Key 4 Output — Select action

for key fob auxiliary button

RF Key Fob Summary Screen

After setting all the options for a sensor, the key fob summary screen is displayed. The screen can also be displayed for programmed key fobs during key fob program editing by pressing the SUM button.

• The ← and → arrow buttons step through the key fob numbers.

• The EDIT CURRENT and EDIT NEXT buttons return to key fob programming.

• Pressing SKIP goes to question Q-4 (RF keypad programming).

KEY FOB PROGRAMMING (Q-3) OUTLINE

STEP DOWN

THROUGH OPTIONS

ENTER ON KEYPAD OR PRESS

SELECT KEY FOB #

FOR NEXT OPTIONPRESS

SELECT KEY FOB

USED

PRESS

OTHER EQUIPMENT CODE

(ONLY FOR "OTHER" EQUIPMENT)

PRESS

FOR NEXT OPTION

SELECT KEY FOB

EQUIPMENT CODE

FOR NEXT OPTIONPRESS

ENTER KEY FOB

FOR NEXT OPTIONPRESS

ENTER KEY FOB

SERIAL NUMBER

FOR NEXT OPTION

SELECT KEY FOB EQUIPMENT AGE

FOR NEXT OPTION

SELECT KEY FOB

EMERGENCY KEY

FOR NEXT OPTION

SELECT KEY FOB

KEY 2 CAN DISARM

FOR NEXT OPTION

CONSTRUCT KEY FOB

VOICE DESCRIPTOR

FOR NEXT OPTION

SELECT KEY FOB

ARM NO DELAY

FOR NEXT OPTIONPRESS

OR PRESS SKIP TO JUMP TO Q-4

ENTER ON KEYPAD OR PRESS

AND SEND SIGNAL FROM SENSOR

ENTER ON KEYPAD OR PRESS

PRESS FOR EACH WORD

ENTER ON KEYPAD OR PRESS

SELECT OPTION WITH

THESE KEYS

TO SELECT FROM LIST

ENTER ON KEYPAD

shift learn

THEN

TO SELECT FROM LIST

insert

TO SELECT FROM LIST

Figure 52. Key Fob Summary Screen Figure 53. Key Fob Programming Outline

SELECT KEY FOB

KEY 4 OUTPUT

TO FINISH FOR THIS SENSOR, THENPRESS

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

edit

FOR NEXT SENSOR, OR FOR Q4

skip

Installer Programming

RF Key Fob Programming Steps

Q-3 Select fob # (1-8)

Up to eight wireless 4-button key fobs can be used with each Control Panel. Key fobs reports as sensors 51-58. The options for each fob are programmed with sub-option questions.

• Begin by entering the fob number or select it using the ← or → arrows.

• Program the key fobs by using ↑ and ↓ arrows to select the sub-options.

✓ NOTE: To skip RF key fob programming, press SKIP to jump from

question Q-3 to question Q-4 (RF keypad programming).

Select fob (#) used (0-1) DEFAULT: Unused (0)

Key fobs can be used with the Control Panel or not.

• The default (0) sets all key fobs as unused (0).

• To enable programming for this key fob, select used (1).

Select key fob (#) equipment code (0-9999) DEFAULT: (0000) other

The key fob equipment code deﬁ nes the sensor’s manufacturer and type.

• The default is (0000) other.

• Select (0866) KEY1-345 4-button keyfob remote for a 2GIG-KEY1 key fob remote.

• Select (0577) Existing keyfob remote for an existing key fob remote.

✓ NOTE: Only 2GIG-KEY1 key fobs can be used with this system.

Enter key fob (#) other equipment code (0-9999) DEFAULT: 0

✓ NOTE: This question is only displayed if “(0000) other”

is selected for a key fob’s equipment code.

The equipment code is a 4-digit code that is assigned to the model of key fob being used.

• Enter the equipment code number for the key fob.

Enter fob (#) serial number (7 digits) DEFAULT: 0000000

Key fob serial numbers can be manually entered or learned from the fob.

• For manual entry, enter the fob number that was logged for the fob being programmed. Use the SHIFT button to access alpha characters.

• For automatic entry, press SHIFT, then press LEARN. The Control Panel will wait for a fob transmission. Trigger the fob being programmed and the Control Panel will learn the fob’s serial number.

Select fob (#) equipment age (0-1) DEFAULT: New (0)

The Control Panel can be used with new or existing key fobs.

• If this fob is new for the installation, leave the default of new (0).

• If this fob is already installed, select existing (1).

Select fob (#) emergency key (0-4) DEFAULT: Disabled (0)

Pressing the and buttons on a key fob at the same time for ﬁ ve seconds can trigger an emergency alarm.

• The default (0) disables the emergency function for this fob.

• To enable the emergency function for this fob, select one of the four options:

FOB EMERGENCY KEY FUNCTION

(0) disabled

(1) auxiliary alarm

(2) audible alarm

(3) silent panic

(4) ﬁ re

Select fob (#) key 2 can disarm (0-1) DEFAULT: Enabled (1)

Key fobs can be set to allow disarming the Control Panel with the fob’s button or not. If using a key fob as a stationary wall fob, it can be set to prevent someone from using it to disarm the system.

• The default (1) allows this fob to disarm the system.

• To not allow this fob to disarm the system, select disabled (0).

Construct fob (#) voice descriptor DEFAULT: Keyfob (#)

The voice descriptor is the words the Control Panel will use for this fob for low battery announcements and log entries. Up to ﬁ ve words are allowed.

• Press INSERT to place a word from the vocabulary into the data entry ﬁ eld.

• Use the ← or → arrows to scroll through the words,

or enter the word’s 3-digit index number.

• Press INSERT again for the next word. Up to ﬁ ve words are allowed.

• To remove a word, press DELETE.

Select fob (#) arm no delay (0-1) DEFAULT: Disabled (0)

Key fobs can be set to arm the Control Panel with or without an Entry Delay.

• The default (0) sets this fob to arm the system with an Entry Delay.

• To set this fob to arm the system without an Entry Delay, select enabled (1).

Select fob (#) key 4 output (0-2) DEFAULT: Disabled (0)

The key fob’s auxiliary button can be used to trigger the Control Panel’s open collector output.

• The default (0) disables this fob’s auxiliary button.

• To use this fob’s auxiliary button, select the output function.

FOB KEY 4 OUTPUT

(0) disabled

(1) toggle output

(2) momentary output

Installer Programming

RF Keypad Programming

RF Keypad Programming Outline

The Control Panel can be programmed with up to four RF remote control keypads.

Programming the RF remote control keypads into the Control Panel involves selecting the sensor number for a particular device, setting or learning the RF remote control keypad’s serial number, and selecting the other options for the RF remote control keypad.

• RF keypads #1 - #4 report as system sensors #59 - #62 for emergency, and low battery reports.

RF KEYPAD REPORTING CODES

RF keypad #1 Reports as sensor #59

RF keypad #2 Reports as sensor #60

RF keypad #3 Reports as sensor #61

RF keypad #4 Reports as sensor #62

• User Codes #1 - #8 are reported for openings and closings.

• User Code #0 is reported for Quick Arming.

Refer to Figure 55 for an outline of the steps required to program RF remote control keypads into the Control Panel. The options that can be set for each RF remote control keypad are:

• RF Keypad Number — Keypad number 1-4

• RF Keypad Used — Keypad used or not

• RF Keypad Equipment Code — Sensor model

• RF Keypad Other Equipment Code — Enter special

equipment code (only shown for sensors set as “other”)

• RF Keypad Serial # — Serial number labeled on

keypad; hand enter or “learn” by sending signal

• RF Keypad Equipment Age — New unit or existing keypad

Q-4 SUB-QUESTIONS

• RF Keypad Emergency Keys — Enable

or disable keypad emergency keys

• RF Keypad Voice Descriptor — Name

assigned to the keypad

RF Keypad Summary Screen

After setting all the options for a sensor, the RF keypad summary screen is displayed. The screen can also be displayed for programmed RF keypads during RF keypad program editing by pressing the SUM button.

• The ← and → arrow buttons step through the RF keypad numbers.

• The EDIT CURRENT and EDIT NEXT buttons return to RF keypad programming.

• Pressing SKIP goes to question Q-5 (Control Panel programming).

KEYPAD PROGRAMMING (Q-4) OUTLINE

STEP DOWN

THROUGH OPTIONS

SELECT RF KEYPAD #

FOR NEXT OPTIONPRESS

SELECT RF KEYPAD

USED

PRESS

OTHER EQUIPMENT CODE

(ONLY FOR "OTHER" EQUIPMENT)

PRESS

FOR NEXT OPTION

SELECT RF KEYPAD

EQUIPMENT CODE

FOR NEXT OPTIONPRESS

ENTER RF KEYPAD

FOR NEXT OPTIONPRESS

ENTER RF KEYPAD

SERIAL NUMBER

FOR NEXT OPTION

SELECT RF KEYPAD

EQUIPMENT AGE

FOR NEXT OPTION

SELECT RF KEYPAD

EMERGENCY KEYS

OR PRESS SKIP TO JUMP TO Q-5

AND SEND SIGNAL FROM SENSOR

SELECT OPTION WITH

THESE KEYS

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD

ENTER ON KEYPAD OR PRESS

shift learn

THEN

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

ENTER ON KEYPAD OR PRESS

Figure 54. RF Keypad Summary Screen Figure 55. RF Keypad Programming Outline

PRESS

CONSTRUCT RF KEYPAD

FOR NEXT OPTION

VOICE DESCRIPTOR

TO FINISH FOR THIS SENSOR, THENPRESS

TO SELECT FROM LIST

insert

PRESS FOR EACH WORD

ENTER ON KEYPAD OR PRESS

TO SELECT FROM LIST

edit

FOR NEXT SENSOR, OR FOR Q4

skip

Installer Programming

RF Keypad Programming Steps

Q-4 Select RF keypad # (1-4)

Up to four wireless keypads can be used with each Control Panel. The options for each sensor are programmed with sub-option questions.

• Begin by entering the RF keypad number or

select it using the ← or → arrows.

• Program the RF keypads by using the ↑ and ↓

arrows to select the sub-options.

✓ NOTE: To skip RF keypad programming, press SKIP to jump from

question Q-4 to question Q-5 (Exit Delay programming).

Select RF keypad (#) used (0-1) DEFAULT: Unused (0)

RF keypads can be used with the Control Panel or not.

• The default (0) sets all RF keypads as unused.

• To enable programming for this RF keypad, select used (1).

Select RF keypad (#) equipment code (0-9999) DEFAULT: (0000) other

The RF keypad equipment code deﬁ nes the sensor’s manufacturer and type.

• The default is (0000) other.

• Select (867) PAD1-345 wireless keypad for a 2GIG-PAD1 RF keypad.

Enter RF keypad (#) other equipment code (0-9999) DEFAULT: 0

✓ NOTE: This question is only displayed if “(0000) other” is

selected for an RF keypad’s equipment code.

The equipment code is a 4-digit code that is assigned to the model of keypad being used.

• Enter the equipment code number for the RF keypad.

Select RF keypad (#) equipment age (0-1) DEFAULT: New (0)

The Control Panel can be used with new or existing RF keypads.

• If this RF keypad is new for the installation, leave the default of new (0).

• If this RF keypad is already installed, select existing (1).

Select RF keypad (#) emergency keys (0-1) DEFAULT: Enabled (1)

RF keypads have 24-hour emergency buttons labeled FIRE and POLICE.

• The default (1) enables this RF keypad’s emergency keys.

• To disable this RF keypad’s emergency keys, select disabled (0), the keys will not be able to trigger an alarm or report.

✓ NOTE: The RF keypad’s POLICE button will trigger a silent alarm

if programming question Q-16 is set to silent panic.

TO ENSURE SENDING A SIGNAL, BE SURE TO INSTRUCT THE END USER TO PRESS THE RF KEYPAD EMERGENCY KEYS UNTIL THE KEYPAD’S INDICATOR LIGHTS.

Construct RF keypad (#) voice descriptor DEFAULT: Keypad (#)

The voice descriptor is the words the Control Panel will announce for this RF keypad. Up to ﬁ ve words are allowed.

• Press INSERT to place a word from the vocabulary into the data entry ﬁ eld.

• Use the ← or → arrows to scroll through the words, or enter the word’s 3-digit index number.

• Press INSERT again for the next word. Up to ﬁ ve words are allowed.

• To remove a word, press DELETE.

Enter RF keypad (#) serial number (7 digits) DEFAULT: 0000000

RF keypad serial numbers can be manually entered or learned from the RF keypad.

• For manual entry, enter the RF keypad number that was logged for the RF keypad being programmed. Use the SHIFT button to access alpha characters.

• For automatic entry, press SHIFT then press LEARN. The Control Panel will wait for an RF keypad transmission. Trigger the RF keypad being programmed, and the Control Panel will learn the RF keypad’s serial number.

Installer Programming

Control Panel Programming Questions

Q-5 Enter exit delay, in seconds (45-120)

DEFAULT: 60 seconds (Required SIA CP01 Default)

The Exit Delay can be set from 45 to 120 seconds.

• The default (60) sets the Exit Delay to 60 seconds.

• To change the Exit Delay, enter a value from (45-120) seconds.

✓ NOTE: This default can be changed without affecting SIA CP01 compliance.

Q-6 Enter entry delay 1, in seconds (30-240)

DEFAULT: 30 seconds (Required SIA CP01 Default)

The Entry Delay #1 can be set from 30 to 240 seconds.

• The default (30) sets the Entry Delay #1 to 30 seconds.

• To change the Entry Delay #1, enter a value from (30-240) seconds.

✓ NOTE: Per SIA CP01, the combination of the Abort Window Dialer Delay

(Q-35) and the Entry Delay (Q-6 or Q-7) cannot exceed one minute.

Q-7 Enter entry delay 2, in seconds (30-240)

DEFAULT: 45 seconds (Required SIA CP01 Default)

The Entry Delay #2 can be set from 30 to 240 seconds.

• The default (45) sets the Entry Delay #2 to 45 seconds.

• To change the Entry Delay #2, enter a value from (30-240) seconds.

✓ NOTE: Per SIA CP01, the combination of the Abort Window Dialer Delay

(Q-35) and the Entry Delay (Q-6 or Q-7) cannot exceed one minute.

Q-8 Select dialer (0-1)

DEFAULT: Disabled (0)

The dialer (digital communicator) can be enabled for a monitored system or disabled for a local alarm or when the GSM module is used exclusively for reporting.

• The default (0) sets the dialer as disabled.

• To turn on the dialer, select enabled (1).

✓ NOTE: If the dialer is disabled with this programming question,

telephone line failure detection is also disabled regardless of the setting of the telephone fail detection question Q-63.

Q-9 Enter dialing preﬁ x (0-4 digits)

DEFAULT: No default

Some telephone PBX systems require a dialing preﬁ x to acquire a dial tone.

• If the telephone system that the Control Panel is connected to requires a dialing preﬁ x, enter up to four digits.

• The SHIFT button accesses the pound and star symbols. The P button adds a 3-second pause to the dialing.

Q-10 Enter call waiting disable code (0-6 digits)

DEFAULT: No default (Required SIA CP01 Default)

If the subscriber’s telephone line has call waiting, incoming call tones on the line could interfere with a communicator report to the Central Station. To prevent this, the communicator can send the call waiting disable code before making a report.

• If call waiting is active on the telephone line, enter the call waiting disable code.

• The SHIFT button accesses the pound and star symbols. The P button adds a 3-second pause to the dialing.

✓ NOTE: If the ﬁ rst attempt fails, this code will be

ignored on the rest of the attempts.

Q-11 Enter CS #1 phone number (0-25 digits)

DEFAULT: No default

The telephone number for Central Station #1 can be up to 25 digits.

• Enter the Central Station #1 telephone number.

• The SHIFT button accesses the pound and star symbols. The P button adds a 3-second pause to the dialing.

✓ NOTE: If a second Central Station telephone number is programmed

with question Q-41, the Control Panel will alternate between the two Central Station telephone numbers. After two failed telephone dialing attempts, the Control Panel will try to connect using the GSM radio module if it is installed. If the GSM radio module is not installed, the Control Panel will make eight dialing attempts.

Q-12 Enter CS #1 account number (4 digits)

DEFAULT: No default

The account number for Central Station #1 is always four digits and can include some alpha characters.

• Enter four digits for the Central Station #1 account number.

• The SHIFT button accesses B, C, D, E, and F characters.

Q-13 Select 2-way voice (0-1)

DEFAULT: Stay on line (1)

The Control Panel supports 2-way voice communications between the subscriber and the Central Station operator over the telephone line or the GSM cellular radio (if installed) after an alarm has been reported.

• The default (1) allows 2-way audio over the telephone line or GSM radio.

• To turn off the 2-way audio feature, select disabled (0).

When the Control Panel connects with the operator, it will beep once per second (every six seconds with a GSM connection). The beep alternates between two tones and indicates the panel is waiting for a session command. If the operator fails to issue a command within one minute (three minutes with a GSM connection), the call is terminated. Once the operator presses a command option, the beeps will stop and a 5-minute audio session will start (3-minute audio session with a GSM connection).

When 2-way voice communications have been established, the Central Station operator can use the following telephone keys to control the communications. Each time the operator uses a command key, the session is extended for ﬁ ve additional minutes (three minutes with a GSM connection). During the last minute of communications, the system will beep twice every 15 seconds to indicate that time is running out.

• Pressing the CS to the Premises and allows the operator to talk.

• Pressing communications from the CS to the premises.

• Pressing communication from the premises to the CS.

• Pressing without changing the mode of operation.

• Pressing

enables Talk Mode one-way communication from

enables VOX Mode two-way

enables Listen Mode one-way

extends the session ﬁ ve minutes

causes the audio session to end and terminates the call.

Q-14 Select silent panic/burglary listen only

DEFAULT: Enabled (1)

The Control Panel supports audio listen-in of the subscriber premises from the Central Station over the telephone line after a silent panic (police emergency), silent burglary, or duress alarm has been reported.

• The default (1) enables audio listen-in after a silent panic, silent burglary, or duress alarm.

• This option is permanently set and cannot be disabled.

Installer Programming

Q-15 Select dialing type (0-1)

DEFAULT: Touch tone (0)

The digital communicator can dial using tones or pulse.

• The default (0) is for touch tone (DTMF) dialing.

• For rotary dialing, select pulse (1).

Q-16 Select police emergency key (0-2)

DEFAULT: Audible (1)

The Control Panel’s panic emergency button action can be programmed. The panic emergency button is displayed by pressing the Control Panel’s button.

• The default (1) allows the panic emergency button to sound an audible alarm.

• For silent activation, select silent panic (2).

• To disable and not display the panic emergency button, select disabled (0).

✓ NOTE: Setting this programming question for silent panic (2)

will make the POLICE button on all RF keypads silent also.

Q-17 Select ﬁ re emergency key (0-1)

DEFAULT: Audible (1)

The Control Panel’s ﬁ re emergency button can be enabled or disabled. The ﬁ re emergency button is displayed by pressing the Control Panel’s button.

• The default (1) allows the ﬁ re emergency button to sound an audible alarm.

• To disable and not display the ﬁ re emergency button, select disabled (0).

Q-18 Select emergency key (0-1)

DEFAULT: Audible (1)

The Control Panel’s emergency button can be enabled or disabled. The panel’s emergency button is displayed by pressing the Control Panel’s button.

• The default (1) allows the emergency button to sound an audible alarm.

• To disable and not display emergency button, select disabled (0).

✓ NOTE: If all three emergency buttons are disabled, pressing the Control Panel’s

button will display a message that the emergency buttons are disabled.

Q-19 Select quick arming (0-1)

DEFAULT: Enabled (1)

Quick arming allows the subscriber to arm the system without having to enter their User Code. (Quick arming reports as User 0 if open/close reports are sent.)

• The default (1) allows quick arming.

• To turn off quick arming, select disabled (0).

Q-20 Select swinger shutdown count (1-2)

DEFAULT: One trip (1)

An unwanted series of multiple faults (usually caused by a bad contact or sensor) is called a “swinger”. Swinger shutdown sets the maximum number of alarms that any sensor or hardwire loop can trigger during a single arming period.

✓ NOTE: CO and smoke detector alarms are not limited

by the swinger shutdown count. Other types of 24-hour zones are limited by the swinger shutdown count.

• The default (1) sets the swinger shutdown count at one trip.

• To set the swinger shutdown count to two trips, select (2).

✓ NOTE: This default can be changed without affecting SIA CP01 compliance.

(Required SIA CP01 Default)

Q-21 Select siren supervision time (0-3)

DEFAULT: Disabled (0)

The wiring connection to the external sounder can be supervised. If the wiring to the sounder is cut for 15, 30, or 45 seconds, a bell trouble report can be sent to the Central Station.

• The default (0) disables external sounder supervision.

• To supervise the external sounder wiring, select (1) for 15 seconds; (2) for 30 seconds; or (3) for 45 seconds.

Q-22 Enter CS lack of usage notiﬁ cation time (0-255)

DEFAULT: Seven days (7)

Inactivity reports can be sent to the Central Station if the system has not been armed for a period of days.

• The default (7) sets the lack of usage feature at seven days.

• To change the lack of usage feature duration, select (1-255) days.

• To turn off the lack of usage feature, select disabled (0).

Q-23 Enter radio modem network failure time (0-255)

DEFAULT: 30 minutes

✓ NOTE: GSM Module must be installed to use this function.

Sets the amount of time required for triggering a trouble condition if the system detects that the optional GSM radio modem has lost its cellular connection. (After cellular service has been restored for ﬁ ve minutes, the trouble condition will clear.)

• The default (30) sets the failure detection time at 30 minutes.

• To disable radio modem failure detection, select disabled (0).

• To choose a different failure detection time, select (1-255) minutes.

Q-24 Select radio modem network failure causes trouble (0-1)

DEFAULT: Enabled (1)

✓ NOTE: GSM Module must be installed to use this function.

Selects whether the control panel will sound and display trouble if the optional GSM radio modem has lost its cellular connection. The trouble sounder can be silenced by the user at the Control Panel (GSM trouble is logged regardless of this setting). When the GSM radio modem connection is restored, the trouble indications will automatically clear.

• The default (1) allows radio modem failure trouble indications.

• To turn off radio modem failure trouble indications, select disabled (0).

Q-25 Select radio modem network failure reports (0-1)

DEFAULT: Enabled (1)

✓ NOTE: GSM Module must be installed to use this function.

If the optional GSM radio modem loses its cellular connection, the Control Panel can report the fault and restore via land-line if telephone reporting is enabled.

• The default (1) allows radio modem failure/restore reporting.

• To turn off radio modem failure/restore reporting, select disabled (0).

Q-26 Select auto stay (0-1)

DEFAULT: Enabled (1) (Required SIA CP01 Default)

When auto stay is enabled and the system is armed in the Away Mode, if an exit/ entry sensor is not violated during the Exit Delay, the system will arm in the Stay Mode.

• The default (1) enables the auto stay feature.

• To turn off the auto stay feature, select disabled (0).

✓ NOTE: The auto stay feature will not switch the system to Stay

Mode if the system is armed to Away Mode using a key fob remote or remotely armed via telephone or computer.

Installer Programming

Q-27 Select exit delay restart (0-1)

DEFAULT: Enabled (1) (Required SIA CP01 Default)

When Exit Delay restart is enabled, re-entering the premises through an exit/ entry door during the Exit Delay will restart the Exit Delay. The restart of the Exit Delay will only occur one time; further violations of an exit/entry sensor will not extend the Exit Delay.

• The default (1) enables the Exit Delay restart feature.

• To turn off the Exit Delay restart feature, select disabled (0).

Q-28 Select quick exit (0-1)

DEFAULT: Enabled (1)

The quick exit feature allows the user to start the Exit Delay while the system is armed. When this feature is enabled, a QUICK EXIT button will appear on the Security Screen. Pressing QUICK EXIT while the system is armed allows the user to leave through an exit/entry door. After the Exit Delay expires, the system will return to being armed in the mode it was in before (either Stay or Away Mode).

• The default (1) enables the quick exit feature.

• To turn off the quick exit feature, select disabled (0).

Q-29 Enter periodic test, in days (0-255)

DEFAULT: 30 days

Automatic test reports can be sent to the Central Station every certain number of days.

• The default (30) sends an automatic test report every 30 days.

• To set a different period for automatic test repor ts, select (1-255) days.

• To disable automatic test reports, select (0).

✓ NOTE: See Q-30 for information on setting the automatic test report time.

Q-30 Enter offset for periodic test start (0-24)

DEFAULT: 6 hours

The time before the ﬁ rst automatic test report is sent to the Central Station can be set. The installer may want to set the time differently in various installations to stagger Central Station trafﬁ c. The time set here is the number of hours after the Control Panel’s clock is set that the ﬁ rst automatic test report occurs.

• The default (6) sets the first test report time to 6 hours after the Control Panel’s clock is set.

• To have the ﬁ rst test reports sent at a different hour, select (0-24) hours.

✓ NOTE: See Q-29 for information on setting the automatic test report period.

Q-31 Enter cancel time, in minutes (5-255)

DEFAULT: 5 minutes

A cancel report will be sent to the Central Station after an alarm, if the system is disarmed within the programmed time.

• The default (5) sets the cancel time at ﬁ ve minutes.

• For a longer cancel time, select (6-254) minutes.

• To have the Control Panel always send a cancel report when the system is disarmed after an alarm, select (255).

✓ NOTE: See Q-32 for information on displaying when a cancel report is sent.

✓ NOTE: This default can be changed without affecting SIA CP01 compliance.

(Required SIA CP01 Minimum)

Q-32 Select cancel display (0-1)

DEFAULT: Enabled (1) (Required SIA CP01 Default)

A cancel report will be sent to the Central Station after an alarm, if the system is disarmed within the programmed time. The Control Panel can also show on the display that a cancel report was sent.

• The default (1) enables the cancel display feature.

• To turn off the cancel display feature, select disabled (0).

✓ NOTE: See Q-31 for information on setting the cancel report trigger time.

✓ NOTE: This default can be changed without affecting SIA CP01 compliance.

Q-33 Select cross sensor 47-48 (0-1)

DEFAULT: Disabled (0)

The Control Panel can be programmed so sensors 47 and 48 must both be violated during a set time to trigger an alarm. This is called “cross sensor” veriﬁ cation. When enabled, if only one sensor (47 or 48) is violated, the alarm will not trigger, but a trouble report will be sent for the sensor that triggered.

✓ NOTE: CO and ﬁ re zone cannot be used for cross sensors.

• The default (0) disables the cross sensor feature.

• To use the cross sensor feature, select enabled (1).

✓ NOTE: See Q-34 for information on setting the cross sensor timeout.

Q-34 Enter cross sensor timeout, in seconds (10-120)

DEFAULT: 10 seconds

The cross sensor timeout is the maximum period of time allowed between violation of sensors 47 and 48 that will trigger an alarm. If both sensors are violated within this time period, an alarm will be triggered. If both sensors are not violated within this time period, an alarm will not be triggered.

✓ NOTE: Cross sensor veriﬁ cation must be enabled

with Q-33 for this feature to function.

• The default (10) sets the cross sensor timeout at 10 seconds.

• To change the cross sensor timeout duration, select (11-120) seconds.

Q-35 Select abort window dialer delay (0-2)

DEFAULT: 30 seconds (1) (Required SIA CP01 Default)

The Control Panel’s dialer (digital communicator) delays calling the Central Station to allow the user enough time to cancel a false alarm before it is reported.

• The default (1) sets the dialer delay at 30 seconds.

• To change the dialer delay, select (0) for 15 seconds or (2) for 45 seconds.

✓ NOTE: Per SIA CP01, the combination of the Abort Window Dialer Delay

(Q-35) and the Entry Delay (Q-6 or Q-7) cannot exceed one minute.

✓ NOTE: The dialer delay can be disabled per sensor without

affecting SIA CP01 compliance. See sensor programming.

Q-36 Select burglary bell cutoff (0-4)

DEFAULT: 4 minutes (0)

When a burglary alarm is triggered, the bell will sound until the burglary bell cutoff time expires.

• The default (0) sets the burglary bell cutoff time to 4 minutes.

• To change the burglary bell cutoff time, select (1), (2), (3), or (4):

BURGLARY BELL CUTOFF TIME

(0) 4 minutes

(1) 8 minutes

(2) 12 minutes

(3) 16 minutes

(4) Unlimited time

✓ NOTE: The 24-hour Auxiliary Alarm Zone (08) does not follow the burglary bell

cutoff time and will sound the Control Panel’s local alarm until a user code is entered. The Auxiliary Alarm Zone does not trigger the external siren (if used).

Installer Programming

Q-37 Select ﬁ re bell cutoff (0-4)

DEFAULT: 4 minutes (0)

When a ﬁ re alarm is triggered, the bell will sound until the ﬁ re bell cutoff time expires.

• The default (0) sets the ﬁ re bell cutoff time to 4 minutes.

• To change the ﬁ re bell cutoff time, select (1), (2), (3), or (4):

FIRE BELL CUTOFF TIME

(0) 4 minutes

(1) 8 minutes

(2) 12 minutes

(3) 16 minutes

(4) Unlimited time

Q-38 Enter time to detect AC loss, in minutes (0-30)

DEFAULT: 10 minutes (10)

AC power loss will cause an AC power loss alert to be displayed, and the length of time before it’s displayed can be set. When power returns, the time

required before the AC power loss alert automatically clears is ﬁ xed at one minute.

• The default (10) sets the AC power loss alert display time to ten minutes.

• To change the AC power loss alert display time, enter (0-30) minutes.

✓ NOTE: After the AC power alert is displayed or clears, the

AC power loss report or AC power restore report can be sent to the Central Station immediately, or at a random time, see Q-39.

✓ NOTE: The Control Panel’s AC power icon displays the power status

immediately. A red “X” over the icon indicates no AC power.

Q-39 Select random AC loss report time (0-1)

DEFAULT: Enabled (1)

This feature allows the system to report AC power loss and AC power restore at a random time of up to four hours after the event occurs. This helps to reduce Central Station congestion due to a wide-spread power outage affecting many Control Panels at once. The random AC power status report timer is triggered based on the time set by Q-38.

• The default (1) allows random timed AC power reports.

• To turn off random timed AC power reports, select disabled (0).

Q-40 Enter CS #2 phone number (0-25 digits)

DEFAULT: No default

The telephone number for Central Station #2 can be up to 25 digits. Central Station telephone #2 is dialed as backup in case telephone #1 does not connect.

• Enter the Central Station #2 telephone number.

• The SHIFT button accesses the pound and star symbols. The P button adds a 3-second pause to the dialing.

Q-41 Enter CS #2 account number (4 digits)

DEFAULT: No default

The account number for Central Station #2 is always four digits and can include some alpha characters.

• Enter four digits for the Central Station #2 account number.

• The SHIFT button accesses B, C, D, E, and F characters.

Q-42 Select remote control phone (0-3)

DEFAULT: Data and voice (3)

This setting controls remote telephone access to the system.

The data option is for the installer. It allows access for programming and operating the system with custom PC downloader software.

The voice option is for the subscriber. It allows the subscriber to call the system from an off-site phone, to get the status of the system, and to perform remote commands. These commands are executed by entering touch tones. The status is reported back via voice prompts. A valid User Code is required for remote telephone access. The user will be able to perform the following functions: arm in any mode, disarm, bypass, get system status, and turn on or turn off the open collector output.

If voice access is enabled, to connect to the panel, the subscriber will need to call the telephone number that the Control Panel is connected to, wait for one or two rings, then hang up. The subscriber needs to call again, within 10-45 seconds, and the Control Panel will answer the call.

When the panel answers the phone, the user will be prompted to enter their code. If a valid code is entered, the system will announce the current system status. If an invalid code is entered, the panel will ask for the code again. After two invalid attempts, the panel will disconnect. After two calls, with two invalid attempts each, the panel will lock out. The lock out will last for 30 minutes.

• The default (3) enables data and voice access.

• For data only (PC downloader) access, select (1).

• For voice access only, select (2).

• To disable remote access, select (0).

REMOTE CONTROL PHONE MODE

(0) disabled (no remote control phone)

(1) data only

(2) voice only

(3) data and voice

TELEPHONE KEY REMOTE CONTROL COMMAND

1 System status repor t

2 Arm the system in Away Mode

3 Arm the system in Stay Mode

4 Disarm the system

5 Turn on the auxiliary output

6 Turn off the auxiliary output

7 Stop the system status repor t

8 Disconnect (hang up)

9 Repeat command menu

# Bypass all open sensors and arm system

✓ NOTE: Remotely arming the system to Away Mode will not start

an Exit Delay or activate Auto Stay Mode (if enabled).

Q-43 Enter installer code (4 digits)

DEFAULT: 1561

The Installer Code is the code required to enter the Installer Toolbox.

• The default for the Installer Code is 1561.

• To change the Installer Code, enter a new 4-digit code.

BE SURE TO WRITE DOWN THE NEW CODE !!!

✓ NOTE: The Installer Code must be unique from any User Codes.

Installer Programming

Q-44 Select lock installer programming (0-2)

DEFAULT: Disabled (0)

The installer programming lockout feature is provided to prevent takeovers. The Control Panel can be set to limit an installer’s access to programming questions after a period of 48 hours. The 48 hour lockout timer starts when the installer exits system conﬁ guration mode.

Three options are available: unlimited full access to programming (no lockout), limited access to programming after 48 hours, or no access to programming after 48 hours.

• The default (0) selects unlimited full access to programming (no lockout).

• To deny access to programming after 48 hours, select no access to programming (1).

• To select limited access to programming after 48 hours, select (2). After the system has run for 48 hours, installer will be able to view, but not change, the Central Station phone number, Central Station account number, lock installer programming, download ID, and default lockout ﬁ elds.

After the 48 hour lockout timer has locked out the system, the timer can be reset through the GSM radio or PC downloader by remotely setting this question Q-44 to (0) or (2). Setting the option to (0) or (2) will restart the 48 hour lockout timer.

Q-45 Select lock default programming (0-2)

DEFAULT: Default all (0)

The Control Panel may be able to be hard reset (or soft reset from the Installer Toolbox) to its factory default values depending on the value entered for this programming question.

The Control Panel is hard reset by pressing and holding the buttons while applying power to the Control Panel.

The default lockout feature is provided to prevent takeovers. Three options are available: allow default of all options, allow default of some but not all options, not allow default of any options.

• The default setting of default all (0) allows resetting the Control Panel to all its factory defaults.

• To allow resetting the Control Panel to all its factory defaults except the Central Station phone number, Central Station account number, lock installer programming, download ID, and default lockout ﬁ elds, select (1).

• To deny hard and soft resetting of the Control Panel, select default none (2).

If option (1) or (2) is selected, the option will take effect after the system has run for 48 hours. This allows the installer to go back and make changes if required.

and

Q-46 Select trouble doesn’t sound at night (0-1)

DEFAULT: Enabled (1)

The Control Panel will sound trouble beeps caused by AC loss, system low battery, sensor low battery or RF supervision, failure to communicate, Control Panel tamper while disarmed, and GSM radio faults.

To prevent annoying the subscriber, the system can be set to suppress trouble beeps from sounding from 10 pm to 9 am. The trouble(s) will still be displayed and immediately reported to the Central Station, and can be acknowledged, but they won’t sound beeps until after 9 am.

If the trouble condition(s) self-clear or are acknowledged before 9 am, no trouble beeps will sound after 9 am (the conditions will still be recorded in the event log).

• The default (1) suppresses trouble beeps from 10 pm to 9 am.

• To allow trouble beeps at any time, select disabled (0).

✓ NOTE: For UL985 Installations, this feature must be disabled.

Q-47 Select trouble resound after holdoff (0-7)

DEFAULT: Disabled (0)

Fire and CO sensors are required to re-sound trouble beeps every four hours until the trouble is resolved, even if the trouble is acknowledged at the Control Panel. The Control Panel can be set to delay re-sounding these types of trouble beeps for 1-7 days.

✓ NOTE: This feature is not allowed in UL 985 installations. The

setting must be disabled (0) in this grade of installation.

• The default (0) allows trouble beeps for CO and ﬁ re sensors to re-sound every four hours after being acknowledged.

• To delay re-sounding trouble beeps for CO and ﬁ re sensors, select (1-7) days.

Q-48 Enter download csid (6 digits)

DEFAULT: 000000

The system supports a 6-digit CSID code that is used for remote telephone programming of the Control Panel. This code is veriﬁ ed when the Control Panel connects with the downloading software. If the CSID code doesn’t match the downloading software, the Control Panel will deny the connection.

• The CSID code can be entered manually with this programming question.

• If this ﬁ eld is left with the default (000000), the ﬁ rst time the downloading software connects with the Control Panel, the ﬁ eld will be ﬁ lled with the software’s CSID.

Q-49 Select programming mode entry reports to CS (0-1)

DEFAULT: Disabled (0)

A report can be sent to the Central Station any time installer programming mode is entered and exited.

• The default (0) prevents reporting programming mode entry and exit.

• To report programming mode entry and exit, select enabled (1).

✓ NOTE: This report can only be sent through the telephone

dialer. It is not supported through the GSM radio.

Q-50 Select trouble reports to CS (0-1)

DEFAULT: Enabled (1)

Trouble reports can be sent to the Central Station when any sensor trouble condition occurs.

• The default (1) allows reporting sensor trouble conditions.

• To not report sensor trouble conditions, select disabled (0).

✓ NOTE: This setting does not affect trouble reports caused by Control

Panel conditions, only trouble reports caused by sensors.

Q-51 Select manual bypass reports to CS (0-1)

DEFAULT: Disabled (0)

Manual bypass reports can be sent to the Central Station when any sensor has been manually bypassed by the user.

• The default (0) prevents sending manual bypass reports.

• To allow sending manual bypass reports, select enabled (1).

Installer Programming

Q-52 Select AC loss reports to CS (0-1)

DEFAULT: Enabled (1)

AC power loss reports can be sent to the Central Station if the Control Panel loses AC power.

• The default (1) allows AC power loss reports.

• To turn off AC power loss reports, select disabled (0).

✓ NOTE: The AC power will have to be absent from the Control Panel for the

time set by programming question Q-38 before the AC power loss trouble alert is displayed (the default is 10 minutes). If programming question Q-39 is enabled, the actual AC power loss report will occur at a random time of up to four hours after the AC power loss trouble alert is displayed.

✓ NOTE: The Control Panel’s AC power icon displays the power status

immediately. A red “X” over the icon indicates no AC power.

Q-53 Select system low battery reports to CS (0-1)

DEFAULT: Enabled (1)

Low battery reports can be sent to the Central Station if the Control Panel’s battery tests low.

• The default (1) allows Control Panel low battery reports.

• To turn off Control Panel low battery reports, select disabled (0).

Q-54 Select RF low battery reports to CS (0-1)

DEFAULT: Enabled (1)

Sensor low battery reports can be sent to the Central Station if a sensor battery tests low and sends a low battery transmission to the Control Panel.

• The default (1) allows sensor low battery reports.

• To turn off sensor low battery reports, select disabled (0).

Q-58 Select trouble restore reports to CS (0-1)

DEFAULT: Enabled (1)

Trouble restore reports can be sent to the Central Station when any sensor trouble condition clears.

• The default (1) allows trouble restore reports.

• To turn off trouble restore reports, select disabled (0).

Q-59 Select bypass restores reports to CS (0-1)

DEFAULT: Disabled (0)

Bypass restore reports can be sent to the Central Station when any sensor that was force bypassed or manually bypassed gets restored.

• The default (0) prevents bypass restore reports.

• To allow bypass restore reports, select enabled (1).

Q-60 Select AC restore reports to CS (0-1)

DEFAULT: Enabled (1)

AC power restore reports can be sent to the Central Station when the Control Panel regains AC power after an AC power loss.

• The default (1) allows AC power restore reports.

• To turn off AC power restore reports, select disabled (0).

✓ NOTE: The AC power will have to be restored to the Control

Panel for one minute before the AC power loss trouble alert automatically clears. If programming question Q-39 is enabled, the actual AC power restore report will occur at a random time of up to four hours after the AC power loss trouble alert has cleared.

✓ NOTE: The Control Panel’s AC power icon displays the power status

immediately. A red “X” over the icon indicates no AC power.

Q-55 Select opening reports to CS (0-1)

DEFAULT: Disabled (0)

Opening reports can be sent to the Central Station each time the system is disarmed. The user or key fob number is indicated in the opening report.

• The default (0) prevents opening reports.

• To allow opening reports, select enabled (1).

Q-56 Select closing reports to CS (0-1)

DEFAULT: Disabled (0)

Closing reports can be sent to the Central Station each time the system is armed. The user or key fob number is indicated in the closing report. If Quick Arming is enabled, User #0 is indicated for the closing report.

• The default (0) prevents closing reports.

• To allow closing reports, select enabled (1).

Q-57 Select alarm restore reports to CS (0-1)

DEFAULT: Disabled (0)

Alarm restore reports can be sent to the Central Station after an alarm when either the bell timeout has been reached or the system is disarmed.

If alarm restores are enabled and swinger shutdown is set to two, a restore will be reported if the sensor is closed (normal state) at bell cutoff or becomes closed after bell cutoff. If swinger shutdown is set to one, a restore will only be sent if the sensor is closed at the time of disarm. Restores are not sent if a sensor is in swinger shutdown until the time of disarm and the sensor is closed.

• The default (0) prevents alarm restore reports.

• To allow alarm restore reports, select enabled (1).

Q-61 Select system low battery restore reports to CS (0-1)

DEFAULT: Enabled (1)

Control Panel low battery restore reports can be sent to the Central Station if the Control Panel battery had tested low and is now OK.

• The default (1) allows Control Panel low battery restore reports.

• To turn off Control Panel low battery restore reports, select disabled (0).

Q-62 Select RF low battery restores reports to CS (0-1)

DEFAULT: Enabled (1)

Sensor low battery restore reports can be sent to the Central Station if a sensor battery had tested low and is now OK.

• The default (1) allows sensor low battery restore reports.

• To turn off sensor low battery restore reports, select disabled (0).

Q-63 Select phone fail detect (0-1)

DEFAULT: Disabled (0)

The system can monitor the telephone line connected to the Control Panel. If the telephone line is shorted or cut, the Control Panel will indicate telephone line trouble by sounding trouble beeps and displaying the no-phone icon.

If the optional GSM radio modem is installed, the telephone line failure will still be reported if this question is enabled.

• The default (0) disables this feature.

• To turn on this feature, select enabled (1).

✓ NOTE: If the dialer is disabled with programming question Q-8,

telephone line failure detection is also disabled regardless of the setting of this programming question.

Installer Programming

Q-64 Select smart test reports

DEFAULT: Disabled (0)

Smart test reports are a way to reduce Central Station trafﬁ c. If smart test reports are enabled and regular periodic test reports are enabled, any non-test report to the Central Station (alarm, restore, trouble, etc.) during the normal operation of the system will reset the periodic test report timer. Periodic test repor ts would only be sent if the Control Panel has not reported in any way to the Central Station.

• The default (0) prevents smart test reports.

• To allow smart test reports, select enabled (1).

Q-65 Select RF jam causes trouble (0-1)

DEFAULT: Disabled (0)

The system can monitor the Control Panel’s sensor receiver and detect whether a transmitter is stuck on the air causing jamming. When jam detect is enabled, the Control Panel will indicate a trouble condition if RF jamming is detected.

✓ NOTE: This programming question only functions if trouble

reports are enabled with programming question Q-50.

• The default (0) disables RF jam detection.

• To turn on RF jam detection, select enabled (1).

Q-66 Select daylight saving (0-1)

DEFAULT: Enabled (1)

The Control Panel can adjust its displayed clock and internal clock for daylight saving time. If the GSM radio is used, the time will be automatically adjusted regardless of this setting. The system default is set for post 2007 daylight saving changeover dates. These dates can be modiﬁ ed in case the daylight saving changeover date moves again.

• The default (1) enables daylight saving time adjustment.

• To turn off automatic daylight savings adjust, select disabled (0).

✓ NOTE: If required, use programming questions Q-67, Q-68, Q-69,

and Q-70 to modify the daylight saving start and stop dates.

Q-71 Select system tamper causes trouble (0-1)

DEFAULT: Enabled (1)

The Control Panel’s case has a tamper switch that detects if the case has been opened. The system can be programmed so that a tamper switch activation will cause a trouble indication if the system is disarmed, and an alarm if the system is armed.

• The default (1) allows the Control Panel tamper switch to trigger trouble when the system is disarmed, and alarm when the system is armed.

• To have the system ignore the Control Panel tamper switch, select disabled (0).

✓ NOTE: The GSM radio does not report tamper when the system is disarmed.

Q-72 Select quick bypass (0-1)

DEFAULT: Disabled (0)

Normally, sensors that are violated (open) at the time the system is armed will require the user to enter their code to force bypass them. The Control Panel can be programmed so that when the system is armed with open sensors, a code is not required to bypass the open sensor(s) and complete the arming.

• The default (0) requires entering a code to bypass sensors.

• To allow bypassing sensors without a code, select enabled (1).

Q-73 Select disarming keyfob after alarm (alert) (0-1)

DEFAULT: Disabled (0)

The system can produce a unique sound when it’s disarmed with a key fob after an alarm has occurred. Four beeps will sound from the Control Panel’s speaker, four chirps will sound from the external sounder (if installed). This feature serves as a safety alert to the user so they can enter the protected premises with caution.

• The default (0) will not cause a unique sound when disarming after an alarm.

• To cause unique sound when disarming after an alarm, select enabled (1).

Q-67 Select daylight saving start month (01-12)

DEFAULT: March (03)

• The default (03) sets March as the daylight saving start month.

• To change the start month, enter the month, January - December (01-12), that the new daylight saving time will start.

Q-68 Select daylight saving start Sunday (1-7)

DEFAULT: 2nd Sunday (2)

• The default (2) sets the second Sunday as the daylight saving start week.

• To change the start week, enter the 1st, 2nd, 3rd, 4th, last, second from last, third from last (1-7) as the daylight saving start week.

Q-69 Select daylight saving end month (01-12)

DEFAULT: November (11)

• The default (11) sets November as the daylight saving end month.

• To change the end month, enter the month, January - December (01-12), that the custom daylight saving time will end.

Q-70 Select daylight saving end Sunday (1-7)

DEFAULT: 1st Sunday (1)

• The default (1) sets the ﬁ rst Sunday as the daylight saving end week.

• To change the end week, enter the 1st, 2nd, 3rd, 4th, last, second from last, third from last (1-7) as the daylight saving end week.

Q-74 Select keyfob arm / disarm conﬁ rmation (0-1)

DEFAULT: Disabled (0)

The system can produce a unique sound when it’s armed or disarmed with a key fob. The Control Panel’s speaker will sound one beep when arming and two beeps when disarming. The external sounder (if installed) will sound one chirp when arming and two chirps when disarming (four beeps after an alarm if Q-73 is enabled). This feature indicates to the user that their key fob signal was received by the Control Panel in case other arm/disarm indications (armed LED, etc.) are not available or visible to the user.

• The default (0) will not cause a unique sound when controlled by a key fob.

• To cause a unique sound when controlled by a key fob, select enabled (1).

Q-75 Select auto unbypass for manual bypass (0-1)

DEFAULT: Enabled (1)

Violated (open) sensors can be manually bypassed by the user through the User Toolbox or force bypassed at the time of arming.

☞ Force bypassed sensors automatically have their

bypasses removed when the system is disarmed.

☞ Manually bypassed sensors can have their bypass automatically

removed at disarming or have their bypasses remain in place.

• The default (1) automatically removes bypasses from manually bypassed sensors when the system is disarmed.

• To have manually bypassed sensors remain bypassed when the system is disarmed, select disabled (0).

Installer Programming

Q-76 Select force bypass reports (0-1)

DEFAULT: Disabled (0)

The system can report which sensors have been force bypassed by the user when the system is armed. Forced bypassed sensors are always recorded in the event log, regardless of the setting of this programming question.

• The default (0) prevents reporting forced bypassed sensors.

• To report forced bypassed sensors, select enabled (1).

Q-77 Select event log (0-3)

DEFAULT: All events (3)

To control the amount of event log entries, the events that get recorded into the system’s event log can be selected by type. This setting ﬁ lters the events that populate the event log.

• The default (3) records all events in the event log.

• For different event log ﬁ ltering options, select (0), (1), or (2):

EVENT LOG FILTERS

(0) disabled (no events logged)

(1) all events except open, closing, and bypass

(2) all events except open and closing

(3) all events

Q-78 Select output (00-10)

DEFAULT: Follows internal sounder alarm and status (11)

(Required SIA CP01 Default)

The system’s open collector output is available on the Control Panel’s terminal block to connect to an external device. The conditions that will cause the open collector output to activate are programmable.

• Select one activation option for the Control Panel’s open collector output:

OPEN COLLECTOR OUTPUT MODE

(00) disabled

(01) activated when armed

(02) activated when disarmed

(03) activated on FTC (failure to communicate)

(04) activated on siren supervision

(05) activated on radio fault

(06) activated on burglary alarm

(07) activated on ﬁ re alarm

(08) activated on any alarm

(09) activated on any system trouble

(10) Z-wave activation

(11) follows internal sounder alarm and status

(12) follows exit/entry beeps

Q-79 Select Z-Wave feature (0-3)

DEFAULT: Disabled but visible (1)

The Z-Wave home services feature can be enabled or disabled with various remote control access options.

• The default (1) displays the HOME SERVICES button, but will show a message that the feature is currently disabled and the user should call the installer.

• To hide the HOME SERVICES button, select disabled and hidden (0).

• To show the HOME SERVICES button and disable off-site remote control, select (2).

• To show the HOME SERVICES button, with Z-Wave rules disabled and off-site remote control enabled, select (3).

Q-80 Select Z-Wave switches feature (0-1)

DEFAULT: Disabled (0)

Display of the Home Service’s SWITCHES button can be enabled or disabled.

✓ NOTE: This programming question only functions if the

Z-Wave feature enable question Q-79 is set to (2) or (3).

• The default (0) hides the SWITCHES button.

• To display the SWITCHES button, select enabled (1).

Q-81 Select Z-Wave thermostats feature (0-1)

DEFAULT: Disabled (0)

Display of the Home Service’s THERMOSTATS button can be enabled or disabled.

✓ NOTE: This programming question only functions if the

Z-Wave feature enable question Q-79 is set to (2) or (3).

• The default (0) hides the THERMOSTATS button.

• To display the THERMOSTATS button, select enabled (1).

Q-82 Select temperature display units (0-1)

DEFAULT: Degrees Fahrenheit (0)

The Home Service’s Z-Wave thermostat display screens can show the temperature in degrees Fahrenheit or degrees Celsius.

✓ NOTE: This programming question only functions if the

Z-Wave feature enable question Q-79 is set to (2) or (3) and the thermostat feature is enabled with Q-81.

• The default (0) displays temperature in degrees Fahrenheit.

• To display temperature in degrees Celsius, select (1).

Final Installation Setup

Exiting Programming

After programming the Control Panel, all the changes need to be saved in memory. After saving, the programmed settings will remain in memory, even after a total power loss.

1. After setting all the required programming values for

the sensors and the Control Panel, press END.

2. Review the Control Panel Summary screen. Use the ↓ and ↑ arrows

to scroll through the listing. Verify that each option is set correctly.

3. To save the programming changes, be sure the SAVE CHANGES

option is checked. To exit without saving programming changes un-check the SAVE CHANGES option (for veriﬁ cation, an additional conﬁ rmation screen will display). Press EXIT. The Control Panel will take a few seconds to restart and display the Home Screen.

Figure 56. Programming Summary Screen

Customizing the Installation

After programming the Control Panel, go to the User Toolbox and customize the system to suit the installation.

1. After the Control Panel restarts, press SECURITY,

MENU, TOOLBOX to access the User Toolbox.

4. Press BRIGHTNESS / VOLUME. Set the level for the display

brightness. Set the chime & voice volume. Press OK when ﬁ nished.

Figure 59. Brightness / Volume Screen

5. Press → to view the second User Toolbox screen.

Figure 60. User Toolbox Screen 2 of 3

6. Press BACKLIGHT TIMEOUT and set the display lighting

timeout. Choose the length of time that the display will remain lit after it is idle. Press OK when ﬁ nished.

Figure 57. User Toolbox Screen 1 of 3

2. Press USER CODES and enter the Master User Code (default = 1111).

3. Setup the user’s codes. Press a User button to add, change, or delete

a User Code. The system will ask to conﬁ rm the code entered. Be sure to set a Duress Code as User #8. Press BACK when ﬁ nished.

✓ NOTE: User codes 0000 and 0001 are not permitted.

Figure 58. User Codes Screen

Figure 61. Backlight Timeout Screen

7. Press SET DATE / TIME to set the clock and calendar. On the Set

Date screen, use the ↓ and ↑ arrows to set the month, day, and year. Press NEXT. On the Set Time screen, use the ↓ and ↑ arrows to set the hours, minutes, and AM/PM. Press OK when ﬁ nished. A conﬁ rmation screen will show. Verify the time and date, then Press OK.

✓ NOTE: If the GSM radio module is installed and registered, the

date and time will be set automatically.

Figure 62. Set Date Screen

8. Press BACK to return to the Security Screen or press

the

button to return to the Home Screen.

The installation and installer programming of the Control Panel is now complete. Continue to the next section to test the system.

Testing the System

After the installation is complete and the Control Panel programming is complete, the system must be tested to ensure proper operation.

System testing is performed through the Installer Toolbox screen.

1. From the Home Screen, press SECURITY, MENU,

then TOOLBOX to access the Toolbox Screen.

2. Press the → arrow to go to the Toolbox Screen

2 of 3, then press INSTALLER TOOLBOX.

3. Enter the Installer Code (default = 1561) to access the Installer Toolbox.

Sounder Disable/Enable

Since installer testing will cause the Control Panel’s internal and external alarm sounder to activate, an option to lower the sounder is available.

1. From the Installer Toolbox Screen, press DISABLE SOUNDER.

2. A conﬁ rmation screen will be displayed. Press OK. Four beeps

will sound from the internal sounder, and a short siren will sound from the external sounder. The external siren will be disabled and the internal sounder will be lowered for 30 minutes.

3. A second conﬁ rmation screen will be displayed to verify

that the test sounds were produced. Press OK.

4. While the sounder is disabled, the sounder disable

icon will be displayed on the status bar.

The sounder disable will automatically time out after 30 minutes, and the sounder will automatically become active again.

To re-enable the sounder manually, follow these steps:

1. From the Installer Toolbox Screen, press ENABLE SOUNDER.

2. A conﬁ rmation screen will be displayed. Press OK.

Installer Testing

Figure 63. Installer Toolbox

Figure 64. Sounder Disable Screen

Zone Reporting Test

To verify that the Central Station will correctly receive reports from each zone type, perform the following tests:

1. Inform the Central Station that test signals will be sent.

2. Trigger a 24-hour ﬁ re sensor (if installed) or press the FIRE

emergency button (if enabled), wait about 45 seconds for the report to complete, then disarm the Console.

3. Trigger a 24-hour panic sensor (if installed) or press the

PANIC emergency button (if enabled), wait about 45 seconds for the report to complete, then disarm the Console.

4. Trigger a 24-hour emergency sensor (if installed) or press the

EMERGENCY emergency button (if enabled), wait about 45 seconds for the report to complete, then disarm the Console.

5. Arm the system then trigger a burglary sensor, wait for

the system to go into alarm, wait about 45 seconds for the report to complete then disarm the Console.

6. Check with the Central Station that each zone type was reported,

then inform the Central Station that the testing is complete.

Figure 65. Sounder Disable Conﬁ rmation Screen

STATUS BAR

SHOWING SOUNDER

IS DISABLED

Figure 66. Sounder Disable Icon on Status Bar

Installer Testing

Walk Test Mode

Walk Test Mode is for testing all the sensors. It veriﬁ es that each sensor is being received correctly by the Control Panel. The walk test also tests the Control Panel’s indicators and sounder.

✓ NOTE: The Walk Test Mode will automatically end after 25

minutes.

Signal Strength Indicators

An important feature is the received signal strength indicators displayed by the Control Panel for each of the sensors. Even though the Control Panel’s RF receiver is high-sensitivity, reception quality of sensors at the Control Panel can vary over time, depending on the amount of background RF noise on the receiver’s operating frequency. The signal strength indicators are an important aid to the installer for determining the best location to mount the sensors and Control Panel.

During the walk test, the Control Panel will display the signal strength of the RF transmissions received from each of the sensors. This will help identify any sensors that are received with a weak signal at the Control Panel. Sensors with low signal strength might need to be re-mounted to a location that produces stronger reception at the Control Panel. The higher the sensor signal strength, the better.

During the test, the system will beep every 30 seconds to indicate that the system is in Walk Test Mode. During the last 5 minutes of the test, the system will beep two times every 30 seconds.

✓ NOTE: Entering the Walk Test Mode will send a “start test”

report to the Central Station. Exiting the Walk Test Mode will send a “stop test” report to the Central Station.

To perform a walk test, follow these steps:

1. From the Installer Toolbox screen, press WALK TEST.

2. The

3. Each of the sensors and their status will be shown on the on the sensor

4. Activate the ﬁ rst sensor listed and view the result on the display:

5. Continue testing with each of the other sensors listed.

6. After all the sensors have been tested, press the OK button

7. Press each test item displayed, observe the Control Panel item

8. Press OK when all items have been tested. The Control

9. Press OK to return to the Installer Toolbox.

icon will display on the Control Panel’s status bar and a beep will

sound every 30 seconds to indicate that the system is in Walk Test Mode.

test screen. Use the ↓ and ↑ arrows to scroll through the sensor list.

• When a sensor is received by the Control Panel, three beeps will sound and the display will light a green bar to the left of the sensor’s name.

• The received signal strength of the sensor will display as one to ﬁ ve green bars. The more bars, the higher the signal strength.

• If the signal level is sufﬁ cient, a check mark will display for the sensor.

• For sensors with multiple loops, wait 15 seconds between triggering each loop.

to test the Control Panel’s indicators and sounder.

being tested, and answer the yes/no question for the test.

Panel will display a summary of the test results.

Figure 67. Installer Toolbox Screen

Figure 68. Sensor Test Screen in Walk Test Before Testing

Figure 69. Sensor Test Screen in Walk Test During Testing

Figure 70. Indicator and Sounder Test Screen

Radio Status Mode

✓ NOTE: GSM Module must be installed to use this function.

The GSM Radio Status screen displays data for the GSM radio (if installed). The screen displays signal strength, serial number, registration status, and other information about the GSM radio module status. The information may be helpful for radio installation troubleshooting.

Follow these steps to check the radio status:

1. From the Installer Toolbox screen, press the RADIO STATUS button.

2. The system will display the GSM Radio Info screen. Each

test item is displayed, followed with its current condition. Scroll through the info screen with the ↓ and ↑ arrows.

• Text is displayed in red if the tested signal strength is zero or too low, or the GSM module is not registered.

• Text is displayed in orange if the connection is idle and the GSM module is registered.

• Text is displayed in green if the signal strength is good and the GSM module is registered.

GSM Radio Test

A RUN RADIO TEST button is provided on the GSM Radio Status screen. Pressing this button will test the GSM cell phone connection to the Central Station.

The same test can also be run using the CELL PHONE TEST button on the User Toolbox screen #3.

Follow these steps to test the GSM radio:

1. From the Radio Status screen, press the RUN RADIO TEST button.

2. The system will display the Cell Phone Test screen. The top portion

of the screen shows the actions that the Control Panel is taking. The bottom portion of the screen shows the results of the actions. Scroll through the status screen with the ↓ and ↑ arrows.

3. When the test is complete, press OK to return to the Installer Toolbox.

Installer Testing

Figure 71. Installer Toolbox Screen

Figure 72. GSM Radio Info Screen

Figure 73. GSM Radio Test Screen

Telephone Test

The telephone test checks the land-line connection to the Central Station through the Control Panel’s built-in digital communicator.

The test is accessed through the User Toolbox screen #3.

Follow these steps to test the digital communicator:

1. On toolbox screen #3, press the TELEPHONE TEST button.

2. Enter the Master User Code, and the system will display the

Telephone Test screen. The top portion of the screen shows the actions that the Control Panel is taking. The bottom portion of the screen shows the results of the actions. Scroll through the status screen with the ↓ and ↑ arrows.

3. When the test is complete, press OK to return to the User Toolbox.

Installer Testing

Restoring Programming Defaults

To soft reset the Control Panel back to the factory defaults, use the Restore Default option in the Installer toolbox.

✓ NOTE: The Control Panel may also be “hard” reset to

out-of-the-box factory defaults by pressing and holding the emergency and home buttons while applying power (if not disabled through programming questions Q-44 & Q-45).

Restore Defaults

The Restore Defaults screen provides a method to selectively reset the Control Panel to its default programming values instead of using a full “hard” reset.

Two check box options are available; one or both must be checked:

• If the ZONES box is checked, all data for the 48 sensors will be erased and replaced with the default values.

• If the CONSOLE box is checked, all the Control Panel programming questions will be erased and replaced with the default values. The User Codes will be erased, the backlight timeout is reset to ﬁ ve minutes, and the brightness/ volume settings are reset.

Figure 74. Restore Defaults Screen

Regulatory Information & Limited Warranty

Wireless Product Notice

Radio controls provide a reliable communications link and ﬁ ll an important need in portable wireless signaling; however, there are some limitations which must be observed.

• For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15 devices. As such, they have limited transmitter power and therefore limited range.

• A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that occur on or near their operating frequencies, regardless of code settings.

• Changes or modiﬁ cations to the device may void FCC compliance.

• Infrequently used radio links should be tested regularly to protect against undetected interference or fault.

• A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or dealer, and these facts should be communicated to the ultimate users.

FCC Notice

This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Relocate the Console away from the TV/radio receiver.

• Plug the Console into a different wall outlet so that the Console is on a different branch circuit.

• Re-orient the TV/radio antenna.

• If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions.

FCC Telephone Rules and Regulations

The FCC requires that this alarm dialer system not make more than 15 repetitive dialing attempts to a single telephone number. There are no limitations when the calls are made sequentially to two or more alternative numbers, or when these calls are spaced 10 minutes apart to a single number. The FCC Rules and Regulations do not specify the re-attempt period as this can vary for speciﬁ c applications. When setting this period, take into consideration local, interstate, foreign and special network call completion characteristics, network processing time, a sufﬁ cient number of rings and busy/don’t answer modes.

Industry Canada Notices

NOTICE: The ringer equivalence number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the ringer equivalence numbers of all the devices does not exceed 5.

NOTICE: The Industry Canada label identiﬁ es certiﬁ ed equipment. This certiﬁ cation means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certiﬁ ed equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

Limited Warranty

This 2gig Technologies Inc. product is warranted against defects in material and workmanship for twelve (12) months. This warranty extends only to wholesale customers who buy through 2gig Technologies Inc. authorized distribution channels.

2gig Technologies Inc. does not warrant this product to consumers. Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any. There are no obligations or liabilities on the part of 2gig Technologies Inc. for consequential damages arising out of or in connection with use or performance of this product or other indirect damages with respect to loss of property, revenue, or proﬁ t, or cost of removal, installation, or reinstallation. All implied

warranties, including implied warranties for merchantability and implied warranties for ﬁ tness, are valid only until the warranty expires. This 2gig Technologies Inc. Warranty is in lieu of all

other warranties express or implied.

All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact 2gig Technologies Inc. at 866-670-1591 for an RPA# and other important details.

Reference Programming Question Table

Q # QUESTION DEFAULT

Q-1

Select RF sensor # (01-48)

Select RF sensor (#) type (00) unused

Select RF sensor (#) equipment type

Select RF sensor (#) equipment code (0000) other

Enter RF sensor (#) other equipment code (0-9999) 0 (Only shown if other is selected)

Enter RF sensor (#) serial number (7 digits) 0000000

Select RF sensor (#) equipment age (0-1) (0) new

Select RF sensor (#) loop number (1-3) Varies with sensor model selected

Select RF sensor (#) dialer delay (0-1) ‡ (1) enabled (except for ﬁ re & CO)

Q-1 SUB-QUESTIONS

Construct RF sensor (#) voice descriptor No default

Select RF sensor (#) reports (0-1) (1) enabled

Select RF sensor (#) supervised (0-1) (1) enabled

Select RF sensor (#) chime (0-5) (0) disabled

Q-2

Select wired sensor # (1-2)

Select wired sensor (#) type (00) unused

Select wired sensor (#) equipment type

Enter wired sensor (#) equipment code (0-9999) 0

Select wired sensor (#) equipment age (0-1) (0) new

Select wired sensor (#) normal state (0) not used

Select wired sensor (#) dialer delay (0-1) ‡ (1) enabled

Construct wired sensor (#) voice descriptor No default

Q-2 SUB-QUESTIONS

Select wired sensor (#) reports (0-1) (1) enabled

Select wired sensor (#) chime (0-5) (0) disabled

Q-3

Select fob # (1-8)

Select fob (#) used (0-1) (0) unused

Select fob (#) equipment code (0000) (0000) other

Enter fob (#) other equipment code (0-9999) 0 (Only shown if other is selected)

Enter fob (#) serial number (7 digits) 0000000

Select fob (#) equipment age (0-1) (0) new

Select fob (#) emergency key (0-4) (0) disabled

Select fob (#) key 2 can disarm (0-1) (1) enabled

Q-3 SUB-QUESTIONS

Construct fob (#) voice descriptor keyfob #

Select fob (#) arm no delay (0-1) (0) disabled

Select fob (#) key 4 output (0-2) (0) disabled

Q-4

Select RF keypad # (1-4)

Select RF keypad (#) used (0-1) (0) unused

Select RF keypad (#) equipment code (0000) other

Enter RF keypad (#) other equipment code (0-9999) 0 (Only shown if other is selected)

Enter RF keypad (#) serial number (7 digits) 0000000

Select RF keypad (#) equipment age (0-1) (0) new

Select RF keypad (#) emergency keys (0-1) (1) enabled

Q-4 SUB-QUESTIONS

Construct RF keypad (#) voice descriptor keypad #

Q-5

Enter exit delay, in seconds (45-120) ‡ 60 seconds

Q-6

Enter entry delay 1, in seconds (30-240) ‡ 30 seconds

Q-7

Enter entry delay 2, in seconds (30-240) ‡ 45 seconds

Q-8

Select dialer (0-1) (0) disabled

Q-9

Enter dialing preﬁ x (0-4 digits) No default

Q-10

Enter call waiting disable code (0-6 digits) ‡ No default

Q-11

Enter CS #1 phone number (0-25 digits) No default

Q-12

Enter CS #1 account number (4 digits) No default

Q-13

Select 2-way voice (0-1) (1) stay on line

Q-14

Select silent panic/burglary listen only (0-1) (1) enabled

Q-15

Select dialing type (0-1) (0) touch tone

Q-16

Select police emergency key (0-2) (1) audible

Q-17

Select ﬁ re emergency key (0-1) (1) audible

Q-18

Select emergency key (0-1) (1) audible

Q-19

Select quick arming (0-1) (1) enabled

Q-20

Select swinger shutdown count (1-2) ‡ (1) one trip

Q-21

Select siren supervision time (0-3) (0) disabled

Q-22

Enter CS lack of usage notiﬁ cation time (0-255) 7 Days

Q-23

Enter radio modem network failure time (0-255) 30 minutes

Varies by RF sensor type (Only shown for some sensor types)

Varies by wired sensor type (Only shown for some sensor types)

Q # QUESTION DEFAULT

Q-24

Select radio modem network failure causes trouble (0-1) (1) enabled

Q-25

Select radio modem network failure reports (0-1) (1) enabled

Q-26

Select auto stay (0-1) ‡ (1) enabled

Q-27

Select exit delay restart (0-1) ‡ (1) enabled

Q-28

Select quick exit (0-1) (1) enabled

Q-29

Enter periodic test, in days (0-255) 30 days

Q-30

Enter offset for periodic test start (0-24) (6) 6 hours

Q-31

Enter cancel time, in minutes (5-255) ‡ 5 minutes

Q-32

Select cancel display (0-1) ‡ (1) enabled

Q-33

Select cross sensor 47-48 (0-1) (0) disabled

Q-34

Enter cross sensor timeout, in seconds (10-120) 10 seconds

Q-35

Select abort window dialer delay (0-2) ‡ (1) 30 seconds

Q-36

Select burglary bell cutoff (0-4) (0) 4 minutes

Q-37

Select ﬁ re bell cutoff (0-4) (0) 4 minutes

Q-38

Enter time to detect AC loss, in minutes (0-30) 10 minutes

Q-39

Select random AC loss report time (0-1) (1) enabled

Q-40

Enter CS #2 phone number (0-25 digits) No default

Q-41

Enter CS #2 account number (4 digits) No default

Q-42

Select remote control phone (0-3) (3) data and voice

Q-43

Enter installer code (4 digits) 1561

Q-44

Select lock installer programming (0-2) (0) disabled

Q-45

Select lock default programming (0-2) (0) default all

Q-46

Select trouble doesn’t sound at night (0-1) ♦

Q-47

Select trouble resound after holdoff (0-7) (0) disabled

Q-48

Enter download csid (6 digits) 000000

Q-49

Select programming mode entry reports to CS (0-1) (0) disabled

Q-50

Select trouble reports to CS (0-1) (1) enabled

Q-51

Select manual bypass reports to CS (0-1) (0) disabled

Q-52

Select AC loss reports to CS (0-1) (1) enabled

Q-53

Select system low battery reports to CS (0-1) (1) enabled

Q-54

Select RF low battery reports to CS (0-1) (1) enabled

Q-55

Select opening reports to CS (0-1) (0) disabled

Q-56

Select closing reports to CS (0-1) (0) disabled

Q-57

Select alarm restore reports to CS (0-1) (0) disabled

Q-58

Select trouble restore reports to CS (0-1) (1) enabled

Q-59

Select bypass restores reports to CS (0-1) (0) disabled

Q-60

Select AC restore reports to CS (0-1) (1) enabled

Q-61

Select system low battery restore reports to CS (0-1) (1) enabled

Q-62

Select RF low battery restores reports to CS (0-1) (1) enabled

Q-63

Select phone fail detect (0-1) (0) disabled

Q-64

Select smart test reports (0-1) (0) disabled

Q-65

Select RF jam causes trouble (0-1) (0) disabled

Q-66

Select daylight saving (0-1) (1) enabled

Q-67

Select daylight saving start month (01-12) (03) March

Q-68

Select daylight saving start Sunday (1-7) (2) 2nd

Q-69

Select daylight saving end month (01-12) (11) November

Q-70

Select daylight saving end Sunday (1-7) (1) 1st

Q-71

Select system tamper causes trouble (0-1) (1) enabled

Q-72

Select quick bypass (0-1) (0) disabled

Q-73

Select disarming keyfob after alarm (alert) (0-1) (0) disabled

Q-74

Select keyfob arm / disarm conﬁ rmation (0-1) (0) disabled

Q-75

Select auto unbypass for manual bypass (0-1) (1) enabled

Q-76

Select force bypass reports (0-1) (0) disabled

Q-77

Select event log (0-3) (3) all events

Q-78

Select output (00-10) ‡

Q-79

Select Z-Wave feature (0-3) (1) disabled but visible

Q-80

Select Z-Wave switches feature (0-1) (0) disabled

Q-81

Select Z-Wave thermostats feature (0-1) (0) disabled

Q-82

Select temperature display units (0-1) (0) degrees Fahrenheit

‡ Default set for SIA CP01 compliance

♦ For UL985 Installations, this feature mus t be disabled

(1) enabled

(11) follows internal sounder alarm and status

Reference System Vocabulary Table

# WORD

002

ABORT

003

004

ACCESS

005

ALARM

006

AND

007

ANNOUNCEMENT

008

AREA

009

ARM

010

ARMED

011

ARMING

012

013

ATTIC

014

AUDIO

015

AUTO

016

AUTOMATION

017

AUXILIARY

018

AWAY

019

BABY’S

020

BACK

021

BASEMENT

022

BATHROOM

023

BATTERY

024

BEDROOM

025

BONUS

026

BREAK

027

BUTTON

028

BYPASS

029

BYPASSED

030

CABINET

031

CANCEL

032

CARBON MONOXIDE

033

CELLAR

034

CELLULAR

035

CELL RADIO

036

CENTER

037

CHECK

038

CHEST

039

CHILDREN’S

040

CHIME

041

CLOSET

042

CODE

043

COMMUNICATIONS

044

COMPUTER

045

CONTROL

046

COOL

047

CRAWL

048

CURRENT

049

DAY

050

DEGREES

051

DEN

052

DETECTOR

053

DIM

054

DINING

055

DISARM

056

DISARMED

057

DOCK

058

DOOR

059

DOWNSTAIRS

060

DRIVEWAY

061

EAST

062

EIGHT

063

EIGHTEEN

064

EIGHTY

065

ELECTRIC

# WORD

066

ELEVEN

067

EMERGENCY

068

ENTER

069

ENTRANCE

070

ENTRY

071

ERROR

072

EXERCISE

073

EXIT

074

EXIT NOW

075

EXTERIOR

076

EXTERNAL

077

FAILURE

078

FAMILY

079

FAN

080

FIFTEEN

081

FIFTY

082

FIRE

083

FIRE ALERT

084

FIRE DETECTOR

085

FIRST

086

FIVE

087

FLOOD

088

FLOOR

089

FLUID

090

FOIL

091

FOR

092

FORTY

093

FOUR

094

FOURTEEN

095

FOURTH

096

FREEZE

097

FREEZER

098

FRONT

099

FURNACE

100

GAME

101

GARAGE

102

GAS

103

GLASS

104

GLASS BREAK

105

GUEST

106

GUN

107

HALL

108

HALLWAY

109

HANGING

110

HANG UP

111

HEAT

112

HIGH

113

HOME

114

HOUSE

115

ICE

116

INSIDE

117

INSTANT

118

INTERIOR

119

INTRUSION

120

121

KEY

122

KEYFOB

123

KEYPAD

124

KIDS

125

KITCHEN

126

LAUNDRY

127

LEFT

128

LEVEL

129

LIBRARY

# WORD

130

LIGHT

131

LIGHTS

132

LIQUOR

133

LIVING

134

135

LOCK

136

LOFT

137

LOW

138

MAIN

139

MAINTENANCE

140

MASTER

141

MEDICAL

142

MEDICINE

143

144

MIDDLE

145

MONITOR

146

MOTION

147

MOTION DETECTOR

148

MUD

149

NINE

150

NINETEEN

151

NINETY

152

NORTH

153

NOT

154

NOT READY

155

NO DELAY

156

NO ENTRY DELAY

157

NURSERY

158

OFF

159

OFFICE

160

161

ONE

162

ONE HUNDRED

163

OUTPUT

164

OUTSIDE

165

PANEL

166

PANIC

167

PANTRY

168

PATIO

169

PERIMETER

170

PHONE LINE

171

PLAY

172

POLICE

173

POOL

174

POUND

175

POWER

176

PRESS

177

178

PUMP

179

RADIO

180

READY

181

REAR

182

RELAY

183

REMOTE

184

REPEAT

185

RF JAM

186

RIGHT

187

ROOM

188

SAFE

189

SECOND

190

SECURITY

191

SENSOR

192

SENSORS

193

SESSION

# WORD

194

SET

195

SEVEN

196

SEVENTEEN

197

SEVENTY

198

SHED

199

SHOP

200

SIDE

201

SILENT

202

SIREN

203

SIX

204

SIXTEEN

205

SIXTY

206

SKYLIGHT

207

SLIDING

208

SMOKE

209

SOUNDER

210

SOUTH

211

SPACE

212

SPARE

213

STAIRS

214

STAR

215

STATUS

216

STAY

217

STOP

218

STORAGE

219

STUDY

220

SUMP

221

SUPERVISION

222

SYSTEM

223

TAMPER

224

TEMPERATURE

225

TEN

226

TERMINATED

227

THERMOSTAT

228

THIRD

229

THIRTEEN

230

THIRTY

231

THREE

232

233

TOOL

234

TRANSMITTED

235

TRANSMITTER

236

TROUBLE

237

TURN

238

TWELVE

239

TWENTY

240

TWO

241

UNLOCK

242

UPPER

243

UPSTAIRS

244

USER

245

UTILITY

246

VALV E

247

VOICE

248

WALL

249

WATER

250

WEST

251

WINDOW

252

WIRELESS

253

YARD

254

ZERO

255

ZONE

Notes

_____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________

Notes

Index

#’s

2GIG-AC1 replacement power supply 7 2GIG-ANT1 internal GSM antenna 7 2GIG-ANT1X external in-wall GSM antenna 7 2GIG-ANT2X external attic mount GSM antenna 7 2GIG-ANT4X 7 2GIG-BATT1 standard battery pack 7 2GIG-BATT1X extended battery pack 7 2GIG-DW10 thin door/window contact 6 2GIG-DW20R recessed door contact 6 2GIG-GB1 glass break detector 6 2GIG-GSMx GSM module 7 2GIG-KEY1 4-button key ring remote 6 2GIG-PANIC1 panic button remote 6 2GIG-PIR1 passive infrared motion detector 6 2GIG-SMKT2 smoke and heat detector 6 2GIG-TAKE-345 6 2-way voice central station commands 30 2-way voice enable 30 4-button key ring remote 6 24-hour Audible Alarm sensor type 18 24-hour Auxiliary Alarm sensor type 18 24-hour Carbon Monoxide sensor type 18 24-hour Fire sensor type 18 24-hour Fire with Veriﬁ cation sensor type 18 24-hour Silent Alarm sensor type 18

Abort window dialer delay 32 AC loss detect time 33 AC loss reports 35 AC loss report time 33 AC power icon 14 AC restore reports 35 Alarm restore reports 35 Alarm sounder 9 Alarm system permit 2 Arming screen 12 Auto stay 31

BACK button 15 Backlight timeout 38 Backup battery connection 11 Backup battery status icon 14 Bell terminals 9 BKSP button 15 Block diagram 3 Brightness / volume 38 Burglary bell cutoff 32 Bypass restore reports 35

Call waiting disable code 30 Cancel display 32 Cancel time 32 Central station #1 account number 30 Central station #1 phone number 30 Central station #2 account number 33 Central station #2 phone number 33 Central station commands for 2-way voice 30 Closing reports 35 Communicator telephone line 9 Control panel external features 4 Control panel features 4 Control panel internal features 4 Control panel location 5 Control panel location height 5 Control panel mounting 11 Control panel mounting plate 8 Control panel wiring 11 Control panel wiring diagram 2 Cross sensor 32 Cross sensor timeout 32 CS Lack of usage notiﬁ cation time 31

Daylight saving end month 36 Daylight saving end Sunday 36 Daylight saving scheme 36 Daylight saving start month 36 Daylight saving start Sunday 36 Day Zone sensor type 18 DELETE button 15 Dialer enable 30 Dialing preﬁ x 30 Dialing type 31 Disarming with key fob alert after alarm 36 Download csid 34

Emergency button 31 END button 15 Entry delay 1 30 Entry delay 2 30 ESC button 15 ETL Listing 2 Event log 37 EXIT button 15 Exit delay 30 Exit delay restart 32 Exit/Entry 1 sensor type 18 Exit/Entry 2 sensor type 18 Exiting programming 38 Extended battery pack 7 External attic mount GSM antenna 7 External in-wall GSM antenna 7

Fire bell cutoff 33 Fire emergency key 31 Force bypass reports 37 FWD button 15

Glass break detector 6 GO TO button 15 GSM module 7 GSM module installation 10 GSM radio icon 14 GSM radio test 41

Hardwired loops 8 Home screen 12

INSERT button 15 Installation outline 5 Installer code 33 Installer code entry 13 Installer programming 20, 22 Installer toolbox 13, 39 Insurance discounts 2 Interior follower sensor type 18 Interior with delay sensor type 18 Internal GSM antenna 7

Key fob # 27 Key fob arm / disarm conﬁ rmation 36 Key fob arm no delay 27 Key fob emergency key 27 Key fob equipment age 27 Key fob equipment code 27 Key fob key 2 can disarm 27 Key fob key 4 output 27 Key fob serial number 27 key fob summary screen 26 Key fob voice descriptor 27

LEARN button 15 Location of sensors 5 Lock default programming 34 Lock installer programming 34

Manual bypass reports 34 Menu screen 12

Index

Navigation arrows 15 NFPA Standard #72 2 No response sensor type 18

Offset for periodic test start 32 Open collector output selection 37 Opening reports 35

Panic button remote 6 Passive infrared motion detector 6 PASTE button 15 Perimeter sensor type 18 Periodic test timer 32 Phone fail detect 35 Phone line failure icon 14 Police emergency key 31 Power supply mounting 11 Power supply wiring 11 Programming mode entry reports 34 Programming outline 16 Programming question list 17

Quick arming 31 Quick bypass 36 Quick exit 32

Radio modem network failure causes trouble 31 Radio modem network failure reports 31 Radio modem network failure time 31 Radio status mode 41 Recessed door contact 6 Reference programming question table 44 Reference system vocabulary 45 Regulatory information 43 Remote control phone enable 33 Remote installer access icon 14 Replacement power supply 7 Restoring programming defaults 42 RF jam causes trouble 36 RF key fob programming 26 RF key fob programming outline 26 RF key fob programming steps 27 RF key fob summary screen 26 RF keypad # 29 RF keypad emergency key 29 RF keypad equipment age 29 RF keypad equipment code 29 RF keypad other equipment code 29 RF keypad programming 28 RF keypad programming outline 28 RF keypad programming steps 29 RF keypad serial number 29 RF keypad summary screen 28 RF keypad voice descriptor 29 RF low battery reports 35 RF low battery restore reports 35 RF sensor # 22 RF sensor chime 23 RF sensor dialer delay 23 RF sensor equipment age 23 RF sensor equipment code 22 RF sensor equipment type 22 RF sensor loop number 23 RF sensor other equipment code 22 RF sensor programming 20 RF sensor programming outline 20 RF sensor programming steps 22 RF sensor reports 23 RF sensor serial number 23 RF sensor summary screen 21 RF sensor supervised 23 RF sensor type 22 RF sensor voice descriptor 23 RJ31X telephone jack 9

Saving programming 38 Security screen 12 Sensor signal loss through materials 5 Sensor types 18 Sensor zones 18 Set date / time 38 SHIFT button 15 Signal strength indicators 40 Silent burglary sensor type 18 Silent panic/burglary listen only 30 Siren supervision time 31 SKIP button 15 Smart test reports 36 Smoke and heat detector 6 Smoke detector location 2 Solid state output 9 Sounder disable/enable 39 Sounder disable icon 14 Standard battery pack 7 Status screen 12 SUM button 15 Super switch wireless takeover module 6 Swinger shutdown count 31 System block diagram 3 System conﬁ guration screen 13 System low battery reports 35 System low battery restore reports 35 System sensor types 18 System status icons 14 System tamper causes trouble 36 System vocabulary 19

Takeover module 6 Telephone line 9 Telephone test 41 Temperature display units 37 Testing the system 39 Test mode icon 14 Thin door/window contact 6 Toolbox screens 13 Trouble doesn’t sound at night 34 Trouble reports 34 Trouble resound after holdoff 34 Trouble restore reports 35

Unused zone 18 User codes 38

Vocabulary 19

Walk test mode 40 Wall mounting control panel 8 Wired sensor # 25 Wired sensor chime 25 Wired sensor dialer delay 25 Wired sensor equipment code 25 Wired sensor equipment type 25 Wired sensor normal state 25 Wired sensor programming 24 Wired sensor programming outline 24 Wired sensor programming steps 25 Wired sensor reports 25 Wired sensor summary screen 24 Wired sensor type 25 Wired sensor voice descriptor 25 Wireless installation tips 5 Wireless keypad 6 Wireless sensor installation 8 Wireless takeover module 6 Wiring diagram 2

Zone reporting test 39 Zone types 18 Z-Wave feature enable 37 Z-Wave switches feature 37 Z-Wave thermostats feature 37

Technical Support

866-670-1591

www.2gig.com

Go!Control 2GIG-CNTRL2 Installation & Programming Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
