ECO Spot LED25 User Manual
ECO Spot
with experience in lighting equipment and general electrical experience.
LED25™ User Manual

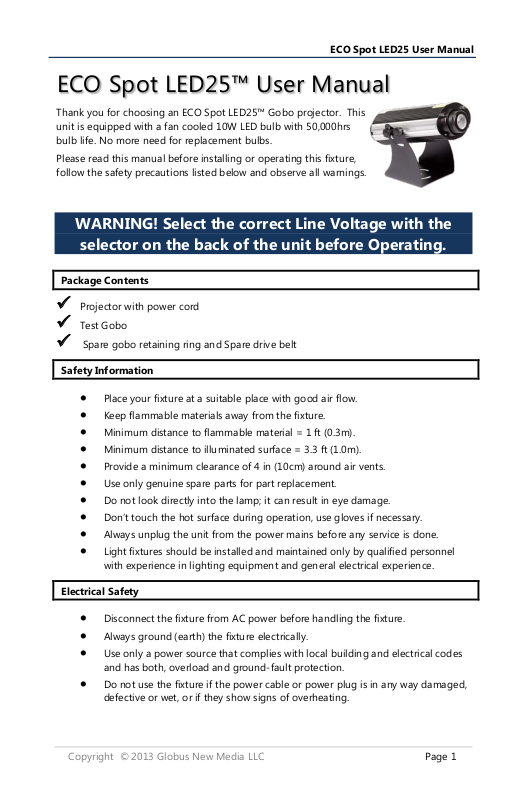

Thank you for choosing an ECO Spot LED25™ Gobo projector. This
unit is equipped with a fan cooled 10W LED bul b with 50,000hrs
bulb life. No more need for replacement bulbs.
Please read this manual before installing or operating this fixture,
follow the safety precautions listed below and observe all warnings.
WARNING! Select the correct Line Voltage with the
selector on the back of the unit before Operating.
Package Contents
Projector with power cord
Test Gobo
Spare gobo retainin g ring and Spare drive belt
Safety Information
• Place your fixture at a suitable place with good air flow.
• Keep flammable materials away from the fixture.
• Minimum distance to flammable material = 1 ft (0.3m).
• Minimum distance to illuminated surface = 3.3 ft (1.0m).
• Provide a minimum clearance of 4 in (10cm) around air vents.
• Use only genuine spare parts for part replacement.
• Do not look directly into the lamp; it can result in eye damage.
• Don’t touch the hot surface during operation, use gloves if necessary.
• Always unplug the unit from the power mains before any service is done.
• Light fixtures should be installed and maintained only by qualified personnel
Electrical Safety
• Disconnect the fixture from AC power before handling the fixture.
• Always ground (earth) the fixture electrically.
• Use only a power source that complies with local building and electrical codes
• Do not use the fixture if the power cable or power plug is in any way damaged,
Copyright © 2013 Globus New Media LLC Page 1
and has both, overload and groun d-fault protection.
defective or wet, or if they show signs of overheating.
ECO Spot LED25 User Manual
use an approved means of secondary attachment such as a safety cable.
• The yoke can be screwed to a wall or ceiling or fastened with a C-clamp
Handling Instructions
• Before the initial start-up, pleas e unpa ck and carefully check for damage
caused during transportation.
• Place your fixture at a suitable place with good air flow.
• Make sure there are no flammable materials close to the lamp.
• When suspending the fixture above ground level, verify that th e structure can
hold at least 10 times the weight of all installed devices.
• Verify that all external covers and rigging hardware are securely fastened and
Warranty
One Year from Date of Purchase. For warranty, contact your dealer or
Globus New Media LLC at 1-800-213-1092 or 1-408-705-2300
Focusing
• Power up the projector by pressing the larger switch in the back.
• Turn on the gobo rotator with the smaller switch in the back and switch it off when
the gobo projects in the desired position.
• Focus the projection by twisting the lens in and out until the image is well focused.
When used for the first time, the lens will often need to be twisted outwards many
rotations to reach the focusing point.
Gobo Rotator
• The gobo rotator can be turned on/off with the small switch on the back plate.
• There are no controls for rotating speed or direction.
Multi-functional Yoke
• The yoke can slide over the whole length of the fixture body to accommodate
multiple pointing directions.
• The yoke serves as stand foot.
Page 2 Copyright © 2013 Globus New Media LLC
ECO Spot LED25 User Manual
• Replace the front cover and adjust the focus.
Gobo Re placement
• Unplug the power cord.
• Unscrew the four thumbscrews to remove the front cover with the projection
lens.
• Push the two pins of the gobo retaining ring together and pull out the
retaining ring. Carefully remove the old gobo and replace it with the new
gobo.
• If you have a glass gobo, place the more reflective side towards the light bulb.
• Replace the retaining ring and make sure it evenly push es the gobo all the way
back.
Copyright © 2013 Globus New Media LLC Page 3

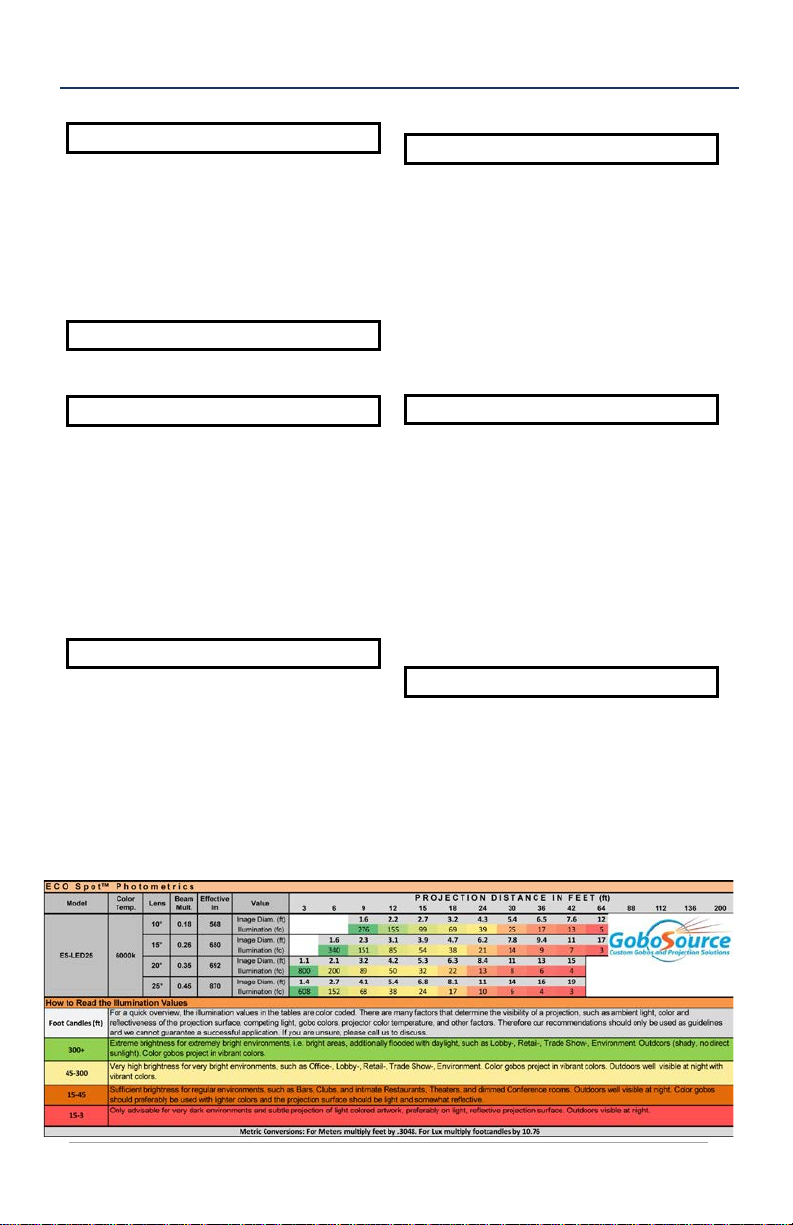

ECO Spot LED25 User Manual
Extremely high light density for
• Effective luminous flux: 870lm
•
Line Voltage
Use the Line Voltage Selector in the
back to select the correct line voltage.
US Setting (120V)
90-130V, 60Hz, 0.4A, 32W
International Setting (220V)
200-240V, 50Hz, 0.2A, 32W
Ambient Operating Temperature
-13 to 104°F (-25 to 40°C)
Dimensions / Weight
Body without yoke:
11 x 7 x 3.75in (L x W x H)
(280 x 178 x 95mm)
The projection lens adds 0.5 to 2in (12 to
50mm) to the length.
Height with yoke: 7.75in (197mm)
Weight 7lbs (3kg)
Gobo Dimensions
Metal or Glass Gobos and Dichroic filters
Outer Diameter (OD): 37.5mm
Max. Image Diameter (ID): 25mm
Max Thickness: 4mm
LED Lamp
•
ultra-efficient projection.
• Power: 25W
• Bulb life 50,000h
• Color Temperature 6,000k
• Rated Luminous flux: 2000lm
Lens Options
The projector can be equipped with
different projection lenses. The more
narrow the lens, the smaller and brighter
the image will be at a given distance.
Currently these lenses are available:
• Wide 25 degree
• Medium 20 degree
• Medium Narrow 15 degree
Narrow 10 degree
Dimming Options
Not Dimmable
Page 4 Copyright © 2013 Globus New Media LLC
