ECO Spot LED C40/C60 User Manual
ECO Spot™ LED C40/C60 User Manual
experience in lighting equipment and general electrical experience.
uilding and electrical codes and
defective or wet, or if they show signs of overheating.
Thank you for choosing an ECO Spot™ Gobo projector. This manual
covers the ECO Spot C40 and ECO Spot C60.
Please read this manual before installing or operating this fixture,
follow the safety precautions listed below and observe all warnings.
Package Contents
Projector with power cord
Test Gobo
Spare gobo retaining ring and drive belt
Gobo adapter for D- to E-Size gobos with retaining ring
Safety Information
• Place your fixture at a suitable place with good air flow.
• Keep flammable materials away from the fixture.
• Minimum distance to flammable material = 1 ft (0.3m).
• Provide a minimum clearance of 4 in (10cm) around air vents.
• Use only genuine spare parts for part replacement.
• Do not look directly into the lamp; it can result in eye damage.
• Always unplug the unit from the power mains before any service is done.
• Light fixtures should be installed and maintained only by qualified personnel with
Electrical Safety
• Disconnect the fixture from AC power before handling the fixture.
• Always ground (earth) the fixture electrically.
• Use only a power source that complies with local b
has both, overload and ground-fault protection.
• Do not use the fixture if the power cable or power plug is in any way damaged,
Warranty
One Year from Date of Purchase. Keep your receipt for reference and
contact your dealer in case of warranty issues.
Copyright © 2017 Globus New Media LLC Page 1
ECO Spot LED C40/C60 User Manual
can hold
an approved means of secondary attachment such as a safety cable.
is well focused.
When used for the first time, the lens will often need to be twisted outwards many
• Re-adjust the focus if necessary.
• The yoke can be screwed to a wall or ceiling or fastened with a C-clamp
Handling Instructions
• Before the initial start-up, please unpack and carefully check for damage caused
during transportation.
• Place your fixture at a suitable place with good air flow.
• Make sure there are no flammable materials close to the lamp.
• When suspending the fixture above ground level, verify that the structure
at least 10 times the weight of all installed devices.
• Verify that all external covers and rigging hardware are securely fastened and use
Projection Lenses
The projector accommodates interchangeable projection lenses to allow optimizing the
projection size and resulting brightness at varying distances. The more narrow the lens,
the smaller and brighter the image will be at a given distance.
Focusing
• Power up the projector by pressing the power switch in the back.
• Focus the projection by twisting the lens in and out until the image
rotations to reach the focusing point.
• Turn on the gobo rotator with the push-button in the back and switch it off when
the gobo projects in the desired position.
Gobo Rotator
The gobo rotator can be turned on/off with the push-button switch on the back plate.
There are no controls for rotating speed or direction.
Dimming
If equipped, the projection brightness can be adjusted with the manual dial on the back
plate.
Multi-functional Yoke
• The yoke can slide over the whole length of the fixture body to accommodate a
wide range of pointing directions.
• The yoke serves as stand.
Page 2 Copyright © 2017 Globus New Media LLC
ECO Spot LED C40/C60 User Manual
out.

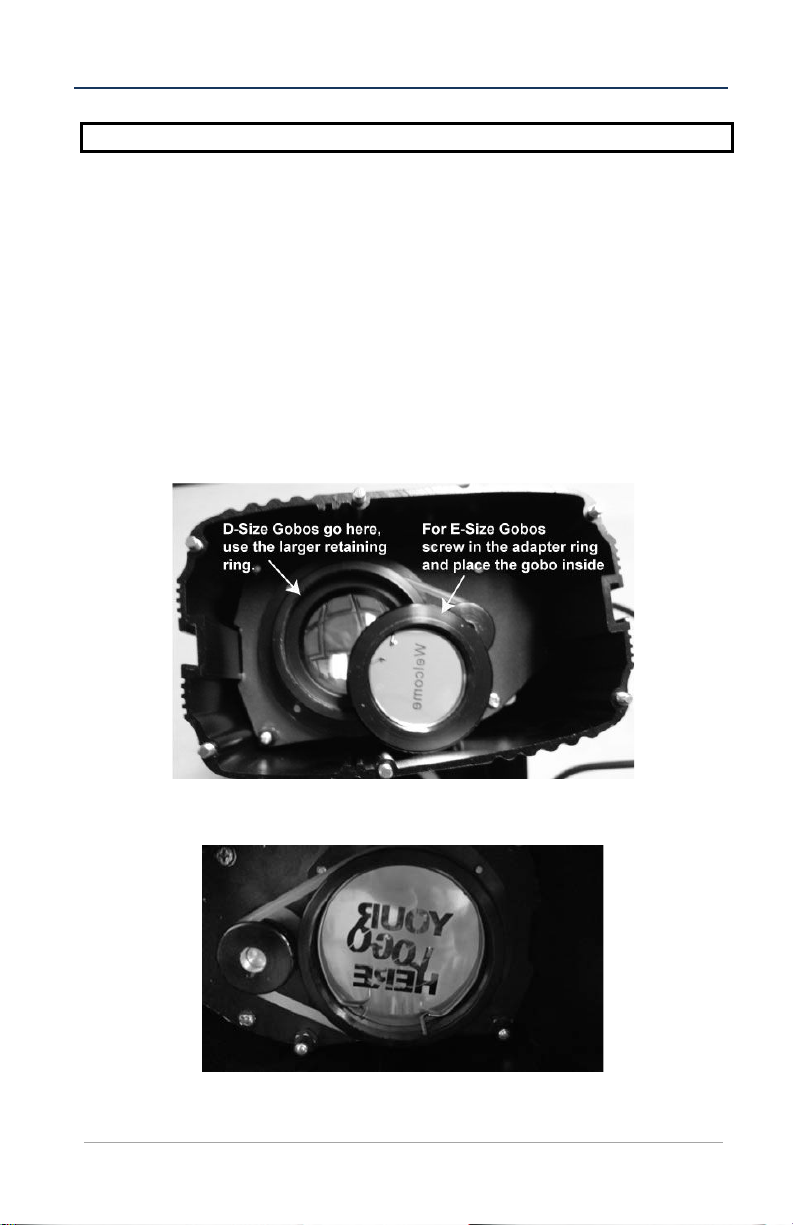

Gobo Placement (see Specifications for Gobo Dimensions)
The projector uses D-Size gobos or E-Size gobos with an adapter ring. See the
Specifications for exact dimensions.
• Unscrew the thumbscrews to remove the front cover with the projection lens.
• For E-Size gobos, use the adapter ring. For larger gobos, remove the adapter ring
and use the larger retaining ring.
• Push the two pins of the gobo retaining ring together and pull out the retaining
ring. Carefully remove the old gobo and replace it with the new gobo.
• If you have a glass gobo, place the more reflective side towards the light bulb.
• Replace the retaining ring and make sure it evenly pushes the gobo all the way
back.
• Replace the front cover and adjust the focus by screwing the projection lens in or
For D-Size gobos, remove the E-Size Adapter and leave it out:
Copyright © 2017 Globus New Media LLC Page 3
ECO Spot LED C40/C60 User Manual
500k
Power Supply C40 (C60)
100-240V, 277V 50-60Hz, 48W (72W)
Dimensions / Weight
Body without yoke:
10.5 x 6 x 3.75in (L x W x H)
(267 x 153 x 95mm)
The projection lens adds 0.5 to 2in (12 to
50mm) to the length.
Height with yoke: 7.75in (197mm)
Weight 7lbs (3kg)
Gobo Dimensions
Metal or Glass Gobos and Dichroic filters
with up to 4mm thickness.
Standard gobo size (E-Size):
Outer Diameter (OD): 37.5mm
Image Diameter (ID): 27mm
Larger D-size gobos can be used by
removing the adapter ring.
The recommended gobo image diameter
for best focusing is up to 25mm. An
image diameter of up to 32mm is
possible with some yellowing and
focusing weakness in the outer projection
area.
(max 32mm)
LED Lamp C40 (C60)
• Power: 40W (60W)
• Rated luminous flux: 4,000lm
(6,000lm)
• Effective luminous flux: 2,200lm
(3,400lm)
• Rated Bulb life 40,000h
• Color Temperature 6,000k, +/-
Lens Options
The projector can be equipped with
standard ECO Spot projection lenses.
A larger focal length (f) makes a smaller
projection angle and therefore a smaller
but brighter image. Currently these
lenses are available:
• Wide f=50mm, 25º
• Medium f=70mm 20º
• Semi-Narrow f=100mm, 15º
• Narrow f=140mm, 10º
Ambient Operating Temperature
-13 to 104°F (-25 to 40°C)
Page 4 Copyright © 2017 Globus New Media LLC
