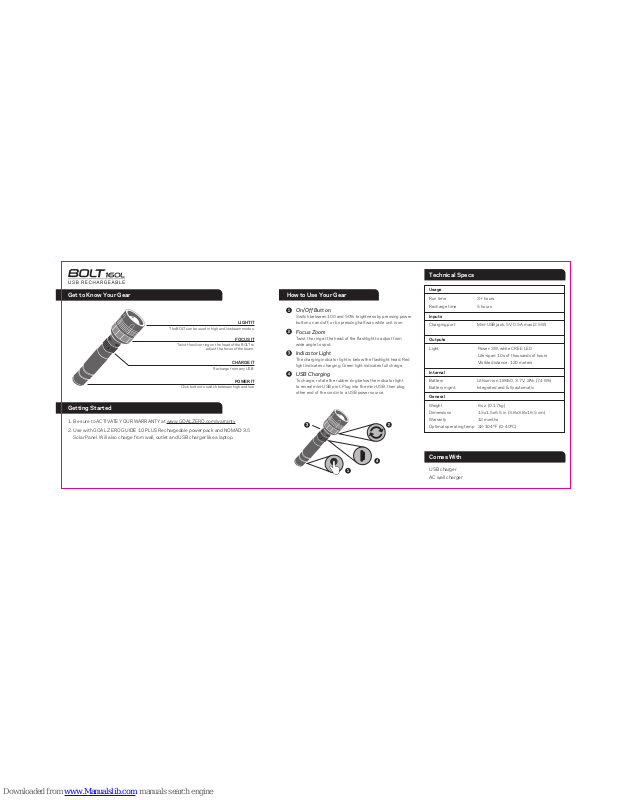

Page 1
Twist the silver ring on the head of the BOLT to
adjust the focus of the beam.
1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Use with GOAL ZERO GUIDE 10 PLUS Rechargeable power pack and NOMAD 3.5
Solar Panel. Will also charge from wall, outlet and USB charger like a laptop.
How to Use Your Gear
CHARGE IT
LIGHT IT
Recharge from any USB.
POWER IT
Click button to switch between high and low.
The BOLT can be used in high and low beam modes.
FOCUS IT
Getting Started
Get to Know Your Gear
On/Off Button
Switch between 100 and 50% brightness by pressing power
button on and off; or by pressing half way while unit is on.
Focus Zoom
Twist the ring at the head of the flashlight to adjust from
wide angle to spot.
Indicator Light
The charging indicator light is below the flashlight head. Red
light indicates charging. Green light indicates full charge.
USB Charging
To charge, rotate the rubber ring below the indicator light
to reveal mini-USB port. Plug into the mini-USB, then plug
other end of the cord into a USB power source.
Comes With
USB charger
AC wall charger
Technical Specs
Charging port Mini-USB jack, 5V, 0.5A max (2.5W)
Inputs
Usage
Weight 6 oz (0.17 kg)
Dimensions 1.5x1.5x6.5 in (3.8x3.8x16.5 cm)
Warranty 12 months
Optimal operating temp. 32-104ºF (0-40ºC)
Battery Lithium-ion 18650, 3.7V, 2Ah (7.4 Wh)
Battery mgmt. Integrated and fully automatic
General
Outputs
Light Power: 3W, white CREE LED
Life-span: 10s of thousands of hours
Visible distance: 120 meters
Run time 3+ hours
Recharge time 5 hours
Internal
Page 2
Output Ports
What is the shelf life of the BOLT?
You should recharge your flashlight if it has been sitting unused for more than 3 months.
Can I replace my battery?
Yes! The flashlight uses a standard 3.7V Li-Polymer 18650 rechargeable battery.
Can I recharge the BOLT with a solar panel?
Yes! You can recharge your BOLT flashlight from any GOAL ZERO solar panel with USB.
(Recommended for use with the NOMAD line)
GOAL ZERO products:
SHERPA power packs
GUIDE 10 Plus battery pack
ESCAPE 150 power pack
NOMAD 3.5
NOMAD 7
NOMAD 13.5
NOMAD 27
Any USB port
CONTACT US:
Toll Free: 888.794.6250
14864 Pony Express Road
Bluffdale, UT, 84065
WWW.GOALZERO.COM
We proudly support Tifie Humanitarian
WWW.TIFIE.ORG
USER GUIDE
Frequently Asked Questions
Compatible With
• Fill out your warranty
• Watch demo video
• Download this manual
