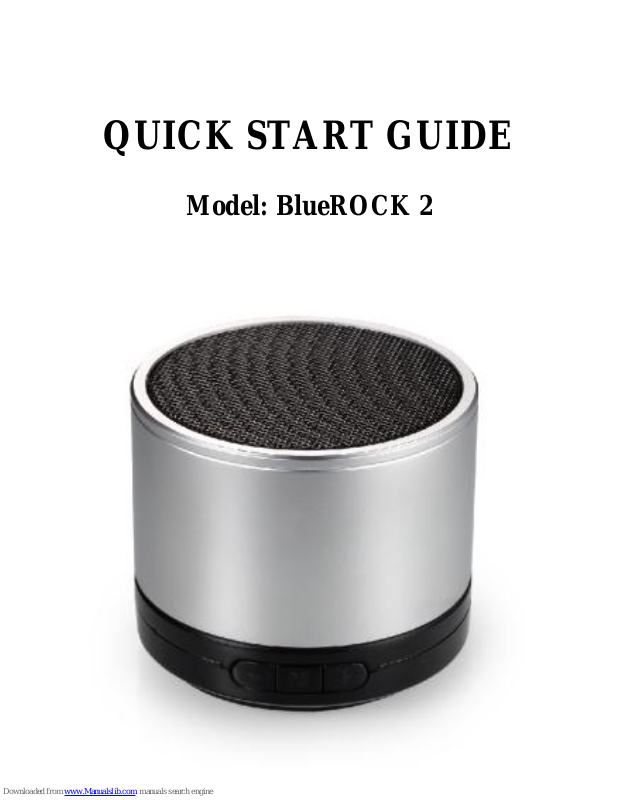

QUICK START GUIDE
Model: BlueROCK 2
Page 2
The BlueROCK 2 Bluetooth speaker features high
definition sound with a built in microphone for easy
hands-free calling. Simply pair your handheld
device with the BlueROCK 2 to easily answer
phone calls while enjoying your favorite music.
Includes:
• 1 x BlueROCK 2
• 1 x Charging Cable
• 1 x Line In Audio Cable
Speaker Controls (Bluetooth Only)
Charging the Battery
Before first use follow these instructions to fully
charge the BlueRO
CK 2:
1. Move the “On / Off” switch to the “O” position.
2. Plug the provided USB charging cable into the
speaker and a powered USB port. While charging,
the indicator LED light will be red. Once fully
charged, the red LED will turn off.
Play / Pause
Answer / End
Call
Push Once: Previous Song
Push and Hold: Volume Down
Push Once: Next Song
Push and Hold: Volume Up
Page 3
Playing Music with a Bluetooth Connection
1. Move the “On / Off” switch to the “On” position.
2. The BlueROCK 2 will make a loud beep and the
LED indicator light will flash, indicating that the
speaker is in pairing mode. If a device is not
connected after 30 seconds, the speaker will switch
to sleep mode. Turn the speaker off and then on
again to re-enter pairing mode.
3. On your mobile device: Turn Bluetooth on, search
for Bluetooth devices, and select the speaker.
4. If you are prompted to enter a password to complete
pairing, enter 0000. The BlueROCK 2 will beep,
indicating that it has successfully paired with your
device and is ready for use.
Note: If the BlueROCK 2 is moved out of range or
runs out of power and drops the connection to your
portable device, then you will need to recharge or
move the BlueROCK 2 closer to your portable
device and return to step 1 above to re-establish the
Bluetooth connection.
Playing Music with a Line In Connection
1. Move the “On / Off” switch to the “Off” position.
2. Plug the provided audio cable into the BlueROCK 2
and then into your portable device.
3. Move the “On / Off” switch to the “On” position.
The BlueROCK 2 is now ready for use.
Page 4
Answering a Call with the BlueROCK 2
1. Establish a Bluetooth connection between your
device and the BlueROCK 2 as described in the
section above “Playing Music with a Bluetooth
Connection.”
2. To answer an incoming call press the Play / Pause
button once.
3. To end a call press the Play / Pause button again.
Specifications
• Battery Voltage: 3.7 V
• Battery Capacity: 400 mAh
• Recharging Voltage: 5 V
• Horn Specifications: 40mm 2.6Ω 3W
• Frequency Response: 60Hz – 18KHz
• Wireless Range: up to 10M
• Bluetooth 2.1 + EDR Compliant
• Supports A2DP and AVRCP Profiles
• SNR (Signal to Noise Ratio): ≥ 95 dB
• Distortion: ≤ 0.5%
• Play Time: 6 – 7 hours
• Recharge Time: 2 – 3 hours
• Dimensions: 60*60*50mm
