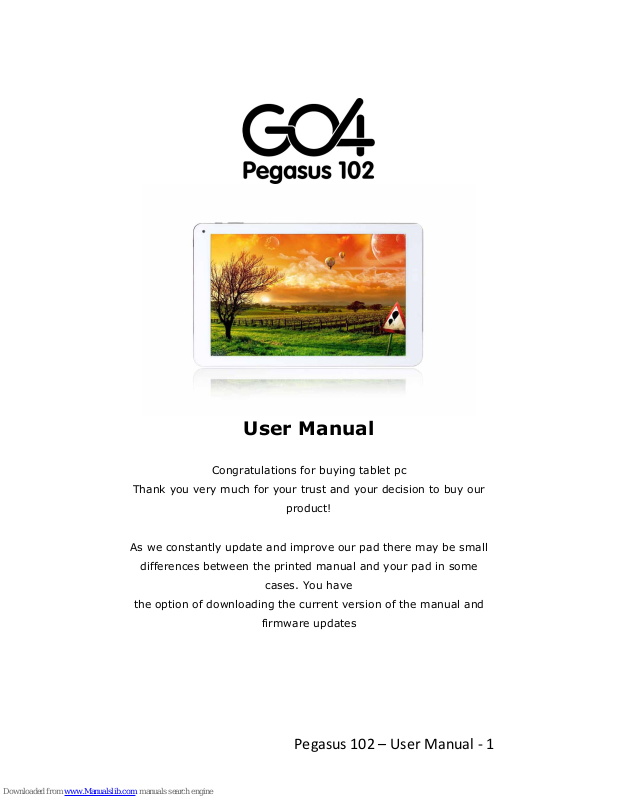

Pegasus'102'–!User$Manual$"!1#

User Manual

Congratulations for buying tablet pc

Thank you very much for your trust and your decision to buy our

product!

#

As we constantly update and improve our pad there may be small

differences between the printed manual and your pad in some

cases. You have

the option of downloading the current version of the manual and

firmware updates

Pegasus'102'–!User$Manual$"!2#

Table of Contents

Safety instructions 3

Description of the buttons 4

Language settings 5

Power monitoring

and charging the batteries 5

Screen lock 6

Connecting with computer and data transfer 6

Functions of the buttons on the

user interface 7

Programme menu 8

System settings 11

1. Wireless & Networks 11

2. Sound settings 13

3. Display settings 13

4. Location & safety 13

5. Application 13

6. Accounts & synchr. 13

7. Data protection 14

8. Memory 14

9. Language & keyboard 14

10. Date & time 14

11. Bluetooth 14

12. Telephone info 14

Internet 16

Open Source Code & GNU General Public License 16

Technical Data 19

Pegasus'102'–!User$Manual$"!3#

This user manual contains important safety
instructions and information for proper use of the
device. Please follow the instructions in this manual
carefully.

A Please keep the device away from places with high
temperatures,
high humidity or dust.

B In particular please avoid leaving the device in the
car during summer if the doors are closed.

C Avoid shocks and do not let the device fall, as
otherwise it may cause damage to the device.

D The Standby Time of the batteries may vary due to
different environmental influences.

E We are not responsible for data losses that are
caused by damage to the product, repairs or any
other reasons.

F Do not open the housing of the device. Doing this
will void your warranty claims.

G Do not use alcohol, thinners or petrol to clean the
display
– use only a dry cloth.

Pegasus'102'–!User$Manual$"!4#

Description of the buttons

Volume Buttons:
Here you can increase or reduce the volume.

Power Button:
Press the button for two seconds to switch on or
switch off
the device. Press the button briefly to activate or end
the Standby-Mode. Reset: Press the button for seven
seconds to restart
the device.

ESC Button:
To go back to the previous menu

Menu Button:
To open the context menu

Home Button:
To go back to the user interface

Pegasus'102'–!User$Manual$"!5#

Language setting

PC is delivered with English as a default language.
To change the language setting, please do the
following:

- Press on the programme menu symbol
on the right side of the screen.

- Select ‘Settings’ .

- Scroll to the end of the list.

- Select ‘Language & keyboard’.

- Select ‘Select language’.

- Type your preferred language.

- Press the ‘Home’ button to return to the home
screen.

Power monitoring and charging the batteries

The battery charge symbol in on the status bar
indicates
the charging status of the batteries.
If the power goes down, the device shuts itself off
automatically. If less power is shown, use the power

adapter

#

The charging time for the battery is approximately six

hours.

Pegasus'102'–!User$Manual$"!6#

Screen lock

If the device is not used for specified time or the
‘Power’ button
is pressed briefly, the screen is switched off and
display lock
is activated.
By pressing the ‘Power’ button briefly the screen will
be reactivated. For locking the screen press the ‘Lock’
button in the specified direction.

Connecting to the computer and data transfer

PC is equipped with a High-Speed USB2.0 Interface.
After you connect the device to a computer, it appears
in

the status display

."#

Pull the status bar down and press ‘USB Connection’
to activate
the USB Memory. When using the device for data
transfer,
you cannot access the Micro SD/TF Card from PC!
