GN Audio USA OTE25 User Manual
NEED MORE HELP?
For all support go to jabra.com/support
1-2-3
QUICK START
VIDEOS
jabra.com/eclipse
FAQ
DOWNLOADS
CONTACT SUPPORTTROUBLESHOOTING
81-04003 C
JABRA ECLIPSE
GET STARTED IN UNDER
jabra.com/eclipse
5
MINUTES
© 2015 GN Netcom A/S (North America: GN Netcom US, Inc.). All
rights reserved. Jabra® is a registered trademark of GN Netcom A/S. All
other trademarks included herein are the property of their respective
owners. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under
license. (Design and specifications subject to change without notice).
MADE IN CHINA
MODEL: OTE25
FCC ID: BCEOTE25
IC: 2386COTE25
Declaration of Conformity can be found on
www.jabra.com/CP/US/declarations-of-conformity
ENGLISH .........................................................1
FRANÇAIS CANADA ...............................7
ESPAÑOL MÉXICO .................................13
PORTUGUÊS BRASIL .............................19
1 HOW TO CONNECT
CONNECT WITH A BLUETOOTH DEVICE
1. Dock the headset in the charging case,
and ensure the headset is charged.
2. Press and hold (3 secs) the
Jabra button on the bottom of the
charging case until the light ashes
blue.
3. Wear the headset and follow the voiceguided instructions.
NEED MORE HELP?
For more help getting connected and personalizing your headset,
download the Jabra Assist app for iOS and Android.
1
CONNECT WITH AN NFCENABLED DEVICE
Slide your NFC-enabled device
against the NFC zone on the
back of the charging case until
a connection is conrmed on
your mobile device.
ON-THE GO CHARGING
Dock the headset in the charging case for
on-the-go charging. It takes approx. 2 hours
to fully charge the headset.
USB CHARGING
Plug the charging case into a power supply using the USB cable. The
headset will also be charged when docked in the charging case. It takes
approx. 3 hours to charge the headset and the charging case together.
ENGLISH
2
2 HOW TO WEAR
The headset is worn on the right ear only. For the optimal sound
quality and the most comfortable t, select the correct EarGel size
and ensure the headset is tted correctly into your ear.
SELECTING THE CORRECT EARGEL SIZE
The headset is supplied with four EarGel sizes: large, medium, small
and extra small. The correct EarGel will feel tight and decreases
surrounding sounds.
3

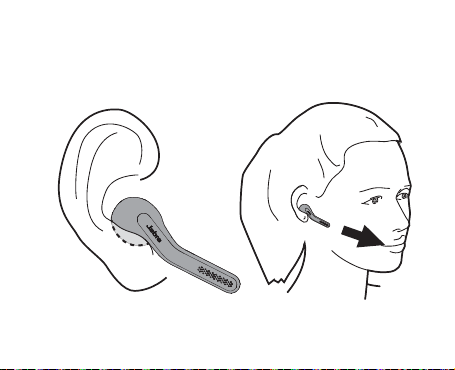

GETTING THE CORRECT FIT
Fit the headset rmly inside your right ear canal, and
angle the microphone down towards your mouth.
4
3 HOW TO USE
LED indicator
NFC zone
5
EarGel
Microphones
Headset dock
Charging case
battery status
USB charging
port
Jabra button
