Technical Manual
東訊股份有限公司
Tecom Co; Ltd
新竹市科學園區研發二路
23
號
23, R&D Road 2, Science-Based Industrial Park
Hsin-Chu Taiwan R.O.C.
1 Marketing Definition and Requirements
This section shall contain consolidation of the process in product marketing. It is
acceptable that spec can be a bit loose in this chapter but subsequent chapters leave no
room for loose specs.
1.1 General Description
The product is a Bluetooth-enabled USB audio device intended to be used as an accessory
for standard industry PCs. It is designed to work with BT headsets as long as they adhere to
the Bluetooth 1.2 specification supporting the headset Bluetooth profile and supports no
other BT function than bi-directional audio streaming (no support for other BT devices like
Keyboards, Mice, DFU etc.)
The product targets primarily the ingenuous consumer or first-time headset user who
appreciates a hassle free truly PnP solution which operates instantly without requiring
neither configuration nor any installation of software, driver etc.
1.1.1 Market Problem
Due to an increasing interest in convenient VoIP services on standard industry PCs, where
headsets are a prerequisite, there is a growing demand for inexpensive, easy to install and
easy to use cordless headsets solutions.
1.1.2 Product Problem
Originally BT headset intended to be used with Mobile phones supporting voice services
only. Existing BT implementations on PCs consist of built-in BT components or external
accessories, like USB dongles, with BT functions and additional BT SW. This PC BT
implementation compared to built-in BT in telephone handsets is much more complex
(normally supporting many more profiles), and more focused on data use instead of voice
services, even if those solutions are capable supporting, e.g. headset or handsfree profile.
1.1.3 Technology Problem
For BT support in a PC environment a BT Host protocol stack/SW needs to be operated on
the PC. This software needs to be installed, managed and launched by the user on the PC
before the headset can be paired and used for e.g. VoIP services. This kind of use is much
more complex and challenging for the user compared to the BT telephone
implementation/use case.
1.2 Key Features, Benefits and USPs
This section is informative. This is a list of new, essential and unique features which
differentiates the product.
Feature Benefit, explanation, comment
Mono and Stereo capabilities on
same hardware platform
Core unit performs as a mono / voice solution .
Firmware is user upgradeable to additional
stereo operation. In this state the product
converts into a mono/voice plus stereo
streaming device depending on BT HS
capabilities (=Swan).
Ease of use A330 (and Swan) is a truly PnP solution not
requiring any specific driver or installation of
dedicated software for basic operation. Even
though A330 is state of the art in terms of MS
Windows operating system (XP or higher)
support with MS standard USB and audio
drivers.
VoIP client / softphone support
Other key functionality:
Auto pairing
Multiple pairing
Table 1 - Key features
Implementing the newly developed GN USB
standard the device will be compliant to the
Microsoft Unified Communications (UC)
standard. A variety of VoIP clients and/or
softphones using the current GN USB HID
commands (8120, 9300 series) will also
provide basic headset supported without
additional customization. The product is fully
compliant with GN’s PC software
developments and SDKs (Hector).
• Device enters into auto pairing mode on 1
time use / connection
• Possible to be paired with 6 devices at the
same time
• Depending on firmware version to support
mono and mono / stereo (in the mix via
HS, HF, A2DP and AVRCP profile).
st
1.3 Features & Characteristics requirements
This section is based on the marketing product definition sheet. Details of how functions
shall operate must be presented in chapter 3. .
For details please refer to chapter 3 (functional requirements) and 4 (operational
requirements).
Functional
Physical
Characteristics
Connector USB xy
Size App. 70mm (L) x 18mm (W) x 8mm (H)
Weight <10 g
Mechanical
features
Button key Pairing button
Surface treatment No paint applied
Materials – general
Mid-range quality feel
characteristics
MMI features
Controls -
buttons, etc.
Pairing button Large, centered, tactile feeling, supporting
only pairing
Indicators - LEDs,
display, etc.
On, pairing,
connected
a.) 1xBlue LED
b.) 1xBlue LED
Connectors
USB connector x-pin […]
Software features
Bluetooth specific
features
Applicable
1.2
standard
Profiles a.) HS, HF
Number of trusted
6
devices in the
trusted device list
USB software
features
USB device classes
• USB generic device
• USB Audio device
• USB composite device
• USB HID device
• USB Telephony device
• USB Keyboard device
HID commands Device fully supports latest specification
of GN USB standard. See also
‘GN USB overview and guidelines.doc’
Other software
features
Power-up
behaviour
First power up: goes into the pairing mode
Next power up: try to reconnect to the last
connected device for 1 min.
Downloadable
software
Software firmware updates and upgrades
possible via the USB port
Performance
characteristics
Electrical, RF
RF Bluetoth class 1 device
Power
Management
HS link management optimized maximum
headset standby / talk time
Table 2 - Characteristics
Operational
Environmental
targets
Operating
-10 - +60
temperature
Storage
-30 - +80
temperature
Table 3 - Operational characteristics
2.1 Model name
Product
Bluetooth PnP Audio USB Class1 Dongle
Product ID
2.2 Firm ware
261-251509R
A330 FW release 0.20
2.3 Hardware

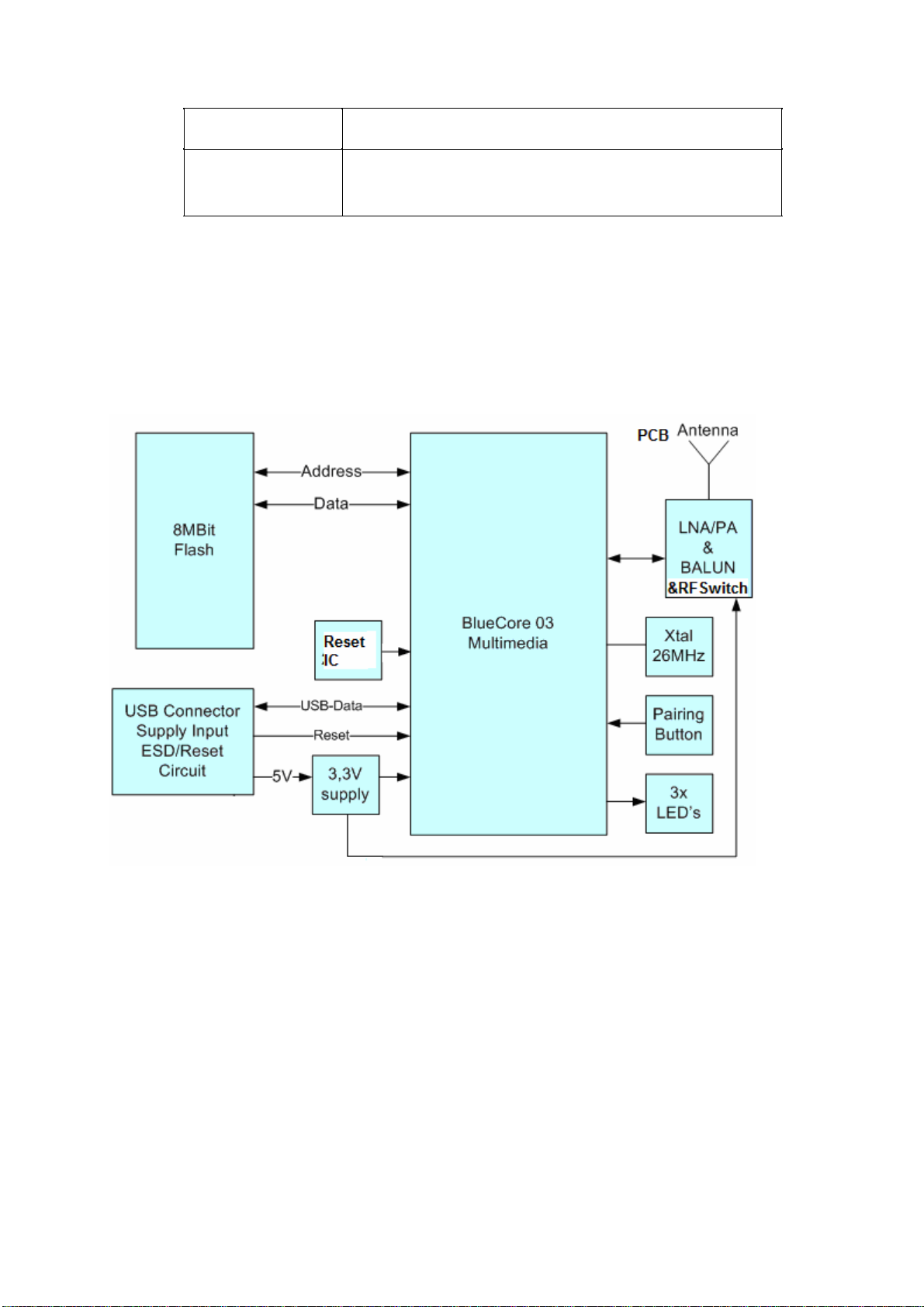

2.3.1 Block Diagram
2.3.2 PCB Version
PN: 613-022648R Ver: A

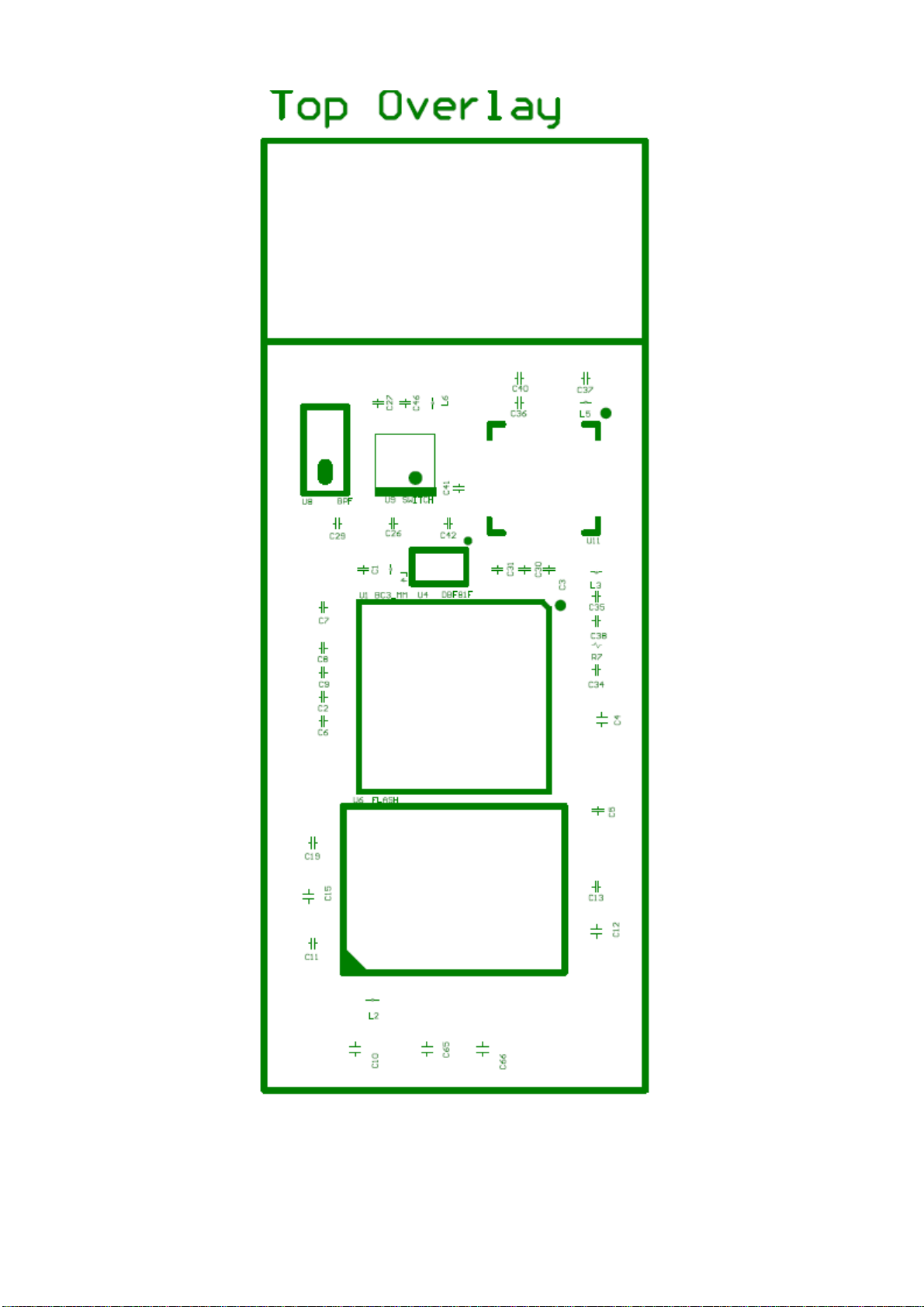

3.1 Physical Dimension and Component Placement
With USB connector: 51 mm x 14.05 mm
W/O USB connector: 35 mm x 14.05 mm
3.2 RF Design Specifications
Transmitter
Min Typ Max
Bluetooth
Spec
Unit
Maximum RF transmit power 16 18 20 +4 ~ +20 dBm
RF Power control range - >20 - ≧16 dB
20dB bandwidth for modulated
carrier
Adjacent channel transmit
power F= F0 ±2MHz
Adjacent channel transmit
power F= F0 ±3MHz
Adjacent channel transmit
power F ＞ F0 ±3MHz
Δf1avg Maximum Modulation - 165 -
- 715 - ≤1000 kHz
- -28 - ≤ -20 dBm
- -35 - ≤ -40 dBm
- -43 - ≤ -40 dBm
140<Δ
f1avg<175
kHz
Δf2avg Minimum Modulation - 148 - ≥ 115 kHz
Δf2avg / Δf1avg - 0.9 - ≥ 0.80 -
Initial carrier frequency
tolerance
Drift Rate - ≤ 15 - ≤ 20
- ≤ 15 - ±75 kHz
kHz/50
μs
Drift (single slot packet) - ≤ 15 - ≤ 25 kHz
Drift (five slot packet) - ≤ 15 - ≤ 40 kHz
2nd Harmonic content - ≤ -33 - ≤ -30 dBm
3rd Harmonic content - ≤ -33 - ≤ -30 dBm
Receiver
Frequency Min Typ Max
Sensitivity at 0.1% BER for all
packet type
2.402
GHz
2.441
GHz
2.480
GHz
<-85 -88 >-90
<-85 -88 >-90
<-85 -88 >-90
Bluetooth
Spec
≤ -70 dBm
Unit
Maximum recived signal at 0.1% BER - ≥ -20 - ≥ -20 dBm
internal circuit boards and fine
mechanics.
• Do not use harsh chemicals, cleaning
solvents, or strong detergents to
clean the device.
• Do not paint the device. Paint can
clog the moving parts and prevent
proper operation.
All of the above suggestions apply
equally to your device, battery, charger,
or any enhancement. If any device is not
working properly, take it to the nearest
authorized service facility for service.
FCC/Industry
Canada notice
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: 1. This device may not cause
harmful interference; and 2. This device
must accept any interference received,
including interference that may cause
undesired operation. This equipment has
humidity, and all types of liquids or
• Keep the device dry. Precipitation,
moisture can contain minerals that
will corrode electronic circui ts. If your
device does get wet, allow it to dry
completely.
• Do not use or store the device in
dusty, dirty areas. Its moving parts
and electronic components can be
damaged.
• Do not store the device in hot areas.
High temperatures can shorten the
life of electronic devices, damage
batteries, and warp or melt certai n
plastics.
• Do not store the device in cold areas.
When the device returns to its normal
temperature, moisture can form
inside the device and damage
electronic circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the
device. Rough handling can break
