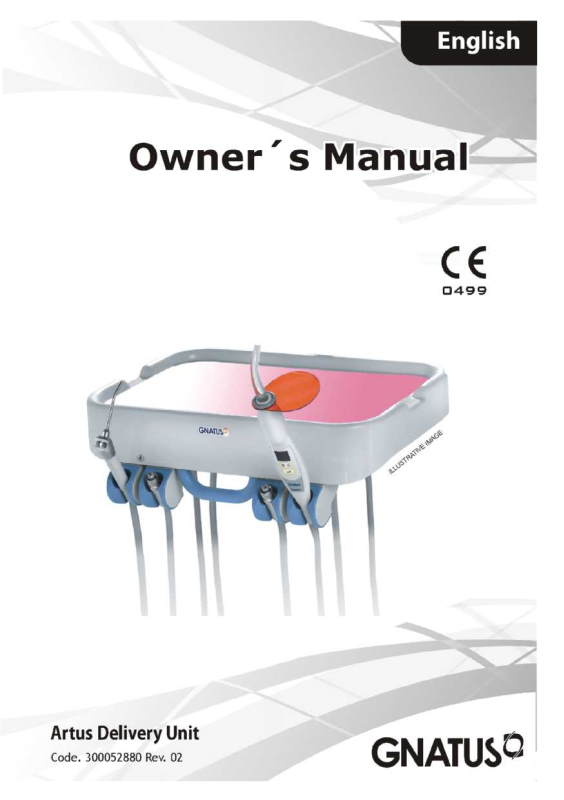

Gnatus Artus User manual
PRESENTATION OF MANUAL
INSTRUCTIONS FOR USE
EQUIPMENT:
Technical Name: Dental Delivery Units and Accessories
Trade Name: Artus Delivery Unit
Brand: GNATUS
Manufacturer/ Distribuitor:
GNATUS - EQUIPAMENTOS MÉDICO-ODONTOLÓGICOS LTDA.
Rod. Abrão Assed , Km 53+450m - Cx. Postal 782 CEP 14097-500
Ribeirão Preto - S.P. - Brasil
Fone +55 (16) 2102-5000 - Fax +55 (16) 2102-5001
C.N.P.J. 48.015.119/0001-64 - Insc. Est. 582.329.957.115
www.gnatus.com.br - gnatus@gnatus.com.br
Technical Duties: Gilberto Henrique Canesin Nomelini
CREA-SP: 0600891412
Registration ANVISA Nº: 10229030047
ATTENTION
For greater safety:
Read and understand all the instructions contained in these
Instructions for Use before installing or operating this Equipment.
Note: These Instructions for Use must be read by all the operators
of this Equipment.
2
INDEX
PRESENTATION OF MANUAL ........................................................................02
IDENTIFICATION OF EQUIPMENT .................................................................04
- Dear Customer .............................................................................................04
- Identification ................................................................................................04
- Principles and bases applied to the functioning of the product..............................05
- Description of Equipment ...............................................................................05
- Indication of Equipment .................................................................................07
MODULES, ACCESSORIES, OPTIONS AND TYPES OF COUPLING .....................08
TECHNICAL SPECIFICATIONS .......................................................................10
- Technical features of the Delivery Unit and its accessories ................................... 11
- Standards applied .........................................................................................14
- Dimension ....................................................................................................15
- Symbologies of packaging ..............................................................................16
- Symbologies of product ..................................................................................16
- Contents of the accessible and inaccessible markings .........................................17
INSTALLATION OF EQUIPMENT ....................................................................18
OPERATION OF EQUIPMENT .........................................................................18
- Turning on / off the dental set ......................................................................... 18
- Positioning ...................................................................................................19
- Activation of Terminals ...................................................................................19
- Adjustment of Spray ......................................................................................19
- Use of 3-Way Syringe ....................................................................................20
- Curing Light Activation ...................................................................................20
- Laser Hand Activation ....................................................................................21
- Ultrasound Activation ....................................................................................22
- “Ultrasound” techniques and applications ..........................................................23
- How to supply the reservoirs ...........................................................................25
PRECAUTIONS, RESTRICTIONS AND WARNINGS ..........................................26
- Conditions of transport and storage .................................................................26
- Environmental conditions of operation ..............................................................26
- Sensitiveness to environmental conditions foreseeable in normal situations of use .26
- Precautions and warnings “during the installation” of equipment ..........................26
- Recommendations for preserving the equipment. ...............................................27
- Precautions and warnings “during the use” of equipment ....................................27
- Precautions and warnings “after” the use of equipment ......................................27
- Precautions and warnings during the “cleaning and disinfection” of equipment .......28
- Precautions in case of alteration in the functioning of equipment ..........................28
- Precautions to be adopted against foreseeable or uncommon risks,
related to the deactivation and abandoning of equipment .....................................28
CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION............29
- Additional procedures for reuse .......................................................................29
- Cleaning ......................................................................................................29
- Preventive maintenance .................................................................................31
- Corrective maintenance..................................................................................31
UNFORESEEN EVENTS – SOLUTION OF PROBLEMS ........................................32
WARRANTY OF EQUIPMENT ..........................................................................33
FINAL CONSIDERATIONS ..............................................................................33
3
DESCRIPTION OF THE EQUIPMENT
Dear Customer
Congratulations. You have made a good choice when you decided to buy a GNATUS
QUALITY product comparable to the best products available in the World. This manual is a
general presentation of your product and it will give you important details to help you to
solve possible problems.
Please, read it and keep this with you.
Identication
Technical Name: Dental Delivery Units and Accessories
Trade Name: Artus Delivery Unit
Brand: GNATUS
4
DESCRIPTION OF THE EQUIPMENT
Principles and bases applied to the functioning of the product
It has hoses with compressed air and connectors for the supply of handpieces (high and
low rotation) and a syringe with air and water outlet.
Description of Equipment
Delivery unit for dental use, for activation and control of the syringe, rotary instruments,
etc., and ambidextrous (can be used by right-handers and left-handers). Removable and
autoclavable stainless steel cover (optional item). Body made of high impact polystyrene,
with rounded edges.
Structure made of steel, with glossy smooth paint with a base of epoxy, polymerized
in an oven at 250ºC, with phosphatized treatment resistant to corrosion and cleaning
materials.
Automatic selection of the handpieces, through sensitive pneumatic valves, allowing
light activation.
Front, central handle, easy to access, handpiece support made of high impact automotive
ABS, both with rounded edges. 4th handpiece “optional”. Smooth, rounded hoses, without
grooves or slits, light and exible. Progressive foot control of activation of handpieces.
It has translucent reservoirs easy to access with automatic pressurization of water for
syringe/spray of the handpieces and chlorinated water for the “optional” Bio-System. The
Bio-System is a disinfection system, which provides internal cleaning of the hoses and
terminals via bactericidal liquid, preventing risks of cross contamination.
Connecting box, made of high impact polyethylene and having rounded corners.
Interchangeable coupling system, adaptable as per the requirement of the
professional.
Available in the pneumatic FLEX, mechanical FLEX, mechanical FLEX with lock and CART
models (optional).
PNEUMATIC FLEX: coupled to the dental chair, with horizontal movements, swivel arm
with horizontal and vertical movements, with a pneumatic locking device for the vertical
movements, activated by a button located in the body of the delivery unit, and smooth
movements due to the bushing system of Teon with bronze.
MECHANICAL FLEX: coupled to the dental chair, with horizontal movements and
adjustment of the vertical position through the snap ring.
MECHANICAL FLEX WITH LOCK: coupled to the dental chair, with horizontal movements
and adjustment of the vertical position through the locking ring.
CART: with the base on four casters, made of steel with smooth painting and rounded
corners.
To guarantee the safe functioning of your equipment, use only the assemble configurations
(Dental Chair, Dental and Water Units and Dental Light) supplied by Gnatus authorized
Dealers / Technical Assistance.
EN ISO 9001/2000 and EN ISO 13485/2003 Quality System, assuryng the products
are manufactured under standart procedures.
Products manufactured in agreement with RDC 59/00 - ANVISA - (Sanitary Surveillance
National Agency).
5
DESCRIPTION OF THE EQUIPMENT
Laser Hand Kit (optional item) – Features of the product:
See the Owner’s Manual - Laser Hand
Curing light (optional item) – Features of the product:
The Curing Light belongs to the newest generation of LED photo-activation devices. This
abbreviation stands for Light Emitting Diode, a totally different type of light emission, if
compared to conventional halogen equipment.
Unlike traditional devices, which generate wide-spectrum light and heat, this technology
uses a cold light of the precise wave length needed to activate various dental products.
LED technology, which was recently introduced in Dentistry, brought about several useful
features to those light-curing devices used in composite resin restoration. Besides being
more durable, LED technology turned devices more compact, ergonomic and easier to install
and transport. The emission of cold light within a precise wave length range ensures the
safe cure of camphorquinone-activated composites, preventing dental heating, pulp damage
or discomfort for both patient and dentist. Although being relatively new, this technology
is nowadays in its second generation. LED safety and efficiency, now allied to high-energy
emission, are available to all clinic procedures which require light-curing power, including
bleaching treatments.
The light of 440nm-460nm wave length, allied to the high energy emitted by Curing
Light, makes possible the multi-functionality of this device:
- Direct restoration procedures: composite resins, ionomers and adhesives.
- Indirect restorations: adhesive cementation of laminates, inlays, esthetic pins and
metal-free crowns.
- Dental Bleaching: activation of bleaching gel and polymerization of gingival barriers.
Compatible with 35% hydrogen peroxide-based bleaching gels.
- Attachment of braces and orthodontic accessories.
- Activation of light-cure materials, such as sealants, surgical cements and covering
bases.
Designed and built with cutting-edge technology, it meets the highest standards specified
by world’s dental authorities.
Operation control display in handpiece, sound alarm with beep every 10 seconds and 4
beeps at the end of the cycle.
Advantages offered by Curing Light:
- More spectrally-selective light than conventional lamps.*
- Cold light, it doesn’t heat up the resin nor the tooth**
• Light compact equipment that provides handling comfort.
• Low power consumption.
• Longer useful life of the light emitting diode (equivalent to 36.000.000 cycles of 10
seconds).
• It does not use optical filter.
• It does not require forced ventilation, thus avoiding noise emission.
We noted that the light emitted by the Curing Light is completely contained within the
absorption interval of the photo starter, therefore it’s 100% used, whereas the conventional
equipment running on halogen lamps has non-used wave-length regions.
The Curing Light doesn’t generate heat since it uses light emitting diodes.
The light conductor is removable, made out of high resistance polymer and of easy
maintenance.
6
DESCRIPTION OF THE EQUIPMENT
Ultrasound (optional item) – Features of the product:
Piezoelectric Ultrasound, frequency of 30,000 Hz.
The Transducer with the piezoelectric system allows the insert to make precise and linear
movements, being able to be used in widely differing dental specialties.
Fine adjustment of power, suited to each type of procedure.
In the procedures with cooling, it offers constant irrigation with control of ow.
It also allows dry work to be executed (condensation of amalgam, cementing of inlays/
onlays etc).
FUNCTIONAL APPLICATIONS
• Periodontics
• Endodontics
• Dentistics and Prosthesis
Indication of Equipment
This equipment is for dental use use only. It must be operated and utilized by specialized
professional (certified professional, according to the legislation of the country) and following
the instructions of the manual. The operation of the equipment required, for the professional,
the utilization of correct instruments and it should to be in perfect conditions of the use, and
to protect the professional, the patients and others, in the eventual danger situation.
7
MODULES, ACCESSORIES, OPTIONS AND TYPES
OF COUPLING SUPPORTS
Artus Delivery Unit
11
12
13
18
Basic configuration of the product (composed of)
F Coupling: Mechanical Flex, 1-3-Way Syringe, 1- TB high rotation
terminals, 1-Terminal for TB micro motor “without spray”.
01 - Triple syringe
02 - High-speed-motor terminals (optional)
03 - Centered handle
04 - Low-speed-motor terminal (optional)
05 - Curing Light (optional)
06 - Body
07 - Auxiliary trays (optional)
08 - Connection box
09 - Foot control
10 - Support of tips (4th optional tip)
11 - Kit Laser Hand (optional)
12 - Ultrasound (optional)
13 - Bicarbonate jet “Hand”(optional)
14 - Arm brake valve (optional) “used in the
pneumatic Flex couplings”
15 - Water valve for ultrasound/
bicarbonatejet (optional)
10
01
02
03
14
04
09
05
08
07
06
19
15
16
16 - Regulator of ultrasonic power (optional)
17 - Activation of the Bio System (optional)
18 - Control Panel Kit (optional)
19 - Key to drive water into the bowl (optional)
Couplings (options upon inquiry)
D - Pneumatic Flex
E - Mechanical Flex with lock
F - Mechanical Flex
G - Cart
The Drawing illustrates the equipment with all
the optional items. Your delivery unit will only
be composed of the items chosen during your
purchase option. The contents of this page are of
an informative nature, the equipment being able to
differ from that illustrated. So, upon acquiring the
product check the technical compatibilty between
equipment, coupling and accessories.
17
D
E
F
G
8
MODULES, ACCESSORIES, OPTIONS AND TYPES
OF COUPLING SUPPORTS
01
04
07
02
08
05
03
06
09
10
11
9
MODULES, ACCESSORIES, OPTIONS AND TYPES
OF COUPLING SUPPORTS
01 - Terminals (optional)
- MME:Electrical micro motor terminal
- FO:Optical fiber terminal
- TM:Midwest terminal
- TB:Borden terminal
02 - Curing light + tip for 3 teeth (optional)
03 - Ultrasound kit (optional)
- Ultrasound
- Tightening wrench
- Inserts “nº 1, 2 and 10P
04 - Hand Laser kit (optional)
(Registration # Anvisa 80051420005)
- Laser Hand
- Safety goggles “patient and professional”
- Manuals
05 - Bicarbonate jet kit “Jet Hand”(optional)
- Bicarbonate jet
- Opener
- Covers for reservoir
- Rings for sealing
- Sachet of bicarbonate
- Manual
06 - Bandeja de inox (opcional)
07 - Control Panel Kit (optional)
- Up/down backrest keys
- Up/down seat keys
- Reector activation key
- Working positions 1, 2 and 3 keys
- Key Return to zero
08 - Pneumatic FLEX coupling (optional)
09 - Pneumatic FLEX coupling with lock (optional)
10 - Mechanical FLEX coupling (optional)
11 - CART coupling (optional)
The use of any part, accessory or material not specified or foreseen
in these instructions for use is entirely the user’s responsibility.
The accessories described above shall never be able to be sold separately
from the product.
10
TECHNICAL SPECIFICATIONS
Technical features of the Delivery Unit and its accessories
General
Model
Artus Delivery Unit
Classification of Equipment as per ANVISA:
Class II
Classification of Equipment as per standard IEC 60601-1:
Protection against Electric Shock - Type B and Class I Equipment (IEC 60601-1)
Degree of safety of application in presence:
Equipment not suited to an anesthetic mixture inammable with air, oxygen or nitrous
oxide.
Mode of Operation
Continuous operation with intermittent load
Power Supply
Power Supply Voltage (coming from dental chair)
127/220 V~ (Selectable)
Frequency
50/60 Hz
# phases
Single Phase / Biphasic
Input fuse (coming from dental chair)
5A Delayed action
Voltage in equipment (coming from dental chair)
12 and 24 V~
Other specications
Inlet air pressure
80 PSI (5,52 BAR)
Inlet air pressure - Syringe
40 PSI (2,76 BAR)
Maximum consumption of air (dental set)
80 l/min
11
Loading...
