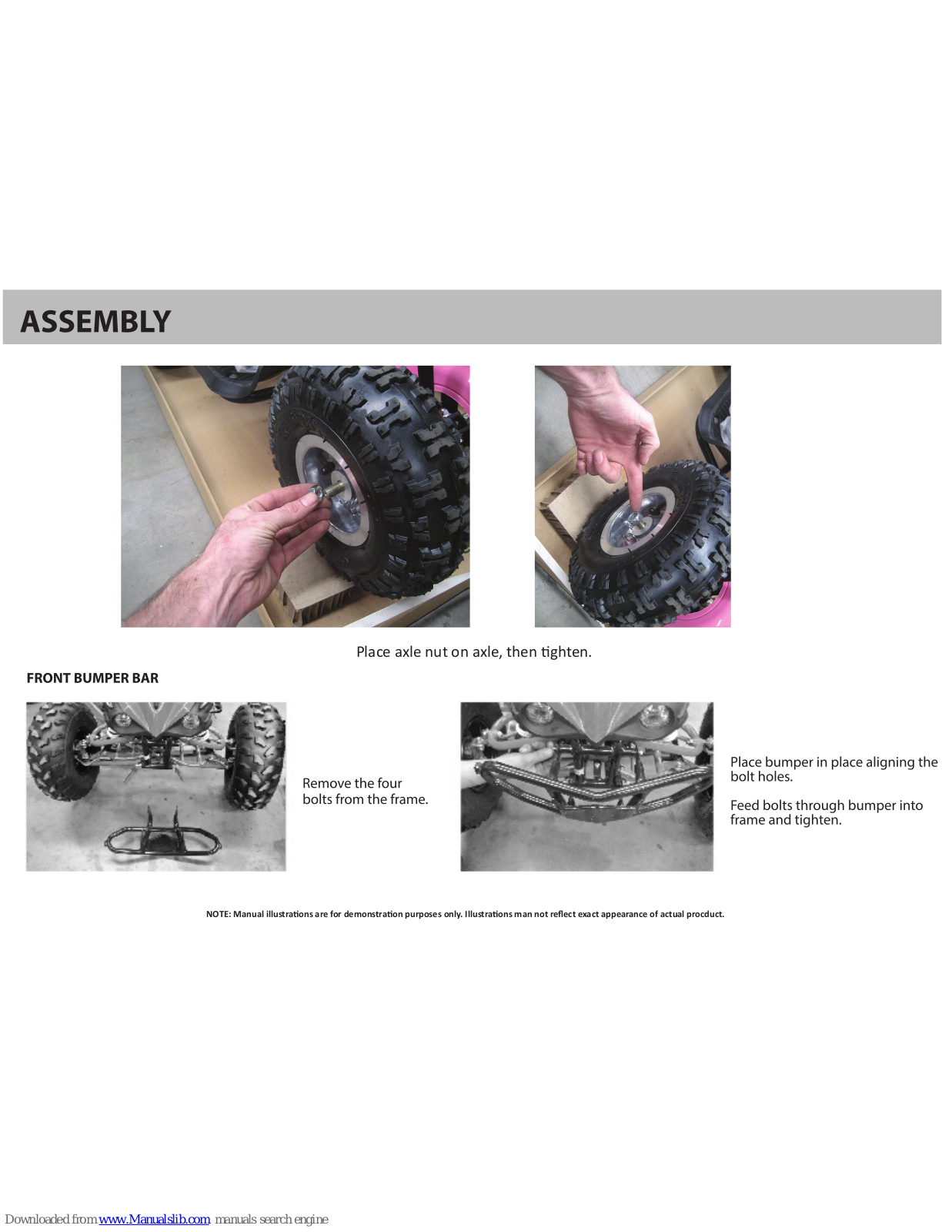

GMX YA49B 2016 Assembly Manual

ATV OFF ROAD - GMX YA49B STARTER

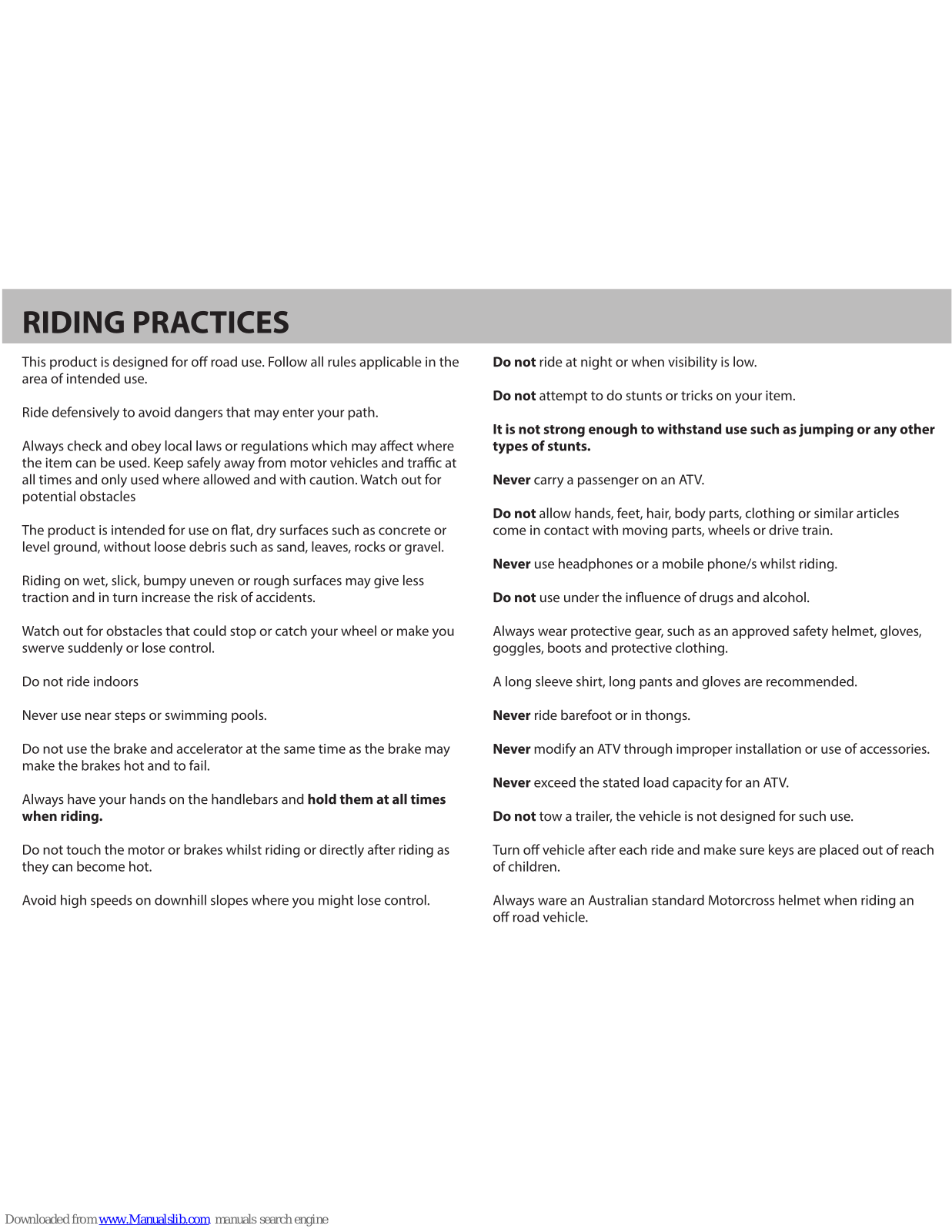

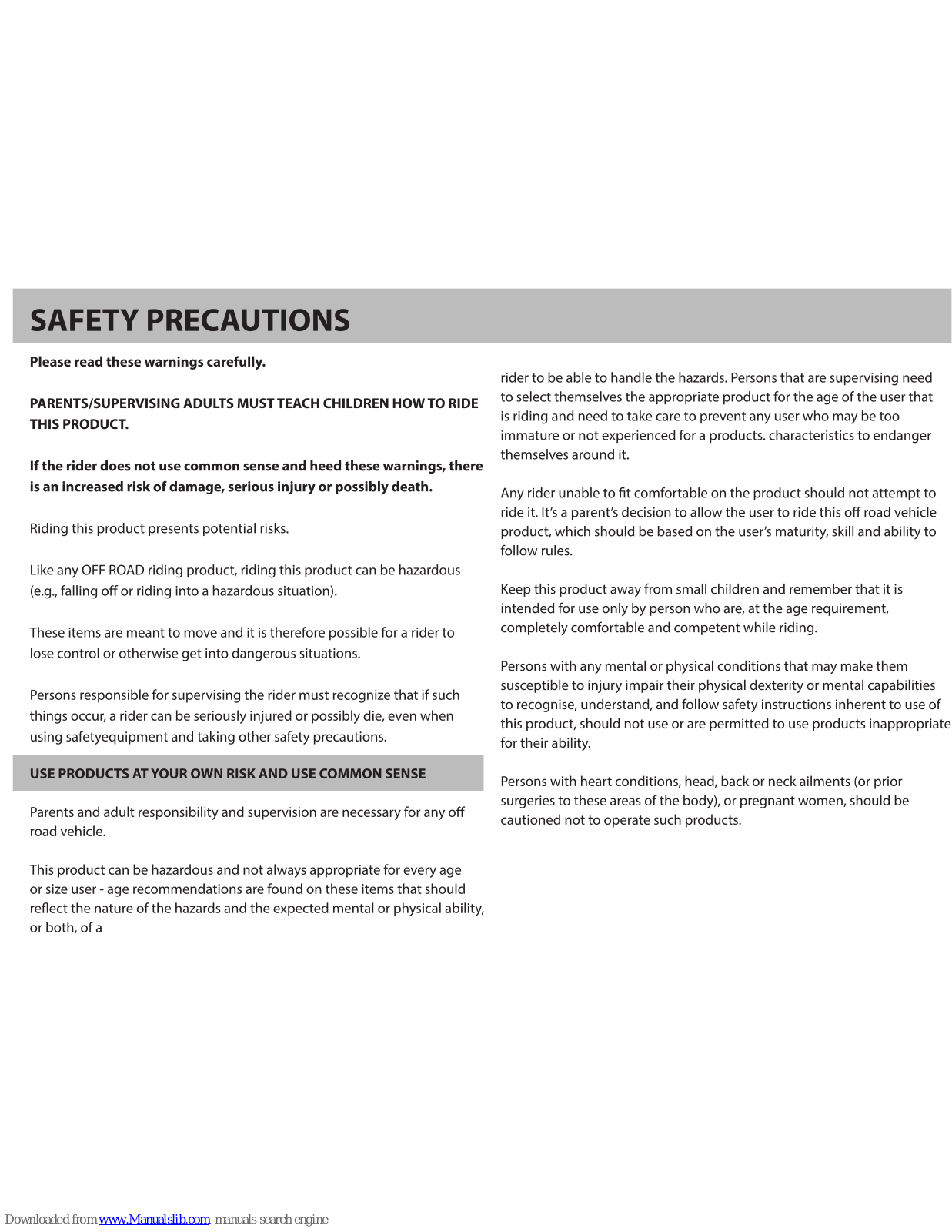

RIDE SAFE

- Never let children ride quad bikes that are meant for adults – even as passengers.

- Do not carry any passengers on quad bikes that are meant for one person.

- Quad bikes are not all-terrain vehicles so they cannot go safely on all types of terrain. Avoid riding on rough terrain or steep slopes.

- Ride on familiar tracks and beware of obstacles.

- Never ride under the inuence of alcohol/drugs.

- Ensure children are supervised at all times near any quad bike activity.

- Always carry a mobile phone or radio device so you can contact help in case of an emergency.

WEAR SAFE

- Always wear a helmet.

- Wear protective clothing and gear such as goggles, long sleeves, long pants, boots and gloves/hand protection.

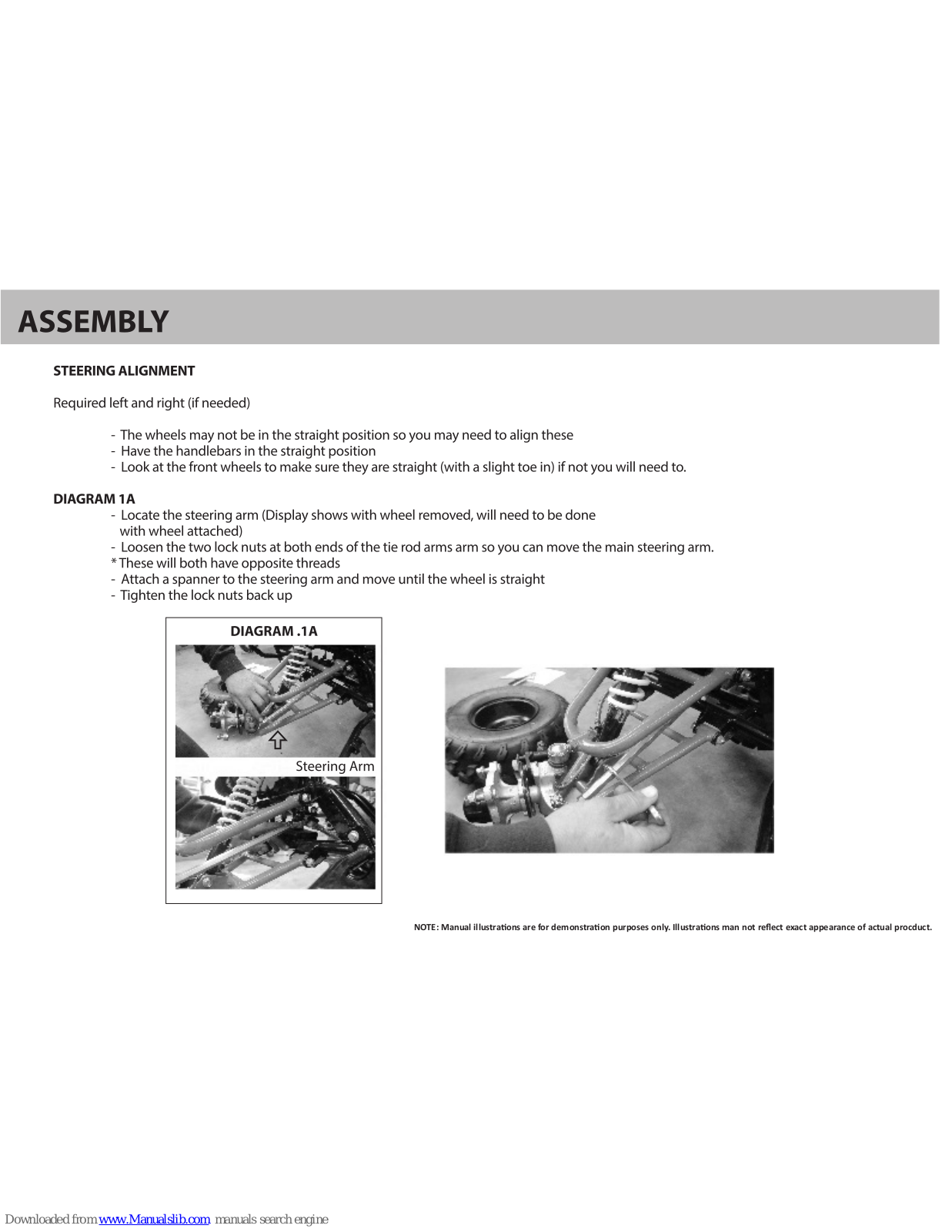

YOU MUST CHECK
THAT THE FRONT
STEERING IS ADJUSTED
CORRECTLY PRIOR
TO RIDING.

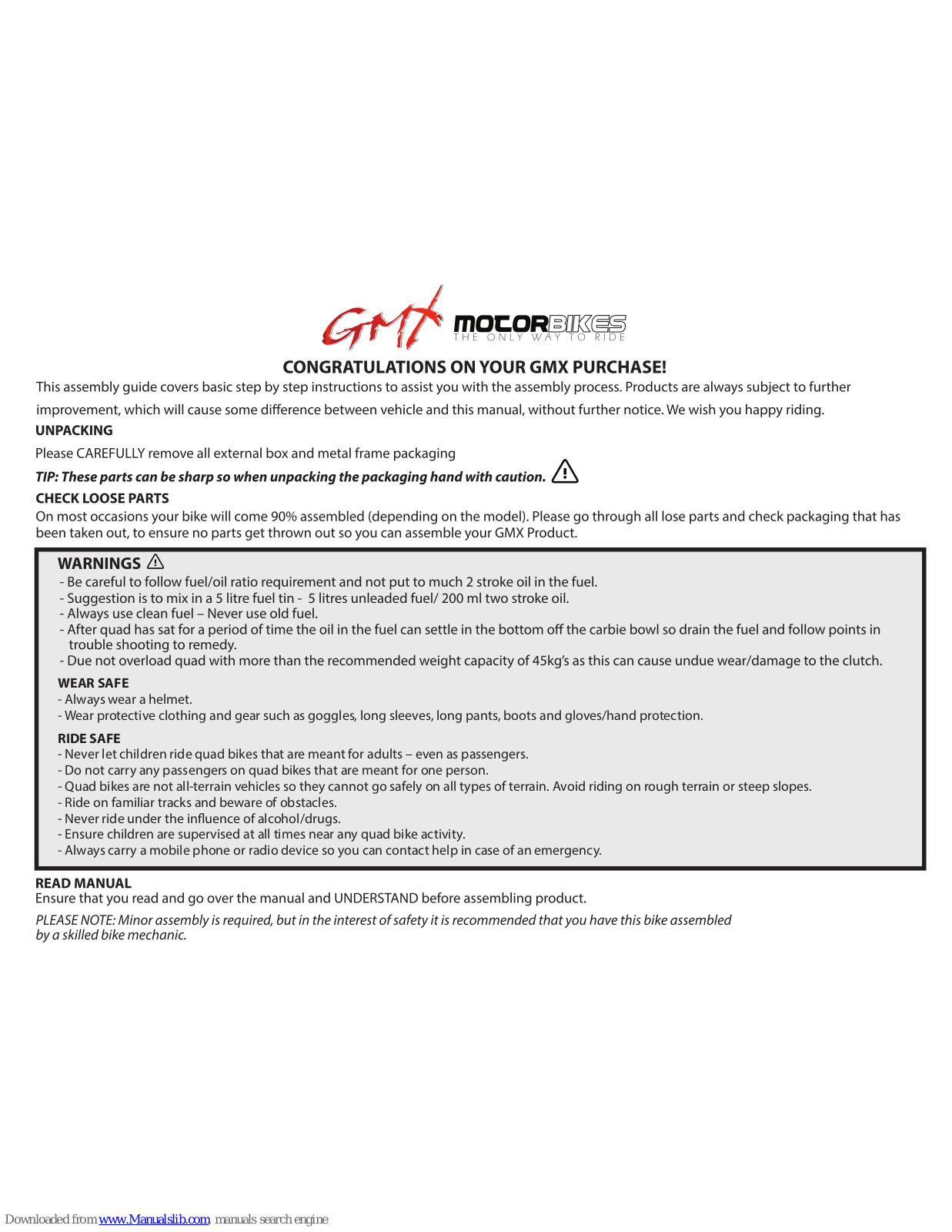

WARNING: This product is powered by a 2 stroke engine and requires pre-mixing petrol and 2 stroke oil. The oil mix should be 25:1. Never
mix petrol and oil directly in the engine tank.

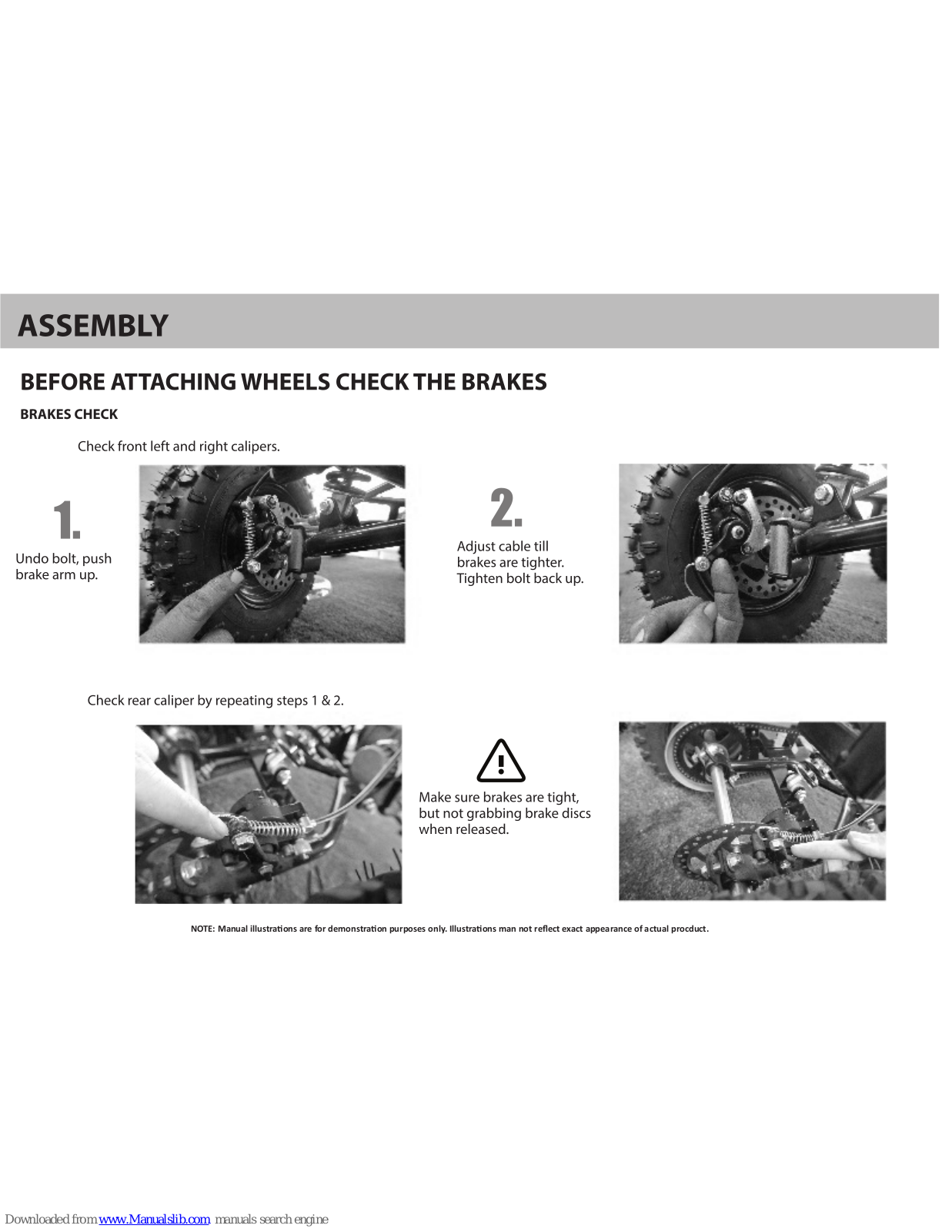

CHECK BRAKES
ARE ADJUSTED
CORRECTLY PRIOR
TO RIDING.

YOU MUST CHECK
THAT THE CHAIN
IS ADJUSTED
CORRECTLY PRIOR
TO RIDING.

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLY AND OPERATING OF YOUR VEHICLE.

Swing tags have been placed on your vehicle for you to identify checks that are located within this manual. Once you have performed the
check required remove these swing tags and nylon loops attaching them to the vehicle.

MAKE SURE TO REMOVE THE SWING TAGS AND TAKE SPECIAL NOTICE TO REMOVE THE NYLON LOOP.

The tags and loops that need to be removed from this model: GMX 49cc Starter Quad Bike

Mix only enough fuel for your immediate needs.
Fuel should not be stored for more than 30 days.

Petrol/Oil
1 litre/40ml
2 litres/80ml
3 litres/120ml
4 litres/160ml
5 litres/200ml

ONCE SWING TAGS AND NYLON LOOPS ARE REMOVED YOU ARE ACKNOWLEDGING THAT THESE CHECKS HAVE BEEN PERFORMED

There may be a “Spare Parts Package” within the carton so please check all of the packaging and DO NOT THROW OUT

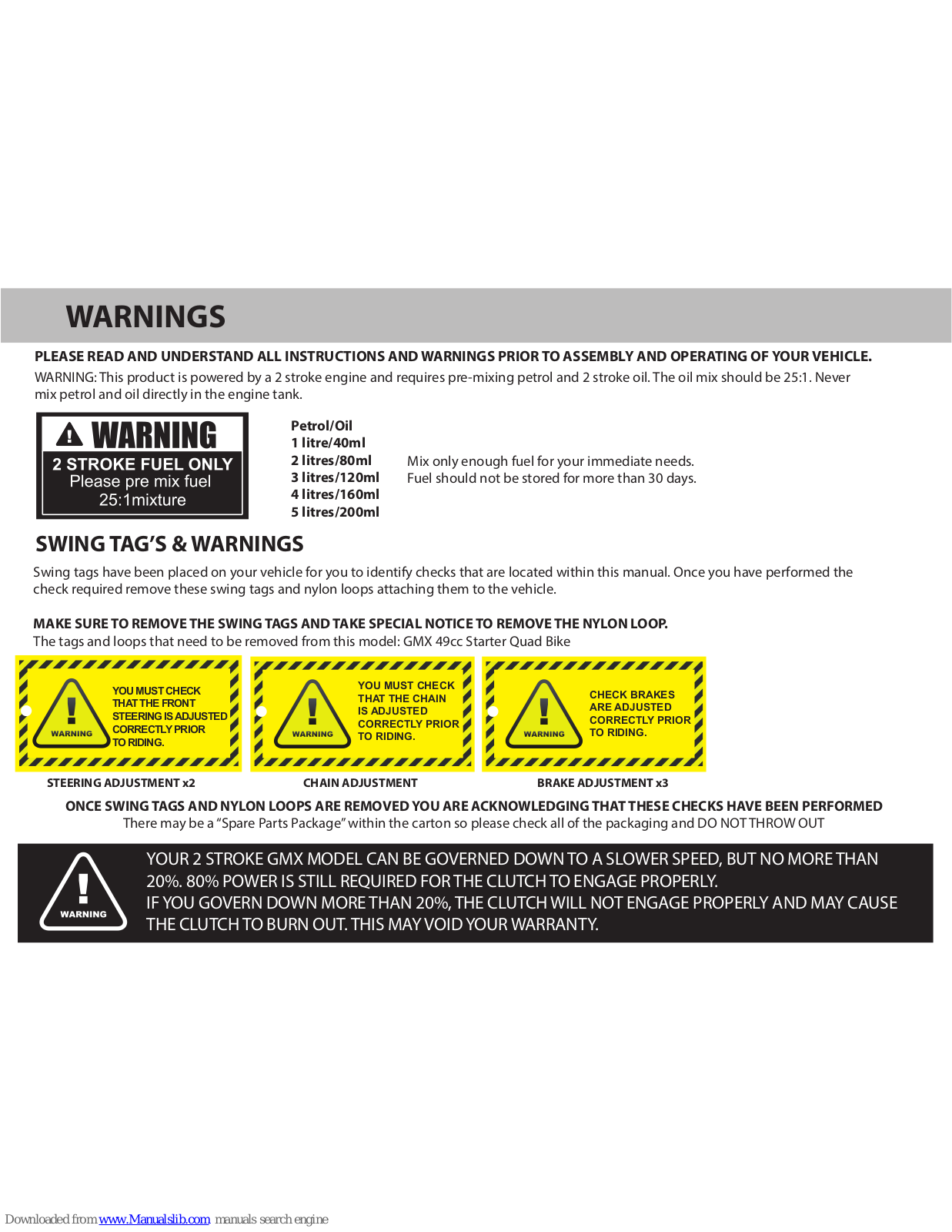

WARNINGS

SWING TAG’S & WARNINGS

BRAKE ADJUSTMENT x3STEERING ADJUSTMENT x2 CHAIN ADJUSTMENT

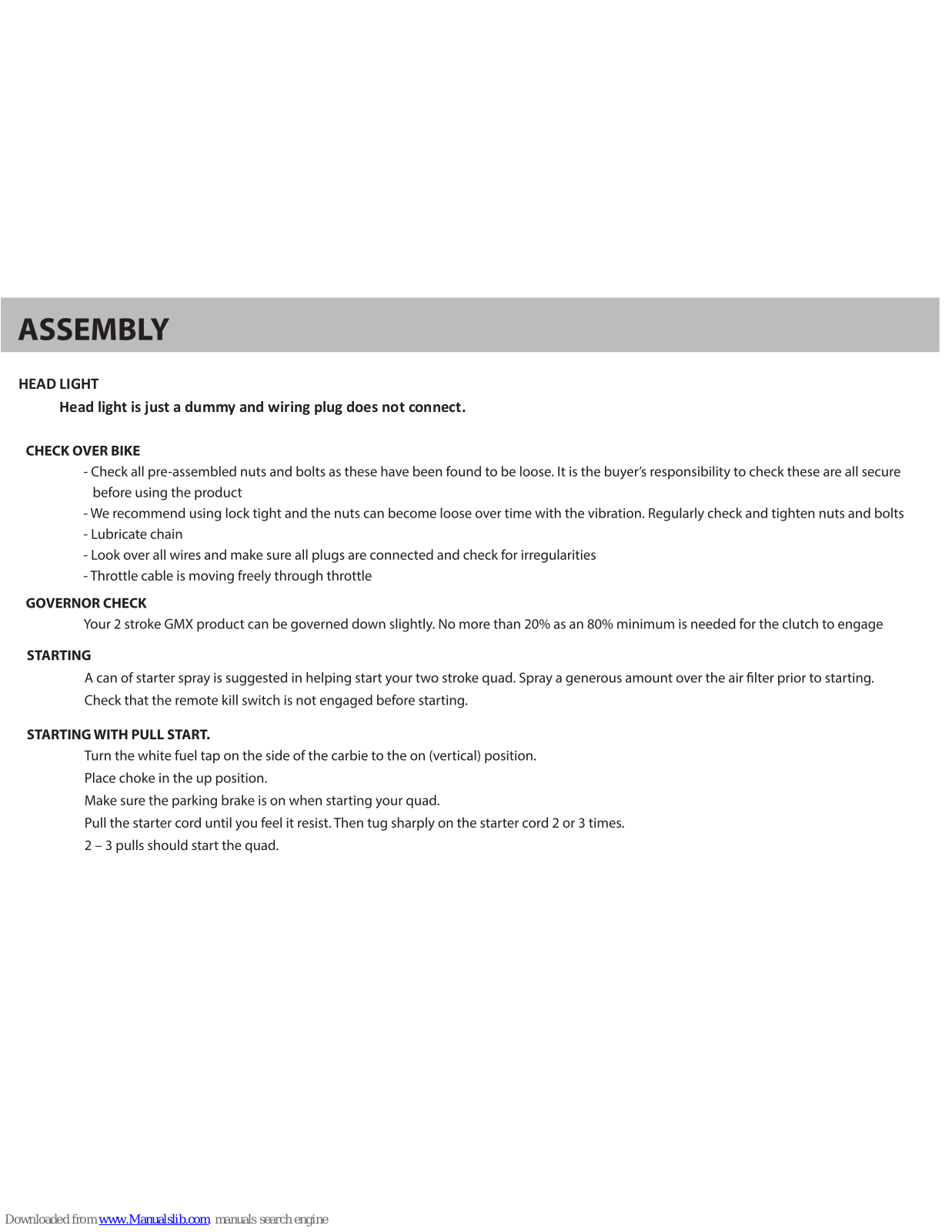

YOUR 2 STROKE GMX MODEL CAN BE GOVERNED DOWN TO A SLOWER SPEED, BUT NO MORE THAN
20%. 80% POWER IS STILL REQUIRED FOR THE CLUTCH TO ENGAGE PROPERLY.
IF YOU GOVERN DOWN MORE THAN 20%, THE CLUTCH WILL NOT ENGAGE PROPERLY AND MAY CAUSE
THE CLUTCH TO BURN OUT. THIS MAY VOID YOUR WARRANTY.
