GMX CHIP 50cc Assembly Manual
ASSEMBLY MANUAL
Read and understand this entire manual before riding!
DO NOT RETURN TO STORE!
NOTE: Manual illustrations are for demonstration purposes only. Illustrations man not reflect exact appearance of actual procduct.
WWW.GMXMOTORBIKES.COM.AU
ATV OFF ROAD - GMX CHIP 50cc
CONGRATULATIONS ON YOUR GMX PURCHASE!
This assembly guide covers basic step by step instructions to assist you with the assembly process.
Products are always subject to further improvement, which will cause some dierence between vehicle and this manual,
without further notice. We wish you happy riding.
UNPACKING
Please CAREFULLY remove all external box and metal frame packaging
TIP: These parts can be sharp so when unpacking the packaging hand with caution.
CHECK LOOSE PARTS
On most occasions your bike will come 90% assembled (depending on the model). Please go through all lose parts and check
packaging that has been taken out, to ensure no parts get thrown out so you can assemble your GMX Product.
READ MANUAL
Ensure that you read and go over the manual and UNDERSTAND before assembling product.
PLEASE NOTE: Minor assembly is required, but in the interest of safety it is recommended that you have this bike assembled
by a skilled bike mechanic.
TO DOWNLOAD YOUR COMPLETE OWNER’S MANUAL GUIDE PLEASE VISIT http://www.gmxmotorbikes.com.au/download-centre
or you can contact us via phone on 1300 766 469 for all inquiries.

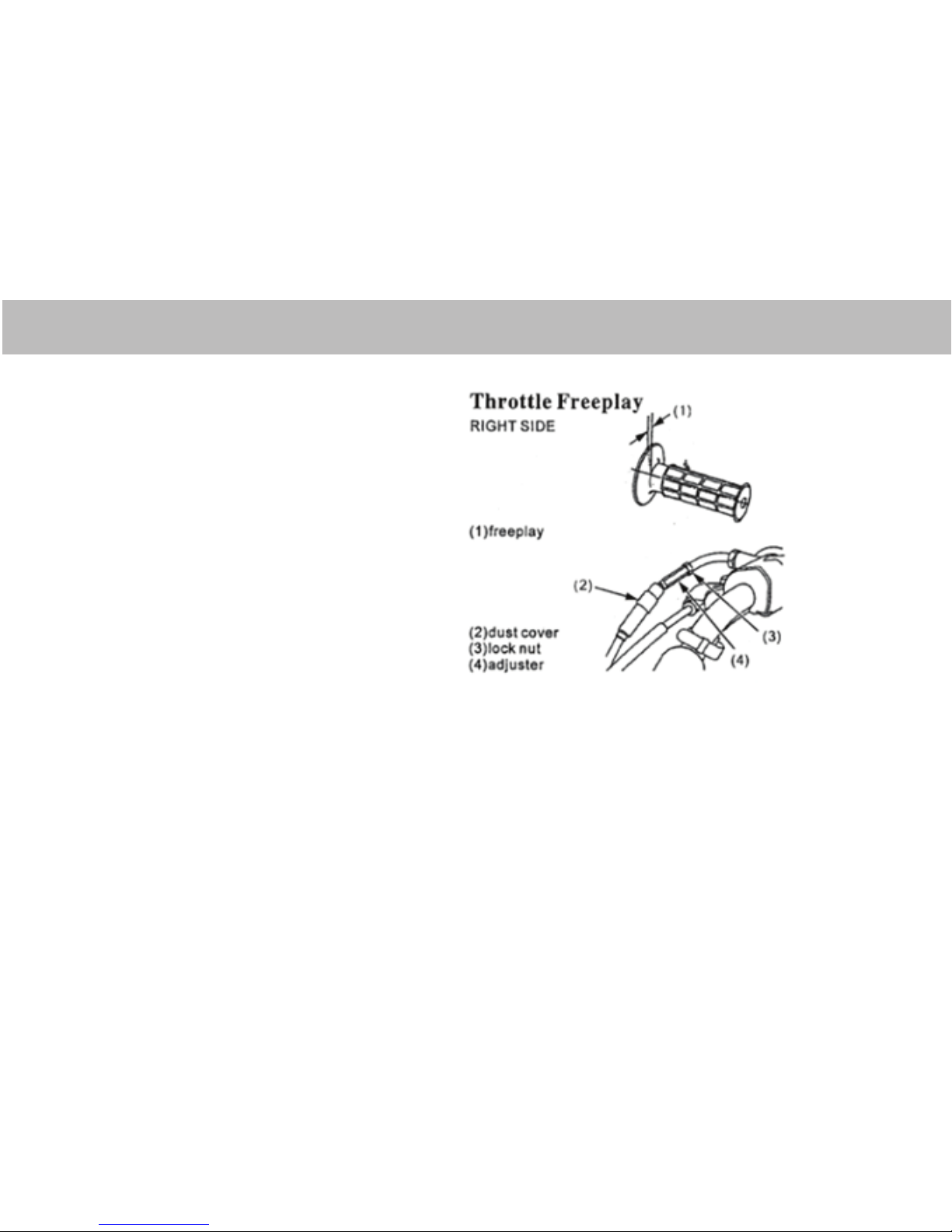

CHECK BRAKES
ARE ADJUSTED
CORRECTLY PRIOR
TO RIDING.
YOU MUST CHECK
THAT THE CHAIN
IS ADJUSTED
CORRECTLY PRIOR
TO RIDING.
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLY AND OPERATING OF YOUR VEHICLE.
Swing tags have been placed on your vehicle for you to identify checks that are located within this manual. Once you have performed the
check required remove these swing tags and nylon loops attaching them to the vehicle.
MAKE SURE TO REMOVE THE SWING TAGS AND TAKE SPECIAL NOTICE TO REMOVE THE NYLON LOOP.
The tags and loops that need to be removed from this model: GMX 125cc Rider X
ONCE SWING TAGS AND NYLON LOOPS ARE REMOVED YOU ARE ACKNOWLEDGING THAT THESE
CHECKS HAVE BEEN PERFORMED
There may be a “Spare Parts Package” within the carton so please check all of the packaging
and DO NOT THROW OUT
WARNINGS
SWING TAG’S & WARNINGS
BRAKE ADJUSTMENT x2CHAIN ADJUSTMENT
ALWAYS LEAVE IN
THE OFF POSITION
WHEN NOT IN USE
OR REMOVE KEYS
KEY REMOVAL
WARNING
Please use unleaded fuel
90 Octane or above
UNLEADED FUEL ONLY
WARNING: This product is powered by a 4 stroke engine and comes with transport oil in the engine.
THE OIL NEEDS TO BE DRAINED AND REPLACED WITH MOTORCYCLE OIL 10W/40 or 10W/50 IS REQUIRED
IF THE OIL CHANGE IS NOT PERFORMED YOU MAY INTERNALLY DAMAGE THE ENGINE AND CLUTCH AND VOID YOUR WARRANTY
DO NOT USE MOTOR CAR OIL
DO NOT USE OIL WITH FRICTION MODIFIERS
OIL WILL NEED TO BE CHANGED EVERY 3 MONTHS IN A HOTTER CLIMATE OR THE NOTHERN HEMISPHERE
- There is an oil drain plug located underneath you quad/dirt bike and is highlighted with an oil drain plug sticker. This is a 14mm bolt.
- DO NOT remove the other bolt located under the engine.
- Place an oil receptacle under the drain hole, undo bolt and let oil drain from the vehicle. Please note: Dispose of oil correctly
- Tighten bolt back up, remove dipstick (oil ll point) and ll the vehicle with suggested correct amount of oil required. Tighten
TO AVOID DAMAGE TO GEARBOX AND
MOTOR. WHEN SELECTING GEAR AND
CHANGING GEARS, RELEASE THE
THROTTLE. DO NOT USE EXCESSIVE
FORCE ON GEAR LEVER.
GEAR LEVER
GMX MOTORBIKES WARRANTY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major
failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
The manufacturer warrants this product to be free of manufacturing defects for a period of 12 months from date of purchase. This Limited Warranty does
not cover normal wear and tear( exclusions apply) or any damage, failure or loss caused by improper assembly, maintenance, or storage or use of the GMX
product. Some parts will have a limited warranty period, please see below. This warranty is a part replacement warranty.
3 Month Parts Replacement Parts
Electrical components, suspension, drive train and brakes/ttings.
30 Days Parts Replacement Parts
Bearings, tires, tubes, cables, clutches, brake pads, seats
Minor assembly is required and in the interest of safety and warranty it is recommended that you have this product assembled by a qualied, skilled small
engine mechanic.
You may need to provide proof of being assembled by a skilled mechanic if not a report from a small engine mechanic advising of the issues to process
your warranty claims.
The warranty is a parts replacement warranty and labor is not included, defective parts may need to be sent back for inspection.
This Limited Warranty will be void if the product is ever;
- Used in a manner other than for recreation or transportation
- Modied in anyway
- Rented or commercial use.
The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use of this product.
Always adhere to the maximum load of the product, over loading the product will void the warranty.
How a claim is made
When making a claim, you will need to provide proof of purchase, condition photos of the item. This information is required to be submitted via the
support center and communication is made through the support center. When the claim is created, the customer will receive the claim number and the
This section presents some of the most important information and recommendations to help you ride your motorcycle safely.
Please take a few moments to read these pages. This section also includes a special message for parents and location information for the safety labels on your
motorcycle. Your motorcycle can provide many years of service and pleasure—if you take responsibility for your own safety and understand the challenges you can
meet while riding.
This motorcycle has been designed for younger riders. However, not all younger riders are physically or emotionally ready to ride. Therefore before any parents allow
any youngster to ride this motorcycle, we urge them to read the Important Message to Parents beginning and the Parents, Youngsters and O-Road Motorcycles booklet.
There is much you can do to protect yourself when you ride. You’ll nd many helpful recommendations throughout this manual. The following are a few that we
consider most important.
Ride O-Road Only. Your motorcycle is designed and manufactured for o-road use only. The tires are not made for pavement, and the motorcycle does not have turn
signals and other features required for use on public roads. If you need to cross a paved or public road, get o and walk your motorcycle across.
TAKE TIME TO LEARN AND PRACTICE
Developing o-road riding skills is a gradual, step-by-step process. Start by practicing at low speeds in a safe area and slowly build your skills. Personal instruction
from an experienced rider can also be valuable.
ALWAYS WEAR A HELMET
It's a proven fact: helmets signicantly reduce the number and severity of head injuries. It is required to wear an Australian Motorcycle Standard Helmet when
riding a motor bike. So always wear an approved motorcycle helmet. We also recommend that you wear eye protection, sturdy boots, gloves, and other protective gear.
NEVER CARRY A PASSENGER
Your motorcycle is designed for one person only. There are no handholds, footrests, or seat for a second person—so never carry a passenger. A passenger could
interfere with your ability to move around to maintain your balance and control of the motorcycle.
BE ALERT FOR HAZARDS
The terrain can present a variety of challenges when you ride o-road. Continually "read" the terrain, for unexpected turns, drop-os, rocks, ruts, and other hazards.
Always keep your speed low enough to allow time to see and react to hazards.
RIDE WITHIN YOUR LIMITS
Pushing limits is another major cause of motorcycle accidents. Never ride beyond your personal abilities or faster than conditions warrant. Remember that alcohol,
drugs, fatigue, and inattention can signicantly reduce your ability to make good judgments and ride safety.
