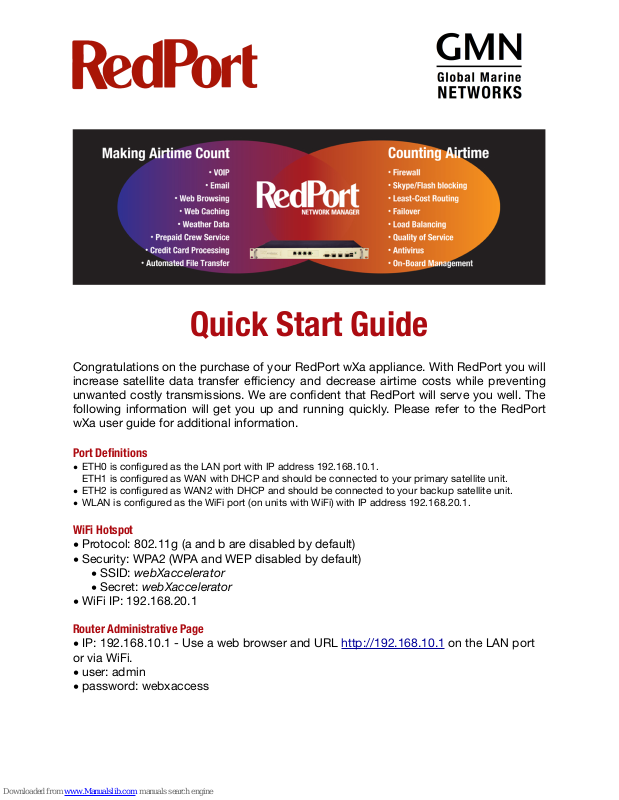

Quick Start Guide
Congratulations on the purchase of your RedPort wXa appliance. With RedPort you will
increase satellite data transfer efficiency and decrease airtime costs while preventing
unwanted costly transmissions. We are confident that RedPort will serve you well. The
following information will get you up and running quickly. Please refer to the RedPort
wXa user guide for additional information.
Port Definitions
ETH0 is configured as the LAN port with IP address 192.168.10.1.
•
ETH1 is configured as WAN with DHCP and should be connected to your primary satellite unit.
ETH2 is configured as WAN2 with DHCP and should be connected to your backup satellite unit.
•
WLAN is configured as the WiFi port (on units with WiFi) with IP address 192.168.20.1.
•
WiFi Hotspot
Protocol: 802.11g (a and b are disabled by default)
•
Security: WPA2 (WPA and WEP disabled by default)
•
SSID: webXaccelerator
•
Secret: webXaccelerator
•
WiFi IP: 192.168.20.1
•
Router Administrative Page
IP: 192.168.10.1 - Use a web browser and URL http://192.168.10.1 on the LAN port
•
or via WiFi.
user: admin
•
password: webxaccess
•
Page 2
Configuring WAN and WAN2 Ports
Both the primary (WAN) and backup (WAN2) ports are configured with DHCP by
default. Use the following to configure for use with static IP addressing.
1. login to the web admin.
2. go to "Interfaces->WAN"
3. set the Type to "Static" (currently DHCP)
4. enter the IP address for the WAN port and the Gateway followed by "Save"
5. go to "System->General" and enter the DNS servers in the appropriate boxes
6. uncheck "Allow DNS server list to be overridden by DHCP/PPP on WAN" and hit
"Save"
Web Compression
Web compression is disabled by default. The following steps are required to enable
compression.
1. Contact your supplier for a RedPort wXa account username and password.
2. Login to the web admin
3. Go to "Services->Proxy server"
4. Click on the "Upstream Proxy" and enable it and enter the information below:
Hostname: xweb.gmn-usa.com
•
Username: assigned by your supplier
•
Password: assigned by your supplier
•
Compression level: More compression accelerates the connection sacrificing
•
picture quality.
5. Test the compression by viewing an internet website.
Captive Portal
The captive portal is disabled by default. The following steps are required to enable it.
login to the web admin.
1. go to "Firewall->Traffic shaper" and enable it.
2. go to "Services->Captive portal" and enable it.
3. You will now be taken to a login page every time you try to access the internet with
a web browser. Access to the internet will be restricted unless a valid pincode is
entered. Contact your supplier for pincodes.
Captive Portal WiFi Considerations
Once the captive portal is enabled, access to the web admin at http://192.168.10.1 is
lost unless you enter a pincode. The following enables access to the web admin
without having to enter a pincode.
1. login to the web admin
2. go to "Services->Captive portal"
3. click on "Allowed IP addresses"
4. click on the "+" and add a "To" rule for 192.168.10.1 followed by "Save"
Firewall Considerations
By default, both WAN and WAN2 are configured to be "Open" allowing unrestricted
traffic originating on the internet. LAN and WLAN (the WiFi interface) are also
Page 3
configured "Open" allowing all traffic to pass through the router onto the internet.
Access rules for all network interfaces should be modified to meet the operational
environment. Firewall rules are defined in the web admin under "Firewall->Rules". Click
on the tab for the interface that you want to configure. Then add/remove rules to suit
your specific environment.
Console
The supplied NULL modem cable can be used to gain console access through the
serial port using settings 9600 8N1.
Backup/Restore
Use the web admin "Diagnostics->Backup/Restore" feature to save a copy of your
router's settings.
Boot/Halt
The RedPort wXa uses an internal solid state silicon disk drive (SSD) to store its
configuration and cache webpages. Care should be taken when shutting down the unit
to prevent loss of data and lengthy disk checks on startup. To properly shutdown the
unit, login to the web admin and execute the "Diagnostics->Halt function". Wait one full
minute before removing power.
In the Box
The following items are included in every RedPort wXa shipment:
Base unit. Either rack or wall mount base unit
•
WiFi antenna for WiFi enabled units
•
DB-9 NULL modem cable
•
US or EU compatible external power supply
•
Resource DVD
•
This Quick Start guide.
•
