DIGITAL MICROPHONE CONSOLE VA-FMC-512
English
VA-FMC-512
VA-FMC-512 with 12 zone keys
54 8 9 A B6 7321
Front view
1 Socket for microphone (not included) *
2 Status-indicator LED
3 Emergency key
4 Key for interrupting message / failure buzzer
5 Key for sending out pre-recorded alert message
6 Key for sending out pre-recorded evacuation messages
7 Call key
8 Key for calling up pre-set messages
9 Zone-selection keys with status-indicator LED
* Each station must be completed with an additional micro-
phone to be chosen from among the two following models:
• VA-MG-001, dynamic gooseneck microphone
• VA-MH-001, dynamic hand-held microphone with P.T.T.
Rear view
A Connector for external 24 VDC power supply
B IN / OUT con nectors
g+m elek tronik ag will not ac cept any liabili ty for damage to property and / or persons arising out of incorrect use of the equipment or of procedures that do not co mply with the
instru ctions provided in this boo klet. g+m el ektro nik ag strive to improve their pro ducts co ntinuously, and the refore reserve the right to make changes to the drawings an d technical
speci fications at any time and without notic e.
gm-elektronik.swiss | adm@gm-elektronik.swiss
Page 1 | 9
Data s h e e t 1811. 0 0 1
UK
Pin
Pin 8
Pin
T568B STANDARD
Pin Colore Colour
1 bianco/arancio white/orange
2 arancio orange
3 bianco/verde white/green
4 blu blue
5 bianco/blu white/blue
6 verde green
7 bianco/marrone white/brown
2.1 Connections of stations
The stations are connected by means of direct Cat. 5 STP cables
(no cross-cables). In accordance with EIA/TIA standard T568A and
EIA/TIA standard T568B, the pin-out for these cables (and their
RJ45 connectors) and the colour codes are:
DIGITAL MICROPHONE CONSOLE VA-FMC-512
1. Connections
The station must be connected to the Emergency Desk of the VA-500 system. It is possible to connect up to 4 remote stations in cascade formation by means of the IN / OUT (C) sockets provided for this purpse, which can be used as inputs or
outputs as required. Special attention must be paid to assigning correctly the logical addresses to each station. The connections to the stations are made by means of CAT5e SF / UTP shielded cable and a shielded STP connector.
For these cables EIA / TIA T568A and EIA / TIA T568B (and the associated RJ45 connectors) standards require the pinouts
and colour schemes shown in the table below. The table also shows the pinouts for the IN / OUT connectors (B).
Attention! Cross-cables are not permitted. All the connectors must be shielded RJ45 connector
Connection diagram T568B STANDARD:
Pin T568A (Colour) T568B (Colour) IN / OUT (Function)
1 White / Orang e White / Green Audio +
1 2 3 4
5
6 7 8
2 Green Orange Audio –
3 White / O range White / Green GND
1
4 Blue Blue Not connected
5 White / Blue W hite / Blue Not conne cted
6 Orange Green +VDC
7 White / Brow n White / Brown Serial +
8 Brown Brown Serial –
Shield Shield Shield GND
1.1. Sizi ng
Using shielded CAT5e SF / UTP cable, it is possible to apply the following limits:
1 station = total length max. 300 m
2 stations = total length max. 200 m
3 stations = total length max. 100 m
For systems with more than three stations connected to them, at distances greater than those indicated above, each station
will also have a local power supply providing a continuous stabilised current of 24 VDC / 500 mA, using the socket provided
for this purpose on the rear (A).
8 7 6 5
4
8
3 2 1
Pin 1
gm-elektronik.swiss | adm@gm-elektronik.swiss
Page 2 | 9
Data s h e e t 1811. 0 0 1
DIGITAL MICROPHONE CONSOLE VA-FMC-512
2. Operating instructions
The microphone station is equipped with a set of LED’s for signalling the operating states of the system:
FAULT yellow This indicates a generic «failure status» within the system.
See the FAULTS menu of the VA-500 to identify the failed components.
FAULT COM. yellow This indicates a lack of communication of data between the station in question and the
VA-500. See the FAULTS menu of the VA-500 to identify the failed.
FAULT UNIT yellow This indicates a generic failure of the station in question. See the FAULTS menu of the
VA-500 to identify the failed components.
DISABLE yellow This signals an active «disabled status». It indicates the presence of at least one zone to
which sending of emergency messages is not envisaged.
BUSY yellow This LED flashes on stand-by: it indicates that another station with a lower priority is occu-
pying the system.
Flashing: during a broadcast call, it indicates the duration of the chime signal.
Steady ON: this indicates that another station with a higher priority is occupying
the system.
ALARM Red This indicates an «alarm status» existing within the system.
LOCAL POWER green This indicates the presence of the local DC power supply applied to the external
socket of the station.
REMOTE POWER green This indicates the presence of the power supply provided by the VA-500 through the
CAT5 cable.
RUN / SET green Flashing: this indicates that the station is working correctly and operating normally.
Steady: this indicates that the station configuration stages is active (SET).
N.B.: For further information about the operating states of the system, consult the «Operating conditions and Terminology»
section of the VA-500 operating instruction. Various different types of use can be identified:
• Sending of emergency messages in the live mode
• sending of pre-recorded evacuation/alert messages
• Broadcast calls
• Zone selection
• AUX function for calling up pre-configured messages
• Resetting of emergency messages
gm-elektronik.swiss | adm@gm-elektronik.swiss
Page 3 | 9
Data s h e e t 1811. 0 0 1
USE
UK
An existing emergency status can be stopped only from a station with a higher priority.
The red LED indicates the conditions of the system:
•
off
= manual emergency procedure de-activated.
•
flashing
= manual emergency procedure activated by another station. The P.T.T., ALERT, EVAC, RESET
and AUX keys are not operational.
•
steady ON
= manual emergency activated by the station. The P.T.T., ALERT, EVAC, RESET and AUX keys
can be used to manage the emergency.
3.2 Sending live emergency messages

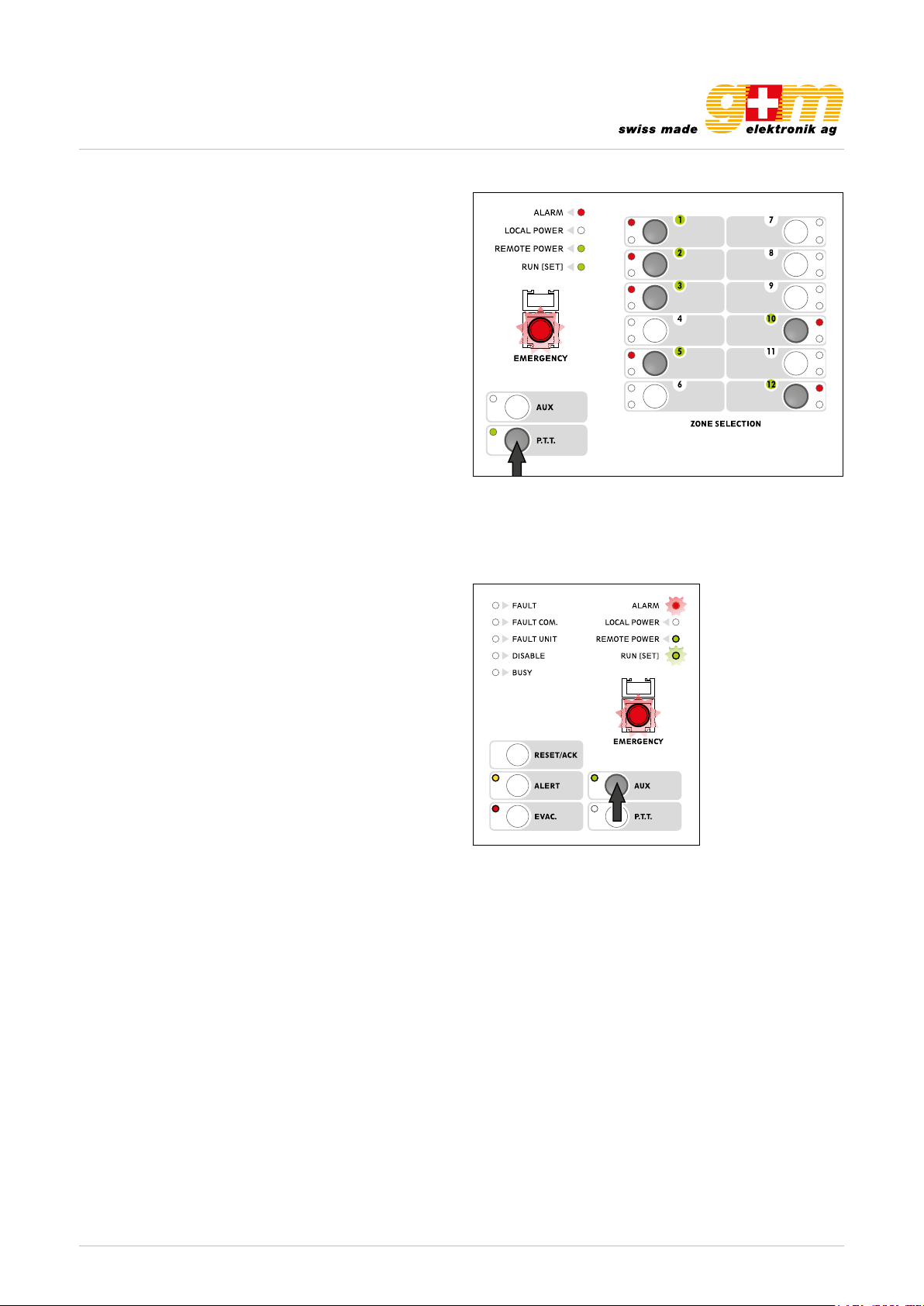

After activating the emergency procedure (Fig. 3.2.1), press the P.T. T. key: the red ALARM LED will light up. The
green P.T.T. LED will also light up and it will be possible to speak into the microphone (Fig. 3.2.1).
The P.T.T. key has priority over any pre-recorded messages being sent out.
To terminate the live emergency message, release the P.T.T. key and press the EMERGENCY key again, taking
care to close the cover again.
“Operatività e
DIGITAL MICROPHONE CONSOLE VA-FMC-512
2.1. Manual emergency activation
Protected by a cover: as soon as the emergency procedure has been activated, the system switches automatically to the All-Call mode. It is possible to
activate the emergency procedure only if the priority conditions as assigned
enable this.
An existing emergency status can be stopped only from a station with a higher
priority. The red LED indicates the conditions of the system:
• off = manual emergency procedure de-activated.
• flashing = manual emergency procedure activated by another station.
The P.T.T., ALERT, EVAC, RESET and AUX keys are not operational.
• steady ON = manual emergency activated by the station. The P.T.T., ALERT,
EVAC, RESET and AUX keys can be used to manage the emergency.
2.2. Sending live emergency messages
After activating the emergency procedure, press the P.T.T. key: the red ALARM
LED will light up. The green P.T.T. LED will also light up and it will be possible
to speak into the microphone.
The P.T.T. key has priority over any pre-recorded messages being sent out. To
terminate the live emergency message, release the P.T.T. key and press the
EMERGENCY key again, taking care to close the cover again.
2.3. Sending pre-recorded emergency messages
To send pre-recorded alert or evacuation messages stored in the memory
of the VA-500, after activating the emergency modepress ALERT or EVAC to
send out the alert message or the evacuation message. The ALARM LED will
light up and the corresponding yellow LED (ALERT) or red LED (EVAC) will light.
gm-elektronik.swiss | adm@gm-elektronik.swiss
Page 4 | 9
Data s h e e t 1811. 0 0 1
USO
Annuncio vivavoce d’emergenza in corso
- Linea in guasto o
- Linea non disponibile per guasto amplificatore
DIGITAL MICROPHONE CONSOLE VA-FMC-512
2.4. Broadcast calls
It is also possible to make a live call without the emergency mode. To do this, simply press the P.T.T. key and speak into the
microphone. Activation will be confirmed by the corresponding green LED lighting up. To end the call, release the key. Note:
• Before making a broadcast call, check the status of the BUSY LED to see whether the line is being used by another station.
After pressing the P.T.T. key, wait for the yellow BUSY LED to extinguish (it flashes while the chime tone is sounding).
• I n the broadcast mode, the VA-FMC-512 station will always have a higher priority than any other broadcasting sources
connected to the VA-500.
2.5. Zone selection
The VA-FMC-512 has a key pad to be used for pre-selecting one or more zones to which handsfree messages can be sent
or prerecorded messages can be sent / reset. Each key has three LEDs that indicate the status of the zone concerned:
LED Colour Status Indication
Zone selected green Flashing Zone selected
Steady ON (in an emergency status) with
the «zone alarm» LED illuminated
Steady ON (in the broadcasting status) of
emergency messages is not envisaged.
Zone alarm red Flashing ALERT message being sent out
Steady ON, with the «zone selected»
LED OFF station.
Zone fault / disable yellow Flashing -Line failed or
Steady ON Line set in «disabled status»
Live emergency announcement being
sent out
Live announcement being broadcast
EVAC message being send out
-Line not available due to amplifier failure
• To send selective live messages
After activating the emergency mode, press the keys corresponding to the zones concerned. Only the green LED’s
of the selected zones will light up to indicate the booking,
while the others will extinguish. Press the P.T.T. key and hold
it down. The green and red LED’s corresponding to the activated zones will light up and remain steady ON and it will be
possible to speak into the microphone to send the handsfree
emergency message only to the zones that have been selected (in the example these are zones 1-2-3-5-10-12). On releasing the key, the All-Call mode will be activated automatically
(all the green LED’s will flash).
Fig. 3.5.1
gm-elektronik.swiss | adm@gm-elektronik.swiss
Page 5 | 9
Data s h e e t 1811. 0 0 1
USO
Annuncio vivavoce d’emergenza in corso
- Linea in guasto o
- Linea non disponibile per guasto amplificatore
Fig. 3.5.1
DIGITAL MICROPHONE CONSOLE VA-FMC-512
• To send pre-recorded messages
After activating the emergency mode, press the keys corresponding to the zones concerned. Only the green LED’s of
the selected zones will light up to indicate the booking. Then
press ALERT or EVAC to send the alert or evacuation message only to those zones that have been selected. Activation
will be confirmed by the red LED corresponding to the zones
in question:
LED steady ON = EVAC
LED flashing = ALERT
Once the message has been sent out, the All-Call mode will
be activated automatically (all the green LED’s will flash).
• To send selective messages in the broadcast mode
Select the required zones. The LEDs corresponding to the
selected zones will light up. Then follow the instructions provided under point ”Broadcast calls“ on page 5. The zone
LEDs will light up steadily to confirm the activation.
2.6. AUX function
The AUX function can be used to call up a specific combination of messages / broadcasting zones set previously via the
VA-500. To do this, enter the emergency mode then press
the AUX key. The green AUX LED will light up to confirm activation. The red ALARM LED and those indicating the type
of message sent (ALERT or EVAC) will light up to indicate the
existing alarm. If a VA-FMC-512 station is used, the LEDs
referred to the zones concerned will also light up.
Once the messages have been sent out, press EMERGENCY
again to leave the emergency mode, then close the cover
again.
2.7. RESET / ACK func tion
The RESET / ACK key has multiple functions depending on the status of the system:
Fig. 3.5.2
Message RESET (RESET function)
• ALL-CALL: When there is an on-going alarm and with the station in the emergency mode, hold the RESET/ACK key down
for 2 seconds. This will enable the messages to be stopped, although the system will remain in an emergency status.
• PARTIAL: when there is an on-going alarm and with the station in the emergency mode, select the zones to be muted
and hold the RESET / ACK key down for 2 seconds.
Resetting the failure acknowledgement buzzer (ACK function)
• In the event of failures with the station on stand-by, press the RESET/ACK key briefly. The buzzer will be reset only on the
actual base, while the LEDs corresponding to the failure in question will remain ON.
• In the event of failures, press the EMERGENCY key to enter the emergency mode. Then press the RESET / ACK key briefly. The buzzer will be reset on all the devices of the system. The LEDs referred to the failure in question will in any case
remain ON.
gm-elektronik.swiss | adm@gm-elektronik.swiss
Page 6 | 9
Data s h e e t 1811. 0 0 1
SETTINGS
SETTINGS
DIGITAL MICROPHONE CONSOLE VA-FMC-512
3. Setting

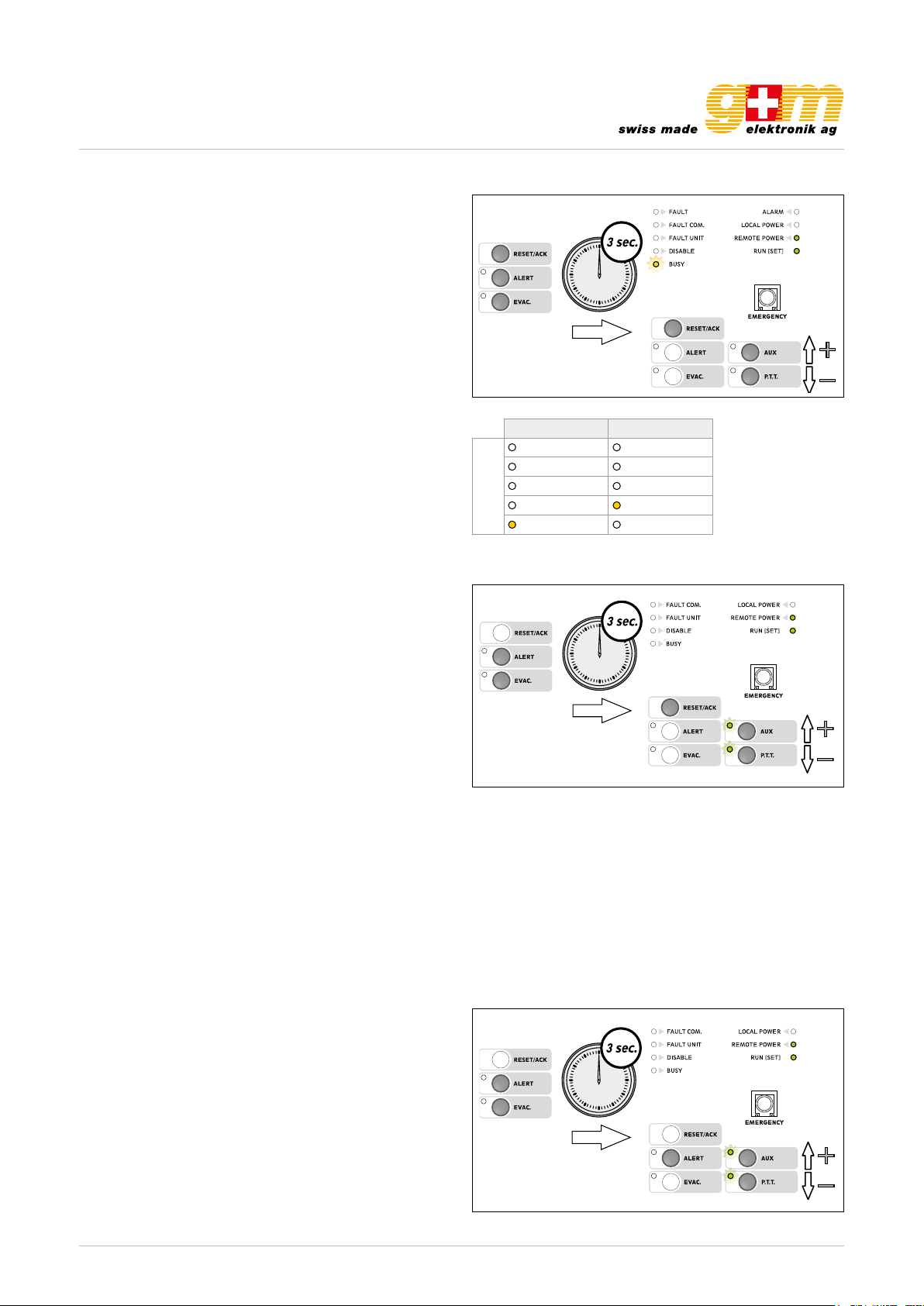

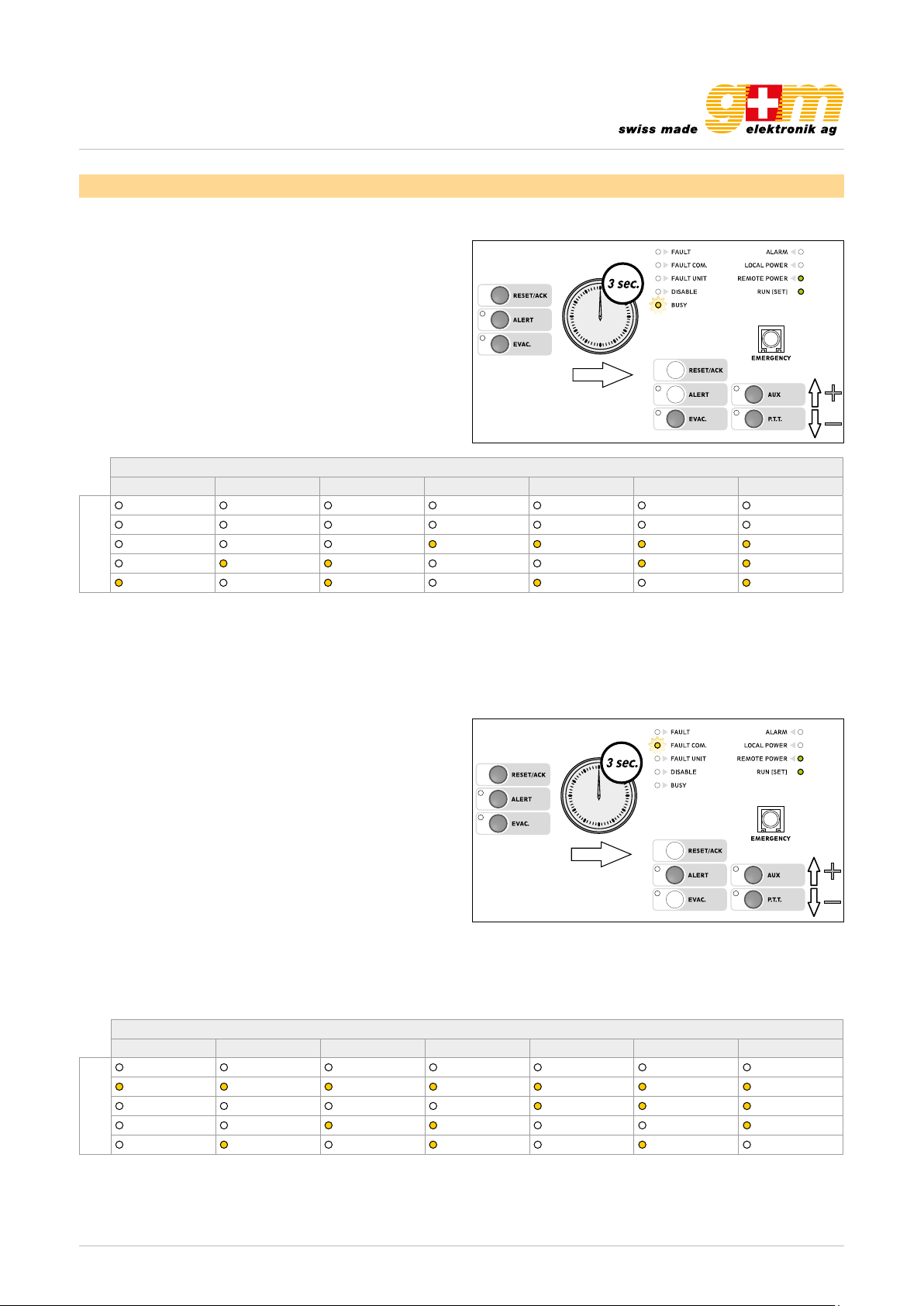

3.1. Ad dress
Each station must have its own individual address. To set
these addresses press the ALERT, EVAC and RESET / ACK
keys simultaneously, holding them down for more than 3 seconds.
When the RUN / SET LED stops flashing and remains steady ON, release the keys. There are 7 addresses at disposal,
from 1 to 7. Press the EVAC. key. The LED’s will show the
current address setting (factory default setting: 1). To change
an address, hold the EVAC key down, then press AUX (to increase the number) or P.T.T. (to decrease it). The LED’s corresponding to the addresses are shown in the following table.
ADDRESS
1 2 3 4 5 6 7
FAULT FAULT FAULT FAULT FAULT FAULT FA ULT
FAULT COM. FAULT COM. FAULT COM. FAULT COM. FAULT COM. FAULT COM. FAULT COM.
LED
FAULT UNI T FA ULT U NIT FAULT UNI T FAULT UNIT FA ULT U NIT FAULT UNI T FA ULT U NIT
DISABLE DISABLE DISABLE DISABLE DISABLE DISABLE DISABLE
BUSY BUSY BUSY BUSY BUSY BUSY BUSY
To leave the Settings mode and save the settings made, press the ALERT, EVAC and RESE T / ACK keys again. The RUN / SET
key will start flashing again. If you do NOT want to save the changes made, simply wait for the timeout (about 10 seconds),
after which the previous settings will be restored.
3.2. Priority
To set the priority of a station, it is necessary to press the
keys ALERT, EVAC and RESET / ACK simultaneously for
more than 3 seconds. When the RUN / SET LED stops flashing and remains steady ON, release the keys. There are
seven priority levels at disposal (from 8 = lowest priority to
14 = highest priority).
On pressing the ALERT key, the LEDs will indicate the current priority setting (default factory setting: 8). To change the
priority, hold the ALERT key down and press AUX (to increase the number) or P.T.T. (to decrease it). The LEDs corresponding to each priority level are shown in the following table. To leave the settings mode and save the changes made,
press the ALERT, EVAC and RESET / ACK keys again: the
RUN / SET LED will start flashing again.
8 9 10 11 12 13 14
FAULT FAULT FAULT FAULT FAULT FAULT FA ULT
FAULT COM. FAULT COM. FAULT COM. FAULT COM. FAULT COM. FAULT COM. FAULT COM.
LED
FAULT UNI T FA ULT U NIT FAULT UNI T FAULT UNIT FA ULT U NIT FAULT UNI T FA ULT U NIT
DISABLE DISABLE DISABLE DISABLE DISABLE DISABLE DISABLE
BUSY BUSY BUSY BUSY BUSY BUSY BUSY
PRIORITY
If you do NOT want to save the changes made, simply wait for the timeout (about 10 seconds), after which the previous settings will be restored. Note: The priority level set determines the operational status both in emergencies and in broadcasting
conditions.
gm-elektronik.swiss | adm@gm-elektronik.swiss
Page 7 | 9
Data s h e e t 1811. 0 0 1
IMPOSTAZIONI
I
4.3 P.T.T. Toggle
Per impostare la modalità a ritenuta (
toggle)
del tasto P.T. T., è necessario premere simultaneamente per più di
3 secondi i tasti ALERT, EVAC e RESET/ACK. Quando il led RUN/SET termina di lampeggiare restando acceso
in maniera fissa, rilasciare i tasti.
Premendo il tasto RESET/ACK., i led visualizzano l’attuale impostazione (default
di fabbrica:
toggle OFF
). Per modificare lo stato del pulsante, tenere premuto il tasto RESET/ACK. e premere
il tasto AUX (per attivare la modalità
toggle
) o P.T. T. (per disattivarla). Nella tabella sottostante viene indicata la
corrispondenza LED/modalità attiva.
TOGGLE OFF TOGGLE ON
SETTINGS
SETTINGS
DIGITAL MICROPHONE CONSOLE VA-FMC-512
3.3. P.T.T. Toggle
To set the P.T.T. key in the toggle mode, press the ALERT,
EVAC and RESET / ACK keys simultaneously and hold them
down for more than 3 seconds. When the RUN/SET LED
stops flashing and remains steady ON, release the keys. On
pressing the RESET / ACK. key, the LEDs will show the current setting (default factory setting: toggle OFF). To change
the status, hold the RESET / ACK. key down and press AUX
(to activate the toggle mode) or the P.T.T. key (to de-activate
it). The LED’s corresponding to the modes are shown in the
following table.
To leave the settings mode and save the changes made,
press the ALERT, EVAC and RESET / ACK keys again: the
RUN / SET LED will start flashing again. If you do NOT want
to save the changes made, simply wait for the timeout
(about 10 seconds), after which the previous settings will be
restored.
3.4. Microphone sensitivity
When the station is close to the speakers, it is possible that
acoustic feedback may occur, resulting in a hissing noise
from the loudspeakers (Larsen effect). To avoid this, it is necessary to lower the sensitivity of the microphone. To set the
sensitivity of the microphone, press the ALERT and EVAC
keys simultaneously and hold them down for more than 3 seconds. When the RUN / SET LED stops flashing and remains
steady ON, release the keys.
Holding the EVAC. key down, press AUX to increase the sensitivity of the microphone or P.T.T. to decrease it.
The appropriate LED’s will flash to indicate that the adjustment is being made.
Once the (minimum or maximum) limits have been reached,
the LED’s will remain steady ON. To leave the settings mode
and save the changes made, press the ALERT and EVAC
keys again. If you do NOT want to save the changes made,
simply wait for the timeout (about 10 seconds), after which
the previous settings will be restored.
Tog g le o f f Toggle on
FAULT FAULT
FAULT COM. FAULT COM.
LED
FAULT UNI T FA ULT U NIT
DISABLE DISABLE
BUSY BUSY
3.5. Output level
To set the output level, press the ALERT and EVAC keys simultaneously and hold them down for more than 3 seconds.
When the RUN / SET LED stops flashing and remains steady
ON, release the keys. Holding the ALERT key down, press
AUX to increase the output level or P.T.T. to decrease it.
The appropriate LED’s will flash to indicate that the adjustment is being made. Once the (minimum or maximum) limits
have been reached, the LED’s will remain steady ON. To leave the settings mode and save the changes made, press the
ALERT and EVAC keys again. If you do NOT want to save
the changes made, simply wait for the timeout (about 10 seconds), after which the previous settings will be restored.
gm-elektronik.swiss | adm@gm-elektronik.swiss
Page 8 | 9
Data s h e e t 1811. 0 0 1
SETTINGS
DATI TECNICI
FMD 2001 FMD 2012
CC
DATI TECNICI
I
FMD 2001 FMD 2012
N° di zone selezionabili - 12
Tensione d’alimentazione 24 V
CC
Assorbimento massimo @24VCC 60 mA 130 mA
Livello d’uscita tipico 300 mV
Distorsione < 1%
Rapporto segnale/disturbo > 60 dB
Rapporto segnale/disturbo (pesato “A”) > 65 dBA
Risposta in frequenza 130 ÷ 19.000 Hz
Filtro LOW CUT -3 dB / 380 Hz
Dimensioni (L x H x P) 140 x 80 x 200 mm 230 x 80 x 200 mm
Peso netto 0,77 kg 1,55 kg
DIGITAL MICROPHONE CONSOLE VA-FMC-512
3.6. LOW-CUT filter
To set the LOW-CUT filter, press the ALERT and EVAC keys
simultaneously and hold them down for more than 3 seconds. When the RUN / SET LED stops flashing and remains
steady ON, release the keys.
Press the RESET / ACK. key. The LED’s will indicate the current settings:
AUX LED ON = filter ON
P.T.T. LED ON = filter OFF
Holding the RESET / ACK key down, press AUX to activate
the filter or P.T.T. to de-activate it.
To leave the settings mode and save the changes made,
press the ALERT and EVAC keys again. The RUN / SET LED
will start flashing again. If you do NOT want to save the changes made, simply wait for the timeout (about 10 seconds),
after which the previous settings will be restored.
Note: To check the effects of the changes described under
points 4.3 to 4.6 above, a normal call so as to listen to your
own voice is recommended.
Note for INSTALLERS:
While installing and configuring the system, it may be necessary to mute the failure signalling buzzer temporarily.
To do this, there is a switch (11) on the rear panel, which
has to be positioned with a small screwdriver.
Remember to re-activate the buzzer after completing the
operations.
Technical data
Number of selectable zones 12 zones
Power supply 24 VDC
Maximum absorption (24 VDC) 130 mA
Typical output level 300 mV
Distortion < 1%
S / N ratio > 60 dB
S/N ratio (weighted “A”) > 65 dBA
Frequency response 130–19'000 Hz
Low-cut filter -3 dB / 380 Hz
Dimensions (W × H × D) 230 × 80 × 200 mm
Weight 1.55 kg
Colour Dark grey
Material Plastic
Dimensions in mm
gm-elektronik.swiss | adm@gm-elektronik.swiss
Page 9 | 9
Data s h e e t 1811. 0 0 1
Loading...
