Every

2001 Safari

under warranty is

backed with the

following

services:

1-800-GMC-8782

(

For vehicles purchased in Canada,

(

For vehicles purchased in Canada,

1-800-268-6800

call

that provides in an emergency:

)

Courtesy

Transportation

Trip Routing

Free Free Free Free

lockout assistance dead-battery assistance out-of-fuel assistance flat-tire change

Emergency

towing

2001 GMC Safari

Owner's Manual

Litho in U.S.A. Part Number X2110 A First Edition

Section

Table of Contents

Seats and Restraint Systems

Seats and Seat Controls Safety Belts

Features and Controls

Windows Keys and Door Locks Keyless Entry System (Option) Hatch Automatic Transmission All-Wheel Drive (Option) Parking Brake Tilt Wheel (If Equipped) Turn Signal/Multifunction Lever

Air Bag System Restraint Systems for Children

Windshield Wipers Cruise Control (Option) Exterior and Interior Lamps Mirrors Storage Compartments Convenience Net/Luggage Carrier (If Equipped) Accessory Power Outlets HomeLink® Transmitter (Option) Instrument Panel, Warning Lights and Gages

Section

Table of Contents (cont'd)

Comfort Controls and Audio Systems

Heating and Air Conditioning Setting the Radio Clock

Your Driving and the Road

Your Driving, the Road and Your Vehicle Defensive Driving Drunken Driving Control of a Vehicle Braking

Problems on the Road

Hazard Warning Flashers Jump Starting Towing Your Vehicle

Radio/CD Player Radio Theft-Deterrent Feature (If Equipped)

Steering Driving Tips for Various Road Conditions Recreational Vehicle Towing Loading Your Vehicle Towing a Trailer

Engine Overheating Changing a Flat Tire If You're Stuck

iii

Section

Table of Contents (cont'd)

Service and Appearance Care

Fuel Checking Fluids and Lubricants Engine Air Cleaner/Filter Brakes Bulb Replacement Windshield Wiper Blade Replacement

Maintenance Schedule

Scheduled Maintenance Owner Checks and Services Periodic Maintenance Inspections

Tires and Wheels Appearance Care Electrical System/Fuses and Circuit Breakers Capacities and Specifications Normal Maintenance Replacement Parts

Recommended Fluids and Lubricants Maintenance Records

Table of Contents (cont'd)

Customer Assistance Information

Section

Customer Satisfaction Procedures Customer Assistance Offices

Roadside Assistance and Courtesy Transportation

Warranty Information (See Warranty Manual) Reporting Safety Defects on page 8-10 Service Publications

Index

In the Index you will find an alphabetical listing of almost every subject in this manual.

You can use it to quickly find something you want to read.

Please refer to the last page of this manual for your

Service Station Guide

GENERAL MOTORS, GM, the GM Emblem, GMC, the GMC Emblem and the name SAFARI are registered trademarks of General Motors Corporation.

This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for GMC whenever it appears in this manual.

Please keep this manual in your vehicle, so it will be there if you ever need it when you’re on the road. If you sell the vehicle, please leave this manual in it so the new owner can use it.

We support voluntary technician certification.

For Canadian Owners Who Prefer a French Language Manual:

Aux propriétaires canadiens: Vous pouvez vous

procurer un exemplaire de ce guide en français chez votre concessionaire ou au:

Helm, Incorporated P.O. Box 07130 Detroit, MI 48207

How to Use this Manual

Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly.

Safety Warnings and Symbols

You will find a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning.

CAUTION:

These mean there is something that could hurt you or other people.

In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you don’t, you or others could be hurt.

vii

You will also find a circle with a slash through it in this book. This safety symbol means “Don’t,” “Don’t do this” or “Don’t let this happen.”

Vehicle Damage Warnings

Also, in this book you will find these notices:

NOTICE:

These mean there is something that could damage your vehicle.

In the notice area, we tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly. But the notice will tell you what to do to help avoid the damage.

When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words.

You’ll also see warning labels on your vehicle. They use the same words, CAUTION or NOTICE.

viii

Vehicle Symbols

These are some of the symbols you may find on your vehicle. Also see “Warning Lights and Gages” in the Index.

For example, these symbols are used on an original battery:

CAUTION

POSSIBLE

INJURY

PROTECT

EYES BY

SHIELDING

CAUSTIC BATTERY

ACID COULD

CAUSE BURNS

AVOID

SPARKS OR

FLAMES

SPARK OR

FLAME COULD

EXPLODE

BATTERY

These symbols are important for you and your passengers whenever your vehicle is driven:

CHILD RESTRAINT TOP STRAP

ANCHOR

DOOR LOCK

UNLOCK

FASTEN

SEAT

BELTS

POWER

WINDOW

AIR BAG

These symbols have to do with your lamps:

MASTER

LIGHTING

SWITCH

TURN

SIGNALS

PARKING

LAMPS

HAZARD WARNING FLASHER

DAYTIME

RUNNING

LAMPS

FOG LAMPS

These symbols are on some of your controls:

WINDSHIELD

WIPER

WINDSHIELD

WASHER

WINDSHIELD

DEFROSTER

REAR

WINDOW

DEFOGGER

VENTILATING

FAN

These symbols are used on warning and indicator lights:

ENGINE

COOLANT

TEMP

BATTERY

CHARGING

SYSTEM

BRAKE

COOLANT

ENGINE OIL

PRESSURE

ANTI-LOCK

BRAKES

Here are some other symbols you may see:

FUSE

LIGHTER

HORN

FUEL

Model Reference

This manual covers these models:

Cargo Van Passenger Van

Service Station Guide

Windshield Washer

Fluid

See Section 6

For

a More

Detailed Look at

What's Under the Hood

See Section 6

Hood Release

See Section 6

Battery

See Section 6

Cooling System

See Section 5

Engine Oil Dipstick

See Section 6

Oil Viscosity

Engine Oil

See Section 6

Tire Pressure

See Section 6

Fuel Door

See Section 6

Spare Tire Pressure

See Section 5

Fuel

Use unleaded only.

See Section 6

for octane ratings.

Section 1 Seats and Restraint Systems

Here you’ll find information about the seats in your vehicle and how to use your safety belts properly. You can also learn about some things you should not do with air bags and safety belts.

-2 Seats and Seat Controls

-13 Safety Belts: They’re for Everyone

-17 Here Are Questions Many People Ask About

Safety Belts

-18 How to Wear Safety Belts Properly

1 1

-18 Driver Position

-26 Safety Belt Use During Pregnancy

-27 Right Front Passenger Position

1 1

-27 Air Bag System

-34 Rear Seat Passengers

-- and the Answers

-38 Rear Safety Belt Comfort Guides for

Children and Small Adults

1-40 Center Passenger Position (Bench Seat) 1

-42 Children

-48 Restraint Systems for Children

1 1

-62 Older Children

-65 Safety Belt Extender

-65 Checking Your Restraint Systems

1 1

-66 Replacing Restraint System Parts

After a Crash

1-1

Seats and Seat Controls

This section tells you about the seats -- how to adjust them, take them out and put them back in. It also tells you about bucket and bench seats, power seats and head restraints.

Manual Front Seats

CAUTION:

You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you don’t want to. Adjust the driver’s seat only when the vehicle is not moving.

2-Way Front Seat

The bucket seats can be adjusted forward or rearward using the lever located on the front of the seat.

Move the seat adjustment lever on the front of the seat toward the outboard side of the seat to unlock it. Slide the seat to where you want it. Then release the lever and try to move the seat with your body, to make sure that the seat is locked into place.

1-2

Manual Lumbar Support (If Equipped)

Power Seat (If Equipped)

If you have this feature, there will be a control pad located on the inboard side of the driver’s seat.

If you have this feature, there will be a knob located on the inboard side of the driver’s and passenger’s bucket seats.

Turn the knob toward the front of the vehicle to increase lumbar support. Turn the knob toward the rear of the vehicle to decrease lumbar support.

T o raise or lower the front of the seat, raise or lower the lever located toward the front of the vehicle.

T o raise or lower the rear of the seat, raise or lower the lever located toward the rear of the vehicle.

T o move the entire seat backwards, forward, or up or down, move the center knob.

1-3

Reclining Seatbacks

There is a lever located on the inside of the seat to adjust the seatback.

You can adjust the seatback by lifting the lever and leaning back. Release the lever to lock the seatback where you want it. Pull up on the lever, lean forward and the seat will go to an upright position.

But don’t have a seatback reclined if your vehicle is moving.

1-4

CAUTION:

Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this.

The shoulder belt can’t do its job because it won’t be against your body. Instead, it will be in front of you. In a crash you could go into it, receiving neck or other injuries.

The lap belt can’t do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries.

For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.

Head Restraints

Head restraints are fixed on some models and adjustable on others. Slide an adjustable head restraint up or down so that the top of the restraint is closest to the top of your ears. This position reduces the chance of a neck injury in a crash.

1-5

Seatback Latches

The seatback lever is located on the right rear of your seat.

T o fold your bench seatback forward, pull up on the latch release lever while pulling the seatback toward the rear of the vehicle.

After the latch has been released, push the seatback toward the front of the vehicle until it locks into place. T o raise the seatback, unlock the seatback latch by pushing up on the lever while pushing down on the upper edge of the seatback. Move the seatback into the upright position. Make sure the seatback is locked when it is back in the upright position.

CAUTION:

If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.

1-6

Rear Seats

Bucket Seats (If Equipped)

You may have rear bucket seats with an adjustment release bar located at the front of the seats. These seats can be adjusted forward or rearward with the release bar. Pull the release bar up to release the seat bottom and slide the seat where you want it. Then let go of the release bar and try to move the seat with your body, to make sure the seat is locked into place.

Bench Seats

Each bench seat can carry up to three passengers. They can also be removed to increase storage space.

The center bench and rear bench seats can be adjusted forward or rearward using the lever at the front of the seat.

Move the seat adjustment lever located at the front of the seat toward the passenger’s side to unlock it. Slide the seat to where you want it. Then release the lever and try to move the seat with your body, to make sure the seat is locked into place.

The center bench seat has a pivoting right armrest. The optional bench seats come with moveable armrests,

individual reclining seatbacks, adjustable headrests and a fold

-down center armrest console.

1-7

T o adjust your seatback, pull up on the lever located on the outboard side of the seat cushion.

T o raise or lower the center console, press the button located between the beverage holders. Sit in the center seating position only when the console is in an upright and locked position.

For details about headrests, see “Head Restraints” in this section.

1-8

Removing the Rear Seats

T o remove the rear seats, do the following:

1. If you are removing the center seat, remove the right lap T o do this, press the tip of a key into the release hole of the safety belt attachment while pulling up on the safety belt.

-shoulder belt.

2. If you have a safety belt guide on your seat, pull the safety belt all the way out through the guide.

3. T o store the safety belt while the second row bench seat is removed, pull the belt out and put both buckles in the passenger’s side rear storage bin.

Route the belt out of the forward edge of the storage bin. Close the cover to retain the belt.

4. Pull up on the seatback latch on the right rear of the seat. Push the seatback down until it locks into place.

1-9

5. Lift up on the left and the right seat release levers at the same time. The latches are near the floor on the rear legs of the seat.

1-10

6. Lift up on the rear of the seat to remove the seat assembly from the rear latch pins. Then, pull back and lift the seat out of the vehicle.

Your seat release latch lever is operated with a

-stage mechanism. To fully release the latch,

two two levels of lift effort will be required. First, a low effort to overcome the first stage and then a moderate effort to fully release the latch.

Replacing the Rear Seats

1. Lower the seat into position. Make sure the front retainers are hooked onto the anchor pins.

2. Pull the seat down to latch the rear retainers. Make sure the seat is locked in by pulling up and down on the seat.

CAUTION:

A seat that isn’t locked into place properly can move around in a collision or sudden stop. People in the vehicle could be injured. Be sure to lock the seat into place properly when installing it.

1-11

T o raise the seatback, do the following:

1. Unlock the seatback latch by pushing up on the latch release lever at the right rear of the seat, while pushing down on the upper edge of the seatback.

2. Move the seatback into the upright position. Make sure the seatback is locked when it is back in the upright position.

If you are replacing the center seat, connect the right lap

-shoulder belt to the attachment on the seat

cushion. If you have a safety belt guide on your seat, pull the belt through the guide before reattaching the

-shoulder belt to the side of the seat. The release

lap hole should be facing outward.

If you installed the safety belt with the release hole facing inward (toward the seat), slide the plastic cover up so you can see the buckle. Disconnect the seat belt. Slide the cover back down and reinstall the belt correctly.

CAUTION:

A safety belt that is improperly routed, not properly attached, or twisted won’t provide the protection needed in a crash. The person wearing the belt could be seriously injured. After installing the seat, always check to be sure that the safety belts are properly routed and attached, and are not twisted.

1-12

Safety Belts: They’re for Everyone

This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts.

And it explains the air bag system.

CAUTION:

Don’t let anyone ride where he or she can’t wear a safety belt properly. If you are in a crash and you’re not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too.

CAUTION:

It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

Your vehicle has a light that comes on as a reminder to buckle up. See “Safety Belt Reminder Light” in the Index.

In most states and Canadian provinces, the law says to wear safety belts. Here’s why: They work.

1-13

You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one.

A few crashes are mild, and some crashes can be so serious that even buckled up a person wouldn’t survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away . Without belts they could have been badly hurt or killed.

After more than 30 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter ... a lot!

Why Safety Belts Work

When you ride in or on anything, you go as fast as it goes.

Take the simplest vehicle. Suppose it’s just a seat on wheels.

1-14

Put someone on it. Get it up to speed. Then stop the vehicle. The rider

doesn’t stop.

1-15

The person keeps going until stopped by something. In a real vehicle, it could be the windshield ...

1-16

or the instrument panel ...

or the safety belts! With safety belts, you slow down as the vehicle does.

You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.

Here Are Questions Many People Ask About Safety Belts

Won’t I be trapped in the vehicle after an

accident if I’m wearing a safety belt?

-- and the Answers

A: You could be -- whether you’re wearing a safety

belt or not. But you can unbuckle a safety belt, even if you’re upside down. And your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.

Q: If my vehicle has air bags, why should I have to

wear safety belts?

A: Air bags are in many vehicles today and will

be in most of them in the future. But they are supplemental systems only; so they work with safety belts system ever offered for sale has required the use of safety belts. Even if you’re in a vehicle that has air bags, you still have to buckle up to get the most protection. That’s true not only in frontal collisions, but especially in side and other collisions.

-- not instead of them. Every air bag

1-17

Q: If I’m a good driver, and I never drive far from

home, why should I wear safety belts?

A: You may be an excellent driver, but if you’re in an

accident your passengers can be hurt. Being a good driver doesn’t protect you from things beyond your control, such as bad drivers.

Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h).

Safety belts are for everyone.

-- even one that isn’t your fault -- you and

How to Wear Safety Belts Properly

Adults

This part is only for people of adult size. Be aware that there are special things to know about

safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see the part of this manual called “Children.” Follow those rules for everyone’s protection.

First, you’ll want to know which restraint systems your vehicle has.

We’ll start with the driver position.

Driver Position

This part describes the driver’s restraint system.

Lap-Shoulder Belt

The driver has a lap-shoulder belt. Here’s how to wear it properly.

1. Close and lock the door.

2. Adjust the seat so you can sit up straight. T o see how, see “Seats” in the Index.

1-18

3. Pick up the latch plate and pull the belt across you. Don’t let it get twisted.

4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure.

If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section.

Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.

The safety belt locks if there’s a sudden stop or a crash.

1-19

Shoulder Belt Height Adjuster

Before you begin to drive, move the shoulder belt adjuster to the height that is right for you.

T o move it down, push in at the top of the arrows and move the height adjuster to the desired position. You can move the adjuster up just by pushing up on the shoulder belt guide. After you move the adjuster to where you want it, try to move it down without pushing in to make sure it has locked into position.

Adjust the height so that the shoulder portion of the belt is centered on your shoulder. The belt should be away from your face and neck, but not falling off your shoulder.

1-20

Q: What’s wrong with this?

A: The shoulder belt is too loose. It won’t give nearly

as much protection this way.

CAUTION:

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.

1-21

Q: What’s wrong with this?

A: The belt is buckled in the wrong place.

CAUTION:

You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.

1-22

Q: What’s wrong with this?

A: The belt is over an armrest.

CAUTION:

You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries. Be sure the belt goes under the armrests.

1-23

Q: What’s wrong with this?

A: The shoulder belt is worn under the arm. It should

be worn over the shoulder at all times.

CAUTION:

You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which aren’t as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen.

1-24

Q: What’s wrong with this?

A: The belt is twisted across the body.

CAUTION:

You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.

1-25

T o unlatch the belt, just push the button on the buckle. The belt should go back out of the way.

Before you close the door, be sure the belt is out of the way . If you slam the door on it, you can damage both the belt and your vehicle.

Safety Belt Use During Pregnancy

Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts.

A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.

1-26

The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.

Here are the most important things to know about the air bag system:

CAUTION:

Right Front Passenger Position

To learn how to wear the right front passenger’s safety belt properly, see “Driver Position” earlier in this section.

The right front passenger’s safety belt works the same way as the driver’s safety belt If you ever pull the lap portion of the belt out all the way , you will engage the child restraint locking feature. If this happens, just let the belt go back all the way and start again.

-- except for one thing.

Air Bag System

This part explains the air bag system. Your vehicle has air bags

and another air bag for the right front passenger. Frontal air bags are designed to help reduce the risk of

injury from the force of an inflating air bag. But these air bags must inflate very quickly to do their job and comply with federal regulations.

-- one air bag for the driver

You can be severely injured or killed in a crash if you aren’t wearing your safety belt have air bags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. Air bags are “supplemental restraints” to the safety belts. All air bags are designed to work with safety belts, but don’t replace them. Air bags are designed to work only in moderate to severe crashes where the front of your vehicle hits something. They aren’t designed to inflate at all in rollover, rear, side or low crashes. And, for unrestrained occupants, air bags may provide less protection in frontal crashes than more forceful air bags have provided in the past. Everyone in your vehicle should wear a safety belt properly not there’s an air bag for that person.

-speed frontal

-- even if you

-- whether or

1-27

CAUTION:

Air bags inflate with great force, faster than the blink of an eye. If you’re too close to an inflating air bag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position before and during a crash. Always wear your safety belt, even with air bags. The driver should sit as far back as possible while still maintaining control of the vehicle.

CAUTION:

Anyone who is up against, or very close to, any air bag when it inflates can be seriously injured or killed. Air bags plus lap the best protection for adults, but not for young

-shoulder belts offer

CAUTION: (Continued)

children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in your vehicle. To read how, see the part of this manual called “Children.”

There is an air bag readiness light on the instrument panel, which shows AIR BAG or the air bag symbol.

The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem. See “Air Bag Readiness Light” in the Index for more information.

1-28

How the Air Bag System Works

Where are the air bags?

The driver’s air bag is in the middle of the steering wheel.

The right front passenger’s air bag is in the instrument panel on the passenger’s side.

1-29

CAUTION:

If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person. The path of an inflating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any other air bag covering.

When should an air bag inflate?

An air bag is designed to inflate in a moderate to severe frontal or near only if the impact speed is above the system’s designed “threshold level.” If your vehicle goes straight into a wall that doesn’t move or deform, the threshold level is about 9 to 16 mph (14 to 26 km/h). The threshold level can vary, however, with specific vehicle design, so that it can be somewhat above or below this range. If your vehicle strikes something that will move or deform, such as a parked car, the threshold level will be higher. The air bag is not designed to inflate in rollovers, side impacts or rear impacts, because inflation would not help the occupant.

In any particular crash, no one can say whether an air bag should have inflated simply because of the damage to a vehicle or because of what the repair costs were. Inflation is determined by the angle of the impact and how quickly the vehicle slows down in frontal or near

-frontal impacts.

-frontal crash. The air bag will inflate

1-30

What makes an air bag inflate?

In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inflator, which inflates the air bag. The inflator, air bag and related hardware are all part of the air bag modules inside the steering wheel and in the instrument panel in front of the right front passenger.

How does an air bag restrain?

In moderate to severe frontal or near even belted occupants can contact the steering wheel or the instrument panel. Air bags supplement the protection provided by safety belts. Air bags distribute the force of the impact more evenly over the occupant’s upper body, stopping the occupant more gradually. But air bags would not help you in many types of collisions, including rollovers, rear impacts and side impacts, primarily because an occupant’s motion is not toward those air bags. Air bags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near

-frontal collisions.

-frontal collisions,

What will you see after an air bag inflates?

After an air bag inflates, it quickly deflates, so quickly that some people may not even realize the air bag inflated. Some components of the air bag module wheel hub for the driver’s air bag, or the instrument panel for the right front passenger’s bag -- will be hot for a short time. The parts of the bag that come into contact with you may be warm, but not too hot to touch. There will be some smoke and dust coming from vents in the deflated air bags. Air bag inflation doesn’t prevent the driver from seeing or from being able to steer the vehicle, nor does it stop people from leaving the vehicle.

-- the steering

CAUTION:

When an air bag inflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can’t get out of the vehicle after an air bag inflates, then get fresh air by opening a window or door.

1-31

Air bags are designed to inflate only once. After they inflate, you’ll need some new parts for your air bag system. If you don’t get them, the air bag system won’t be there to help protect you in another crash. A new system will include air bag modules and possibly other parts. The service manual for your vehicle covers the need to replace other parts.

Your vehicle is equipped with a crash sensing and diagnostic module, which records information about the air bag system. The module records information about the readiness of the system, when the system commands air bag inflation and driver’s safety belt usage at deployment. The module also records speed, engine rpm, brake and throttle data.

Let only qualified technicians work on your air bag system. Improper service can mean that your air bag system won’t work properly. See your dealer for service.

NOTICE:

If you damage the covering for the driver’s or the right front passenger’s air bag, the bag may not work properly. You may have to replace the air bag module in the steering wheel or both the air bag module and the instrument panel for the right front passenger’s air bag. Do not open or break the air bag coverings.

1-32

Servicing Your Air Bag-Equipped Vehicle

Air bags affect how your vehicle should be serviced. There are parts of the air bag system in several places around your vehicle. You don’t want the system to inflate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the air bag system. T o purchase a service manual, see “Service and Owner Publications” in the Index.

Adding Equipment to Your Air Bag-Equipped Vehicle

Q: If I add a push bumper or a bicycle rack to the

front of my vehicle, will it keep the air bags from working properly?

A: As long as the push bumper or bicycle rack is

attached to your vehicle so that the vehicle’s basic structure isn’t changed, it’s not likely to keep the air bags from working properly in a crash.

CAUTION:

For up to 10 minutes after the ignition key is turned off and the battery is disconnected, an air bag can still inflate during improper service. You can be injured if you are close to an air bag when it inflates. Avoid wires wrapped with yellow tape or yellow connectors. They are probably part of the air bag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualified to do so.

The air bag system does not need regular maintenance.

Q: Is there anything I might add to the front of the

vehicle that could keep the air bags from working properly?

A: Yes. If you add things that change your vehicle’s

frame, bumper system, front end sheet metal or height, they may keep the air bag system from working properly. Also, the air bag system may not work properly if you relocate any of the air bag sensors. If you have any questions about this, you should contact Customer Assistance before you modify your vehicle. The phone numbers and addresses for Customer Assistance are in Step Two of the Customer Satisfaction Procedure in this manual. See “Customer Satisfaction Procedure” in the Index.

1-33

Rear Seat Passengers

It’s very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts.

Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts.

Rear Seat Outside Passenger Positions

1-34

Lap-Shoulder Belt

These positions have lap wear one properly.

1. Pick up the latch plate and pull the belt across you. Don’t let it get twisted.

2. Push the latch plate into the buckle until it clicks.

-shoulder belts. Here’s how to

3. If the belt stops before it reaches the buckle, tilt the latch plate and keep pulling until you can buckle it. Pull up on the latch plate to make sure it is secure.

If the belt is not long enough, see “Safety Belt Extender” at the end of this section.

Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

1-35

4. T o make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part.

1-36

The safety belt locks if there’s a sudden stop or a crash.

CAUTION:

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.

T o unlatch the belt, just push the button on the buckle.

1-37

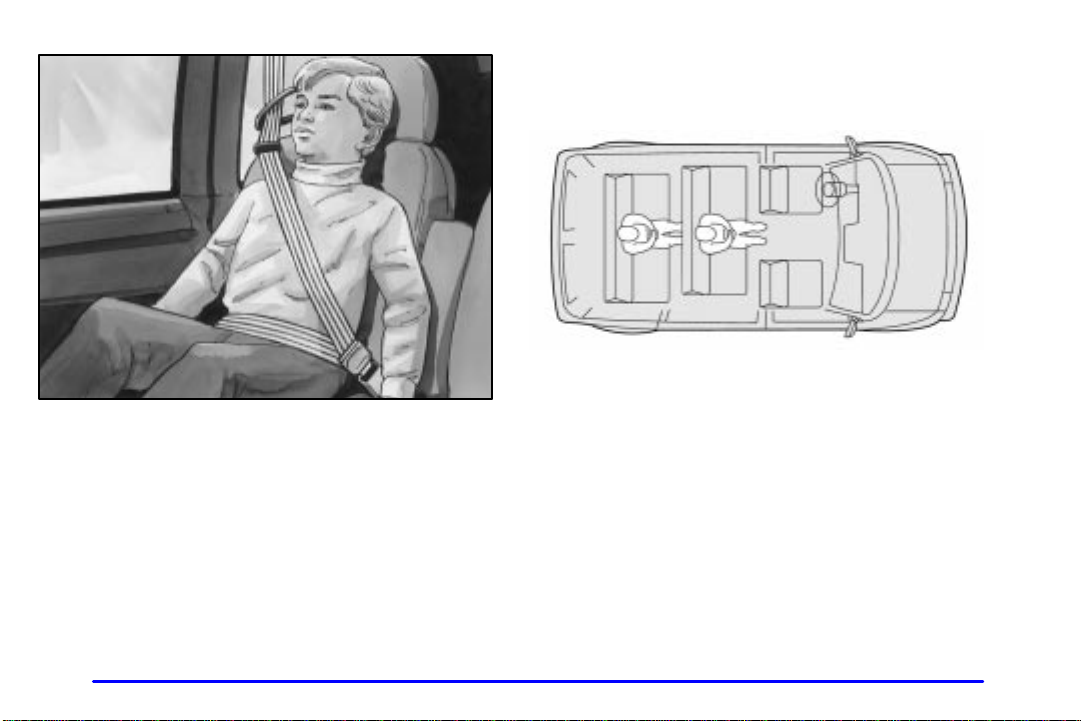

Rear Safety Belt Comfort Guides for Children and Small Adults

Your vehicle may have rear shoulder belt comfort guides. This feature will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.

There is one guide for each outside passenger position in the rear seats. T o provide added safety belt comfort for children who have outgrown child restraints and for smaller adults, the comfort guides may be installed on the shoulder belts. Here’s how to install a comfort guide and use the safety belt:

1. Remove the guide from its storage clip on the side of the seatback.

1-38

2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide.

3. Be sure that the belt is not twisted and it lies flat. The elastic cord must be under the belt and the guide on top.

1-39

4. Buckle, position and release the safety belt as described in “Rear Seat Outside Passenger Positions” earlier in this section. Make sure that the shoulder belt crosses the shoulder.

T o remove and store the comfort guides, squeeze the belt edges together so that you can take them out from the guides. Slide the guide onto the storage clip.

Center Passenger Position (Bench Seat)

Lap Belt

If your vehicle has rear bench seats, someone can sit in the center positions.

1-40

When you sit in a center seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt.

T o make the belt shorter, pull its free end as shown until the belt is snug.

Buckle, position and release it the same way as the lap part of a lap see “Safety Belt Extender” at the end of this section.

Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

-shoulder belt. If the belt isn’t long enough,

1-41

Children

Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.

Infants and Young Children (Except Cargo Vans)

Every time infants and young children ride in vehicles, they should have the protection provided by the appropriate restraint. Young children should not use the vehicle’s safety belts, unless there is no other choice.

CAUTION:

People should never hold a baby in their arms while riding in a vehicle. A baby doesn’t weigh much

-- until a crash. During a crash a baby will

become so heavy it is not possible to hold it.

CAUTION: (Continued)

1-42

CAUTION: (Continued)

For example, in a crash at only 25 mph (40 km/h), a 12

-lb. (5.5 kg) baby will suddenly become a 240-lb.

(110 kg) force on a person’s arms. A baby should be secured in an appropriate restraint.

CAUTION:

Children who are up against, or very close to, any air bag when it inflates can be seriously injured or killed. Air bags plus lap outstanding protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them. Young children and infants need the protection that a child restraint system can provide.

-shoulder belts offer

1-43

Q: What are the different types of add-on

child restraints?

A: Add-on child restraints, which are purchased by the

vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.

For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.

The restraint manufacturer’s instructions that come with the restraint state the weight and height limitations for a particular child restraint. In addition, there are many kinds of restraints available for children with special needs.

CAUTION:

Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear

-facing seat settles into the restraint, so the

crash forces can be distributed across the strongest part of an infant’s body, the back and shoulders. Infants always should be secured in appropriate infant restraints.

1-44

CAUTION:

Infants and Young Children (Cargo Vans)

The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that vehicle’s regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child’s abdomen. In a crash, the belt would apply force on a body area that’s unprotected by any bony structure. This alone could cause serious or fatal injuries. Young children always should be secured in appropriate child restraints.

CAUTION:

-shoulder belts offer

1-45

CAUTION:

-facing seat settles into the restraint, so the

crash forces can be distributed across the strongest part of an infant’s body, the back and shoulders. Infants always should be secured in appropriate infant restraints. However, infants, who should be restrained in a rear restraint, cannot ride safely in this vehicle.

-facing child

1-46

CAUTION:

People should never hold a baby in their arms while riding in a vehicle. A baby doesn’t weigh much

-- until a crash. During a crash a baby will

become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12

-lb. (5.5 kg) baby will suddenly become a

240

-lb. (110 kg) force on your arms.

1-47

Restraint Systems for Children

An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous flat surface. Make sure that the infant’s head rests toward the center of the vehicle.

A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint.

1-48

A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T

-shaped or shelf-like shields.

A booster seat (F-G) is a child restraint designed to improve the fit of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high

-back booster seats have a five-point harness. A

booster seat can also help a child to see out the window.

1-49

Q: How do child restraints work?

A: A child restraint system is any device designed for

use in a motor vehicle to restrain, seat, or position children. A built permanent part of the motor vehicle. An add child restraint system is a portable one, which is purchased by the vehicle’s owner.

For many years, add the adult belt system in the vehicle. T o help reduce the chance of injury, the child also has to be secured within the restraint. The vehicle’s belt system secures the add vehicle, and the add system holds the child in place within the restraint.

One system, the three come down over each of the infant’s shoulders and buckle together at the crotch. The five harness system has two shoulder straps, two hip straps and a crotch strap. A shield may take the place of hip straps. A T straps that are attached to a flat pad which rests low against the child’s body. A shelf shield has straps that are attached to a wide, shelf

-like shield that swings up or to the side.

-in child restraint system is a

-on

-on child restraints have used

-on child restraint in the

-on child restraint’s harness

-point harness, has straps that

-point

-shaped shield has shoulder

- or armrest-type

When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards.

Then follow the instructions for the restraint. You may find these instructions on the restraint itself or in a booklet, or both. These restraints use the belt system in your vehicle, but the child also has to be secured within the restraint to help reduce the chance of personal injury. When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.

Where to Put the Restraint (Except Cargo Vans)

Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. General Motors, therefore, recommends that child restraints be secured in a rear seat including an infant riding in a rear forward booster seat. Never put a rear the front passenger seat. Here’s why:

-facing infant seat, a child riding in a

-facing child seat and an older child riding in a

-facing child restraint in

1-50

CAUTION:

A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates. This is because the back of the rear very close to the inflating air bag. Always secure a rear

-facing child restraint in a rear seat.

You may secure a forward-facing child restraint in the right front seat, but before you do, always move the front passenger seat as far back as it will go. It’s better to secure the child restraint in a rear seat.

Wherever you install it, be sure to secure the child restraint properly.

Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle

-facing child restraint would be

-- even when no child is in it.

Where to Put the Restraint (Cargo Vans)

The child restraint must be secured properly in the passenger seat. Never put a rear this vehicle. Here’s why:

-facing child restraint in

CAUTION:

A child in a rear-facing child restraint can be seriously injured or killed if the passenger’s air bag inflates. This is because the back of the rear

-facing child restraint would be very close to

the inflating air bag. Do not use a rear child restraint in this vehicle.

If a forward-facing child restraint is suitable for your child, always move the passenger seat as far back as it will go.

Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle

-- even when no child is in it.

-facing

1-51

Top Strap

Some child restraints have a top strap, or “top tether.” It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle.

If the child restraint does not have a top strap, one can be obtained, in kit form, for many child restraints. Ask the child restraint manufacturer whether or not a kit is available.

In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored.

If your vehicle is a cargo van, the anchoring point for a top strap is located at the rear of the seat cushion on the right front passenger’s seat spacer bar . Anchor the top strap through the two slots.

1-52

Cargo Van Models

If your vehicle is a passenger van with rear seats, it is recommended that you secure a child restraint with a top strap only in the outboard positions of the second row.

Bucket Seats: An anchoring point is located below the rear of the seat cushion on the spacer bar. Anchor the top strap through the two slots on the bar.

Passenger Van Bucket Seats

Bench Seats: An anchor bracket is located at the rear of the seat cushion near the top rear of the seat leg for each outboard seating position of the second row. For the third row, an anchor bracket is located at the rear of the seat cushion near the top rear of the seat leg for the right

-hand outboard seating position.

If you have adjustable head restraints, raise the head restraint and route the top strap under it.

Passenger Van Bench Seat (Second row)

1-53

The third row has one anchor for the passenger side outboard position only.

Anchor the top strap to one of these anchor points. Be sure to use an anchor point located on the same side of the vehicle as the seating position where the child restraint will be placed. If you have an adjustable head restraint, raise the head restraint and route the top strap under it.

Once you have the top strap anchored, you’ll be ready to secure the child restraint itself. Tighten the top strap when and as the child restraint manufacturer’s instructions say.

Securing a Child Restraint in a Rear Outside Seat Position

You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.

1. Put the restraint on the seat.

2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.

1-54

Tilt the latch plate to adjust the belt if needed. If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint.

3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

1-55

4. T o tighten the belt, pull up on the shoulder belt while you push down on the child restraint. If you’re using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.

5. Push and pull the child restraint in different directions to be sure it is secure.

T o remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.

1-56

Securing a Child Restraint in a Center Seat Position (Bench Seat)

You’ll be using the lap belt. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.

See the earlier part about the top strap if the child restraint has one.

1. Make the belt as long as possible by tilting the latch plate and pulling it along the belt.

2. Put the restraint on the seat.

3. Run the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.

1-57

4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

5. T o tighten the belt, pull its free end while you push down on the child restraint. If you’re using a forward helpful to use your knee to push down on the child restraint as you tighten the belt.

6. Push and pull the child restraint in different directions to be sure it is secure.

T o remove the child restraint, just unbuckle the vehicle’s safety belt. It will be ready to work for an adult or larger child passenger.

-facing child restraint, you may find it

1-58

Securing a Child Restraint in the Right Front Seat Position

Your vehicle has a front passenger air bag. Never put a rear

-facing child restraint in this seat. Here’s why:

CAUTION:

A child in a rear-facing child restraint can be seriously injured or killed if the front passenger’s air bag inflates. This is because the back of the rear

-facing child restraint would be very close to

the inflating air bag. If your vehicle is a passenger van, always secure a rear restraint in a rear seat.

If your vehicle is a cargo van, do not use a rear

-facing child restraint in this vehicle. If a

forward child, always move the passenger seat as far back as it will go.

Although a rear seat is a safer place, you can secure a forward

You’ll be using the lap part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.

-facing child restraint is suitable for your

-facing child restraint in the right front seat.

-shoulder belt. See the earlier

-facing child

1-59

1. Because your vehicle has a right front passenger air bag, always move the seat as far back as it will go before securing a forward-facing child restraint. See “Seats” in the Index.

2. Put the restraint on the seat.

3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.

If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint.

4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

1-60

5. Pull the rest of the lap belt all the way out of the retractor to set the lock.

6. T o tighten the belt, feed the lap belt back into the retractor while you push down on the child restraint. You may find it helpful to use your knee to push down on the child restraint as you tighten the belt.

7. Push and pull the child restraint in different directions to be sure it is secure.

1-61

Older Children

Older children who have outgrown booster seats should wear the vehicle’s safety belts.

If you have the choice, a child should sit next to a window so the child can wear a lap get the additional restraint a shoulder belt can provide.

-shoulder belt and

Q: What is the proper way to wear safety belts?

A: If possible, an older child should wear a

lap

-shoulder belt and get the additional restraint

a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should fit snugly below the hips, just touching the top of the thighs. It should never be worn over the abdomen, which could cause severe or even fatal internal injuries in a crash.

Accident statistics show that children are safer if they are restrained in the rear seat.

In a crash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use safety belts properly.

1-62

CAUTION:

Never do this. Here two children are wearing the same belt. The

belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.

Q: What if a child is wearing a lap-shoulder belt,

but the child is so small that the shoulder belt is very close to the child’s face or neck?

A: Move the child toward the center of the vehicle, but

be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide. If the child is sitting in a rear seat outside position, see “Rear Safety Belt Comfort Guides” in the Index. If the child is so small that the shoulder belt is still very close to the child’s face or neck, you might want to place the child in a seat that has a lap belt, if your vehicle has one.

1-63

CAUTION:

Never do this. Here a child is sitting in a seat that has a

lap

-shoulder belt, but the shoulder part is behind

the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries.

Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash.

1-64

Safety Belt Extender

If the vehicle’s safety belt will fasten around you, you should use it.

But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. The extender will be just for you, and just for the seat in your vehicle that you choose. Don’t let someone else use it, and use it only for the seat it is made to fit. T o wear it, just attach it to the regular safety belt.

Checking Your Restraint Systems

Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.

T orn or frayed safety belts may not protect you in a crash. They can rip apart under impact forces. If a belt is torn or frayed, get a new one right away.

Also look for any opened or broken air bag covers, and have them repaired or replaced. (The air bag system does not need regular maintenance.)

1-65

Replacing Restraint System Parts After a Crash

If you’ve had a crash, do you need new belts? After a very minor collision, nothing may be necessary.

But if the belts were stretched, as they would be if worn during a more severe crash, then you need new belts.

If you ever see a label on the driver’s or the right front passenger’s safety belt that says to replace the belt, be sure to do so. Then the new belt will be there to help protect you in a collision. You would see this label on the belt near the latch plate.

If belts are cut or damaged, replace them. Collision damage also may mean you will need to have safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt wasn’t being used at the time of the collision.

If an air bag inflates, you’ll need to replace air bag system parts. See the part on the air bag system earlier in this section.

1-66

Section 2 Features and Controls

Here you can learn about the many standard and optional features on your vehicle, and information on starting, shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly -- and what to do if you have a problem.

-2 Windows

-4 Keys

-6 Front Doors

2 2

-6 Rear Doors

-8 Door Locks

2 2

-11 Keyless Entry System (Option)

-14 Sliding Door

-17 Hatch

2 2

-18 Theft

-19 Passlock

2 2-19 New Vehicle “Break-In” 2

-20 Ignition Positions

-21 Starting Your Engine

2 2

-23 Engine Coolant Heater (If Equipped)

-24 Automatic Transmission Operation

2 2

-27 Parking Brake

-28 Shifting Into PARK (P)

2 2

-31 Shifting Out of PARK (P)

-31 Parking Over Things That Burn

-32 Engine Exhaust

-32 Running Your Engine While You’re Parked

-33 Locking Rear Axle (If Equipped)

2 2

-34 All-Wheel Drive (Option)

-34 Horn

2 2

-34 Tilt Wheel (If Equipped)

-35 Turn Signal/Multifunction Lever

-41 Exterior Lamps

2 2

-44 Interior Lamps

-45 Mirrors

2 2

-47 Storage Compartments

-55 Ashtrays and Cigarette Lighter

-56 Sun Visors

2 2

-57 Accessory Power Outlets

-57 HomeLink

2 2

-62 The Instrument Panel - Your

Information System

2-65 Warning Lights, Gages and Indicators

Transmitter (Option)

2-1

Windows

CAUTION:

Leaving children in a vehicle with the windows closed is dangerous. A child can be overcome by the extreme heat and can suffer permanent injuries or even death from heat stroke. Never leave a child alone in a vehicle, especially with the windows closed in warm or hot weather.

Manual Windows

T o open your manual windows, turn the hand crank on each door to raise or lower your side door windows.

2-2

Power Windows (Option)

If you have power windows, the controls are located on each of the front doors. The driver’s door also has a switch for the front passenger window. Your power windows will not work unless the ignition is in RUN or ACCESSOR Y, or unless retained accessory power is active. See “Retained Accessory Power” in the Index.

Express

The driver’s window switch also has an express feature that allows you to lower the window without holding the switch. Press the driver’s window switch marked AUTO briefly to activate the express feature. The express any time by pressing the up arrow end of the switch. Lightly tap the switch to open the window slightly.

-Down Window

-down

-down feature can be interrupted at

2-3

Keys

CAUTION:

Leaving children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed.

They could operate the power windows or other controls or even make the vehicle move. Don’t leave the keys in a vehicle with children.

2-4

This vehicle has one double

-sided key for the

ignition and door locks. It will fit with either side up.

When a new vehicle is delivered, the dealer provides the owner with a pair of identical keys and a bar-coded tag.

The bar or a qualified locksmith how to make extra keys. Keep this tag in a safe place. If you lose your keys, you’ll be able to have new ones made easily using this tag.

-coded tag has a code on it that tells your dealer

NOTICE:

Your vehicle has a number of new features that can help prevent theft. But you can have a lot of trouble getting into your vehicle if you ever lock your keys inside. You may even have to damage your vehicle to get in. So be sure you have extra keys.

2-5

Front Doors

T o open a front door from the outside, grasp the handle and pull the door open.

Rear Doors

If you have the “Dutch doors,” you must open the hatch first. See “Hatch Release” in the Index.

2-6

T o open a front door from the inside, pull the lever toward you and push the door open.

Rear doors can only be opened from the outside. Open the passenger’s side rear door first. Grasp the handle and pull the door open.

Cargo Door Shown

T o open the driver’s side rear door, pull on the latch release handle located on the inside of the door.

T o fully open the rear doors, push in on the clip and lift the check assembly up off the mounting bracket.

T o close the rear doors, close the driver’s side door first. Check to make sure both doors are completely closed.

The rear doors have a check assembly to keep the doors from opening beyond 90 degrees.

Do this on each door. Replace the check assemblies on the mounting brackets before closing the doors.

2-7

Door Locks

CAUTION:

Unlocked doors can be dangerous.

Passengers -- especially children -- can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle won’t open it. You increase the chance of being thrown out of the vehicle in a crash if the doors aren’t locked. So, wear safety belts properly and lock the doors whenever you drive.

Young children who get into unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock your vehicle whenever you leave it.

Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. Locking your doors can help prevent this from happening.

There are several ways to lock and unlock your vehicle. Your vehicle may be equipped with the keyless entry

system. For more information, see “Keyless Entry System” in the Index.

T o unlock your door from the outside, use your key.

T o lock the front doors and sliding side door from the inside, slide the manual lock levers down. T o unlock the front doors and the sliding side door from the inside, slide the manual lock levers up. When the red mark on the lock lever is visible, the door is unlocked.

2-8

Power Door Locks (If Equipped)

If your vehicle has power door locks, press the power door lock switch to lock or unlock all the doors at once.

The power door lock switch will lock or unlock the rear hatch and Dutch doors. See “Hatch Release” in the Index.

When a door is locked, the inside door handle will not open the door. This will help stop a door from being accidentally opened.

If the sliding door is open and you press the power door lock switch, the sliding door will not lock immediately. After you close the door, the system comes on and locks the sliding door in about five seconds.

When the key is in the ignition and the power door lock switch is pressed with a door open, all doors are locked while the driver’s side door remains unlocked.

Programmable Automatic Door Locks

Your vehicle is equipped with an auto lock/unlock feature which enables you to program your power door locks.

Your vehicle left the factory programmed to have no doors lock and none of the doors unlock. You can set the automatic lock feature to lock all the doors when the vehicle speed is greater than 15 mph (24 km/h) for two seconds, and then unlock the doors you select once the key is removed from the ignition. The following instructions detail how to program your door locks.

T o enter the program mode you need to do the following:

1. Begin with the ignition in OFF. Then, pull back on the turn signal/multifunction lever all the way toward you and hold it while you perform the next step.

2. Turn your key to ON and OFF twice. Then, with the key in OFF, release the turn signal/multifunction lever. Once you do this, you will hear the lock switch lock and unlock.

2-9

3. You are now ready to program the automatic door locks. Select one of the following four programming options and follow the instructions. You will have thirty seconds to begin programming. If you exceed the thirty second limit, the locks will automatically lock and unlock to indicate that you have left the program mode. If this occurs, repeat the procedure beginning with Step 1. You can exit the program mode any time by turning the ignition to ON (the locks will automatically lock and unlock to indicate that you are leaving the program mode). If the lock/unlock switches are not pressed while in the programming mode, the auto lock/unlock setting will not be modified.

The following is a list of the available programming options:

All doors lock/Only the driver’s door unlocks:

Press the lock side of the power lock switch on the door panel once and then the unlock side once.

All doors lock/All doors unlock: Press the lock side of the power lock switch on the door panel once, and then the unlock side twice.

All doors lock/None of the doors unlock: Press the lock side of the power lock switch on the door panel once, and then the unlock side three times.

No doors lock/None of the doors unlock: Press the lock side of the power lock switch on the door panel twice. This turns off the automatic lock feature (this is the factory setting).

For more information, see your dealer.

Leaving Your Vehicle

If you are leaving the vehicle, take your keys, open your door and set the locks from inside. Then get out and close the door.

2-10

Keyless Entry System (Option)

If your vehicle has this feature, you can lock and unlock your doors from about 3 feet (1 m) up to 30 feet (9 m) away using the remote keyless entry transmitter supplied with your vehicle.

Your keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device complies with RSS Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

-210 of Industry Canada.

Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment.

At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your vehicle. You may need to stand closer during rainy or snowy weather.

Check the location. Other vehicles or objects may be blocking the signal. T ake a few steps to the left or right, hold the transmitter higher, and try again.

Check to determine if battery replacement or transmitter resynchronization is necessary. See the instructions that follow.

If you’re still having trouble, see your dealer or a qualified technician for service.

2-11

Operation

UNLOCK: When you

press UNLOCK, the driver’s door will unlock automatically, the parking lamps will flash and the interior lights will go on.

If you press UNLOCK again within five seconds, all doors will unlock, the parking lamps will flash and the interior lights will go on.

LOCK: Press LOCK to lock all the doors. Press LOCK again within five seconds and the horn will chirp.

REAR 2X: When you press the REAR button twice within five seconds to unlock the rear hatch or cargo doors, the parking lamps will flash and the interior lights will go on. If the engine is running, the automatic transmission must be in PARK (P) or NEUTRAL (N) for the REAR 2X button to operate.

Remote Panic Alarm

When the button with the horn symbol on the key transmitter is pressed, the horn will sound and the headlamps and taillamps will flash for up to 30 seconds. This can be turned off by pressing the horn button again, waiting for 30 seconds, or starting the vehicle.

Matching Transmitter(s) to Your Vehicle

Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer. When the dealer matches the replacement transmitter to your vehicle, any remaining transmitters must also be matched. Once your dealer has coded the new transmitter, the lost transmitter will not unlock your vehicle. Each vehicle can have only two transmitters matched to it.

2-12

Battery Replacement

Under normal use, the battery in your remote keyless entry transmitter should last about two years.

You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery.

NOTICE:

When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter.

Use one PanasonicR three-volt, type CR2032, or equivalent battery.

T o replace the battery, do the following:

1. Insert a thin coin or flat-tip screwdriver to separate

the bottom of the transmitter from the top.

2. Remove the battery and replace it with a new one, making sure the positive (+) side of the battery is facing down.

3. Snap the top and bottom together.

4. T est the operation of the transmitter with your vehicle. If the transmitter does not work, try resynchronizing the transmitter with the receiver.

2-13

Resynchronization

Resynchronization may be necessary due to the security method used by this system. The transmitter does not send the same signal twice to the receiver. The receiver will not respond to a signal it has been sent previously. This will prevent anyone from recording and playing back the signal from the transmitter.

T o resynchronize your transmitter, stand close to your vehicle and simultaneously press and hold the LOCK and UNLOCK buttons on the transmitter for eight seconds. The door locks should cycle to confirm synchronization. If the locks do not cycle, see your dealer for service.

Sliding Door

T o open the sliding side door, pull the handle toward the back and slide the door to the rear until it rests in the open position.

T o close the sliding side door, pull the handle toward the front and slide the door forward.

2-14

Sliding Door Security Lock

Your vehicle’s sliding side door is equipped with a security door lock located at the front of the sliding door.

This feature prevents passengers from opening the sliding side door from the inside.

T o use this feature, do the following:

1. Move the lever all the way up.

2. Close the door.

T o open the sliding side door while the security lock is engaged, unlock the door and open it from the outside.

If you don’t cancel the security lock feature, adults or older children who ride in the rear won’t be able to open the sliding door from the inside. You should let adults and older children know how the security door lock works, and how to cancel the lock.

There are two labels on your vehicle to remind you that you have this feature. One can be seen from the outside on your sliding door. It is located near the bottom of the door glass, toward the front of the door. The other label is at the front of the sliding door, near the security door lock.

Canceling the Sliding Door Security Lock

T o cancel the security lock, do the following:

1. Unlock the door and open it from the outside.

2. Move the lever all the way down.

2-15

CAUTION:

If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut, be sure to hold it open until everyone is clear of the door, and only then allow it to slowly close.

2-16

Hatch

CAUTION:

It can be dangerous to drive with the rear hatch or rear doors open because carbon monoxide (CO) gas can come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death.

If you must drive with the rear hatch or rear doors open or if electrical wiring or other cable connections must pass through the seal between the body and the rear hatch or rear doors:

Make sure all other windows are shut.

Turn the fan on your heating or cooling system to its highest speed with the setting on anything but MAX A/C. That will force outside air into your vehicle. See “Comfort Controls” in the Index.

If you have air outlets on or under the instrument panel, open them all the way.

See “Engine Exhaust” in the Index.

Hatch Release

You can use your key to unlock the hatch and all of the other doors from the outside. Insert the key into the hatch release button and turn it counterclockwise. All of the doors will unlock.

You may also use the keyless entry system described earlier.

The hatch can be opened or closed without a key if the door lock system is unlocked.

T o open the hatch, unlock it, then press the button and lift the handle located in the center of the door.

2-17

T o lock the power lock system from the outside, insert the key in the hatch release button and turn it clockwise. All doors will lock.

Theft

Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft features, we know that nothing we put on it can make it impossible to steal. However, there are ways you can help.

Key in the Ignition

If you leave your vehicle with the keys inside, it’s an easy target for joy riders or professional thieves don’t do it.

When you park your vehicle and open the driver’s door, you’ll hear a tone reminding you to remove your key from the ignition and take it with you. Always do this. Your steering wheel will be locked, and so will your ignition and transmission. Also remember to lock the doors.

-deterrent

-- so

Parking at Night

Park in a lighted spot, close all windows and lock your vehicle. Remember to keep your valuables out of sight. Put them in a storage area, or take them with you.

Parking Lots

Even if you park in a lot where someone will be watching your vehicle, it’s still best to lock it up and take your keys. But what if you have to leave your key? Do not leave valuables in your vehicle, since there is no locking area in which to secure them. Lock all doors except the driver’s.

2-18

Passlock

Your vehicle is equipped with the Passlock theft

-deterrent system.

Passlock is a passive theft-deterrent system. Passlock enables fuel if the ignition lock cylinder is turned with a valid key . If a correct key is not used or the ignition lock cylinder is tampered with, fuel is disabled.

During normal operation, the SECURITY light will go off approximately five seconds after the key is turned to RUN.

If the engine stalls and the SECURITY light flashes, wait until the light stops flashing before trying to restart the engine. Remember to release the key from START as soon as the engine starts.

If the engine is running and the SECURITY light comes on, you will be able to restart the engine if you turn the engine off. However, your Passlock system is not working properly and must be serviced by your dealer. Your vehicle is not protected by Passlock at this time. You may also want to check the fuses (see “Fuses and Circuit Breakers” in the Index). See your dealer for service.

New Vehicle “Break-In”

NOTICE:

Your vehicle doesn’t need an elaborate “break

-in.” But it will perform better in the long

run if you follow these guidelines:

Keep your speed at 55 mph (88 km/h) or less for the first 500 miles (805 km).

Don’t drive at any one speed slow

-- for the first 500 miles (805 km).

Don’t make full

Avoid making hard stops for the first 200 miles (322 km) or so. During this time your new brake linings aren’t yet broken in. Hard stops with new linings can mean premature wear and earlier replacement. Follow this breaking time you get new brake linings.

Don’t tow a trailer during break See “Towing a Trailer” in the Index for more information.

-throttle starts.

-in guideline every

-- fast or

-in.

2-19

Ignition Positions

Use your ignition key to start your vehicle. The ignition key lets you turn the ignition switch to five different positions.

ACCESSORY (A): This position lets you use things like the radio, power windows and windshield wipers when the engine is off. To get into ACCESSORY, push in the key and turn it toward you. Your steering wheel will remain locked, just as it was before you inserted the key.

NOTICE:

Don’t operate accessories in the ACCESSORY position for long periods of time. Prolonged operation of accessories in the ACCESSORY position could drain your battery and prevent you from starting your vehicle.

LOCK (B): This position locks your ignition, steering

wheel and transmission shift lever in PARK (P). It’s a theft-deterrent feature. You will only be able to remove your key when the ignition is turned to LOCK.

OFF (C): This position lets you turn off the engine but still turn the steering wheel. Use OFF if you must have your vehicle in motion while the engine is off (for example, if your vehicle is being towed).

RUN (D): This is the position for driving. START (E): This position starts your engine.

2-20

NOTICE:

If your key seems stuck in LOCK and you can’t turn it, be sure you are using the correct key; if so, is it all the way in? If it is, then turn the steering wheel left and right while you turn the key hard. But turn the key only with your hand. Using a tool to force it could break the key or the ignition switch. If none of this works, then your vehicle needs service.

Retained Accessory Power (RAP)

Your vehicle is equipped with a retained accessory power (RAP) feature which will allow certain features on your vehicle to continue to work up to 20 minutes after the ignition key is turned to OFF.

Your radio, power windows and overhead console will work when the ignition key is in RUN or ACCESSORY. Once the key is turned from RUN to OFF, these features will continue to work for up to 20 minutes or until a door is opened.

Starting Your Engine

Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t start in any other position safety feature. T o restart when you’re already moving, use NEUTRAL (N) only.

-- that’s a

NOTICE:

Don’t try to shift to PARK (P) if your vehicle is moving. If you do, you could damage the transmission. Shift to PARK (P) only when your vehicle is stopped.

1. With your foot off the accelerator pedal, turn your ignition key to START . When the engine starts, let go of the key. The idle speed will go down as your engine gets warm.

2-21

GMC SAFARI 2001 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Seats and Restraint Systems

Features and Controls

Comfort Controls and Audio Systems

Your Driving and the Road

Problems on the Road

Service and Appearance Care

Maintenance Schedule

Customer Assistance Information

For Canadian Owners Who Prefer a French Language Manual:

How to Use this Manual

Safety Warnings and Symbols

Vehicle Damage Warnings

Vehicle Symbols

Model Reference

Service Station Guide

Section 1 Seats and Restraint Systems

Seats and Seat Controls

Manual Front Seats

2-Way Front Seat

Manual Lumbar Support (If Equipped)

Power Seat (If Equipped)

Reclining Seatbacks

Head Restraints

Seatback Latches

Rear Seats

Bucket Seats (If Equipped)

Bench Seats

Removing the Rear Seats

Replacing the Rear Seats

Why Safety Belts Work

How to Wear Safety Belts Properly

Adults

Driver Position

Lap-Shoulder Belt

Shoulder Belt Height Adjuster

Safety Belt Use During Pregnancy

Right Front Passenger Position

Air Bag System

How the Air Bag System Works

Where are the air bags?

When should an air bag inflate?

What makes an air bag inflate?

How does an air bag restrain?

What will you see after an air bag inflates?

Servicing Your Air Bag-Equipped Vehicle

Adding Equipment to Your Air Bag-Equipped Vehicle

Rear Seat Passengers

Rear Seat Outside Passenger Positions

Lap-Shoulder Belt

Rear Safety Belt Comfort Guides for Children and Small Adults

Center Passenger Position (Bench Seat)

Lap Belt

Children

Infants and Young Children (Except Cargo Vans)

Infants and Young Children (Cargo Vans)

Restraint Systems for Children

Where to Put the Restraint (Except Cargo Vans)

Where to Put the Restraint (Cargo Vans)

Top Strap

Securing a Child Restraint in a Rear Outside Seat Position

Securing a Child Restraint in a Center Seat Position (Bench Seat)

Securing a Child Restraint in the Right Front Seat Position

Older Children

Safety Belt Extender

Checking Your Restraint Systems

Replacing Restraint System Parts After a Crash

Section 2 Features and Controls

Windows

Manual Windows

Power Windows (Option)

Keys

Front Doors

Rear Doors

Door Locks

Power Door Locks (If Equipped)

Programmable Automatic Door Locks
