GMC LS1800M Instruction Manual

1

1800W

MAGNESIUM
185MM (7 1/4")
CIRCULAR SAW

LS1800M
INSTRUCTION MANUAL

Black

Cyan

Magenta

Yellow

Code: LS1800M

Date:

061109 Edition: 16 Op: DCR

2

Contents

Warranty Power Tools

Whilst every effort is made to ensure your complete
satisfaction with this tool, occasionally, due to the mass
manufacturing techniques, a tool may not live up to our
required level of performance and you may need the
assistance of our service department.

This product is warranted for a 2-year period for home
domestic use from the date of the original purchase.
If found to be defective in materials or workmanship,
the tool or the offending faulty component will be repaired
or replaced free of charge with another of the same item.

A

small freight charge may apply. Proof of purchase is
essential. We reserve the right to reject any claim where
the purchase cannot be verified.

This warranty does not include damage or defects to the
tool caused by or resulting from abuse, accidents,
alterations or commercial or business use. It also does not
cover any bonus items or included accessories. Only the
powertool is covered under this warranty.

With continuing product development, changes may have
occurred which render the product received slightly
different to that shown in this instruction manual.

Please ensure that you store your receipt in a safe place.
Conditions apply to the above warranty. For full details of

the warranty terms and conditions please refer to our
website – www.gmcompany.com

For prompt service we suggest you log your service
request online - www.gmcservice.com.au, should you
not have access to the internet, please contact our
service department on 1300 880 001 (Australia)
or 0800 445 721 (New Zealand).

Warranty 2
Introduction 3
Environmental protection 3
Description of symbols 3
Specifications 3
General safety rules 4
Additional safety rules for laser lights 5
Additional safety rules for circular saws 6
Accessories 7
Unpacking 7
Assembly 7

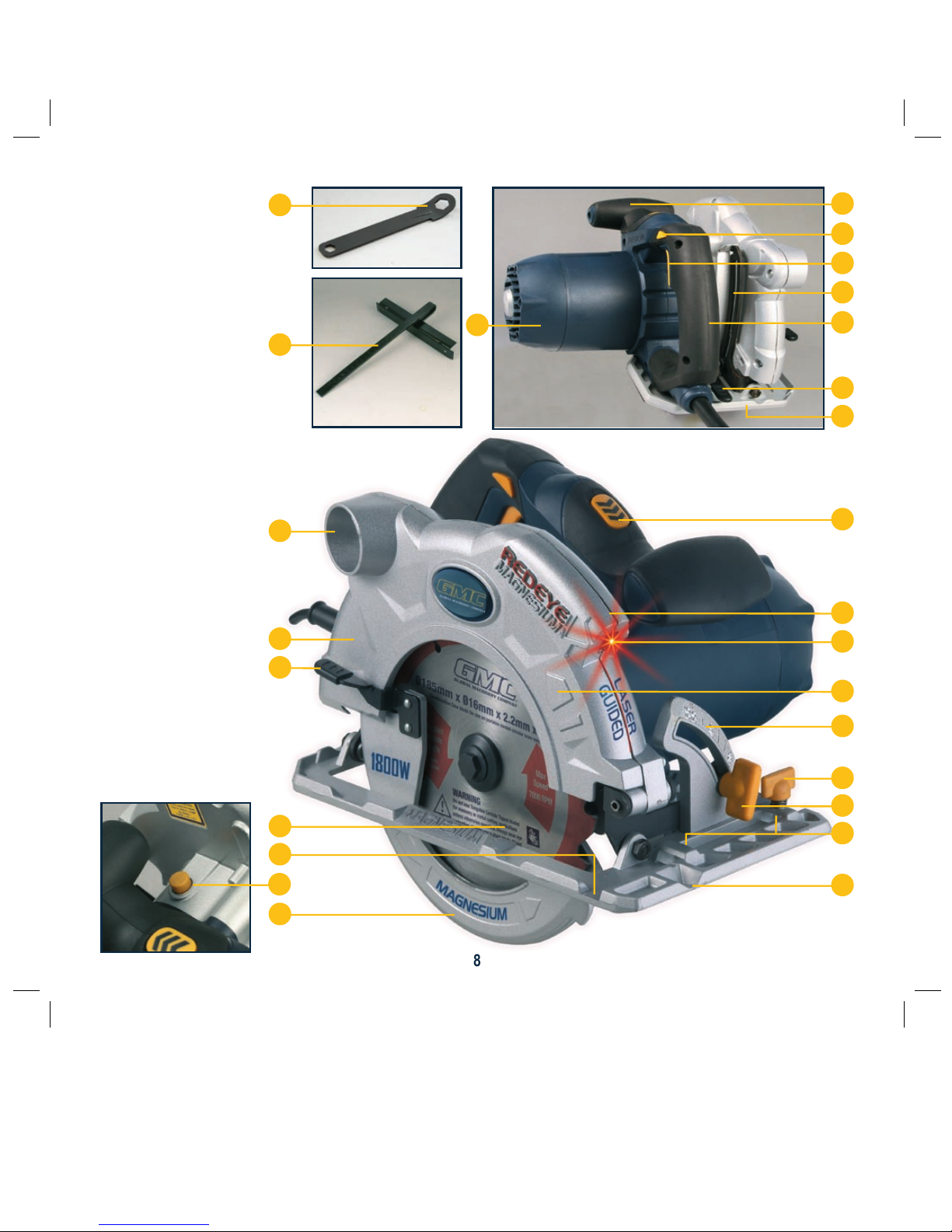

Know your product 8
Overview 9

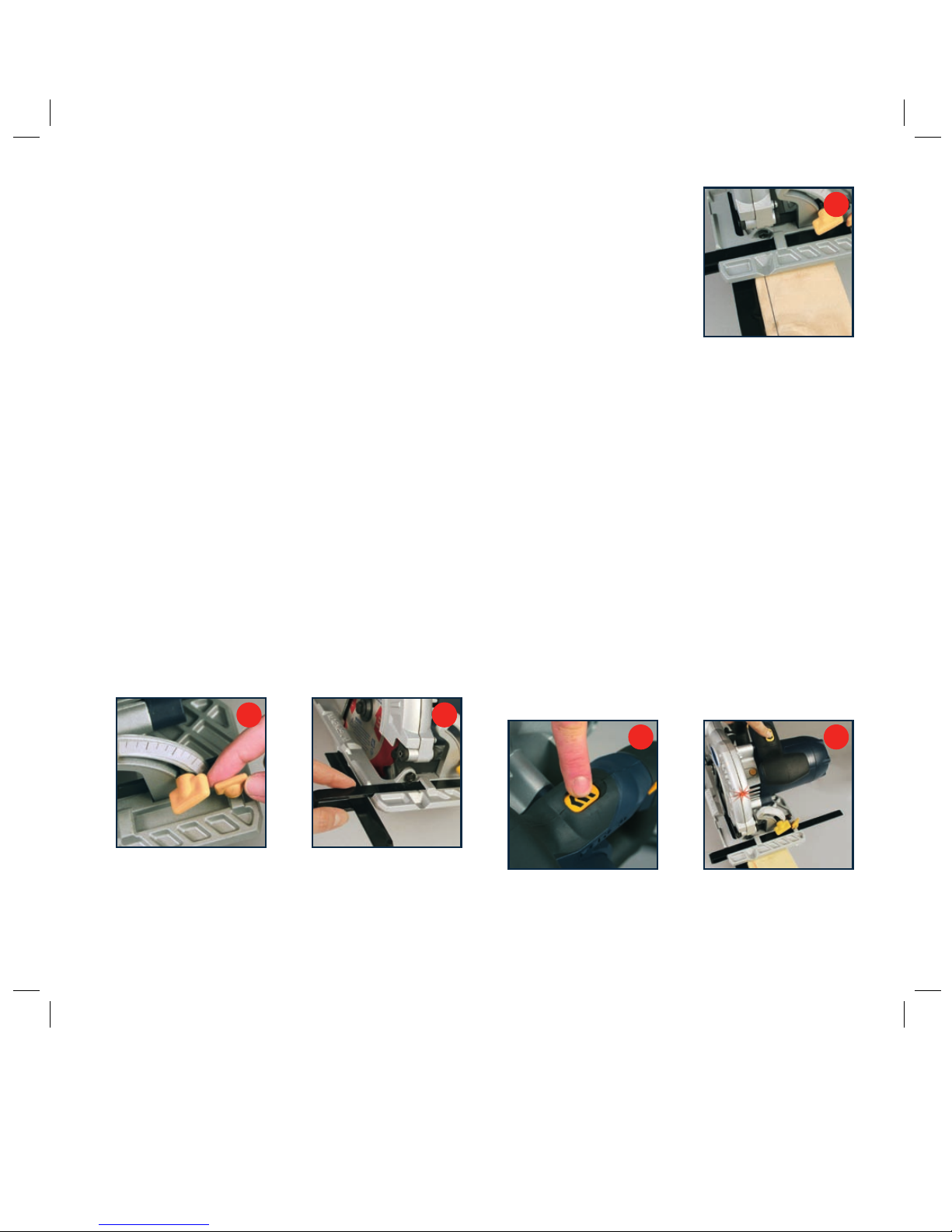

Adjusting the cutting depth 9
Adjusting the bevel angle 9
Switching on and off 10
Making a cut 10
Making a pocket cut 10
Using the parallel fence 11
Using the REDEYE® system 11
Changing the blade 12
Maintenance 13
Cleaning 13
General inspection 13
Power cord maintenance 13
Troubleshooting 13

3

Description of symbols

The rating plate on your tool may show symbols.
These represent important information about the
product or instructions on its use.

Wear hearing protection.
Wear eye protection.
Wear breathing protection.

Double insulated for additional protection.

Conforms to relevant standards
for electromagnetic compatibility.

Specifications

Voltage: 230-240V ~ 50 Hz

Power rating: 1800W

No load speed: 4700 min

-1

Blade diameter: 185mm (7 1/4")

Blade teeth: 24 TCT

Blade arbour: 16mm

Blade kerf: 2.2mm

Bevel capacity: 0° to 55°

Depth of cut at 90°: 60mm

Depth of cut at 45°: 47mm

Depth of cut at 55°: 37mm

Electrical insulation: Double insulated

Weight: 5.4kg

This tool is double insulated. There are two independent
barriers of insulation to protect you from the possibility of
electric shock.

The sound intensity level for the operator may exceed
85dB(A) and sound protection measures are necessary.

Dear Customer

If you require any help with your product, whether it
is a Warranty claim, spare part or user information,
please phone our Help Line for an immediate response.
Phone [phone] in Australia or
0800 445 721 in New Zealand.

Introduction

Your new GMC power tool will more than satisfy
your expectations. It has been manufactured under
stringent GMC Quality Standards to meet superior
performance criteria.

You will find your new tool easy and safe to operate,
and, with proper care, it will give you many years
of dependable service.

CAUTION. Carefully read through this entire Instruction

Manual before using your new GMC Power Tool. Take
special care to heed the Cautions and Warnings.

Your GMC power tool has many features that will make
your job faster and easier. Safety, performance, and
dependability have been given top priority in the
development of this tool, making it easy to maintain
and operate.

Environmental protection

Recycle unwanted materials instead
of disposing of them as waste. All tools,
hoses and packaging should be sorted,
taken to the local recycling centre and
disposed of in an environmentally safe way

.

WARNINGS.

1. Do not attempt to change the position of the laser under
any circumstances, it has been set at the factory and is
accurately focused on the centre of the saw blade.

2. It may be more difficult to see the laser line in conditions
of bright sunshine and on certain surfaces.

4

General safety rules

WARNING. Read all instructions. Failure to follow all

instructions listed below may result in electric shock,
fire and/or serious injury. The term “power tool” in all of
the warnings listed below refers to your mains operated
(corded) power tool or battery operated (cordless)
power tool.

Save these instructions

1. Work area

a. Keep work area clean and well lit.

Cluttered and dark

areas invite accidents.

b. Do not operate power tools in explosive

atmospheres, such as in the presence of flammable
liquids, gases or dust.

Power tools create sparks which

may ignite the dust or fumes.

c. Keep children and bystanders away while

operating a power tool.

Distractions can cause you to

lose control.

2. Electrical safety

a. Power tool plugs must match the outlet.

Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and
refrigerators.

There is an increased risk of electric shock

if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of
electric shock.

d. Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.

e. When operating a power tool outdoors, use an

extension cord suitable for outdoor use.

Use of a cord

suitable for outdoor use reduces the risk of electric shock.

3. Personal safety
a. Stay alert, watch what you are doing and use

common sense when operating a power tool.

Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in
serious personal injury.

b. Use safety equipment. Always wear eye protection.

Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.

c. Avoid accidental starting. Ensure the switch is in the

off position before plugging in. Carrying power tools with
your finger on the switch or plugging in power tools that
have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning

the power tool on.

A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.

e. Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in
unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery.

Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be caught
in moving parts.

g. If devices are provided for the connection of dust

extraction and collection facilities, ensure these are
connected and properly used.

Use of these devices

can reduce dust related hazards.

5

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn

it on and off.

Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source before

making any adjustments, changing accessories, or
storing power tools.

Such preventive safety measures

reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained
users.

e. Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any other
condition that may affect the power tools operation. If
damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc.,

in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions and
the work to be performed.

Use of the power tool for
operations different from those intended could result in a
hazardous situation.

5. Service
a. Have your power tool serviced by a qualified repair

person using only identical replacement parts.

This

will ensure that the safety of the power tool is maintained.

Additional safety rules for laser lights

The laser light/laser radiation used in the GMC REDEYE®
system is Class 2 with maximum 1mW and 650nm
wavelengths. These lasers do not normally present an
optical hazard, although staring at the beam may cause
flash blindness.

WARNING. Do not stare directly at the laser beam.

A hazard may exist if you deliberately stare into the beam.
Please observe all safety rules as follows:

• The laser shall be used and maintained in accordance

with the manufacturer’s instructions.

• Never aim the beam at any person or an object other

than the work piece.

• The laser beam shall not be deliberately aimed at

personnel and shall be prevented from being directed
towards the eye of a person for longer than 0.25s.

• Always ensure the laser beam is aimed at a sturdy work

piece without reflective surfaces, i.e. wood or rough
coated surfaces are acceptable. Bright shiny reflective
sheet steel or the like is not suitable for laser use as
the reflective surface could direct the beam back at the
operator.

• Do not change the laser light assembly with a different

type. Repairs must only be carried out by the laser
manufacturer or an authorised agent.

LASER LIGHT

LASER RADIATION

Do not stare into beam

.

Class 2 laser product.

Wave length: 650nm

Output po

wer: 1mw

AS/NZS 2211.1:2004

CAUTION. Use of controls or adjustments or performance

of procedures other than those specified herein may result
in hazardous radiation exposure.

6

Additional safety rules for circular saws

WARNING! The warnings, precautions, and instructions

discussed in this manual cannot cover all possible
conditions and situations that may occur. The operator must
understand that common sense and caution are factors
which cannot be built into this product, but must be supplied
by the operator.

DANGER

a. Keep hands away from cutting area and the blade.

Keep your second hand on auxiliary handle, or motor
housing. If both hands are holding the saw, they cannot
be cut by the blade.

b. Do not reach underneath the workpiece. The guard

cannot protect you from the blade below the workpiece.

c. Adjust the cutting depth to the thickness of the

workpiece.

Less than a full tooth of the blade teeth

should be visible below the workpiece.

d. Never hold piece being cut in your hands or across

your leg.

Secure the workpiece to a stable platform. It is
important to support the work properly to minimize body
exposure, blade binding, or loss of control.

e. Hold power tool by insulated gripping surfaces when

performing an operation where the cutting tool may
contact hidden wiring or its own cord.

Contact with
a “live” wire will also make exposed metal parts of the
power tool “live” and shock the operator.

f. When ripping always use a rip fence or straight edge

guide.

This improves the accuracy of cut and reduces

the chance of blade binding.

g. Always use blades with correct size and shape

(diamond versus round) of arbour holes.

Blades that
do not match the mounting hardware of the saw will run
eccentrically, causing loss of control.

h. Never use damaged or incorrect blade washers or

bolt.

The blade washers and bolt were specially designed
for your saw, for optimum performance and safety of
operation.

Causes and operator prevention of kickback:

• Kickback is a sudden reaction to a pinched, bound or

misaligned saw blade, causing an uncontrolled saw to lift
up and out of the workpiece toward the operator;

• When the blade is pinched or bound tightly by the kerf

closing down, the blade stalls and the motor reaction
drives the unit rapidly back toward the operator;

• If the blade becomes twisted or misaligned in the cut, the

teeth at the back edge of the blade can dig into the top
surface of the wood causing the blade to climb out of the
kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect
operating procedures or conditions and can be avoided by
taking proper precautions as given below.

a. Maintain a firm grip with both hands on the saw and

position your arms to resist kickback forces.

Position
your body to either side of the blade, but not in line
with the blade. Kickback could cause the saw to jump
backwards, but kickback forces can be controlled by the
operator, if proper precautions are taken.

b. When blade is binding, or when interrupting a cut

for any reason, release the trigger and hold the saw
motionless in the material until the blade comes to
a complete stop. Never attempt to remove the saw

from the work or pull the saw backward while the blade
is in motion or kickback may occur. Investigate and take
corrective actions to eliminate the cause of blade binding.

c. When restarting a saw in the workpiece, centre the

saw blade in the kerf and check that saw teeth are
not engaged into the material.

If saw blade is binding, it
may walk up or kickback from the workpiece as the saw
is restarted.

d. Support large panels to minimise the risk of blade

pinching and kickback.

Large panels tend to sag under
their own weight. Supports must be placed under the
panel on both sides, near the line of cut and near the
edge of the panel.

7

e.

Do not use dull or damaged blades. Unsharpened

or improperly set blades produce narrow kerf causing
excessive friction, blade binding and kickback.

f. Blade depth and bevel adjusting locking levers

must be tight and secure before making cut.

If blade
adjustment shifts while cutting, it may cause binding and
kickback.

g. Use extra caution when making a “plunge cut” into

existing walls or other blind areas.

The protruding

blade may cut objects that can cause kickback.

The protruding blade may cut objects that can
cause kickback.

a.

Check lower guard for proper closing before each

use.

Do not operate the saw if lower guard does not
move freely and close instantly. Never clamp or tie the
lower guard into the open position. If saw is accidentally
dropped, lower guard may be bent. Raise the lower guard
with the retracting handle and make sure it moves freely
and does not touch the blade or any other part, in all
angles and depths of cut.

b. Check the operation of the lower guard spring. If the

guard and the spring are not operating properly, they
must be serviced before use. Lower guard may operate
sluggishly due to damaged parts, gummy deposits, or a
build-up of debris.

c. Lower guard should be retracted manually only for

special cuts such as “plunge cuts” and “compound
cuts.”

Raise lower guard by retracting handle and as
soon as blade enters the material, the lower guard must
be released. For all other sawing, the lower guard should
operate automatically.

d. Always observe that the lower guard is covering the

blade before placing saw down on bench or floor.

An unprotected, coasting blade will cause the saw to
walk backwards, cutting whatever is in its path. Be aware
of the time it takes for the blade to stop after switch is
released.

e. Do not use Abrasive wheels

Accessories

The GMC LS1800M Circular Saw is supplied with the
following accessories as standard:

1. Blade (fitted)

2. Blade wrench

3. Rip fence

4. Carry case

5. Instruction manual

Unpacking

Due to modern mass production techniques, it is unlikely
that your GMC Power Tool is faulty or that a part is missing.
If you find anything wrong, do not operate the tool until the
parts have been replaced or the fault has been rectified.
Failure to do so could result in serious personal injury.

Assembly

The GMC circular saw is packed, fully assembled except for
the rip fence.

8

Know your product

1. Laser light assembly

2. Laser light on/off button

3. Laser light aperture

4. Trigger switch

5. Lock-off button

6. Motor housing

7. Main handle

8. Front handle

9. Bevel adjustment knob

10. Bevel scale

11. Parallel fence locking knob

12. Parallel fence

13. Blade guard lever

14. Lower blade guard

15. Base plate

16. Upper blade guard

17. Dust extraction port

18. Depth locking lever

19. Depth of cut indicator

20. Spindle lock button

21. Blade

22. Blade wrench

23. Blade guide notch

24. Parallel fence slots

25. Disc rotation indicator

14

2

1

3

10

9

23

20

21

13

16

17

22

6

15

18

7

19

4

5

8

11

12

25

24

24

9

Overview

You have purchased an 1800W Magnesium Circular Saw
with the GMC REDEYE

®

laser line generator system.

Please refer to the safety instructions given earlier in this
manual for important instructions regarding the use of the laser.

The saw is capable of ripping and cross cutting hardwoods,
softwoods and man made boards quickly, accurately and safely.

By loosening the bevel adjustment knob (9), the body and
the blade of the saw can be tilted to any angle up to 55° for
making angle cuts. Please note that the maximum depth of
cut is reduced when cutting at an angle.

A fixed upper blade guard (16) encloses the upper part of
the blade. As the saw advances through the work piece,
the pivoting lower blade guard (14) is pushed back by the
edge of the wood to expose only that part of the blade
which is needed. When the blade clears the work, the
spring loaded lower blade guard snaps back to completely
enclose the blade.

Adjusting the cutting depth

CAUTION. Always ensure that the saw is switched off

and unplugged from the power supply before making
any adjustments.

1. Ensure that the saw is facing away from you.

2. Loosen the depth locking lever (18) (Fig. A).

3. Hold the base plate flat against the edge of the work
piece and lift the body of the saw until the blade is at the
right depth (Fig. B). Use the depth of cut indicator (19) to
determine the cutting depth.

4. Tighten the depth locking lever (18).

Note. Always use the correct blade depth setting.

The correct blade depth setting for all cuts should not be
more than (6.35mm) 1/4” below the material being cut.
Allowing more depth will increase the chance of kickback
and result in a rough cut.

Adjusting the bevel angle

CAUTION. Always ensure that the saw is switched off

and unplugged from the power supply before making
any adjustments.

1. The saw can be adjusted to cut at any angle between
0° and 55°. When making 45° bevel cuts, there is a
notch (23) in the saw base to help you line up the blade
with the line of cut. Align your line of cut with the inner
blade guide notch on the base of the saw when making
45° bevel cuts.

2. Loosen the bevel adjustment knob (9) located at the front
of the base plate (Fig. C).

3. Tilt the body of the
saw until the required angle
is reached (Fig. D) using the
bevel scale (10) as a guide.

4. Tighten the bevel adjustment
knob (9) to secure the base
plate (Fig. E).

B

A

D

C

E

10

Note.

Always make a trial cut in a scrap piece of material
along a guideline to determine how much you should offset
the blade from the guideline to make an accurate cut.

Switching on and off

1. Connect the plug to the power supply.

2. Depress the lock-off button (5) (Fig. F) and squeeze the

trigger switch (4) (Fig. G).

3. The blade will take approximately 2 seconds to reach

full speed.

4. When you release the trigger, the machine turns off

and the lock-off button re-engages to prevent
accidental operation.

CAUTION. Allow the blade to come to a complete standstill

before setting the saw down.

Making a cut

1. Mark the line of cut on the work piece.

2. Adjust the depth of cut and bevel angle as required.

3. When making 90° cross or rip

cuts, align your line of cut with
the outer blade guide notch on
the base of the saw (Fig. H).

4. When making 45° bevel cuts,

align your line of cut with the
inner blade guide notch on the
base of the saw.

5. Rest the front edge of the

base on the work piece (Fig. I).

6. Start the motor by depressing
the lock-off button (5) and
squeezing the trigger
switch (4).

Note. Always let the blade reach

full speed (approximately
2 seconds) before you begin to
cut into the work piece.

7. Slowly push the saw forward
using both hands (Fig. J).

8. When making a cut always
use steady, even pressure.
Forcing the saw causes rough
cuts and could shorten the life
of the saw or cause kickback.
Allow the blade and the saw to
do the work.

9. After completing your cut, release the trigger switch
and allow the blade to come to a complete stop.
Do not remove the saw from the work piece while the
blade is moving.

Note. Since blade thickness varies, always make a trial

cut in scrap material along the guideline to determine how
much, if any, the guideline must be offset to get an
accurate cut.

Making a pocket cut

1. Adjust the depth of cut as
required.

2. Adjust the bevel setting to 0°.

3. Raise the lower blade guard
lever (13) to expose the saw
blade and firmly rest the
front of the base flat against
the work piece with the rear
handle raised so the blade does not
touch the work piece (Fig. K).

G

F

H

I

J

K

Blade guide notch

11

4. With the blade just clearing the work piece, start the
motor by depressing the lock-off button (5) and squeezing
the trigger switch (4).

5. Always let the blade reach full speed (approximately 2
seconds) before you begin to cut into the work piece.

6. Slowly lower the saw into the work piece, using the front
of the base resting on the work piece as a hinge point.

WARNING. As soon as the blade starts cutting the material,

release the lower blade guard lever.

7. Once the base plate (15) is flat against the work piece,
proceed cutting in a forward direction to the end of
the cut.

8. After completing your cut, release the trigger switch
and allow the blade to come to a complete stop.
Do not remove the saw from the work piece while the
blade is moving.

Note. If the corners of your pocket cut are not completely

cut through, use a jigsaw or hand saw to finish the corners.

Using the parallel fence

The parallel fence (12) allows you to make parallel cuts
in a sheet of wood, all at the same width.

CAUTION. Always ensure that the saw is switched off

and unplugged from the power supply before making
any adjustments.

1. Loosen the parallel fence locking knob (11) (Fig. L).

2. Slide the parallel fence (12) through the parallel fence
slots (24) in the base plate (15) (Fig. M).

3. Adjust the parallel fence to the
required width and secure it in
position with the parallel fence
locking knob (11).

4. Ensure that the parallel
fence rests against the
wood along its entire length
to give a consistent parallel
cut (Fig. N).

Using the REDEYE® system

WARNING. Before proceeding to use the REDEYE® laser

line system, ensure that the

Additional safety rules for

laser lights

section is read and fully understood.

Always ensure the laser beam is aimed at a sturdy work
piece without reflective surfaces. i.e. wood or rough coated
surfaces are acceptable. Bright shiny reflective sheet steel
or the like is not suitable for laser use as the reflective
surface could direct the beam back at the operator.

Only turn laser beam on when tool is on work piece.

1. Mark the line of the cut on the work piece.

2. Adjust the depth of cut and bevel angle as required.

3. Rest the front edge of the base on the work piece.

4. Switch on the laser beam using the laser light on/off
button (2) (Fig. O).

5. Align the beam with the line on the work piece (Fig. P).

M

L

N

P

O

12

6. Start the motor by depressing the lock-off button (5) and
squeezing the trigger switch (4).

7. Always let the blade reach full speed (approximately
2 seconds) before you begin to cut into the work piece.

8. Slowly push the saw forward using both hands, keeping
the red laser light beam on the line of cut.

9. After completing your cut, release the trigger switch
and allow the blade to come to a complete stop.
Do not remove the saw from the work piece while the
blade is moving.

10. Switch off the laser beam on completion of the cut.

Note. The laser generated line is preset to align with the left

side of the blade (closest to the motor).

Changing the blade

CAUTION. Always ensure that the saw is switched off

and unplugged from the power supply before making any
adjustments.

1. Place saw on its side on a flat surface.

2. Rotate the saw blade by hand whilst depressing the
spindle lock button (20) until the blade locks (Fig. Q).

3. Whilst depressing the spindle lock button, turn the blade
bolt anti-clockwise using the wrench provided (Fig. R).

4. Remove the outer blade flange and the blade bolt.

5. Raise the lower blade guard (14) using the blade
guard lever (13).

6. Remove the saw blade
from the inner flange
and pull it out (Fig. S)

7. Clean the saw blade
flanges thoroughly
before mounting the new
saw blade. Wipe a drop
of oil onto the inner and
outer flange where they
will touch the blade.

8. Mount the new saw blade onto
the spindle and against the
inner flange.

9. Replace the outer flange and
tighten the blade bolt (Fig. T).

WARNING. The direction in

which the blade rotates has
to be the same as the direction
of the arrow marked on the housing (25).

10. Ensure that the spindle lock button (20) is released.

11. Before using the saw again, check that the safety

devices are in good working order.

IMPORTANT. After replacing the saw blade, make sure that

the saw blade runs freely by turning the blade by hand.

12. Plug the machine into a power socket and run the saw

under no load to check that it runs smoothly before
using it to cut any material.

R

Q

S

T

13

Maintenance

WARNING. Always ensure that the tool is switched off and

the plug is removed from the power point before making any
adjustments or maintenance procedures.

Cleaning

1. Keep the tool’s air vents unclogged and clean at all times.

2. Remove dust and dirt regularly. Cleaning is best done
with a rag.

3. Re-lubricate all moving parts at regular intervals.

4. If the body of the saw needs cleaning, wipe it with a soft
damp cloth. A mild detergent can be used but nothing like
alcohol, petrol or other cleaning agent.

5. Never use caustic agents to clean plastic parts.

CAUTION. Do not use cleaning agents to clean the plastic

parts of the tool. A mild detergent on a damp cloth is
recommended. Water must never come into contact
with the tool.

General inspection

Regularly check that all the fixing screws are tight. They
may vibrate loose over time.

Power cord maintenance

If the supply cord needs replacing, the task must be carried
out by the manufacturer, the manufacturer’s agent, or a
qualified electrical service repairer to avoid a safety hazard.

Troubleshooting

Trouble Problem Suggested remedy

Saw will not start Power cord not plugged in Ensure that the cord is connected to the power supply

Power fault, fuse or circuit breaker tripped Check the power supply

Cord damaged Use authorised service centre to repair or replace

Burned out switch Use authorised service centre to repair or replace

Faulty motor Use authorised service centre to repair or replace the motor

Blade does not reach
full speed

Tool is overheating Turn off the tool and let it cool down to room temperature.

Inspect and clean the ventilation slots

Poor cutting Blunt blade Replace or sharpen circular saw blade

Vibration or abnormal
noise

Loose parts Check to see that all knobs and levers are securely

tightened including bevel adjustment knob, depth locking
lever and parallel fence locking knob

Blade vibrating Ensure that the blade nut is securely tightened

Moving parts excessively worn Use a qualified electrical service repairer to repair or replace

14

15

GMC customer assist

If your product needs repairing, replacing,
technical service or you simply need help or advice,
please contact us on our Customer Assist Line
1300 880 001 (Australia) or 0800 445 721 (New Zealand).

For prompt service we suggest you log your service request
online at www.gmcservice.com.au. Should you not have
access to the Internet, please contact our service department
on 1300 880 001 (Australia) or 0800 445 721 (New Zealand).

7am –7pm, 7days a week (AEST).

Please note that if repair or replacement is required,
you must provide a valid original purchase receipt.

You will need the following details at hand to log your service request;

Personal details: First & Last name, address, pick up address,
c

ontact phone numbers, email address

Product details: Product number, date of purchase, retailer bought from,
State & postcode, receipt number, reason for the request,
c

opy of official purchase receipt

Attach your purchase receipt and save with this Manual for future reference

.

Please refer to our website www.gmcompany.com for full GMC warranty Terms and Conditions.
