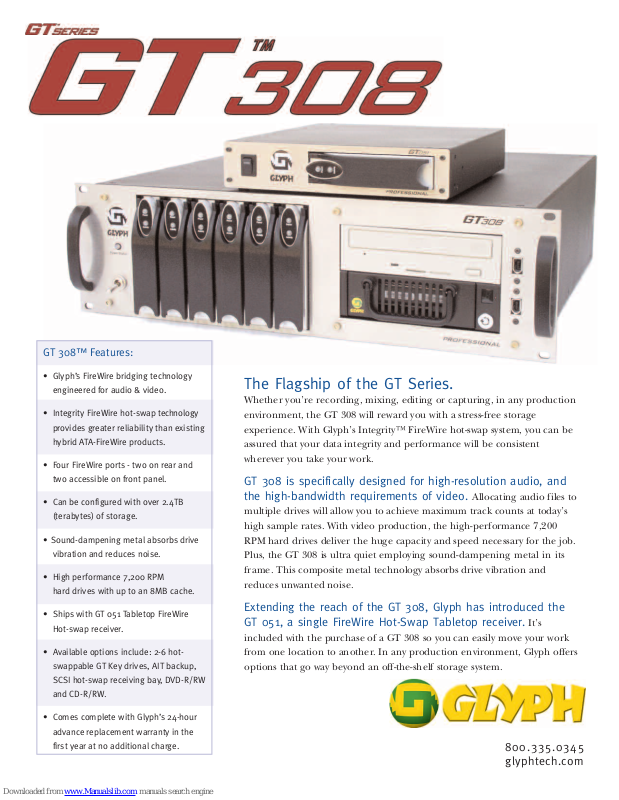

Page 1
GT 308™ Features:
• Glyph’s FireWire bridging technology
engineered for audio & video.
• Integrity FireWire hot-swap technology
provides greater reliability than existing
hybrid ATA-FireWire products.
• Four FireWire ports - two on rear and
two accessible on front panel.
• Can be configured with over 2.4TB
(terabytes) of storage.
• Sound-dampening metal absorbs drive
vibration and reduces noise.
• High performance 7,200 RPM
hard drives with up to an 8MB cache.
• Ships with GT 051 Tabletop FireWire
Hot-swap receiver.
• Available options include: 2-6 hotswappable GT Key drives, AIT backup,
SCSI hot-swap receiving bay, DVD-R/RW
and CD-R/RW
.
The Flagship of the GT Series.
Whether you’re recording, mixing, editing or capturing, in any production
environment, the GT 308 will reward you with a stress-free storage
experience. With Glyph’s Integrity™ FireWire hot-swap system, you can be
assured that your data integrity and performance will be consistent
wherever you take your work.
GT 308 is specifically designed for high-resolution audio, and
the high-bandwidth requirements of video.
multiple drives will allow you to achieve maximum track counts at today’s
high sample rates. With video production, the high-performance 7,200
RPM hard drives deliver the huge capacity and speed necessary for the job.
Plus, the GT 308 is ultra quiet employing sound-dampening metal in its
frame. This composite metal technology absorbs drive vibration and
reduces unwanted noise.
Extending the reach of the GT 308, Glyph has introduced the
GT 051, a single FireWire Hot-Swap Tabletop receiver.
included with the purchase of a GT 308 so you can easily move your work
from one location to another. In any production environment, Glyph offers
options that go way beyond an off-the-shelf storage system.
Allocating audio files to
It’s
• Comes complete with Glyph’s 24-hour
advance replacement warranty in the
first year at no additional charge.
800.335.0345
glyphtech.com
Page 2
Freedom to move with the GT 051.
The GT 051 is included with the purchase of the GT 308 and
accepts the same GT Key drives. Imagine being able to record in
the studio, pull the GT Key drive and take it home to mix the
record there.
GT 051 with key being removed
GT 051 shown with optional rack ears
GT 308 Specifications
• Interface: Four IEEE 1394a/iLink (FireWire 400)
• Dimensions: H 5.3” x W 19” x D 17.3”
• Power Supply: Universal 100-240v 50/60 Hz
• Weight (lbs/kg): 40.4 lbs. / 18.3 kg (fully loaded)
• Compatibility: Mac OS 8.6/9.x/10.x, Windows
98SE/2000/ME/XP, Linux
• Warranty: 3 years, 1 year overnight advance replace on all
removable hard drives
GT Key Specifications
• Capacity: 80GB, 120GB, 160GB, 200GB, 250GB, 300GB,
400GB
• Rotational speed: 7,200 RPM
• Bridging: Oxford 911 chip on Glyph’s own bridge board
• Buffer size (cache): 2MB (80GB), 8MB (120GB - 400GB)
• Average seek time (read): 8 msec
• Max external transfer rate: 400 Mb/sec (50 MB/sec)
• Dimensions: H 1.1" x W 4.6" x D 9.4"
• Weight (lbs/kg): 2.9 lbs / 1.3 kg
• Power supply: Gets power from enclosure
• Operating Temperature (C/F): 41 - 122/5 - 50
• Warranty: 3 years, Overnight advance replacement warranty
in the first year
What sets this system apart from all other “Hot-Swap
FireWire” products is that Glyph uses its proprietary Integrity™
hot-swap interface in the GT Series. When a GT Key is removed
from the bay, the disconnect happens at a FireWire level. FireWire
was designed to allow the removal and insertion of devices,
whereas ATA was not. Glyph’s Integrity™ FireWire hot-swap
interface provides greater reliability than existing hybrid ATA-toFireWire products.
Focused on keeping your studio quiet, GT Key and GT
Series enclosures incorporate sound-dampening metal in their
inner-frames. This composite metal technology absorbs drive
vibration and reduces unwanted noise.
GT 308 Audio Track Count Results
Sample Rate 48kHz
Activity
™
Record (no edits) 50 86 128 128
Play (no edits) 50 86 128 128
Edit Density 1st level 50 86 128 128
Edit Density 2nd level 50 86 128 128
GT 308
Edit Density 3rd level 41 76 128 128
Edit Density 4th level 35 68 104 118
Activity
™
Record (no edits) 40 64 64 64
Play (no edits) 40 64 64 64
Edit Density 1st level 38 64 64 64
Edit Density 2nd level 38 64 64 64
GT 308
Edit Density 3rd level 38 59 64 64
Edit Density 4th level 28 47 64 64
1 drive 2 drives 4 drives 6 drives
Sample Rate 96kHz
1 drive 2 drives 4 drives 6 drives
Included with GT 308
(1) GT 051 tabletop hot-swap receiver
(1) Documentation CD with registration and manual
(2) FireWire cables (2 meters)
(2) Power cables
(4) Rack mounting screws
810032-1.3 GT 308 DATA.pdf
© Glyph Technologies, a division of Ithaca Technologies, LLC
Feb 10, 2005
Sample Rate 192kHz
Activity
™
Record (no edits) 24 24 24 24
Play (no edits) 24 24 24 24
Edit Density 1st level 20 24 24 24
Edit Density 2nd level 20 24 24 24
GT 308
Edit Density 3rd level 20 24 24 24
Edit Density 4th level 18 24 24 24
Intended for use as reference for GT 308 performance, track counts may vary according to plug-ins used and limitations of your DAW.
1 drive 2 drives 4 drives 6 drives
