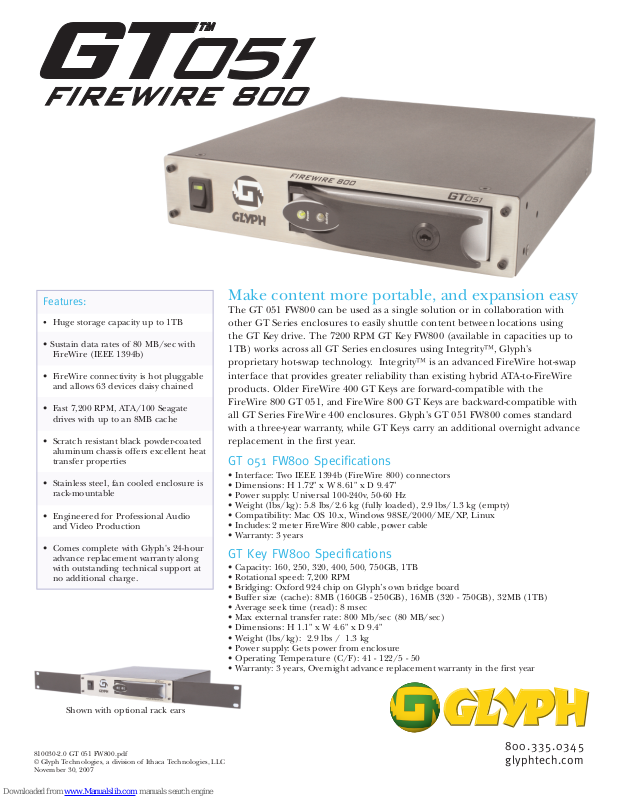

Glyph GT051800-1000, GT051800-120, GT051800-160, GT051800-200, GT051800-250 Specifications

...

Download

Page 1

FIREWIRE 800FIREWIRE 800

Features:

• Huge storage capacity up to 1TB

• Sustain data rates of 80 MB/sec with FireWire (IEEE 1394b)

• FireWire connectivity is hot pluggable and allows 63 devices daisy chained

• Fast 7,200 RPM, ATA/100 Seagate drives with up to an 8MB cache

• Scratch resistant black powder-coated aluminum chassis offers excellent heat transfer properties

• Stainless steel, fan cooled enclosure is rack-mountable

• Engineered for Professional Audio and Video Production

• Comes complete with Glyph's 24-hour advance replacement warranty along with outstanding technical support at no additional charge.

Make content more portable, and expansion easy

The GT 051 FW800 can be used as a single solution or in collaboration with other GT Series enclosures to easily shuttle content between locations using the GT Key drive. The 7200 RPM GT Key FW800 (available in capacities up to 1TB) works across all GT Series enclosures using Integrity™, Glyph's proprietary hot-swap technology. Integrity™ is an advanced FireWire hot-swap interface that provides greater reliability than existing hybrid ATA-to-FireWire products. Older FireWire 400 GT Keys are forward-compatible with the FireWire 800 GT 051, and FireWire 800 GT Keys are backward-compatible with all GT Series FireWire 400 enclosures. Glyph's GT 051 FW800 comes standard with a three-year warranty, while GT Keys carry an additional overnight advance replacement in the first year.

GT 051 FW800 Specifications

• Interface: Two IEEE 1394b (FireWire 800) connectors

• Dimensions: H 1.72" x W 8.61" x D 9.47"

• Power supply: Universal 100-240v, 50-60 Hz

• Weight (lbs/kg): 5.8 lbs/2.6 kg (fully loaded), 2.9 lbs/1.3 kg (empty)

• Compatibility: Mac OS 10.x, Windows 98SE/2000/ME/XP, Linux Includes: 2 meter FireWire 800 cable, power cable

•

arranty: 3 years

• W

GT Key FW800 Specifications

• Capacity: 160, 250, 320, 400, 500, 750GB, 1TB

• Rotational speed: 7,200 RPM

• Bridging: Oxford 924 chip on Glyph’s own bridge board

• Buffer size (cache): 8MB (160GB - 250GB), 16MB (320 - 750GB), 32MB (1TB)

• Average seek time (read): 8 msec

• Max external transfer rate: 800 Mb/sec (80 MB/sec)

• Dimensions: H 1.1" x W 4.6" x D 9.4"

• Weight (lbs/kg): 2.9 lbs / 1.3 kg

• Power supply: Gets power from enclosure

• Operating Temperature (C/F): 41 - 122/5 - 50

• Warranty: 3 years, Overnight advance replacement warranty in the first year

Shown with optional rack ears

800.335.0345 glyphtech.com
