GLT SC-6 User Manual
User Manual

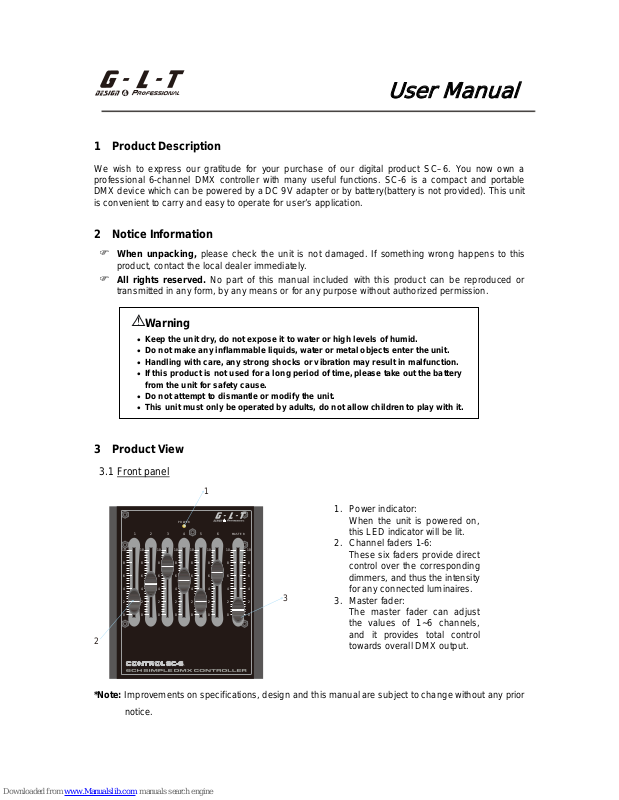

1 Product Description
We wish to express our gratitude for your purchase of our digital product SC–6. You now own a
profession al 6-chann el DMX con troller with many useful functions. SC-6 is a compact and portable
DMX device which can be powered by a DC 9V adapter or by battery(battery is not provided). This unit
is convenient to carry an d easy to operate for user’s app lic ati on .
2 Notice Information
When unpacking, please check the unit is not damaged. If something wrong happens to this
product, cont act the local dealer immediately.
All rights reserved. No part of this manual included with this product can be reproduced or
transmitted in an y form, by any mean s or for any purpose without authori zed permission.
Warning
• Keep the uni t dry, do not expose it to water or high level s of humid.
•
Do not make any inflammable liquids, water or metal objects enter the unit.
•
Handling with care, any strong shocks or vibration may result in malfunction.
•
If this product is not used for a long period of time, please take out the battery
•
from the unit for safety cause.
•
Do not atte mpt to di s mantl e or modi f y the uni t.
•
This unit must only be ope rated by adults, do not allow children to play with it.
3 Product View
3.1 Front p anel
1 2 3 4 5 6
MASTER
POWER
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
1
2
3
*Note: Improvements on specifications, design and this manual are subject to change without any prior
notice.
1. Power indicator:
When the unit is powered on,
this LED indicator will be lit.
2. Channel faders 1-6:
These s i x faders p r o vid e d ir ec t
cont rol ov er the cor resp ondin g
dimmers, and thus the intensity
for any connected luminaires.
3. Mast er f ad er:
The master fader can adjust
the values of 1~6 channels,
and it provides total control
towards overall DMX output.
3.2 Re ar panel
4. DMX output:
To output DMX signal via this connector.
5. Power s witch:
To turn on or turn off the main power.
6. DC input:
To input main power via this port (DC9V, 100mA Min.).
4 Technical Specifi cat i ons:
M odel Type …………………………………...………………………..…………………………...SDC-6
Power Input…………………………………...………………………………..…..…DC 9V,
100mA Min
DMX Output……………………………….………….…………….…..…3-pin fem ale DM X connector
Battery(not included)……………………………….…….……………………………………….PP3, 9V
Dimensions……………………………………….……………………….………….....
...173×153×55mm
Weight (with no b atter y)…………………………………………….…………….………...Approx. 0.6kg
