GLP X4 Atom Instruction Manual
from software version: 8
support@glp.de
www.glp.de
Instruction Manual
Head
GLP German Light Products
X4 Atom Head manual (v1.0) from software version: 8 2
Contents
1 Description of Device ..................................................................................................... 3
2 Safety Instructions ........................................................................................................... 4
3 Mounting .......................................................................................................................... 6
3.1! Operating on the Floor (Upright)!..................................................................................!7!
3.2! Mounting in a single hanging or sideways position!.................................................!7!

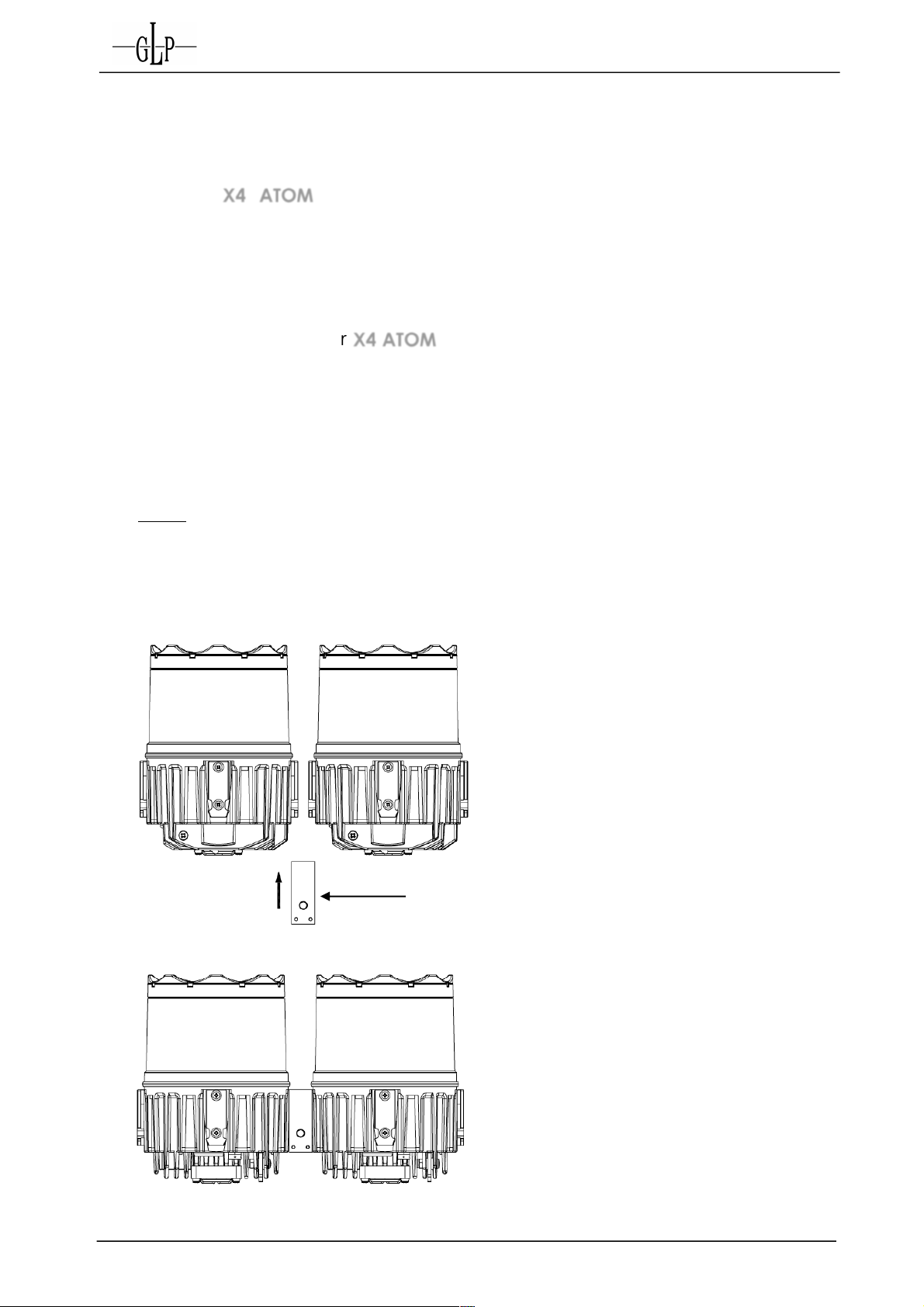

3.3! Mounting in a multiple array or matrix setup!............................................................!8!
3.4! Securing the Fixture!..........................................................................................................!9!
4 Connections .................................................................................................................. 10
4.1! Connect to the X4 ATOM PSU!.....................................................................................!10!
5 Accessories .................................................................................................................... 11
5.1! Atom Trussbar!...................................................................................................................!11!
6 Maintaining and Cleaning .......................................................................................... 12
6.1! Safety regulations!...........................................................................................................!12!
6.2! Maintenance and Interval (rule-of-thumb)!.............................................................!12!
7 Technical Specifications: ............................................................................................. 13
8 Dimensions ..................................................................................................................... 14
GLP German Light Products
X4 Atom Head manual (v1.0) from software version: 8 3
1 Description of Device
1. X4 Atom head (actively and passively cooled)
2. detachable and adjustable yoke / floor-stand
Rear view:
3. Power & Signal input
(XLR 4pin connect to Atom PSU only!)
4.
Vent plug
5.
Fan
6.
4 x Socket for ATOM Connector
and/or yoke
!
1
2 6 354
GLP German Light Products
X4 Atom Head manual (v1.0) from software version: 8 4
2 Safety Instructions
1. Before powering on the fixture, make sure that the fixtures fans and air
inlets are clean and not blocked.
2. A safety distance of at least 0.5 m must be maintained between the
fixture and any easily inflammable material (e.g. decoration material).
3. Attention! Don’t touch the fixture during the operation. This can cause
injuries and/or damages.
4. The fixture doesn’t contain any user serviceable parts. Opening the
fixture will void all warranties.
5. It is necessary to wait at least 15 minutes after disconnecting the mains
power before handling the fixture. Pay attention to possible hot parts
of the fixture.
6. To ensure safe operation, follow also the Installation guide described
in the chapter below. Operating the X4 ATOM without suitable safety
aids like Safety cables or clamps/hooks can increase the risk of an
accident and must be avoided.
7. Repair, maintenance, and installation work shall be done by qualified
or GLP certified staff only. You need to pay attention to the common
rules of technology that are not explicitly mentioned in this manual.
8. Use only original GLP spare parts. Any structural modification of the
system will terminate all warranty claims.
9. Please keep this instruction manual for future reference.
The X4 ATOM is a High-Tech Product.
To guarantee a smooth operation, it is necessary to respect
the following rules. The manufacturer of this device will not
take responsibility for damages through any disregard of the
information provided in this manual. Warranty claims also
will be voided in the case that the fixture housing is opened.
Never look directly into the beam of light or into the LED.
Attention: LED Class 2M can cause injuries of your eyes even
without optical instruments in front of them or within a
distance of less than 0.5m and short exposure time.
Hence: Avoid direct radiation into your eyes!
! ! !
!
WARNING:
Never let optical parts come in contact with alcohol,
solvents or similar cleaners.
GLP German Light Products
X4 Atom Head manual (v1.0) from software version: 8 5
Important Safety Information
The X4 ATOM fixture from GLP is fitted with a plano-convex lens. This type
of lens can act as a strong magnifying glass.
If the rays from a strong light source (such as the sun or another lighting
fixture) are directed towards the front of any of these fixtures, then internal
damage may occur. In a worst case scenario with a high power light
source this can happen very quickly, damaging the fixture internally,
potentially melting components or causing an internal fire within seconds.
In order to avoid these possible problems please adhere to the following
requirements:
• Do not expose the front of a fixture to direct sunlight or any other
strong light sources.
• For outdoor applications during daylight make sure that the front
face of any fixture is either shielded or points away from the sun,
even when fixtures are not in use.
• Do not modify the front glass or lens of any fixture.
These requirements have to be followed regardless of whether a fixture is
powered on or off as the magnifying effect is an optical effect and
therefore independent from the (electrical) state of the fixture.
Especially when working with high powered beam-lights; extreme caution
and observance of these safety instructions is mandatory.
Should you have any questions about the operation of your fixture then
please contact your local GLP office, or their authorized distributor, a list
of which can be found at www.glp.de.
