Instruction Manual
From Version 1.23
email: service@glp.de
Internet: http://www.GLP.de
GLP German Light Production (V2.1) 2
GLP German Light Production (V2.1) 3
Contents
1 Introduction.............................................................................................................5
1.1 Safety rules.......................................................................................................6
2 Installation...............................................................................................................7
2.1 Mounting...........................................................................................................7
2.1.1 Clamps...................................................................................................7
2.2 Secure the JJOOYY--330000.........................................................................................7
2.3 Connectors .......................................................................................................7
2.3.1 AC Connectors.......................................................................................7
2.3.2 DMX.......................................................................................................7
2.4 Fuse..................................................................................................................7
3 The Menu Field........................................................................................................8
3.1 Adjust the DMX- Address..................................................................................8
3.2 Read out the Running Time of Lamp and Unit..................................................9
3.2.1 Lamp Time 1..........................................................................................9
3.2.2 Lamp Time 2..........................................................................................9
3.2.3 Life Time ................................................................................................9
3.3 The CODE Level...............................................................................................9
3.4 The Test Level................................................................................................10
3.5 Temperature Control 1....................................................................................10
4 Channel selection (Overview table).....................................................................11
5 Programming the JJOOYY--330000...................................................................................14
5.1 Engage the Program Mode.............................................................................14
5.2 Write a program..............................................................................................14
5.3 Call on the Standalone Program.....................................................................15
6 Change the Lamp..................................................................................................15
6.1 Safety Rules ...................................................................................................15
GLP German Light Production (V2.1) 4
6.2 How to change the lamp.................................................................................15
7 Change the Gobos ................................................................................................16
7.1 Safety Rules ...................................................................................................16
7.2 How to change the Gobos ..............................................................................16
8 Maintenance the JJOOYY--330000.....................................................................................17
8.1 Mirror and Optical System ..............................................................................17
9 Technical Data / Overview....................................................................................18
GLP German Light Production (V2.1) 5
1 Introduction

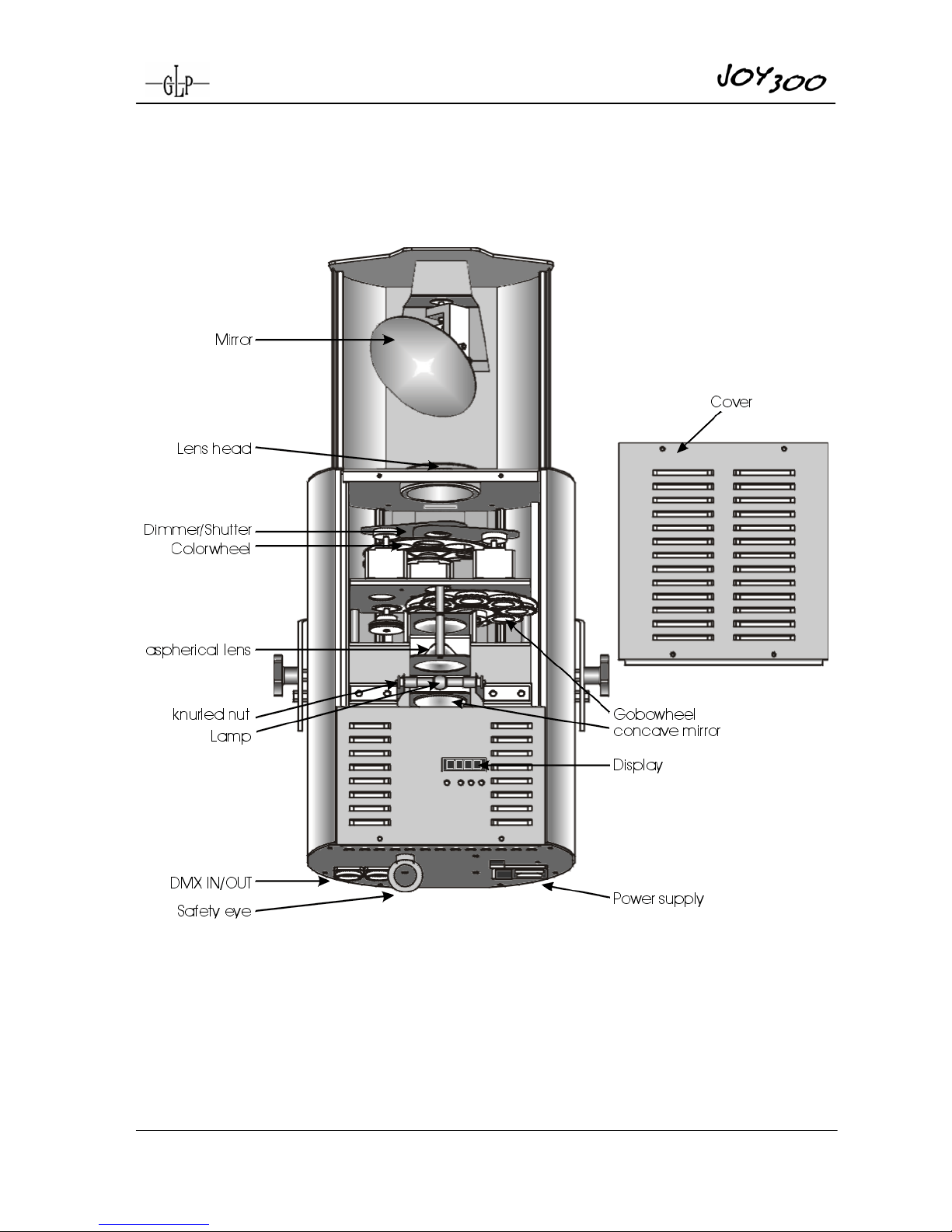

Illustration 1-1
GLP German Light Production (V2.1) 6
1.1 Safety rules
The JJOOYY--330000 is a High-Tech Product. To guarantee a smooth operation, it is
necessary to keep following rules.
1. Make sure that the mirror of the JJOOYY--330000, can move without any mechanical
problems and that all fan openings are clean and not blocked by anything.
2. Touching the mirror while moving can cause serious injuries
3. Unplug the JJOOYY--330000 from the AC outlet before any service
4. It is necessary to wait at least 30 minutes after disconnecting the AC before
you open the JJOOYY--330000 . Please do not touch the Bulb if you are not
absolutely sure it is cold. -Danger of BURNING-
5. The JJOOYY--330000 is provided with a protecting switch which disconnects the
power from the lamp while the cover is opened. Never bridge this
protecting switch it can damage your retina and you can go blind!
6. To allow a secure operation, follow also the Installation guide described in
chapter 2. Operating the JJOOYY--330000 without suited safety aids like Safety
cables or clamps/hooks can increase the risk of an accident.
7. The installation should be done by qualified staff only. You need to pay
attention to the common rules of technology that are not explicit mentioned in
this manual.
GLP German Light Production (V2.1) 7
2 Installation
2.1 Mounting
The JJOOYY--330000 is fully operational whether it hangs or is mounted to the wall.
2.1.1 Clamps
Mount clamps and/or hooks directly to the bow of the JJOOYY--330000.. Please
make sure to use right sized clamps and hooks and fit them securely.
2.2 Secure the JJOOYY--330000
Use always safety wires to secure the JJOOYY--330000, connect them with the eyelet (see
Drawing 1-1) and check the tight fit!
2.3 Connectors
2.3.1 AC Connectors
230 Volt, 50 Hz, 1,8AT (power compensated)
115 Volt, 60 Hz, 3,6AT (power compensated)
Please see printing on the case for the right Powersupply !
2.3.2 DMX
DMX 512 Standard input/output.
[+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 3
Die DMX- Address starts at [001].
Please see printing on the case for the right Pin usage!
2.4 Fuse
The JJOOYY--330000 electronic system is protected by 5x20 T4A fuse 250V.
Please see the printing on the JJOOYY--330000 for more details look at the Drawing 1-1.
Disconnect AC outlet before changing a fuse !!!
GLP German Light Production (V2.1) 8
3 The Menu Field
Menü Cursor Data- Data+
3.1 Adjust the DMX- Address
Right after turning on the JJOOYY--330000 you can see the current DMX- Address.
Choose this as follows:
Count up or down the DMX- Address with the Data + or Data – buttons. After
pushing the Cursor button the upcounting speed increases to a multiple. You can
see that at the three decimal dots. Pushing the Cursor button again to get to the
slow speed.
Confirm the DMX-Address by pressing the Menu key once.
Attention: As long as you see the decimal dot flashing the new address is
not saved.
If there is no DMX- Signal, the d in the display is flashing.
The DMX-Address is stored also while switching off the JJOOYY--330000 !!!
GLP German Light Production (V2.1) 9

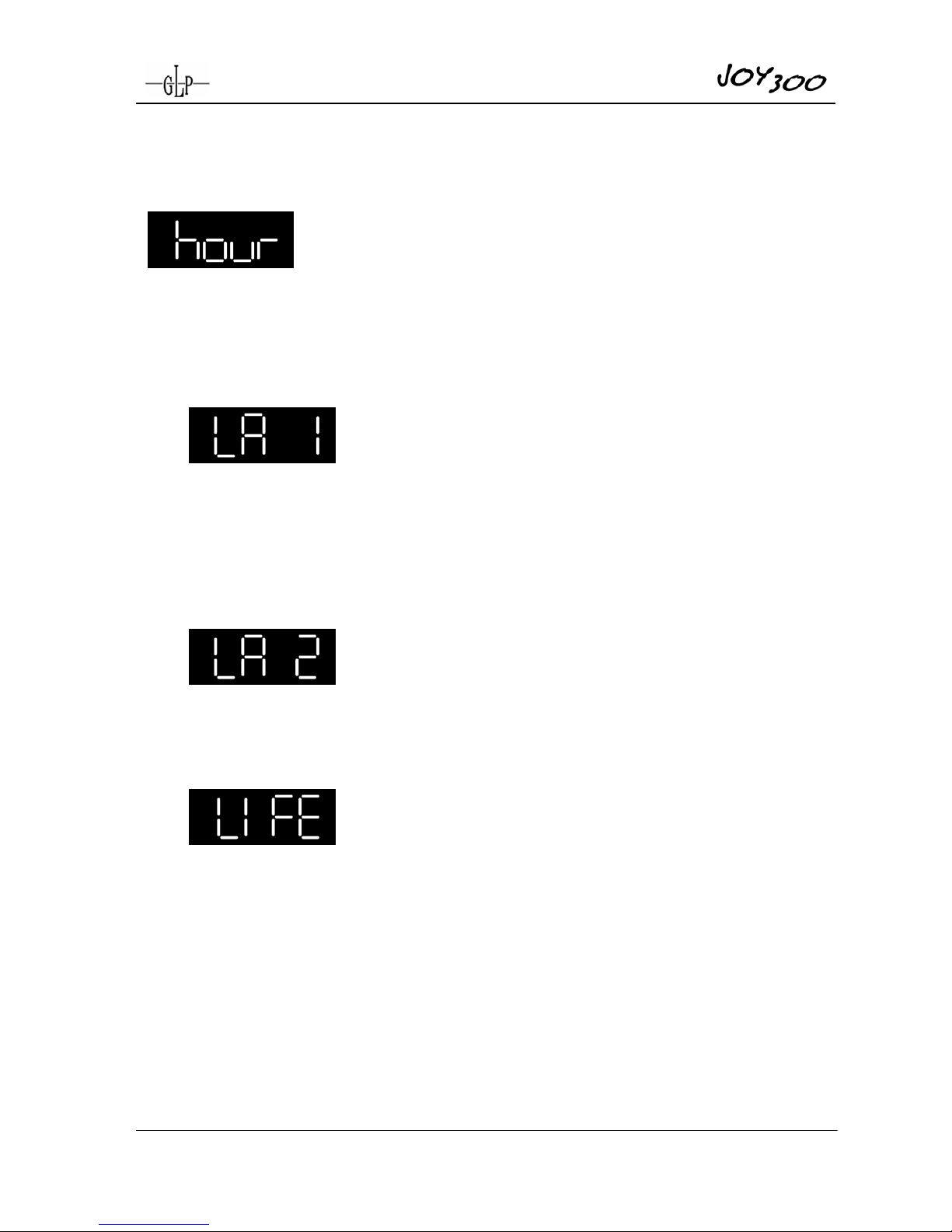

3.2 Read out the Running Time of Lamp and Unit
Select the time level by pressing the Menu key twice.
Select the requested time by pressing the Cursor key,
3.2.1 Lamp Time 1
The current lamp time is shown alternating with LA 1.
This time can be cleared by pressing the Data + and Data – keys at the
same time.
3.2.2 Lamp Time 2
The total lamp time is shown alternating with LA 2. This time can’t cleared.
3.2.3 Life Time
The life time is shown alternating with LIFE.
3.3 The CODE Level
This level is accessed by authorized dealers only.
In this level you can adjust all functions.
GLP German Light Production (V2.1) 10
3.4 The Test Level
The Test Level makes a selftest procedure possible.
Select the Selftest Procedure by pressing the Menu key three times.
Start the Selftest program by pressing the Cursor key. The lamp will be started
automatically and a selftest procedure with 8 steps will run. To leave the selftest
press the Menu key again.
3.5 Temperature Control 1
Deviates the temperature value to much from the system standard, the lamp will
turn off automatically.
Reconnection can only be made by authorized dealers.
GLP German Light Production (V2.1) 11
4 Channel selection (Overview table)
Channel Description DMX Hex Value in %
1) PAN – High
0..170° 0..255 00..FF 0..100
2) PAN – Low
High-Pos .. High-Pos + 0,7° 0..255 00..FF 0..100
3) TILT – High
0..110° 0..255 00..FF 0..100
4) TILT – Low
High-Pos .. High-Pos + 0,59° 0..255 00..FF 0..100
5) Color
Open 0..3 00..03 0..1
Open / Color 1 4..7 04..07 2..3
Color 1 8..11 08..0B 3..4
Color 1 / Color 2 12..15 0C..0F 4..5
Color 2 16..19 10..13 5..7
Color 2 / Color 3 20..23 14..17 8..9
Color 3 24..27 18..1B 9..10
Color 3 / Color 4 28..31 1C..1F 10..11
Color 4 32..35 20..23 12..13
Color 4 / Color 5 36..39 24..27 14..15
Color 5 40..43 28..2B 16..17
Color 5 / Color 6 44..47 2C..2F 17..18
Color 6 48..51 30..33 19..20
Color 6 / Color 7 52..55 34..37 20..21
Color 7 56..59 38..3B 21..22
Color 7 / open 60..63 3C..3F 23..24
Mix Color 1 64..67 40..43 25..26
Mix Color 2 68..71 44..47 26..27
Mix Color 3 72..75 48..4B 28..29
Mix Color 4 76..79 4C..4F 30..31
Mix Color 5 80..83 50..53 32..33
Mix Color 6 84..87 54..57 33..34
Mix Color 7 88..91 58..5B 34..35
Mix Color 8 92..95 5C..5F 36..37
Rot. Color, slow – fast CW 128..191 80..BF 50..75
Rot. Color fast – slow CCW 192..253 C0..FD 76..98
Audio Color-change slow 254 FE 99
Audio Color-change fast 255 FF 100
6) Gobo
Gobo 1 (big spot) 0..15 00..0F 0..6
Gobo 2 16..31 10..1F 7..12
Gobo 3 32..47 20..2F 13..18
Gobo 4 48..63 30..3F 19..24
Gobo 5 64..79 40..4F 25..31
Gobo 6 80..96 50..5F 32..37
Gobo 7 96..127 60..7F 38..50
Rot. Gobo, slow - fast CW 128..191 80..BF 51..75
Rot. Gobo, fast - slow CCW 192..253 C0..FD 76..98
GLP German Light Production (V2.1) 12
Channel Description DMX Hex Value in %
Audio Gobo-change slow 254 FE 99
Audio Gobo-change fast 255 FF 100
7) Shutter
Shutter closed 0..15 00..0F 0..6
Shutterfrequence slow – fast 16..239 10..EF 7..93
Shutter open 240..255 F0..FF 94..100
8) Dimmer
Dimmer closed (0%) 0..15 00..0F 0..6
Dimmer 1%...99% 16..239 10..EF 7..93
Dimmer open (100%) 240..255 F0..FF 94..100
9) Rot. Gobo
Gobo position 0..700° 0..127 00..7F 0..50
Gobo rotation slow - fast CW 128..191 80..BF 51..75
Gobo rotation slow - fast CCW 192..253 C0..FD 76..100
Audio Gobo Rotation slow 254 FE 99
Audio Gobo Rotation fast 255 FF 100
10) Effect
Big spot (open) 0..15 00..0F 0..6
Color 8 16..31 10..1F 7..12
Color 9 32..47 20..2F 13..18
Color 10 48..63 30..3F 19..24
Prism 3 face 64..79 40..4F 25..31
Frostfilter 80..96 50..5F 32..37
Color correction filter 96..111 60..6F 38..43
Prism 5 face 112..127 70..7F 44..50
Audio Prism-change slow 254 FE 99
Audio Prism-change fast 255 FF 100
11) Special
No function 0..15 00..0F 0..6
Gobo-wipe +/- 10° slow - fast 16..31 10..1F 7..12
Gobo-wipe +/- 20° slow - fast 32..47 20..2F 13..18
Gobo-wipe +/- 30° slow - fast 48..63 30..3F 19..24
Color Chaser C / C+1 slow - fast 64..79 40..4F 25..31
Color Chaser C / C+2 slow - fast 80..95 50..5F 32..37
Audio Pan / Tilt slow 96..111 60..6F 38..43
Audio Pan / Tilt fast 112..127 70..7F 44..50
Engage Program - Mode Æ ** 192..207 C0..CF 75..81
Engage Program-Receive-Mode Æ ** 208..223 D0..DF 82..87
Engage Program–Send–Mode Æ ** 224..239 E0..EF 88..93
No Function 240..249 F0..F9 94..97
Reset 250..255 FA..FF 98..100
12) Special
Pan/Tilt relative 0..15 00..0F 0..6
Pan/Tilt slow – fast 16..255 10..FF 7..100
13* Save
Step
x Æ 255 Æ 0, xx Æ FF Æ 00 save programstep
in the Scanner
xx Æ 255
Æ 00
xx Æ FF
Æ 00
xx Æ 100 Æ
00
Call saved programsteps 00..15 00..15 0..6
Set DMX-Values 16..254 10..FE 7..99
14* Next Time
Audio – min. Time 0,4 sec 0..04 0..04 0..2
GLP German Light Production (V2.1) 13
Channel Description DMX Hex Value in %
Next Time in 1/10 sec 5..199 05..C7 3..78
Audio – min. Time 1 sec 200..209 C8..D1 79..82
Audio – min. Time 2 sec 210..219 D2..CB 83..85
Audio – min. Time 3 sec 220..229 DC..E5 86..89
Audio – min. Time 5 sec 230..239 E6..EF 90..93
Audio – min. Time 10 sec 240..255 F0..FF 94..100
15* Step No.
Programstep No. 1 0..7 00..07 0..2
Programstep No. 2 8..15 08..0F 3..5
Programstep No. 3 .... 16..23 10..17 6..9
Programstep No. 25 224..239 F0..F7 87..93
Engage Lern – Mode with channel 11 and
channel 12, 0 Æ 255 Æ 0
240..255 F8..FF 94..100
Lamp ON
Shutter open 240..255 F0..FF 94..100
Lamp OFF
Shutter close and
Special channel 11 and
Speed channel 12
0..15
0...10
XÆ255Æ0
00..0F
0...0A
XÆFFÆ
0
0..6
0...4
XÆ100Æ0
* These channels are only activated in the Program – Mode
** You can activate the Program – Mode either with an DMX controller or direct at the
display of the JJOOYY--330000..
At the scanner choose the function “P” with the Menu key. Than select the Program
– Mode with the Cursor key.
If you use a DMX controller choose one of the Program – Modes with the Special
Channel (No.11). Than engage channel Step No. (No.15) to DMX 255. To save this
mode engage channel Save Step (No.13) from 0Æ255Æ0.
If the Send- or Receive – Mode is engaged the channels 13, 14 and 15 are activated.
GLP German Light Production (V2.1) 14
5 Programming the JJOOYY--330000
You can program the JJOOYY--330000 in a standalone program within 25 steps. This program
can run automatically after turning on the unit. This means you need a DMX Controller
for programming but not for running the stand alone program.
5.1 Engage the Program Mode
Normal - Mode: Receive standard DMX signal.
Receive - Mode: The scanner receives DMX signals for programming and stores
the steps.
Send - Mode: The scanner works stand alone and sends DMX signals to other
scans.
a) Engage at the JJOOYY--330000
Press the Menu key once. P_n_. You are now in the Normal – Mode.
Change with the Cursor key to the Receive – Mode P._r_ or further to the Send
– Mode P._S_
Press the Menu key again to confirm the changes.
b) Engage with a DMX Controller
Look at the channel selection overview table.
5.2 Write a program
You must be in the Receive- or Send – Mode to program the JJOOYY--330000.. In this
mode the DMX Channels 13, 14 and 15 are activated.
Procedure:
1) Activate the Receive- or Send - Mode.
2) Set Channel No.13 to “Set DMX-Values” (DMX 16..254).
3) Choose the programstep with DMX Channel No.15.
4) Set your DMX adjustments with the DMX Channels No.1..12.
5) Choose the Next Time or the Audio control with DMX Channel No.14.
6) Save the step with DMX Channel No.13 xx Æ 255 Æ 00.
7) etc.
GLP German Light Production (V2.1) 15
5.3 Call on the Standalone Program
Engage the Send – Mode at the JJOOYY--330000..
The program starts automatically after turning on the unit. In the display you can
see the Next Time for the following step. At the last step the program will jump
automatically to the beginning of the program.
6 Change the Lamp
For a hassle free change of the Light bulb, it is absolutely necessary to follow all
descriptions in this chapter step by step.
6.1 Safety Rules
• Unplug AC power connection
• Allow to cool (min. 30 minutes)
• Don’t touch lamp with bare fingers.
• Install the lamp with the filler to the right direction.
• Distance between lamp and lens holder must be min. 5mm.
• Close the JJOOYY--330000 before you connect the AC power!
6.2 How to change the lamp
Please look also Illustration 1-1.
1. Open the two screws at the top plate.
2. Open the knurled nut and change the HTI/HMD lamp.
3. Close the JJOOYY--330000 in reverse order.
Attention:
Please make sure that the filler of the lamp is in the right direction.
That means not in direction concave mirror or lenses.
Please close the knurled nuts of the HTI/HMD lamp fast.
GLP German Light Production (V2.1) 16
7 Change the Gobos
The JJOOYY--330000 is fitted with standard Gobos (∅26 mm, picturesize 22mm).
7.1 Safety Rules
• Unplug AC power connection
• Allow to cool (over 30 minutes)
• Don’t touch lamp with bare fingers.
• Close the JJOOYY--330000 before you connect the AC power!
7.2 How to change the Gobos
Please look also Illustration 1-1.
1. Open the two screws at the top plate.
2. Remove the gobosprings with the help of an small screwdriver.
3. Change the Gobo’s and fix them with the gobosprings.
4. Close the JJOOYY--330000 in reverse order.
Do the same with the Effect Wheel.
Attention:
If you use glasgobo’s the mirror - side of the Gobo must align towards the
mirror.
Close the JJOOYY--330000 in reverse order.
GLP German Light Production (V2.1) 17
8 Maintenance the JJOOYY--330000
The cleaning of the inner optical System, color filters, color correction filter and lenses
should be done by qualified person only! Contact your local GLP Dealer for details.
Use no strong detergents, acid etc. for cleaning the case.
8.1 Mirror and Optical System
Clean the JJOOYY--330000 optical system with a moistened cloth and a little cleaner.
Attention:
Never clean the aspharic lens besides the lamp with water or cleaner. Do only
use a clean and dry piece of cloth.
It is necessary to clean the fan openings, air channels and fan gratings on a
regular base (depending on the local environment, about every two weeks).
GLP German Light Production (V2.1) 18
9 Technical Data / Overview
• AC 230V/1,8 AT or AC 115V/3,6 AT
• HTI 300 W/DX Lamp with 750 h lifetime or, HMD 300 W Lamp with 3000 h lifetime
• Power compensated
• DMX 512 Standard
• Weight 16 kg
• Dimensions: 600 x 175 x 265 mm
• 16 Bit Pan/Tilt
• Pan- movement: 170°
• Pan- movement: 110°
• 5 rotating and positioning Gobos
• 1 fixed Gobos
• 3 glass Gobos
• 10 Colors + white
• 10 Halfcolors
• Rainboweffect
• 28 mixed colors
• 2 Prism
• Frostfilter
• Color correction filter
• High Speed Shutter
• Dimmer 0-100%
• Audio controlled
• Programmable up to 25 steps
GLP German Light Production (V2.1) 19
Loading...
